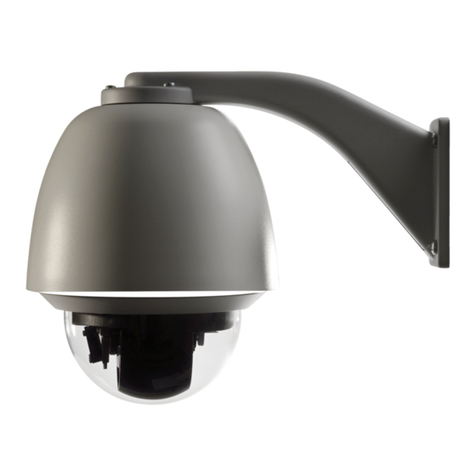

Interlogix TruVision Line User manual

TruVision Outdoor IP
Camera User Manual
P/N 1072587B-EN • REV 1.0 • ISS 17JAN13

Copyright
©
2013 UTC Fire & Security Americas Corporation, Inc.
Interlogix is part of UTC Climate Controls & Security, a unit of United
Technologies
Corporation. All rights reserved.
Trademarks and
patents
T
he TruVision and Interlogix names and logos are trademarks of
United Technologies.
Other trade names used in this document may be trademarks or
registered trademarks of the manufacturers or vendors of the
respec
tive products.
Manufacturer
UTC Fire & Security Americas Corporation, Inc.
2955 Red Hill Avenue, Costa Mesa, CA 92626
-5923, USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
Certification
N4131
FCC compliance
Class B:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. T
his
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
There is no guarantee that interference will not occur in a pa
rticular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the followin
g measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for
help.
European Union
directives
1
2004/108/EC (EMC directive): Hereby, UTC Fire & Security
declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive
2004/108/E
C.
2002/96/EC (WEEE directive):
Products marked with this symbol
cannot be disposed of as unsorted municipal waste in the European
Union. For proper recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or
dispose of it at
designated collection points. For more information see:
www.recyclethis.info.
Contact information
For contact information
, see www.interlogix.com or
www.utcfssecurityproducts.eu
.
Customer suppor
t
ww
w.interlogix.com/customer-support

TruVision Outdoor IP Camera User Manual i
Content
Chapter 1 Introduction 1
Product overview 1
Features 1
Chapter 2 Installation 3
Installation environment 3
Package contents 4
Cable requirements 4
Camera descriptions 5
Setting up the camera 6
Connecting the devices 6
Accessing the SDHC card 7
Mounting the dome cameras on a ceiling 8
Mounting the bullet camera 12
Using the camera with TVR 60/ TVN 20/ TVN 40/ LNVR and other
systems 12
Using the camera with TruVision Navigator 13
Chapter 3 Network and streaming configuration 15
Checking your web browser security level 15
Accessing the camera over the internet 17
Overview of the camera web browser 18
Configuring the camera’s network settings 19
Information about the camera 22
Network parameters 22
Chapter 4 Camera configuration 25
Camera parameters 25
Defining how information is displayed 26
Defining the system time 27
Alarm parameters 28
Events scheduling 28
Defining recording parameters 29
Motion detection alarms 31
Adding extra on-screen text 33
Configuring the video image 34
Chapter 5 Camera management 37
User management 37
Formatting the SDHC card 39
Restoring default settings 40
Upgrading the firmware 40
Rebooting the camera 41

ii TruVision Outdoor IP Camera User Manual
Chapter 6 Camera operation 43
Logging on and off 43
Live view mode 43
Playing back recorded video 44
Searching event logs 46
Archiving recorded files 48
Controlling zoom and focus 49
Appendix A Specifications 51
TruVision outdoor IP dome cameras 51
TruVision outdoor IP bullet cameras 52
Appendix B Pin definitions 53
Index 55

TruVision Outdoor IP Camera User Manual 1
Chapter 1
Introduction
Product overview
This is the user manual for TruVision Outdoor IP camera models:
TVC-N225E-2M-N(-P) (IP bullet camera)
TVC-M1245E-2M-N(-P) (1.3MPX WDR bullet camera)
TVD-N225E-2M-N(-P) (IP dome camera)
TVD-M1245E-2M-N(-P) (1.3MPX WDR dome camera)
Features
This section describes the camera features.
Supports TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTCP, PPPoE, SMTP,
NTP protocols
Programming and setup through a browser interface
Live viewing over the network
50/60 Hz selectable flicker control
120dB Wide Dynamic Range (WDR models only)
Motorized lens with zoom function
Auto focus
Supports remote upgrades and maintenance
H.264 video compression with dual capability
Supports HD (1.3MPX models), CIF, VGA, QCIF
IP66 weather proof
SDHC card for local storage (dome cameras only)
Designed to ONVIF and PSIA open standards

0BChapter 1: Introduction
2 TruVision Outdoor IP Camera User Manual

TruVision Outdoor IP Camera User Manual 3
Chapter 2
Installation
This chapter provides information on how to install the TruVision Outdoor IP
dome and bullet cameras.
Installation environment
When installing your product, consider these factors:
• Electrical: Install electrical wiring carefully. It should be done by qualified
service personnel. Always use a proper PoE switch or a 12 VDC UL listed
Class 2 or CE certified power supply to power the the bullet camera, and a
proper PoE / PoE+ switch or a 24 VAC UL listed Class 2 or CE certified
power supply to power the dome camera. Do not overload the power cord or
adapter.
• Ventilation: Ensure that the location planned for the installation of the
camera is well ventilated.
• Temperature: Do not operate the camera beyond the specified temperature,
humidity or power source ratings. The operating temperature of the bullet
camera is between -10 to +60°C (14°F to 140°F) and outdoor dome is
between -40 to +60 °C (-40 to +140 °F) with the heater and fan on. Humidity
is below 90%.
• Moisture:Do not expose the camera to rain or moisture, or try to operate it in
wet areas. Turn the power off immediately if the camera is wet and ask a
qualified service person for servicing. Moisture can damage the camera and
also create the danger of electric shock.
• Servicing: Do not attempt to service this camera yourself. Any attempt to
dismantle or remove the covers from this product will invalidate the warranty
and may also result in serious injury. Refer all servicing to qualified service
personnel.
• Cleaning: Do not touch the sensor modules with fingers. If cleaning is
necessary, use a clean cloth with a some ethanol and wipe the camera
gently. If the camera will not be used for an extended period of time, put on
the lens cap to protect the sensors from dirt.

1BChapter 2: Installation
4 TruVision Outdoor IP Camera User Manual
Package contents
Check the package and contents for visible damage. If any components are
damaged or missing, do not attempt to use the unit; contact the supplier
immediately. If the unit is returned, it must be shipped back in its original
packaging.
Package contents:
•Camera
•Hex wrench
•Video cable for testing (except bullet cameras)
•Quick start guide
•CD with user manual and TruVision Device Finder.
CAUTION: Use direct plug-in UL listed power supplies marked Class 2/CE
certified or LPS (limited power source) of the required output rating as listed on
the unit.
Cable requirements
For proper operation, adhere to the following cable and power requirements for
the cameras. Category 5 cabling or better is recommended. All network cabling
must be installed according to applicable codes and regulations.
Table 1 below lists the requirements for the power cables that connect to the
camera.
Table 1: Recommended power cable requirements
Bullet camera:
12 VDC power jack
Dome camera:
24 VAC power jack

1BChapter 2: Installation
TruVision Outdoor IP Camera User Manual 5
Camera descriptions
Figure 1: Outdoor IP dome camera
1. Video output interface
2. LINK LED: The yellow LED is lit when the
network is connected.
3. ACT LED: The blue LED blinks when the
network is correctly functioning.
4. PWR LED: The red LED is lit when the
camera is powered up.
5. Micro SD slot
6. Reset switch.
Figure 2: Outdoor IP bullet camera
Sun shield
Mounting bracket
Safety cable
Threaded knockout for cable access

1BChapter 2: Installation
6 TruVision Outdoor IP Camera User Manual
Setting up the camera
Note: If the light source where the camera is installed experiences rapid, wide-
variations in lighting, the camera may not operate as intended.
To quickly put the dome camera into operation:
1. Prepare the mounting surface.
2. Connect the power and network cables to the camera. See “Connecting the
devices” on page 6.
3. Mount the camera to the ceiling using the appropriate fasteners. See
“Mounting the dome cameras on a ceiling” on page 8.
4. Set up the camera’s network and streaming parameters so that the camera
can be controlled over the network. See “Chapter 3 Network and streaming
configuration” on page 15.
5. Program the camera to suit its location. See “Chapter 4 Camera
configuration” on page 25.
To quickly put the bullet camera into operation:
1. Prepare the mounting surface.
2. Connect the power and network cables to the camera. See “Connecting the
devices” on page 6.
3. Mount the camera to the ceiling using the appropriate fasteners. See
Mounting the bullet camera” on page 8.
4. Set up the camera’s network and streaming parameters so that the camera
can be controlled over the network. See “Chapter 3 Network and streaming
configuration” on page 15.
5. Program the camera to suit its location. See “Chapter 4 Camera
configuration” on page 25.
Connecting the devices
A qualified service person, complying with all applicable codes, should perform
all required hardware installation.

1BChapter 2: Installation
TruVision Outdoor IP Camera User Manual 7
Note: Do not attempt to extend the power/data cable connection using RJ45
couplers and Cat5 cable. Only use the data cable connection provided.
Note: Use 24 VAC or PoE/PoE+. The built-in heater requires the camera to be
powered by 24 VAC or PoE+ in order to operate. When powered by standard
PoE, the heater is disabled but the camera still functions normally.
Figure 3: Connections on the base of the dome cameras
1. Power supply
Connect +24 VAC power supply.
2. Ethernet RJ45 PoE port
Connect to network devices.
Figure 4: Connections of the bullet cameras
1. Power supply
Connect +12 VDC power supply.
2. Ethernet RJ45 PoE port
Connect to network devices.
Accessing the SDHC card
Insert an SDHC card up to 32GB for local storage as a backup in case the
network fails, for example (see Figure 1 on page 5). The card is not supplied with
the camera.
Video and log files stored on the SDHC card can only be accessed via the Web
browser. You cannot access the card using TruVision Navigator or a recording
device.

1BChapter 2: Installation
8 TruVision Outdoor IP Camera User Manual
Note: There is no SDHC card slot in the bullet cameras.
Mounting the dome cameras on a ceiling
Mount the dome camera on a ceiling or wall.
To mount the dome on a ceiling:
1. Use the supplied template to mark out the mounting area. Drill the screw
holes on the ceiling. If you need to route the cables from the camera base, cut
a cable hole in the ceiling.
Cable hole
2. Secure the housing to the ceiling with screws.
3. Loosen the screws on the dome enclosure (1) using the supplied hex wrench
and remove the enclosure and the dome liner (2).

1BChapter 2: Installation
TruVision Outdoor IP Camera User Manual 9
4. Insert the dome module into the housing and pull the camera’s cables through
the threaded knockout on the base of the housing.
Note: The cables can also be passed through the threaded side knockout of
the housing. Use a waterproof conduit for the cables and seal all joints to
ensure so that no moisture can leak into the mounting surface.
Side knockout
5. Connect the network and power cables.
6. While viewing the video on the monitor, adjust horizontally and vertically the
camera pan and tilt. Adjust the lens focus to get optimal video effect.

1BChapter 2: Installation
10 TruVision Outdoor IP Camera User Manual
Pan
Lock screw
Rotate
Tilt
7. Reattach the dome liner and enclosure.
To mount the dome on a wall:
1. Use the supplied template to mark out the mounting area. Drill the screw
holes on the wall. If you need to route the cables from the camera base, cut a
cable hole in the wall.
Cable hole
2. Secure the housing to the wall with screws.
Note: Position the threaded side knockout facing downwards to prevent
moisture from entering the camera.

1BChapter 2: Installation
TruVision Outdoor IP Camera User Manual 11
3. Loosen the screws on the dome enclosure (1) using the supplied hex wrench
and remove the enclosure and the dome liner (2).
4. Insert the dome module into the housing and pull the camera’s cables through
the threaded knockout on the base of the housing.
Note: The cables can also be passed through the threaded side knockout of
the housing. Use a waterproof conduit for the cables and seal all joints to
ensure so that no moisture can leak into the mounting surface.
5. While viewing the video on the monitor, adjust horizontally and vertically the
camera pan and tilt. Adjust the lens focus to get optimal video effect.

1BChapter 2: Installation
12 TruVision Outdoor IP Camera User Manual
Pan
Lock screw
Rotate
Tilt
6. Reattach the dome liner and enclosure.
Mounting the bullet camera
Mount the bullet camera on a ceiling or wall.
To mount the camera on a ceiling:
1. Using the mounting bracket as a template, place it level against the mounting
surface and mark the position of the mounting holes.
2. Following all local codes, drill and prepare the mounting holes.
3. Securely fasten the mount to the mounting surface with the appropriate
fasteners. Clip the camera’s safety cable to the building’s superstructure for
security.
4. If needed, seal all mounting holes so that no moisture can leak into the
mounting surface.
5. Connect a Cat5e cable to the network cable, and connect a 12 VDC power
supply to the power cable.
6. Adjust the camera position and angle as required.
Using the camera with TVR 60/ TVN 20/
TVN 40/ LNVR and other systems
Please refer to the head-end user manuals for instructions on connecting and
operating the camera with these systems.

1BChapter 2: Installation
TruVision Outdoor IP Camera User Manual 13
Using the camera with TruVision Navigator
A camera must be connected to a TVR 60/ TVN 20/ TVN 40 in order to be
operated by TruVision Navigator. Please refer to the TruVision Navigator user
manual for instructions on operating the camera with the TruVision Navigator.

1BChapter 2: Installation
14 TruVision Outdoor IP Camera User Manual

TruVision Outdoor IP Camera User Manual 15
Chapter 3
Network and streaming
configuration
This chapter explains how to configure the camera network settings.
The cameras can be configured and controlled using Microsoft Internet Explorer
(IE). The procedures described use Microsoft Internet Explorer (IE) web browser.
You must have administrator rights on your PC in order to configure the cameras
over the internet.
Checking your web browser security level
When using the web browser interface, you can install ActiveX controls to
connect and view video using Internet Explorer. However, you cannot download
data, such as video and images due to the increased security measure.
Consequently you should check the security level of your PC so that you are able
to interact with the cameras over the Web and, if necessary, modify the Active X
settings.
Configuring IE ActiveX controls
You should confirm the ActiveX settings of your web browser.
To change the web browser’s security level:
1. In Internet Explorer click Internet Options on the Tools menu.
2. On the Security tab, click the zone to which you want to assign a web site
under “Select a web content zone to specify its security settings”.
3. Click Custom Level.

2BChapter 3: Network and streaming configuring
16 TruVision Outdoor IP Camera User Manual
4. Change the ActiveX controls and plug-ins options that are signed or
marked as safe to Enable. Change the ActiveX controls and plug-ins
options that are unsigned to Prompt or Disable. Click OK.
- or -
Under Reset Custom Settings, click the security level for the whole zone in
the Reset To box, and select Medium. Click Reset.
Then click OK to the Internet Options Security tab screen.
5. Click Apply in the Internet Options Security tab screen.
Windows Vista and 7 users
Internet Explorer for Windows Vista and Windows 7 operating systems have
increased security measures to protect your PC from any malicious software
being installed.
To have complete functionality of the Web browser interface with Windows Vista
and Windows 7, do the following:
