Interlogix IFS MC352-4P-2S User manual

IFS MC352-4P-2S User
Manual
P/N 1072702 • REV A • ISS 22OCT13

- 2 -
Copyright © 2013 United Technologies Corporation
Interlogix is part of UTC Climate Controls & Security, a unit of United
Technologies Corporation. All rights reserved.
Trademarks and
patents The IFS MC352-4P-2S name and logo are trademarks of United Technologies.
Other trade names used in this document may be trademarks or
registered trademarks of the manufacturers or vendors of the
respective products.
Manufacture
r
Interlogix
3211 Progress Drive, Lincolnton, NC 28092 USA
Authorized EU manufacturing representative:
UTCClimateControls&SecurityB.V.,
Kelvinstraat 7, 6003 DH Weert, Netherlands
Intended use Use this product only for the purpose it was designed for; refer to the
data sheet and user documentation for details. For the latest product
information, contact your local supplier or visit us online at
www.interlogix.com.
Certification
N4131
FCC compliance This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications.
You are cautioned that any changes or modifications not expressly
approved by the party responsible for compliance could void the
user's authority to operate the equipment.
ACMA compliance Notice! This is a Class A product. In a domestic environment this
product may cause radio interference in which case the user may be
required to take adequate measures.
Canada This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme á la norme
NMB-003du Canada.
European Union
directives
2004/108/EC (EMC Directive): Hereby, UTC Climate Controls &
Security Corporation, Inc. declares that this device is in compliance
with the essential requirements and other relevant provisions of
Directive 2004/108/EC.
Contact Information For contact information, see www.interlogix.com or
www.utcfssecurityproducts.eu.

- 3 -
TABLE OF CONTENTS
1. INTRODUCTION 4
1.1 PACKAGE CONTENTS ..........................................................................................................................4
1.2 HOW TO USE THIS MANUAL .................................................................................................................4
1.3 PRODUCT FEATURES ..........................................................................................................................5
1.4 PRODUCT SPECIFICATIONS..................................................................................................................6
1.5 PHYSICAL DIMENSIONS .......................................................................................................................7
2. INSTALLATION 9
2.1 PRODUCT DESCRIPTION ......................................................................................................................9
2.1.2 Switch Front Panel..................................................................................................................10
2.1.3 LED Indicators ........................................................................................................................11
2.1.4 Switch Upper Panel ................................................................................................................12

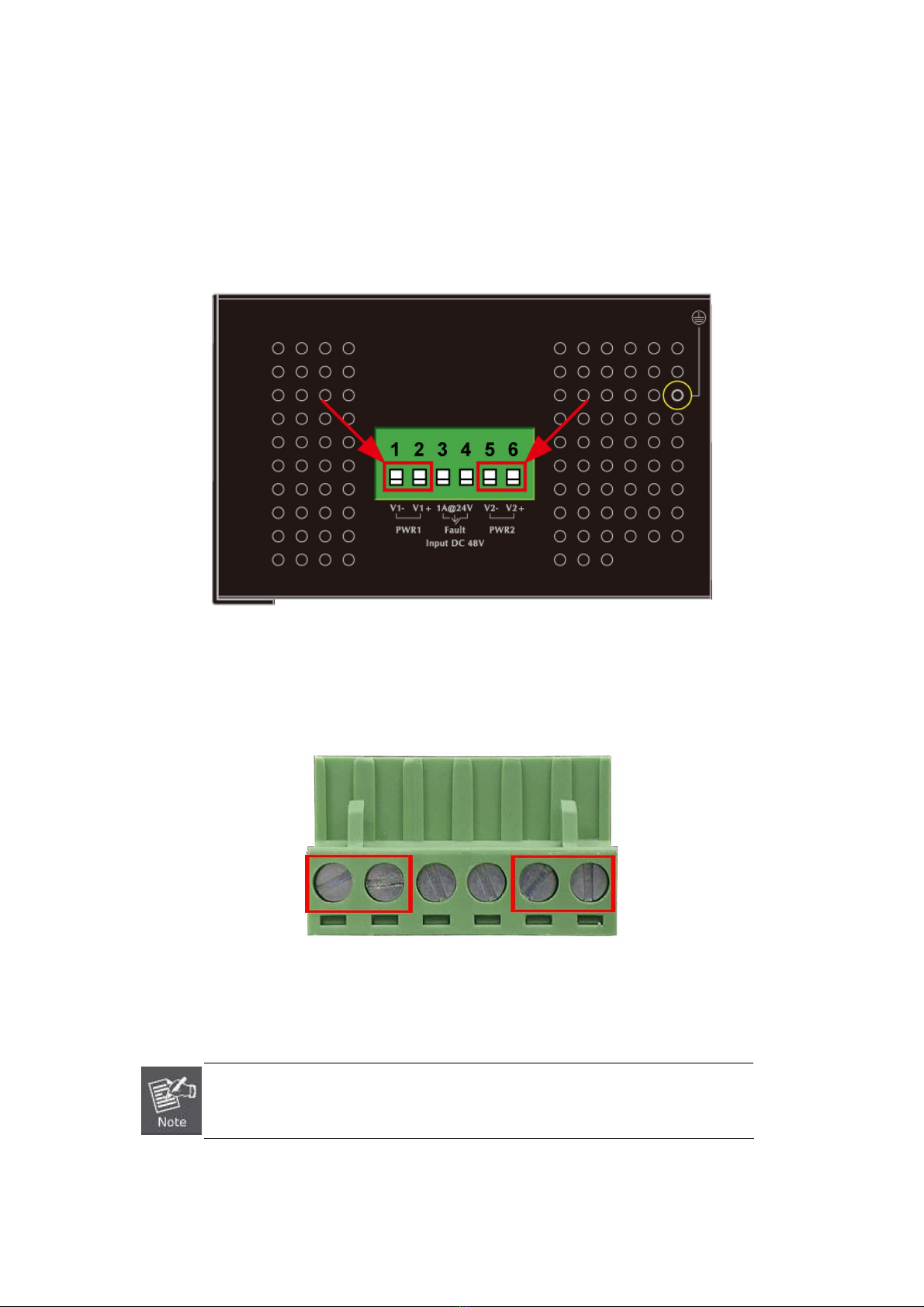

2.1.5 Wiring the Power Inputs..........................................................................................................13
2.1.6 Wiring the Fault Alarm Contact ...............................................................................................14
2.1.7 Cabling....................................................................................................................................15

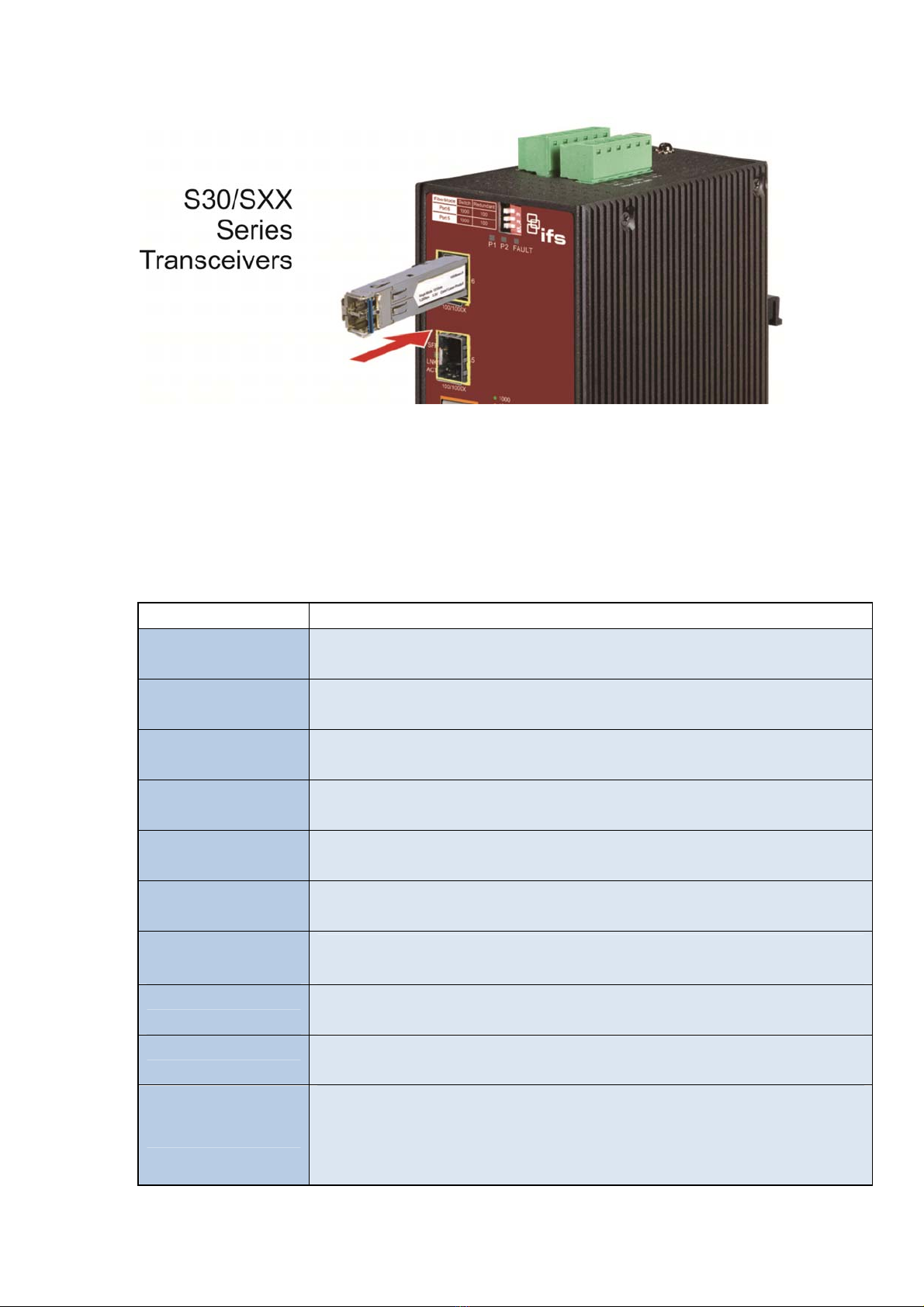

2.1.7.1 Installing the SFP transceiver ..............................................................................................15
2.1.7 Redundancy Overview............................................................................................................19
2.2 MOUNTING INSTALLATION ..................................................................................................................20

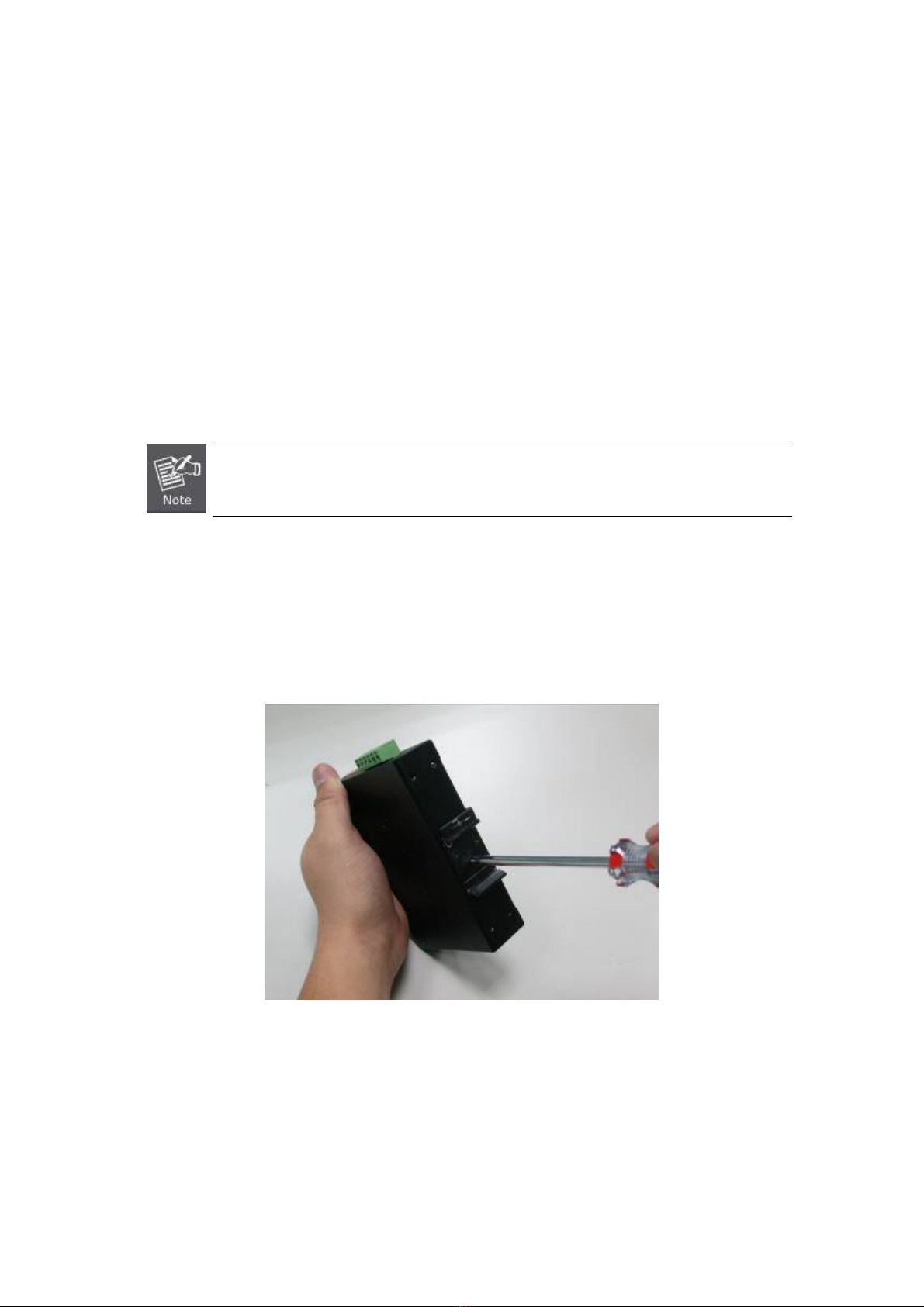

2.2.1 DIN-Rail mounting...................................................................................................................20
2.2.2 Wall Mount Plate Mounting .....................................................................................................22
3. APPLICAITON 23
4. SWITCH OPERATION 25
4.1 ADDRESS TABLE ..............................................................................................................................25
4.2 LEARNING ........................................................................................................................................25
4.3 FORWARDING &FILTERING................................................................................................................25
4.4 STORE-AND-FORWARD .....................................................................................................................25
4.5 AUTO-NEGOTIATION .........................................................................................................................26
5. TROUBLESHOOTING 27
6. CABLE CONNECTION PARAMETERS 28
APPENDIX A: NETWORKING CONNECTION 29
A.1 SWITCH’S RJ-45 PIN ASSIGNMENTS ..................................................................................................29
A.2 RJ-45 CABLE PIN ASSIGNMENTS .......................................................................................................30

- 4 -
1. Introduction
Thank you for purchasing IFS Layer 2 Industrial Gigabit Switch with 4-Port 802.3at PoE+, The
MC352-4P-2S descriptions of these models are as follows:
MC352-4P-2S : Industrial 4-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet
Switch (-40~75 Degree C)
In the following section, the term “Industrial Gigabit PoE+ Switch” means the MC352-4P-2S.
1.1 Package Contents
Open the box of the Industrial Gigabit PoE+ Switch and carefully unpack it. The box should contain the
following items:
● Industrial Gigabit PoE+ Switch x 1
● User's Manual x 1
● DIN Rail Kit x 1
● Wall Mount Kit x 1
If any of these are missing or damaged, please contact your dealer immediately; if possible, retain the
carton including the original packing material, and use them again to repack the product in case there is a
need to return it to us for repair.
1.2 How to Use This Manual
This Industrial Gigabit PoE+ Switch User Manual is structured as follows:
Chapter 2 Installation
The chapter explains the feature, functionality and the physical installation of the Industrial Gigabit
PoE+ Switch.
Chapter 3 Application
The chapter explains the Industrial Gigabit PoE+ Switch application.
Chapter 4 Switch operation
The chapter explains the Industrial Gigabit PoE+ Switch transmit operation.
Chapter 5 Troubleshooting
The chapter explains the troubleshooting of the Industrial Gigabit PoE+ Switch.
Chapter 6 Cable Connection Parameters
The chapter contains the cable connection parameters of the Industrial Gigabit PoE+ Switch.
Appendix A
This chapter contains cable information of the Industrial Gigabit PoE+ Switch.

- 5 -
1.3 Product Features
Physical Port
MC352-4P-2S 4-Port 10/100/1000Base-T RJ-45 with IEEE 802.3af/802.3at PoE+ Injector
2 SFP interfaces, 100/1000Base-X dual mode (DIP switch control)
Power over Ethernet
Complies with IEEE 802.3af/IEEE 802.3at Power over Ethernet Plus End-Span PSE
Up to 4 IEEE 802.3af/802.3at devices powered
Supports PoE Power up to 30.8 watts for each PoE ports
Provides DC 52V power over RJ-45 Ethernet cable to PD with Ethernet port
Auto-detection of IEEE 802.3af/at equipment and protects devices from being damaged by
incorrect installation
Remote power feeding up to 100m
Layer 2 Features
Supports Auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode
Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow
control (Full-Duplex)
Automatic address learning and address aging
Industrial Case/Installation
IP30 aluminum metal case protection
DIN Rail and Wall Mount Design
48V DC redundant power with polarity reverse protect function and connective removable
terminal block for master and slave power
Supports EFT protection 6000 VDC for power line
Supports 6000 VDC Ethernet ESD protection
-40 to 75 Degree C operating temperature

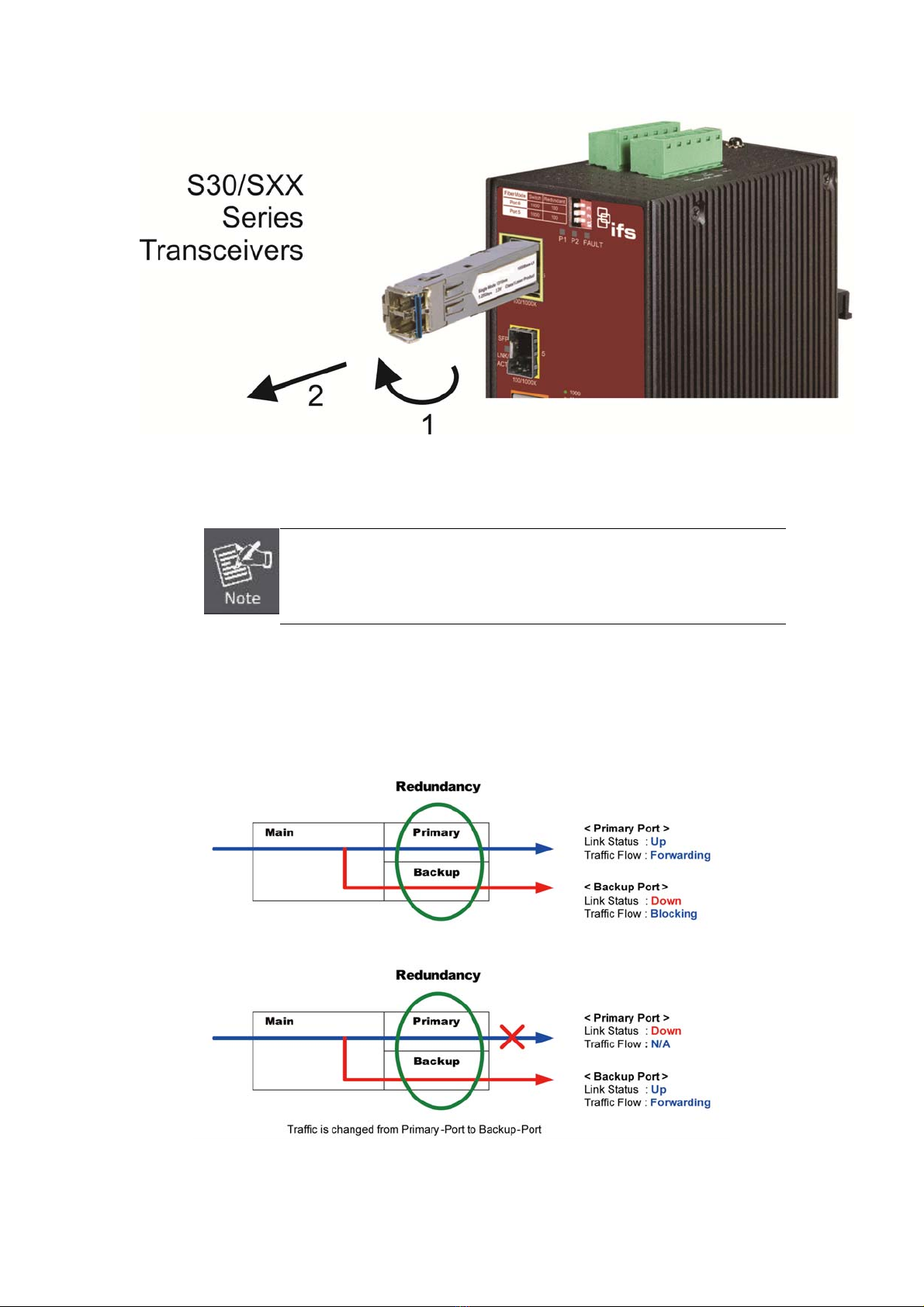

Fiber Port Redundancy
Dual SFP Ports Auto Link Redundant Mode Support
Link status auto-detect and redundant on Dual ports with same connector type
Only Primary-Port is active at a time, the Backup-Port is blocked
While Primary-Port link fail occurrences, the traffic swaps to Backup-Port automatically
Once the Primary-Port status backs to link up, the traffic swaps from Backup-Port to
Primary-Port

- 6 -
1.4 Product Specifications
Model MC352-4P-2S
Hardware Specification
Copper Ports 4 x 10/100/1000Base-T RJ-45 TP
Auto-MDI/MDI-X, Auto-negotiation
SFP / mini-GBIC Slots
2 x SFP interfaces support 1000Base-SX/LX and 100Base-FX SFP transceivers
DIP Switch
DIP-1: SFP Port 5 1000Base-X (default) / 100Base-FX
DIP-2: SFP Port 6 1000Base-X (default) / 100Base-FX
DIP-3 : Switch (default) / Fiber Redundant mode
Connector Terminal Block

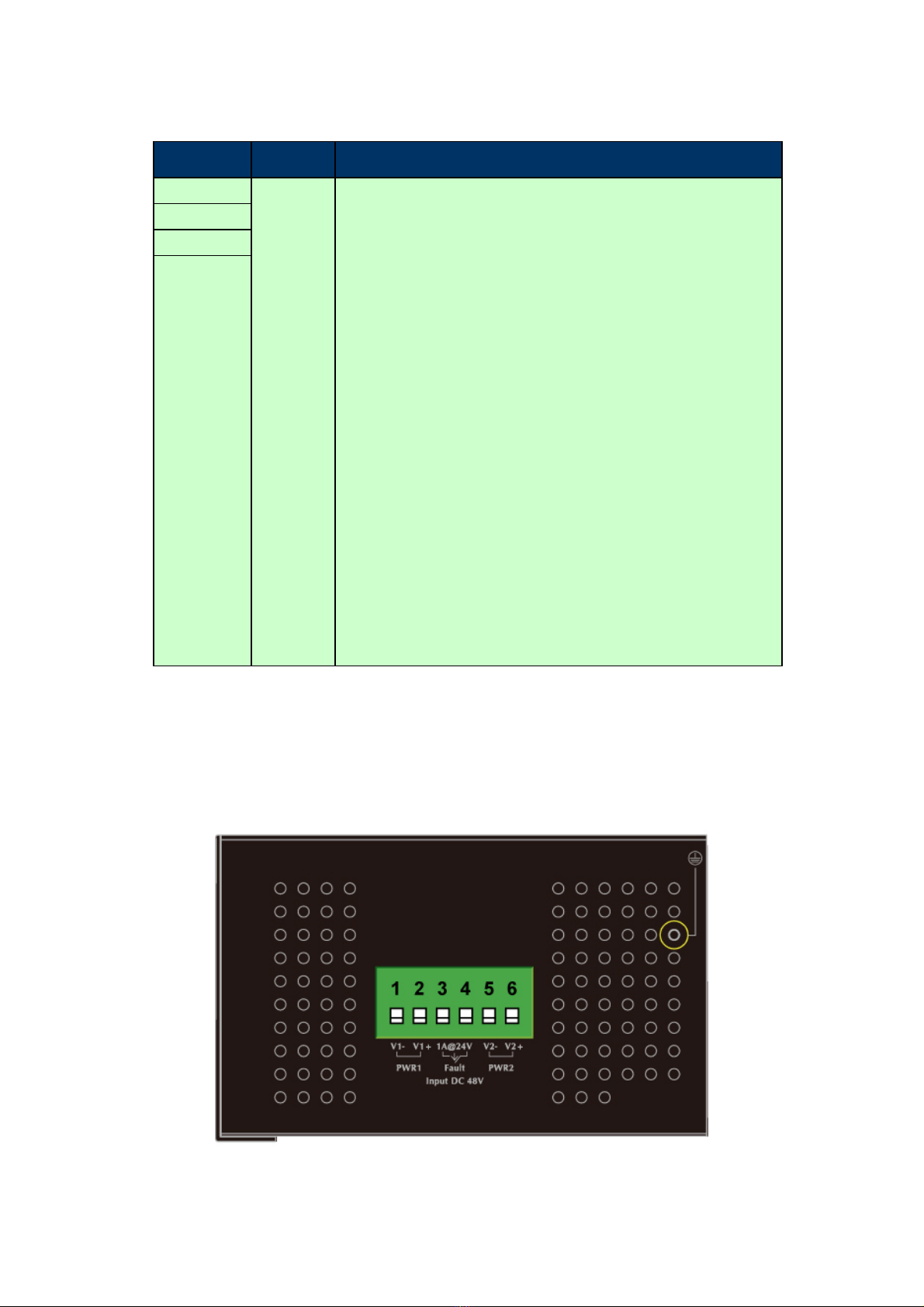

Pin 1 & 2 for Power 1; Pin 3 & 4 for alarm; Pin 5 & 6 for Power 2
Alarm Provides one relay output for power fail
Alarm Relay current carry ability: 1A @ DC 24V
LED
3x LED for System and Power:
Green: DC Power 1
Green: DC Power 2
Green: Power Fault
2 x LED for Per Copper Port (Port-1~Port-4):
Green: 1000 LNK/ACT, Orange:100 LNK/ACT
Orange: PoE In-use
1 x LED for Per mini-GBIC interface (MC352-4P-2SPort-5 and Port-6):
Green: LNK/ACT
4 x LED for PoE Power Usage (W)
Orange: 30, 60, 90 and 120W
ESD Protection 6KV DC
EFT Protection 6KV DC
Enclosure IP30 type metal case
Installation DIN rail kit and wall mount ear
Dimensions (W x D x H) 152 x 107 x 72 mm
Weight 1539g
Power Requirement 48V DC, 5A max.
Redundant power with polarity reverse protection
Power Consumption/
Dissipation
135.1 watts / 451 BTU
Twisted-Pair 10Base-T: 2-Pair UTP CAT. 3,4,5, up to 100 meter
100Base-TX: 2-Pair UTP CAT. 5, 5e up to 100 meter
1000Base-T: 4-Pair UTP CAT. 5e,6 up to 100 meter
Cable
Fiber-Optic Cable

- 7 -
Switch Specification
Switch Processing Scheme Store-and-Forward
Address Table 1K entries
Flow Control Back pressure for half duplex
IEEE 802.3x Pause Frame for full duplex
Switch fabric 12Gbps
Throughput
(packet per second)
8.93Mpps@64bytes
Maximum Transmit Unit 9216 bytes
Speed
TP: 10/20Mbps, 100/200Mbps, 2000Mbps
SX/LX: 2000Mbps (Full-duplex)
FX: 200Mbps (Full-duplex)
Power over Ethernet
PoE Standard IEEE 802.3af/IEEE 802.3at Power over Ethernet/PSE
PoE Power Supply Type End-Span
PoE Power Output Per port 52V DC, 275mA. Max. 15.4 watts (IEEE 802.3af)
Per port 52V DC, 535mA. Max. 30 watts (IEEE 802.3at)
Power Pin Assignment 1/2(+), 3/6(-)
Max. number of Class 4 PD 4
Standards Conformance
Standards Compliance
IEEE 802.3 Ethernet/10Base-T
IEEE 802.3u Fast Ethernet/100Base-TX
IEEE 802.3ab Gigabit Ethernet/1000Base-T
IEEE 802.3z Gigabit Ethernet/1000Base-SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Environment
Temperature Operating: -40~75 Degree C
Storage: -40~75 Degree C
Humidity Operating: 5~95% (Non-condensing)
Storage: 5~95% (Non-condensing)

- 8 -
1.5 Physical Dimensions
MC352-4P-2S Industrial Gigabit PoE+ Switch dimensions(W x D x H): 161 x 107 x 72 mm

- 9 -
2. Installation
This section describes the functionalities of the Industrial Gigabit PoE+ Switch’s components and guides
how to install it on the desktop. Basic knowledge of networking is assumed. Please read this chapter
completely before continuing.
2.1 Product Description
High Power PoE for Security and Public Service Applications
To fulfill the demand of High Power PoE for network applications with Gigabit speed transmission under
wide temperature, the MC352-4P-2S provide 4 10/100/1000Mbps ports featuring both IEEE 802.3af and
IEEE 802.3at Power over Ethernet Plus (PoE+) that combine up to 30-watt power output and data per
port over one Cat.5E / 6 Ethernet cable.
With a total of up to 120 watts of PoE output capability, the MC352-4P-2S is designed specifically to
satisfy the growing demand of higher power consuming network PDs (powered devices) such as PTZ
(Pan, Tilt & Zoom) speed dome network cameras, multi-channel (802.11a / b / g / n) wireless LAN access
points and other PoE network devices by providing double PoE power, rather than the current
conventional 802.3af PoE.
Environmentally Hardened Design
The MC352-4P-2S is equipped with rugged IP30 metal case for easy deployment in heavy Industrial
demanding environments. With IP30 metal case protection, the MC352-4P-2S provide a high level of
immunity against electromagnetic interference and heavy electrical surges which are usually found on
plant floors or in curb side traffic control cabinets. Being able to operate in the temperature range from
-40 to 75 Degree C, the MC352-4P-2S can be placed in almost any difficult environment. The
MC352-4P-2S allows either DIN rail or wall mounting for efficient use of cabinet space.
Adjustable 6-Port Switch Mode or 4 + 2 Fiber Redundant Mode
Via the built-in DIP switch, the MC352-4P-2S can be configured as 6-Port Ethernet switch or 4+2 fiber
redundant mode. With the 6-port switch mode, the MC352-4P-2S can operate in Store-and-Forward
mechanism with high performance; on the other hand, when in the 4+2 fiber redundant mode, it provides
rapid fiber redundancy of link for highly critical Ethernet applications. The redundant-mode also supports
auto-recovering function, if the destination port of a packet is link down, it will forward the packet to the
other port of the backup pair.

- 10 -
2.1.1 Switch Front Panel
Figure 2-1 shows the front panels of MC352-4P-2S Industrial Gigabit PoE+ Switches.
Figure 2-1: MC352-4P-2S Front Panels
PoE Power Usage LED
The front panel of the Industrial Gigabit PoE+ Switch has four LEDs which indicate “PoE Power Usages
(W)” of 30W, 60W, 90W and 120W. With these LED indications, you can monitor current PoE power in
use status of Industrial Gigabit PoE+ Switch easily and efficiently.

- 11 -
DIP Switch
The front panel of the MC352-4P-2Sprovides one 3-DIP Switch which is for configuring 100 or 1000X
fiber support and fiber redundant function.
Refer to the table below to know about the 3-DIP switch settings and descriptions:
For more information about the fiber redundancy function, please refer to the chapter 2.1.7 Redundancy
Overview.
2.1.3 LED Indicators
System
LED Color Function
P1 Green Light: indicates the power 1 has power.
P2 Green Light: indicates the power 2 has power.
FAULT Green Light: indicates the either power 1 or power 2 has no power.
10/100/1000Base-T Interfaces
LED Color Function
Light: indicates the Switch is successfully connecting to the network
at 1000Mbps.
Blink: indicates that the Switch is actively sending or receiving data
over that port.
Green
OFF: indicates that the Switch is inactively sending or receiving data
over that port.
Light: indicates the Switch is successfully connecting to the network
at 10Mbps or 100Mbps.
Blink: indicates that the Switch is actively sending or receiving data
over that port.
LNK/ACT
Orange
OFF: indicates that the Switch is inactively sending or receiving data
over that port.
Light: indicates the port is providing 52V DC in-line power.
PoE In-Use
(Port 1~4) Orange OFF: indicates the connected device is not a PoE Powered Device
(PD).
100/1000Base-X SFP Interfaces (MC352-4P-2S)
LED Color Function
Light: indicates the Switch is successfully connecting to the network at
100/1000Mbps.
Blink: indicates that the Switch is actively sending or receiving data
over that port.
LNK/ACT Green
OFF: indicates that the Switch is inactively sending or receiving data
over that port.
OFF ON
Fiber Redundant
(DIP 3)
Fiber Redundant Switch
Port 6 (DIP 2) 1000X 100FX
Port 5 (DIP 1) 1000X 100FX

- 12 -
Per PoE Power Usage (Unit : Watts) (Lower LED to upper LED)
LED Color Function
30
60
90
120
Lights to indicate the system is providing >30/60/90/120 Watts PoE
power usage.
Blinks to indicates the system is providing almost reach 30/60/90/120
Watts PoE power usage.
25 < X < 30, 30W LED flash;
X >= 30, 30W LED light;
55 < X < 60, 60W LED flash;
X >= 60, 60W LED light;
85 < X < 90, 90W LED flash;
X >= 90, 90W LED light;
100 < X < 115, 120W LED flash;
115 < X < 120, 120W LED flash fast;
X >= 120, 120W LED light.
2.1.4 Switch Upper Panel
The upper panel of the Industrial Gigabit PoE+ Switch consists of one terminal block connector within two
DC power inputs. Figure 2-2 shows the upper panel of the Switch.
Figure 2-2 shows upper panel of Industrial Gigabit PoE+ Switch.
Figure 2-2: Industrial Gigabit PoE Switch Upper Panel.

- 13 -
2.1.4 Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of Industrial Gigabit PoE+ Switch is used for two
DC redundant powers input. Please follow the steps below to insert the power wire.
1. Insert positive/negative DC power wires into contacts 1 and 2 for POWER 1, or 5 and 6 for POWER
2.
V1- V1+ V2- V2+
2. Tighten the wire-clamp screws for preventing the wires from loosening.
1 2 3 4 5 6
Power 1 Fault Power 2
- + - +
The wire gauge for the terminal block should be in the range between 12 and 24 AWG.

- 14 -
2.1.5 Wiring the Fault Alarm Contact
The fault alarm contacts are in the middle of the terminal block connector as the picture shows below.
Inserting the wires, the Industrial Gigabit PoE+ Switch will detect the fault status of the power failure, or
port link failure (available for managed model) and then forms an open circuit. The following illustration
shows an application example for wiring the fault alarm contacts.
1 2 3 4 5 6
1. The wire gauge for the terminal block should be in the range between 12 ~ 24 AWG.
2. Alarm relay circuit accepts up to 30V, max. 3A currents.
Insert the wires into the fault alarm contacts

- 15 -
2.1.6 Cabling
10/100/1000Base-T
All 10/100/1000Base-T ports come with Auto-Negotiation capability. They automatically support
1000Base-T, 100Base-TX and 10Base-T networks. Users only need to plug a working network device
into one of the 10/100/1000Base-T ports, and then turn on the Industrial Gigabit PoE+ Switch. The port
will automatically runs in 10Mbps, 20Mbps, 100Mbps or 200Mbps and 1000Mbps or 2000Mbps after the
negotiation with the connected device.
100Base-FX/1000Base-SX/LX
The MC352-4P-2S Industrial Gigabit PoE+ Switch has two SFP interfaces that support 100/1000 dual
speed mode (Optional Multi-mode/Single-mode 100Base-FX/1000Base-SX/LX SFP module) through
DIP switch setting.
Cabling
Each 10/100/1000Base-T port uses RJ-45 sockets -- similar to phone jacks -- for connection of
unshielded twisted-pair cable (UTP). The IEEE 802.3/802.3u/802.3ab Fast/Gigabit Ethernet standard
requires Category 5 UTP for 100Mbps 100Base-TX. 10Base-T networks can use Cat.3, 4, 5 or
1000Base-T uses 5/5e/6 UTP (see table below). Maximum distance is 100 meters (328 feet). The
100Base-FX/1000Base-SX/LX SFP slot is used as LC connector with optional SFP module. Please see
table below and know more about the cable’s specification.
Port Type Cable Type Connector
10Base-T Cat 3, 4, 5, 2-pair RJ-45
100Base-TX Cat.5 UTP, 2-pair RJ-45
1000Base-T Cat.5/5e/6 UTP, 4-pair RJ-45
100Base-FX 50/125µm or 62.5/125µm multi-mode
9/125µm single-mode LC (Multi/Single mode)
1000Base-SX/LX 50/125µm or 62.5/125µm multi-mode
9/125µm single-mode LC (Multi/Single mode)
Any Ethernet devices like hubs/PCs can be connected to the Industrial Gigabit PoE+ Switch by using
straight-through wires. The four 10/100/1000Mbps ports are auto-MDI/MDI-X and can be used on
straight-through or crossover cable.
2.1.6.1 Installing the SFP transceiver
The sections describe how to insert an SFP transceiver into the MC352-4P-2S SFP slot.
The SFP transceivers are hot-pluggable and hot-swappable. You can plug-in and out the transceiver
to/from any SFP port without having to power down the Industrial Gigabit PoE+ Switch as the Figure 2-3
appears.

- 16 -
Figure 2-3: Plug-in the SFP transceiver
Approved IFS SFP Transceivers
IFS Industrial Gigabit PoE+ Switch supports both Single mode and Multi-mode SFP transceivers. The
following list of approved IFS SFP transceivers is correct at the time of publication:
Gigabit / Fast Ethernet Transceiver SFP for High Temperature:
IFS Model SFP Description
S35-2MLC SFP, LC Connector, Multi Mode, Gigabit, 2 fiber,850nm/850nm, 550m,
Hardened -40~75°C
S35-2SLC-10 SFP, LC Connector, Single Mode, Gigabit, 2 fiber,1310nm/1310nm, 10km,
Hardened -40~75°C
S35-2SLC-30
SFP, LC Connector, Single Mode, Gigabit, 2 fiber,1310nm/1310nm, 30km,
Hardened -40~75°C
S35-2SLC-70
SFP, LC Connector, Single Mode, Gigabit, 2 fiber,1550nm/1550nm, 70km,
Hardened -40~75°C
S20-1SLC/A-20
SFP, LC Connector, Single Mode, 10/100 Fast Ethernet, 1 fiber,
1310nm/1550nm, 20km , A End
S20-1SLC/B-20
SFP, LC Connector, Single Mode, 10/100 Fast Ethernet, 1 fiber,
1310nm/1550nm, 20km , B End
S20-2MLC-2
SFP, LC Connector, Multi Mode, 10/100 Fast Ethernet, 2
fiber,1310nm/1310nm, 2km
S20-2SLC-20
SFP, LC Connector, Single Mode, 10/100 Fast Ethernet, 2
fiber,1310nm/1310nm, 20km
S25-2MLC-2
SFP, LC Connector, Multi Mode, 10/100 Fast Ethernet, 2
fiber,1310nm/1310nm, 2km, Hardened -40~75°C
S25-2SLC-20
SFP, LC Connector, Single Mode, 10/100 Fast Ethernet, 2
fiber,1310nm/1310nm, 20km, Hardened -40~75°C

- 17 -
IFS Model SFP Description
S30-1SLC/A-10 SFP, LC Connector, Single Mode, Gigabit, 1 fiber, 1310nm/1550nm, 10km , A
End
S30-1SLC/A-20 SFP, LC Connector, Single Mode, Gigabit, 1 fiber, 1310nm/1550nm, 20km, A
End
S30-1SLC/A-60 SFP, LC Connector, Single Mode, Gigabit, 1 fiber, 1310nm/1550nm, 60km, A
End
S30-1SLC/B-10 SFP, LC Connector, Single Mode, Gigabit, 1 fiber, 1550nm/1310nm, 10km , B
End
S30-1SLC/B-20 SFP, LC Connector, Single Mode, Gigabit, 1 fiber, 1550nm/1310nm, 20km, B
End
S30-1SLC/B-60 SFP, LC Connector, Single Mode, Gigabit, 1 fiber, 1550nm/1310nm, 60km, B
End
S30-2MLC SFP, LC Connector, Multi Mode, Gigabit, 2 fiber,850nm/850nm, 550m
S30-2MLC-2 SFP, LC Connector, Multi Mode, Gigabit, 2 fiber,1310nm/1310nm, 2km
S30-2SLC-10 SFP, LC Connector, Single Mode, Gigabit, 2 fiber,1310nm/1310nm, 10km
S30-2SLC-30 SFP, LC Connector, Single Mode, Gigabit, 2 fiber,1310nm/1310nm, 30km
S30-2SLC-70 SFP, LC Connector, Single Mode, Gigabit, 2 fiber,1550nm/1550nm, 70km
S30-RJ SFP, RJ-45, Gigabit, 100m
1000Base-SX/LX:
Before connecting with switches, workstation or media converter, please do the following steps:
1. With 1000Base-X Fiber Speed, please set the DIP Switch of SFP Port 5 or Port 6 to the “OFF”
position.
2. Make sure both sides of the SFP transceivers are with the same media type, for example:
1000Base-SX to 1000Base-SX, 1000Base-LX to 1000Base-LX.
3. Check whether the fiber-optic cable type matches with the SFP transceiver model.
To connect to 1000Base-SX SFP transceiver, use the Multi-mode fiber cable with one side
being the male duplex LC connector type.
To connect to 1000Base-LX SFP transceiver, use the Single-mode fiber cable with one side
being the male duplex LC connector type.

Connecting the fiber cable
1. Insert the duplex LC connector on the network cable into the SFP transceiver.
2. Connect the other end of the cable to a device – switches with SFP installed, fiber NIC on a
workstation or a media converter.
3. Check the LNK/ACT LED of the SFP slot on the front of the Industrial Gigabit PoE+ Switch. Ensure
that the SFP transceiver is operating correctly.
OFF ON
Port 6 (DIP 2) 1000X 100FX
Port 5 (DIP 1) 1000X 100FX

- 18 -
100Base-FX:
Before connecting with switches, workstation or media converter, please do the following steps:
1. With 100Base-FX Fiber Speed, please set the DIP Switch of SFP Port 5 or Port 6 to the “ON”
position.
2. Make sure both sides of the SFP transceivers are with the same media type or WDM pair, for
example, 100Base-FX to 100Base-FX, 100Base-BX20-U to 100Base-BX20-D.
3. Check whether the fiber-optic cable type matches with the SFP transceiver model.
To connect to SFP transceiver, use the multi-mode fiber cable with one side being the male
duplex LC connector type.
To connect to a SFP transceiver, use the single-mode fiber cable with one side being the male
duplex LC connector type.
Connecting the fiber cable
1. Insert the duplex LC connector on the network cable into the SFP transceiver.
2. Connect the other end of the cable to a device – switches with SFP installed, to fiber NIC on a
workstation or a media converter.
3. Check the LNK/ACT LED of the SFP slot of the switch / converter. Ensure that the SFP transceiver
is operating correctly.
2.1.6.2 Remove the Transceiver Module
1. Make sure there is no network activity by consulting or checking with the network administrator. Or
through the management interface of the switch/converter (if available) to disable the port in
advance.
2. Remove the Fiber Optic Cable gently.
3. Turn the latch of the SFP module to a horizontal position.
4. Pull out the module gently through the latch.
OFF ON
Port 6 (DIP 2) 1000X 100FX
Port 5 (DIP 1) 1000X 100FX

- 19 -
Figure 2-4: Pulling out from the transceiver
Never pull out the module without pulling the latch or the push bolts on the
module. Directly pulling out the module with violence could damage the module
and the SFP module slot of the Industrial Gigabit Ethernet Switch.
2.1.7 Redundancy Overview
The MC352-4P-2S Industrial Gigabit PoE+ Switch provides rapid fiber redundancy of link for highly
critical Ethernet applications. The redundant-mode supports auto-recover function. If the destination port
of a packet is link down, it forwards the packet to the other port of the backup pair. The following figure
shows the redundant function.
Figure 2-5: Redundancy Behavior Topology

- 20 -
Link status auto detect and redundant on Dual ports with same connector type.
Only Primary-Port is active at a time, the Backup-Port is blocked.
When Primary-Port link failure occurs, the traffic swaps to Backup-Port automatically.
Once the Primary-Port status is back to link up, the traffic will swap from Backup-Port to
Primary-Port.
2.2 Mounting Installation
This section describes how to install the Industrial Gigabit PoE+ Switch and make connections to it.
Please read the following topics and perform the procedures in the order being presented.
In the installation steps below, this Manual uses IGS-801 (IFS 8 Port Industrial Gigabit
Switch) as the example. However, the steps for IFS Industrial Gigabit PoE+ Switch are
similar.
2.2.1 DIN-Rail mounting
The DIN-Rail is screwed on the Industrial Gigabit Ethernet Switch when out of factory. When needed to
replace the wall mount application with the DIN-Rail application on Industrial Gigabit Ethernet Switch,
please refer to the following figures to screw the DIN-Rail on the Industrial Gigabit Ethernet Switch. To
hang the Industrial Gigabit Ethernet Switch, follow the steps below:
Step 1: Screw the DIN-Rail on the Industrial Gigabit Ethernet Switch.
