Interlogix TruVision TVD-N210V-2-N(-P) User manual

TruVision IP Dome Open-
Standards User Manual
P/N 1076511A-EN • REV 1.0 • ISS 07OCT11

Copyright © 2011 UTC Fire & Security. All rights reserved.
Trademarks and
patents Interlogix, TruVision names and logos are trademarks of UTC Fire & Security.
Other trade names used in this document may be trademarks or
registered trademarks of the manufacturers or vendors of the
respective products.
Manufacture
r
UTC Fire & Security Americas Corporation, Inc.
2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
Certification N4131
FCC compliance Class A: This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.
ACMA compliance Notice! This is a Class A product. In a domestic environment this
product may cause radio interference in which case the user may be
required to take adequate measures.
Canada This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme
NMB-0330 du Canada.
European Union
directives 12004/108/EC (EMC directive): Hereby, UTC Fire & Security declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive
2004/108/EC.
2002/96/EC (WEEE directive): Products marked with this symbol
cannot be disposed of as unsorted municipal waste in the European
Union. For proper recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
www.recyclethis.info.
Contact information For contact information, see www.interlogix.com or
www.utcfssecurityproducts.eu.
Customer support www.interlogix.com/customer-support

Content
Chapter 1 Introduction 1
Product overview 1
Features 1
Chapter 2 Installation 3
Installation environment 3
Package contents 4
Cable requirements 4
Camera dimensions 5
Setting up the camera 5
Connecting the devices 6
Accessing the SDHC card 8
Mounting the dome cameras on a ceiling 9
Mounting the wedge dome cameras on a ceiling 11
Using the camera with TVR 60/ TVN 20/ TVN 40/ LNVR and other
systems 13
Using the camera with TruVision Navigator 13
Chapter 3 Network and streaming configuration 15
Checking your Web browser security level 15
Accessing the camera over the internet 17
Overview of the camera Web browser 18
Configuring the camera’s network settings 20
Information about the camera 23
Network parameters 23
Serial port settings 25
Chapter 4 Camera configuration 27
Camera parameters 27
Defining how information is displayed on screen 28
Defining the system time 29
Alarm parameters 30
Events scheduling 31
Defining recording parameters 32
Motion detection alarms 35
Adding extra on-screen text 38
Configuring the video image 38
Chapter 5 Camera management 41
User management 41
Formatting the SDHC card 43
Restoring default settings 44
Upgrading the firmware 44
TruVision IP Dome Open-Standards User Manual i

ii TruVision IP Dome Open-Standards User Manual
Rebooting the camera 45
Chapter 6 Camera operation 47
Logging on and off 47
Live mode 47
Playing back recorded video 48
Searching event logs 50
Archiving recorded files 52
Using presets 53
Appendix A Specifications 55
TruVision IP Dome Open-Standards cameras 55
IP wedge dome cameras 56
Appendix B Pin definitions 57
Appendix C Warranty and contact information 59
Warranty information 59
Contacting support 59
Index 61

Chapter 1
Introduction
Product overview
This is the user manual for TruVision IP dome open-standard camera models:
TruVision IP dome:
TVD-N210V-2-N(-P) (VGA)
TVD-M1210V-2-N(-P) (1.3 megapixel)
TVD-M2210V-2-N(-P) (2 megapixel)
TVD-M3210V-2-N(-P) (3 megapixel)
TruVision IP IR dome:
TVD-N245V-2-N(-P) (4CIF WDR, D/N)
TVD-M1225V-2-N(-P) (1.3 megapixel, D/N)
TVD-M2225V-2-N(-P) (2 megapixel, D/N, IR)
TVD-M3225V-2-N(-P) (3 megapixel, D/N, IR)
TVD-M5225V-4-N(-P) (5 megapixel, D/N, IR)
TruVision IP wedge dome:
TVD-N210W-4-N(-P) (VGA)
TVD-M2210W-4-N(-P) (2 megapixel)
Features
This section describes the camera features.
Supports TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTCP, PPPoE, SMTP,
NTP protocols
Programming and setup through a browser interface
TruVision IP Dome Open-Standards User Manual 1

0BChapter 1: Introduction
2 TruVision IP Dome Open-Standards User Manual
Live viewing over the network
50/60 Hz selectable flicker control
Mono and bi-directional audio
Digital pan/tilt/zoom (PTZ)
Supports remote upgrades and maintenance
H.264 video compression with dual capability
Supports full HD, HD, 4CIF, 2CIF, CIF and QCIF
SDHC card for local storage (dome cameras only)



Chapter 2
Installation
This chapter provides information on how to install the TruVision IP dome and
wedge dome cameras.
Installation environment
When installing your product, consider these factors:
• Electrical: Install electrical wiring carefully. It should be done by qualified
service personnel. Always use a proper PoE switch or a 12 VDC UL listed
Class 2 or CE certified power supply to power the camera. Do not overload
the power cord or adapter.
• Ventilation: Ensure that the location planned for the installation of the
camera is well ventilated.
• Temperature: Do not operate the camera beyond the specified temperature,
humidity or power source ratings. The operating temperature of the camera is
between -10 to +60°C (14°F to 140°F). Humidity is below 90%.
• Moisture: Do not expose the camera to rain or moisture, or try to operate it in
wet areas. Turn the power off immediately if the camera is wet and ask a
qualified service person for servicing. Moisture can damage the camera and
also create the danger of electric shock.
• Servicing: Do not attempt to service this camera yourself. Any attempt to
dismantle or remove the covers from this product will invalidate the warranty
and may also result in serious injury. Refer all servicing to qualified service
personnel.
• Cleaning: Do not touch the sensor modules with fingers. If cleaning is
necessary, use a clean cloth with a some ethanol and wipe the camera
gently. If the camera will not be used for an extended period of time, put on
the lens cap to protect the sensors from dirt.
TruVision IP Dome Open-Standards User Manual 3

1BChapter 2: Installation
Package contents
Check the package and contents for visible damage. If any components are
damaged or missing, do not attempt to use the unit; contact the supplier
immediately. If the unit is returned, it must be shipped back in its original
packaging.
Package contents:
Camera
Hex wrench
Mounting plate (except wedge dome cameras)
Video cable for testing (except wedge dome cameras)
Multilingual quick start guide
CD with user manual in several languages
CAUTION: Use direct plug-in UL listed power supplies marked Class 2/CE
certified or LPS (limited power source) of the required output rating as listed on
the unit.
Cable requirements
For proper operation, adhere to the following cable and power requirements for
the cameras. Category 5 cabling or better is recommended. All network cabling
must be installed according to applicable codes and regulations.
Table 1 below lists the requirements for the cables that connect to the camera.
Table 1: Recommended cable requirements
Cable type Requirements
Data For RS-485: 22 gauge (0.64 mm) shielded, two-conductor, twisted-pair
(STP) cable.
Video 75 ohm RS-59 coaxial cable with BNC ends
Power 12 VDC cable
4 TruVision IP Dome Open-Standards User Manual

1BChapter 2: Installation
Camera dimensions
Figure 1: IP dome and IR dome cameras
Figure 2: IP wedge dome camera
Setting up the camera
Note: If the light source where the camera is installed experiences rapid, wide-
variations in lighting, the camera may not operate as intended.
To quickly put the dome camera into operation:
1. Prepare the mounting surface.
2. Connect the power cable (optional), alarm I/O cables, RS-485 cable, audio
cables and network cable to the camera. See “Dome and IR dome camera
connections” on page 7.
TruVision IP Dome Open-Standards User Manual 5

1BChapter 2: Installation
3. Mount the camera to the ceiling using the appropriate fasteners. See
“Mounting the dome cameras on a ceiling ” on page 11.
4. Set up the camera’s network and streaming parameters so that the camera
can be controlled over the network. See “Chapter 3 Network and streaming
configuration” on page 15.
5. Program the camera to suit its location. See “Chapter 4 Camera
configuration” on page 27.
To quickly put the wedge dome camera into operation:
1. Prepare the mounting surface.
2. Connect the power and network cables to the camera. See “Wedge dome
camera connections” on page 8.
3. Mount the camera to the ceiling using the appropriate fasteners. See
“Mounting the wedge dome cameras on a ceiling” on page 11.
4. Set up the camera’s network and streaming parameters so that the camera
can be controlled over the network. See “Chapter 3 Network and streaming
configuration” on page 15.
5. Program the camera to suit its location. See “Chapter 4 Camera
configuration” on page 27.
Connecting the devices
A qualified service person, complying with all applicable codes, should perform
all required hardware installation.
6 TruVision IP Dome Open-Standards User Manual

1BChapter 2: Installation
Dome and IR dome camera connections
Note: Do not attempt to extend the power/data cable connection using RJ45
couplers and Cat5 cable. Only use the data cable connection provided.
Note: Use 12 VDC or PoE.
Figure 3: Connections on the base of the dome and IR dome cameras
1. Ground
Connect to ground.
2. Ethernet RJ45 PoE port
Connect to network devices.
3. Audio output
Connect to an audio output.
Line level, 600 Ω.
4. Initial set
Press to hard reboot camera.
5. Audio input
Connect to an audio input.
2.0 to 2.4 Vp-p, 1 kΩ.
6. RS-485 D+, D-
Connect to an RS-485 device such as a
PTZ dome camera.
7. Alarm outputs
Connect 1A/1B and 2A/2B to alarm output
devices.
8. Alarm inputs
Connect IN1/GND and IN2/GND to alarm
input devices.
9. Power supply
Connect +12 VDC power supply.
Note: The alarm output can be used to turn on and off an external alarm device.
Connect a 12 VDC/30 mA external power supply to the alarm output. See
Figure 4 below.
TruVision IP Dome Open-Standards User Manual 7

1BChapter 2: Installation
Figure 4: External alarm output
Wedge dome camera connections
Figure 5: Wedge dome camera connections
1. Power input connector
Connect +12 VDC power supply.
2. Ethernet RJ45 PoE connector
Connect to the network devices.
3. Lens
4. Power LED
5. Lens positioning screws
6. Network status LEDs
7. Reset switch
Click to reset all parameters to factory
default.
Accessing the SDHC card
Insert an SDHC card up to 32GB for local storage as a backup in case the
network fails, for example (see Figure 6 below) . The card is not supplied with the
camera.
Video and log files stored on the SDHC card can only be accessed via the Web
browser. You cannot access the card using TruVision Navigator or a recording
device.
Note: There is no SDHC card slot in the wedge dome cameras.
8 TruVision IP Dome Open-Standards User Manual

1BChapter 2: Installation

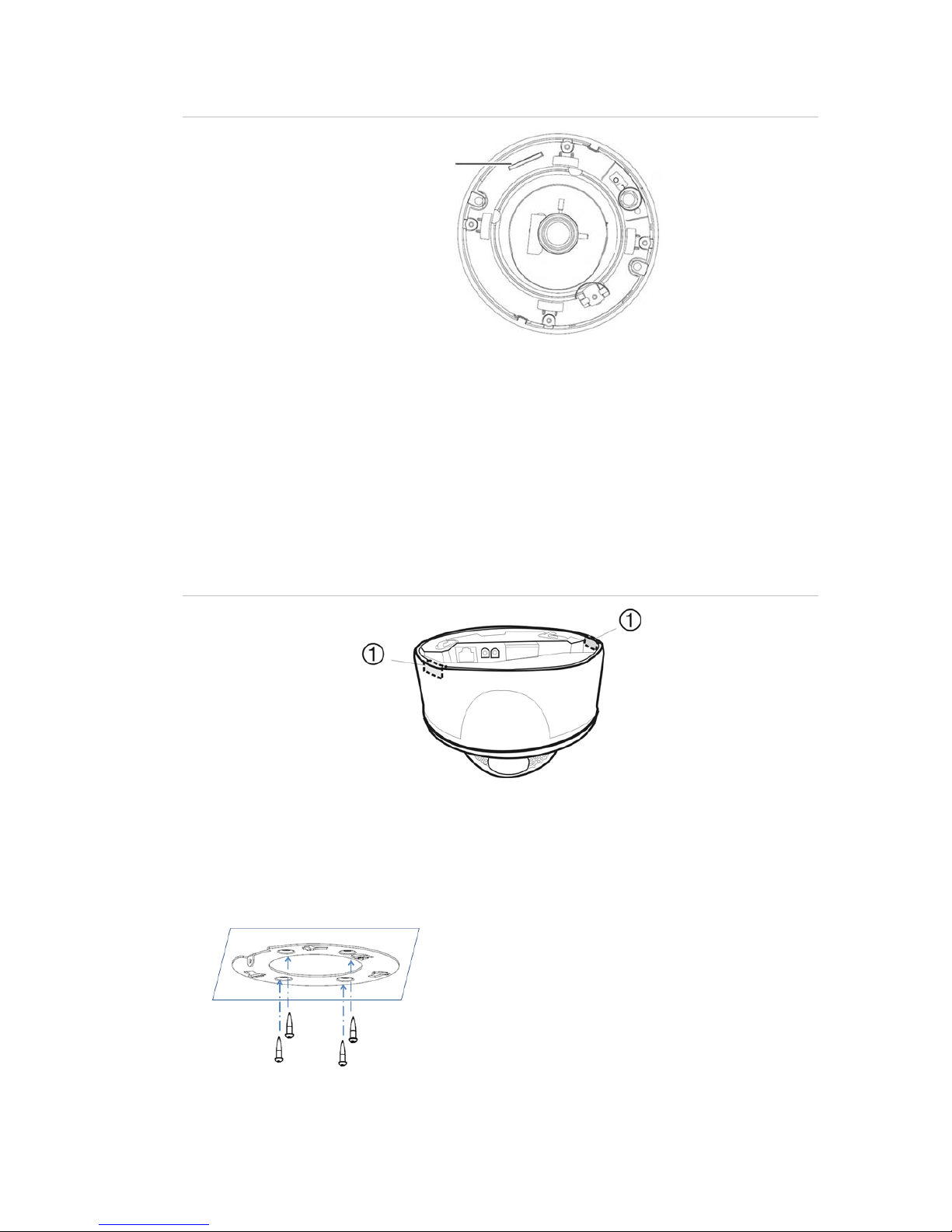

Figure 6: SDHC card location in the dome cameras
SDHC card slot
Mounting the dome cameras on a ceiling
Mount the dome cameras on a ceiling. They are not recommended for mounting
on a wall.
Note: If required, cables can be feed through the sides of the dome housing by
removing the tabs (1) using a pliers (see Figure 7 below).
Figure 7: Creating cable access points in the dome housing (optional)
To mount the dome camera to a ceiling:
1. Place the mounting plate (supplied) on the ceiling.
2. Securely fasten the mounting plate to the ceiling surface with the supplied
screws.
3. In the middle of the mounting plate make a hole in the ceiling to access the
cabling.
TruVision IP Dome Open-Standards User Manual 9

1BChapter 2: Installation
4. If needed, seal all mounting holes so that no moisture can leak into the
mounting surface.

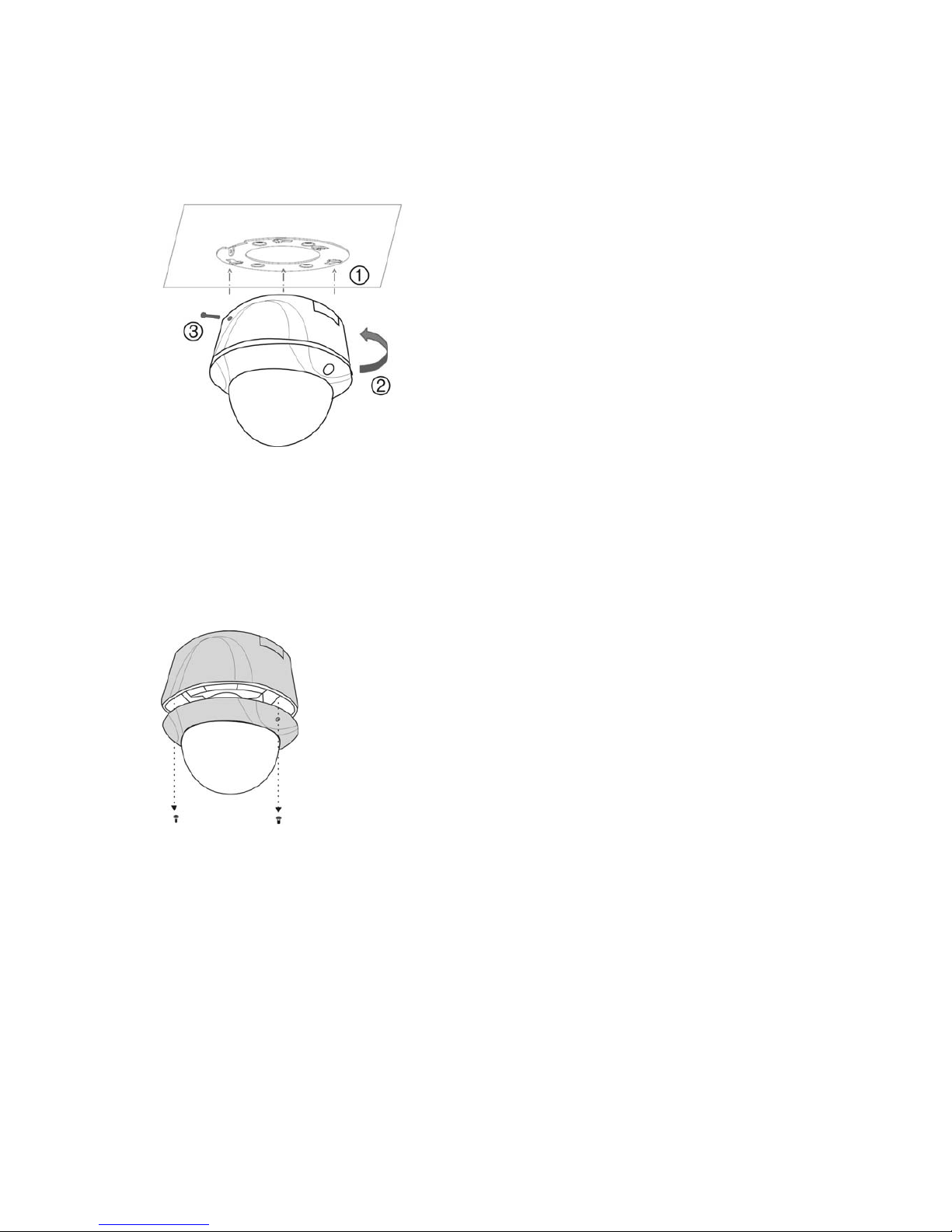

5. Insert the fixation pins of the dome camera housing into the fixation slots in
the mounting plate (1).
6. Rotate the camera enclosure (2) so that the pins are held in place in the
fixation slots.
7. Tighten the locking screw (3) to ensure that the camera is firmly attached to
the bracket.
8. Using the supplied hex wrench, loosen the two fixed screws in the camera
cover and remove the cover.
9. Connect the supplied video cable to the RCA video output connector in the
camera body so that the video image can be seen on a monitor.
While viewing the video on the monitor, adjust horizontally and vertically the
camera pan and tilt. Adjust the lens focus to get optimal video effect.
10 TruVision IP Dome Open-Standards User Manual

1BChapter 2: Installation
RCA video output connector
Video cable for testing
(supplied)
Lens adjustment screw
10. Remove the temporary video cable and reattach the camera cover. Tighten
the fixed screws. Ensure that the camera is firmly attached to the mounting
bracket.
11. Connect a 12 VDC power supply to the power cable.
Mounting the wedge dome cameras on a
ceiling
Mount the wedge dome camera on a ceiling. It is not recommended for mounting
on a wall.
To mount the mini dome camera on a ceiling:
1. Using the supplied hex key, loosen the four hex screws on the camera and
remove the camera housing.
2. Make a hole in the ceiling for the cabling. Fix the camera base to the ceiling
using the supplied screws.
TruVision IP Dome Open-Standards User Manual 11

1BChapter 2: Installation
3. Pull the camera’s cabling through the ceiling hole and connect to the devices
and power.
If needed, seal all mounting holes so that no moisture can leak into the
mounting surface.
4. Adjust the camera’s angle of view while watching the image on a monitor.
Loosen the lens positioning screws (1).
Using the supplied hex wrench, adjust the
camera pan and tilt horizontally and
vertically.
Tighten the lens positioning screws.
Note: The lens focus has been adjusted in the factory so should not require
further adjusting.
5. Reattach the camera housing and tighten the fixed screws and. Ensure that
the camera is firmly attached to the ceiling.
12 TruVision IP Dome Open-Standards User Manual

1BChapter 2: Installation
Using the camera with TVR 60/ TVN 20/
TVN 40/ LNVR and other systems
Please refer to the head-end user manuals for instructions on connecting and
operating the camera with these systems.
Using the camera with TruVision Navigator
A camera must be connected to a TVR 60/ TVN 20/ TVN 40 in order to be
operated by TruVision Navigator. Please refer to the TruVision Navigator user
manual for instructions on operating the camera with the TruVision Navigator.
TruVision IP Dome Open-Standards User Manual 13

1BChapter 2: Installation
14 TruVision IP Dome Open-Standards User Manual

Chapter 3
Network and streaming
configuration
This chapter explains how to configure the camera network settings.
The cameras can be configured and controlled using an internet browser such as
Microsoft Internet Explorer (IE). The procedures described use Microsoft Internet
Explorer (IE) web browser. The steps are similar with other browsers.
You must have administrator rights on your PC in order to configure the cameras
over the internet.
Checking your Web browser security level
When using the Web browser interface, you can install ActiveX controls to
connect and view video using Internet Explorer. However, you cannot download
data, such as video and images due to the increased security measure.
Consequently you should check the security level of your PC so that you are able
to interact with the cameras over the Web and, if necessary, modify the Active X
settings.
Configuring IE ActiveX controls
You should confirm the ActiveX settings of your Web browser.
To change the Web browser’s security level:
1. In Internet Explorer click Internet Options on the Tools menu.
2. On the Security tab, click the zone to which you want to assign a Web site
under “Select a Web content zone to specify its security settings”.
3. Click Custom Level.
TruVision IP Dome Open-Standards User Manual 15

2BChapter 3: Network and streaming configuring
4. Change the ActiveX controls and plug-ins options to Enable and click OK.
- or -
Under Reset Custom Settings, click the security level for the whole zone in
the Reset To box, and select Low. Click Reset. Then click OK to the Internet
Options Security tab screen.
5. Click Apply in the Internet Options Security tab screen.
16 TruVision IP Dome Open-Standards User Manual
