Interlogix TruVision TVP-5104 Instruction sheet

TruVision IP PTZ Camera
Configurat
ion Manual
P/N 1073399-EN • REV A • ISS 15MAY18

Copy
right
©
2018 United Technologies Corporation.
Interlogix is part of UTC
Climate, Controls & Security
, a unit of United
Technologies Corporation.
All rights reserved.
Trademarks and
patents
T
rade names used in this document may be trademarks or
registered trademarks of the manufacturers or vendors of the
respective products.
Manufacturer
Interlogix
2955 Red Hill Avenue, Costa Mesa, CA 92626
-5923, USA
Authorized EU manufacturing representative:
UTC Fire & Secu
rity B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
Contact information
and manuals / tools /
firmware
For contact information and to download the latest manuals, tools,
and firmware, go to the web site of your region.
Americas: www.interlogix.com
E
MEA: www.firesecurityproducts.com
Manuals are available in several languages
Australia/New Zealand: www.utcfs.com.au

TruVision IP PTZ Camera Configuration Manual 1
Content
Introduction 3
Contact information and manuals/tools/firmware 3
Network connection 4
Checking your web browser security level 4
Activating the camera 5
Overview of the camera web browser 8
Camera configuration 10
Configuration menu overview 10
Local configuration 11
System time 12
Network settings 14
Recording parameters 18
ROI encoding of an image 21
PTZ parameters 22
Overlay text 33
Video image 34
OSD 37
Image parameters switch 38
Motion detection alarms 39
Tamper-proof alarms 41
Alarm input 42
Alarm output 43
Exception alarms 43
Audio exception detection 44
Face Detection 45
Intrusion detection 47
Line crossing detection 48
Region entrance detection 50
Region exiting detection 51
Unattended baggage detection 52
Object removal detection 54
RS-485 settings 55
Recording schedule 56
Format storage devices 57
NAS settings 58
Snapshot parameters 59
Camera management 61
User management 61
RTSP authentication 63
IP address filter 64
Defining the security service 65

2 TruVision IP PTZ Camera Configuration Manual
Restore default settings 66
Import/export a configuration file 67
Upgrade firmware 67
Reboot camera 67
System service 68
About 68
Camera operation 69
Logging on and off 69
Live view mode 69
Playing back recorded video 69
Snapshots 71
Searching event logs 72
Index 78

TruVision IP PTZ Camera Configuration Manual 3
Introduction
This is the configuration manual for the following TruVision IP PTZ camera models:
TVP-5104 (2.0 MPX wall mount, 25X, H.265)
TVP-5105 (2.0 MPX wall mount, 36X, 200m IR, H.265)
Contact information and
manuals/tools/firmware
For contact information and to download the latest manuals, tools, and firmware, go to
the web site of your region.
Americas: www.interlogix.com
EMEA: www.firesecurityproducts.com
Manuals are available in several languages.
Australia/New Zealand: www.utcfs.com.au

4 TruVision IP PTZ Camera Configuration Manual
Network connection
This manual explains how to configure the camera over the network with a web
browser.
TruVision IP PTZ cameras can be configured and controlled using Microsoft Internet
Explorer (IE) and other browsers. The procedures described use Microsoft Internet
Explorer (IE) web browser.
Checking your web browser security level
When using the web browser interface, you can install ActiveX controls to connect and
view video using Internet Explorer. However, you cannot download data, such as video
and images due to the increased security measure. Consequently you should check the
security level of your PC so that you are able to interact with the cameras over the web
and, if necessary, modify the Active X settings.
Configuring IE ActiveX controls
You should confirm the ActiveX settings of your web browser.
To change the web browser’s security level:
1. In Internet Explorer, click Internet Options on the Tools menu.
2. On the Security tab, click the zone to which you want to assign a web site under
“Select a web content zone to specify its security settings”.
3. Click Custom Level.
4. Change the ActiveX controls and plug-ins options that are signed or marked as
safe to Enable. Change the ActiveX controls and plug-ins options that are
unsigned to Prompt or Disable. Click OK.
- Or -

TruVision IP PTZ Camera Configuration Manual 5

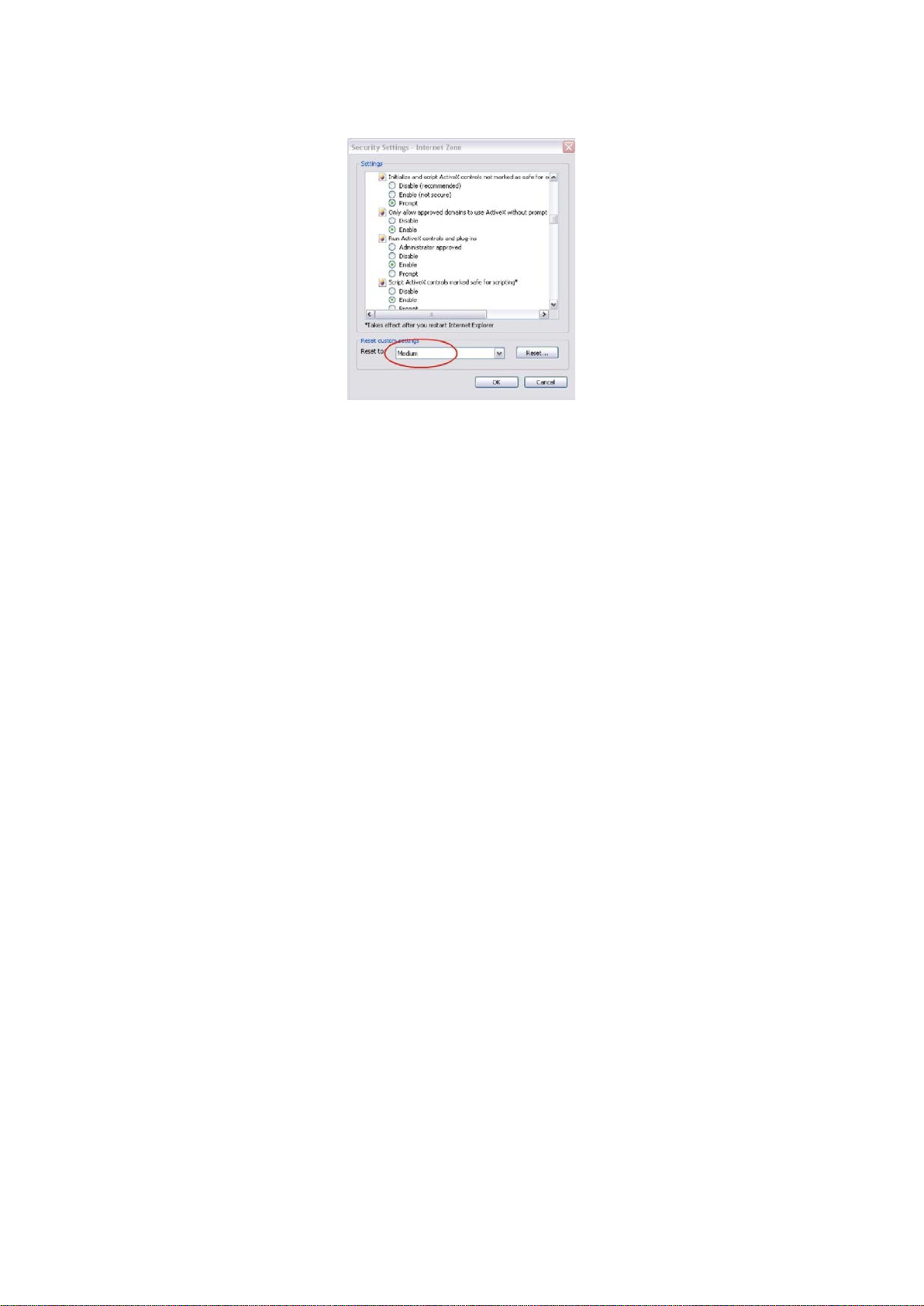

Under Reset Custom Settings, click the security level for the whole zone in the
Reset To box, and select Medium. Click Reset.
Then click OK to return to the “Internet Options Security” tab window.
5. Click Apply in the Internet Options Security tab window.
Windows users
Internet Explorer for Windows operating systems have increased security measures to
protect your PC from any malicious software being installed.
To have complete functionality of the web browser interface with Windows, do the
following:
• Run the Browser interface as an administrator in your workstation
• Add the camera’s IP address to your browser’s list of trusted sites
To add the camera’s IP address to Internet Explorer’s list of trusted sites:
1. Open Internet Explorer.
2. Click Tools, and then Internet Options.
3. Click the Security tab, and then select the Trusted sites icon.
4. Click the Sites button.
5. Clear the “Require server verification (https:) for all sites in this zone box.
6. Enter the IP address in the “Add this website to the zone” field.
7. Click Add, and then click Close.
8. Click OK in the Internet Options dialog window.
9. Connect to the camera for full browser functionality.
Activating the camera
When you first start up the camera, the Activation window appears. You must define a
high-security admin password before you can access the camera. There is no default
password provided.

6 TruVision IP PTZ Camera Configuration Manual
You can activate a password via a web browser and via TruVision Device Manager
(included on the CD to find the IP address of the camera).
Activation via the web browser:
1. Power on the camera and connect the camera to the network.
2. Input the IP address into the address bar of the web browser, and click Enter to
enter the activation interface
Note:
The default IP address of the camera is 192.168.1.70.
For the camera to enable DHCP by default, you must activate the camera via
TruVision Device Manager. Please refer to the following section, “Activation via
TruVision Device Manager”.
10.Enter the password in the password field.
Note: A valid password range must be between 8 and 16 characters. You can use a
combination of numbers, lower and upper case letters, and special characters : _ - , .
* & @ / $ ? Space. The password must contain characters from at least two of these
groups. We also recommend that you reset your password regularly. For high
security systems, it is particularly recommended to reset the password monthly or
weekly for better protection.
4. Confirm the password
5. Click OK to save the password and enter the live view interface.
Activation via the web browser:
1. Run TruVision Device Manager to search for online devices.
2. Check the device status from the device list, and select the inactive device.

TruVision IP PTZ Camera Configuration Manual 7
3. Enter the password in the password field, and confirm it.
Note: A valid password range must be between 8 and 16 characters. You can use a
combination of numbers, lower and upper case letters, and special characters : _ - , .
* & @ / $ ? Space. The password must contain characters from at least two of these
groups. We also recommend that you reset your password regularly. For high
security systems, it is particularly recommended to reset the password monthly or
weekly for better protection.
4. Click OK to save the password.
A pop-up window appears to confirm activation. If activation fails, confirm that the
password meets the requirements and try again.
5. Change the device IP address to the same subnet with your computer by either
modifying the IP address manually or selecting the Enable DHCP check box.
6. Input the password and click the Save button to activate your IP address
modification.

8 TruVision IP PTZ Camera Configuration Manual
Overview of the camera web browser
The camera web browser lets you view, record, and play back recorded videos on the
optional SD card as well as manage the camera from any PC with Internet access. The
browser’s easy-to-use controls give you quick access to all camera functions. See
Figure 1 below.
If there is more than one camera connected over the network, open a separate web
browser window for each individual camera.
Figure 1: Web browser interface
Table 1: Overview of the web browser interface
Name Description
1. Live view Click to view live video.
2. Playback Click to play back video.
3. Picture Click to search for evet pictures and continues pictures
4. Log Click to search for event logs. There are three main types:
Alarm, Exception, and Operation.
5. Configuration Click to display the configuration window for setting up the
camera.
6. Viewer View live video. Time, date and camera name are displayed
here.
7. Current user Displays current user logged on.
8. Logout Click to log out from the system. This can be done at any time.

TruVision IP PTZ Camera Configuration Manual 9
Name Description
9. Display Control Click each tab to adjust the layout and the stream type of the
live view. You can also click the drop-down menu to select the
plug-in (WebComponents or QuickTime).
For IE (internet Explorer) users, web components and Quick
Time are selectable. For non-IE users, web components,
QuickTime, VLC, or MJPEG are selectable if they are supported
by the web browser.
10. Start/stop live
view Click to start/stop live view.
11. Audio Drag to adjust the volume.
12. Bidirectional
audio Turn on/off the microphone (optional).
13. Capture Click to take a snapshot of the video. The snapshot will be
saved to the default folder in JPEG (or BMP) format.
The folder directory can be set in Local Configuration > Browser
Configuration.
14. Start/stop
recording Click to record live video.
The video will be saved to the default folder. The folder directory
can be set in Local Configuration > Browser Configuration.
15. 3D Zoom Click to enable 3D zoom. Draw a rectangle using the left mouse
button to specify where you want to zoom in.
16. Enable Regional
Exposure Click to enable regional exposure.
17. Enable Regional
Focus Click to enable regional focus.
18. Manual Alarm Click to trigger manual alarm

10 TruVision IP PTZ Camera Configuration Manual
Camera configuration
This chapter explains how to configure the cameras through a web browser.
Once the camera hardware has been installed, configure the camera’s settings through
the web browser. You must have administrator rights in order to configure the cameras
over the internet.
The camera web browser lets you configure the camera remotely using your PC. Web
browser options may vary depending on camera model. The camera is configured
using the browser.
There are two main folders in the configuration panel:
Local configuration
Configuration
Configuration menu overview
Use the Configuration panel to configure the system, network, camera, alarms, users,
transactions, and other parameters such as upgrading the firmware. See Figure 2 and
Table 2 below for descriptions of the configuration folders available.
Figure 2: Configuration panel
Table 2: Overview of the Configuration panel
Item Description
1.
System
Defines device basic information including SN and the current firmware version,
time settings, and maintenance parameters.

TruVision IP PTZ Camera Configuration Manual 11
Item Description
2.
Security
Defines who can use the camera, their passwords and access privileges, RTSP
authentication, IP address filter, and telnet access.
3.
Network
Defines the network parameters required to access the camera over the internet
.
4.
Video/Audio
Defines recording parameters.
5.
Defines the image parameters, OSD settings and text overlay.
6.
PTZ
Defines the PTZ parameters and privacy masking.
7.
Alarm/
Event
Setup
Defines motion detection, tamper-proof, alarm input/output, exception, and
audio
exception detection.
8.
Storage
Defines recording schedule, storage management, NAS configuration, and
snapshot configuration.
Local configuration
Use the Local menu to manage the protocol type, live view performance, and local
storage paths. In the Configuration panel, click Local Configuration to display the local
configuration window. See Figure 3 and Table 3 below for descriptions of the different
menu parameters.
Figure 3: Example of a configuration window
Table 3: Overview of the Local configuration window
Para
meters Description
Live View Parameters
1.
Protocol
Specifies the network protocol used.
Options include: TCP, UDP, MULTICAST and HTTP.

12 TruVision IP PTZ Camera Configuration Manual
Para
meters Description
2.
Latency
Specifies the transmission speed.
Options include: Shortest Delay, Balanced or Fluent.
3.
Enable Meta Data Overlay
It refers to the rules on your local browser. Specify whether or not
to display the colored marks when motion detection is triggered.
For example, when the rules option is enabled and motion is
detected, the moving object will be marked with a green rectangle
in live view.
4.
Snapshot I
mage Format Choose the image format for a snapshot: JPEG or BMP.
Record File Settings
5.
Video
File Size Specifies the maximum file size.
Options include: 256 MB, 512 MB and 1G.
6.
Save
Videos in Live View to Specifies the directory for recorded files.
7.
Save
Downloaded Files to Specifies the directory for downloaded files.
and Clip Settings
8.
Save
Snapshots in Live
View t
o Specifies the directory for saving snapshots in live view mode.
9.
Save
Snapshots during
Playback t
o Specifies the directory for saving snapshots in playback mode.
10.
Save Clips
during Playback
t
o Specifies the directory for saving video clips in playback mode.
System time
NTP (Network Time Protocol) is a protocol for synchronizing the clocks of network
devices, such as IP cameras and computers. Connecting network devices to a
dedicated NTP time server ensures that they are all synchronized.
To define the system time and date:
1. From the menu toolbar, click Configuration > System > Time Settings.

TruVision IP PTZ Camera Configuration Manual 13
2. From the Time Zone drop-down menu, select the time zone that is the closest to the
camera’s location.
3. NTP: Select NTP and enter the server NTP address to synchronize with an NTP
server. The time interval can be set from 1 to 10080 minutes.
- Or -
Manual Time Sync.: Enable the Manual Time Sync function and then click to
set the system time from the pop-up calendar.
Note: You can also select the Sync with computer time check box to synchronize
the time of the camera with the time of your computer.
4. Select Enable DST to enable the DST function, and set the date of the DST period.
5. Click Save to save changes.

14 TruVision IP PTZ Camera Configuration Manual
Network settings
Accessing the camera through a network requires that you define certain network
settings. Use the “Network” folder to define the network settings. See Figure 4 and
Table 4 below for further information.
Figure 4: Network window (TCP/IP tab shown)
Table 4: Network parameters
Parameters
Description
1.
TCP/IP
NIC Type: Specifies the NIC type. Default is Auto. Other options include: 10M
Half-dup, 10M Full-dup, 100M Half-dup and 100M Full-dup.
DHCP: Enable to automatically obtain an IP address and other network
settings from that server.
IPv4 Address: Specifies the IPv4 address of the camera.
IPv4 Subnet Mask: Specifies the IPv4 subnet mask.
IPv4 Default Gateway: Specifies the IPv4 gateway IP address.
IPv6 Mode: Specifies the IPv6 mode, including Manual, DHCP and Router
Advertisement.
IPv6 Address: Specifies the IPv6 address of the camera.
IPv6 Subnet Mask: Specifies the IPv6 subnet mask.
IPv6 Default Gateway: Specifies the IPv6 gateway IP address.
Mac Address: Specifies the MAC address of the camera.
MTU: Specifies the valid value range of MTU. Default is 1500.
Multicast Address: Specifies a D-class IP address between 224.0.0.0 to
239.255.255.255. Only specify this option if you are using the multicast

TruVision IP PTZ Camera Configuration Manual 15
Parameters
Description
function. Some routers prohibit the use of multicast function in case of a
network storm.
DNS Server: Specifies the DNS server for your network.
Host Name Configuration: Specifies the DNS name the user can define.
2.
DDNS
Specifies IP server, DynDNS and ezDDNS.
3.
PPPoE
Use this option when using a direct modem connection between the camera
and ISP.
4.
Port
HTTP Port: Specifies the port used for the Internet Explorer (IE) browser.
Default value is 80.
RTSP Port: Specifies the RTSP port. The default port number is 554.
HTTPS Port: Specifies the HTTPS port. The default port number is 443.
Server Port: Specifies the SDK port. The default port number is 8000.
5.
NAT
A NAT (Network Address Translation) is used for network connection. Select
the port mapping mode: Auto or Manual.
6.
SNMP
Enable SNMP to report the camera status and parameters to SNMP software.
7.
FTP
Specifies the FTP address and folder to which snapshots of the camera
can be
uploaded.
8.
Email
Specifies the email address to which messages are sent when an alarm
occurs.
9.
HTTPS
Specifies authentication of the website and its associated web server, which
protects against Man-in-the-middle attacks.
10.
QoS
Enable solving network delay and network congestion by configuring the
priority of data sending.
11.
802.1.X
When the feature is enabled, the camera data is secured and user
authentication is needed when connecting the camera to the network.
12.
Integration
pro
tocol If you need to access to the camera through the third party platform, you can
enable STD-CGI function. And if you need to access to the device through
ONVIF protocol, you can configure ONVIF user in this interface. Refer to
ONVIF standard for detailed configuration rules.
To define the TCP/IP parameters:
1. From the menu toolbar, click Camera Configuration > Network > TCP/IP.
2. Configure the NIC settings, including the NIC Type, IPv4 settings, IPv6 settings,
MTU settings, and Multicast Address.
3. If the DHCP server is available, check DHCP.
4. If the DNS server settings are required for some applications (e.g., sending email),
you should configure the Preferred DNS Server or Alternate DNS Server.
5. Click Save to save changes.
To define the port parameters:
1. In Camera Configuration > Network > Port.
2. Set the HTTP port, RTSP port, HTTPS port and Server port of the camera.
3. Click Save to save changes.

16 TruVision IP PTZ Camera Configuration Manual
To define the DDNS parameters:
1. From the menu toolbar, click Camera Configuration > Network > DDNS.
2. Select Enable DDNS to enable this feature.
3. Select DDNS Type. Two options are available: DynDNS and IPServer.
• DynDNS: Enter the following information:
- Domain name: DynDNS web site
- Server address: members.dyndns.org
- Host name: URL created in DynDNS
- User name/password: login credentials for the DynDNS web site
- Port: 443 (because the connection to members.dyndns.org is a HTTPS
connection)
• ezDDNS: Enter the host name. It will automatically register it online.
You can define a host name for the camera. Make sure you entered a valid DNS
server in the network settings and have the necessary ports forwarded in the
router (HTTP, Server port, RSTP port).
• IPServer: Enter the address of the IP Server.
4. Click Save to save changes.
To define the PPPoE parameters:
1. From the menu toolbar, click Camera Configuration > Network > PPPoE.
2. Select Enable PPPoE to enable this feature. The dynamic IP address is assigned
automatically from the modem.
3. Enter User Name, Password, and Confirm password for PPPoE access.
4. Click Save to save changes.
To define the SNMP parameters:
Note: Before setting the SNMP, please download the SNMP software and manage to
receive the camera information via SNMP port. By setting the Trap Address, the
camera can send the alarm event and exception messages to the surveillance center.
The SNMP version you select should be the same as that of the SNMP software.
1. From the menu toolbar, click Camera Configuration > Network > SNMP.
2. Select the corresponding version of SNMP: v1, v2c or v3.
Note: Contact your network administrator for specific information on setting up this
function.
3. Configure the SNMP settings. The configuration of the SNMP software should be
the same as the settings you configure here.
4. Click Save to save changes.

TruVision IP PTZ Camera Configuration Manual 17
To define the 802.1x parameters:
Note: The switch or router to which the camera is connected must also support the
IEEE 802.1X standard, and a server must be configured. Please apply and register a
user name and password for 802.1X in the server.
1. From the menu toolbar, click Camera Configuration > Network > 802.1X.
2. Select Enable IEEE 802.1X to enable the feature.
Note: Contact your network administrator for specific information on setting up this
function.
3. Configure the 802.1X settings, including EAPOL version, user name, and password.
The EAPOL version must be identical with that of the router or the switch.
4. Click Save to save changes.
To define the QoS parameters:
1. From the menu toolbar, click Camera Configuration > Network > QoS.
2. Configure the QoS settings, including Video / Audio DSCP, Event / Alarm DSCP
and Management DSCP. The valid value range of the DSCP is 0 to 63. The bigger
the DSCP value is the higher the priority is.
3. Click Save to save changes.
To define the FTP parameters:
1. From the menu toolbar, click Camera Configuration > Network > FTP.
2. Configure the FTP settings, including server address, port, user name, password,
directory structure, main directory, subdirectory, and upload type.
Directory: In the Directory Structure field, you can select the root directory, main
directory and tab. When the main directory is selected, you have the option to use
the Device Name, Device Number or Device IP for the name of the directory. When
the tab is selected, you can use the Camera Name, Camera No., or Custom as the
name of the directory.
Upload type: To enable snapshots to be uploaded to the FTP server.
3. Click Save to save changes.
To define the UPnP parameters:
1. Click Camera Configuration > Network > UPnP.
4. Select the check box to enable the UPnP function. Edit the friendly name of the
device when detected online can be edited.
4. Click Save to save changes.
To set up the Email parameters:
1. In Camera Configuration > Network > Email.
2. Configure the following settings:
Sender: The name of the email sender.

18 TruVision IP PTZ Camera Configuration Manual
Sender’s Address: The email address of the sender.
SMTP Server: The SMTP Server IP address or host name.
SMTP Port: The SMTP port. The default is 25.
Enable SSL: Select the check box to enable SSL if it is required by the SMTP
server.
Attached Snapshot: Select the Attached Snapshot check box if you want to send
emails with attached alarm snapshots.
Interval: This is the time between two actions of sending attached images.
Authentication: If your email server requires authentication, select this check box
to use authentication to log in to this server. Enter the login user name and
password.
Receiver: The name of the user to be notified.
Receiver’s Address: The email address of user to be notified.
3. Click Save to save changes.
To set up the NAT parameters:
1. Click Camera Configuration > Network > NAT.
2. Select the check box to enable the NAT function.
3. Select Port Mapping Mode to be Auto or Manual. When you choose Manual mode,
you can set the external port as you want.
4. Click Save to save changes.
To set up the integration protocol parameters:
1. Click Camera Configuration > Network > Integration Protocol.
2. Select the Enable STD-CGI check box and then select the authentication from the
dropdown list. Then you can access to the camera through the third party platform.
3. Select the Enable ONVIF check box to enable the function.
4. Click Add to add a new ONVIF user. Set the user name and password, and confirm
the password. You can set the user as media user, operator, and administrator.
5. Click Modify to modify the information of the added ONVIF user.
6. Click Delete to delete the selected ONVIF user.
7. Click Save to save changes.
Recording parameters
You can adjust the video and audio recording parameters to obtain the picture quality
and file size best suited to your needs. The figures below list the video, audio, ROI, and
video analytics information display recording options you can configure for the camera.
