Interlogix TruVision Line Instruction sheet

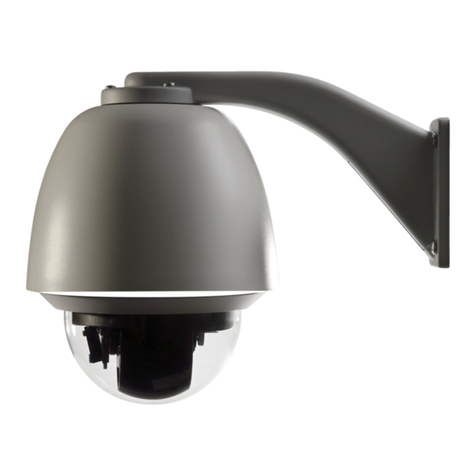

TruVision Analog PTZ
Camera Configuration
Manual
P/N 1072658A-EN • REV 1.0 • ISS 11OCT13

Copyright
©
2013 UTC Fire & Security Americas Corporation, Inc.
Interlogix is part of UTC Climate Controls & Security, a unit of United
Technologies
Corporation. All rights reserved.
Trademarks and
patents
T
he TruVision and Interlogix names and logos are trademarks of
United Technologies.
Other trade names used in this document may be trademarks or
registered trademarks of the manufacturers or vendors of the
respective
products.
Manufacturer
UTC Fire & Security Americas Corporation, Inc.
2955 Red Hill Avenue, Costa Mesa, CA 92626
-5923, USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
Contact information
For contact information
, see www.interlogix.com or
www.utcfssecurityproducts.eu
.
Customer suppor
t
www.interlogix.com/customer
-support

TruVision Analog PTZ Camera Configuration Manual i
Content
Chapter 1 Introduction 5
Power-up action 5
System-defined presets 6
Chapter 2 Programming 7
Access the OSD menu 7
View system information 8
Change system settings 8
System information settings 8
Camera address settings 10
Soft baud rate settings 10
Pelco checksum 10
System time 10
Zero point (initial position) setting 11
Display settings 11
Fan control 12
EIS (Electronic image stabilization) function 12
Preset direct focus 12
Protocol and RS-485 settings 12
Camera settings 13
Focus 13
Zoom limit 14
Day/Night mode 14
BLC and WDR functions 15
Exposure mode 15
Iris value 16
Shutter speed 16
Gain value 16
Exposure compensation function 16
White balance 16
Image flip 16
Focus limit 17
Image quality parameters 17
Noise reduction 17
HLC (high light compensation) 17
Privacy masking 17
PTZ control parameters 19
Proportional panning 19
Dwell time and actions 20
Freeze image 20
Limit stops 20
Presets 21
Preset tours 23

ii TruVision Analog PTZ Camera Configuration Manual
Shadow tours 25
Schedules and tasks 27
Zones 29
Clear PTZ control settings 30
Alarms 31
Alarm inputs and linked actions 31
Alarm parameters 32
Auxiliary alarm output 32
Password 33
Tracking settings 34
Restore default camera settings 35
Reboot the camera 35
KTD-405 and DVR control feature list 36

TruVision Analog PTZ Camera Configuration Manual iii

TruVision Analog PTZ Camera Configuration Manual 5
Chapter 1
Introduction
Before programming, ensure that the PTZ camera has the power, control, video
cables correctly connected. For information on installing the PTZ camera, please
refer to the “Truvision Analog PTZ camera Installation Manual” supplied with the
PTZ camera.
The PTZ camera is programmed through the on-screen (OSD) menus. You can
access to the OSD menu of a PTZ camera by using a control device, such as a
keypad, DVRs, etc. For the control cable connection and communication settings
with a control device, please see the correspondent user manual of the control
device.
Power-up action
When the unit is powered up, the PTZ camera will perform a series of self-test
actions. Meanwhile, a splash screen appears that displays important system
information for two minutes, as shown below.
The system information may change depending on user’s settings or models.

Chapter 1: Introduction
6 TruVision Analog PTZ Camera Configuration Manual
System-defined presets
The camera has some system-defined presets with special functions. These
presets cannot be edited but can be called through a control device, such as a
DVR or keypad. Please refer to below table for details.
Table 1: Predefined presets
Preset N
o. Function Preset No. Function
33
Auto-flip 93 Set manual limit stops
34
Return to home position 94 Remote reboot
35
Preset Tour 1 95 Access main menu
36
Preset Tour 2 96 Stop scanning
37
Preset Tour 3 97 Start random scanning
38
Preset Tour 4 98 Start frame scanning
39
IR cut filter in 99 Start pan scanning
40
IR cut filter out 100 Start tilt scanning
41
Shadow Tour 1 101 Start panorama scanning
42
Shadow Tour 2 102 Preset Tour 5
43
Shadow Tour 3 103 Preset Tour 6
44
Shadow Tour 4 104 Preset Tour 7
92
Enable limit stops 105 Preset Tour 8
Note: Please ensure that the baud rate, data bit, and address have been
configured for the camera are the same as those in the control device.

Chapter 2: Programming
TruVision Analog PTZ Camera Configuration Manual 7
Chapter 2
Programming
This chapter explains how to program the cameras through a control device. The
connections or procedure may vary depending on the control device. The following
instructions show how to program using a DVR.
Access the OSD menu
To enter the main menu:
1. Connect the camera’s video and RS-485 cables to a DVR.
2. Access the DVR via its web browser or OSD menu.
3. View the live video of the PTZ camera.
4. Call preset 95 from the preset list in the PTZ control panel of the DVR to access the
OSD menu.
To move the cursor and select an item:
1. Move the cursor up/down: In live view mode, click the UP/DOWN buttons or the
FOCUS + and FOCUS-buttons in the PTZ control panel to move the cursor up and
down.

Chapter 2: Programming
8 TruVision Analog PTZ Camera Configuration Manual
2. Enter/Exit: In the live view window, click IRIS+to enter a submenu. Move the cursor to
Exit and click IRIS+to exit.
To select and change an item in a menu:
1. Move the cursor to the target item and click the IRIS+ button.
2. Click the UP/DOWN or LEFT/RIGHT buttons in the PTZ control panel to choose the
value from the selectable value list.
3. Click IRIS+to confirm the change, or click IRIS-to cancel and restore the original value.
View system information
The System Information menu displays the current system information of the PTZ camera,
including model number, address, protocol, etc.
Figure 1: System information
Note: The information displayed cannot be edited. The temperature shown refers to the
internal temperature.
To view the system information:
1. Go to Main Menu >System Information. The System Information menu appears.
Change system settings
System information settings
You can check and edit the system settings on address, communication, protocol, time, etc.
in the System Information Settings menu.

Chapter 2: Programming
TruVision Analog PTZ Camera Configuration Manual 9
Note:When there is more than one page to a submenu, click the left/right buttons in the
PTZ control panel of the DVR to enter the next page and return to the previous page of the
submenu.
Figure 2: System information settings

Chapter 2: Programming
10 TruVision Analog PTZ Camera Configuration Manual
Camera address settings
To change the camera address settings:
1. Go to Main Menu >System Settings > System Infor Settings.
2. Set the soft address of the PTZ camera.
If Soft Address Active is set to On, the soft address is the valid address for connecting
the PTZ camera. Select a value between 1 and 255.
If Soft Address Active is set as Off, the hard address set by the DIP switch is the valid
address of the PTZ camera.
Note: Before setting the soft address of the PTZ camera, you need to confirm that it is
within the control range of the control device (e.g. the DVR).
After you enable/disable the soft address, the PTZ camera reboots automatically to
activate the settings.
3. Set the broadcast address of the PTZ camera.
When Broadcast Address is set to On, the control device with address 0 can control all
PTZ cameras connected to it.
Soft baud rate settings
To change the soft baud settings:
1. Go to Main Menu >System Settings > System Infor Settings.
2. Set the soft baud rate.
If Soft Baud Active is set to On, there are 4 selectable baud rate: 2400, 4800, 9600
and 19200.
If Soft Baud Active is set to Off, the baud rate depends on the DIP switch settings.
Note:After you enable/disable the soft baud rate, the PTZ camera reboots automatically
to activate the settings.
Pelco checksum
If the PTZ camera uses PELCO-P or PELCO-D protocol, set the Pelco Checksum to On to
get better response when there is a delay in signal transmission and PTZ reaction.
System time
To change the system time:
1. Go to Main Menu >System Settings > System Infor Settings.
2. Use the direction buttons to move the cursor to Sys Time and click IRIS+ to enter.
3. Click the left/right buttons to move the cursor on the item (year/month/day or
hour/minute/second) that you want to change.

Chapter 2: Programming
TruVision Analog PTZ Camera Configuration Manual 11
4. Click the up/down buttons to increase/decrease the value.
5. Click IRIS+ button to confirm and exit.
Zero point (initial position) setting
You can define the initial position of the PTZ camera using the Zero Point Setting
submenu.
To change the zero point setting:
1. Go to Main Menu > System Settings > System Infor Settings.
2. Use the direction buttons to move the cursor to Zero Point Setting and click
IRIS+ to enter.
3. Click the left/right/up/down buttons to adjust the monitor angle of the PTZ camera
to find the initial position.
4. Click IRIS+ button to confirm and exit.
Display settings
You can enable or disable the on-screen display for the information of zoom, PTZ
movements, alarms, time, presets, zone, address, error rate, and fan and heat, etc. See
Figure 3 below.
Figure 3: Display settings menu

Chapter 2: Programming
12 TruVision Analog PTZ Camera Configuration Manual
To change the display setting:
1. Go to Main Menu > System Settings > System Infor Settings > Display
Settings. The Display Settings menu appears.
2. Use the direction buttons to move the cursor to the target item and click IRIS+ to
enter.
3. Click the up/down buttons to select the desired value, such as On or Off.
4. Click IRIS+ button to confirm and exit.
Note:
If you enabled both the ZOOM and PT options, the preset label is displayed on screen
while calling the preset.
The PTZ camera displays the viewing direction while you are manually controlling it to
rotate. The zero point must be defined as “North” when initially configuring the camera.
See Table 2 below.
Table 2: Description of the display direction information
Display
N NE E SE S SW W NW
Description
North Northeast East Southeast South Southwest West Northwest
Fan control
Set Fan Control as Temp (controlled by the temperature), On or Off.
EIS (Electronic image stabilization) function
Set the EIS Function as On or Off.
Preset direct focus
Set the preset direct focus function On/Off from the Preset DFocus submenu.
Protocol and RS-485 settings
The PTZ camera allows you to configure the protocol via the OSD menu.
To set the protocol and RS-485 setting:
1. Go to Main Menu > System Settings > System Infor Settings.
2. Set Protocol Active to On to enable the user-defined protocol.
3. Under Protocol, select the desired protocol from the list: UTC RS-485, PELCO-D,
or PELCO-P.
4. Set the RS-485 configuration diagnosis.
Set 485Check to On or Auto for automatic RS-485 configuration diagnosis. If the
configuration is incorrect, an alert will be received by users; if you set the value as
AUTO, it will finish the diagnosis if no error in the configuration is detected

Chapter 2: Programming
TruVision Analog PTZ Camera Configuration Manual 13
Power off memory
The camera can store configuration settings during a power off period for the predefined
period of time. The camera can resume its previous lens position once power is restored
during this period.
Camera settings
You can change the camera related settings in the Camera menu.
Enter the Camera settings menu:
MAIN MENU > SYSTEM SETTINGS > CAMERA
Figure 4: Camera menu
To access the Camera menu:
1. Go to MAIN MENU > SYSTEM SETTINGS > CAMERA.
Focus
To set the camera focus:
1. Go to MAIN MENU > SYSTEM SETTINGS > CAMERA.

Chapter 2: Programming
14 TruVision Analog PTZ Camera Configuration Manual
2. Use the direction buttons to move the cursor to FOCUS and click IRIS+ to enter.
3. Click the up/down buttons to choose the focus mode: AF, MF or SAF.
AF (Auto-focus): The lens continually focuses automatically. This is the default
settings of the camera.
MF (Manual focus): Manually focus the lens.
SAF (Semi-auto focus): When the camera performs PTZ movements, the lens
automatically focuses. When the camera stops PTZ, the focus remains fixed and
does not focus on moving objects in the image.
4. Click IRIS+ to confirm.
Zoom limit
Zoom limit is a user-defined limitation of the zoom magnification (Zoom times = Optical
zoom × Digital zoom). If the zoom limit is set to its minimum value, the digital zoom is
disabled and the optical zoom function is at its maximum value. If the zoom limit is set to a
larger value, digital zoom is enabled.
To set the zoom limit:
1. Go to MAIN MENU > SYSTEM SETTINGS > CAMERA.
2. Use the direction buttons to move the cursor to ZOOM LIMIT and click IRIS+ to
enter.
3. Click up/down direction buttons to select the limit value.
4. Click IRIS+ to confirm.
Zoom speed
You can define the speed at which the lens changes from full wide zoom to the optical
zoom.
To set the zoom speed:
1. Go to MAIN MENU > SYSTEM SETTINGS > CAMERA.
2. Use the direction buttons to move the cursor to ZOOM SPEED and click IRIS+ to
enter.
3. Click the up/down buttons to select the speed: High (default), Middle, and Low.
4. Click IRIS+ to confirm.
Day/Night mode
There are two parameters available for day/night mode configuration.
1. IR CUT FILTER.
It can be set as Auto, Day or Night.

Chapter 2: Programming
TruVision Analog PTZ Camera Configuration Manual 15
Auto: The PTZ camera can automatically switch between black and white mode (Night)
and color mode (Day) depending on the lighting conditions. This is the default value.
Night (B/W): Switch the IR cut filter into black and white mode to increase the lens
sensitivity in low light conditions
Day (Color): Switch it to day mode under normal lighting conditions.
Note: You can set the IR Cut Filter value from the Camera menu. Call preset 39 to set
the IR cut filter mode to Day mode, and call preset 40 to set it to Night mode.
2. IR cut sensitivity.
The IR cut sensitivity is the light level for auto D/N mode switch. As a dividing line, IR cut
filter switches between Day and Night when the light condition reaches the user-defined
D/N level. You can set the D/N level to 0, 1, or 2.
BLC and WDR functions
There are two parameters available for BLC and WDR configuration on this menu.
To set the BLC and WDR:
1. Go to MAIN MENU > SYSTEM SETTINGS > CAMERA.
2. BLC/DWDR: You can set the value as ON or OFF to enable or disable the
functions.
3. BLC LEVEL: Manually adjust the backlight compensation level.
Note: BLC level configuration depending on the camera model. Some models do
not support a user-defined BLC level.
Exposure mode
AE (automatic exposure) mode defines the priority of the iris, shutter, and gain when the
PTZ camera is adjusting the brightness level during live view.
To set the exposure mode:
1. Go to MAIN MENU > SYSTEM SETTINGS > CAMERA.
2. Use the direction buttons to move the cursor to EXPOSURE MODE and click
IRIS+ to enter.
3. Click the up/down buttons to select one of the four options:
•Auto: Auto iris, auto shutter, and auto gain. The PTZ camera adjusts the
values automatically depending on the lighting conditions. This is the default
mode.
•Iris: This is the iris-priority mode. Define the iris value depending on the
lighting conditions.
•Shutter: This is the shutter-priority mode. Define the shutter speed depending
on the lighting conditions.

Chapter 2: Programming
16 TruVision Analog PTZ Camera Configuration Manual
•Manual: Manually define the iris value, gain value, and shutter speed
depending on the lighting conditions.
Iris value
The IRIS value measures the amount of light entering to the lens. You can set the iris value
from 0 to 17 in response to the changing light conditions.
Note: The iris is fully closed at value 0 and fully open at value 17.
Shutter speed
The speed of the electronic shutter controls the amount of light entering to the lens in a unit
of time (a second). You can manually configure the shutter speed for the PTZ camera, and
you can also enable the slow shutter function for low lighting circumstances.
1. Shutter speed. If you set the SHUTTER value to a higher value (shutter speed is
faster), the amount of light entering per second is reduced and the image becomes
darker. Select one of these values: 1, 2, 4, 8, 15, 30, 50, 125, 180, 250, 500, 1000,
2000, 4000 or 10000.
Note: The value of X indicates that the shutter speed is 1/X second.
2. Slow shutter. Set the SLOW SHUTTER value between 0 and 5. The shutter speed can
automatically slow down to extend exposure time under low lighting circumstances to
obtain clearer image.
Note: Turn on INITIALIZE LENS to trigger an automatic lens initiation and ensure
normal operation.
Gain value
•Gain value: This indicates the amplification degree of the original image signal. You can
set the value between 0 and 15.
•Gain limit: The higher gain value set, the more noise appears in the image. Set the
maximum user configurable gain value between 0 and 15 to limit the gain range and
control noise in the image.
Exposure compensation function
Set the EXPOSURE COMP value between 0 and 14. The default value is 7.
White balance
You can set WHITE BALANCE mode as AUTO, INDOOR, OUTDOOR, CUSTOM (user
defined), ATW (auto-tracking), or SEMI-AUTO (Semi-auto).
Note:In CUSTOM. mode you need to define the value of RED and BLUE.
Image flip
If you enable the IMAGE FLIP function, the image is flipped diagonally along its central
axis, seen as a mirror reflection of the image.

Chapter 2: Programming
TruVision Analog PTZ Camera Configuration Manual 17
Focus limit
Focus limit is the focal length limitation of the PTZ camera. You can configure a longer
focus limit when the target is far away to prevent the PTZ camera from focusing on objects
close to it; or configure a shorter focus limit when the target is near to the PTZ camera, and
prevent it from focusing on objects further away.
Set FOCUS LIMIT to 1CM (default), 30CM, 1M or 3M to ensure that the PTZ camera
focuses on the target. When set to AUTO, the focus limit automatically changes according
to the lens zooming.
Image quality parameters
Sharpness: The sharpness function can increase the auto-gain of the PTZ camera and
sharpen the edges in the picture to enhance the picture details. You can set the
SHARPNESS level between 0 and 15.
Hue: Adjust the CHROMA SUPRESS value between OFF, HIGH, MID and LOW to
suppress the noise in low lighting conditions. If you set the value higher, the hue value and
image noise both increase.
Contrast: Adjust the image contrast in CONTRAST submenu. Select a value between 0
and 7.
Saturation: Adjust the image saturation on SATURATION s submenu. Select a value
between 0 and 7.
Resolution setting: Set HR MODE as ON to reduce the resolution and avoid color
crossing in the image. Switch it OFF to disable the function.
Note: The values of contrast and saturation available vary depending on the camera
models.
Noise reduction
You can set the NOISE REDUCTION function OFF, HIGH, MID or LOW.
HLC (high light compensation)
Set the HLC function level between 0 and 3.
Privacy masking
You can set the privacy mask to cover certain areas from live viewing and recording. The
masked areas can move with the pan/tilt movements and their size can vary automatically
when the lens zooms.

Chapter 2: Programming
18 TruVision Analog PTZ Camera Configuration Manual
Figure 5: Privacy masking menu
To set privacy masking:
1. Go to MAIN MENU > SYSTEM SETTINGS > PRIVACY MASKING.
2. Move the cursor to WINDOW NUMBER and click IRIS+ to enter edit mode.
Click the up and down direction buttons to select the privacy mask number to be
configured. Click IRIS+ again to confirm and exit edit mode.
3. Configure the position and size of the privacy mask.
Move the cursor to WINDOW SETTINGS and click IRIS+ to enter edit mode. You
will see a purple privacy mask on the live window.
The message, ADJUST WINDOW POSTION, appears on screen. Click the
direction buttons to adjust the position of the privacy mask to the designed
location.
Click FOCUS+. The message, ADJUST WINDOW SIZE, appears on screen. Click
the up/down buttons to increase/decrease the height of the mask and click
right/left buttons to increase/decrease the width of the mask. Click IRIS+ button to
save the settings and return to the previous menu. The mask becomes grey.
