1. Product Description [EN]
The AC Cloud Control device is an external module capable of connecting your Air
Conditioning units into your Wi-Fi network in order to provide global connectivity and
remote control applications through a friendly user interface.

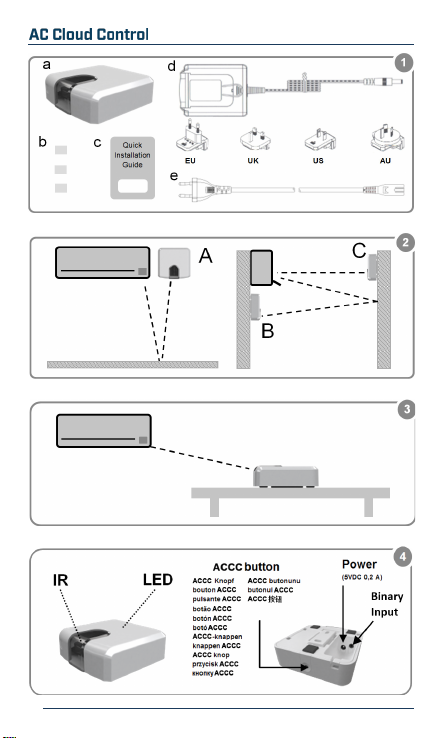

Packaging content (Figure 1):
QUICK INSTALL GUIDE
EN
(a) AC Cloud Control Device (b) 3 Rubber dampers (c) Quick install guide
(d) Power supply + 4 plugs (EU, UK, US, AU) (e) Additional cable
* The ACCC device requires a (5VDC 0,25 A) NEC Class 2 or Limited Power Source (LPS) and SELV rated
powersupply as the one provided.
2. Installation overview
The AC Cloud Control device can be installed on a wall mounted position (Figure 2) or
in a desktop position (Figure 3). Socket-outlet shall be near the equipment and shall
be accessible.
CAUTION: To ensure regulatory compliance, use only the provided power supply. Keep
in mind that some furniture and materials (carpets, curtains, glass, metal…) may a󰀨ect
on the IR communication.
More information at https://www.intesis.com/accloud
3. Wi-Fi conguration
Follow instructions from our Wi-Fi conguration manual at:
https://www.intesis.com/docs/IR_Quick_Wireless_Cong
4. IR conguration (learning mode)
IMPORTANT: Before starting the IR conguration process, please check the
compatibility list at https://www.intesis.com/accloud and make sure that you have the
AC Cloud Control device already connected to the Internet.
1. Push the ACCC button for 3 seconds. The LED will turn into white steady.
2. Pick up the IR wireless controller and push the On/O󰀨 button pointing to the
AC Cloud Control device.
• If process is not OK, the AC Cloud Control device LED will be blinking in Red.
Repeat the process from step 1 and check our compatibility list or visit https://www.
intesis.com/accloud for more details.
• If process is OK, the AC Cloud Control device LED will be blinking in Green.
5. Device registration
Follow bellow instructions to register your device:
1. Visit https://accloud.intesis.com.
2. Create an account (in case you don’t have it yet).
3. Visit the settings/device/ section and click on add device.
4. Introduce the registration code (25 digit code on the manual sticker).
5. Select the widgets (functions) you want to use with your device.
You can nd detailed information about all the installation and conguration process at
https://www.intesis.com/accloud
