Parts Catalog Issued: Apr 24, 2012

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 94-143. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
© 2012 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., and the Medallion Design are registered trademarks and A-T and Contracture Platform
are trademarks of Invacare Corporation.
Parts Catalog Usage Guide
1
Form No. 94-143
To order call toll free 1-800-333-6900, or www.invacare.com

Adult Tilt Foot Assist Option (ATFA) ........................................................................................ 47
Arms - "T" Arm ......................................................................................................................... 33
Arms - Adjustable Height .......................................................................................................... 31
Canes - Back ............................................................................................................................ 18
Canes - Back - Attaching Hardware ......................................................................................... 21
Casters & Forks ........................................................................................................................ 36
Frame Finishes & Touch-Up Paint ........................................................................................... 4
Frames - Base .......................................................................................................................... 8
Frames - Base - Hardware ....................................................................................................... 13
Frames - Seat ........................................................................................................................... 15
Front Riggings - Adjustable Angle Footplate Assemblies - AT5543 ......................................... 67
Front Riggings - Articulating Legrests - ATL4A ........................................................................ 56
Front Riggings - Bilateral Contracture Footrest ........................................................................ 73
Front Riggings - Contracture Platform™ .................................................................................. 71
Front Riggings - Footrest Supports - 60 Degree - 70 Degree & 90 Degree ............................. 51
Front Riggings - Heel & Toe Loops .......................................................................................... 75
Front Riggings - Legrest Calf Pads & Ratchet Assembly ......................................................... 58
Front Riggings - Legrest Supports - AT5044 ............................................................................ 54
Front Riggings - Pivot/Slide Tube & 1651Composite Footplate ............................................... 63
Front Riggings - Pivot/Slide Tube & 1651Composite Footplate Assemblies ............................ 60
Front Riggings - Pivot/Slide Tube & A1562 - A1564 Aluminum Footplates ............................. 65
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143

Handrims .................................................................................................................................. 40
Miscellaneous Accessories ...................................................................................................... 82
Packaging - Literature & Decals ............................................................................................... 6
Recliner Hardware .................................................................................................................... 23
Seat Pans ................................................................................................................................. 27
Stroller Handles -1483 .............................................................................................................. 79
Tilt Hardware ............................................................................................................................ 29
Upholstery - Recliner Back & Headrest .................................................................................... 25
Vent Tray .................................................................................................................................. 49
Wheel Locks - Pull to Lock ....................................................................................................... 43
Wheel Locks - Push to Lock ..................................................................................................... 41
Wheel Locks - Used with 'T" Arms ........................................................................................... 45
Wheels - Rear & Axle Hardware .............................................................................................. 39
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143

Frame Finishes and Touch-Up Paint
Color Number Touch Up Paint Color
Anthracite103337622P Denim BlueN/A102P Electric RedN/A61P Electric BlueN/A62P Electric TealN/A104P Electric PurpleN/A66P Evergreen with Navy107389280P Jeweled GreenN/A101P Lavender107389684P Midnight BlueN/A105P Mocha FrostN/A103P Red103145533P Royal Blue with Grape107389583P Sunny Yellow107416730P Wet Black103145024P Wet Black with Twilght SparkleN/A88P White103144729P
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143

Frame Finishes and Touch-Up Paint
Sparkle Frame Finishes
Color Number Color
Black w/ Twilight Sparkle72P Black w/ Gold Sparkle73P Black w/ Green Sparkle74P Black w/ Blue Sparkle75P Black w/ Red Sparkle76P
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143

Packaging, Literature, and Decals
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143

Packaging, Literature, and Decals
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
40131X011 Carton, Front Riggings 1 11 1030364 Carton, Cover 1 12 1015609-NLA NLA - Bag, Poly (28" W x 44" D x 80" H) 1 13 1030362 Carton, Tray 1 14 1062605 Decal, Black 1 1A 1046498 Decal, White 1 1A 1049526-NLA NLA - Owner's Manual, A-T 1 1A
A - Not Shown
Whe
n adjusting or replacing parts please refer to your owners manual for assistance.
NOTE:
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143

Base Frames
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143

Base Frames
Standard Base Frames - Weight Limit 250 Lbs.
Frame Width Color Chrome
1054789-NLA
8881054787
14" See Note(s) A
1054790-NLA
8881054788
15" See Note(s) A
1048605-NLA
8881048604
16" See Note(s) A
1048607-NLA
8881048606
17" See Note(s) A
1048608-NLA
8881045548
18" See Note(s) A
1048610-NLA
8881048609
19" See Note(s) A
1048612-NLA
8881048611
20" See Note(s) A
1048615-NLA
8881048614
21" See Note(s) A
1048618-NLA
8881048617
22" See Note(s) A
A - Specify frame color when ordering.NOTE:
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143

Base Frames
Standard Base Frame w/ Vent Tray - Weight Limit 250 Lbs.
Frame Width Color Chrome
1052454-NLA
8881052453
16" See Note(s) A
1052456-NLA
8881052455
17" See Note(s) A
1052458-NLA
8881052457
18" See Note(s) A
1052460-NLA
8881052459
19" See Note(s) A
1052462-NLA
8881052461
20" See Note(s) A
1052464-NLA
8881052463
21" See Note(s) A
1052466-NLA
8881052465
22" See Note(s) A
A - Specify frame color when ordering.NOTE:
Flared Base Frames - Weight Limit 250 Lbs.
Frame Width Color Chrome
1052507-NLA
8881052498
14" See Note(s) A
1052508-NLA
8881052499
15" See Note(s) A
1052509-NLA
8881052500
16" See Note(s) A
1052510-NLA
8881052501
17" See Note(s) A
1052511-NLA
8881052502
18" See Note(s) A
1052512-NLA
8881052503
19" See Note(s) A
1052513-NLA
8881052504
20" See Note(s) A
1052514-NLA
8881052505
21" See Note(s) A
1052515-NLA
8881052506
22" See Note(s) A
A - Specify frame color when ordering.NOTE:
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143

Base Frames
Flared Base Frames w/ Vent Tray - Weight Limit 250 Lbs.
Frame Width Color Chrome
1054805-NLA
8881054798
16" See Note(s) A
1054806-NLA
8881054799
17" See Note(s) A
1054807-NLA
8881054800
18" See Note(s) A
1054808-NLA
8881054801
19" See Note(s) A
1054809-NLA
8881054802
20" See Note(s) A
1054810-NLA
8881054803
21" See Note(s) A
1054811-NLA
8881054804
22" See Note(s) A
A - Specify frame color when ordering.NOTE:
Standard Heavy Duty Base Frames - Weight Limit 300 Lbs.
Frame Width Color Chrome
1056147-NLA
8881056138-NLA
14" See Note(s) A
1056148-NLA
8881056139-NLA
15" See Note(s) A
1056149-NLA
8881056140-NLA
16" See Note(s) A
1056150-NLA
8881056141-NLA
17" See Note(s) A
1056151-NLA
8881056142-NLA
18" See Note(s) A
1056152-NLA
8881056143-NLA
19" See Note(s) A
1056153-NLA
8881056144-NLA
20" See Note(s) A
1056154-NLA
8881056145-NLA
21" See Note(s) A
1056155-NLA
1056146
22" See Note(s) A
A - Specify frame color when ordering.NOTE:
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143

Base Frames
Flared Heavy Duty Frames - Weight Limit 300 Lbs.
Frame Width Color Chrome
1056174-NLA
8881056165
14" See Note(s) A
1056175-NLA
8881056166
15" See Note(s) A
1056176-NLA
8881056167
16" See Note(s) A
1056177-NLA
8881056168
17" See Note(s) A
1056178-NLA
8881056169
18" See Note(s) A
1056179-NLA
8881056170
19" See Note(s) A
1056180-NLA
8881056171
20" See Note(s) A
1056181-NLA
8881056172
21" See Note(s) A
1056182-NLA
8881056173
22" See Note(s) A
A - Specify frame color when ordering.NOTE:
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143

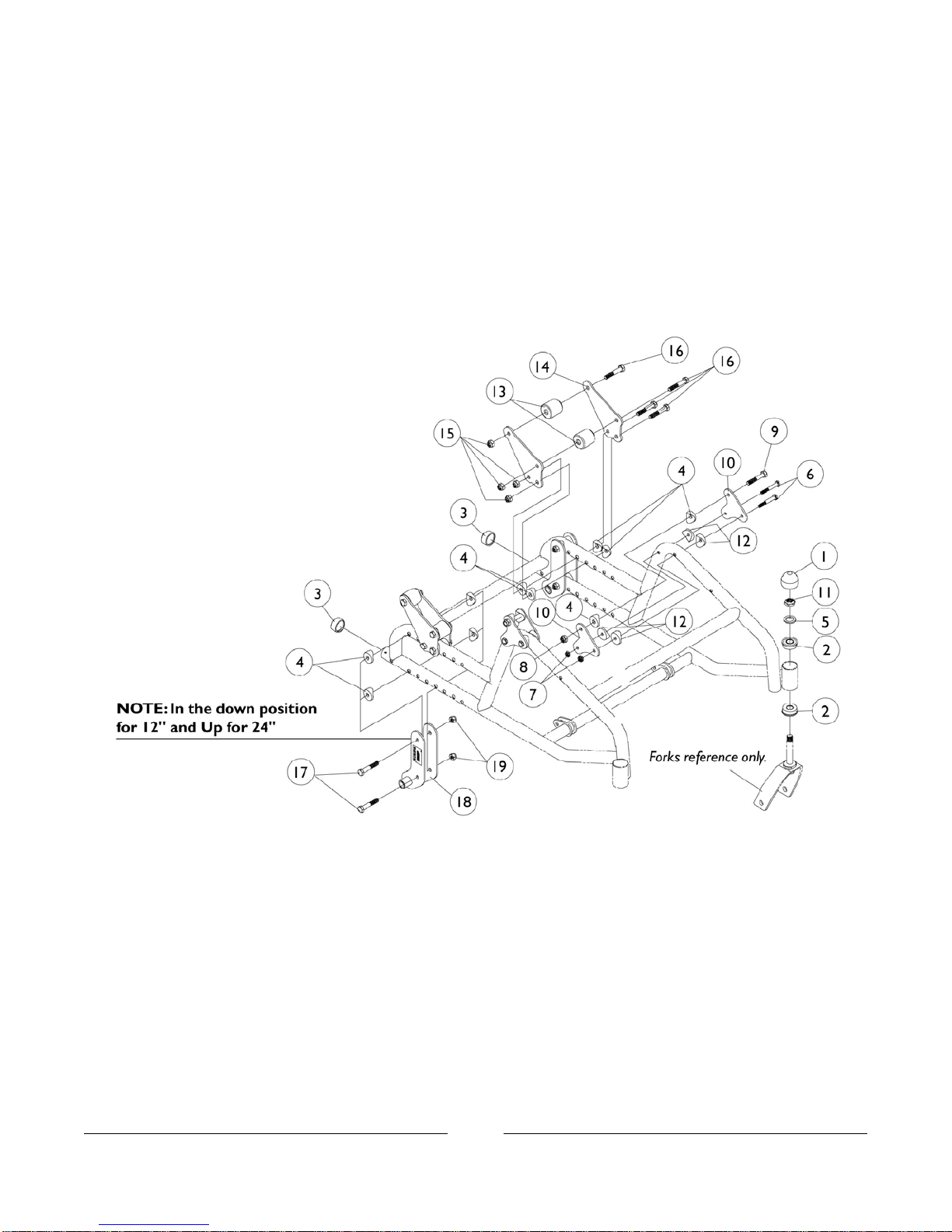

Base Frame Hardware
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143

Base Frame Hardware
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1001843 Cap, Head Tube, Black 1 21 1131189 Package, Head Tube Cap 10 21 1001801 Bearing, Flange (1/2") 1 42 15680X013 Anti-Rattle (1") 1 23 1016263 Spacer, Coved (3/4 x 1 x 1/2") 1 204 1021508 Washer, Nylon (5/8 x 1 x 3/32") 1 25 1024793 Screw, Hex Head (1/4-20 x 1-3/4") 1 46 1025195 Locknut (1/4-20) 1 47 1026906 Locknut (5/16-24) 1 28 1031891 Screw, Hex Head (5/16-24 x 2") 1 29 1045352-NLA NLA - Plate, Angle 1 410 1001979 Locknut (1/2-20) 1 211 40157X020 Spacer, Coved (1/4 x 1 x 9/16") 1 812 1059278 Spacer 1 413 B 1058972 Bracket, Black 1 414 B 1028769 Locknut (5/16-18) 1 815 B 1044939 Screw, Hex Head (5/16-18 x 1-3/4") 1 816 B 1049227 Screw, Hex Head (1/2-20 x 5-1/4") 1 417 1048990 Plate, Axle Mounting, Non-Recliner, Right/ Left 1 218 1060582 Plate, Axle Mounting, Recliner, Right 1 218 1060583 Plate, Axle Mounting, Recliner, Left 1 218 1025737 Locknut (1/2-20) 1 419 1054866 Kit, Sector Block Hardware (Pair) 1 1A Screw, Hex Head w/ Patch (1/4-20 x 2") 1 2
Washer (1/4 x 1/2 x 1/16") 1 2
NLA - Block, Sector - Right 1 1
NLA - Block, Sector - Left 1 1
A - Not Shown
B - Items 13-16 are used on Recliner models only.
NOTE:
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143

Seat Frames
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143

Seat Frames
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1019930-NLA NLA - Insert, Threaded 1 2A,B 1022174 Insert, Threaded (#10-32) 1 6A See Chart Contracture Platform Seat Frames 1 1A See Chart Recliner Seat Frames 1 1A See Chart Swingaway Seat Frames 1 1A
A - Not Shown
B - Part #1019930 is no longer available as a service part individually. Must order a complete Seat Frame Assembly as a
replacement.
NOTE:
Contracture Platform Seat Frames
Long 21-22"
Deep
Short 15-18"
Deep Short 15-18" Deep Medium 17-20" Deep Medium 17-20" Deep Long 21-22" Deep ChromeBlackChromeBlackChromeBlackWidth 1053762-NLA10537531053735-NLA10537261053708-NLA105369914" 1053763-NLA10537541053736-NLA10537271053709-NLA105370015" 1053764-NLA10537551053737-NLA10537281053710-NLA105370116" 1053765-NLA10537561053738-NLA10537291053711-NLA105370217" 1053766-NLA10537571053739-NLA10537301053712-NLA105370318" 1053767-NLA10537581053740-NLA10537311053713-NLA105370419" 1053768-NLA10537591053741-NLA10537321053714-NLA105370520" 1053769-NLA10537601053742-NLA10537331053715-NLA105370621" 1053770-NLA10537611053743-NLA10537341053716-NLA105370722"
Swingaway Seat Frames
Long 21-22"
Deep
Short 15-18"
Deep Short 15-18" Deep Medium 17-20" Deep Medium 17-20" Deep Long 21-22" Deep ChromeBlackChromeBlackChromeBlackWidth 1054785-NLA10547791054783-NLA10547771054781-NLA105477514" 1054786-NLA10547801054784-NLA10547781054782-NLA105477615" 1048635-NLA10486341048620-NLA10486191048702-NLA104870116" 1048637-NLA10486361048622-NLA10486211048705-NLA104870417" 1048639-NLA10486381048623-NLA10455471048708-NLA104870718" 1048641-NLA10486401048625-NLA10486241048711-NLA104871019" 1048643-NLA10486421048627-NLA10486261048714-NLA104871320" 1048646-NLA10486451048630-NLA10486291048717-NLA104871621" 1048649-NLA10486481048633-NLA10486321048720-NLA104871922"
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143

Seat Frames
Recliner Seat Frames
16" Wide 17" Wide 18" Wide
10613801061378106137616" Deep (Black) 1061381-NLA1061379-NLA1061377-NLA16" Deep (Chrome) 10609431060940106093717" Deep (Black) 1060952-NLA1060949-NLA1060946-NLA17" Deep (Chrome) 10609441060941106093818" Deep (Black) 1060953-NLA1060950-NLA1060947-NLA18" Deep (Chrome) 10609451060942106093919" Deep (Black) 1060954-NLA1060951-NLA1060948-NLA19" Deep (Chrome)
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143

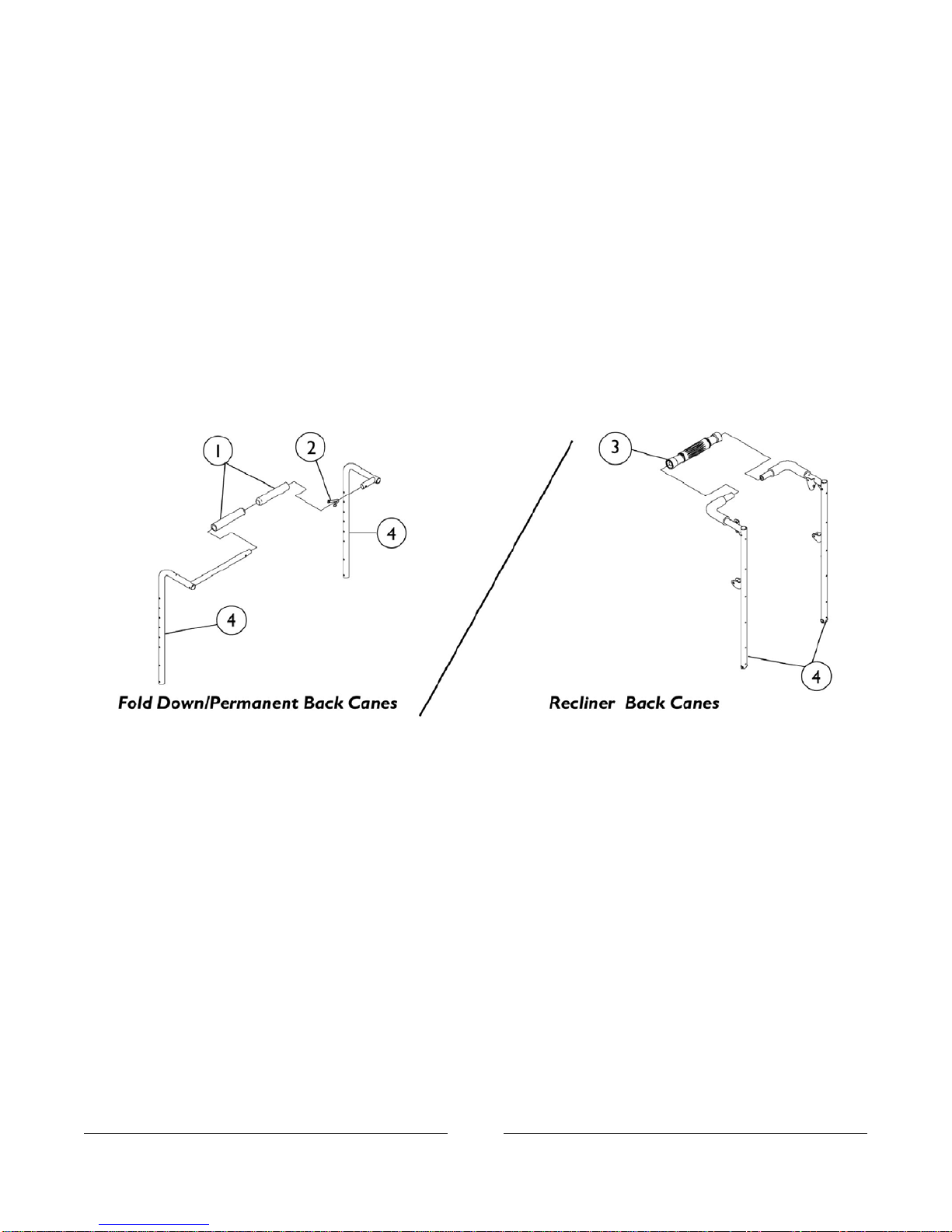

Back Canes
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143

Back Canes
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1055398 Grip, Hand, Foam (4") 1 21 A 1032245 Grip, Foam Hand (6-7/8" L) 1 21 B 1025763 Spring, Torsion with Double Button 1 12 1050293 Bar, Spreader, Black (14-20" W) 1 13 See Chart #4 Fold Down/ Permanent Back Canes without
Hardware 1 14
See Chart Recliner Back Canes without Hardware 1 1C
A - 14-15" Wide Chairs
B - 16-22" Wide Chairs
C - Not Shown
NOTE:
Item #4 Fold Down/ Permanent Back Canes without Hardware
Width Back Height Black -Right Black -Left Chrome -Right Chrome -Left
1054818-NLA1048580-NLA1054816104857220"14" 1054819-NLA1048580-NLA1054817104857220"15" 1048948-NLA1048580-NLA1048944104857220"16" 1048949-NLA1048580-NLA1048945104857220"17" 1048581-NLA1048580-NLA1048573104857220"18" 1048950-NLA1048580-NLA1048946104857220"19" 1048582-NLA1048580-NLA1048574104857220"20" 1048951-NLA1048580-NLA1048947104857220"21" 1048583-NLA1048580-NLA1048575104857220"22" 1054828-NLA1048584-NLA1054826104857624"14" 1054829-NLA1048584-NLA1054827104857624"15" 1048968-NLA1048584-NLA1048964104857624"16" 1048969-NLA1048584-NLA1048965104857624"17" 1048585-NLA1048584-NLA1048577104857624"18" 1048970-NLA1048584-NLA1048966104857624"19" 1048586-NLA1048584-NLA1048578104857624"20" 1048971-NLA1048584-NLA1048967104857624"21" 1048587-NLA1048584-NLA1048579104857624"22"
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-143
