Invacare Arrow Instruction Manual

Storm Series®
Arrow®
Ranger X™
Torque™
Power Wheelchairs
Parts Catalog Issued: Apr 7, 2014

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 94-113. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
© 2014 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., Storm Series, Arrow, and the Blue Medallion Design are registered trademarks and
Junior, Ranger X, Torque, and MKIV are trademarks of Invacare Corporation. Otto Bock is a registered trademark of Otto Bock Orthopaedische Industrie
GMBH & Co.. Tash is a registered trademark of Tash International Inc.. Therafin is a registered trademark of W/R/ Medical Electronics Co.. Bussman is a
registered trademark of Cooper Industries. MIDI is a registered trademark of Littelfuse Inc.. Dynamic is a registered trademark of Dynamic Controls Limited.
Parts Catalog Usage Guide
1
Form No. 94-113
To order call toll free 1-800-333-6900, or www.invacare.com

Accessories - Miscellaneous .................................................................................................... 236
Accessories - Power Wheelchair Tool Kit ................................................................................ 234
Anti-Tip Wheel Assembly - Gearless/ Brushless ...................................................................... 138
Anti-Tip Wheel Assembly - Non-Vent Tray Option Only ........................................................... 140
Anti-Tip Wheel Extension Assembly - Vent Tray Option Only - 2G (After 6/30/98) .................. 141
Arms - Adjustable Height - Junior (After 4/14/97) ..................................................................... 76
Arms - Adjustable Height - Junior (Before 4/15/97) .................................................................. 74
Arms - Adjustable Height (After 4/14/97) .................................................................................. 86
Arms - Adjustable Height (Before 4/15/97) ............................................................................... 84
Arms - Fixed Height (After 4/14/97) .......................................................................................... 81
Arms - Fixed Height (Before 4/15/97) ....................................................................................... 78
Back - Recliner Assembly ........................................................................................................ 57
Battery Box - Front - Group 24 Batteries .................................................................................. 191
Battery Box - Group 22NF Batteries ......................................................................................... 196
Battery Box - Rear - Group 24 Batteries .................................................................................. 193
Battery Box Support Frame - Group 24 Batteries .................................................................... 184
Battery Box Tray - Group 22 Batteries ..................................................................................... 186
Battery Chargers & Harnesses ................................................................................................. 188
Canes - Back & Attaching Hardware ........................................................................................ 52
Casters & Forks (10") ............................................................................................................... 168
Casters & Forks (6") ................................................................................................................. 162
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113

Casters & Forks (8") ................................................................................................................. 164
Casters & Forks (9") ................................................................................................................. 166
Electronics - MKIV Controller - Programmer & Hardware ........................................................ 214
Electronics - MKIV Displays ..................................................................................................... 220
Electronics - MKIV Joystick Mounting Hardware & Joystick Accessories ................................ 203
Electronics - MKIV Joystick Options ......................................................................................... 229
Electronics - MKIV Joysticks RII - RX - A - A+ - TCHJOY ...................................................... 198
Electronics - MKIV Joysticks PS - PFS & PSR ........................................................................ 201
Electronics - MKIV Mid-Line Swing Bracket Assembly ............................................................ 207
Electronics - MKIV R.I.M. Head Contol Mounting Hardware - 1500M4 (After 8/15/95) ............ 224
Electronics - MKIV R.I.M. Head Control Assembly - 1500 (Before 8/16/95) ............................ 222
Electronics - MKIV R.I.M. Head Control Assembly - 1500M4 (After 8/15/95) .......................... 226
Electronics - MKIV Recliner Control & Recliner Cable ............................................................. 219
Electronics - MKIV Sip-n-Puff/Digital Interface - COM12 - COM34 & Attaching Hardware ...... 217
Electronics - MKIV Swivel Joystick Hardware .......................................................................... 205
Electronics - Quad Link - QLA (After 4/06/06) .......................................................................... 212
Electronics - Quad Link Assembly (Before 4/07/06) ................................................................. 209
Electronics - Tash & Therafin Accessories ............................................................................... 232
Frame Finishes - Touch-Up Paints & Upholstery Options ........................................................ 11
Frames - Base .......................................................................................................................... 122
Frames - Recliner Seat (17-1/2" S-T-F LOW) (After 6/30/98) .................................................. 38
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113

Frames - Recliner Seat (17-1/2" S-T-F Standard LOW) or (19" S-T-F Heavy Duty MEDIUM)
(Before 4/15/97)
36
Frames - Recliner Seat (17-1/2" S-T-F Standard LOW) or (19" S-T-F Heavy Duty MEDIUM)
(Between 4/14/97 - 7/1/98)
37
Frames - Recliner Seat (19-3/4" S-T-F MEDIUM) (After 6/30/98) ............................................ 42
Frames - Recliner Seat (19-3/4" S-T-F Standard MEDIUM) or (21" S-T-F Heavy Duty TALL)
(Before 4/15/97)
40
Frames - Recliner Seat (19-3/4" S-T-F Standard MEDIUM) or (21" S-T-F Heavy Duty TALL)
(Between 4/14/97 - 7/1/98)
41
Frames - Recliner Seat (21-1/2" S-T-F Standard TALL) (Between 4/14/97 - 7/1/98) .............. 44
Frames - Recliner Seat (21-1/2" S-T-F TALL) (After 6/30/98) .................................................. 45
Frames - Recliner Seat (21-1/2" S-T-F TALL) (Before 4/15/97) ............................................... 43
Frames - Seat (17-1/2" S-T-F LOW) (After 6/30/98) ................................................................ 24
Frames - Seat (17-1/2" S-T-F Standard LOW) or (19" S-T-F Heavy Duty MEDIUM) (Before
4/15/97)
19
Frames - Seat (17-1/2" S-T-F Standard LOW) or (19" S-T-F Heavy Duty MEDIUM) (Between
4/14/97 - 7/1/98)
22
Frames - Seat (19-3/4" S-T-F MEDIUM) (After 6/30/98) .......................................................... 31
Frames - Seat (19-3/4" S-T-F MEDIUM) or (21" S-T-F Heavy Duty TALL) (Between 4/14/97 -
7/1/98)
28
Frames - Seat (19-3/4" S-T-F Standard MEDIUM) or (21" S-T-F Heavy Duty TALL) (Before
4/15/97)
26
Frames - Seat (21-1/2 S-T-F TALL) (Between 4/14/97 - 7/1/98) .............................................. 34
Frames - Seat (21-1/2" S-T-F TALL) (After 6/30/98) ................................................................ 35
Frames - Seat (21-1/2" S-T-F TALL) (Before 4/15/97) ............................................................. 33
Frames - Seat Attaching Hardware - Fixed & Adjustable Seat Frames ................................... 16
Frames - Seat Hardware - Fixed & Adjustable Seat Frames ................................................... 14
Front Riggings - Adjustable Angle Footplate Assemblies - AT5543 ......................................... 106
Front Riggings - AT5043 Flip-Up Footplates - 70 MFX & 90 Deg. ........................................... 104
TABLE of CONTENTS
Description
Page
Number
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113

Front Riggings - Footrest & Legrest Accessories ..................................................................... 119
Front Riggings - Footrest Supports .......................................................................................... 94
Front Riggings - Front Rigging Hanger Assembly - Sector Style ............................................. 93
Front Riggings - Legrest Supports - AT5544 ............................................................................ 97
Front Riggings - Pivot/ Slide Tube & Composite Footplates .................................................... 100
Front Riggings - Pivot/Slide Tube & 1350 Extra Large Footplates ........................................... 114
Front Riggings - Pivot/Slide Tube & 1450 Deluxe Aluminum Footplates ................................. 113
Front Riggings - Pivot/Slide Tube & AT5543 Adjustable Angle Footplates - 70 MFX & 90 Deg.
(Before 3/1/95)
108
Front Riggings - Pivot/Slide Tube & AT5543 Adjustable Angle Footplates (After 2/28/95) ...... 110
Front Riggings - Reference Chart - 70 MFX & 90 SWING ....................................................... 91
Front Riggings - Reference Chart - 70 ST TAPER ................................................................... 92
Front Riggings - Reference Chart - AT5544 - 60 HD - 70 NHD - 60 MFX ............................... 89
Front Riggings - S1263 One Piece Wooden Footboard & Hardware ....................................... 116
Heavy Duty Conversion Kit ...................................................................................................... 143
Motor & Gearbox Assembly Reference Chart .......................................................................... 144
Motors - 2-Pole & Gearboxes - 1st Gen. (Before 7/1/98) ......................................................... 146
Motors - 2-Pole & Gearboxes - 2G Storm Arrow (After 6/30/98) .............................................. 153
Motors - 2-Pole & Gearboxes - 2G Storm RX & HSM Options (After 6/30/98) ........................ 155
Motors - 4-Pole & Gearboxes (After 8/31/98) ........................................................................... 157
Motors - Gearless/Brushless & Hardware ................................................................................ 160
Packaging - Literature & Decals ............................................................................................... 8
TABLE of CONTENTS
Description
Page
Number
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113

Seat Pans & Attaching Hardware (After 4/14/97) ..................................................................... 49
Seat Pans & Attaching Hardware (Before 4/15/97) .................................................................. 46
Shock Absorbers ...................................................................................................................... 124
Shock Suspension Mounting Hardware - Gearless/ Brushless ................................................ 125
Shock Suspension Mounting Hardware (After 6/30/98) ........................................................... 128
Shock Suspension Mounting Hardware (Before 7/1/98) .......................................................... 126
Suspension Arm & Anti-Tip Wheel - Ranger X (Before 7/1/98) ................................................ 132
Suspension Arm & Anti-Tip Wheel - Storm Arrow & Torque (Before 7/1/98) ........................... 130
Suspension Arm & Mounting Hardware - 2G - Non-GB (After 6/30/98) ................................... 134
Suspension Arm & Mounting Hardware - Gearless/ Brushless ................................................ 136
Upholstery - Back - Nylon - Non-Recliner ................................................................................ 61
Upholstery - Back - Nylon - Recliner ........................................................................................ 64
Upholstery - Back - Vinyl - Non-Recliner .................................................................................. 67
Upholstery - Back - Vinyl - Recliner .......................................................................................... 70
Upholstery - Headrest & Pillows ............................................................................................... 72
Warranty Replacement Parts ................................................................................................... 238
Wheel Locks - Gearless/ Brushless ........................................................................................ 182
Wheel Locks (After 6/30/95) ..................................................................................................... 180
Wheel Locks (Before 7/1/95) .................................................................................................... 179
Wheels - Free Wheel Hub Mounts (After 8/18/98) ................................................................... 176
Wheels - Free Wheel Hub Upgrade Kits (After 8/18/98) .......................................................... 178
TABLE of CONTENTS
Description
Page
Number
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113

Wheels - Hub Mounts - All Non-Free Wheel Hubs & (Free Wheel Hubs Before 8/19/98) ....... 174
Wheels - Rear & Attaching Hardware - All Non-Free Wheel Hubs & (Free Wheel Hubs Before
8/19/98)
170
Wheels - Rear & Attaching Hardware - Free Wheel Hub Mounts (After 8/18/98) .................... 172
TABLE of CONTENTS
Description
Page
Number
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113

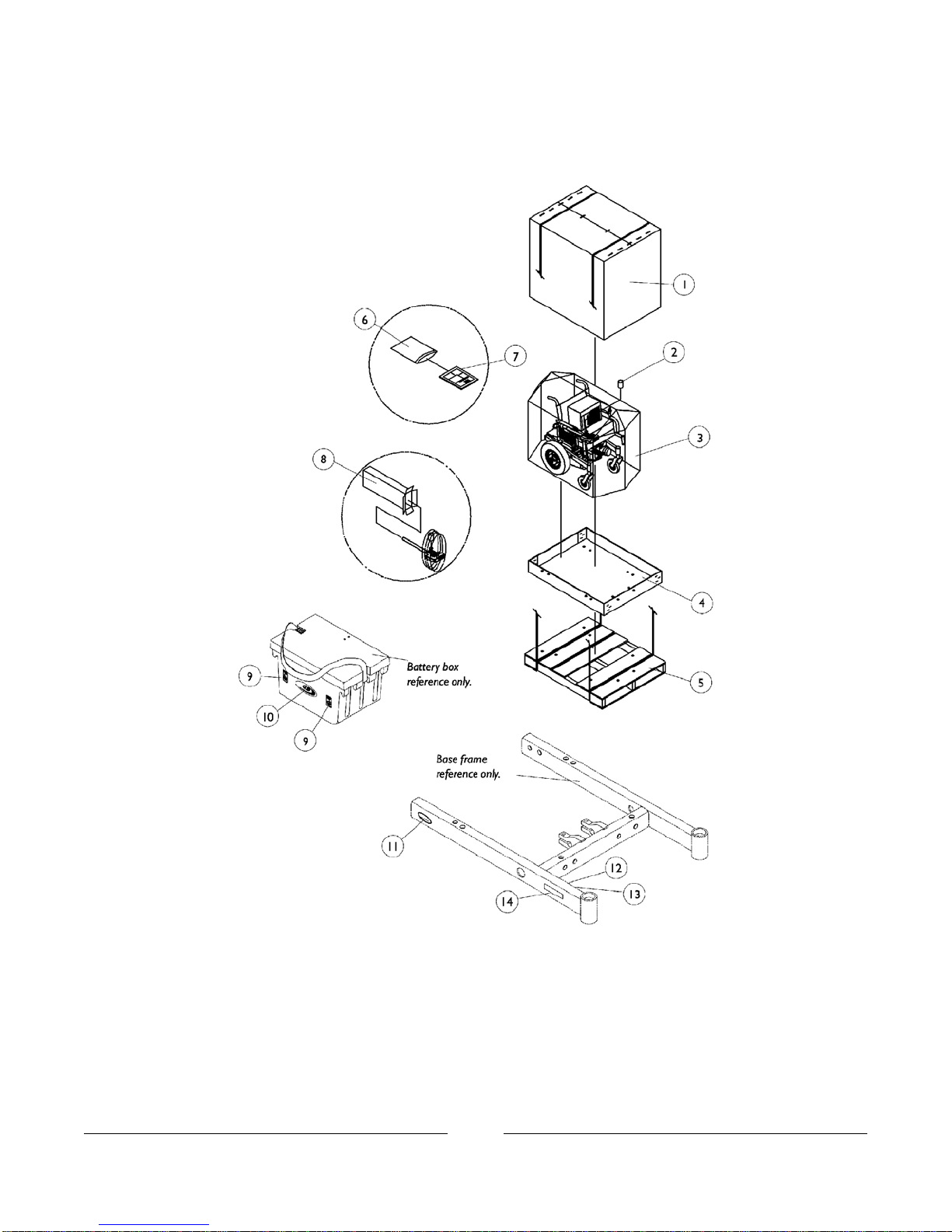

Packaging, Literature and Decals
NOTE: When adjusting or replacing parts, please refer to your Owner's Manual for assistance.
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113

Packaging, Literature and Decals
NOTE: When adjusting or replacing parts, please refer to your Owner's Manual for assistance.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1030364 Carton, Cover 1 11 F 1031682 Carton, Cover 1 11 G 1030365 Carton, Cover 1 11 A 1023612-NLA NLA - Tube, Paper 1 12 1015609-NLA NLA - Bag, Poly (28" W x 44" D x 80" H) 1 13 1030362 Carton, Tray 1 14 See Note See Footnote -- --5 H 1021149-NLA NLA - Bag, Poly Zip-Lip (13" L x 9" W) 1 16 1081227-NLA NLA - Owner's Manual - Storm Series 1 17 1012001-NLA NLA - Carton, Joystick 1 18 A 1078219-NLA NLA - Decal, Caution, Free Wheel - Right (G/B) 1 19 1078220-NLA NLA - Decal, Caution, Free Wheel - Left (G/B) 1 110 1079259 Decal, Gearless/Brushless 1 110 1095489 Decal, Invacare 3-D Logo (2-1/2" L) 1 211 1035900 Decal, Transportation 1 112 1119281-NLA NLA - Plate, Name, Patent Numbers 1 113 1095226-NLA NLA - Decal, Model, Black - Torque 1 214 D 1095227-NLA NLA - Decal, Model, White - Torque 1 214 1095228-NLA NLA - Decal, Model, Black - Arrow 1 214 D 1095229-NLA NLA - Decal, Model, White - Arrow 1 214 1095230-NLA NLA - Decal, Model, Black - Ranger X 1 214 D 1095231-NLA NLA - Decal, Model, White - Ranger X 1 214 1043623 Decal, Label Package, Black - Torque 1 1B,E 1043624 Decal, Label Package, White - Torque 1 1B,E 1043621-NLA NLA - Decal, Label Package, Black - Arrow 1 1B,E 1043622 Decal, Label Package, White - Arrow 1 1B,E 1043625-NLA NLA - Decal, Label Package, Black - Storm X 1 1B,E 1043626-NLA NLA - Decal, Label Package, White - Storm X 1 1B,E 1080647-NLA NLA - Decal, Label Package, Black - Torque G/B 1 1C,E 1095492-NLA NLA - Decal, Label Package, Black - Torque G/B 1 1C,E 1079268-NLA NLA - Decal, Label Package, Black - Arrow G/B 1 1C,E 1095491-NLA NLA - Decal, Label Package, White - Arrow G/B 1 1C,E 1079249-NLA NLA - Decal, Label Package, Black - Ranger X G/B 1 1C,E 1095490-NLA NLA - Decal, Label Package, White - Ranger X G/B 1 1C,E 00077X031-NLA NLA - Warranty Card 1 1E 50000X121 Strap, Battery Lift 1 1E
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113

Packaging, Literature and Decals
NOTE: When adjusting or replacing parts, please refer to your Owner's Manual for assistance.
A - Used with Storm Base only.
B - Decal package includes Invacare logo, model, transportation and patent numbers decals.
C - Decal package includes Invacare logo, model, transportation, patent numbers and G/B decals.
D - Used for chairs with frame colors 02P, 29P, 30P, and 84P only.
E - Not Shown.
F - Used on a Non-Recliner chair.
G - Used on a recliner chair.
H - The wood skid is not provided.
NOTE: As
of 1/11/2000 the Invacare logo was added along with new model decals and relocation
of the G/B decal to the rear battery box assembly.
NOTE:
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113

Frame Finishes, Touch-Up Paints and Upholstery Options
Frame Finishes
Color Number Touch-Up Paint
Part Number Bottle Size Description
Pink Pearl.6 oz.1031452-NLA02P Super Teal.6 oz.1031454-NLA06P Deep Purple.6 oz.1031456-NLA08P Chrome.6 oz.N/A15P Cobalt Blue.6 oz.1046319-NLA17P Anthracite.6 oz.1033376-NLA22P Wet Black.6 oz.1031450-NLA24P White.6 oz.1031447-NLA29P Sunny Yellow.6 oz.1031448-NLA30P Lollipop Pink.6 oz.1031453-NLA31P Red.6 oz.1031455-NLA33P Flat Black.6 oz.1046327-NLA34P Electric Red
.6 oz.1046321-NLA61P See Note(s) A
Electric Blue
.6 oz.1046320-NLA62P See Note(s) A
Metallic Blue
.6 oz.1046324-NLA64P See Note(s) A
Metallic Green
.6 oz.1046323-NLA65P See Note(s) A
Teflon Black.6 oz.1101320-NLA69P Silver Vein
.6 oz.N/A71P See Note(s) A
Evergreen w/Navy.6 oz.1073892-NLA80P Dark Olive w/Copper.6 oz.1073893-NLA81P Fruit Punch w/Fuchia.6 oz.1073894-NLA82P Royal Blue.6 oz.1073895-NLA83P Lavender.6 oz.1073896-NLA84P Jeweled Green.6 oz.1101325-NLA101P Denim Blue.6 oz.1101327-NLA102P Mocha Frost.6 oz.1101324-NLA103P Electric Teal.6 oz.1101316-NLA104P Midnight Blue.6 oz.1101326-NLA105P
A - Veiling is not available on these colors.NOTE:
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113

Frame Finishes, Touch-Up Paints and Upholstery Options
Frame Veil Options
Color Number Description
Dark Purple Veil13V Gold Veil67V Green Veil19V Grey Veil15V
Sparkle Frame Finishes
Color Number Description
Twilight Sparkle72P Gold Sparkle73P Green Sparkle74P Blue Sparkle75P Red Sparkle76P Wet Black w/Twilight Sparkle88P
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113

Frame Finishes, Touch-Up Paints and Upholstery Options
Upholstery Options
Vinyl Colors Nylon Colors
U240 BlackU67 Black
U75 Dove Grey
U85 Dark Blue
U96 Ruby
U97 Sky Blue
U88 Camel
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113

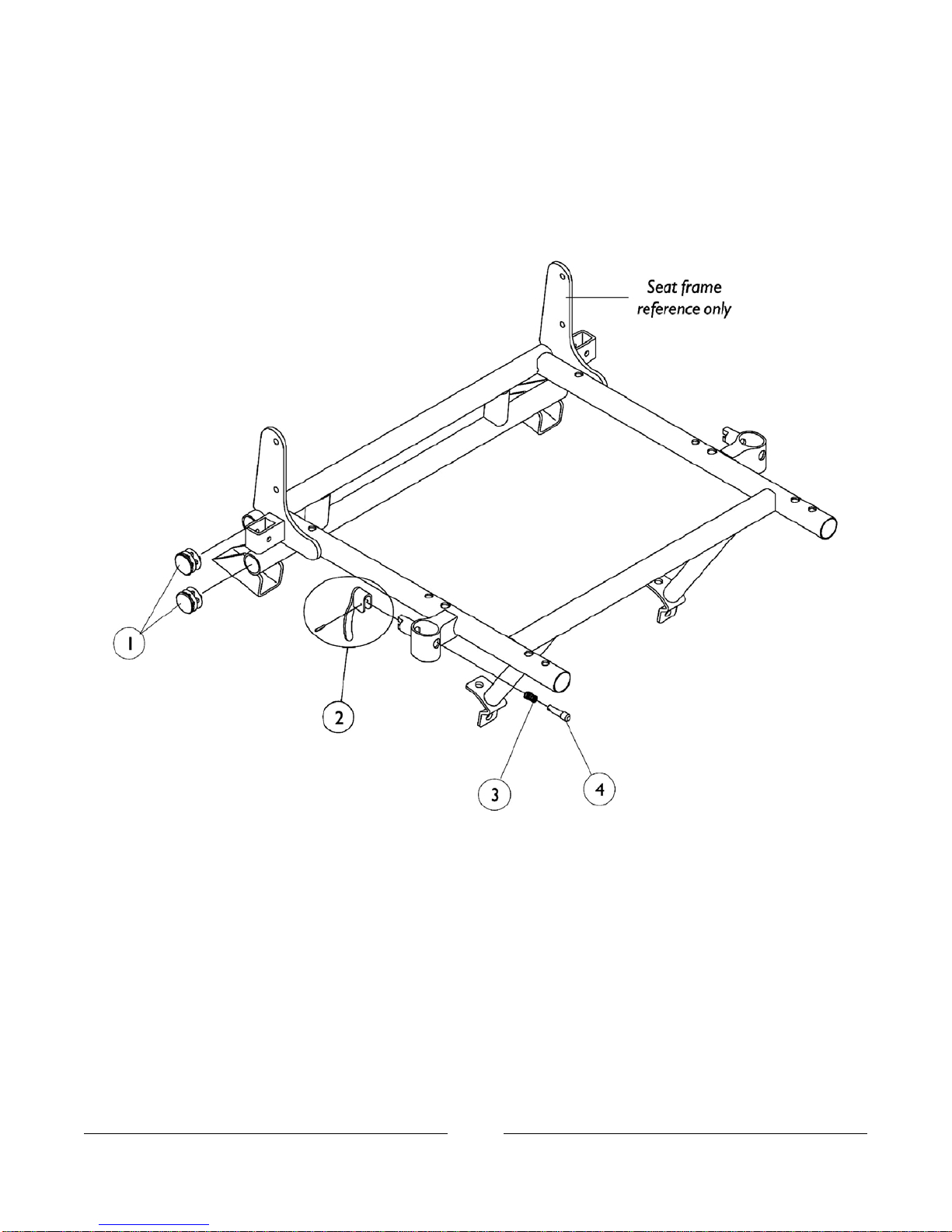

Seat Frame Hardware
Fixed and Adjustable Seat Frames
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113

Seat Frame Hardware
Fixed and Adjustable Seat Frames
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1029501 Plug Button, Black (1") 1 41 A 1090768 Kit, Lock Handle w/Rivets (Pair) 2 12 47471X074 Spring, Arm Lock 1 23 1028594 Pin, Arm Lock, Black 1 24 A - Only (2) plug buttons are used with a Low Seat Frame.
NOTE:
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113

Seat Frame Attaching Hardware
Fixed and Adjustable Seat Frames
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113

Seat Frame Attaching Hardware
Fixed and Adjustable Seat Frames
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1039860 Screw, Hex Head w/ Patch (5/16-18 x 3/4") 1 61 1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 62 1039822 Kit, Adjustable Seat Attaching Hardware - Low 1 13 A Screw, Hex Head (1/4-20 x 1-1/2") 1 24 Washer (1/4 x 23/32 x 1/16") 1 45 NLA - Bracket, Seat - Rear 1 26 Locknut (1/4-20) 1 27 Locknut (1/4-28) 1 28 Spacer, Coved (1/4 x 11/16 x 1/2") 1 29 NLA - Link, Front, Black - Low 1 210 Washer (1/4 x 1/2 x 1/16") 1 211 Screw, Hex Head (1/4-28 x 2") 1 212 Locknut (5/16-18) 1 213 Washer, Flat (5/16 x 5/8 x 1/16") 1 414 NLA - Bracket, Seat - Front 1 215 NLA - Screw, Hex Head w/ Patch (5/16-18 x 1-3/4") 1 216 1044575 Kit, Adjustable Seat Attaching Hardware - Medium 1 13 B Screw, Hex Head (1/4-20 x 1-1/2") 1 24 Washer (1/4 x 23/32 x 1/16") 1 45 NLA - Bracket, Seat - Rear 1 26 Locknut (1/4-20) 1 27 Locknut (1/4-28) 1 28 Spacer, Coved (1/4 x 11/16 x 1/2") 1 29 NLA - Link, Front, Black - Medium 1 210 Washer (1/4 x 1/2 x 1/16") 1 211 Screw, Hex Head (1/4-28 x 2") 1 212 Locknut (5/16-18) 1 213 Washer, Flat (5/16 x 5/8 x 1/16") 1 414 NLA - Bracket, Seat - Front 1 215 NLA - Screw, Hex Head w/ Patch (5/16-18 x 1-3/4") 1 216 1044570 Kit, Adjustable Seat Attaching Hardware - Tall 1 13 C Screw, Hex Head (1/4-20 x 1-1/2") 1 24 Washer (1/4 x 23/32 x 1/16") 1 45 NLA - Bracket, Seat - Rear 1 26 Locknut (1/4-20) 1 27 Locknut (1/4-28) 1 28 Spacer, Coved (1/4 x 11/16 x 1/2") 1 29 NLA - Link, Front, Black - Tall 1 210 Washer (1/4 x 1/2 x 1/16") 1 211 Screw, Hex Head (1/4-28 x 2") 1 212 Locknut (5/16-18) 1 213 Washer, Flat (5/16 x 5/8 x 1/16") 1 414
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113

Seat Frame Attaching Hardware
Fixed and Adjustable Seat Frames
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
NLA - Bracket, Seat - Front 1 215 NLA - Screw, Hex Head w/ Patch (5/16-18 x 1-3/4") 1 216 A - Before 7/1/98 seat attaching hardware was used for both low and (medium on heavy duty models). After 6/30/98 the
attaching hardware was used for low seat to floor settings only.
B - Before 7/1/98 seat attaching hardware was used for both medium and (tall on heavy duty models). After 6/30/98 the
attaching hardware was used for medium seat to floor settings only.
C - For tall seat to floor on heavy duty models before 7/1/98 see item 3 part number 1044575
NOTE:
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113

Seat Frame Before 4/15/97
(17-1/2" S-T-F Standard LOW) or
(19" S-T-F Heavy Duty MEDIUM)
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 94-113
