Invacare®LiNXIDC
enRemote
UserManual
ThismanualMUSTbegiventotheuseroftheproduct.
BEFOREusingthisproduct,readthismanualandsaveforfuturereference.

©2017InvacareCorporation
Allrightsreserved.Republication,duplicationormodicationinwholeorinpartisprohibited
withoutpriorwrittenpermissionfromInvacare.Trademarksareidentiedby™and®.Alltrademarks
areownedbyorlicensedtoInvacareCorporationoritssubsidiariesunlessotherwisenoted.
Invacarereservestherighttoalterproductspecicationswithoutfurthernotice.

Contents
1General.........................................4
1.1Aboutthismanual..............................4
1.2Intendeduse..................................4
1.3Servicelife...................................4
2Safety..........................................5
2.1Generalsafetynotes............................5
2.2SafetyinformationonIDC........................5
3Components......................................6
3.1Topside.....................................6
3.2Bottomside..................................6
3.3Labelsonproduct..............................7
4Setup...........................................9
4.1Installing/RemovingtheIDC.......................9
4.2ConnectingIDCtocontrolssystem..................10
5Usage..........................................11
5.1StartingupIDC................................11
5.2Switchingcontrolbetweenattendantandoccupant.....11
5.3Settingthespeed..............................11
5.4ControllingthewheelchairwithIDC.................12
5.4.1Howtosteerthewheelchair...................12
5.4.2Howthewheelchairreactstohandlemovements....12
5.5Informationonthe“EmergencyStop”function........13
5.6Faultdiagnosis................................14
5.6.1Faultcodesanddiagnosiscodes.................14
6Maintenance.....................................17
6.1IDCmaintenance...............................17

Invacare®LiNXIDC
1General
1.1Aboutthismanual
Thisdocumentisasupplementtothepowerwheelchair’s
documentation.
TheproductitselfdoesnotbearaCEmarkbutispartofa
productthatcomplieswithDirective93/42/EECconcerning
medicaldevices.Itisthereforecoveredbythepower
wheelchair’sCEmarking.Seethepowerwheelchair’s
documentationformoreinformation.
Formoreinformationabouttheproduct,forexample
productsafetynoticesandproductrecalls,contactyourlocal
Invacarerepresentative.Beforereadingthismanual,make
sureyouhavethelatestversion.Youndthelatestversion
ontheInvacarewebsite.Foraddressandwebsiteseeback
pageofthismanual.
1.2Intendeduse
TheIDCcanbeusedtoassigncontrolofthepower
wheelchairfromtheoccupanttoanattendant.TheIDC
isnotsuitableforthewheelchairoccupanthimself.The
attendantwalksbehindortothesideofthewheelchair,and
canintuitivelydeterminespeedanddirectionofmovement
bypressingahandlewithminimumforce.Adjustments
canalsobemadetothewheelchairusingdedicated
programming.OncetheattendantactivatestheIDC,he
takesovercompleteresponsibilityforthewheelchairand
itsoccupant.
1.3Servicelife
Weestimateaservicelifeofveyearsforthisproduct,
provideditisusedinstrictaccordancewiththeintended
useassetoutinthisdocumentandallmaintenanceand
servicerequirementsaremet.Theestimatedservicelifecan
beexceedediftheproductiscarefullyusedandproperly
maintained,andprovidedtechnicalandscienticadvances
donotresultintechnicallimitations.Theservicelifecan
alsobeconsiderablyreducedbyextremeorincorrectusage.
Thefactthatweestimateaservicelifeforthisproductdoes
notconstituteanadditionalwarranty.
41643411-A

Safety
2Safety
2.1Generalsafetynotes
WARNING!
Riskofinjuryordamageduetoelectricalshorts
Connectorpinsoncablesconnectedtothepower
modulecanstillbeliveevenwhenthesystem
isoff.
–Cableswithlivepinsshouldbeconnected,
restrainedorcovered(withnon-conductive
materials)sothattheyarenotexposedto
humancontactormaterialsthatcouldcause
electricalshorts.
–Whencableswithlivepinshavetobe
disconnected,forexample,whenremovingthe
buscablefromtheremoteforsafetyreasons,
makesuretorestrainorcoverthepins(with
non-conductivematerials).
Riskofdamagetotheconnectorpins
Ifyoutouchtheconnectorpins,theycanbecome
dirtyortheycanbedamagedbyelectrostatic
discharge.
–Donottouchtheconnectorpins.
Riskofdamagetothemobilitydevice
Therearenouser-serviceablepartsinsideany
case.
–Donotopenordisassembleanycase.
2.2SafetyinformationonIDC
CAUTION!
Riskofinjuryordamage
Malfunctioningorunintendedmovementmay
occuriftheIDCwasexposedtoforcefulimpacts
suchaswallcollisionorfalldamage,orifitis
visiblydamaged.Internalpartsmightbebroken.
–Ifunintendedmovementoccurs,stopusingthe
IDCandpowerwheelchairimmediatelyand
contactaqualiedtechnician.
CAUTION!
Riskofinjuryordamage
Ifclampingleverorhandleandhousingscrews
arettedtootightlyorreplacedbyhardwarenot
approvedbyInvacare,IDCinternalpartsmight
getdamaged.Thiscouldleadtoanunintended
drivesignalandtheIDCcouldstartrunningby
itselfwhenIDCiscontrollingthewheelchair.
–DoNOTtightenhandlescrewsatall.Handle
maygetstuckorblocked.
–Tightenclampingleverandhousingscrews
hand-tightonly(max.6Nm).
–Tightenscrewonmonoblockto1Nm.
–Onlyuseclampingleverandscrewsprovided
byInvacareforxingIDC.
–Testmobilitydevicebeforeuse.
1643411-A5

Invacare®LiNXIDC
3Components

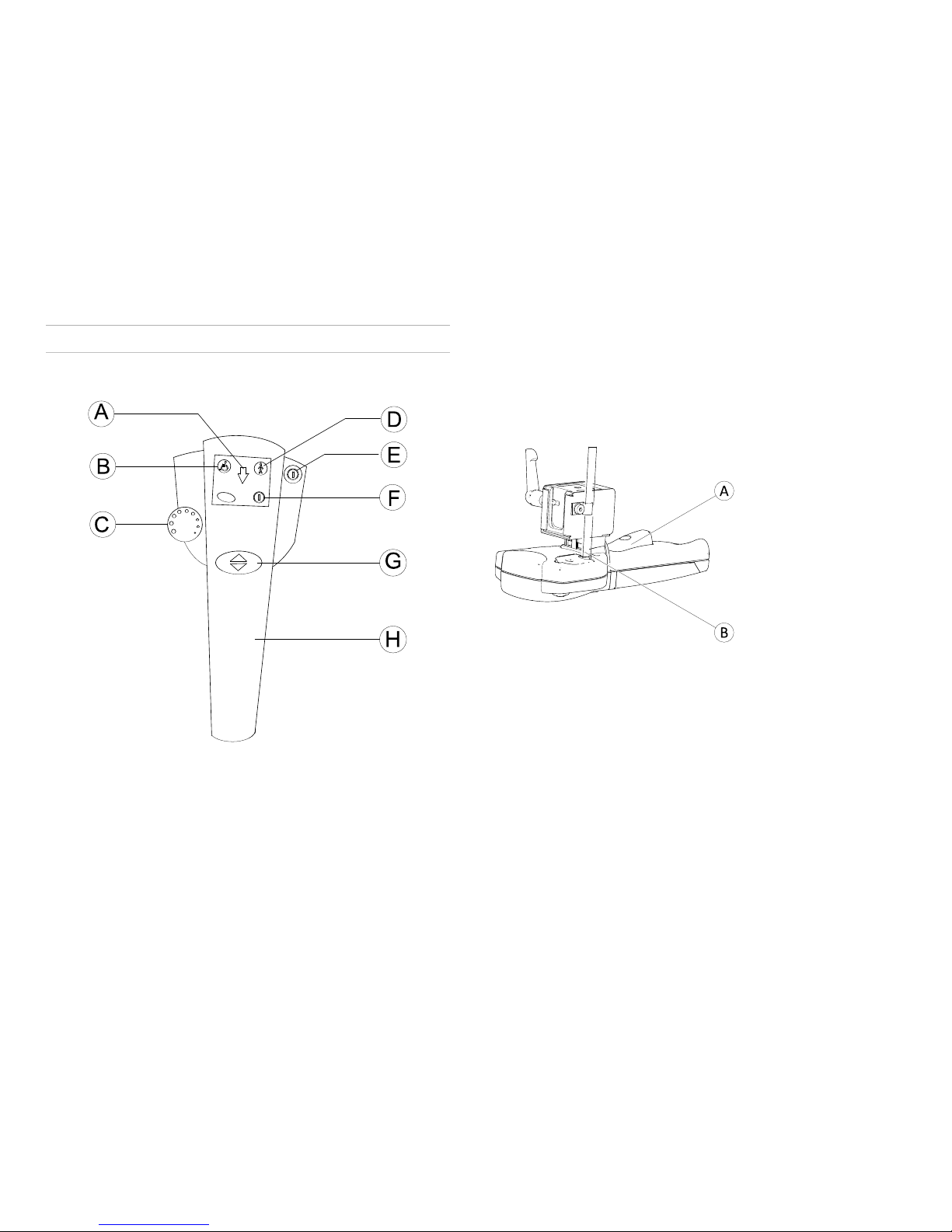

3.1Topside
A“Reverseactivated”LED
B“Wheelchairoccupantincontrol”LED
CSpeedpotentiometer
D“Attendantincontrol”LED
E“Powerbutton”
FStatusLED
G“Forwardsorreverse”pushbutton
HSteeringhandle
3.2Bottomside
ATriggerleverfordriving/emergencystop
BBuscable
61643411-A

Components
3.3Labelsonproduct
AProductlabelcontaining:
•Invacarelogo
•Theproduct'sserialnumber
•Theproduct'sreferencenumber
•WEEsymbol
•Appliedpartsymbol
•Symbolofusermanual
1643411-A7

Invacare®LiNXIDC
Explanationofsymbolsonlabels
ThisistheWEEEsymbol(WasteElectricalandElectronicEquipmentDirective).
Thisproducthasbeensuppliedfromanenvironmentallyawaremanufacturer .Thisproductmay
containsubstancesthatcouldbeharmfultotheenvironmentifdisposedofinplaces(landlls)
thatarenotappropriateaccordingtolegislation.
•The‘crossedoutwheeliebin’symbolisplacedonthisproducttoencourageyoutorecycle
whereverpossible.
•Pleasebeenvironmentallyresponsibleandrecyclethisproductthroughyourrecycling
facilityatitsendoflife.
TypeBAppliedPart
Recommendationtoreadtheusermanualbeforeusingthemodule.
81643411-A

Setup
4Setup
4.1Installing/RemovingtheIDC
IMPORTANT!
Riskofdamage
IfanIDCisinstalleditwillincreasethefootprintof
thewheelchair.Whendrivingwithoutattendant,
theIDCcouldgetdamaged,forexample,when
drivingbackwardsagainstanobstacle.
–RemoveorfoldintheIDCbeforedriving
withoutattendant.
InstallingtheIDC
1.PositiontheadapterbracketAontotheKLICKx
adapterB.
2.PushtheIDCdownwardsuntilitlocksautomatically.
RemovingtheIDC
1.PresstheredKLICKxbuttonAandholdit.
2.LifttheIDCupwardstoremoveitfromtheadapter.
FoldingintheIDC
1.RemovetheIDCfromtheadapter .
2.PresstheredKLICKxbuttonAandholdit.
3.PositiontheloweredgeoftheadapterbracketBinside
thelowerxationoftheadapterC.
4.ReleasetheKLICKxbutton.
1643411-A9

Invacare®LiNXIDC
PreparingIDCfortransportinavehicle
WARNING!
Riskofinjuryanddamageduetolooseparts
duringtransport
FortransportIDCwithLiNXmustbecompletely
removedfrompowerwheelchairandstored
safely.
–DisconnectandtakeoffIDCfortransport.
1.Disconnectbuscable.
2.PressandholdKLICKxbuttonA.
3.TakeoffIDC.
4.DuringtransportofpowerwheelchairstoreIDCsafely,
forexampleinglovecompartment.
4.2ConnectingIDCtocontrolssystem
TheIDCtakesovercontrolofthewheelchairand
mayonlybeusedbyanattendant.Itisimperative
thatthewheelchairoccupanthimselfisnotallowed
tousetheIDC.
FittingshouldonlybecarriedoutbyanInvacare
provider .Whentting,ensurethatthebuscable
isroutedandxedcorrectlytoavoiddamageto
thebuscable.
1.Powerdownwheelchaircontrols.
2.ConnectoneendofbuscabletoIDC,otherendtofree
bussocketonwheelchair.
Incasethereisnosparebussocketoncontrols
system,youcanordera4–waybussocketfrom
yourInvacareprovider .
3.TheIDCisnowconnectedtothecontrols.
Forfurtherinformation,seeLiNXServiceManual.
101643411-A

Usage
5Usage
5.1StartingupIDC
1.ConnectIDC.
2.Poweruppowerwheelchair .
3.Ifashcodeappears,restart.
4.Ifashcodestays,checkashcode.
Ifnecessary,makermwareupdateofpower
wheelchair,installlatestdriveprogram,readerror
viaLiNXAccessiOStoolorPCtool.
5.2Switchingcontrolbetweenattendantand
occupant
Theremotethatpowersupthemobilitydeviceisincontrol
ofthewheelchair.
Pressingthepowerbuttononaremotenotincontrol
returnscontrolfromattendanttooccupantandviceversa,
unlessothersettingshavebeenmade.
5.3Settingthespeed
Themaximumspeedofthewheelchaircanbesetbythe
usertomatchhispersonalrequirementsandthesurrounding
conditions.Thecurrentmaximumspeedsetisdisplayed
onthewheelchairspeeddisplayAandcanalsobepreset
there.Youcancarryoutfurtherneadjustmentstothe
maximumspeedontheIDCusingthespeedpotentiometer.
1.SetmaximumspeedwithspeedpotentiometerA.
2.Pulltriggerlevertostartdriving.
Themoreyoupull,thefasterthewheelchairdrivesuntil
itreachesmaximumspeed.
1643411-A11

Invacare®LiNXIDC
5.4ControllingthewheelchairwithIDC
1.PresspowerbuttononIDCtoswitchonthewheelchair .
Thedisplayontheremoteilluminates.Thewheelchair
isreadytodrive.
2.Setdrivingspeed(speedpotentiometer—see5.3
Settingthespeed,page11).
3.Pulltriggerlevertosetwheelchairinmotion.
Youcansetwhetherthewheelchairshouldtravelforwards
orbackwardsbypressingtheswitchoverbuttonforforwards
orreversegearA.Ifreversegearhasbeenselected,the
arrowBilluminates.
Afterarestart,thepowerwheelchairalwaysdrives
forwards.
5.4.1Howtosteerthewheelchair
Theelectronicsystemcontainedinthehandle(1)registers
themovementmadebytheattendant'shand.Slight
pressureonthehandletotheleftorrightistranslatedinto
adrivecommandforthedrivewheelssothatbendscanbe
travelledwithouttheneedformuchforce.
Makeyourselffamiliarwithsteeringthewheelchair
viaIDC,sothatnohazardsareposedforthe
occupantorothers.
5.4.2Howthewheelchairreactstohandlemovements
Yousteerthewheelchairbypushingthehandletothesides.
Whetheryouaretravellingforwardsorbackwards,you
mustpushtheleft-handsideofthehandletomakethe
wheelchairturntotheleft.Ifyoupushtheright-handside
ofthehandle,thewheelchairwillturntotheright.
121643411-A

Usage
Traveldirection
Themorethetriggerleverispulled,thefasterthe
wheelchairdrives.
Tobrakequickly,simplyletgoofthehandle.The
wheelchairbrakes.Ifyoupullthetriggerleverwith
fullforce,thewheelchaircarriesoutan"Emergency
Stop".
5.5Informationonthe“EmergencyStop”
function
WhenusingEmergencystopfunctionwhiledriving,
thewheelchairbrakesharder,thanwhenyoujust
letgoofthetriggerlever.
Therearethreewaystoemergencystopthemobilitydevice.
Ifthewheelchairneedstobestoppedimmediatelydueto
ahazardsituation,pullthetriggerlever(1)rmlyasfaras
possible.Thiscausesanimmediateforceddriveswitch-off.
Onceyoureleasethetriggerlever(1)andtheattendantLED
stopsashing,youcanstarttodrivethewheelchairagain
immediately.
Alternatively,press“forwardsorreverse”pushbuttonto
stopthewheelchair .TheattendantLEDstopsashingand
youcanstarttodrivethewheelchairagainimmediately.
1643411-A13

Invacare®LiNXIDC
Or,pressthepowerbutton.Thewheelchairneedstopower
up,beforeyoucandrivethewheelchairagain.
5.6Faultdiagnosis
Iftheelectronicsystemshowsafault,usethefollowing
fault-ndingguidetolocatethefault.
Ensurethatthedriveelectronicssystemispowered
upbeforestartinganydiagnosis.
IfthestatusdisplayisOFF:
•Checkwhetherthedriveelectronicssystemispowered
up.
•Checkwhetherallcablesarecorrectlyconnected.
•Ensurethatthebatteriesarenotdischarged.
Ifafaultnumberisdisplayedinthestatusdisplay:
•Proceedtothenextsection.
5.6.1Faultcodesanddiagnosiscodes
Thestatusindicatorisyellowwhenremoteisactive.IfthereisafaultdetectedbytheLiNXsystem,thestatusindicatorashes
yellow.Thenumberofashesindicatesthetypeoffault.
Thetablebelowdescribesthefaultindication,andafewpossibleactionsthatcanbetakentorectifytheproblem.The
actionslistedarenotinanyparticularorderandaresuggestionsonly.Theintentionisthatoneofthesuggestionsmayhelp
yousolvetheproblem.Ifindoubt,contactyourprovider .
141643411-A

Usage
FlashcodeFaultdescriptionPossibleaction
1Remotefault•Checkcablesandconnectors.
•Checkotherremotes,ifinstalled.
•Contactyourprovider.
2Networkorcongurationfault•Restartwheelchair.
•Checkcablesandconnectors.
•Rechargethebatteries.
•Checkcharger .
•Contactyourprovider.
3Motor11fault•Checkcablesandconnectors.
•Contactyourprovider.
4Motor21fault•Checkcablesandconnectors.
•Contactyourprovider.
5Motor11magneticbrakefault•Checkcablesandconnectors.
•Checkleftmagneticbrakeisengaged.
•Refertothechapter“Pushingthemobilitydevicein
freewheelmode”intheusermanualofyourwheelchair.
•Contactyourprovider.
6Motor21magneticbrakefault•Checkcablesandconnectors.
•Checkrightmagneticbrakeisengaged.
•Refertothechapter“Pushingthemobilitydevicein
freewheelmode”intheusermanualofyourwheelchair.
•Contactyourprovider.
7Modulefault(otherthanremote
module)
•Checkcablesandconnectors.
•Checkmodules.
•Rechargebatteries.
•Ifthechairwasstalled,reverseawayorremoveobstacle.
•Contactyourprovider.
1643411-A15

Invacare®LiNXIDC
1Congurationofthemotorsdependingonthewheelchairmodel
TheattendantincontrolLEDisgreenwhenIDCisincharge.IfthereisafaultdetectedbytheLiNXsystem,theattendantin
controlLEDashesgreen.
FlashcodeFaultdescriptionPossibleaction
FlashingconstantlyOONReleasetriggerlever .Iffaultcodestays:
•DonotuseIDC.ReplaceIDC.
•Contactyourprovider.
161643411-A

Maintenance
6Maintenance
6.1IDCmaintenance
Generalinformationaboutmaintainingandcleaningremoteandpowerwheelchairaredescribedintheusermanualof
thepowerwheelchair.
Inspectionchecks
Thefollowingtablelistsinspectionchecksthatshouldbeperformedbytheuserandtheirintervals.Ifthemobilitydevicefails
topassoneoftheinspectionchecks,refertothechapterindicatedorcontactyourauthorizedInvacareprovider.Amore
comprehensivelistofinspectionchecksandinstructionsformaintenanceworkcanbefoundintheservicemanualforthe
correspondingwheelchair,whichcanbeobtainedfromInvacare.Thatmanual,however,isintendedtobeusedbytrainedand
authorizedservicetechnicians,anddescribestaskswhicharenotintendedtobeperformedbytheuser .
BeforeeachuseofthepowerwheelchairwithIDC
ItemInspectioncheckIfinspectionisnotpassed
IDCCheckfordamageandwear.Checkallfunctionalitiesbelow.Ifunsure,
contactyourprovider.
IDCCheckiftriggerleverfordriving/
emergencystopiscompletelyreleased.
ImmediatelystopusingtheIDC.
Contactyourprovider .
IDCCheckemergencystopfunctions.ImmediatelystopusingtheIDC.
Contactyourprovider .
IDCCheckpowerbuttonforcorrect
functionality.
Contactyourprovider .
IDCCheckofcorrectoperatingmodeforall
LEDashlights.
Contactyourprovider .
1643411-A17

Invacare®LiNXIDC
BeforeeachuseofthepowerwheelchairwithIDC
ItemInspectioncheckIfinspectionisnotpassed
ElectronicsandconnectorsCheckallcablesfordamageandall
connectingplugsforsnugt.
Contactyourprovider .
HousingCheckIDChousingforlooseparts.Ifthereisarattlingnoise,whenyou
shakeit:
ImmediatelystopusingtheIDC.
ReplaceIDC.
Contactyourprovider .
181643411-A

Notes

InvacareSalesCompanies
Australia:
InvacareAustraliaPTY .Ltd.
1LentonPlace,NorthRocksNSW
2151
Australia
Phone:[phone]
Fax:[phone]
[e-mail]
www.invacare.com.au
Canada:
InvacareCanadaLP
570MathesonBlvdE.Unit8
MississaugaOntario
L4Z4G4,Canada
Phone:[phone]
Fax:[phone]
Ireland:
InvacareIrelandLtd,
Unit5SeatownBusinessCampus
SeatownRoad,Swords,CountyDublin
Tel:[phone]
Fax:[phone]
[e-mail]
www.invacare.ie
NewZealand:
InvacareNewZealandLtd
4WesteldPlace,MtWellington1060
NewZealand
Phone:[phone]
Fax:[phone]
[e-mail]
www.invacare.co.nz
UnitedKingdom:
InvacareLimited
PencoedT echnologyPark,Pencoed
BridgendCF355AQ
Tel:[phone]
Fax:[phone]
[e-mail]
www.invacare.co.uk
EasternEurope,MiddleEast&CIS:
InvacareEUExport
Kleiststraße49
D-32457PortaWestfalica/Germany
Tel:[phone]
Fax:[phone]
[e-mail]
www.invacare-eu-export.com
1643411-A2017-11-07
*1643411A*
MakingLife’sExperiencesPossible®
