Invacare Powered Wheelchair Instruction Manual

Yes, you can. ™
TDX® SI
TDX® SI-2
TDX® SI-HD
Power Wheelchair
Parts Catalog Issued: Apr 24, 2012

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 08-080. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
©2012 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., the Blue Medallion Design, SureStep, TDX are registered trademarks and MK5, MK6i,
SPJ, MPJ, are trademarks of Invacare Corporation.
Otto Bock is a registered trademark of Otto Bock Orthopaedische Industrie GMBH & Co.. Tash is a registered trademark of Tash International Inc.. Therafin is
a registered trademark of
W/R/ Medical Electronics Co.. Bussman is a registered trademark of Cooper Industries. MIDI is a registered trademark of Littelfuse Inc.. Dynamic is a
registered trademark of Dynamic Controls Limited.
Parts Catalog Usage Guide
1
Form No. 08-080
To order call toll free 1-800-333-6900, or www.invacare.com

A: READ THIS FIRST (THIS CATALOG IS DIFFERENT!) ...................................................... 7
Accessories - Compact Vent Assembly ................................................................................... 203
Accessories - Miscellaneous .................................................................................................... 206
Accessories - Oxygen Holder Assembly Kit - ADJASBA Seats ............................................... 199
Accessories - Oxygen Holder Assembly Kit - Van Seat ........................................................... 201
Arms - "T" & Hardware ............................................................................................................. 118
Arms - Adjustable Height - ADJASBA Seats (12" - 16" W x 12" - 18" D) ................................. 110
Arms - Adjustable Height (16" -24" W x 16" -22" D) Seat Frames ........................................... 114
Arms - Cantilever ...................................................................................................................... 120
Arms - Fixed Height (16" - 24" W x 16" - 22" D) Seat Frames ................................................. 112
Arms - Mounting Swingaway Hardware - ADJASBA/ADJRECL Seats .................................... 123
Arms - Mtg. Front/Rear Arm Sckt Asbly. & Hdwr ADJASBA Seats with TRRO Option (16" - 22"
W)
129
Arms - Mtg. Front/Rear Arm Socket Asbly. & Hdwr. (12" - 16" W) ........................................... 125
Arms - Mtg. Front/Rear Arm Socket Assembly & Hdwr - ADJASBA/ADJRECL Seats (16" - 24"
W)
127
Arms - Van Seat ....................................................................................................................... 116
Backs - Contoura without Mounting Hardware - ADJASBA Only - Before 05/15/09 ................ 67
Backs - Curve Contoura without Mounting Hardware - After 5/14/09 ...................................... 70
Backs - Metal Curved Assembly (16" - 24" W) ......................................................................... 74
Backs - Mounting Hardware - Contoura - ADJASBA Only - Before 5/15/09 ............................ 84
Backs - Mounting Hardware - Curve Contoura (After 5/14/09) ................................................ 86
Backs - Mounting Hardware - Metal Curved (16" - 24" W) ....................................................... 88
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080

Backs - Recliner Assembly - ADJRECL Seat Frames ............................................................. 89
Battery Box Hardware - (TDX SI & TDX SI-2 Before 9/15/11) & TDX SI-HD ........................... 16
Battery Box Hardware - TDX SI & TDX SI-2 After 9/14/11 ....................................................... 18
Battery Box Tie-Down Bracket Mounting Hardware For TRRO/TRBKTS Option .................... 14
Battery Charger & Cables ........................................................................................................ 22
Battery Tray Assembly & Wire Harnesses ............................................................................... 20
Canes - Back - Attaching Hardware - ADJASBA Seats (16" - 24" W) ...................................... 106
Canes - Back - Attaching Hardware - ADJASBA Seats with TRRO Option (12" - 16" W x 12" -
18" D)
101
Canes - Back - Attaching Hardware - ADJASBA Seats with TRRO Option (16" - 22" W) ....... 108
Canes - Back - Attaching Hardware - ADJASBA Seats without TRRO Option (12" - 16" W) .. 99
Canes - Back & Spreader Bars - ADJASBA Seats (12" - 16" W) ............................................. 97
Canes - Back & Spreader Bars - ADJASBA Seats (16" - 24" W) ............................................. 103
Casters & Forks - Front & Rear (6") ......................................................................................... 45
Cushions - Seat - Contoura Seating - ADJASBA Only ............................................................. 64
Cylinders .................................................................................................................................. 29
Electronics - Controller, MK5 NX-75, Programmer, & Mtg. Hdwr. - TDX SI-2 .......................... 196
Electronics - MK5 Joystick & Joystick Cables - SPJ+ - TDX SI-2 ............................................ 194
Electronics - MK6i ~PLEASE READ THIS SECTION~ ............................................................ 198
Fenders .................................................................................................................................... 36
Frame Finishes - Touch-Up Paints & Upholstery Options ........................................................ 8
Frames - Seat ADJASBA - Seat Pan & Hardware (12" - 16" W x 12" - 18" D) ........................ 51
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080

Frames - Seat ADJASBA Mounting Hardware (12" - 16" W) ................................................... 55
Frames - Seat ADJASBA Mounting Hardware (16" - 24" W) ................................................... 57
Frames - Seat ADJASBA/ADJRECL - Seat Pan & Hardware (16" - 24" W x 16" - 22" D) ....... 53
Frames - Van Seat & Hardware ............................................................................................... 59
Front Riggings - 90FB Flip-Up Removable Footboard Assembly After 01/11/12 ..................... 164
Front Riggings - 90FB Flip-Up Removable Footboard Assembly Before 01/12/12 .................. 162
Front Riggings - Calf Pads & Attaching Hardware ................................................................... 150
Front Riggings - Calf Pads & Attaching Hardware ................................................................... 213
Front Riggings - Center Mount Rigging - (CTMT-F with FBCTMT One PC Flip-Up Footboard)
Before 12/31/09
182
Front Riggings - Center Mount Rigging - CTMT-F (Before 12/10/08) ...................................... 172
Front Riggings - Center Mount Rigging - CTMT-FJ (Before 12/10/08) .................................... 166
Front Riggings - Center Mount Rigging (CTMT-F with CTMTFB One PC Flip-Up Footboard)
After 12/30/09
184
Front Riggings - Center Mount Rigging (CTMT-J/CTMT-FJ/CTMT/CTMT-F/CTMT-L/CTMT-FL)
After 12/09/08
174
Front Riggings - Center Mount Rigging Kit (CTMT-F/CTMT-FJ) Before 12/10/08 ................... 168
Front Riggings - Center Mount Rigging Mtg. Hdwr. - CTMT-F/CTMT-FJ - Van Seat ............... 192
Front Riggings - Center Mount Rigging Mtg. Hdwr. - CTMT-F/CTMT-FJ (12" - 16" W) ........... 188
Front Riggings - Center Mount Rigging Mtg. Hdwr. - CTMT-F/CTMT-FJ (16" - 24" W) ........... 190
Front Riggings - Footrest & Legrest Accessories ..................................................................... 159
Front Riggings - Footrest Supports - Hemi - PHW93 ............................................................... 143
Front Riggings - Footrest Supports - Sector Style .................................................................... 141
Front Riggings - Front Rigging Hanger Hardware - Van Seat .................................................. 139
TABLE of CONTENTS
Description
Page
Number
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080

Front Riggings - Hanger & Hardware - Pin & Sector Style - ADJASBA/ADJRECL (16" - 24" W) 137
Front Riggings - Hanger Hardware - Pin/Sector Style - ADJASBA (12" - 16" W) .................... 135
Front Riggings - Legrest Supports - Articulating - Hemi - PHAL4A .......................................... 147
Front Riggings - Legrest Supports - Articulating - Hemi - PHAL4A .......................................... 210
Front Riggings - Legrest Supports - AT5544 ............................................................................ 145
Front Riggings - Pivot/Slide Tube & 1650 - 1350 Aluminum Footplates .................................. 154
Front Riggings - Pivot/Slide Tube & 1651 Composite Footplates ............................................ 152
Front Riggings - Pivot/Slide Tubes & AT5543 Adjustable Angle Footplates ............................ 156
Front Riggings - Reference Chart - 70STAPER ....................................................................... 134
Front Riggings - Reference Chart - AT5544 - 70NHD - PHW93 .............................................. 131
Front Riggings - Reference Chart - PHAL4A ........................................................................... 133
Label Locations For TRRO & TRBKTS Options ....................................................................... 12
Motors - 2-Pole - SSD Gearbox & Mounting Hardware - TDX SI & TDX SI-2 After 9/14/11 .... 33
Motors - 2-Pole/4-Pole - Gearbox & Mounting Hardware - (TDX SI & TDX SI-2 Before 9/15/11)
& TDX SI-HD
31
Packaging - Literature & Decals ............................................................................................... 10
Pivot Assembly & Mounting Hardware - Rear .......................................................................... 43
Seats - Van ............................................................................................................................... 61
Shrouds & Hardware ................................................................................................................ 41
TRRO & TRBKTS Option Clarification Reference .................................................................... 13
Upholstery - Back - Non-Recliner - Nylon ................................................................................ 92
Upholstery - Back - Recliner - Nylon ........................................................................................ 94
TABLE of CONTENTS
Description
Page
Number
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080

Upholstery - Headrest & Pillows ............................................................................................... 96
Walking Beams & Mounting Hardware - (TDX SI & TDX SI-2 Before 9/15/11) & TDX SI-HD . 24
Walking Beams & Mounting Hardware - TDX SI & TDX SI-2 After 9/14/11 ............................. 26
Warranty Replacement Parts ................................................................................................... 209
Wheel Locks - (TDX SI & TDX SI-2 Before 9/15/11) & TDX SI-HD ......................................... 37
Wheel Locks - TDX SI & TDX SI-2 After 9/14/11 ..................................................................... 39
Wheels - Drive Wheels & Mounting Hardware (14" x 3") (TDX SI & TDX SI-2 Before 9/15/11) &
TDX SI-HD
47
Wheels - Drive Wheels & Mounting Hardware (14" x 3") TDX SI & TDX SI-2 After 9/14/11 .... 49
TABLE of CONTENTS
Description
Page
Number
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080

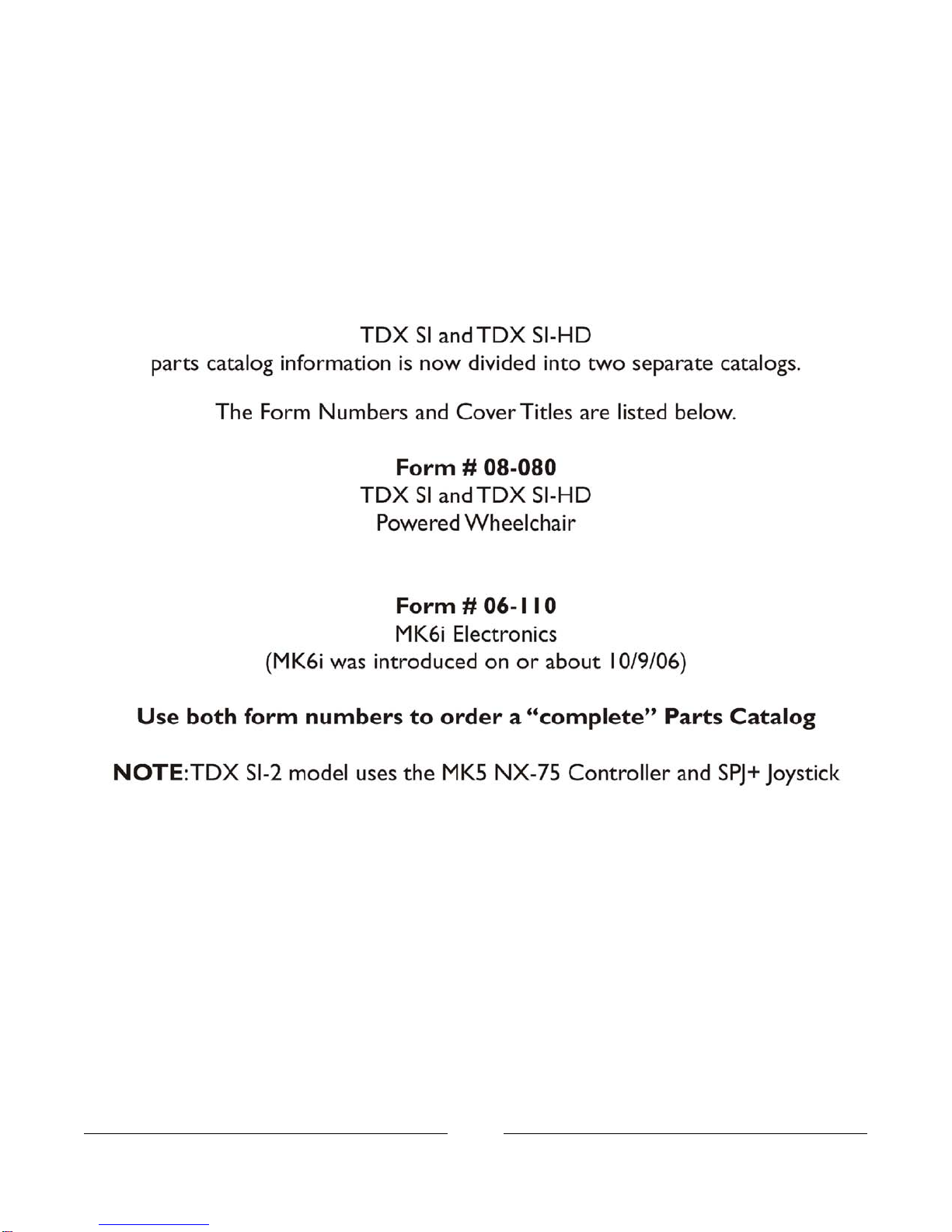

A: READ THIS FIRST (THIS CATALOG IS DIFFERENT!)
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080

Frame Finishes, Touch-Up Paints and Upholstery Options
Frame Finishes and Touch-Up Paint
Color Number Part Number Bottle Size Frame Finish
Wet Black.6 oz.103145024P White/ White Snow.6 oz.103144729P Sunny YellowN/AN/A30P Silver MetallicN/AN/A60P Electric Red.6 oz.104632161P Electric Blue.6 oz.104632062P Silver VeinN/AN/A71P Electric Teal.6 oz.1101316104P MIdnight Blue.6 oz.1101326105P Black Prism.6 oz.1133371115P Sunkissed Orange.6 oz.1133372116P Tangerine Red.6 oz.1133373117P Bubblegum Pink.6 oz.1133375119P Grape Madness.6 oz.1133376120P Lolly Pop Blue.6 oz.1133377121P Cosmic Blue.6 oz.1133378122P Emerald Green.6 oz.1133381125P Grasshopper Green.6 oz.1133383127P
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080

Frame Finishes, Touch-Up Paints and Upholstery Options
Upholstery Options
Nylon Color
U240 Black
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080

Packaging, Literature and Decals
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080

Packaging, Literature and Decals
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1030362 Carton, Tray 1 21 E 1036027 Carton, Tray 1 21 D 1115174 Carton, Corner Reinforcement 1 42 E 1129589 Carton, Corner Reinforcement 1 42 C 1129590 Carton, Corner Reinforcement 1 42 D 1030365 Carton, Cover 1 13 A 1030364 Carton, Cover 1 13 B 1031682 Carton, Cover 1 13 C 1036028 Carton, Cover 1 13 D 40131X161 Insert, Plain Pad 1 24 40131X011 Carton, Front Riggings 1 15 1015592 Bag, Poly (72" L x 35" W x 19" D) 1 16 1012001 Carton, Joystick 1 17 00077X031-NLA NLA - Warranty Card 1 1F 1154294 Owner's Manual, TDX SI/SI-HD Base 1 1F 1143192 Owner's Manual, ADJASBA Seat with MK6i
Electronics 1 1F
1143195 Owner's Manual, Van Seat's with MK6i Electronics 1 1F 1110532 Instruction Manual, MK5 NX/NX-LP 1 1F,G 1148036 Decal, TDX SI, Yellow/Silver 1 2F 1157930 Decal, TDX SI, Black 1 2F 1164950 Decal, TDX SI-2, Yellow/Silver 1 2F 1146461 Decal, TDX SI Heavy Duty, Yellow/Silver 1 2F 1083199 Label, Hook Tie-Down 1 4F,H
A - Base only and all ADJASBA seat only models.
B - 12" Wide - 19" Wide ADJASBA seat with base models.
C - 16" Wide - 19" Wide ADJASBA seat with base models with medium and tall seat-to-floor heights.
D - 20" Wide - 22" Wide ADJASBA seat with base models.
E - 12" Wide - 20" Wide ADJASBA seat with base and base only models.
F - Not Shown.
G - Used for TDX SI-2 models only
H - For TRRO/TRBKTS wheelchairs only
When adjus
ting or replacing parts, please refer to your Owner's Manual for assistance.
NOTE:
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080

Label Locations For TRRO and TRBKTS Options
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080

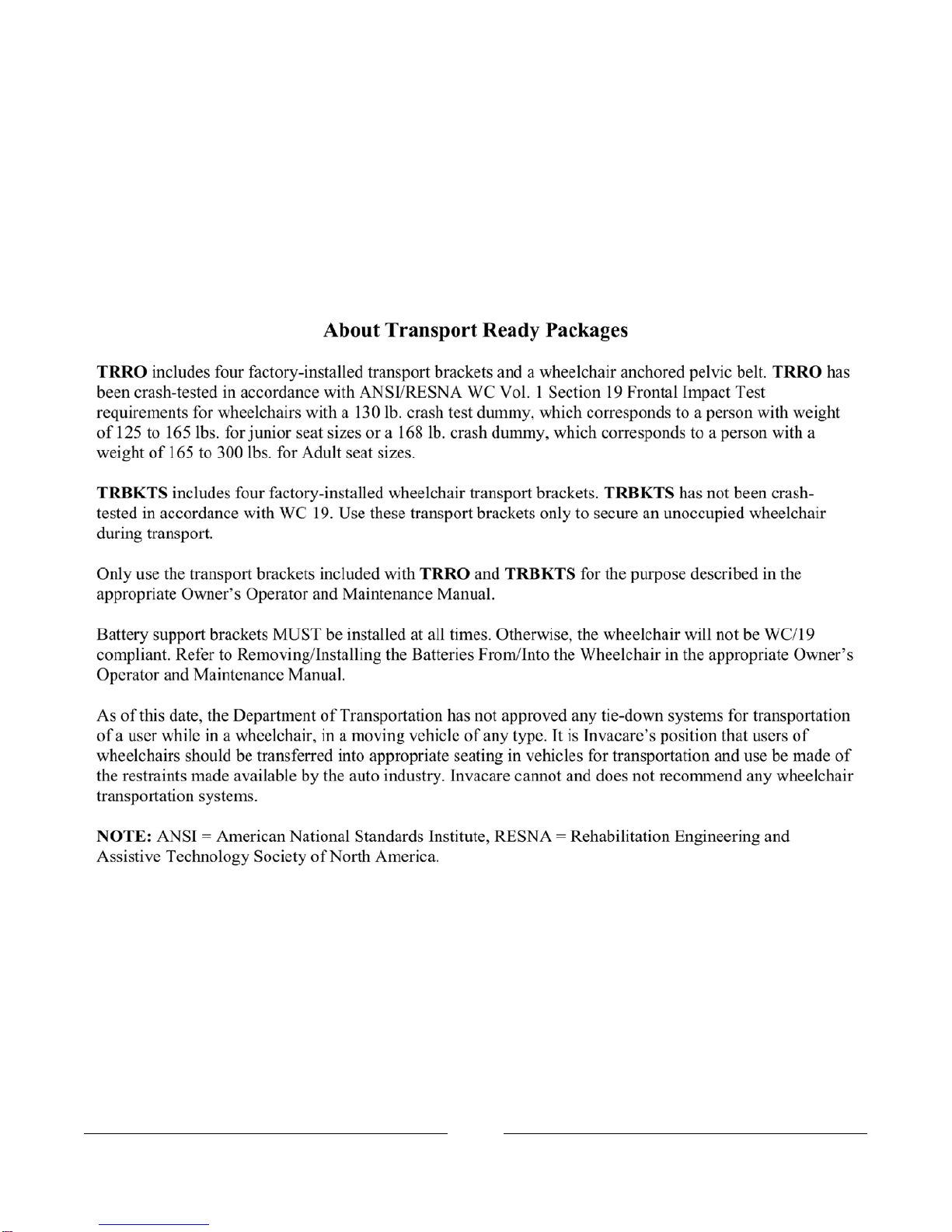

TRRO and TRBKTS Option Clarification Reference
TRRO and TRBKTS Option is an On-Chair option only.
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080

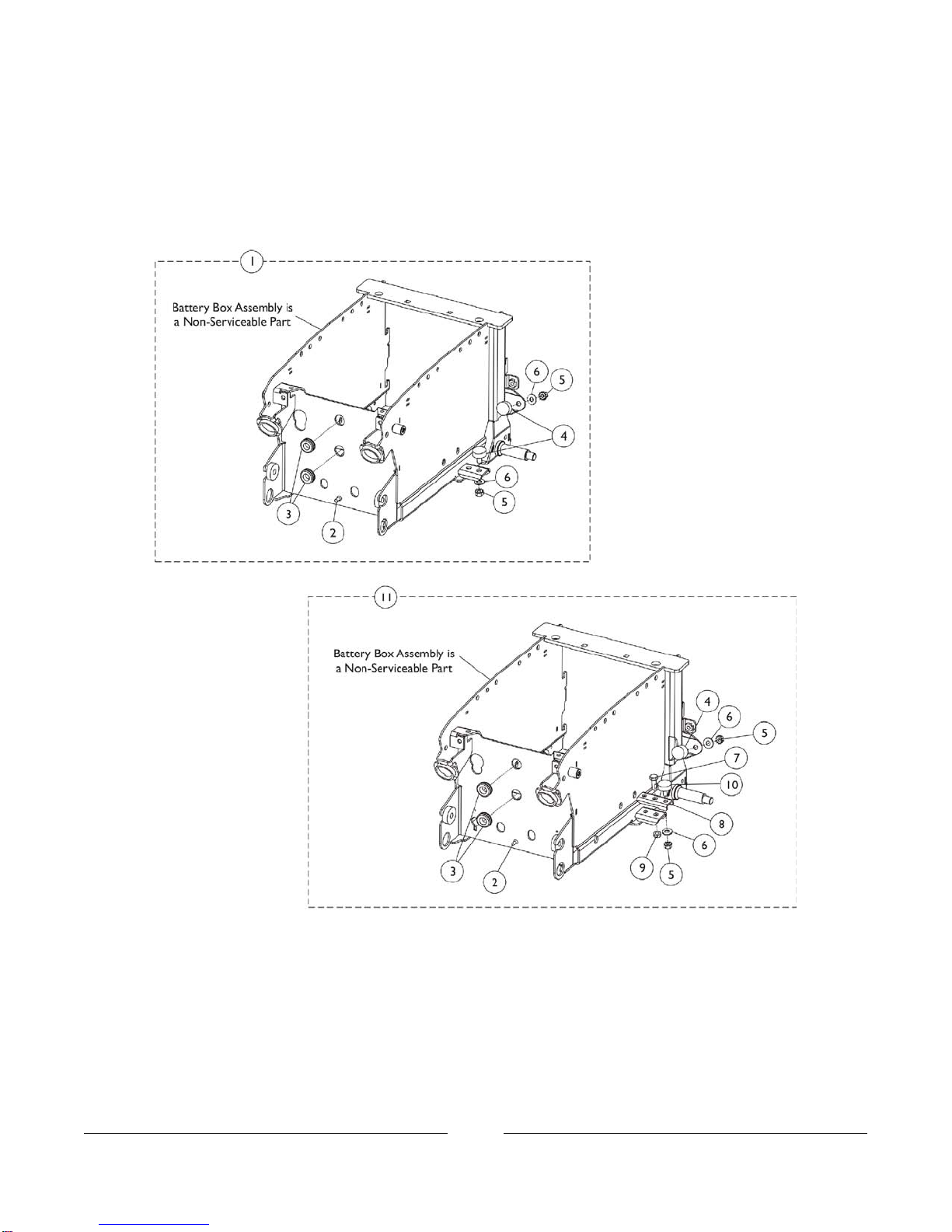

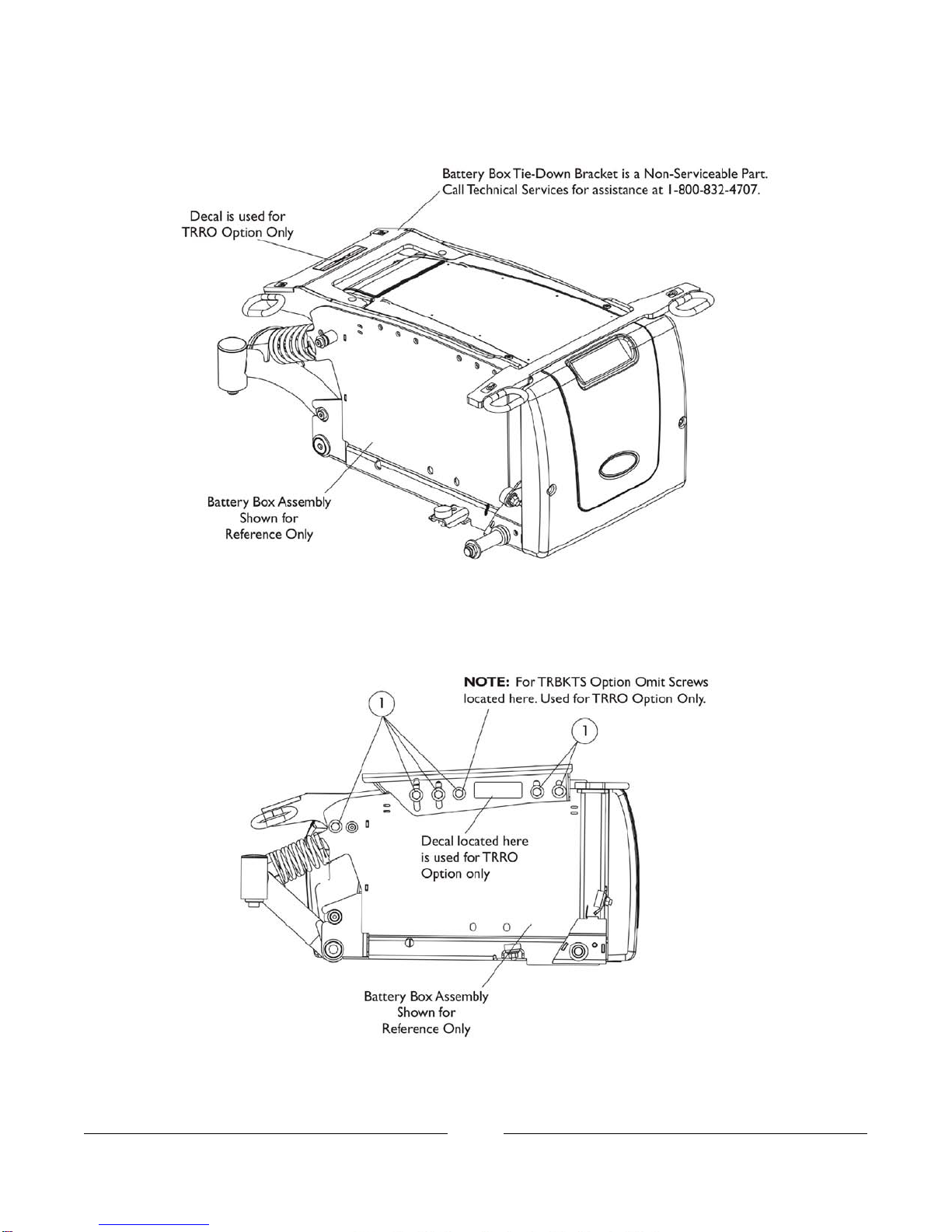

Battery Box Tie-Down Bracket Mounting Hardware For
TRRO/TRBKTS Option
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080

Battery Box Tie-Down Bracket Mounting Hardware For
TRRO/TRBKTS Option
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1144677-NLA NLA - Package, Screw Hex Head Sems with Patch
(5/16-18 x 3/4") 12 11 A
1144678 Package, Screw Hex Head Sems with Patch
(5/16-18 x 3/4") 10 11 B
A - Bracket Tie-Down Mounting Hardware For TRRO Option.
B - Bracket Tie-Down Mounting Hardware For TRBKTS Option.
NOTE:
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080

Battery Box Hardware
(TDX SI & TDX SI-2 Before 9/15/11) & TDX SI-HD
The Battery Boxes are non-serviceable parts in the field. Wheelchair must be returned to Invacare for
repair. Call Technical Services for assistance (1-800-832-4707)
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080

Battery Box Hardware
(TDX SI & TDX SI-2 Before 9/15/11) & TDX SI-HD
The Battery Boxes are non-serviceable parts in the field. Wheelchair must be returned to Invacare for
repair. Call Technical Services for assistance (1-800-832-4707)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1145071 Kit, Battery Box Rubber Bumper and Grommet
Hardware 1 11 A,B
Bumper, Rubber (7/8" Diameter x 3/16") 1 32 Grommet, Rubber (9/16 ID x 1-1/16 OD x 3/8") 1 23 Bumper, Rubber (1" Diameter x 3/8") 1 44 Nut, Keps (5/16-18) 1 45 Washer, Steel (5/16 x 3/4 x 1/16") 1 46 1162163 Kit, Battery Box Rubber Bumper and Grommet -
Heavy Duty 1 111 B,C
Bumper, Rubber (7/8" Diameter x 3/16") 1 32 Grommet, Rubber (9/16 ID x 1-1/16 OD x 3/8") 1 23 Bumper, Rubber (1" Diameter x 5/8") 1 24 Nut, Keps (5/16-18) 1 45 Washer, Steel (5/16 x 3/4 x 1/16") 1 46 Screw, Hex Head w/ Patch (5/16-18 x 7/8") 1 27 Bracket, Heavy Duty, Black 1 28 Locknut (5/16-18) 1 29 Bumper, Rubber (1" Diameter x 3/8") 1 210
A - Includes items 2-6. Used for TDX SI models.
B - Three rubber bumpers are included in this kit, only (1) rubber bumber is needed for this chair type.
C - Includes items 2-10. Used for TDX SI-HD and TDX SI-2 models.
NOTE:
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080

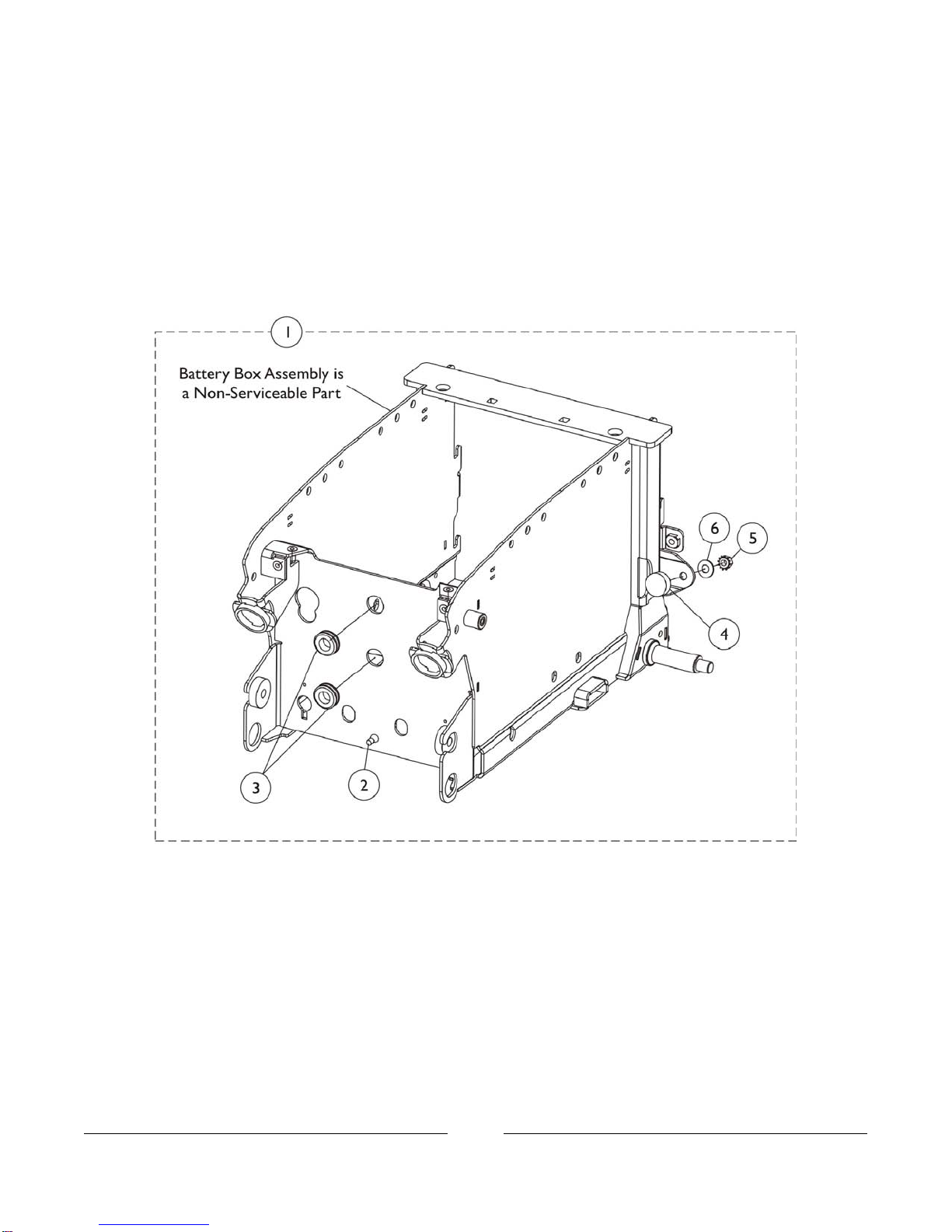

Battery Box Hardware
TDX SI & TDX SI-2 After 9/14/11
The Battery Boxes are non-serviceable parts in the field. Wheelchair must be returned to Invacare for
repair. Call Technical Services for assistance (1-800-832-4707)
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080

Battery Box Hardware
TDX SI & TDX SI-2 After 9/14/11
The Battery Boxes are non-serviceable parts in the field. Wheelchair must be returned to Invacare for
repair. Call Technical Services for assistance (1-800-832-4707)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1175905 Kit, Battery Box Rubber Bumper and Grommet
Hardware, TDX SI 1 11 A
Bumper, Rubber (7/8" Diameter x 3/16") 1 12 Grommet, Rubber (9/16 ID x 1-1/16 OD x 3/8") 1 23 Bumper, Rubber (1" Diameter x 3/8") 1 24 Nut, Keps (5/16-18) 1 25 Washer, Steel (5/16 x 3/4 x 1/16") 1 26 1175904 Kit, Battery Box Rubber Bumper and Grommet
Hardware, TDX SI-HD/TDX SI-2 1 11 B
Bumper, Rubber (7/8" Diameter x 3/16") 1 12 Grommet, Rubber (9/16 ID x 1-1/16 OD x 3/8") 1 23 Bumper, Rubber (1" Diameter x 5/8") 1 24 Nut, Keps (5/16-18) 1 25 Washer, Steel (5/16 x 3/4 x 1/16") 1 26
A - Includes items 2-6. Used for TDX SI models.
B - Includes items 2-6. Used for TDX SI-2 models.
NOTE:
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 08-080
