Invoxia NVX 620 User manual

Welcome / Bienvenue
E169

U.S. Federal Communications Commission (FCC) Compliance Statement
The changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
To comply with the FCC RF exposure compliance requirements, this device and its antenna must
not be co-located or operating to conjunction with any other antenna or transmitter.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interfences that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designated to provide reasonable protection against harmful interferences in a
residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the intructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interferences to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected. - Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un
gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
IC warning:

3
English
Box content
Lightening, 30 pin and
micro-USB cable adapters
micro-USB adapters
micro-USB cables
AC adapter
Handset Tablet stand
E169 base Lightening, 30 pin and
Lightening, 30 pin and
Smart holder Ethernet cable

Designed and produced by invoxia, Paris
4
English
Adjust volume.
Receive and End a call.
Bluetooth pairing.
Your E169 Phone
Voicemail
Secret

Set up
5
En glish
Positioning
Pla ce your phone near your network soc ket(a nd near your mains supply so cket if you are using a mai ns power adapter).
Connecting the base
This phone is powered by PoE (Power over Ethernet), if your network is compatible, or through your mains AC
100-240V supply.

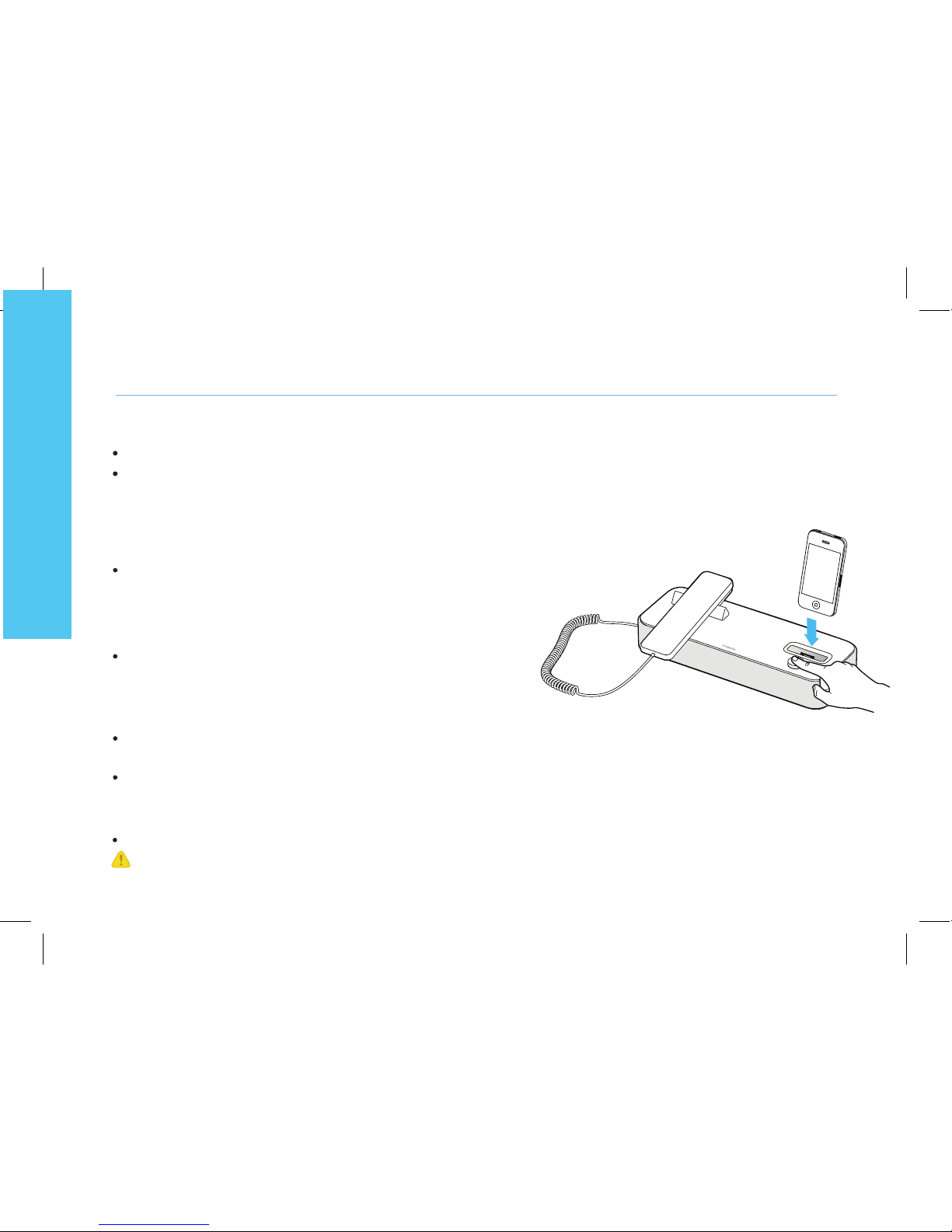

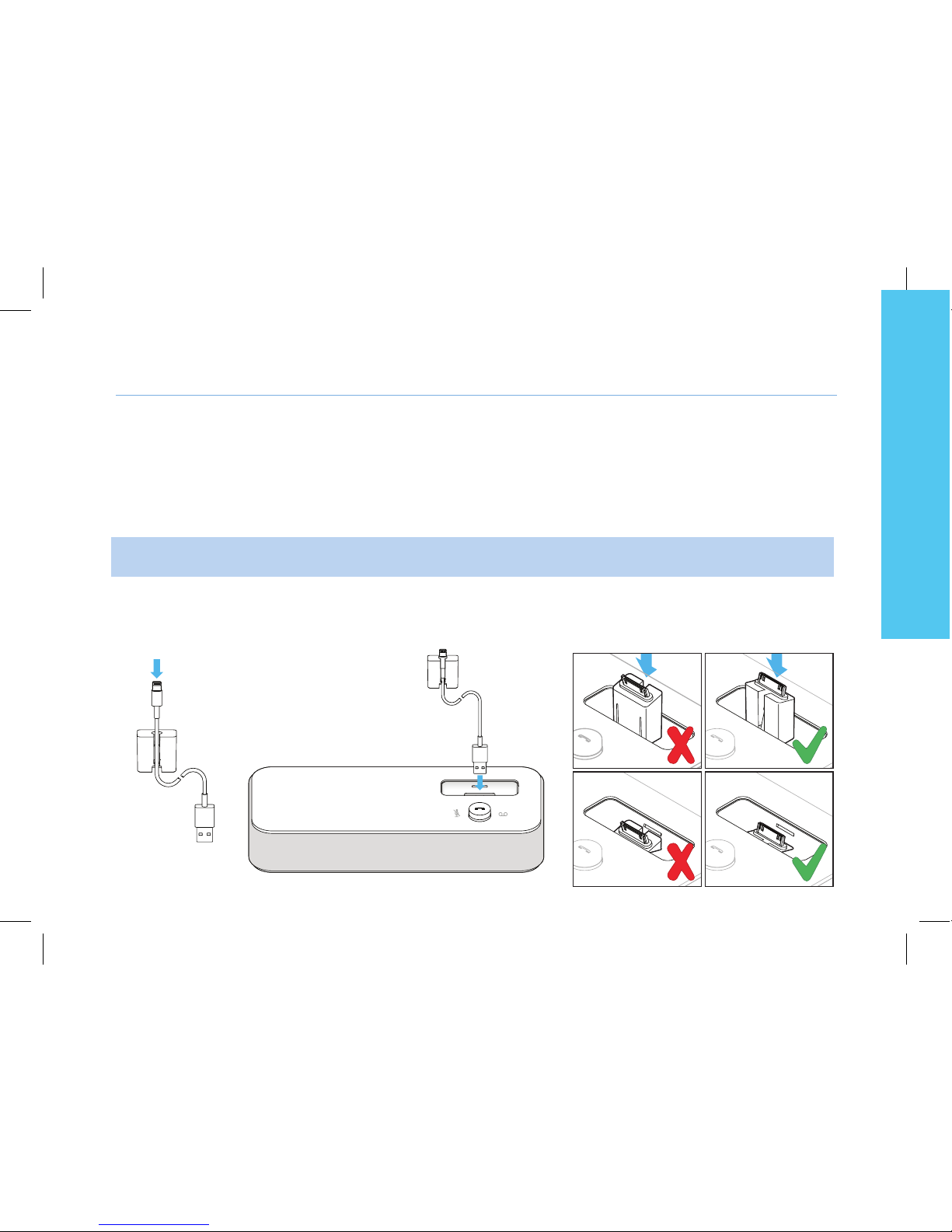

1. Insert the cable suitable to your smartphone into the matching cable adapter.
Place it then in the special pocket of the receptacle.

6
English
3. Slide the cord into place through the interstices under the base.
4. Plug the USB connector to the left USB port at the rear of the device.

7
En glish
5. Insert the suitable adapter to your smartphone, or none if you use a case and your device doesn’t t.
To connect a dierent model, please repeat steps 1 to 5.

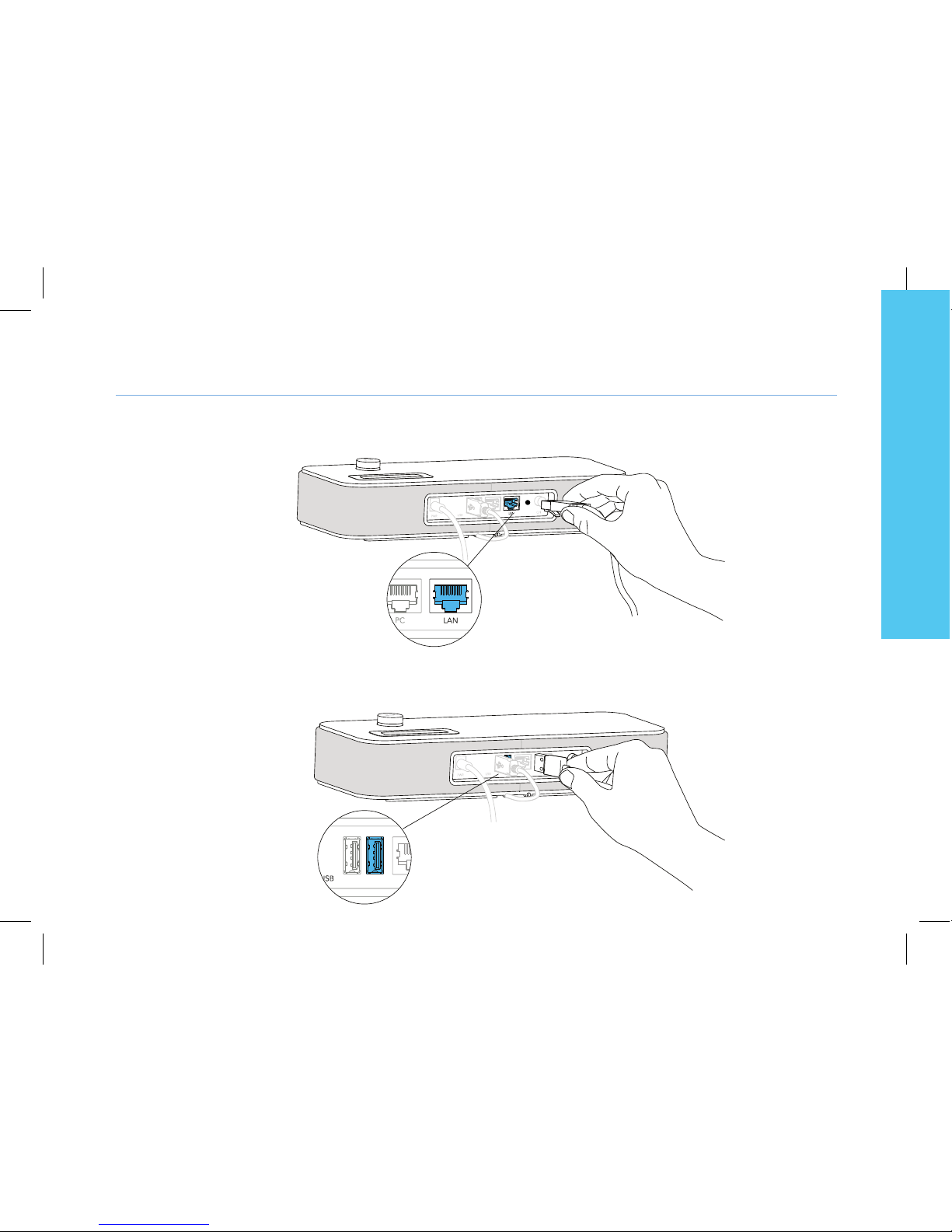

6. Plug the mains power adapter into the back of the base and into a wall mount socket.

English
Installing the handset
the interstices under the base.
1. Plug the cord of the handset into the right USB port at the back of the base. Slide the cord into place through
7. Plug one end of the Ethernet cable into the LAN connector at the back of the base and into your network
telephone socket (PC port is to connect to your computer to provide Internet).
8

En glish
9
2. Place the Smart Holder and the handset on the top of the base.
