inVue Zips ZB1000 User manual

Zips
Single Port Alarm Unit, High Security
Plate and Power Cable
ZB1000, ZB3002 & ZB4001
1
2
If NOT using the High
Security Plate:
Place the alarm unit in the
predetermined location (above or
below the counter). Apply pressure
for at least 10 seconds.
5a
High Security Plate
Installation (optional):
Determine where the alarm unit will
be placed (either above or below
counter). Attach the plate to the
xture with the 2 screws provided.
3a
Use the provided alcohol wipe to
clean the high security plate. Allow it
to dry completely.
3b
CONTENTS: One pad saturated in 75%
Isopropyl Alcohol
DIRECTIONS: Apply topically as
needed to cleanse surface mounting area.
FOR EXTERNAL USE ONLY
KEEP OUT OF REACH OF
CHILDREN
KEEP AWAY FROM EYES
AND FIRE
If using the High Security
Plate:
Align the holes on the bottom of the
alarm unit with the posts on the high
security plate. Apply pressure for at
least 10 seconds.
5b
Peel the liner from the adhesive on
the bottom of the alarm unit.
4
Use the provided alcohol wipe to
clean the surface (above or below the
counter) where the alarm unit will be
placed. Allow it to dry completely.
1
CONTENTS: One pad saturated in 75%
Isopropyl Alcohol
DIRECTIONS: Apply topically as
needed to cleanse surface mounting area.
FOR EXTERNAL USE ONLY
KEEP OUT OF REACH OF
CHILDREN
KEEP AWAY FROM EYES
AND FIRE

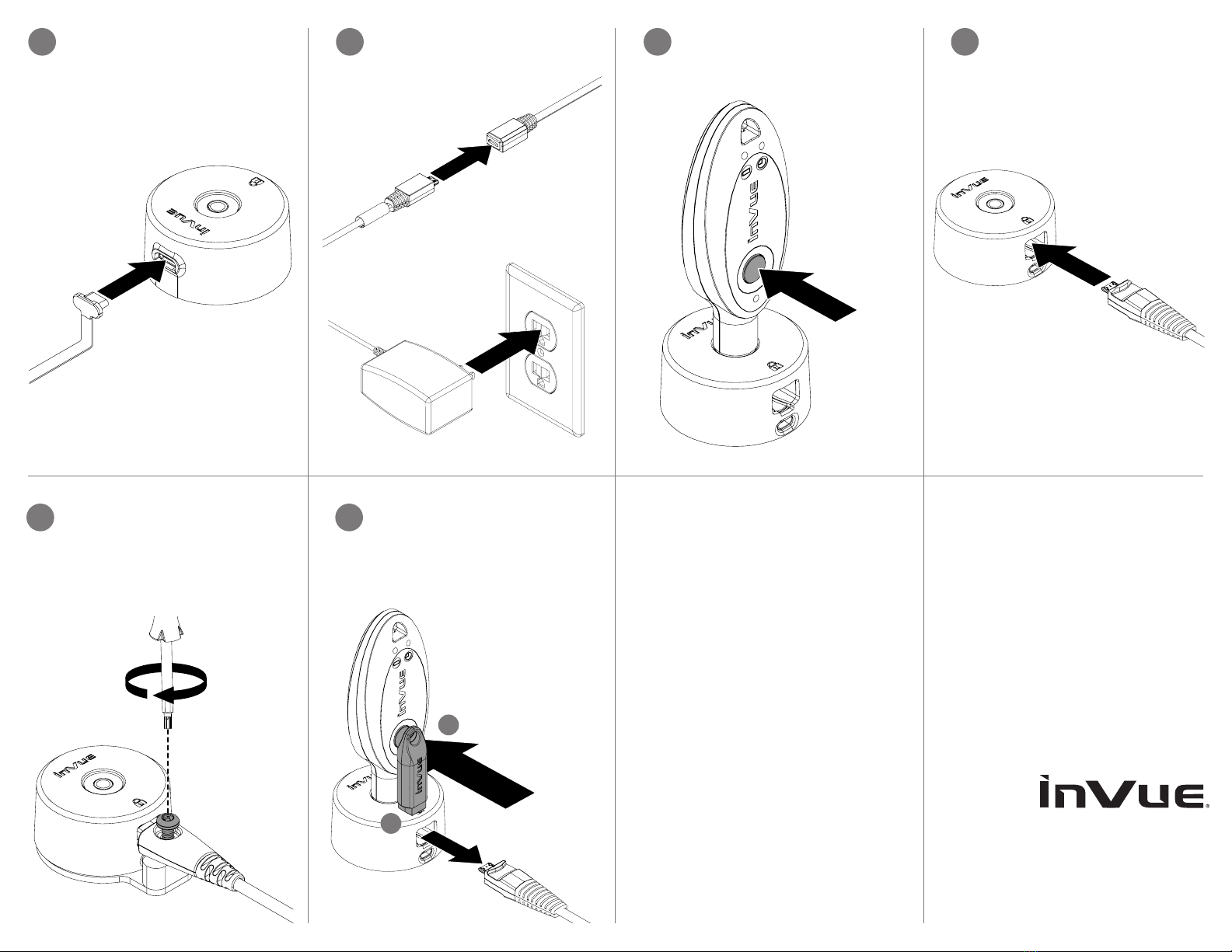

Pull the tab to activate the battery. The
unit should make an audible “chirp”.
2

Place a coded and charged OneKEY
on the lens of the alarm unit and
press the button to code the system.
76a Powered Version (optional):
Plug the power cable (ZB4001) into
the alarm unit.
6b Connect the power cable to the
power supply (PS512). Plug the
power supply into an outlet.
To remove a sensor from the alarm
unit; use a charged and coded key
to deactivate the unit, then place the
magnet key onto the lock icon on
alarm unit above the sensor. Push in
slightly and unplug the sensor.
9
1
2
Plug a zips sensor into the alarm unit.
See the instructions included with
each sensor for more information.
8a
If High Security Plate was
used:
Plug the sensor into the alarm unit
and align the hole in the sensor with
the hole in the high security plate.
Secure the sensor with the captured
screw.
8b SD0632 Rev4 9/14/21
© 2021 InVue Security Products Inc. All rights reserved.
InVue is a registered trademark of InVue Security Products.
www.invue.com
NA / LATAM // 704.752.6513 •888.55.INVUE
EMEA // +31.23.8900150
APAC // +852.3127.6811
