ION Superior LP User manual

Confidential ION Audio Service Manual
ION Audio
Superior LP
[iT67]
Service Manual
v1.2
2018.08.21
The information in this document contains privileged and confidential information. It is intended
only for the use of those authorized by ION Audio. If you are not the authorized, intended
recipient, you are hereby notified that any review, dissemination, distribution or duplication of
this document is strictly prohibited. If you are not authorized, please contact ION Audio and
destroy all copies of this document. You may contact ION Audio at suppo[email protected].
© Copyright ION Audio
ATTENTION!
This document contains sensitive proprietary
information.
All recipients must have a current non-disclosure
agreement on file with ION Audio.
Do not make illegal copies of this document.

Confidential ION Audio Service Manual
Preface
This document is intended to assist the service technician in the operation, maintenance and
repair of the ION Audio device. Together with the User Reference Manual, this document
provides a complete description of the functionality and serviceability of the Device. Any
comments or suggestions you may have pertaining to the document are welcome and
encouraged.
Read This!
In addition to any purchase price that ION Audio may charge as consideration for ION Audio
selling or otherwise transferring this service manual (“Manual”) to you, if you are not a service
and repair facility (“Service Center”) authorized by ION Audio in writing to be an authorized
Service Center, ION Audio sells or transfers the Manual to you on the following terms and
conditions:
Only Service Centers authorized by ION Audio in writing are authorized to perform service and
repairs covered by an ION Audio warranty (if any), and transfer of the Manual to you does not
authorize you to be an authorized Service Center. Therefore, if you perform, or if the Manual
is used to perform, any service or repairs on any ION Audio product or part thereof, any
and all warranties of ION Audio as to that product and any service contract with ION Audio
for that product shall be voided and shall no longer apply for such product, even if your
services or repairs were done in accordance with the Manual.
All service or repairs done by you or with reference to the Manual shall be solely your
responsibility, and ION Audio shall have no liability for any such repairs or service work. All such
service or repairs are performed at the sole risk of the person performing the service or
repairs. You agree that all such work will be performed in a competent, professional and safe
manner at all times and to indemnify and fully hold ION Audio and its successors and assigns
harmless in the event of any failure to so perform.
Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of
resale or other transfer.
As the owner of the copyright to the Manual, ION Audio does not give you the right to copy the
Manual, and you agree not to copy the Manual without the written authorization of ION Audio.
ION Audio has no obligation to provide to you any correction of, or supplement to, the Manual,
or any new or superseding version thereof.
ION Audio shall have the right to refuse to sell or otherwise transfer repair parts or materials to
you in its sole discretion. You shall not use, sell or otherwise transfer spare or replacement parts
supplied by ION Audio to you (i) to repair or be used in products manufactured for or by third
parties or (ii) to any third parties for any purpose.
You shall not make any warranties or guarantees with respect to the products of ION Audio or
the use thereof on behalf of ION Audio or in your own name.
The foregoing describes the entire understanding related to sale or transfer of the Manual to you,
and no other terms shall apply unless in a writing signed by an authorized representative of ION
Audio.
All Trademarks are property of their respective companies.

Confidential ION Audio Service Manual
Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE
THIS PRODUCT TO WATER OR MOISTURE.
The arrowhead symbol on a lightning flash inside a triangle is
intended to alert the user to the presence of uninsulated
“dangerous voltage” within the enclosed product which may be of
sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamation point inside a triangle is intended to alert the user
to the presence of important operating, maintenance and servicing
instructions in the literature which accompanies the product.
REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED ION
AUDIO SERVICE CENTER WILL VOID THE ION AUDIO WARRANTY.
PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO
COMPETE WITH ANY ION AUDIO DISTRIBUTOR OR AUTHORIZED REPAIR
SERVICE CENTER IN THE PROVISION OF REPAIR SERVICES OR TO BE OR
MAKE REPAIRS AS AN AUTHORIZED SERVICE CENTER.
ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED ION
AUDIO SERVICE CENTER SHALL BE SOLELY THE RESPONSIBILITY OF
THAT ENTITY, AND ION AUDIO SHALL HAVE NO LIABILITY TO THAT
ENTITY OR TO ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.
Regarding the Power Supply Fuse
Caution: The product under service may employ the use of a
replaceable fuse. Danger of fire or electrocution if fuse is incorrectly
replaced. Replace with only the same type or equivalent type
recommended by the equipment manufacturer.
Regarding the Internal Battery
Caution: The product under service may employ the use of a
internal battery. Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries
according to the manufacturer’s instruction.

Confidential ION Audio Service Manual
Safety Instructions
Carefully read the applicable items of the operating instructions and these safety suggestions
before using this product. Use extra care to follow the warnings written on the product itself and
in the operating instructions. Keep the operating instructions and safety suggestions for
reference in the future.
1. Power Source. The product should only be connected to a power supply which is
described either in the operating instructions or in markings on the product.
2. Power Cord Protection. AC power supply cords should be placed such that no one is likely
to step on the cords and such that nothing will be placed on or against them.
3. Periods of Non-use. If the product is not used for any significant period of time, the
product’s AC power supply cord should be unplugged from the AC outlet.
4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into
any openings of the product.
5. Water or Moisture. The product should not be used near any water or in moisture.
6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators
or other heat producing equipment.
7. Ventilation. When installing the product, make sure that the product has adequate
ventilation. Improperly ventilating the product may cause overheating, which may damage
the product.
8. Mounting. The product should only be used with a rack which the manufacturer
recommends. The combination of the product and rack should be moved carefully. Quick
movements, excessive force or uneven surfaces may overturn the combination which may
damage the product and rack combination.
9. Cleaning. The product should only be cleaned as the manufacturer recommends.
10. Service. The user should only attempt the limited service or upkeep specifically described in
the operating instructions for the user. For any other service required, the product should be
taken to an authorized service center as described in the operating instructions.
11. Damage to the Product. Qualified service personnel should service the unit in certain
situations including without limitation when:
a. Liquid has spilled or objects have fallen into the product,
b. The product is exposed to water or excessive moisture,
c. The AC power supply plug or cord is damaged,
d. The product shows an inappropriate change in performance or does not operate
normally, or
e. The enclosure of the product has been damaged.

PARTS NO. PARTS NAME DESCRIPTION QTY REMARK/LOCATION
1、iT67 SMT
101# SOP-20 KT0932 1U301
101# SOT223 1117-3.3V 1U3
102# TRANSISTOR SOT23 8550 1Q301
102# TRANSISTOR SOT23 9014C 1Q302
103# DIODE：SMD 4148 5D3 D4 D5 D7 D16
103# DIODE：SMD SS36 1D6
125# C.CAP SMT
125# C.CAP SMT 0603 24 PF 2C309 C310
125# C.CAP SMT 0603 500 PF 2C704 C705
125# C.CAP SMT 0603 0.1 UF 7C301 C303 C311 C313 C315
C318 C6
125# C.CAP SMT 0603 0.015 UF 2C305 C306
125# C.CAP SMT 0603 1 UF 4C307 C308 C316 C317
125# C.CAP SMT 0603 4.7 UF 2C706 C707
125# C.CAP SMT 0603 10 UFF 4C7 C302 C312 C314
126# RESISTOR:SMT
126# RESISTOR:SMT 1206 0 OHM 8J1 J14 J33 J34 J48 J57 J58
J60
126# RESISTOR:SMT 0603 0 OHM 3R48 R305 R315
126# RESISTOR:SMT 0603 2.2 OHM 1R302
126# RESISTOR:SMT 0603 1 K 1R316
127# RESISTOR:SMT 0603 4.7 K 2R601 R605
126# RESISTOR:SMT 0603 5.6 K 2R602 R606
126# RESISTOR:SMT 0603 8.2 K 2R708 R709
126# RESISTOR:SMT 0603 10 K 9R6 R10 R11 R24 R52 R56
R303 R308 R309
126# RESISTOR:SMT 0603 11 K 1R604
126# RESISTOR:SMT 0603 12 K 2R603 R607
126# RESISTOR:SMT 0603 13 K 2R710 R711
126# RESISTOR:SMT 0603 15 K 2R310 R311
126# RESISTOR:SMT 0603 22 K 6R2 R27 R49 R50 R51 R54
126# RESISTOR:SMT 0603 36 K 1R307
126# RESISTOR:SMT 0603 47 K 2R3 R318
126# RESISTOR:SMT 0603 100 K 2R7 R304
126# RESISTOR:SMT 0603 150 K 1R9
232# 贴片电感 SMT 0603 10UH 2L301 L302
頻率選擇 R304 按客戶要求選用
126# RESISTOR:SMT 0603 200 K 1美國87.5-108 100k
126# RESISTOR:SMT 0603 100 K * 歐洲87.5-108 50k
126# RESISTOR:SMT 0603 *
126# RESISTOR:SMT 0603 *
1、iT67
104# LED
Bill of Material (BOM)

PARTS NO. PARTS NAME DESCRIPTION QTY REMARK/LOCATION
Bill of Material (BOM)
104# 3MM RED普亮 3MM 1 POWER_LED
104# 3MM BLUE普亮 3MM 1 BT_LED
109# BAR:5X13X55mm 1
109# AM COIL 90T M1 2X120MM 1
110# SW
110# SK-23D04G6 1 SW1
110# SK44D04 1 SW3
110# SW
110# 9
SW1 SW2 SW3 SW4 SW5
SW6 SW8 SW9 SW13 SW14
SW15
111# 电位器：
111# WRA1301N-PV1-3A140°-B100K-
130 1 VR101

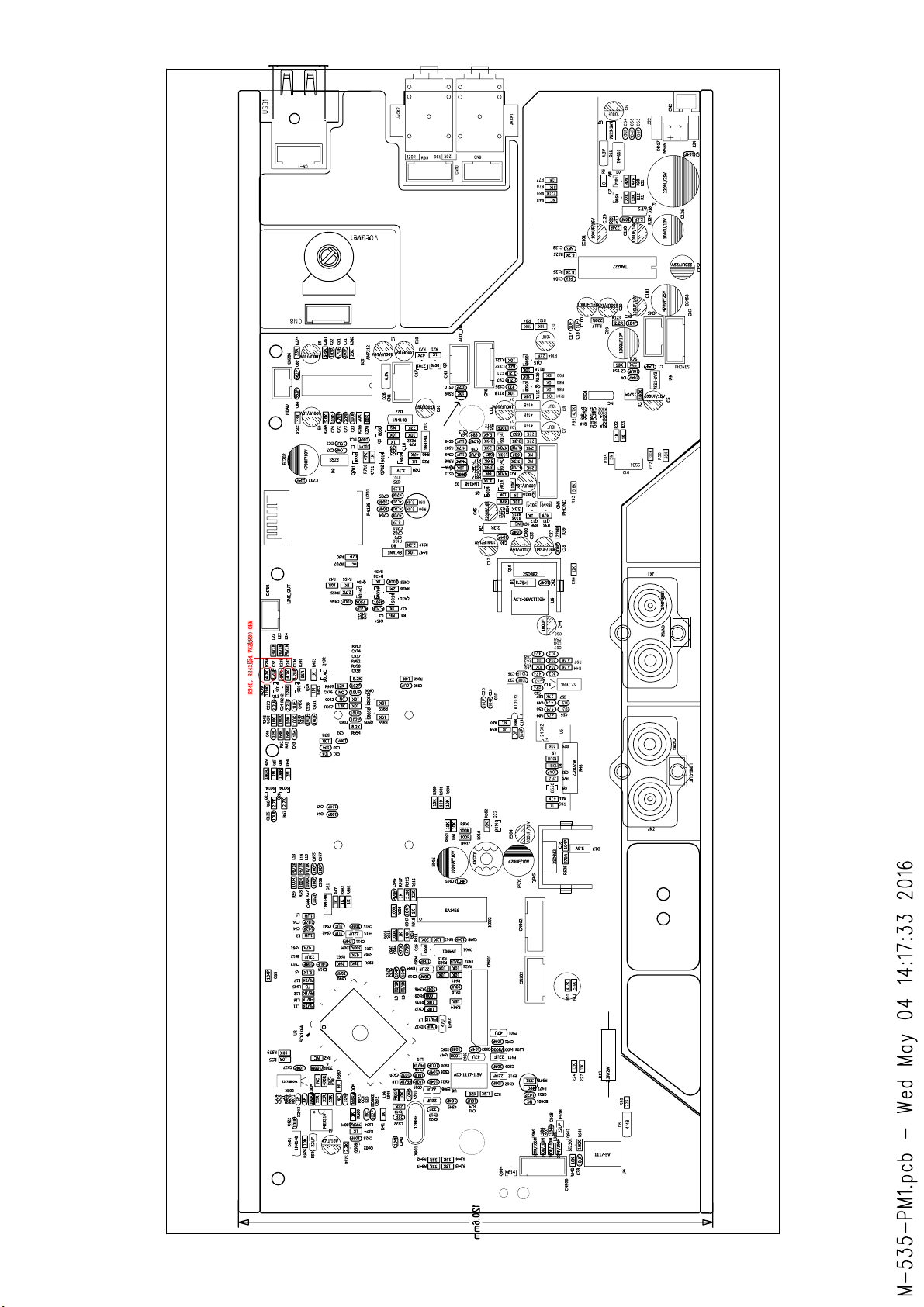

114# PCB:M-535-BTPHM3UEI-PK1
291X145X1
.
6MM)
94HB
1
119# ELECT.COND 10UF/16V 5C25 C26 C27 C28 C304
119# ELECT.COND 100 UF/10V 1 C304
126# RESISTOR: 2W
126# RESISTOR: 2W 2.2 OHM 1R301
232# FFC单面针臥式插座(1.0mm)
8PIN 1CON5
232# FFC单面针臥式插座(1.0mm)
20PIN 1CON6
232# FFC单面针臥式插座(1.0mm)
22PIN 1CON4
434# LED數碼管 WD04031 永鑫宏 1 LED601
436# LINQTI SURGE(晶振） 32.768 Hz(鐵殼)1 X301
103# 接收头PC3388 (脚长30mm) 1U5
101# IC SA1466 1 IC902
101# IC：QFP128 SC6136B 士蘭 1U2
101# IC：SOP-8 MCU9319 1 IC905
101# IC：SOP-8 M25S16 1 IC903
101# 藍牙模組 F-6188 1 U701
101# IC：SOT223 LM1117/5V 1 U4
101# IC：SOT223 LM1117/3.3V 1 U6
101# IC：SOT223 LM1117/1.2V 1 U8
102# MOSFET SOT-23 SI2301 2 Q903 Q8
102# TRANSISTOR SOT23 8050 5 Q9 Q15 Q902 Q905 Q906
102# TRANSISTOR SOT23 8550 3 Q11 Q16 Q701
102# TRANSISTOR SOT23 9014 17
Q5 Q6 Q13 Q14 Q3 Q20
Q21 Q4 Q12 Q18 Q702
Q904 Q431 Q7 Q10 Q430
Q432
TACT SWITCH H:6X6X5MM
iT67 =-PM1 BOARD SMT

PARTS NO. PARTS NAME DESCRIPTION QTY REMARK/LOCATION
Bill of Material (BOM)
103# ZENER DIODE SMT 3.3V 1D20
103# ZENER DIODE SMT 5.6V 1D13
103# ZENER DIODE SMT 6.8V 2 D19 D26
103# ZENER DIODE SMT 8.2V 1D1
103# 橋堆 MS6S 1 D17
103# DIODE：SMD 1N4148 7 D2 D8 D15 D21 D27 D901
D14
103# DIODE：SMD 0603 IN60 1D9
103# DIODE：SMD IN4001 1 D4
103# DIODE：SMD SOT-23 BAV99 1 D430
125# C.CAP SMT 0603 6 PF 2 C924 C925
125# C.CAP SMT 0603 18 PF 1 C917
125# C.CAP SMT 0603 22 PF 2 C922 C923
125# C.CAP SMT 0603 470 PF 3 C943 C944 C945
125# C.CAP SMT 0603 0.001 UF 10 C12 C34 C36 C44 C510
C511 C601 C602 C933 C934
125# C.CAP SMT 0603 0.0056UF 2 C88 C89
125# C.CAP SMT 0603 0.0082UF 2 C132 C136
125# C.CAP SMT 0603 0.01 UF 4 C22 C74 C919 C920
125# C.CAP SMT 0603 0.02 UF 3 C39 C71 C73
125# C.CAP SMT 0603 0.047 UF 2 C512 C513
125# C.CAP SMT 0603 0.056 UF 2 C47 C48
125# C.CAP SMT 0603 0.068 UF 2 C104 C128
125# C.CAP SMT 0603 0.1 UF 36
C2 C4 C9 C33 C40 C98
C133 C703 C901 C902 C903
C904 C905 C906 C908 C910
C911 C912 C913 C915 C916
C918 C921 C926 C927 C928
C929 C930 C939 C940 C946
C947 C948 C949 C8 C16
125# C.CAP SMT 0603 1 UF 9C17 C18 C43 C46 C450
C508 C509 C941 C942
125# C.CAP SMT 0603 2.2 UF 6C11 C24 C32 C97 C134
C273
125# C.CAP SMT 0603 4.7 UF 9C28 C29 C30 C31 C51 C72
C452 C454 C455
125# C.CAP SMT 0603
10 UF
18
C23 C38 C42 C135 C456
C931 C935 C937 C938 E2
E908 E914 E916 E917 E919
E920 EC1 EC3
125# C.CAP SMT 0805
22 UF
11
E901 E902 E903 E904 E906
E910 E911 E912 E913 E915
E918

PARTS NO. PARTS NAME DESCRIPTION QTY REMARK/LOCATION
Bill of Material (BOM)
126# RESISTOR:SMT 1206
0 OHM
54
J1 J2 J3 J5 J6 J7 J11 J12
J16 J17 J20 J21 J22 J24 J25
J26 J27 J28 J29 J30 J31 J34
J43 J46 J47 J49 J50 J51 J52
J53 J54 J56 J59 JP1 JP2
JP3 JP4 JP5 JP9 JP10 JP11
JP12 JP14 JP15 JP16 JP17
JP18 JP19 JP20 JP23 JP24
JP25 JP26 R985
126# RESISTOR:SMT 1206 2.2 OHM 1R56
127# RESISTOR:SMT 0603 10 K 1 R921
126# RESISTOR:SMT 0603 0 OHM 12 J8 J10 J32 J44 J45 J64 JM2
JM11 JP21 R706 R708 R987
126# RESISTOR:SMT 0603 2.2 OHM 2 R123 R124
126# RESISTOR:SMT 0603 10 OHM 4 R34 R43 R55 R456
126# RESISTOR:SMT 0603 15 OHM 1 R924
126# RESISTOR:SMT 0603 33 OHM 8R265 R274 R942 R943 R968
R969 R970 R971
126# RESISTOR:SMT 0603 47 OHM 1 R951
126# RESISTOR:SMT 0603 56 OHM 2 R238 R241
126# RESISTOR:SMT 0603
100 OHM
15
R15 R20 R32 R33 R57 R58
R59 R60 R270 R903 R904
R906 R907 R929 R947
126# RESISTOR:SMT 0603 220 OHM 1R39
126# RESISTOR:SMT 0603 270 OHM 3 R117 R122 R505
126# RESISTOR:SMT 0603 470 OHM 1R38
126# RESISTOR:SMT 0603 1 K 20
R1 R8 R18 R37 R41 R47
R61 R453 R459 R711 R816
R913 R917 R918 R940 R974
R986 R992 R993 R36
126# RESISTOR:SMT 0603 2.2 K 3 R910 R948 R975
126# RESISTOR:SMT 0603 2.7 K 2 R67 R455
126# RESISTOR:SMT 0603 3.3 K 3 R30 R817 R915
126# RESISTOR:SMT 0603 3.9 K 2 R511 R512
126# RESISTOR:SMT 0603 4.7 K 4 R240 R243 R507 R508
126# RESISTOR:SMT 0603 5.1 K 1R5
126# RESISTOR:SMT 0603 5.6 K 6R261 R264 R513 R514 R950
R957
126# RESISTOR:SMT 0603 8.2 K 2 R125 R126
126# RESISTOR:SMT 0603 10 K 38
R23 R29 R51 R62 R63 R64
R65 R66 R68 R69 R115
R116 R118 R119 R121 R447
R814 R815 R914 R919 R920
R922 R930 R939 R952 R953
R954 R955 R958 R959 R960
R976 R979 R980 R981 R982
R990 R991
126# RESISTOR:SMT 0603 12 K 1 R912
126# RESISTOR:SMT 0603 15 K 4 R509 R510 R944 R945

PARTS NO. PARTS NAME DESCRIPTION QTY REMARK/LOCATION
Bill of Material (BOM)
126# RESISTOR:SMT 0603 20 K 3 R262 R266 R911
126# RESISTOR:SMT 0603 22 K 5 R12 R42 R91 R222 R916
126# RESISTOR:SMT 0603 33 K 2 R14 R19
126# RESISTOR:SMT 0603 39 K 2 R17 R22
126# RESISTOR:SMT 0603 43 K 1 R967
126# RESISTOR:SMT 0603 47 K 5 R28 R35 R40 R53 R710
126# RESISTOR:SMT 0603 56 K 4 R248 R249 R962 R963
126# RESISTOR:SMT 0603 100 K 4 R450 R451 R941 R949
126# RESISTOR:SMT 0603 120 K 2 R239 R242
126# RESISTOR:SMT 0603 470 K 2 R16 R21
126# RESISTOR:SMT 0603 750 K 1 R454
126# RESISTOR:SMT 0603 1 M 1 R452
126# RESISTOR:SMT 0603 2 M 1 R458
232# 贴片电感 SMT 0603 300R/100M 12
L2 L3 L503 L901 L902 L904
L905 L906 L907 L908 L909
L911
232# 贴片电感 SMT 0603 10UH 1 L1
114# PCB:M-535-BTPHM3UEI-PM1 180X95X1.6mm 94HB 1 CD BOARD
101# IC: DIP16 AN7312 1 IC5
101# IC: DIP16 TA8227 12V 1 IC101
102# TRANSISTOR TO-126 2SD882 2 Q19 Q17
110# AV2-003 （同527） 中天龍 1JK4
119# ELECT.COND
119# ELECT.COND 10 UF/16V 2 C91 E10
119# ELECT.COND 47 UF/10V 1 E921
119# ELECT.COND 100 UF/16V 6C20 C100 C129 C130 C21
E504
119# ELECT.COND 100 UF/10V 4 C131 E8 E9 C37
119# ELECT.COND 220 UF/16V 2 C45 C101
119# ELECT.COND 220 UF/10V 2E7C35
119# ELECT.COND 220 UF/25V 2 C152 EC702
119# ELECT.COND 470 UF/10V 2 E905 C41
119# ELECT.COND 470 UF/16V 2 E505 卡式機芯用一個
119# ELECT.COND 470 UF/25V 1 EC468
119# ELECT.COND 1000 UF/10V 2 C99 C126
119# ELECT.COND 4700 UF/25V 1E1
126# RESISTOR:2W
126# RESISTOR:2W 2.2 OHM 3 R4 R13 R46
211# BARE WIRE L=40MM Φ0.4MM 9 JP7 J15 J55 J65 J35 J37
J39 J41 JP6
232# 插座 2.5MM 立式 2P2.5 1 CN2
232# 插座 2.0MM 立式 3P2.0 1 CN7B6
232# 插座 2.0MM 立式 4P2.0 2 CN3 CN7
232# 插座 2.0MM 立式 5P2.0 5 CN903 CN906 CN6 CN901
CN5
MODEL:iT67 PM1 BOARD

PARTS NO. PARTS NAME DESCRIPTION QTY REMARK/LOCATION
Bill of Material (BOM)
232# 插座 2.0MM 立式 6P2.0 2 CN4 CN902
232# 电感:6X3X3 （H)MM 26UH
0.5X4+4T 1 L910
232# FFC單面针立式插座(1.0mm)
8PIN 1CON2
232# FFC單面针立式插座(1.0mm)
16PIN 1 CN901
232# FFC雙面针立式插座(1.0mm)
20PIN 1 CON907
232# FFC雙面针立式插座(1.0mm)
22PIN 1CON1
413# 1 FOR IC101 8227
413# 2 FOR Q17 Q19
436# LINQTI SURGE(晶振） 32.768KHZ 1 X902
436# LINQTI SURGE(晶振） 12MHZ 1 X901
114# Model:M-535-BTPHM3UEI-USB 并PK1板1
210# USB AF 4P 弯脚T型
(隆鑫）USB母插座 1JK5
112# 1 JACK1 JACK2
114# PCB:M-535-BTPHM3UEI-PJ1 并PK1板2
126# RESISTOR:SMT 0603 120 OHM 2 R420 R421
114# PCB:M-535-BTPHM3UEI-PV1 并PK1板2
119# WRB1212G-BV2.1-20F-B20K 1VR2
iT67 -PHONO BOARD 共用M-527機
110# SW
110# SS23E04G12调速开关 1唱盘
110# SS-12F44 G12(1P2T) 1 唱盘
114# PCB:PHONO PCB 并PK1板1
113# WRT066N-V-A-B300R(榮發)
300 OHM 1VR2
207# 唱头线3PIN 360mm 同838 1
232# 插座 2.0MM 卧式 2PIN 1 CON11 新唱盘座用
232# 插座 2.0MM 卧式 5PIN 1 J23 新唱盘座用
232# 插座 2.5MM 卧式 6PIN 1 CN1
*唱头(指定要用李建建唱針)1 唱盘
線材要等打樣確認后才能訂
装配部分(环
保)
机芯
CD机芯 (共用M527) 1
卡式机芯 (共用338)TN-301机芯 1
110# 叶片开关 YT-38B 1 唱盘
250# 6
3寸扎线
耳机插座：3507-202塑膠头
iT67 PU1 BOARD
装配部分
散熱片
(
鐵電鍍
)
(同818）
HEAT SINK (21X15X1MM)882
iT67 -PJ1 BOARD

PARTS NO. PARTS NAME DESCRIPTION QTY REMARK/LOCATION
Bill of Material (BOM)
环保;木箱部分
木箱主体 1
木箱盖 1
木箱中板 1
413# WASHER
413# 1FOR唱盘架
413# 1FOR唱盘
413# 卡式机蕊放音推杆 1共用818
413# 唱盘机转销 1共用M527
413# 转头销 1共用M527
413# 唱盘机转销卡簧 1共用818
413# 卡式机蕊开门弹簧 1共用M527
413# 叶片开关调位弹簧 1共用M527
413# 调位弯形销 1共用M527
413# 升降调位弹簧 1共用M527
413# 支撑架（两连件） 1套共用338
413# 支撑架插销（φ3x11mm) 1共用338
413# 合页（25x57mm，4孔)2共用338
413# 指针1新开模（手板已确认）
413# 铁介子（外径10mm,内径4.5mm,
厚0.5mm）2固定火牛
SCREW
面板螺丝
301# SCREW 2*6PWA D=5MM 4按键*4
301# SCREW 3*6PWA D=7MM 8喇叭*8
301# SCREW 3*8PA 1磁棒支架*1
301# SCREW 3*10PA 14 KEYPCB*10,vol*2,布网支架*
2
301# SCREW 3*12BA 10 面板*6,喇叭支架*4
301# SCREW 3*10BA 木牙螺丝2打网布支架*2
301# SCREW 3X10PWA
W=9.5（黑色螺丝） 7网布支架*7
301# SCREW 2.6×4PM,D头=5.2MM 1PVC*1
301# 底壳及CD座螺丝
301# SCREW 2.6X10PWA W=9.5MM 4CD机芯
301# SCREW 3X8PWA (木牙螺丝)4主PCB*4
301# SCREW 3X10 PWA (W=7MM) 4CD機芯架固定*4
301# SCREW 3X10BA 木牙螺丝4CD座支架固定*4
301# SCREW 3×14PWA, W=8.0MM
(木牙，黑色)4胶脚*4
301# SCREW 3×16PWA, W=8.0MM
(木牙，黑色)1压线码*1
301# SCREW 3X10KA （木牙
黑色） 2后接口板*2
301# SCREW 3X10PA （黑色） 1后接口板*1
唱盤皮带內徑=128*5*0.6MM 按樣板
唱臂铜管：M-527 135X6X0.2MM钻1.6mm孔

PARTS NO. PARTS NAME DESCRIPTION QTY REMARK/LOCATION
Bill of Material (BOM)
301# SCREW 3X5PA
（双电压才用，根据订单需要） 2电压转换开关*2
301# SCREW 4X18PWM（M=9MM）2火牛固定
301# SCREW 4X7NUT（螺母） 2火牛固定
301# 中板螺丝
301# SCREW 3X12KA (黑色） 2塑胶支架固定
301# SCREW 3×14PWA, W=8.0MM
(木牙，黑色)5唱盘木板固定
301# 支撑架及合叶固定
301# SCREW 2.6X8KA
(木牙,古铜色） 16 合叶固定
301# SCREW 3X8KA (木牙,古铜色） 3支架固定
301# 卡式机蕊螺丝
301# SCREW 2.6x4PM 1卡式放音推杆
301# SCREW 3X8PM D=5.5MM 3卡式机蕊固定
301# SCREW 2.6X10PWA W=9.5MM 4卡式机蕊门支架固定
301# SCREW 3X25PWA
W=9.5（黑色螺丝） 4机蕊支架
301# SCREW 3X10PA 2磁带支架
301# 唱盘螺丝
301# SCREW3X10PWA
（W=12MM）3唱盘支架TO木箱
301# SCREW2X6PA 2唱头固定
301# SCREW2.6*7.5PM 3马达固定
301# SCREW2*10PA 1叶片开关固定
301# SCREW3*6PA 2叶片开关压板
301# SCREW3*10BA 1转头2
301# SCREW2.3*6PWA（W=6MM）1拱板固定
301# SCREW2.5*10BA 1转头3
301# SCREW3*8PA 2PCB板TO唱盘
422# 2FOR木箱喇叭支架
装配符料部分
EVA单面带胶(60度)(φ8*2mm)（
黑色） 2垫盖板*2
橡胶脚(20*16*10)(黑色，环保)4
唱盘防震橡胶 直径：9mm 3 装在唱盘转盘
橡胶胶圈50度(黑色） 防震圈 3装在唱盘TO中板
JYS828机蕊支架 1套共用M527
CD机芯防震胶垫4共用M527
CD机芯防震弹簧 4共用M527
唱盘垫（单面带胶）192*59*2M
M 内孔为59MM 1共用M527
452# 3速9-12V马达连铜軸 1唱盘
460# 成品遥控:KCJ32K-06H-83 同527
-
BT(絲印不同） 1
TRANSFORMER:
SPEAKER3'4 OHM 5W 50磁泡盆黑金刚(FO4)

PARTS NO. PARTS NAME DESCRIPTION QTY REMARK/LOCATION
Bill of Material (BOM)
HJ-48-G10512
次級線長=100MM 帶端子 1
奶嘴 同838 2 電源線接駁
電源線扣 同838 1 電源線固定
*1
VDE.UL根据订单而定
注意德國環保時使用
*1
110V/220V雙電壓選用物料
110# SW
110# 1
SCREW 3X12
PWM（W=7MM）2
M3螺母 2
223# UL1007 #22 200MM RED 1 110/220 V
1
207# 端子線(2.0mm) 1邊插座
207# 1 磁頭線
207# 1 CON4-叶片开关 新唱盘座用
207# 1 J23-MOTO 新唱盘座用
207# 1 L+R SP
207# 1 PM1 J1-MOTO
207# 端子線(2.0mm) 2邊插座
206# 1 CD CON5-CD DECK
206# 1 CD CON1-CD DECK
206# 1 CD PCB CN6 TO PV1 CN6
206# 1 CD PCB CN8 TO PJ1 CN1
206# 1 CD PCB CN5 TO PJ1 CN6
206# 1 CD PCB CN906 TO PU1 CN-
906
206# 1 PM1 CN4 TO PHONO
223# 單支線
223# UL1007 #24 200MM BLACK 1 主板
223# UL1007 #26 1700MM BLACK 1 FM ANT
注意尾部要加伸縮管包尾
433# FCC CABLE :(UL2896)：
433# UITA FLEXIBLE FLAT
CABLEUL2896
433# 8pin(4+312+4)=320MM间距1MM
正反(特软)1BT
433# 16pin(4+242+4)=250MM间距1M
M 同向(特软)1 CD DECK
433# 20pin(4+342+4)=350MM间距1M
M 正反(特软)1PM1TOPM2
433# 22pin(4+342+4)=350MM间距1M
M 同向(特软)1PM1TOPM2
包装料部分
SS12J01-G0(仅双电源用)
UL1007 #26 300mmX3P+UL2547#28 300mmX3P=6P2H
25&20MM
UL2468 #26 400mmX5P2HF 2.0MM 一頭帶針座
UL2468 #26 320mmX5P2H 2.0MM 正反
UL2468 #26 80mmX2P1H 2.0MM
UL1007 #24 400mmX2&550mmX2=4P1H 2.0MM
UL2468 #26 100mmX5P1H 2.0MM
UL2468 #26 350mmX5P2HF 2.0MM 一頭帶針座
UL2547 #26 400mmX5P2HF 2.0MM 一頭帶針座
UL2468 #26 400mmX4P2HF 2.0MM 一頭帶針座
此部份物料為雙電壓使用，按
客人要求使用
电源线(非标L=1.8M 15MM开线不用上锡 黑色)
整套線材
木后板(342X94.9X3MM)
UL2547 #28 AWG 200mm 3P1H 2.0MM
UL2468 #26 300mmX6P2H 2.0MM 同向
UL2468 #26 300mm X2P &180mm 2P=4P1H 2.0MM

PARTS NO. PARTS NAME DESCRIPTION QTY REMARK/LOCATION
Bill of Material (BOM)
POLY BAG:
POLY
BAG:(650x750mm,650开口） 1包主机
POLY BAG:（51x165mm
50开口） 1包FM天线
POLY BAG:（101x330mm
101开口） 1包电源线
POLY BAG:（6"X8" 6"开口） 1包说明书(通用M527)
彩盒(L527*W437*H315mm) 1
卡通箱(L542*W452*H336mm) 1
发泡胶(分R,L) 1套包装主机
100x100x35mm (发泡胶载片)1保护唱盘
珍珠绵片220*50*3mm 2
说明书 1
台位尺胶片（单面粘性） 1
1
1
1
1
1
1
1
1
1
GIFT BOX 1
10
1
彩盒 1
iT67 塑胶部分
M535啤塑部分
模号 名称 图片 用量 表面
535-1 喇叭网架 1包布
535-2 CD门1电镀
前壳 1电镀
旋钮装饰件 1电镀
段波摇柄 1电镀
535-3 左排钮1电镀
右排钮1电镀
功能钮1电镀
选台钮 1电镀
音量 1电镀
后档板 1纹面
纸板
PACKING
纤维胶纸
COLOK LABEL
CLASS LASER PRODUCT LABEL
MODEL LABEL
SERIAL LABEL
QC LABEL
LASER CAUTION LABEL
CAUTION & SAFETY LABEL
FM INT LABEL
LABELS:
POWER LABEL
INSTRUCTION BOOK

PARTS NO. PARTS NAME DESCRIPTION QTY REMARK/LOCATION
Bill of Material (BOM)
535-4 喇叭支架 1无
535-5 镜片 1抛光
535-6 CD座左支架 1无
CD座右支架 1无
VC轴1无
数码管支架 1无
齿板 1无
电源线压码 1无
功能齿轮 1无
磁棒支架 1无
以下为共用其它机型物料
模号 名称 图片 用量 表面
M-527-4 侧盖板 1喷油
出线孔盖板 1喷油
电源开关 1喷油
内支架 1喷油
228-338支架 支架 1幼纹
唱盘部分
M-527唱盘零件清单
序号 产品名称及材料描述 产品图片 备注
1唱盘架 1X1
2配件1 1X1
配件2 1X1
配件3 1X1
1（此
件不
用）
配件4 1X1
配件5 1X1
配件6 1X1
配件7 1X1
配件8 1X1
配件9 1X3
配件10 1X1
配件11 1X1
3唱盘（ABS) 1X1 共用DT85（注意不要有变形）

R7， R9， 原56K改 39K

2015-09-21
CHECKED:
SHEET:
DRAW FILE
TITLE
COMPANY
FINISHED
APPROVED:
DRAW: MODEL ON
SIZE: A4
DATE: DATE: DATE:
FILE
NEMBER
REV: 1.0
N
C
R
4
2E
R
P
2
_
D
E
T
N
O
/
E
R
P
2
2
2
K
E
R
P
2

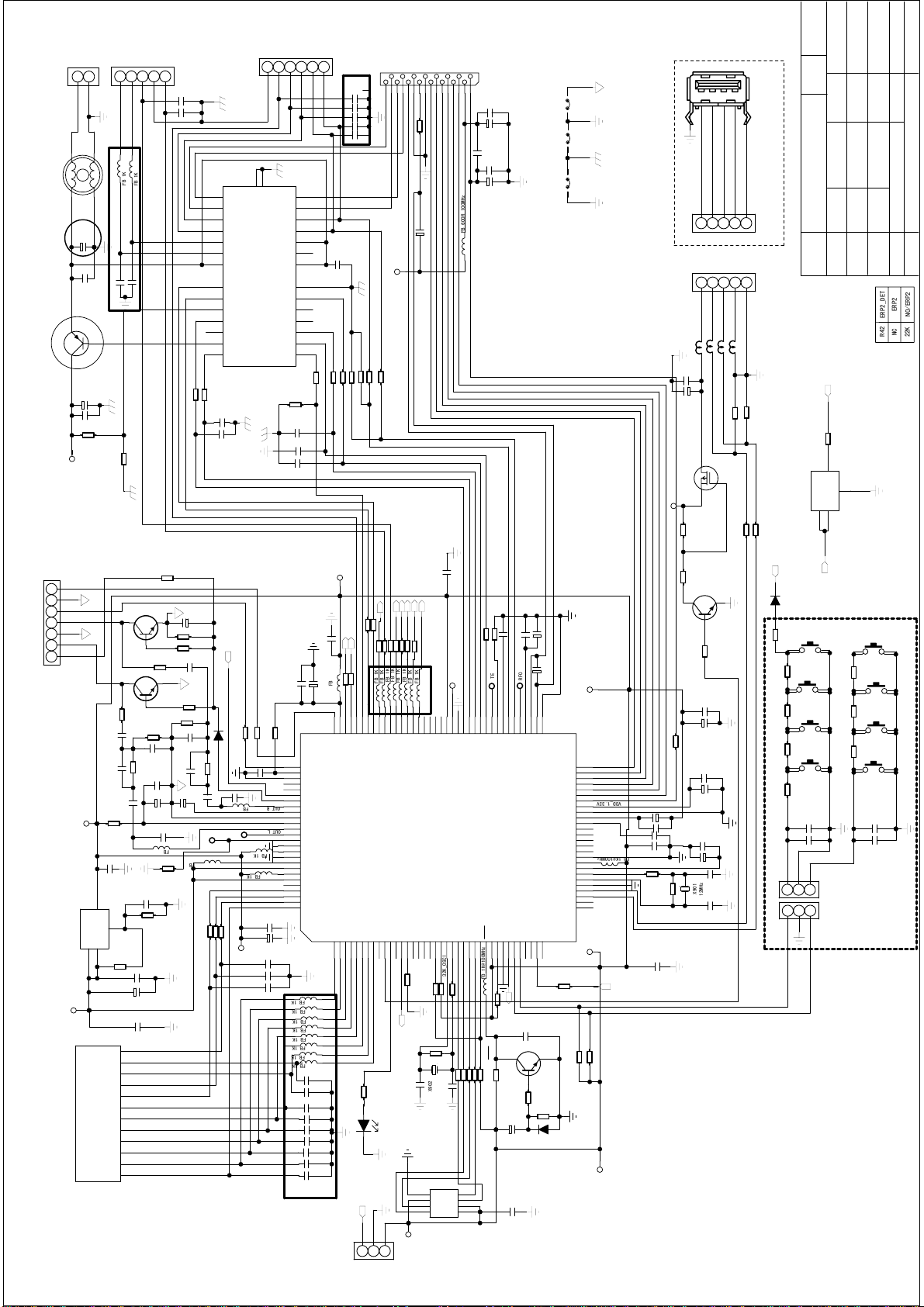

SC6137
USB BD
KEY BD
IC901
SC6136A
RADIO
CD
PHONO
TAPE

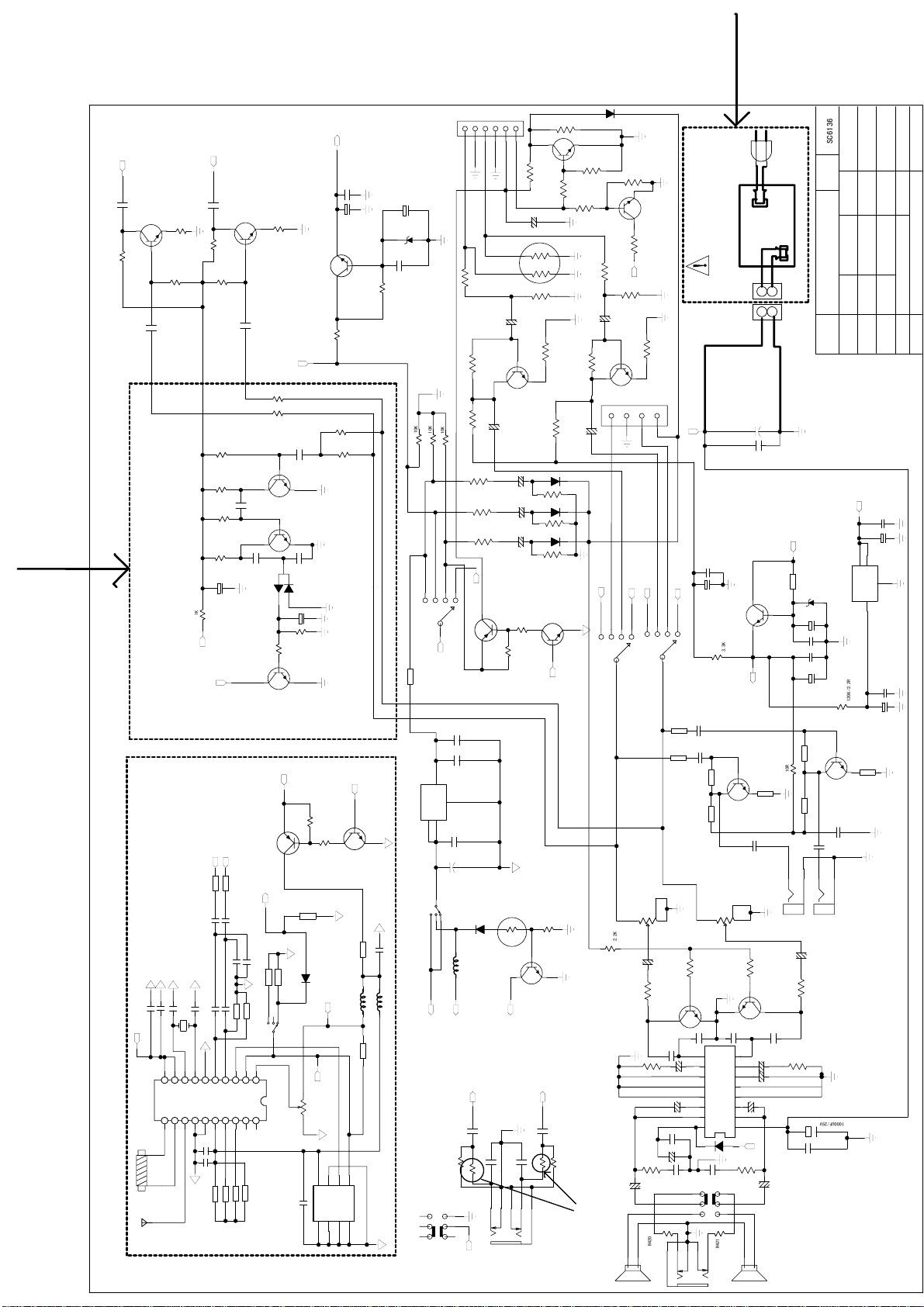

由原470UF改為1000UF
3
1
2
Q902 8050
21
D901
1N4148
1
CSN 2
DO 3
W4
VSS
5DI
6CLK
7HOLD
8VCC
IC903
M25S16
1
VINFC
2
TRB_1
3
REGO3
4
VINSL
5
REGO1
6
FWD
7
REV
8
VCC1
9
VOTR-
10
VOTR+
11
VOSL+
12
VOSL-
13
VOFC-
14
VOFC+
28 MUTE
27 BIAS
26 VINTK
25 TRB_3
24 NC
23 VINLD
22 GND
21 VCTL
20 NC
19 VCC2
18 VOLD-
17 VOLD+
16 VOTK-
15 VOTK+
29
GND 30 GND
IC902 SA1466
3SEG3_PA7_I2S1_D0 1SEG1_PA5_I2S1_SCLK 4SEG4_PB0_I2S1_D1 6SEG6_PB2SDIO_CLK 2SEG2_PA6_I2S1_WS 8SEG8_PB4_SDIO_D0
10 SEG10_PB6_SDIO_D1
7SEG7_PB3_SDIO_CMD 9SEG9_PB5SDIO_D3
12 SEG12_PC0 15 SEG15_PC3 13 SEG13_PC1 14 SEG14_PC2 16 SEG16_PC4 17 SEG17_PC5 18 SEG18_PC6 19 SEG19_PC7 20 RTC_VDD 21 32KIN 22 32KOUT 23 SF_CLK 24 SF_CSN 25 SF_MISO 26 SF_MOSI 27 DEBUG_TEST 28 RESET
29 VDDA 30 PIN_BOTT 31 VSSA 32 PD0_INT0_PWM0 33 ADIN0 34 PD1_ADIN1_INT1_TCK 35 PD2_AD2_INT2_RISC_TXD1_MCU_TXD1 36 PD3_AD3_INT3_RISC_RXD1_MCU_RXD1 37 PD4_AD4_INT4_TXD2_PWM0 38 PD5_AD5_INT5_RXD2_PWM1
39 PD6_AD6_INT6_PWM2__SCL
40 PD7_AD7_INT7_PWM3_SDA
41 DP
42 DN
43 AVSS
44 12MOUT
45 12MIN
46 VDD_M
47 VDD33
48 AVSS33
49 DAC_SVM
50 VDAC_B
51 VDAC_G
52 VDAC_R
53 REXT
54 VREF
55 COMP
57 VDD_R
58 V21O
59 E
60 D
64 F
65
AGND 66
LDO 67
MD 68
AV33D 69
RFO 70
BK_INN 71
BK_INP 72
AN_CC 73
AN_REX 74
AN_TE 75
V165O 76
DMO 77
TRO 78
FOO 79
SLO 80
VSS 81
VDDR 82
VDD33 83
PE0_SD_CLK 84
PE1_SD_CMD 85
PE2_SD_DAT0 86 PE3_SD_DAT1 87
PE4_SD_DAT2_SEG20 88 PE5_SD_DAT3_SEG21 89
PE6_SEG22_SPDIFOUT/SPI_CS1 90
PE7_SEG23/SPI_CLK
93
PF2_SEG26/SPI_CS0 94 PF3_SEG27/SPI_CS2 95
PF4_SEG28 96 PF5_SEG29
99
PG0_RSIC_TXD2 100
PG1_RSIC_RXD2 101
VDDADC
102
ADCIN_L1
103
ADCIN_R1 104
BIAS 105
VSSADC
107
PG3_ADCIN_R2/I2S0_SCLK
110
OUT_R 111
VMID 112
DAC_VSS 113
DAC_CDD 114
OUT_L 115
PG6_TXD1 116
PG7_RXD1 117
VSS 118
VDD33 119
AVSS 120
LX 121
VOUT 122
VDD33 123
VDD_R 124
PA0_COM0 125
PA1_COM1 126
PA2_COM2 127
PA3_COM3 128
PA4_SEG0
62 B
61 A
63 C
106
PG2_ADCIN_L2/I2S0_MCLK
108
PG4_ADCIN_L3/I2S0_WS 109
PG5_ADCIN_R3/I2S_SDI
5SEG5_PB1_I2S1_D2
11 SEG11_PB7_SDIO_D2
56 AVD33
91
PF0_SEG24/SPI_MOSI 92 PF1_SEG25/SPI_MISO
97
PF6_SEG30 98
PF7_SEG31_TCK
X
9
0
2
32.768KHz
X
9
0
1
1
2
M
H
z
R
F
O
T
E
L901
F
B
PRINT_TXD
PRINT_RXD
L30 F
B
1
K
@
1
0
0
M
H
z
E913
22UF
C935
10UF
C936
NC
R950
5.6K
E914 10UF
C913
104P
R951
47R
C934
102P
R953
10K
C937
10UF R952
10K
C931
10UF
C932
NC
R957 5.6K C933
102P
R954
10K C938
10UF
R958
10K
C930 104P
R962
56K
R963 56K
R967
43K
C915 104P
E915 22UF
C912 104P
E91222UF
C939
104P
E911
22UF
3
2
1
Q905
S8050
1 2 3 4 5 6
CN902
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15
16
CN901
FFC16P_ST
C946 104P
R916 22K
R915 3.3K
R917 1K
C947 104P
C948
104P
C944
470P
R914 10K
R913 1K
C943
470P
R911
20K
R912
12K
C904
104P E904
22UF
C905
104P
C945 470P
1 2 3 4 5
CN906
1 2 3 4 5
CN903
1 2
CN904
E905
1000UF
R918 1K
3
2
1
Q906 S8050
R959
10K
R955
10K
R960
10K
E921
47UF
R921 10K R922 10K
R920 10K
R919 10K
C917 18P R930 10K R929 100R
E917 10UF
C916 104P
E916 10UF
R924 15R
E903 100UF
C902
104P
E902
22UF
C903
104P C901
104P
E901
22UF
L902 F
B
_
6
0
0
R
_
1
0
0
M
H
z
R947 100R
R907 100R
R906 100R
R904 100R
R903 100R
C908
104P
E908
10UF
C910 104P
E910 22UF
R948
2.2K
R949
100K
C922
22P
C923
22P
C926
104P
R973 NC
R974
1K
E920
10UF R975
2.2K
R976
10K
R986
1K
R985 0R
C924 6P
C925 6P
R972
NC
-DPDM+
1 2 3 4
5
6
USB
USB-4L-SMT-13.5MM
USB
1 2 3 4 5
CN-906
L907 FB601
L908 FB601 L909 FB601
L906 FB601
R942
33R
R943
33R
C921 104P
C928
104P
C929 104P
C911
104P
3
1
2
Q904 9014
R941
100K
R940
1K
C918
104P
E918
22UF
R939
10K
SKIP- SKIP+ STOP/PAIR OPEN/CLOSE
R944 15K
R945
15K
C601
102P
ED601
NC
C906
104P
E906
22UF
C940
104P
C927
104P
R978 NC
R977 NC
C949
104P
R968 33R
R970 33R R969 33R
R971 33R
C920 103P
C919 103P
E919 10UF
P
1
2
3
Q903 SI2301
JP3
0R
R987 0R
R601
4.7K
R602
5.6K
R603
12K
R604
11K
1
2
3
4
5
6
7
CN908
12
3
4
L910 9X5X3
R910 2.2K
3 2 1
CN1
L905 F
B
R981 10K
1
2
3
4
5
6
7
8
9
10
11
12
LED601
PROG/CLOCK/SET
1 2
34
MODE DEL REC
C602
102P
ED602
NC
R605
4.7K
R606
5.6K
R607
12K
3 2 1
CON-601
3 2 1
CN6
R993 1K
R992 1K
R980 10K
R982 10K
R990 10K
R991 10K
2OUT 4OUT 3
IN
1
GND
U4
1117-5V
R5
5.1K
2OUT 4OUT 3
IN
1
GND
U8
ADJ1117-1.33V
L2
F B
C34
102P
L3
F B
C36
102P
JP2
0R
JP1
0R
3
1
2
Q16
8550
21
D16 1N4148
R27
22K
R24
10R
R38 470R
R54 1K
R57 100R
R58 100R
R59 100R
21
POWER_LED
3MM
R41 10R
R42 NC
21
D21 1N4148
R72
1.5K
R74
82R
C41
10UF
L31
F B 1 K @ 1 0 0 M H z
L28 F
B 1 K
L29
F B 1 K
L4 F
B 1 K
L5 F
B 1 K
L6 F
B 1 K
L7 F
B 1 K
L8 F
B 1 K
L9 F
B 1 K
L10 F
B 1 K
L11 F
B 1 K
C203
470
C202
470
C204
470
C205
470
C206
470
C207
470
C208
470
C209
470
C201
470
C210
33P
C211
33P
C212
33P
C213
470
C214
470
C215
470
C216
470
C217
470
C218
100
C219
100
L26
F
B
1
K
L27
F
B
1
K
C221
100
C220
100
L14 F
B
1
K
L15 F
B
1
K
L13 F
B
1
K
L16 F
B
1
K
L17 F
B
1
K
L18 F
B
1
K
L19 F
B
1
K
L20 F
B
1
K
VDD_3V3
SFGND
XIN
XOUT
SFGND LD MD SF_3V3 RFO AN_CC AN_REX
3
2
K
_
O
S
C
I
SF_CSN
SF_3V3
VDD_3V3
SF_3V3
MO+
MO-
RAD-
RAD+ FOC+
FOC-
SLED+
SLED-
FOO TRO DMO V165
VDD_3V3
F
C
B
A
D
E
V21O
V D D _ 1 . 3 3 V
VDDM
VDD_1.33V VDD_1.33V
VDD_3V3
AGND
AGND
O U T _ R
VIMD
AGND
DAC_VDD
O U T _ L
VDD_3V3
VDD_1.33V
RESET
AGND
SLED-
SLED+
FOC-
FOC+
CD+5V
RAD+
RAD-
MO+
MO-
MGND
MGND
SLED_SW
SLED_SW
M_MUTE
CLOSE_SW
MD
SFGND F
C
B
A
D
E
RFVCC
VCOM
PINBOOT
RTC_VDD
USB5V
USB_DM
USB_DP
GND GND
MOTO1+ MOTO1-
USB5V
USB_DM USB_DP
USB-DM
USB+5V
USB-DP
SFGND
VDD_3V3
SF_CLK
SF_DI
SF_DO
OPEN_SW
VREF
COMP
AD1 AD0
IR
GND SFGND AGND
U-GND
GND
MGND
MGND
MGND
MGND
MGND
MGND
MGND
SFGND MGND
IR
IR
VDD_3V3
SPI_DO
SPI_DI
SPI_CLK SPI_CSN
REC_L
AGND
CD_RCH
AGND
MUTE
CD_LCH
IR
REC_R
VDD_3V3
GND
AD0
BT_RX BT_TX
BT_EN
AD1
BT_DET RADIO_EN
TAPE_EN
DET
AUX_DET
PHONO_EN
USB+5V
USB-EN
PLAY
VDD
COM3
SEG9
SEG1
SEG2
SEG3
SEG4
SEG5
SEG6
SEG7
SEG8
COM2
COM1
SEG1
COM1
COM2
COM3
AM_DET
LED_POWER
PHONO_DET
SEG8
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
DTRAY+
DTRAY-
iT67 / T198-KDB

CHECKED:
SHEET:
DRAW FILE
TITLE
COMPANY
FINISHED
APPROVED:
DRAW: MODEL ON
SIZE: A4
DATE: DATE: DATE:
FILE
NEMBER
REV: 1.0

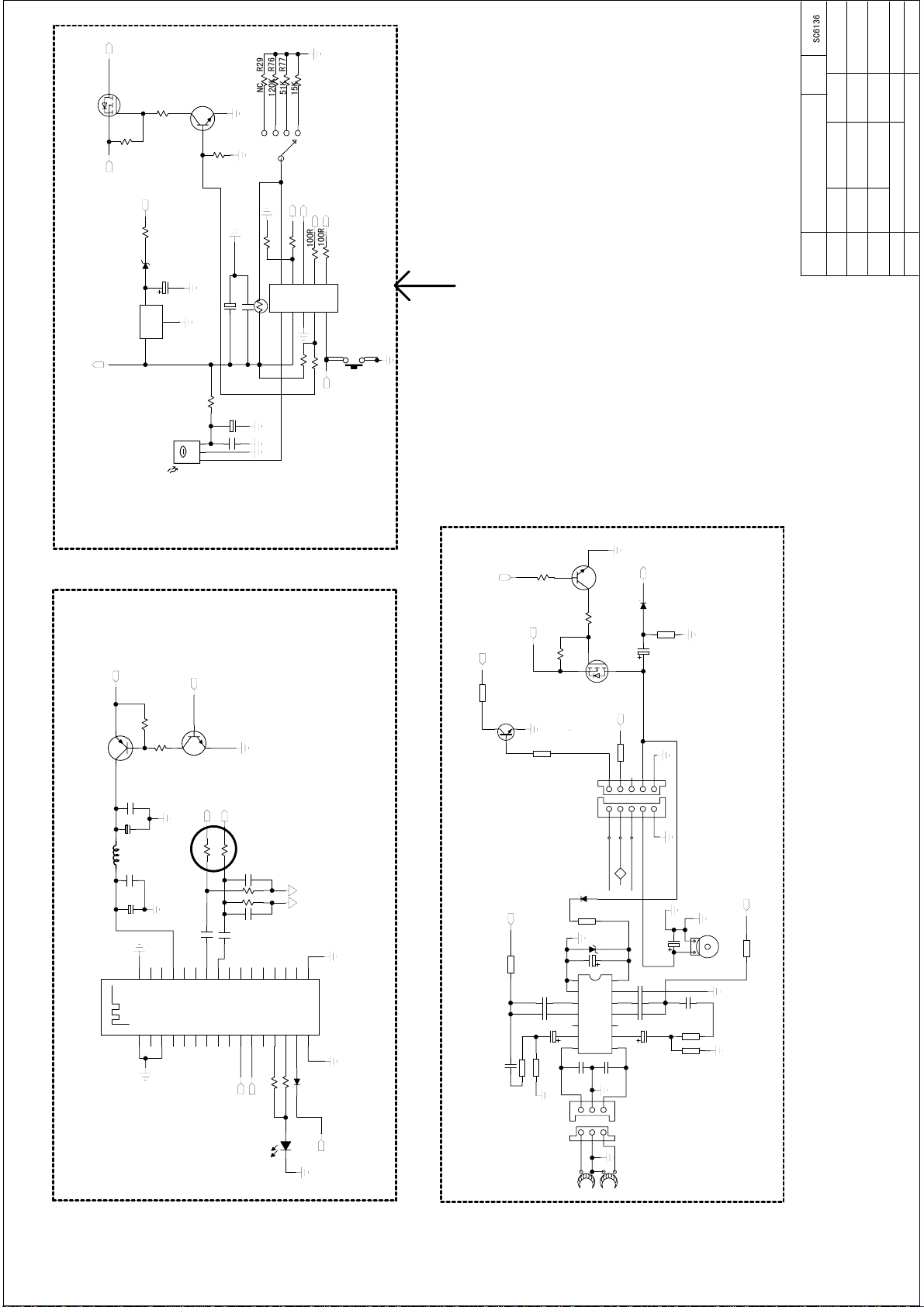

CAUTION:
RISK OF FIRE- REPLACE FUSE
AS MARKED
AUX _IN
PHONO-VCC
TAPE
注：如不要ERP2功能请取消此部份元件！
RADIO
FM
AM
BT
FM
AM
BT
S
C
6
1
3
6
L
R
Audio_DET
ERP2音頻檢測電路
AC100-240V
DC-12V1A
R509,R510原15K改10K
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
IC101
TA8227
R116
10K
R115
10K
+
C11
2.2UF
+
C97
2.2UF
R118
22K
R121
22K
+
1
2C100
100UF
+
C101
100UF/16V
+
C129
100UF
+
C130 100UF/16V
R117
220R
R122 220R
R124
2.2R
R123
2.2R
+
C126 1000U/10V
+
C99
1000U/10V
C133
104P
C98
104P
C104
102P
C128
102P
+
1 2
E1 2200U/25V
+
C20
100UF
+
C152
100UF/25V
+
C25 10UF
D4 4148
+
1
2
C26 10UF
+
1 2
C27 10UF
+
C28 4.7UF
+
C29
4.7UF
R8
15K
R14 33K
R15 330R
R16 470K
R17 39K
+
C30 4.7UF
+
C31
4.7UF
R18
15K
R19 33K
R20 330R
R21
470K
R22 39K
1 2 3 4
CON-4PIN
C1 104P
D3 4148
12
D5
4148
R6
1
0
K
R10
1
0
K
R11
1
0
K
6 7
89
10
SW3-B
123
11 12
13 14
15
SW3-C
123
16 17
18 19
20
SW3-D
123
R13
2
.
2
K
C17
1UF
C18
1UF
1 2
CN2
1 2 CN3 AC-CORD1
FMANT
C315 104P
R303 10K
C310 24P
R314 NC
C309 24P
AM ANT
C313
104P
C314
10UF
C311 104P
C312 10UF
R310 3.3K
C308 1UF
L301 10UH
L302 10UH
1
CH
2
SPAN
3
AM_FM
4
ROUT
5
LOUT
6
AVSS
7
XTALN
8
XTALP
9
AVDD
10
RFVDD
11
AMINN
12
AMINP
13
RFINP
14
RFGND
15
DVSS
16
DVDD
17
NC
18
ST
19
TUNINP
20
VOL
U301
KT0932
C307 1UF
R311 3.3K
1
2
3
VR101
B10K
R307 36K
R304 100K
R315
0R
R302
2R2
C303
104P
C302
10UF
C301
104P
R301 2R2/2W
X301
32.768K
+
C304
100UF
C306 153P C305 153P
R309 10K
R308 10K
R305
0R
C316 1UF C317 1UF
R313 NC
L1 10UH
R318 47K
R316
1K
3
1
2
Q301
8550
3
1
2
Q302
9014C
C318 104P
C508 1UF
C509 1UF
R510
10K
C510
102P
C511
102P
R508
4.7K
R507
4.7K
R35
47K
R36
1K
3
1
2
Q11
8550
Q12
9014C
EC468
1 0 0 0 U F / 2 5 V
C9
104P
C19 104P
1 2 3 4 5 6
CN4
R815 10K
R816
1K
R817
3.3K
R814 10K
12
D2
1N4148
1
E
2B
3
C
Q3
9014
+
1
2
C21 100UF/16V
1
2
3
Q13
9014C
R238
56R
R239
1M
C273
2.2UF
R240
4.7K
1
2
3
Q14
9014C
R241
56R
R242
1M
C24
2.2UF
R243
4.7K
R248
56K R249
56K
R
L
1 2 3 4
JK3
LINE_OUT
C32
2.2UF
C134
2.2UF C135
10UF
1
2
3
6
5
4
JACK1-A
11 7 8 9 10
JACK1-B
R
4
2
0
220R
R
4
2
1
220R
12
C37
100UF
R39
220R
C39
104P
2
6
1
7
VOLUME-A
3
5
4
8
VOLUME-B
1
2
3
Q15
8050
1
2
3Q9
8050
1
2
3
Q10 9014C
1
2
3Q6
9014C
4 3
2
1
S1-A
SW-2P3T
8 7 65
S1-B
SW-2P3T 2OUT
4OUT 3
IN
1
GND
U3 ME6117A50-3.3V
1
2
3
6
5
4
JACK3-A
11 7 8 9 10
JACK3-B
1CEO 2CE1 3CE2 4GND 5
SDA
6
SCL
7
WC
8
VDD
U7 24C02
1
2
3
Q18
9014C
R40
47K
C452 4.7UF
R454
750K
R455
2K7
C454
4.7UF
R456
1
K
R459
1K
R458 2M
1E
2
B
3CQ430
9014C
C455
10UF
R450 100K
R451 100K
1E
2
B
3CQ431
9014C
1E
2
B
3CQ432
9014C
R453
1K
R452
1M
C450
1UF
C456
10UF
D430 BAV99
R43
1
0
R
R30
3
.
3
K
C45
220UF
R509
10K
R44 47K
R45 10K
R47 1K
1E
2
B
3C
Q5
9014
R48 22K
R49 22K
R50 22K
R51 10K
R52 10K
R53 10K
D6 SS36
R55 NC
D20
3.3V
R62 68K
R63 68K
1
E
2B
3
C
Q21 9014C
1
E
2B
3
C
Q20 9014C
R64 2M
R65 2M
R66 2.7K
R67 2.7K
R68
100R
R69 100R
C43 1UF
C46 1UF
C941
1UF
C942
1UF
12
D7
IN4001
R505
270R
12
E504
100U/16V
C8
104P
E505
470UF
1
2
3
Q505
882
R46
2.2R/2W
C16
104P
D1
8.2V
C2
104P
D13 5V6
C3
103P
1
2
3
Q19
D882
12
C35
47UF
C38
104P
2
OUT 4 OUT
3IN
1
GND
U6
ME6117A50-3.3V
R2
1
2
0
6
/
2
.
2
R
12
C12
100UF
C40
104P
C42
104P
12
C44
22UF
R7
56K
R9
56K
R23
1K
CD-B+
RADIO_BT_R
RADIO_BT_L
AUDIO_R
CD_LCH
AUDIO_L
TU-VCC
CD-B+
GND VDD_3V3
VDD_3V3
RADIO_BT_L RADIO_BT_R
TAPE_L
TAPE_R
TU_3V3
BT_VCC
RADIO_EN
TU_3V3
MUTE
AUX_PHONO_R
AUX_PHONO_L
AUX_DET
PHONO_EN
AUX_PHONO_L
PHONO-L
AGND
PHONO-R
GND
PHONO_MUTE
PHONO_B+
CD_LCH
AGND
CD_RCH
TAPE_VCC
VCC
AUDIO_L
AUDIO_R
CD_RCH
AUX_PHONO_R
+8V
BT_DET
+8V
AUDIO_DET
SPAN
PHONO_DET
AM_DET
REC_R
REC_L
VDD
VDD
CD+5V
VDD
VDD_3V3 iT67 / T198-KDB

REV: 1.0
NEMBER
FILE
DATE: DATE: DATE:
A4
SIZE:
MODEL ON
DRAW:
APPROVED:
FINISHED
COMPANY
TITLE
DRAW FILE
SHEET:
CHECKED:
BLUETOOTH
TAPE
蓝牙部分
S
C
6
1
3
6
MCU
NO:ERP2-10K
RADIO
CD
PHONO
TAPE
TAPE_DET播放磁带时高/磁带弹开时低
新ERP更改了此部分電路
原12K改為5.6K
R90 12K
R91 12K
C701
4.7UF
C702
4.7UF
1GND 2ANT 3GND 4TMS/GPI019 5TCK/GPI018 6TDO/GPI021 7TDI/GPI020 8RESET 9MBISTEN
10 TX/GPI00 11 RX/GPI01 12 GPI02 13 GPI03 14 GPI04
15 MUTE
16 GND 17
GND
18
AUX_DET
19
AUX_R
20
AUX_L
21
MIC_N
22
MIC_P
23
MIC_BIAS
24
AUIDO_LN
25
AUDIO_LP
26
AUDIO_RP
27
AUDIO_RN
28
VUSB
29
VCC
30
3.0V_OUT
31
VAD
32
GND
U701
F-6188
GND
ALC/CONST
ALC/IN1
O/P1
PC1
NF1
1/P1
1/P2
NF2
PC2
O/P2
ALC/IN2
RF
VCC 1
2
3
4
5
6
78
9
10
11
12
13
14
IC5 AN7312
1 2 3
CN7B5
CN3K
1
2
3
CN7B6
HEAD
L/P/L3
HEAD
R/P/L4
HEAD
R261
5.6K R262
15K
R264
5.6K
R265
33R
R266
15K
R270
100R
R274
33R
12
D26
6.8V
12
D27
1N4148
C22
103P
C51
4.7UF C71
203P
C72
4.7UF
C73
203P
C74
103P
C88
562P
C89
562P
E7
220UF/10V
E8
100UF
1
2
E9
100UF
1
2
M3
MOTO
E10
220UF/16V
1 2 3
SW11
LIMIT3
12
C91
47UF/16V
R222
22K
12
D15
1N4148
C23
10UF
1 2
3
4 5
CN1A9
CN5
1 2 3 4 5
CN1A10
LIMIT
12
BT_LED
R707 100R
R710 47K
R711
1K
3
1
2
Q701
8550
3
1
2
Q702
9014C
R1
1K
R12 22K
R28
47K
3
1
2
Q7
8050
C4
104P
1
32
Q8
3401
C5470UF
R32
1
0
0
R
R33
1
0
0
R
C6
104P
C7
10UF
R34
10R
1
2
3
U5
REMOTE
PLAY
EC1
10UF C33
104P
EC702
470UF C703
104P
L701 FB601/100M
R107 8.2K
R106 8.2K
R60 NC
12
D8
1N4148
1P1.7 2VDD 3VSS 4P3.2 5P0.0
10
P1.4
9
P1.2
8
P1.1
7
P0.3
6
P0.1
U1
Q1
8050
R25
1K
R26 10K
D18 4.3V
R31 47R
R37 1K
R4 ERP2-NC
R56 33K
R71 1K
R73 47K
3
1
2
Q2
8050
1
32
Q17
2301
R75 10K
R
2
9
N
CR
7
6
1
2
0
KR
7
7
5
1
K
R78
1
5
K
1 2
34
5
SW1-A
R79
10K
R3 100K
GA
INOUT
U9 HT7533
1
2
E2
47UF
R61
10K
C10 470PF
C13 470PF
RADIO_BT_R
RADIO_BT_L
BT_RX
BT_TX
MUTE
BT_EN
BT_VCC
TAPE_L
TAPE_R
VDD
DET
IR
AUDIO_DET
MUTE PLAY
VCC
VCC
TAPE_DET
TAPE_EN
3V3
3V3
TAPE_DET
TAPE_VCC
iT67 / T198-KDB
