ionmax Leone ION625 User manual

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
1/28
Table of contents
Operational Precautions
Features
Specifications
Unit Setup
Operating Instructions
Maintenance
Troubleshooting
Warranty Details
Warranty Registration
Ionmax Leone user manual
v1.0. Updated August 2022.
Please read the user manual to ensure safe and proper usage.
Please read the instructions carefully before using and be sure to keep the user
manual where it is easily accessible for future reference.
PLEASE NOTE:
Important Safety Instructions

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
2/28

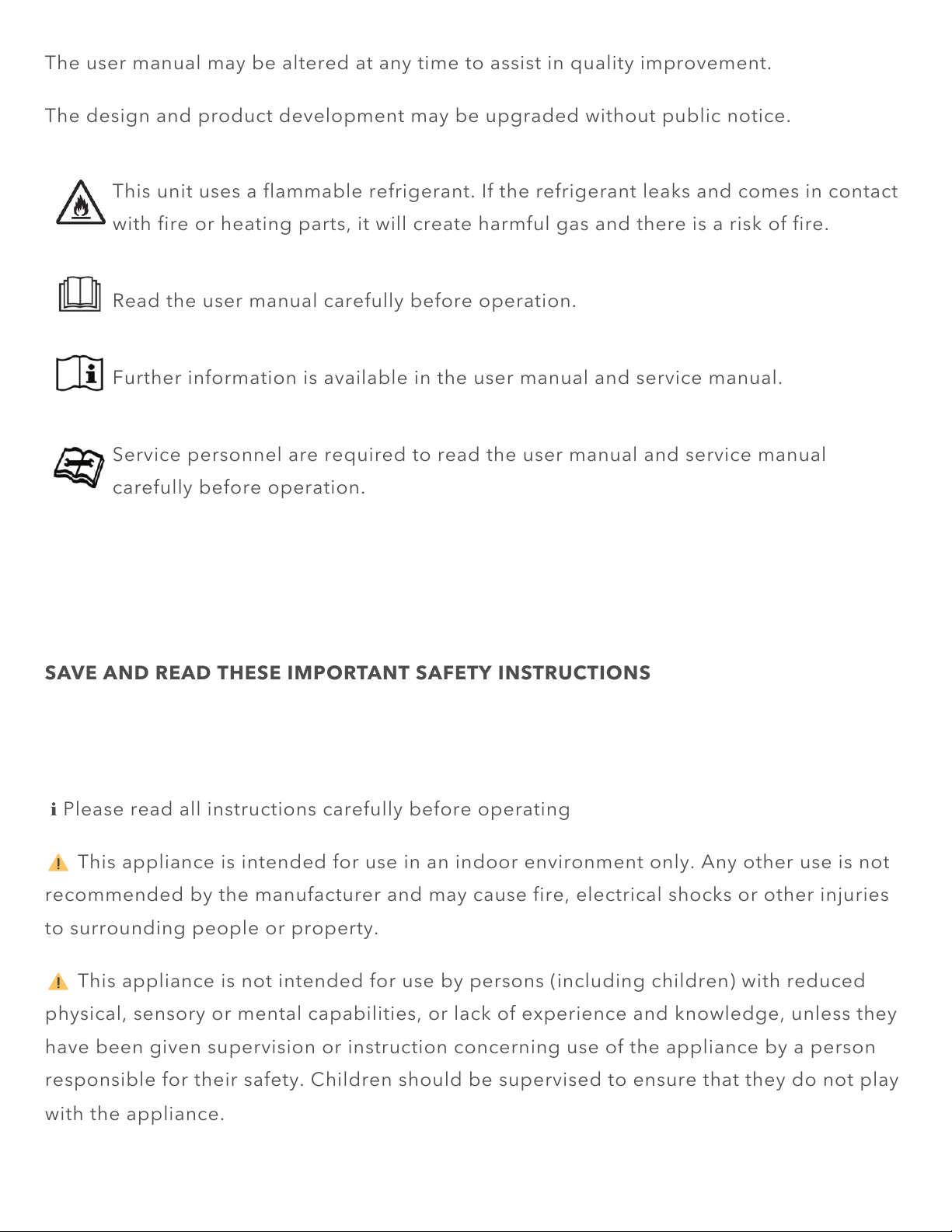

The user manual may be altered at any time to assist in quality improvement.
The design and product development may be upgraded without public notice.
This unit uses a flammable refrigerant. If the refrigerant leaks and comes in contact
with fire or heating parts, it will create harmful gas and there is a risk of fire.
Read the user manual carefully before operation.
Further information is available in the user manual and service manual.
Service personnel are required to read the user manual and service manual
carefully before operation.
SAVE AND READ THESE IMPORTANT SAFETY INSTRUCTIONS
Important Safety Instructions
ℹ Please read all instructions carefully before operating
⚠ This appliance is intended for use in an indoor environment only. Any other use is not
recommended by the manufacturer and may cause fire, electrical shocks or other injuries
to surrounding people or property.
⚠ This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not play
with the appliance.

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
3/28

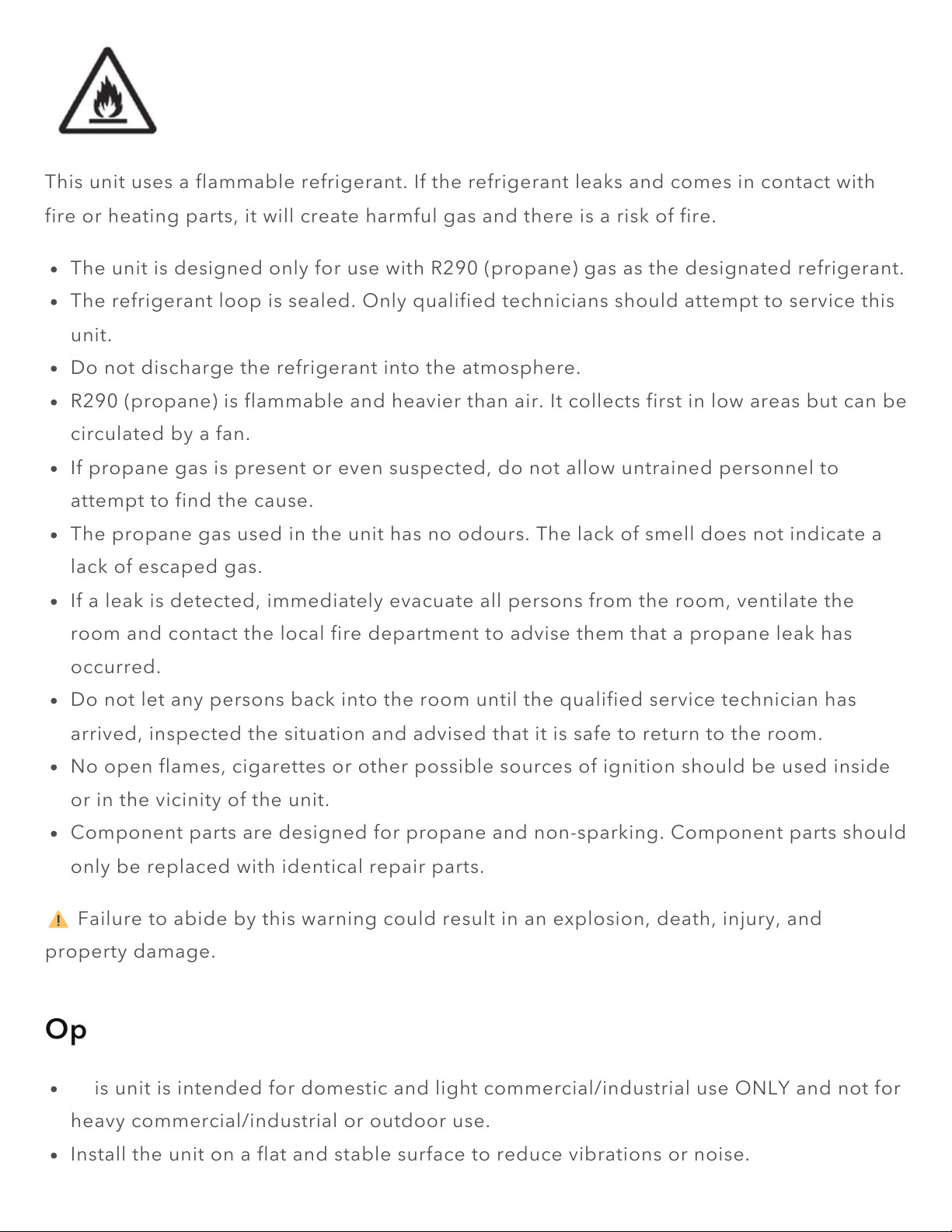

This unit uses a flammable refrigerant. If the refrigerant leaks and comes in contact with
fire or heating parts, it will create harmful gas and there is a risk of fire.
The unit is designed only for use with R290 (propane) gas as the designated refrigerant.
The refrigerant loop is sealed. Only qualified technicians should attempt to service this
unit.
Do not discharge the refrigerant into the atmosphere.
R290 (propane) is flammable and heavier than air. It collects first in low areas but can be
circulated by a fan.
If propane gas is present or even suspected, do not allow untrained personnel to
attempt to find the cause.
The propane gas used in the unit has no odours. The lack of smell does not indicate a
lack of escaped gas.
If a leak is detected, immediately evacuate all persons from the room, ventilate the
room and contact the local fire department to advise them that a propane leak has
occurred.
Do not let any persons back into the room until the qualified service technician has
arrived, inspected the situation and advised that it is safe to return to the room.
No open flames, cigarettes or other possible sources of ignition should be used inside
or in the vicinity of the unit.
Component parts are designed for propane and non-sparking. Component parts should
only be replaced with identical repair parts.
⚠ Failure to abide by this warning could result in an explosion, death, injury, and
property damage.
Operational Precautions
This unit is intended for domestic and light commercial/industrial use ONLY and not for
heavy commercial/industrial or outdoor use.
Install the unit on a flat and stable surface to reduce vibrations or noise.

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
4/28

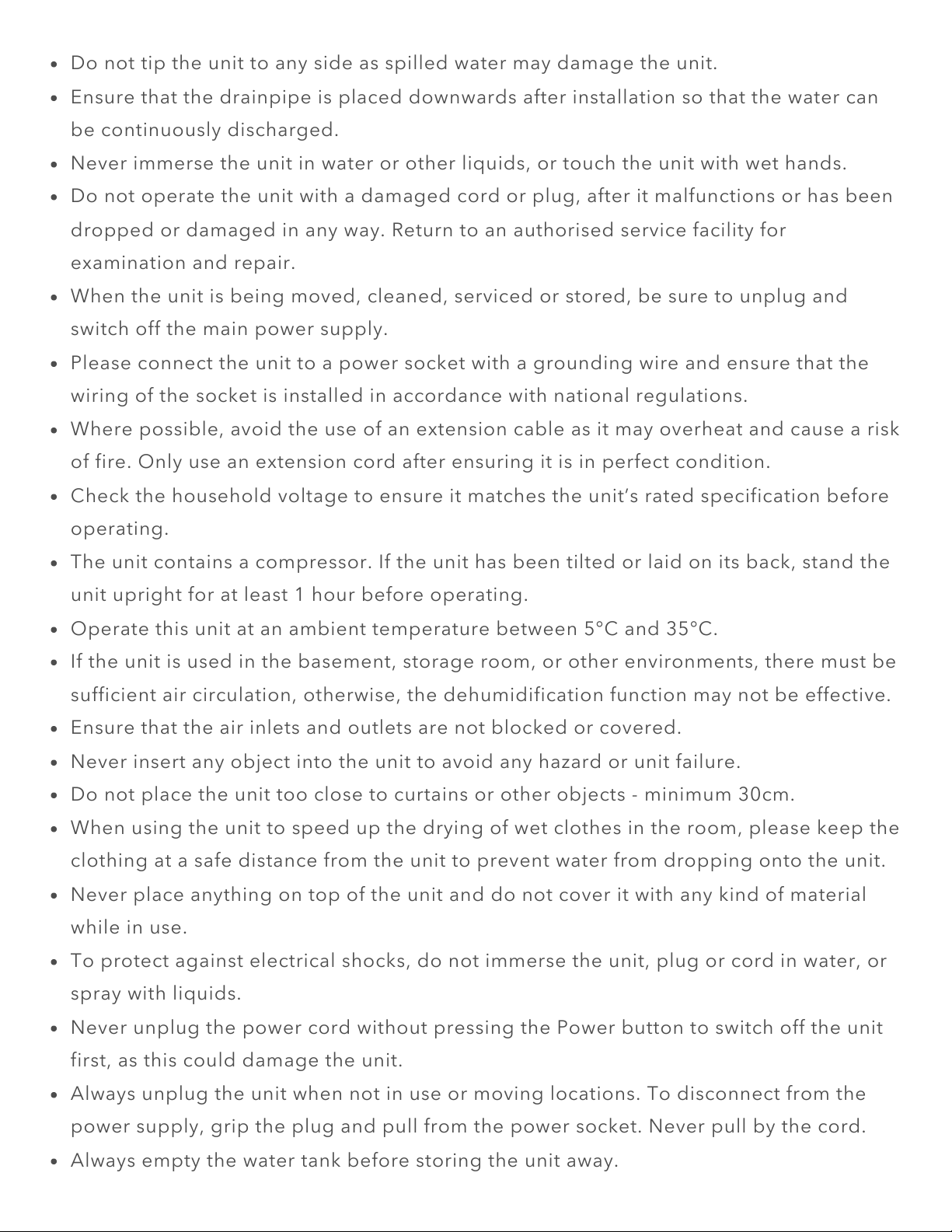

Do not tip the unit to any side as spilled water may damage the unit.
Ensure that the drainpipe is placed downwards after installation so that the water can
be continuously discharged.
Never immerse the unit in water or other liquids, or touch the unit with wet hands.
Do not operate the unit with a damaged cord or plug, after it malfunctions or has been
dropped or damaged in any way. Return to an authorised service facility for
examination and repair.
When the unit is being moved, cleaned, serviced or stored, be sure to unplug and
switch off the main power supply.
Please connect the unit to a power socket with a grounding wire and ensure that the
wiring of the socket is installed in accordance with national regulations.
Where possible, avoid the use of an extension cable as it may overheat and cause a risk
of fire. Only use an extension cord after ensuring it is in perfect condition.
Check the household voltage to ensure it matches the unit’s rated specification before
operating.
The unit contains a compressor. If the unit has been tilted or laid on its back, stand the
unit upright for at least 1 hour before operating.
Operate this unit at an ambient temperature between 5°C and 35°C.
If the unit is used in the basement, storage room, or other environments, there must be
sufficient air circulation, otherwise, the dehumidification function may not be effective.
Ensure that the air inlets and outlets are not blocked or covered.
Never insert any object into the unit to avoid any hazard or unit failure.
Do not place the unit too close to curtains or other objects - minimum 30cm.
When using the unit to speed up the drying of wet clothes in the room, please keep the
clothing at a safe distance from the unit to prevent water from dropping onto the unit.
Never place anything on top of the unit and do not cover it with any kind of material
while in use.
To protect against electrical shocks, do not immerse the unit, plug or cord in water, or
spray with liquids.
Never unplug the power cord without pressing the Power button to switch off the unit
first, as this could damage the unit.
Always unplug the unit when not in use or moving locations. To disconnect from the
power supply, grip the plug and pull from the power socket. Never pull by the cord.
Always empty the water tank before storing the unit away.

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
5/28
Do not run the power cord under carpeting, or cover it with rugs or runners. Arrange
the cord away from areas where it may be tripped over.
Never operate or store the unit in direct sunlight.
To repair the unit, take it to a qualified service engineer. Repairs carried out by
unqualified people may cause damage to the unit or injury to persons or property and
void the warranty.
Do not use the unit without the air filter.
Do not use any means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
The unit should be stored in a room without continuously operating sources such as
open flames, operating gas appliances or operating electric heaters.
⚠ Any persons involved with working on or breaking into a refrigerant circuit should hold
a current valid certificate from an industry-accredited assessment authority, which
authorizes their competence to handle refrigerants safely in accordance with an industry-
recognised assessment specification.
⚠ Servicing shall only be performed as recommended by the equipment manufacturer.
Maintenance and repair requiring the assistance of other skilled personnel shall be carried
out under the supervision of a person competent in the use of flammable refrigerants.
For the service manual or further assistance, please contact Ionmax.
Features
Compressor dehumidifier - suitable for warm climates
Environmentally friendly - uses eco-friendly R290 refrigerant
Moisture removal - 25 litres/day (30°C RH80%)
Water tank capacity - 4 litres
Digital humidity display - set and view relative humidity levels with ease
Up to 12-hour timer - for added convenience
Continuous mode - dry laundry faster indoors
Temperature range for use - 5°C to 35°C
Ergonomic carry handle and castor wheels for easy portability
Removable water tank

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
6/28
Auto pause and restart function to save energy - pauses dehumidification once the
desired humidity level has been reached and restarts on previous settings if the
humidity level increases
Washable pre-filter - removes large particles such as dust and hair from dehumidified
air
Continuous drainage option - drainage hose provided

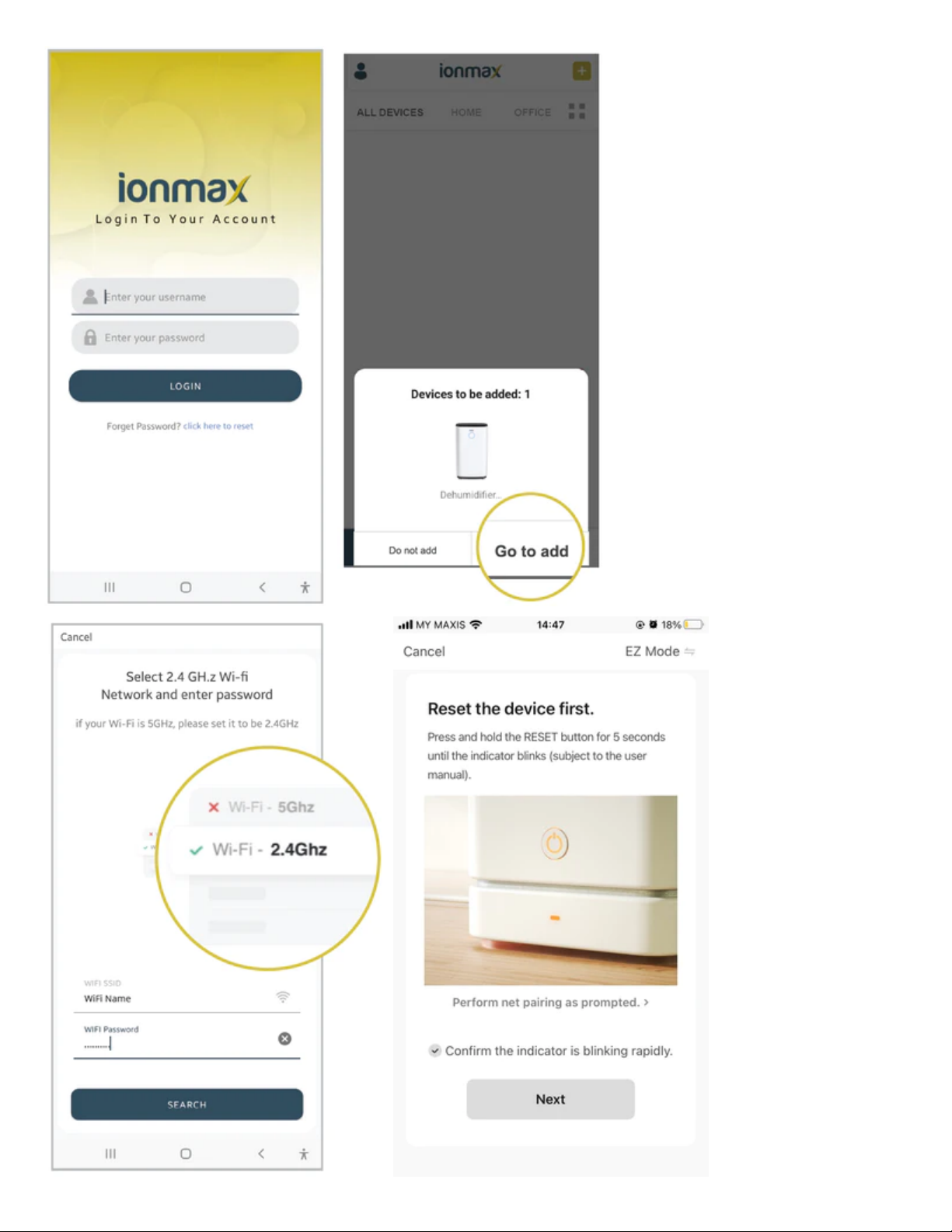

WiFi app control - remote monitoring and settings via mobile app
Specifications
Model: Ionmax Leone ION625
Voltage: 220-240V ~ 50Hz
Power consumption: 395W
Net weight: 14.5kg
Dimensions (W x D x H): 343 x 237 x 570 mm
Unit Setup

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
7/28

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
8/28

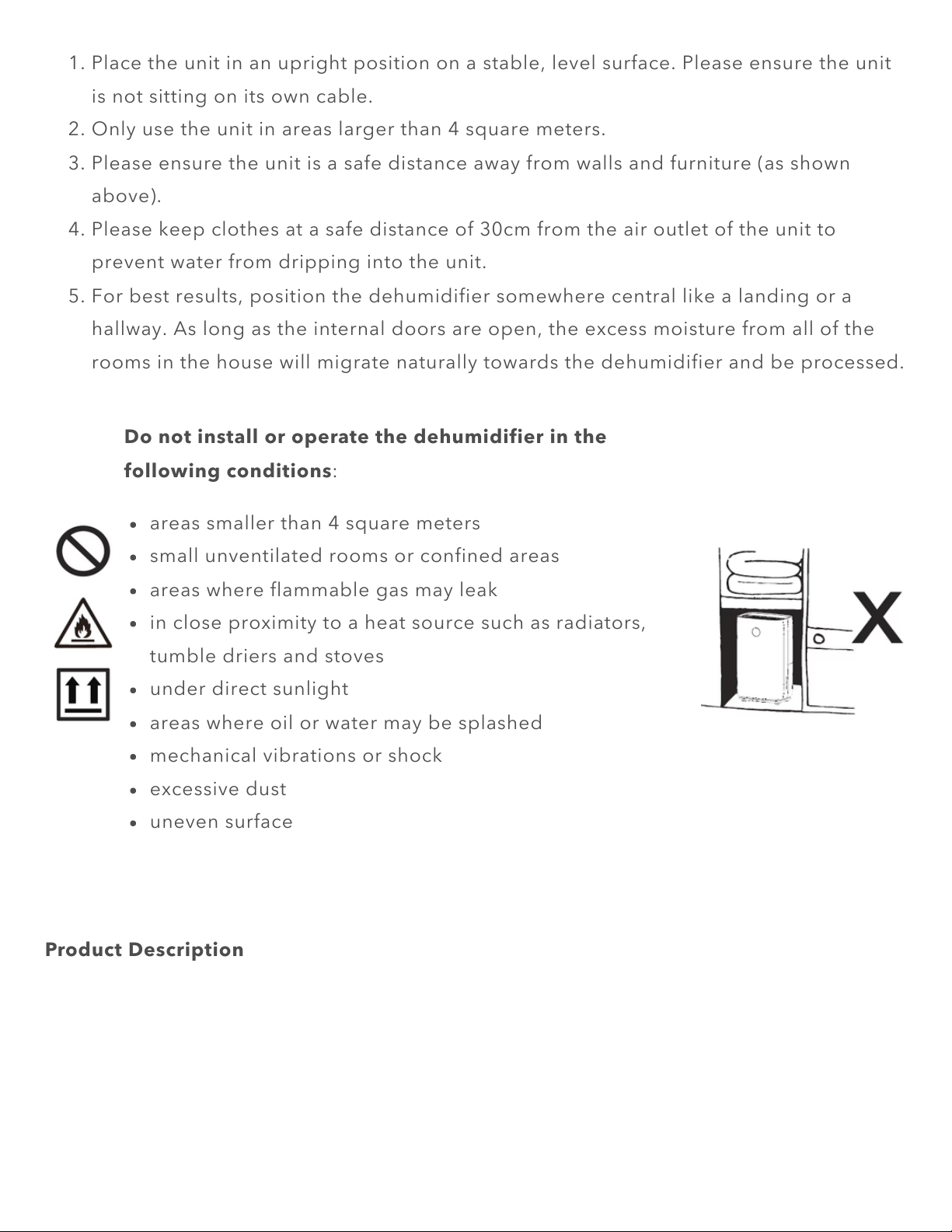

1. Place the unit in an upright position on a stable, level surface. Please ensure the unit
is not sitting on its own cable.
2. Only use the unit in areas larger than 4 square meters.

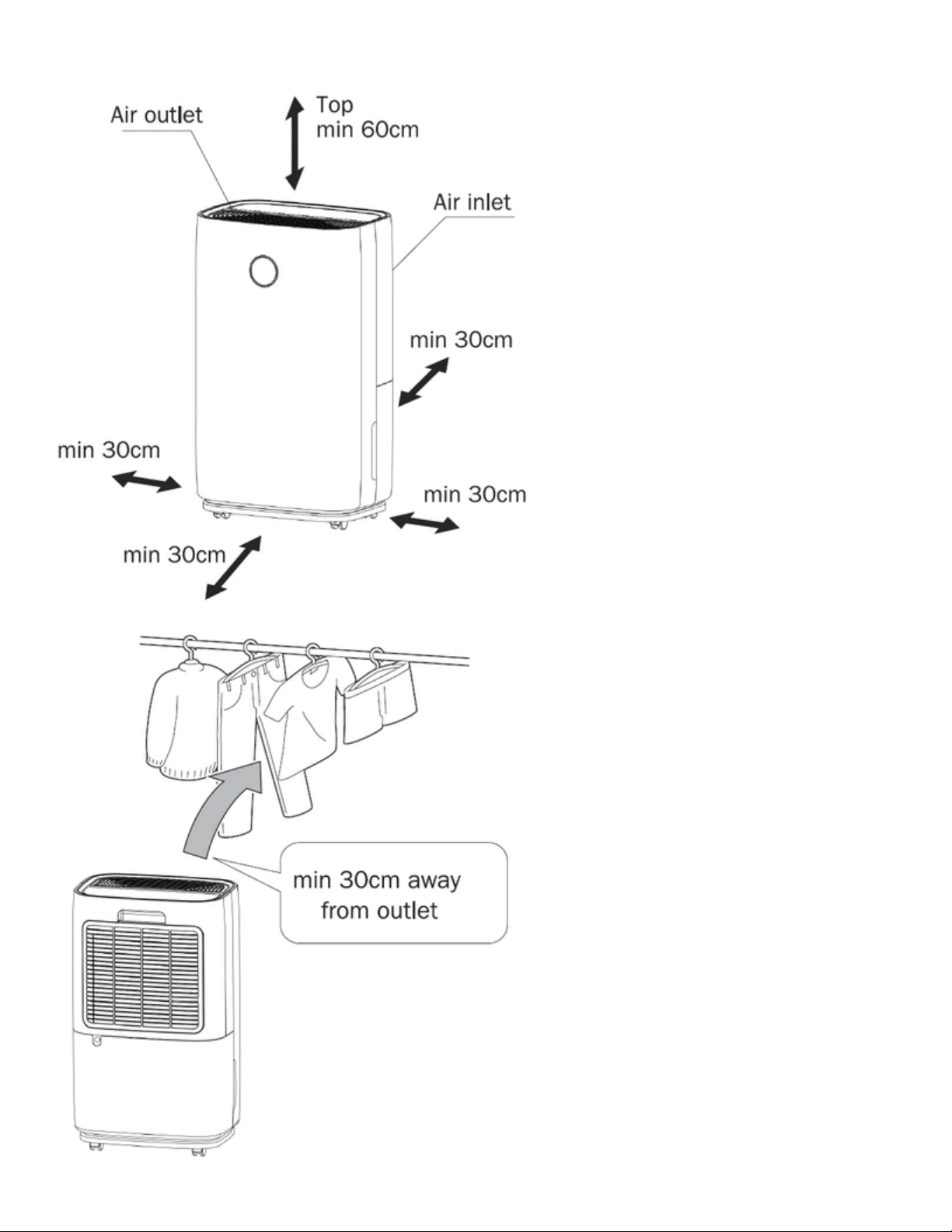

3. Please ensure the unit is a safe distance away from walls and furniture (as shown
above).
4. Please keep clothes at a safe distance of 30cm from the air outlet of the unit to
prevent water from dripping into the unit.
5. For best results, position the dehumidifier somewhere central like a landing or a
hallway. As long as the internal doors are open, the excess moisture from all of the
rooms in the house will migrate naturally towards the dehumidifier and be processed.
Do not install or operate the dehumidifier in the
following conditions:
areas smaller than 4 square meters
small unventilated rooms or confined areas
areas where flammable gas may leak
in close proximity to a heat source such as radiators,
tumble driers and stoves
under direct sunlight
areas where oil or water may be splashed
mechanical vibrations or shock
excessive dust
uneven surface

Product Description

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
9/28
3-Colour Humidity Indicator
The colour indicator on the front of the unit indicates the room’s relative humidity level, as
indicated above.

Control Panel

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
10/28
Operating Instructions
ℹ There is a protective 3-minute time delay on the compressor. Please allow 3 minutes for
the unit to resume the dehumidification process.
Stand-By / Power Button
Connect the power plug to an appropriate electrical outlet. The POWER indicator will light
up to indicate the unit is in stand-by mode.
Press the Stand-By / Power button to switch on the unit and begin operation. The digital
humidity display will show the ambient relative humidity (RH) level and the unit will begin
operating in High fan speed by default.
To switch off the unit, press the Stand-By / Power button. The indicator lights will switch off

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
11/28
and the compressor will stop immediately, while the fan will shut down after 30 seconds.
Note: If the unit has been switched off and on again, it will resume operation in the same
mode selected from its last use.
Mode button
Press the Mode button to choose between Auto mode or Laundry mode. The
corresponding mode’s indicator will light up when selected:
Auto mode
In Auto mode, the unit’s fan and compressor settings will be automatically
controlled until the set humidity level has been reached.
Once the set humidity level is reached, the compressor will stop
operating and the fan will stop after a 30-second delay.
Both the fan speed and desired humidity level can be set in Auto mode.
Laundry (Continuous) mode
In Laundry mode, the unit will continue operation regardless of the
humidity level. A desired humidity level cannot be set in Laundry mode.
Sleep mode
Press the Sleep / Reset Filter button to activate. Refer to the Sleep Mode /
Filter Reset button instructions.
Digital Display

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
12/28
The digital display shows the current relative humidity (RH) level by default at all times.
To view the room’s ambient temperature on the digital display, hold down the Increase
button.
While in Timer setting mode, the digital display will show the number of hours selected.
While using the Increase and Decrease buttons to set a desired humidity level, the digital
display will show the selected humidity level.
The desired humidity level can be set in increments of 5%, from 30% to 80% RH.
Note:
RH indicated has a +/- 10% RH tolerance and may vary depending on the room
temperature.
While in operation, the unit will begin dehumidifying the air if the room’s relative
humidity (RH) level is 3% higher than the selected RH level.
Humidity
Level Recommendations
> 60% Maintain the room at a comfortable indoor humidity level
50%
Inhibit mould and bacteria growth
For daily normal household use to maintain humidity at a healthy level of
~55% RH (bacteria and mould will not breed at this level)
< 40%
Super dry mode to prevent condensation
To control a very damn room in the first couple of days.
Then, switch to 50% or higher to save energy.

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
13/28
Timer button
Press the Timer button to enter Timer setting mode.
Use the Increase and Decrease buttons to set a timer from 1 to 12 hours, or “00” to cancel
the timer function (the Timer indicator light will switch off).
Press the Stand-By / Power button to exit the Timer setting mode.
If a timer has been set, the Timer indicator will remain lit up during the timing period.
Set the timer when the unit is in operation to switch off the unit when the timer duration
has been reached.
Set the timer when the unit is in stand-by to switch on the unit when the timer duration has
been reached.
Increase button
Press the Increase button to increase the timer (during Timer setting mode) or to increase
the desired humidity level.

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
14/28
Note: While the unit is operating, hold down the Increase button to view the room’s
ambient temperature on the digital display.
Decrease button
Press the Decrease button to decrease the timer (during Timer setting mode) or to
decrease the desired humidity level.
Child Lock button
When the unit is in operation, hold down the Child Lock button to activate the Child Lock
function. When activated, the Child Lock indicator will light up, and all control panel
buttons will be disabled.
Hold down the Child Lock button to deactivate the Child Lock function.
The Child Lock function will also be deactivated automatically if a shutdown or power
failure occurs.
Sleep Mode / Filter Reset button
Press the Sleep / Reset button to activate Sleep mode. The Sleep mode indicator will light
up. In Sleep mode, the unit’s fan will run on Low speed and the notification sounds, digital
display and 3-colour indicator will be disabled to ensure a quieter environment.

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
15/28
Press the Sleep / Reset button to deactivate Sleep mode. The Sleep mode indicator light
will switch off.
If the Filter Reset indicator lights up, clean the filters according to the Filter Maintenance
instructions. Then, hold the Sleep / Reset button for 3 seconds (or until the Filter Reset
indicator light switches off) to reset the filter.
Fan Speed button
Press the Fan Speed button to toggle between High and Low fan speeds. The
corresponding fan speed indicator will light up when selected.
Low fan speed High fan speed
Note: Fan Speed toggling is disabled during Laundry mode.

Intelligent defrosting indicator
1. The unit will go into intelligent defrost mode if the ambient temperature is below
24°C.
2. Compressor will not function during this mode.
3. When room temperature is between 17°C and 24°C, the compressor will run for 45
minutes before defrosting for 5 minutes.
4. When room temperature is between 12°C and 17°C, the compressor will run for 25
minutes before defrosting for 10 minutes.
5. When room temperature is between 5°C and 12°C, the compressor will run for 20
minutes before defrosting for 10 minutes.

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
16/28
6. The selected mode will be flashing during the defrosting process.
Mobile App Setup
Download the Ionmax app on your phone.
Scan the QR code or visit ionmax.com.au/app

1. Register a new account on your phone, or log in to your existing account for the
Ionmax app.
2. Place the dehumidifier at a distance of at least 5 meters from your router. Plug the
dehumidifier into an appropriate power outlet and switch it on.
3. Ensure that the WiFi indicator on the dehumidifier is flashing during the connection
process. If the WiFi indicator is not lit, hold down the Timer button on the
dehumidifier for 5 seconds until the WiFi indicator is flashing quickly. This indicates
that the dehumidifier is ready for connection.
4. The Bluetooth feature and a stable WiFi connection is needed to sync the unit to your
mobile device.
1. Method 1: Auto Scan
1. Enable the Bluetooth function on your mobile phone.
2. Open the Ionmax app on your mobile phone.
3. The app will search for the dehumidifier and connect automatically.
4. Ensure the WiFi indicator is blinking for Auto Scan to function.
5. Follow the prompts on the app to finish the Bluetooth connection.
2. Method 2: Add Manually
1. On your Ionmax app, select or create a new location for your dehumidifier .
2. Select “Devices” and click on “+” to add a new device.
3. Select product type “Dehumidifier”.

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
17/28
4. Enter your WiFi network SSID and password on the app. *Please use a
2.4GHz network only.
5. Confirm that the WiFi indicator on the device is blinking and click ‘Next’.
6. The app will search for the dehumidifier and prompt for connection
automatically.
5. Once the dehumidifier is successfully connected, the WiFi indicator will stop flashing
and remain lit up. You can now monitor and operate the dehumidifier using the
mobile app.

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
18/28
 


9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
19/28

Emptying the Water Tank
1. When the water tank is full, the 💧 Full Tank indicator will blink and the unit will beep
and stop operating.
2. Do not move the unit or remove the water tank if the unit is still operating as water
may leak, damage the unit, or cause an electric shock.
3. To remove the water tank, grip the handles of the water tank and carefully pull it out,
using your thumbs to push against the back of the unit.
4. Discard the water from the tank.
5. Clean the water tank and reinstall it back into the unit. The 💧 Full Tank indicator
light will switch off and the unit can resume normal operation.
Note:
Do not discard the magnets and plastic rivets from the water tank; the
unit will not work correctly.
If needed, clean the water tank by rinsing it with clean water. Avoid using
any detergents, chemicals, diluents, solvents, steel wire balls or any
other item that might damage it.

9/9/22, 2:58 PM
Ionmax Leone user manual
https://ionmax.com.au/blogs/manuals/ionmax-leone
20/28
The 💧 Full Tank indicator light will blink and the unit will not operate if
the water tank is not positioned correctly.

Continuous Drainage Option
The unit comes with a hose that can be connected for continuous drainage. This removes
the need to empty the water tank periodically.
1. Attach one end of the hose to the continuous drainage outlet on the back of the unit.
2. The hose must lead to an appropriate drain at a downward slope with no sharp
bends.
Note
Ensure the drainage hose is firmly attached to the continuous drainage outlet.
The drainage hose should not be elevated higher than the drainage outlet of the unit.
Maintenance
Cleaning the unit
1. Switch off the unit, wait for the fan to stop, then unplug the power cord from the
electrical outlet.
2. Clean the outer casing of the unit using a soft damp cloth with warm water and mild
detergent. Do not use solvents or abrasive materials.
