IPC Lavamatic 46 User manual

CT46 - Lavamatic 46
(IT) MANUALE ISTRUZIONI PER L’USO / (EN) OPERATOR’S MANUAL /
(FR) MANUEL D’INSTRUCTIONS / (DE) BEDIENUNGSANLEITUNG /
(ES) MANUAL DE INSTRUCCIONES / (NO) BRUKERHÅNDBOK /
(NL) GEBRUIKERSHANDLEIDING / (PT) MANUAL DE UTILIZAÇÃO /
(SE) INSTRUKTIONSBOK / (RU) РУКОВОДСТВО ОПЕРАТОРА /
(BG) РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ /
(RO) MANUAL DE UTILIZARE
Consultare attentamente questo manuale prima di procedere a qualsiasi intervento sulla macchina
Read this manual carefully before carrying out any work on the machine
Lire attentivement ce manuel avant toute intervention sur la machine
Vorliegendes Handbuch vor jedem Eingri󰀨 an der Maschine aufmerksam durchlesen
Consulte detenidamente este manual antes de llevar a cabo cualquier trabajo en la máquina
Konsulter denne håndboken nøye før du går i gang med noen som helst type inngrep på maskinen
Raadpleeg deze handleiding aandachtig alvorens met enige werkzaamheid aan de machine te beginnen
Consulte atentamente este manual antes de efectuar qualquer intervenção na máquina
Läs noggrant igenom denna handbok innan du utför något som helst ingrepp på maskinen
Прочетете внимателно това ръководство, преди да започнете работа с машината
Внимательно ознакомьтесь с данной инструкцией до проведения любой работы с машиной
Citiți cu atenție acest manual înainte de a efectua orice operațiuni asupra mașinii

EN
ENGLISH
(Translation of original
instructions)
2

TECHNICAL SPECIFICATIONS.............................................................................4
MACHINE DIMENSIONS........................................................................................6
IMPORTANT SAFETY PRECAUTIONS .................................................................7
SAFETY SYMBOLS...............................................................................................12
FIGURES................................................................................................................14
GENERAL INFORMATION....................................................................................20
Purpose of this manual ................................................................................................................. 20
Identifying the machine ................................................................................................................. 20
Documentation provided with the machine ................................................................................... 20
TECHNICAL INFORMATION.................................................................................21
General description ....................................................................................................................... 21
Parts of the machine ..................................................................................................................... 21
Danger zones ................................................................................................................................ 21
Accessories ................................................................................................................................... 21
HANDLING AND INSTALLATION .........................................................................22
Lifting and transporting the palletized machine ............................................................................. 22
Inspection on delivery ................................................................................................................... 22
Unpacking ..................................................................................................................................... 22
Electrical connections and earth (mains powered versions) ......................................................... 22
Power supply batteries (battery powered versions) ...................................................................... 23
Batteries: preparation .................................................................................................................... 23
Batteries: installation and connection............................................................................................ 23
Batteries: removal ......................................................................................................................... 24
Lifting and transporting the machine ............................................................................................. 24
PRACTICAL GUIDE FOR THE OPERATOR.........................................................24
Controls - Description.................................................................................................................... 24
Mounting and adjusting the squeegee .......................................................................................... 25
Moving the machine when not in operation................................................................................... 26
Mounting and changing the brush/pad drive boardspad drive boards ..................................................................... ..................................................................... 2626
Detergents - Instructions ............................................................................................................... 26
Preparing the machine for work .................................................................................................... 26
Working ......................................................................................................................................... 27
At the end of work: ........................................................................................................................ 28
Some useful tips to get the most from your scrubber dryer .......................................................... 28
Draining the dirty water ................................................................................................................. 28
Draining the clean water ............................................................................................................... 29
PERIODS OF INACTIVITY ....................................................................................29
BATTERY MAINTENANCE AND CHARGING ......................................................29
MAINTENANCE INSTRUCTIONS.........................................................................30
Maintenance - Ge neral rules ......................................................................................................... 30
Routine maintenance .................................................................................................................... 30
Squeegee blades: replacing.......................................................................................................... 30
Fuses: replacing ............................................................................................................................ 30
Routine maintenance .................................................................................................................... 30
Six monthly operations .................................................................................................................. 31
Maintenance.................................................................................................................................. 31
TROUBLESHOOTING...........................................................................................32
How to resolve possible problems ................................................................................................ 32
ERROR CODE DISPLAYED..................................................................................33
3

EN
TECHNICAL SPECIFICATIONS
CT46 B50 CT46 BT50 CT45 C50
230V
Cleaning width
mm 500
inches 19,68
Squeegee width
mm 730
inches 28,74
Cleaning capacity per hour
m2/h 1750
ft2/h 18836
Number of brushes no. 1
Brush diameter
mm 500
inches 19,68
Maximum brush pressure g/cm216-20
Brush rotation speed RPM 155 155 140
Brush motor power
W 360 360 450
HP 0,48 0,48 0,60
Drive motor power W / /
Suction motor power
W 294 294 461
HP 0.39 0.39 0,61
Machine power in average operating condi-
tions (PM)
W 432 828
HP 0,57 1,11
Maximum speed km/h / /
Solution tank
l 40
galls. 8,79
Dirty water tank
l 45
galls. 9,89
Rear wheel diameter
mm 250
inches 9,84
Negotiable gradient % 2
Gross weight (GVW)
kg 190 104
lbs 418,88 229,28
Weight of the machine in transit without
batteries
kg 60 64
lbs 132,28 141,1
4

EN
Weight of the machine in transit with bat-
teries
kg 148 /
lbs 326,28 /
Number of batteries no. 2 2 /
Machine voltage VMV 12x2 12x2 /
Individual battery capacity Ah (5h) 105 105 /
Supply voltage (battery recharge) Version without
on board battery
charger
V 24Vdc 24Vdc /
Max current (battery recharge) A 15 15 /
Mains supply voltage Mains powered ver-
sions with on board
charger
V100-240Vac
50-60Hz
100-240Vac
50-60Hz
220-240Vac
50-60Hz
Max current (amperes) I A4,8 4,8 9
Machine dimensions
mm
X=1065
Z=1280
Z=950
Y=715
inches
X=41.92
Z=50.39
Z=37.4
Y = 28.14
Battery compartment dimensions (length,
width, height)
mm 340x355x305 /
inches 13,38x13,97x12 /
Packed size (length, width, height)
mm 1070x680x1130
inches 42,12x26,77x44,48
Sound pressure - Annex DD (Emission of
acoustical noise) EN 60335-2-72: 2012
LpA
(dBA) 70 73
Measurement uncertainty K
(dBA) 3 3
Vibration level (hand) (IEC 60335-2-72) ahv
m/sec2≤2.5 ≤2.5
Measurement uncertainty, k m/sec2///
Vibration level (body) HBV
m/sec2///
Measurement uncertainty, k m/sec2///
Maximum water and detergent temperature
°C 55
°F 131
IP Degree of protection IP IPX3
The su󰀩x +CB following the description of the model on the machine identication data plate indicates that there
is a battery charger installed on the machine in question.
Gross weight (GVW): maximum permissible weight with the machine fully loaded and ready for use. The gross
weight of the machine includes the detergent solution tank full of clean water, empty dirty water tank (half full in
the case of recycling systems), empty dust bags, the hopper lled to its rated capacity, the largest recommended
batteries and all accessories such as cables, hoses, detergent, mops and brushes.
Transported weight: the weight of the machine including batteries, but excluding optionals (for example, the
operator's cabin, FOPS (Falling Object Protective Structure), second and third side brushes and front brush at-
tachment), fresh water (in the case of scrubbers or combination machines) and the weight of a standard operator
(75 kg).
Data subject to changes without prior warning
V, I: charging / supply values
VM , PM : machine in operation (all functions on)
5

EN

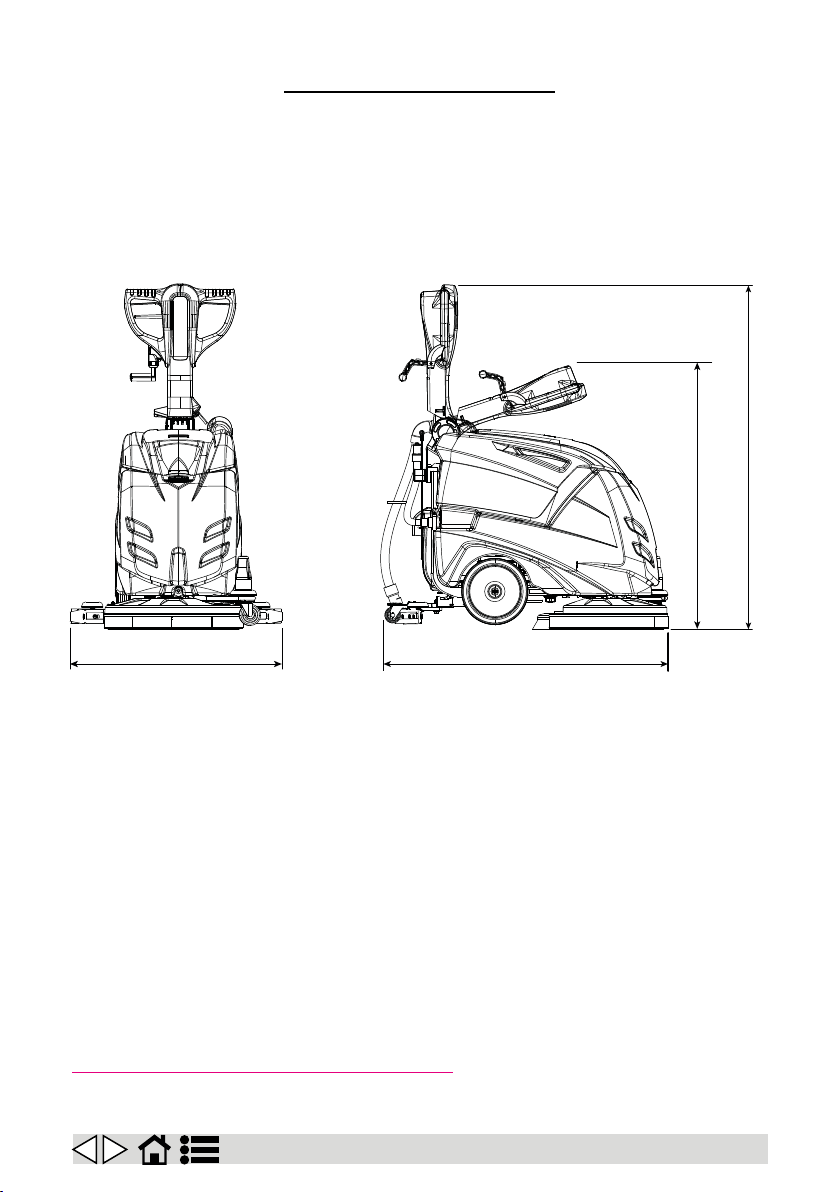

MACHINE DIMENSIONS
X-Y-Z: See “TECHNICAL SPECIFICATIONS” table
Z
Z1
YX
6

EN
IMPORTANT SAFETY
PRECAUTIONS
Basic safety precautions must be followed when using
any electrical equipment.
READ ALL INSTRUCTIONS BEFORE
OPERATING THIS MACHINE
WARNING! - To minimise the risk of electrocution or injury:
a) Never leave the machine unsupervised when connected to the mains power sup-
ply. Disconnect the machine from the mains power socket after use or before per-
forming maintenance.
b) Never allow the machine to be used as a toy. Be extremely vigilant whenever the
machine is operated by or near children.
c) Only use the machine as instructed in this manual. Only use the accessories
recommended by the manufacturer.
d) Do not use the machine if the power cable or plug is damaged. If the machine
does not function as it should or has been dropped, damaged, left outdoors or has
fallen in water, have it checked and repaired by a specialist service centre.
e) Do not move or transport the machine by pulling on its power cable. Do not use
the power cable as a handle, close doors on it or pull it over sharp objects or cor-
ners. Do not run over the power cable with the machine. Keep the power cable well
clear of hot surfaces.
f) Do not disconnect the machine by pulling on the power cable. Grip the plug, not
the cable, to disconnect the machine.
g) Never touch a mains powered machine with wet hands.
h) Do not insert objects into the ventilation slots. Do not operate the machine with
blocked ventilation slots. Remove all dust, dirt, hair and debris that might be block-
ing the air ow.
i) Keep hair, loose garments, ngers and all other parts of the body well clear of slots
7

EN
and moving parts.
l) Switch o󰀨 all controls before unplugging the machine.
m) Take particular care when cleaning stairs.
n) Do not use the machine to clean up ammable or combustible liquids like petrol,
and do not operate the machine in areas where such liquids may be present.
The machine must not be used for purposes other than those expressly intended.
Evaluate the type of building in which the device is to be used (e.g.: chemical or
pharmaceutical production facilities, hospitals, etc.), and ensure strict observance
of the pertinent safety regulations and conditions.
Do not operate the machine in inadequate lighting, explosive atmospheres, on pub-
lic roads or to clean dirt that is hazardous to health (dust, gas, etc.).
The machine must be kept indoors at all times.The machine must be kept indoors at all times.
The machine is designed to operate in temperatures between +4°C and +35°C. It
can be stored in temperatures between +0°C and +50°C when not in use.
The machine must be used at an altitude below 2000 m.The machine must be used at an altitude below 2000 m.
The machine is designed to operate at relative humidity levels between 0% and
95%.
The machine must be used exclusively by persons trained in its use and/or who
have demonstrated their ability and have been expressly authorised to use it.
The machine is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, un-
less they are supervised by a person responsible for their safety and have received
instruction in the use of the machine.
Never use detergents other than those specied. Follow the instructions on the rela-
tive safety data sheet.
Always keep detergents out of the reach of children. In the event of detergent mak-
ing contact with the eyes, wash immediately and copiously with water, and if swal-
lowed, consult a doctor immediately.
Numerous unpleasant experiences have shown that a wide range of personal
objects may cause serious accidents. Before beginning work, remove jewellery,
watches, ties, etc.
The operator must always use Personal Protective Equipment: protective apron
or overalls, non-slip waterproof shoes, rubber gloves, protective eyewear and ear
defenders, and mask for protection of the respiratory airways.
Do not pick up burning or smoking material like cigarettes, matches or hot ashes.
Never operate the machine on slopes or ramps of more than 2%. Never drive across
even gentle slopes. Always manoeuvre with care and avoid reversing.
If you need to transport the machine over ramps or steep slopes, to prevent it tipping
8

EN
over or running out of control, completely empty the detergent and dirty water tanks
and remove the batteries.
Never park the machine on a slope.
Never leave the machine unattended while switched on. Before leaving it, discon-
nect the machine from the mains power supply and make sure it cannot move ac-
cidentally.
Never use the machine to transport people or goods or for towing. Do not tow the
machine.
Never rest objects of any signicant weight on the machine, for whatever reason.
Do not remove, modify or bypass safety devices (brush guards, battery covers,
fuses, electric system covers, etc.).
Always check the condition of the brush guard before operating the machine. If any
damage is found, do not operate the machine but have the guard replaced by per-
sonnel trained and authorised by the manufacturer.
Never touch the brush unless the machine is disconnected from the power supply.
The uids collected during work contain detergent, disinfectant, water and organic
and inorganic material. They must be disposed o󰀨 in accordance with current leg-They must be disposed o󰀨 in accordance with current leg-
islation.islation.
Never wash the machine with water jets.
Make sure the electrical characteristics of the machine (voltage, frequency, power) characteristics of the machine (voltage, frequency, power)
given on the nameplate correspond to those of the mains electricity supply.given on the nameplate correspond to those of the mains electricity supply.
Make sure the power sockets used for mains powered models and battery chargers
are properly earthed and protected by a 2-pole thermal magnetic switch with dif-
ferential circuit-breaker:
►rated current 15-16A
► IΔn di󰀨erential current: 0.03A
►Icn breaking capacity: 6000 A
► AC di󰀨erential breaker trip
This equipment must be earthed. In the event of a malfunction or failure, the earth This equipment must be earthed. In the event of a malfunction or failure, the earth
connection provides the path of least resistance for electrical current, reducing the connection provides the path of least resistance for electrical current, reducing the
risk of electric shock. risk of electric shock.
Mains powered versions come with a three-wire cable and a three-pin earthed plug Mains powered versions come with a three-wire cable and a three-pin earthed plug
for use in a suitable earthed socket. The earth wire is yellow and green. Never con-for use in a suitable earthed socket. The earth wire is yellow and green. Never con-
nect this wire to anything other than the earth terminal of the socket.nect this wire to anything other than the earth terminal of the socket.
The plug must be inserted into a suitable socket, correctly installed and wired in ac-The plug must be inserted into a suitable socket, correctly installed and wired in ac-
cordance with local building regulations.cordance with local building regulations.
Incorrect wiring or failure to connect the machine's earth wire may lead to a risk ofIncorrect wiring or failure to connect the machine's earth wire may lead to a risk of
electrocution.electrocution.
If in doubt about the proper earthing of the power socket, have it checked by a quali-If in doubt about the proper earthing of the power socket, have it checked by a quali-
ed electrician.ed electrician.
Do not tamper with the plug tted to the machine, and use only sockets compatible Do not tamper with the plug tted to the machine, and use only sockets compatible
with this same plug. If the power socket needs to be replaced, have the job done bywith this same plug. If the power socket needs to be replaced, have the job done by
9

EN
a professional electrician.a professional electrician.
Use of adapters with the machine's mains power plug is strictly forbidden.Use of adapters with the machine's mains power plug is strictly forbidden.
When operating mains powered versions, to avoid the risk of electrocution, use only When operating mains powered versions, to avoid the risk of electrocution, use only
the extension supplied with the machine.the extension supplied with the machine.
When using mains powered versions, take care to prevent the rotating brush from
coming into contact with the power cable.
To reduce the risk of personal injury caused by the machine's power plug
becoming loose in the extension, periodically check that the connection is secure.
Using an extension with a loose connection can cause overheating, smoke and
even re.
To reduce the risk of the machine's mains power plug becoming loose in the exten-
sion, tie a knot as shown
(g. M), or secure the machine's power cable to the clip on the machine's handle as (g. M), or secure the machine's power cable to the clip on the machine's handle as
shownshown (g. N)(g. N)..
When operating mains powered versions, When operating mains powered versions, periodically examine the mains cable and
extension. If any damage is detected, do not use the machine and refer the neces-
sary repairs to personnel trained and authorised by the manufacturer.
Battery charger: check the power cable regularly for damage. In the event of dam-Battery charger: check the power cable regularly for damage. In the event of dam-
age, do not use the machine. Have the cable replaced by age, do not use the machine. Have the cable replaced by personnel trained andpersonnel trained and
authorised by the manufacturerauthorised by the manufacturer.
It is essential to respect the battery manufacturer's instructions.It is essential to respect the battery manufacturer's instructions.
►►Always keep the batteriesAlways keep the batteries clean and dry to avoid surface leakage currents.
► Protect the batteries from impurities such as metal dust.
►Never rest metal tools on batteries as they could cause short circuits and
lead to explosions.
► Never wear metal rings or bracelets when working on batteries.
► Do not smoke, use naked ames or sparks near batteries.
► Never lift or handle batteries by their terminals.
►Batteries must be disposed of through appropriate channels and not as nor-
mal waste.
► In the case of gel batteries, never attempt to remove the battery cover to add
water or acid to the cell/s inside.
► When using acid for leak-proof tubular batteries, always follow the safety
instructions scrupulously.
►The electrolyte contained in batteries is a sulphuric acid solution and is
highly corrosive.
► In the event of contact with the eyes, wash immediately with plenty of
water and seek medical advice
► In the event of contact with the skin or clothing, wash with plenty of
water.
► Store out of the reach of children.
► Use suitable gloves and protect the eyes and face.
► Make sure that the area is well ventilated before recharging batteries.
All maintenance operations must be performed in an adequately lit place and onlyAll maintenance operations must be performed in an adequately lit place and only
after disconnecting the machine from the power supply (in cable models, unplug the after disconnecting the machine from the power supply (in cable models, unplug the
10

EN
machine from the mains power socket, in battery models, remove the fuse from the machine from the mains power socket, in battery models, remove the fuse from the
battery bridge). In cable models, the operator must always be in a position to verify battery bridge). In cable models, the operator must always be in a position to verify
that the plug remains unplugged from the mains power socket throughout mainte-that the plug remains unplugged from the mains power socket throughout mainte-
nance operations.nance operations.
All work on the electrical system and all maintenance and repair op-
erations other than those explicitly described in this manual must
be performed by personnel trained and authorised by the manufacturer.
If the power cable, plug or terminals require replacing, make sure the electrical con-
nections and cable grip are tightly fastened to guarantee the resistance of the cable
if pulled.
KEEP THESE INSTRUCTIONS SAFE.
11

EN
SAFETY SYMBOLS
MAXIMUM SLOPE
OPERATOR MANUAL, INSTRUCTIONS FOR USE
READ THE OPERATOR MANUAL
DIRECT CURRENT SYMBOL
INSULATION CLASS: THIS CLASSIFICATION ONLY AP-
PLIES TO BATTERY POWERED MACHINES.
EARTH SYMBOL, IDENTIFIES ANY TERMINAL DESTINED
FOR CONNECTION TO AN EXTERNAL EARTH CONDUC-
TOR TO PROTECT AGAINST ELECTROCUTION IN THE
EVENT OF A MALFUNCTION.
MACHINE RUN SYMBOL
MACHINE STOP SYMBOL
MACHINE STANDBY SYMBOL
SPECIAL WASTE. DO NOT DISPOSE OF AS NORMAL
WASTE.
CAUTION! RISK OF ABRASION
MINIMUM AND MAXIMUM TEMPERATURE OF LIQUID IN
TANK
4°C
35°C
12

EN
CAUTION! PROTECT AGAINST RAIN
CAUTION! PROTECT AGAINST DIRECT SUNLIGHT
ARRANGEMENT AND CONNECTION OF BATTERIES
EXTERNAL BATTERY CHARGER CONNECTION POINT
13

EN
FIGURES
A
2
8
1
5
4
37
1
B
14

EN
7
2
3
3
4 5
6
6
C
8
4 5
D
1
3
2
4 5 6
15

EN

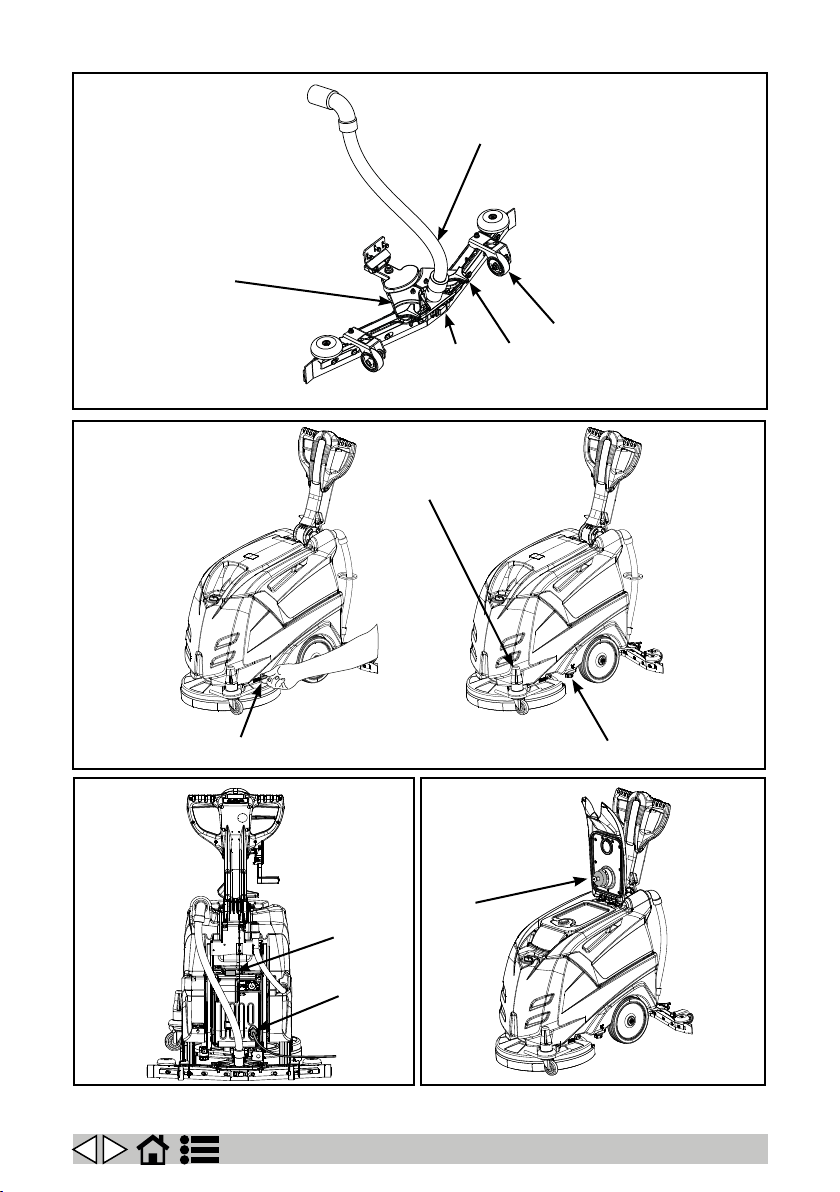

E
4
2
3
5
1
F21
3
G
1
2
H
1
16

EN

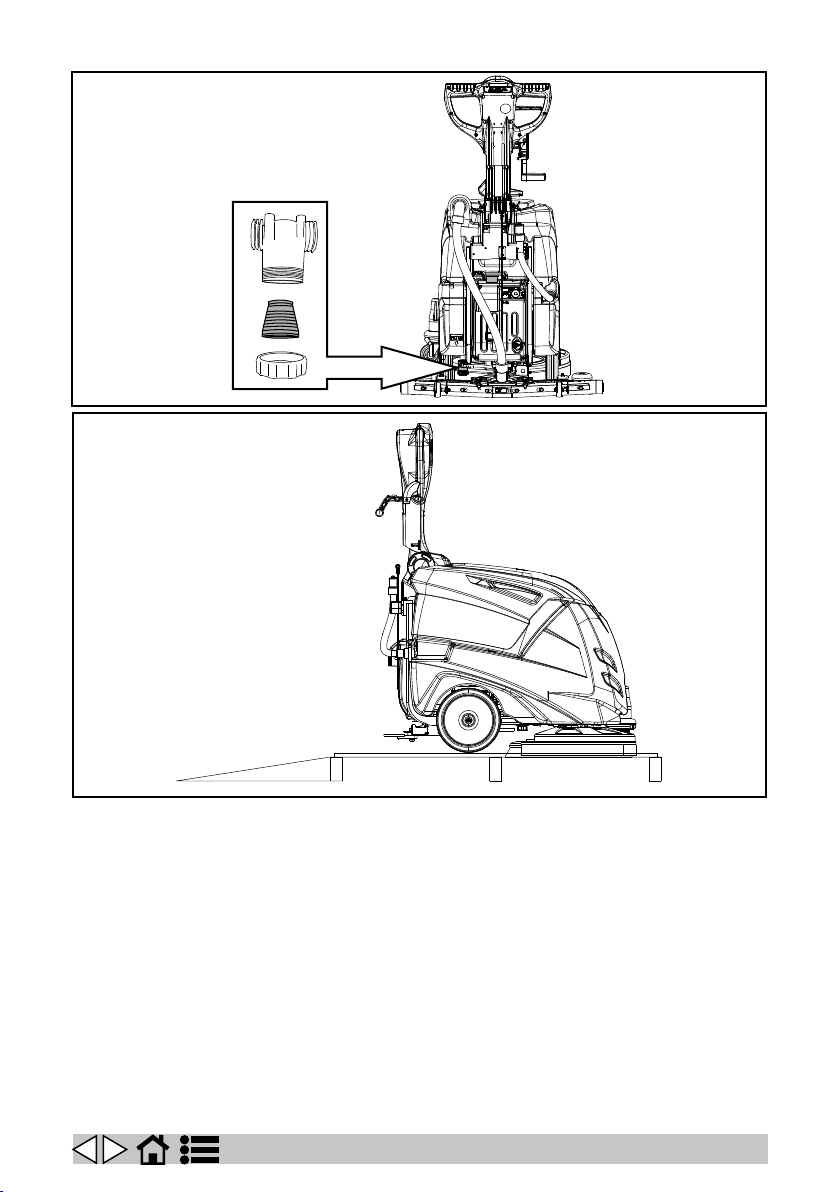

I
L
17

EN
Extension Machine power
cable
1
2
3
M
N
O
18

EN
2
1

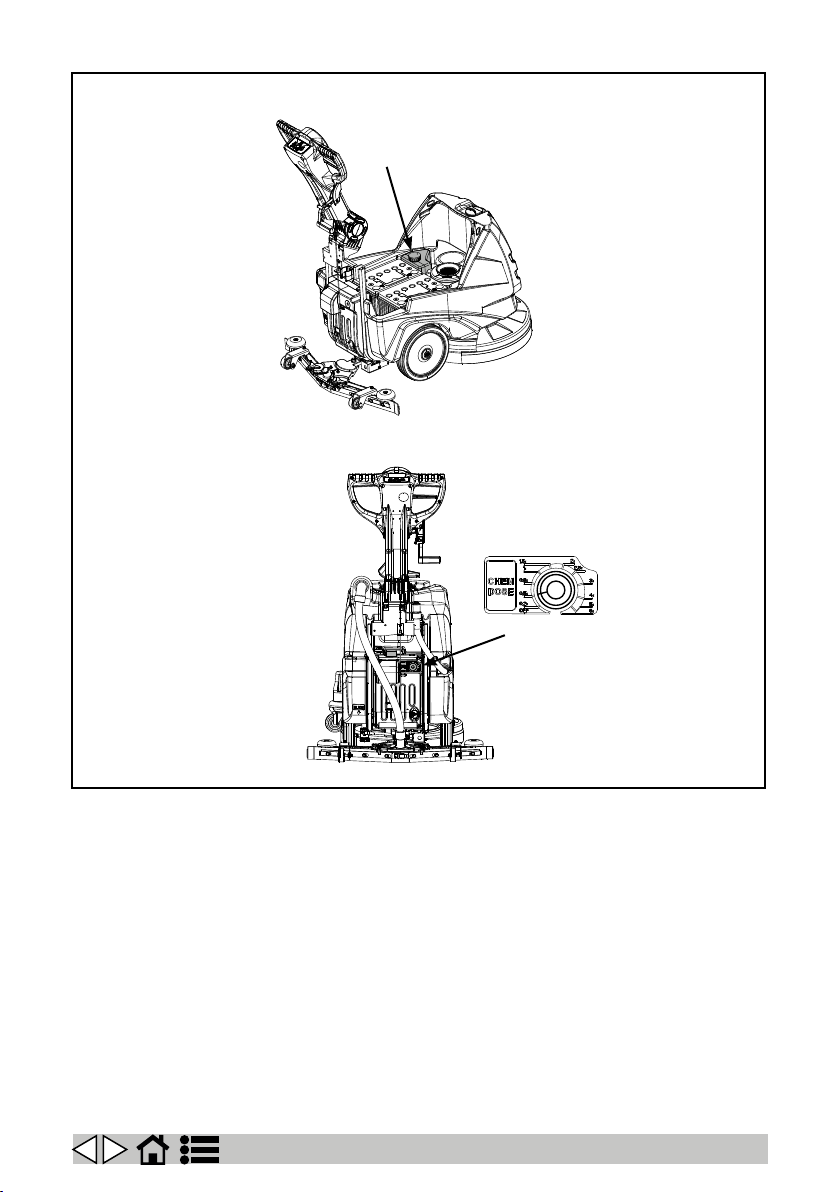

P
19

EN
GENERAL INFORMATION
NOTICE
Read this manual carefully before carrying out any work on the machine.
Purpose of this manual
This manual has been written by the Manufacturer and is an integral part of the machine1.
It denes the purpose for which the machine has been designed and constructed and contains all the information
required by operators2.
In addition to this manual, which contains information for operators, other publications are available providing
specic information for maintenance personnel3.
The terms “right” and “left”, “clockwise” and “anti-clockwise” refer to the forward movement of the machine.
Constant compliance with the instructions provided in this manual guarantees the safety of the operator and the
machine, ensures low running costs and high quality results and extends the working life of the machine. Failure
to follow these instructions may lead to injury to the operator or damage to the machine, oor and environment.
Consult the table of contents at the beginning of the manual to nd the section of interest without delay.
Parts of the text requiring special attention are printed in bold and preceded by the symbols illustrated and de-
scribed below.
DANGER
Indicates the need for care in order to avoid serious consequences that could lead to the death of
personnel, or to situations representing a possible health and safety hazard.
WARNING!
Indicates the need for care in order to avoid serious consequences that could involve harm being done to
the machine or to the workplace, or lead to economic losses.
NOTICE
Important information.
Committed to a policy of constantly developing and upgrading products, the Manufacturer reserves the right to
make changes without prior notice.
Although your machine may di󰀨er appreciably from the illustrations in this document, the correctness and validity
of the instructions contained in this manual are guaranteed.
Identifying the machine
The nameplate provides the following information:
► Name of manufacturer.
► Model.
► Serial number.
► Year of manufacture.
► Power supply voltage (charging/supply value).
► Current intensity (charging value).
► Gross weight.
► IP degree of protection.
► Machine voltage (in average operating conditions).
► Machine power (in average operating conditions).
► Maximum negotiable gradient.
Documentation provided with the machine
►user manual;
► certicate of warranty;
► CE certicate of conformity.
1 The denition "machine" replaces the trade name covered by this manual.
2 Persons responsible for using the machine without performing any operations requiring precise technical skills.
3 Persons with experience, technical training and a knowledge of legislation and standards, able to perform all the neces-
sary operations and to recognise and avoid possible risks in handling, installation, use and maintenance of this machine.
Model :
Vac :
W :
A :
Hz :
Ser.N :
Date :
IP :
Kg :
20
