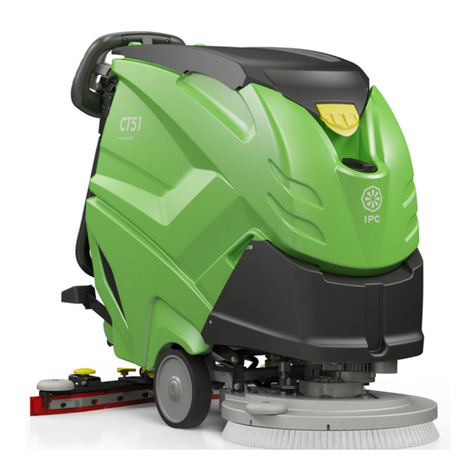

IPC CT51 BT User manual

This guide is intended for quick consultation only and does not replace the user and maintenance manual.
Before using the machine, read the user and maintenance manual contained in the machine’s packaging thoroughly and strictly follow all the
instructions.
PREPARATION & OPERATION
CT51-71 BT Quick Guide
PLDC03880
SET
ON
ECO
AUTO
CHEM
H O
+

REPLACING THE SQUEEGEE BLADES
ATTACHING/REMOVING THE BRUSHES
Open the clip (Ref. 1).
Remove the two blade retainers (Ref. 2) by pushing them outwards then extracting them.
Remove the blade.
screws on the body of the squeegee.
Reposition the two blade pressing devices by centering the wider part of the slots on the squeegee body fastening pins, then push the blade pressing
devices inwards.
Close the hook again.
Replace the squeegee on its support, following the instructions described previously.
Automatic brush attachment, version with head lift pedal:
raise the machine head by pushing the head lift pedal (Fig. 1) down and to the left, then using the operation selector, select the Brush control, rest
Automatic brush release, version with head lift pedal: raise the machine head by pushing the head lift pedal (Fig. 1) down and to the left, turn the selector
to the “OFF” position, press the “SET” button once then press the “-” button, the machine will complete the release sequence.
DAILY MAINTENANCE
Clean the dirty
water tank.
Check that the
is clean.
Check that the brushes are
clean. Replace if necessary.
Check that the
squeegee is clean
and the blades are not
worn.
Fig.1
Fig.2
PLDC03880
BATTERY CHARGER ON BOARD
BATTERY CHARGER STAND ALONE
