Ipevo VX-1 User manual

1
User Manual
Benutzerhandbuch
說明書
说明书
VX-1 Internet Conference Station

Languages
English User Manual...................................................................................................... 1
Deutsch Benutzerhandbuch.......................................................................................... 15
繁體中文說明書........................................................................................................ 29
简体中文说明书........................................................................................................... 43

1
Table of Contents
The Basics.......................................................................................................................2
Get to Know VX-1............................................................................................................ 3
Get to Know VX-1: Mics................................................................................................... 5
Two Ways to Use VX-1 ................................................................................................... 6
Installing VX-1: USB Mode............................................................................................... 7
Installing VX-1: iDevice Mode.......................................................................................... 9
FAQ.............................................................................................................................. 12
Troubleshooting............................................................................................................ 13
Specifications................................................................................................................ 14

2
The Basics
The IPEVO VX-1 Internet Conference Station provides a high-quality, fuss-free teleconferencing
experience. Hear and be heard clearly without the hassle of installing drivers and extra software.
Simply plug in your computer or iDevice (iPhone, iPad, or iPod Touch) and launch your preferred
conferencing software.
VX-1 has been designed and engineered specifically to receive and transmit human voices.
When in action, VX-1 utilizes built-in noise reduction, echo cancellation technology and audio
enhancement to clarify and smooth voices.
VX-1 is equipped with a total of five high-definition microphones: one Omnidirectional Mic (Omni
Mic) and four Unidirectional Mics. You can choose to capture the whole conversation using the
Omni Mic or choose just a few people by selecting a specific Unidirectional Mic.

3

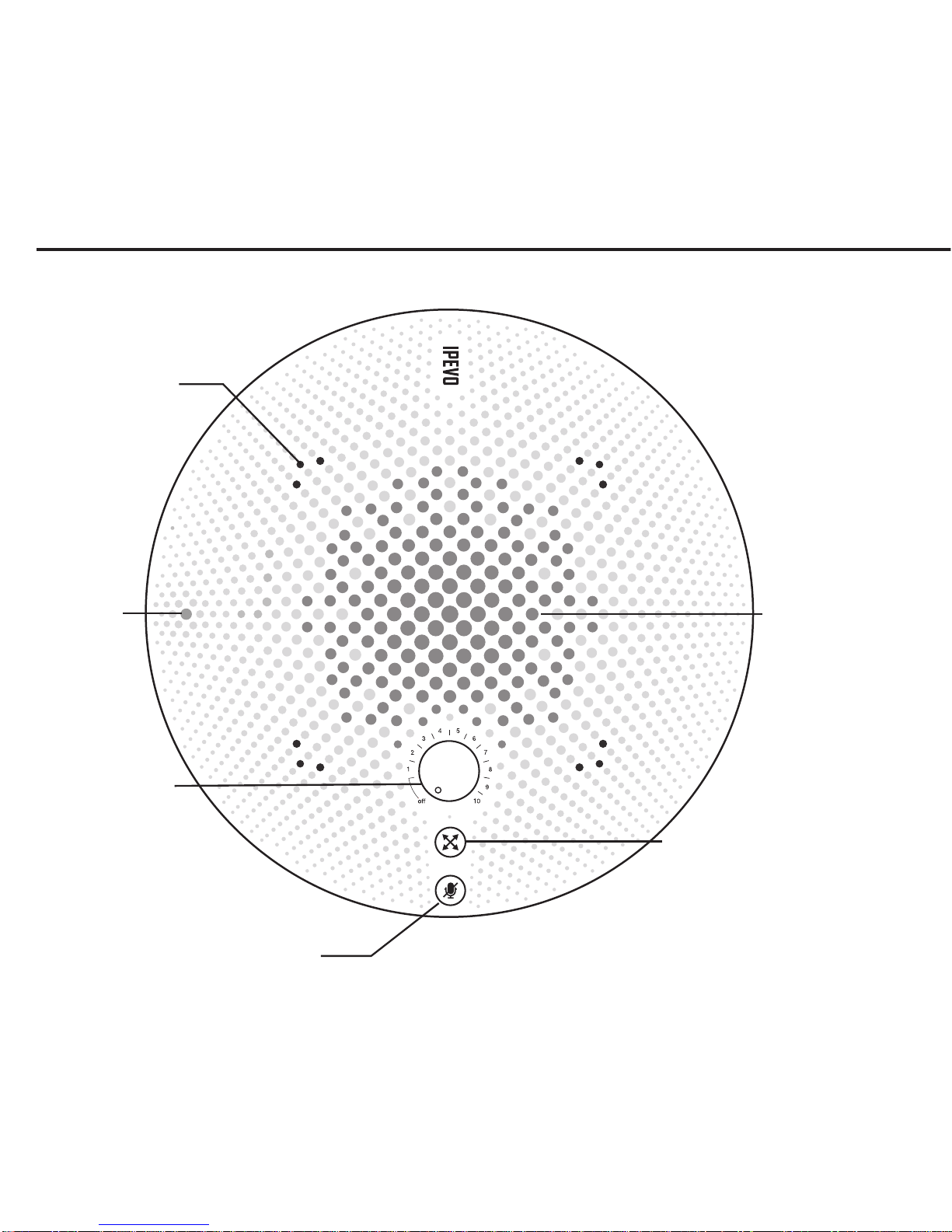

Get to Know VX-1
Zone Enhancement
Power Switch
& Volume Knob
Omni Mic Speaker
LED Indicators
& Unidirectional Mic
Powers on VX-1 and controls
volume. Turn clockwise to
turn on. Continue turning to
increase volume.
Switches from Default Mode (Omni
Mic) to Zone Enhancement Mode
(Unidirectional Mic).
Press to select a different
Unidirectional Mic/Zone.
Selection progresses clockwise
from left of Power Switch.
Mutes all Mics.
Press once to mute.
Press again to unmute.
Mute
LEDs point toward the
direction of each
Unidirectional mic.

4
LED Behavior
PC/AC Adapter PortAudio Jack/
iDevice Port
VX-1 has four Unidirectional mics that can be selected individually. The LEDs point toward the
direction of each Unidirectional microphone. LEDs also indicate the current status of VX-1.
All Green: Omni Mic on.
Single Green: One Unidirectional Mic active.
All Red: All Mics are muted.
Flashing: VX-1 is processing and thinking. Wait till LEDs stop flashing to continue use.
Connect the USB cable
to this port.
Use this port to connect
your iDevice to VX-1.

5

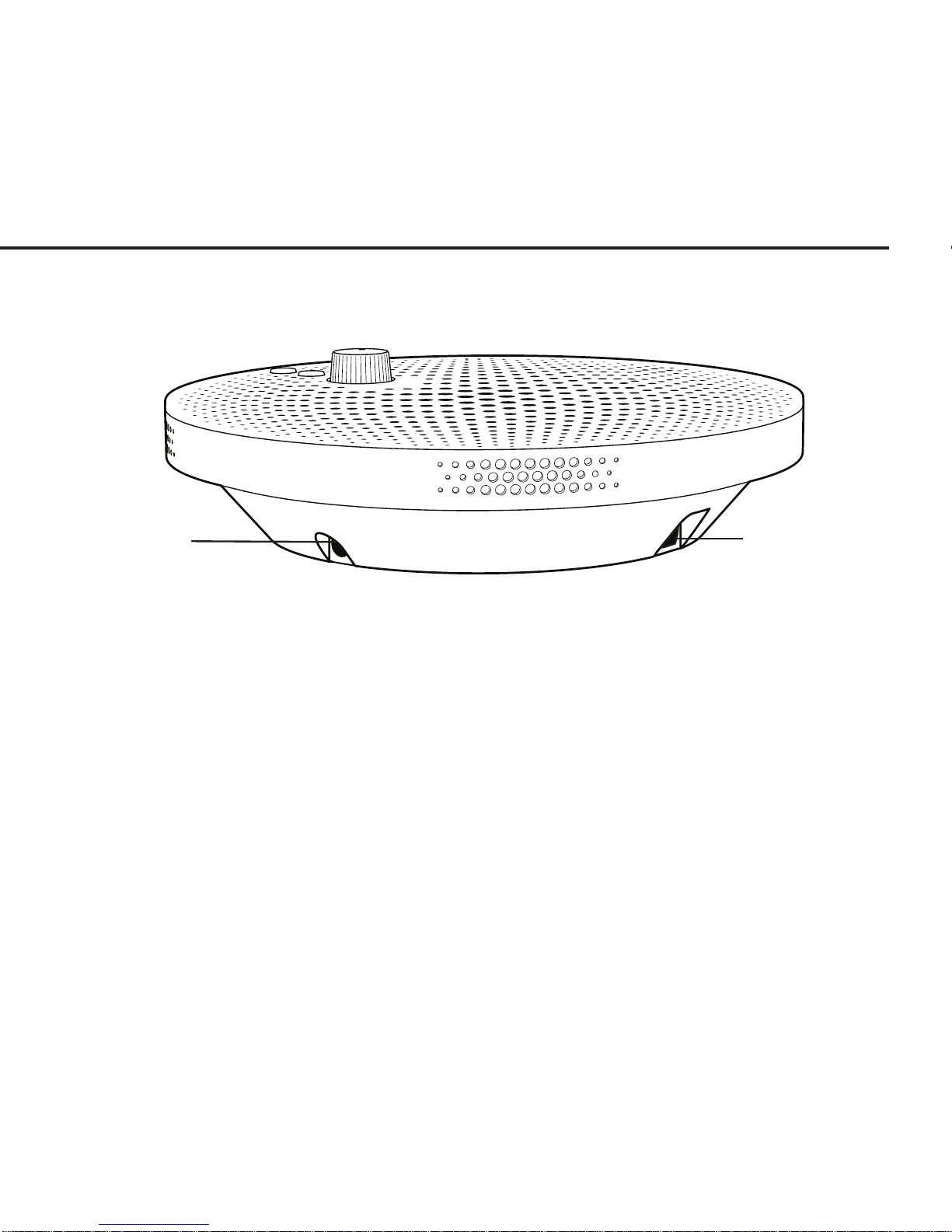

The Omni Mic has a an optimal pick-up range of
6.5 feet. The maximum pick-up range is 13 feet.
Each Unidirectional Mic has an optimal pick-up range
of 10 feet. The maximum pick-up range is 16 feet.
Maximum 13 ft.
Optimal 6.5 ft.
Get to Know VX-1: Mics
Default Mode: Omni Mic
Zone Enhancement Mode: Unidirectional Mics
The Omni Mic is the only mic active in VX-1’s Default Mode. The Omni Mic receives sound evenly in
a 360-degree range, making it best suited for capturing the voices of all participants in a conference.
In Enhanced Mode a single Unidirectional Mic (Uni Mic) is active. You can select a Uni Mic by
pressing the Mic Zone Select button. Uni Mics primarily receive sound in a specific direction and
are tuned so that they minimize sounds that do not come from that direction. Uni Mics also have a
higher sensitivity and longer range than the Omni Mic.
Maximum 16 ft.
Optimal
10 ft.

6
Two Ways to Use VX-1
There are two ways to operate your VX-1.
Mode 1: USB Mode (PC/Mac)
Mode 2: iDevice Mode (External Audio in/out)
Power Source
VX-1
VX-1
Choice 1:
USB AC Adapter
(not included)
*Note: If your Computer and your iDevice are both connected to VX-1, only your iDevice can
make calls. To use your Computer to make calls, unplug the 3.5mm audio cable from VX-1.
Choice 2:
Computer (USB)
iDevice
External Audio
in/out
Your iDevice (iPhone, iPad, and iPod Touch) works with VX-1, but VX-1 requires a separate
power source. You can use an AC adapter or your Computer as a USB power source. When your
iDevice is plugged into VX-1, VX-1 automatically becomes your default microphone and speaker.
Connect VX-1 directly to your Computer’s USB port. No external power required.
WiFi or
Internet
Connection
Computer

7
Installing VX-1: USB Mode
If you plan to use VX-1 with your Computer, follow these instructions:

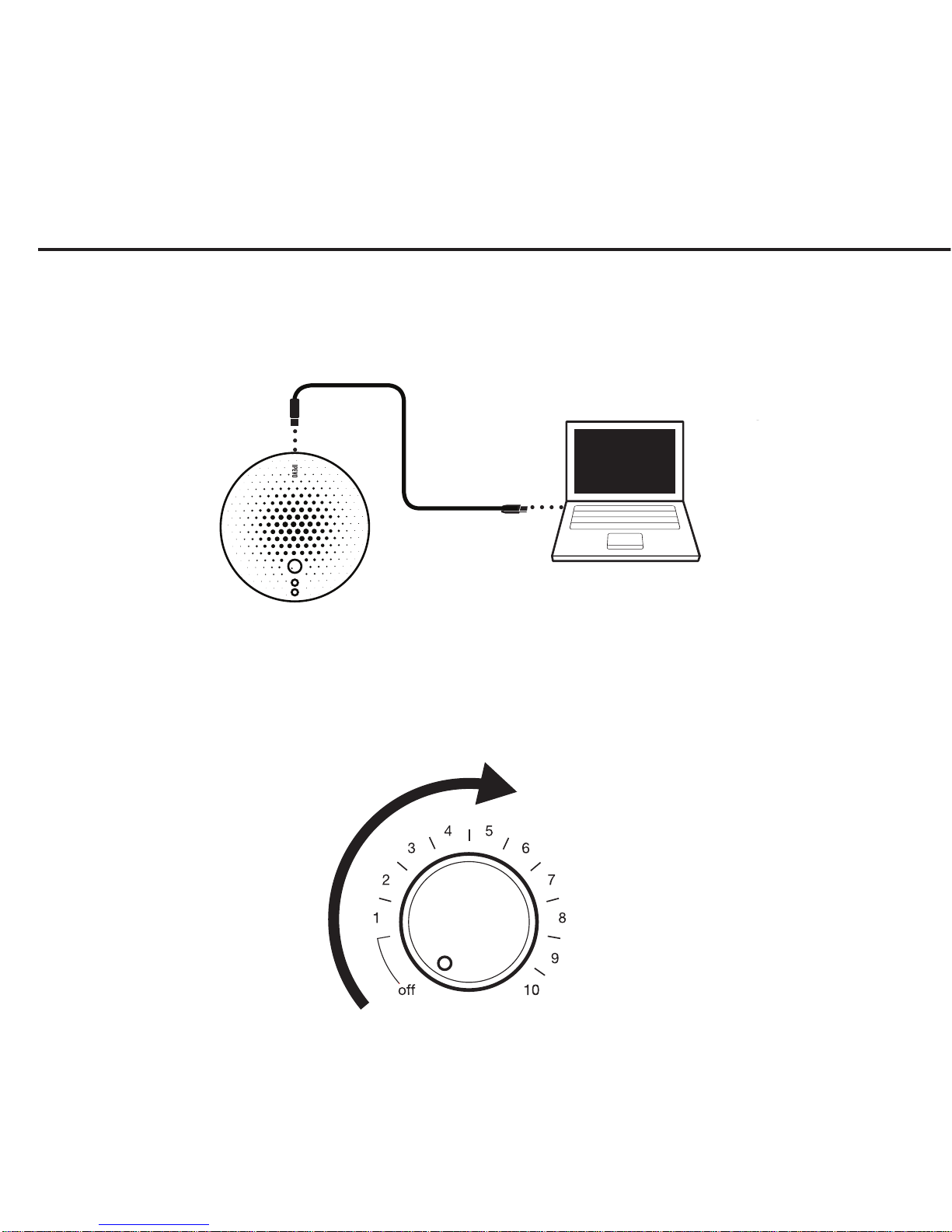

Step 1: Connect the USB cable to your Computer. You do not need to install any software or drivers.
Step 2: Turn the Power Switch clockwise till you hear a “Click” sound.
The LEDs will light up and flash a few times when VX-1 has been turned on successfully. The Power Switch
also controls the volume. Keep turning the knob clockwise to increase the volume (1= Quietest, 10= Loudest).
USB B-Type to
A-Type Cable
VX-1
Computer

8
Step 3: Launch your teleconferencing or chatting software (Skype, Google Hangouts, Facetime, etc.).
Step 4: Select VX-1’s Microphones and Speaker as the default audio device.
Step 5: Place a call with your teleconferencing or chatting software and start talking!
Select your default Audio device:
Speaker (VX-1)
Microphone (VX-1)

9
Installing VX-1: iDevice Mode
If you plan to use VX-1 with your iDevice (iPhone, iPad or iPod Touch), follow these instructions:
Step 1: Connect the USB cable to your Computer or AC adapter.
Step 2: Plug in the 3.5mm audio cable into your VX-1 and your iDevice.
USB B-Type to
A-Type Cable
3.5mm Audio
Cable
Computer
(USB)
iDevice
VX-1
VX-1
USB AC Adapter
(not included)

10

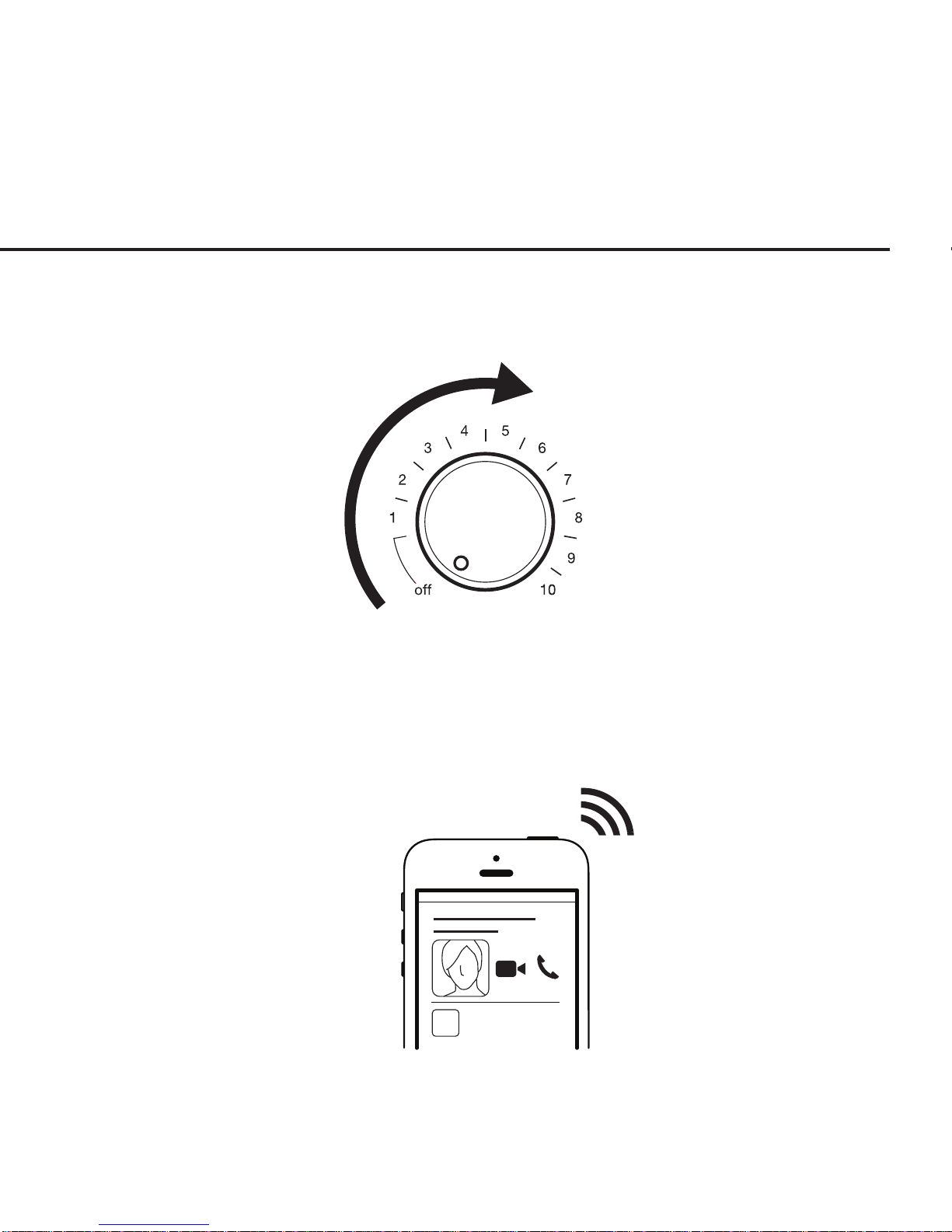

Step 3: Turn the Power Switch clockwise till you hear a “Click” sound.
The LEDs will light up when VX-1 has been turned on successfully. Keep turning the knob to
adjust the volume (1= Quietest, 10= Loudest).
Step 4: Choose your calling method.
A. Call using WiFi (iPhone, iPad, and iPod Touch)
Launch your teleconferencing or chatting software (Skype, Google Hangouts, Facetime, etc.).
Call using
WiFi

11
Installing VX-1: iDevices (cont’d)
Step 4 (cont’d):
B. Call using your Cellphone network. (iPhone only)
Place a call to a cellphone or landline like you usually do when making a call with your iPhone.
VX-1 automatically becomes your default Speaker and Mic.
VX-1
Call using
Cellphone
Network
(408)-490-30
Office
(408)-123-456
Sunnyvale, CA
5
*Note: Sound quality will not be as good when making calls through your cellphone network.
Making calls through the internet will ensure better sound quality. This is because phone calls
made through your network have to pass through the PTSN (Public Switched Telephone Network)
which lowers the sound sampling rate (rate at which sound is sampled) to conserve bandwidth.

12
FAQ
If my Computer and iDevice are both plugged into VX-1, can I make calls using my Computer?
No. VX-1 will automatically switch to your iDevice if you have plugged in the 3.5mm audio cable. If
you wish to use your Computer to make calls please unplug the 3.5mm audio cable from VX-1.
When powering on VX-1 the LEDs flash a few times and stop. Is this normal?
Yes. When VX-1 powers on it has to communicate internally with 3 IC chips. When it has finished
communicating the blinking will stop, at this moment in time VX-1 is then ready to be used.
When I plug in or remove the 3.5mm audio cable from VX-1, the LEDs flash a few times before
stopping. Is this normal?
Yes. When you plug in or remove the audio cable, VX-1 switches modes to either load/unload your
iDevice. Once loading/unloading is complete the LEDs will stop flashing and VX-1 is ready to go.
What type of USB AC adapter can I use with VX-1?
VX-1 needs an adapter with a rating of at least 5V/500mA. As long as your AC adapter’s rating is the
same or more (e.g. 5V/1A, 5V/2.1A) it is compatible with VX-1. If you have an iDevice, your iDevice AC
adapter is also compatible with VX-1.
Why is the sound quality better when making calls using the internet/WiFi versus making calls using a
cellphone network?
When you use the internet to make a call the sound sampling rate is higher (16k Hz) than when you
make a call using a cellphone network (8K Hz). This is why sound quality is better when you call
using the internet. The reason for the low sampling rate is because when you make a call through
your cellphone network it passes through the Public Switched Telephone Network (PSTN) to save
bandwidth PTSN lowers the sampling rate.
Does VX-1 remember my Mic settings?
VX-1 will remember which Mic setting was selected before you pressed mute and will revert to the
previous setting when you unmute. However, VX-1 will only remember your mic settings for the
current session.

13
I cannot see or select VX-1 as my active speaker/microphone in my conferencing software (PC/Mac only).
1. VX-1 is not turned on. Please check to see VX-1 has been turned on properly (LEDs should be lit up).
Turn the green knob clockwise to power on VX-1.
2. The 3.5mm- audio cable is plugged in. Please unplug the audio cable. Your computer will not be
able to detect VX-1 if the audio cable has been plugged in.
3. The USB Cable is loose or not connected. Please make sure the USB cable has been plugged in securely.
No sound is coming from the speaker.
1. The speaker is on mute. Please check your Computer or iDevice settings to make sure you have not
selected mute.
2. The person you are calling has their microphone on mute. Please ask them to unmute their microphone.
3. The speaker volume is too low. Please increase the volume. You can do this by turning the Green
knob clockwise or by adjusting the volume on your Computer/iDevice.
4. The person you are calling has their microphone sensitivity set too low. Please ask them to set
their microphone sensitivity to high.
5. Make sure you have selected VX-1’s speaker as the active speaker in your software or application
(PC/Mac only).
The person I am calling cannot hear me.
1. Your microphone is set to mute. If the LED indicators on VX-1 are red then your Microphones are
currently muted. Press the red mute button to unmute. If the indicators are green please check to
see that your microphone has not been muted on your iDevice or Computer.
2. The person you are calling has set their speaker on mute. Please ask them to unmute their speaker.
3. The person you are calling has set their speaker volume too low. Please ask them to increase the
speaker volume.
4. Make sure you have selected VX-1’s microphone as the active microphone in your software or
application (PC/Mac only).
5. Your microphone sensitivity is set too low. Please adjust the microphone sensitivity to high. VX-1’s
default microphone sensitivity is set to high, so you should only need to adjust sensitivity if you
have adjusted it before (PC/Mac only).
Troubleshooting

14
1
Specifications
Input and Output:
Type B USB Connector x 1
• Interface : Type B USB 2.0 Full-Speed (Compatible with USB 1.1)
• Power Supply : USB bus-powered (5V / 500mA)
• Max. Power Consumption : 2.5 W
3.5mm Stereo Headphone Jack x 1
Microphones
• High Sensitivity Omnidirectional Microphone x 1
• High Sensitivity Unidirectional Microphone x 4
• Frequency bandwidth : 50 ~ 20,000 Hz
Speaker
• Frequency bandwidth : 20 ~ 20,000 Hz
Size and Weight
Dimensions (Ø x H): Ø188 x 50mm/ Ø7.4 x 2.0inches
Weight : 17ozs/480g
Operating System
Windows XP/Vista/7/8
Mac OSX 10.5 and up

15
Inhalt
Überblick...................................................................................................................... 16
Die VX-1 kennenlernen.................................................................................................. 17
Einzelne Funktionen der VX-1 kennenlernen.................................................................. 19
Die zwei Einsatzmöglichkeiten der VX-1......................................................................... 20
Installation der VX-1: USB-Modus.................................................................................. 21
Installation der VX-1: iDevice-Modus............................................................................. 23
FAQ.............................................................................................................................. 26
Fehlersuche.................................................................................................................. 27
Technische Daten.......................................................................................................... 28

16
Überblick
Mit der IPEVO VX-1 Internet Conference Station können Sie unkompliziert und ohne Abstriche
bei der Ton- und Klangqualität Videotelefonkonferenzen durchführen. Sie brauchen keine
Treiber und Zusatzsoftware zu installieren. Schließen Sie die VX-1 einfach an Ihren Computer
oder Ihr Apple-Mobilgerät (iPhone, iPad oder iPod Touch) an und starten Sie Ihre bevorzugte
Videotelefoniesoftware.
Die VX-1 wurde speziell für dem Empfang und die Übertragung der menschlichen
Stimme entwickelt. Die VX-1 verfügt über eine integrierte Nebengeräuschunterdrückung,
Echoauslöschung und Klangverstärkung für klare und glatte Stimmen.
Die VX-1 ist mit insgesamt fünf HD-Mikrofonen ausgestattet – einem omnidirektionalen (Omni
Mic) und vier unidirektionalen Mikrofonen. Nehmen Sie mit Omni Mic alle Teilnehmer einer
Unterhaltung auf oder mit einem der unidirektionalen Mikrofone nur bestimmte Personen.

17
Die VX-1 kennenlernen
Zonenverstärkung
Ein/Aus-Schalter
& Lautstärkeregler
Omni Mic
LEDs &
unidirektionales
Drehen Sie den Schalter
im Uhrzeigersinn, um
die VX-1 einzuschalten,
und stellen Sie durch
weiteres Drehen die
Lautstärke ein
Standardmodus (Omni Mic)
oder Zonenverstärkung
(Unidirectional Mic)
Zur Auswahl eines
unidirektionalen Mikrofons
oder einer Zone Schalter
drücken. Auswahl im
Uhrzeugersinn, beginnend mit
dem Mikrofon links der Ein-/
Aus-Taste
Durch Drücken schalten
Sie alle Mikrofone stumm, durch
erneutes Betätigen wird die
Stummschaltung aufgehoben
Stumm
Mikrofon
LEDs zeigen die
Richtung der einzelnen
Mikrofone an
Lautsprecher
