IPGARD SA-DPH-4Q-P User manual

4 Port DP secure KVM switch
CONSOLE
12VDC2.0A AUDIO
K/M
AUDIO AUDIO AUDIO AUDIO
K/M K/M K/M K/M
CAC
CAC CAC CAC CAC
IN-1IN-2IN-3IN-4
1 2 3 4ST1 ST2
SA-DPH-4Q-P
DVI-I IN1DVI-I IN2DVI-I IN3DVI-I IN4DVI-I OUT
DP OUT B
DP OUT A
DP IN4 B
DP IN4 A
DP IN3 B
DP IN3 A
DP IN2 B
DP IN2 A
DP IN1 B
HDMI OUT HDMI IN4 HDMI IN3 HDMI IN2 HDMI IN1
DP IN1 A
SA-DPH-4Q-P
Advanced 4-Port Secure Dual-head
DP, Single-head HDMI and
Single-head DVI-I KVM Switch
with Audio and CAC Support
Quick Start Guide
TECHNICAL SPECIFICATIONS
VIDEO
Host Interface
(8) DisplayPort;
(4) HDMI;
(4) DVI-I
User Console
Interface
(2) DisplayPort;
(1) HDMI;
(1) DVI-I
Max Resolution 3840 x 2160 @ 30Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable
Length Up to 20 ft.
USB
Signal Type
USB 1.1 and 1.0 Keyboard and
Mouse only.
USB 2.0 for CAC connection.
USB Connectors (8) USB Type B;
User Console
Interface
(2) USB Type A for keyboard/mouse
connections;
(1) USB Type A for CAC
AUDIO
Input (4) Connector stereo 3.5 mm
female
Output (1) Connector stereo 3.5 mm
female
POWER
Power
Requirements
12V DC, 3A power adapter with
center-pin positive polarity
ENVIRONMENT
Operating Temp 32° to 104° F (0° to 40° C)
Storage Temp -4° to 140° F (-20° to 60° C)
Humidity 0-80% RH, non-condensing
CERTIFICATIONS
Security
Accreditation
Common Criteria Validated To
NIAP, Protection Prole PSS Ver.
4.0
OTHER
Emulation Keyboard, mouse, and video
User Controls Front-panel buttons
DESIGNED
AND MADE
IN THE USA
NOTICE
The information contained in this document
is subject to change without notice. iPGARD
makes no warranty of any kind with regard
to this material, including but not limited to,
implied warranties of merchantability and
tness for a particular purpose. iPGARD
will not be liable for errors contained
herein, or for incidental or consequential
damages in connection with the furnishing,
performance, or use of this material. No
part of this document may be photocopied,
reproduced, or translated into another
language without the prior written consent
from iPGARD, Inc.
20170518
Toll Free: (888)-994-7427
Phone: [phone]
Fax: [phone]
WWW.iPGARD.COM
A full manual can be downloaded from
www.ipgard.com/documentation/
WHAT’S IN THE BOX
PART NO. QTY DESCRIPTION
SA-DPH-4Q-P 1
4-Port QH Secure Pro SH DVI, SH
HDMI, and DH DP KVM with audio
and CAC
PS12VDC2A 112-VDC, 2-A power adapter with
center-pin positive polarity.
1Quick Start Guide

DESIGNED
AND MADE
IN THE USA
The KVM switch is designed to learn a
connected monitor’s EDID upon power up. In
the event of connecting a new monitor to the
KVM a power recycle is required.
The KVM switch will indicate the unit’s
EDID learn process is active by ashing
the front panel’s LEDs in sequential order.
Starting with the LED above button “1” on
the front panel, each LED will ash green for
approximately 10 seconds upon beginning
the EDID learn. Once all the LEDs stop
ashing, the LEDs will cycle and the EDID
learn will be complete.
If the KVM switch has more than one video
board (such as dual-head and quad-head
models), then the unit will continue to learn
the EDIDs of the connected monitors and
indicate the progress of the process by
ashing the next port selection green and
blue push-button LEDs respectively.
A monitor must be connected to the video
output port located in the console space at
the back of the KVM switch during the EDID
learn process.
If the read EDID from the connected monitor
is identical to the current stored EDID in the
KVM switch, then the EDID learn function
will be skipped.

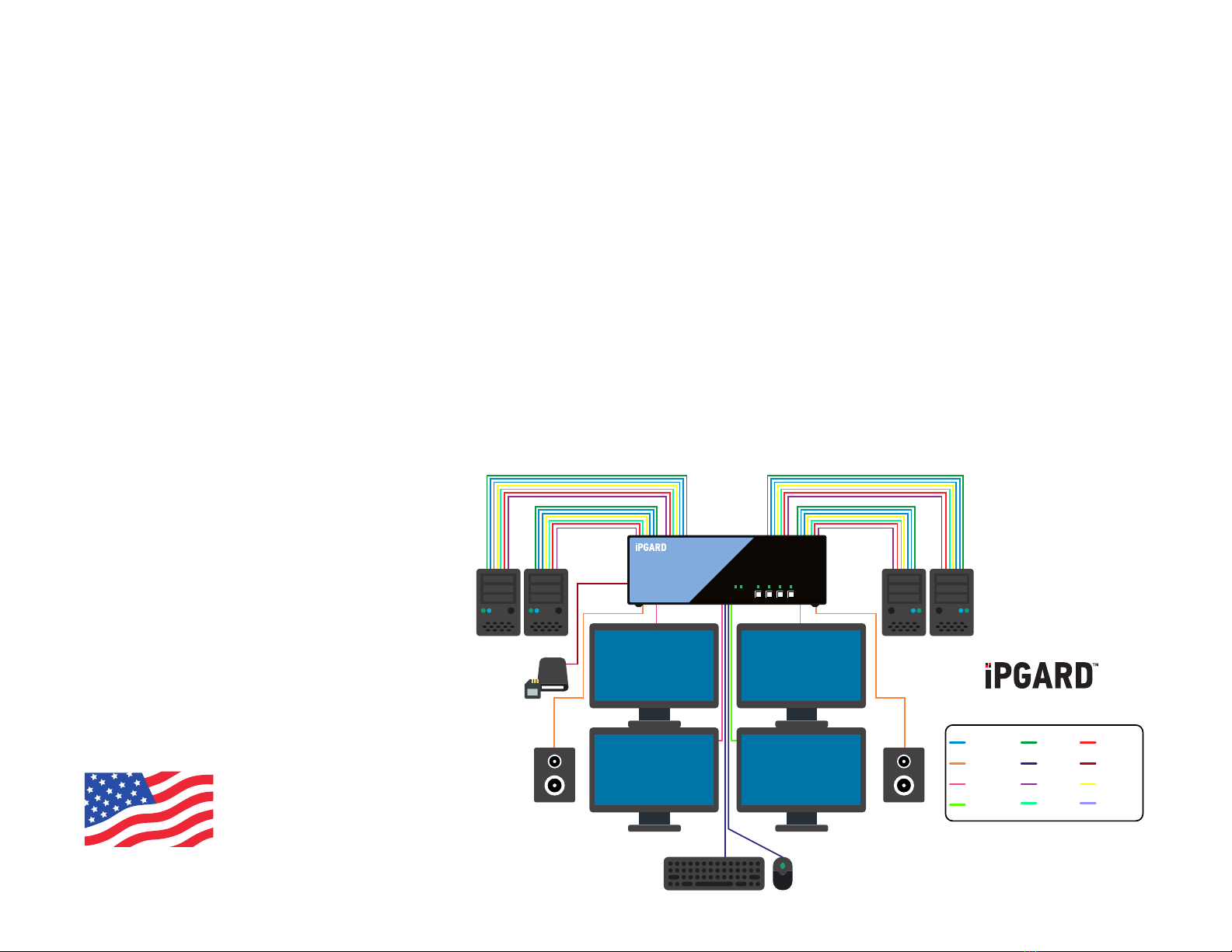

EDID LEARN HARDWARE INSTALLATION
1. Ensure that power is turned off or disconnected from the unit and the computers.
2. Use Dispay Port cables to connect the Display Port output ports from each computer to the
corresponding Display Port in ports of the unit.
3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the
respective USB ports of the unit.
4. Optionally, for CAC models, connect a CAC (Common Access Card, Smart Card Reader) to the
CAC port in the user console interface.
5. Optionally, connect a stereo audio cable (3.5 mm to 3.5 mm) to connect the audio output of
the computer(s) to the audio in ports of the unit.
6. Connect monitor(s) to the Display Port out console port of the unit using Display Port
cable(s).
7. Connect a USB keyboard and mouse in the two USB console ports.
8. Optionally, connect stereo speakers to the audio out port of the unit.
9. Finally, power on the secure KVM switch by connecting a 12-VDC power supply to the power
connector, and then turn on all the computers.
Note: You can connect four monitors to the quad-head KVM switch. The computer connected
to port 1 will always be selected by default after power up.
Note: You can connect up to 4 computer to the 4 port KVM.
DP IN
AUDIO OUT
DP OUT
HDMI OUT
USB IN
USB OUT
CAC IN
CAC OUT
HDMI IN
DVI-I OUT
AUDIO IN
DVI-I IN
SA-DPH-4Q-P
1 2 3 4ST1 ST2
SA-DPH-4Q-P
A full Manual can be downloaded from
www.ipgard.com/documentation/
