IPGARD SMART-AVI SM-MST-2S User manual

TECHNICAL SPECIFICATIONS WHAT’S IN THE BOX
VIDEO
Fornat DisplayPort1.2a
Input Interface (2) DisplayPort
Output Interface (2) HDMI
Input Resolution Up to 4K (3840 x 2160 @ 60 Hz)
Output Resolution Up to 4K (3840 x 2160 @30 Hz)
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft
Output Cable Length Up to 20 ft
USB
Input Interface (2) USB Type B
Output Interface (2) USB 1.1 Type A for KM Devices
Emulation USB 1.1 and USB 2.0 Compatible
AUDIO
Audio Input (2 3.5mm stereo audio
Audio Output (1) 3.5mm stereo audio
CONTROL
Front Panel Front panel SELECT buttons
OTHER
Power External 100-240 VAC/ 12VDC2A
@ 24W
Dimensions 8.8” W x 2.63” H x 6.69” D
Weight 3.85 lbs
Approvals NIAP PP 3.0, UL, CE,
ROHS Compliant
Operating Temp. 32 to +104°F (0 to +40°C)
Storage Temp. -4 to 140°F (-20 to +60°C)
Humidity Up to 80% (no condensation)
PART NO. QTY DESCRIPTION
SM-MST-2S 1 2 port KVM MST
with Dual 4K HDMI Out
PS12VDC2A 112-VDC, 2-A power adapter with
center-pin positive polarity.
1Quick Start Guide
DESIGNED
AND MADE
IN THE USA
NOTICE
The information contained in this document
is subject to change without notice. iPGARD
makes no warranty of any kind with regard
to this material, including but not limited to,
implied warranties of merchantability and
tness for a particular purpose. iPGARD
will not be liable for errors contained
herein, or for incidental or consequential
damages in connection with the furnishing,
performance, or use of this material. No
part of this document may be photocopied,
reproduced, or translated into another
language without the prior written consent
from iPGARD, Inc.
20170518
Toll Free: (888)-994-7427
Phone: [phone]
Fax: [phone]
WWW.iPGARD.COM
A full manual can be downloaded from
www.ipgard.com/documentation/

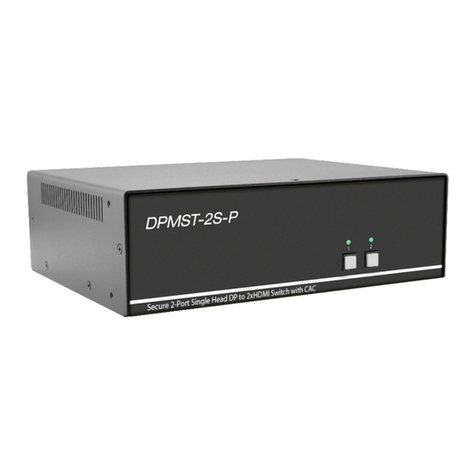

SM-MST-2S
2-Port Single Head DP to 2 x HDMI Switch
2 Port KVM DP MST
with Dual 4K HDMI Out
Quick Start Guide

DESIGNED
AND MADE
IN THE USA
The KVM switch is designed to learn a
connected monitor’s EDID upon power up. In
the event of connecting a new monitor to the
KVM a power recycle is required.
The KVM switch will indicate the unit’s
EDID learn process is active by ashing
the front panel’s LEDs in sequential order.
Starting with the LED above button “1” on
the front panel, each LED will ash green for
approximately 10 seconds upon beginning
the EDID learn. Once all the LEDs stop
ashing, the LEDs will cycle and the EDID
learn will be complete.
If the KVM switch has more than one video
board (such as dual-head and quad-head
models), then the unit will continue to learn
the EDIDs of the connected monitors and
indicate the progress of the process by
ashing the next port selection green and
blue push-button LEDs respectively.
A monitor must be connected to the video
output port located in the console space at
the back of the KVM switch during the EDID
learn process.
If the read EDID from the connected monitor
is identical to the current stored EDID in the
KVM switch, then the EDID learn function
will be skipped.
EDID LEARN HARDWARE INSTALLATION
1. Ensure that power is turned off or disconnected from the unit and the computers.
2. Use Dispay Port cables to connect the Display Port output ports from each computer to the
corresponding Display Port in ports of the unit.
3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the
respective USB ports of the unit.
4. Optionally, connect a stereo audio cable (3.5 mm to 3.5 mm) to connect the audio output of
the computer(s) to the audio in ports of the unit.
5. Connect monitor(s) to the HDMI out console ports of the unit using HDMI cable(s).
6. Connect a USB keyboard and mouse in the two USB console ports.
7. Optionally, connect stereo speakers to the audio out port of the unit.
8. Finally, power on the secure KVM switch by connecting a 12-VDC power supply to the power
connector, and then turn on all the computers.
Note: You can connect two monitors to the single-head KVM switch and four monitors to the
dual-head KVM switch. The computer connected to port 1 will always be selected by
default after power up.
Display Port Connector HDMI Connector
DP DP
AC Power
Power
Adapter
Stereo
Speakers
Computers
USB
User’s Desktop
CONSOLE
12VDC2.0A Audio
K/M
Audio
K/M
Audio
K/M
IN-2 IN-1
VIDEO
AUDIO
POWER
HDMI OUTHDMI OUT
SM-MST-2S
