IQ360XR DISASSEMBLY
Filter Removal
1. Remove filter cover retaining screws
2. Remove filter knob
3. Remove filter cover

www.iqpowertools.com Repair Manual
4
888
-
274
-
7744
iQ360XR

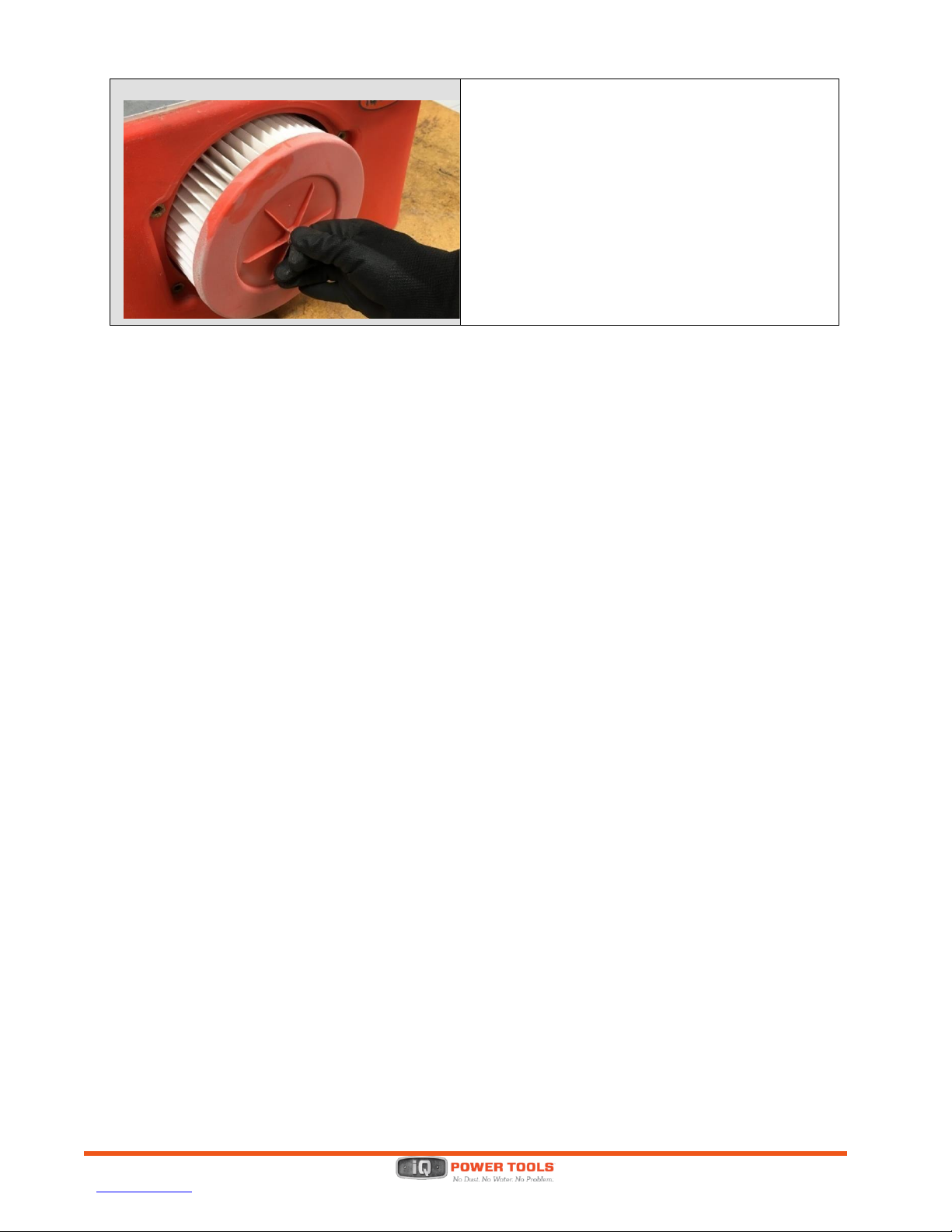

4.
Remove filter

www.iqpowertools.com Repair Manual
888
-
274
-
7744
iQ360XR
Blade Removal
1. Raise saw arm to ease removal of saw blade
2. Depress blade lock
3. Loosen blade lock nut

www.iqpowertools.com Repair Manual
6
888
-
274
-
7744
iQ360XR

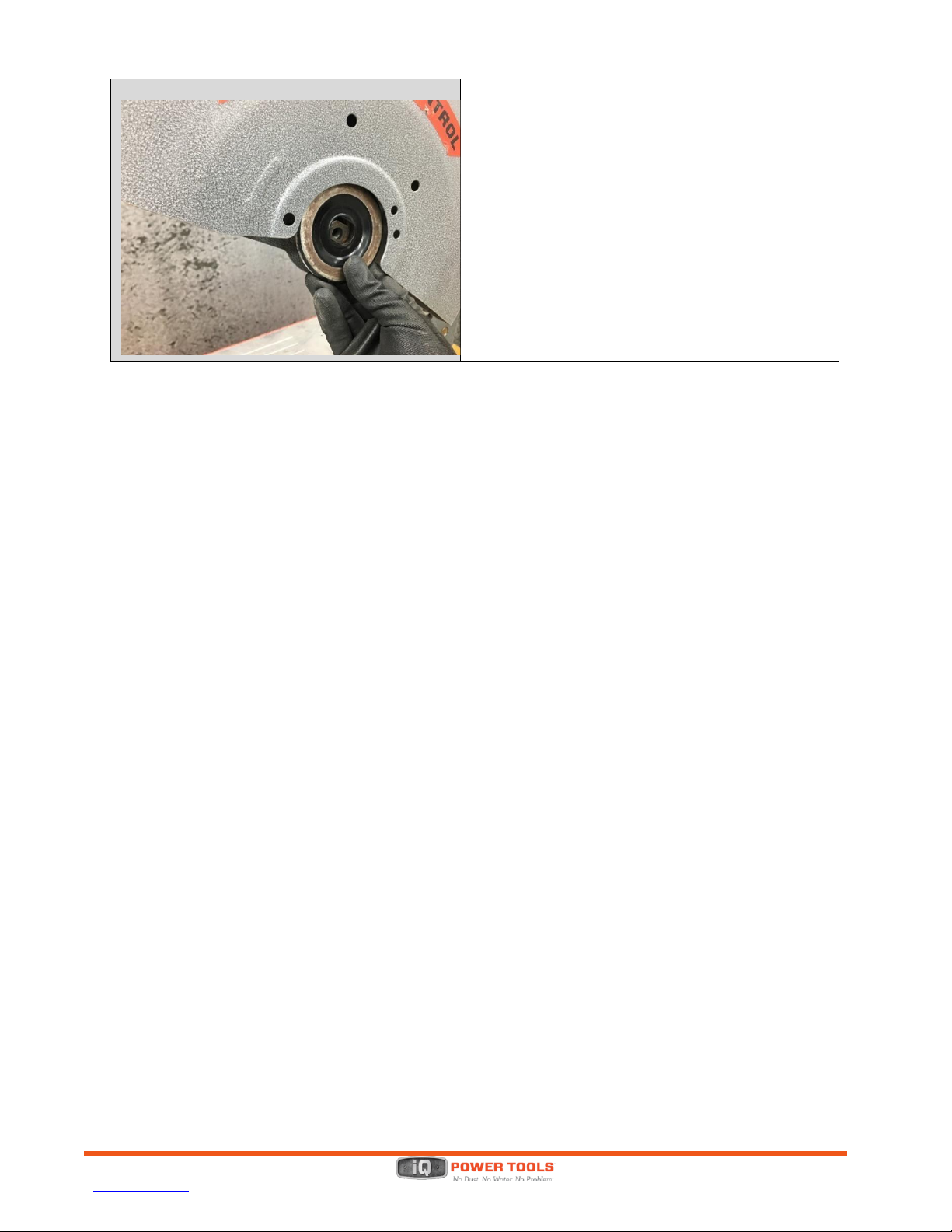

4.
Remove blade lock nut and washer
5.
Remove outer blade flange
6.
Remove blade

www.iqpowertools.com Repair Manual
888
-
274
-
7744
iQ360XR
7.
Remove inner blade flange

www.iqpowertools.com Repair Manual
8
888
-
274
-
7744
iQ360XR
Blade Guard Removal
1. loosen blade guard cover retaining screws
2. remove blade guard cover retaining screws
3. remove blade cover

www.iqpowertools.com Repair Manual
9
888
-
274
-
7744
iQ360XR
Blade Shaft Assembly Removal
1. remove blade arbor retaining screws
2. Remove the arbor gearbox, be aware of the
blade locking device
3. Remove blade locking device

www.iqpowertools.com Repair Manual
10
888
-
274
-
7744
iQ360XR
4.
Clean and inspect the arbor gear box housing

www.iqpowertools.com Repair Manual
11
888
-
274
-
7744
iQ360XR
Control Module Disassembly

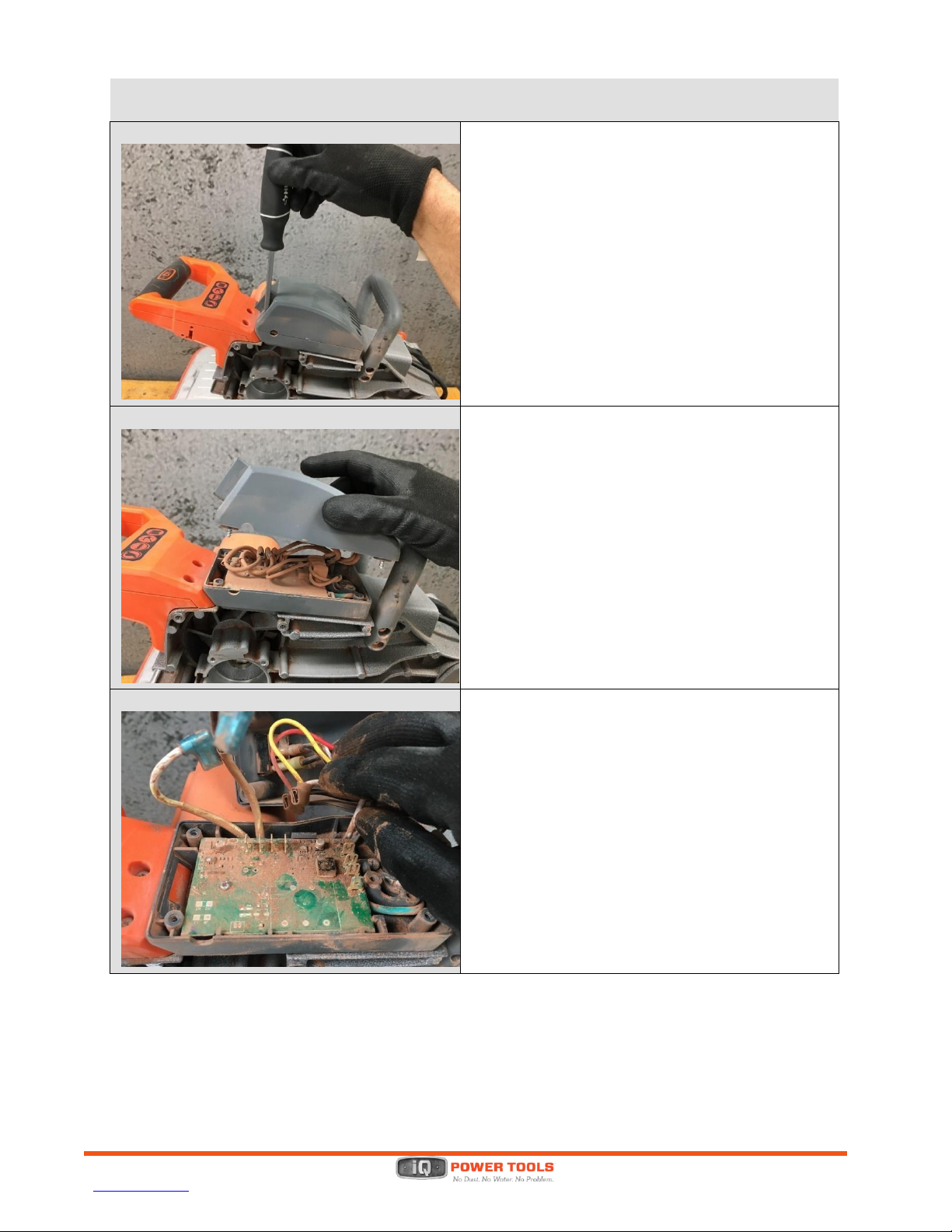

1. Remove the control module cover retaining
screws
2. Lift top cover
3. Disconnect all wire connections from the
circuit board

www.iqpowertools.com Repair Manual
12
888
-
274
-
7744
iQ360XR

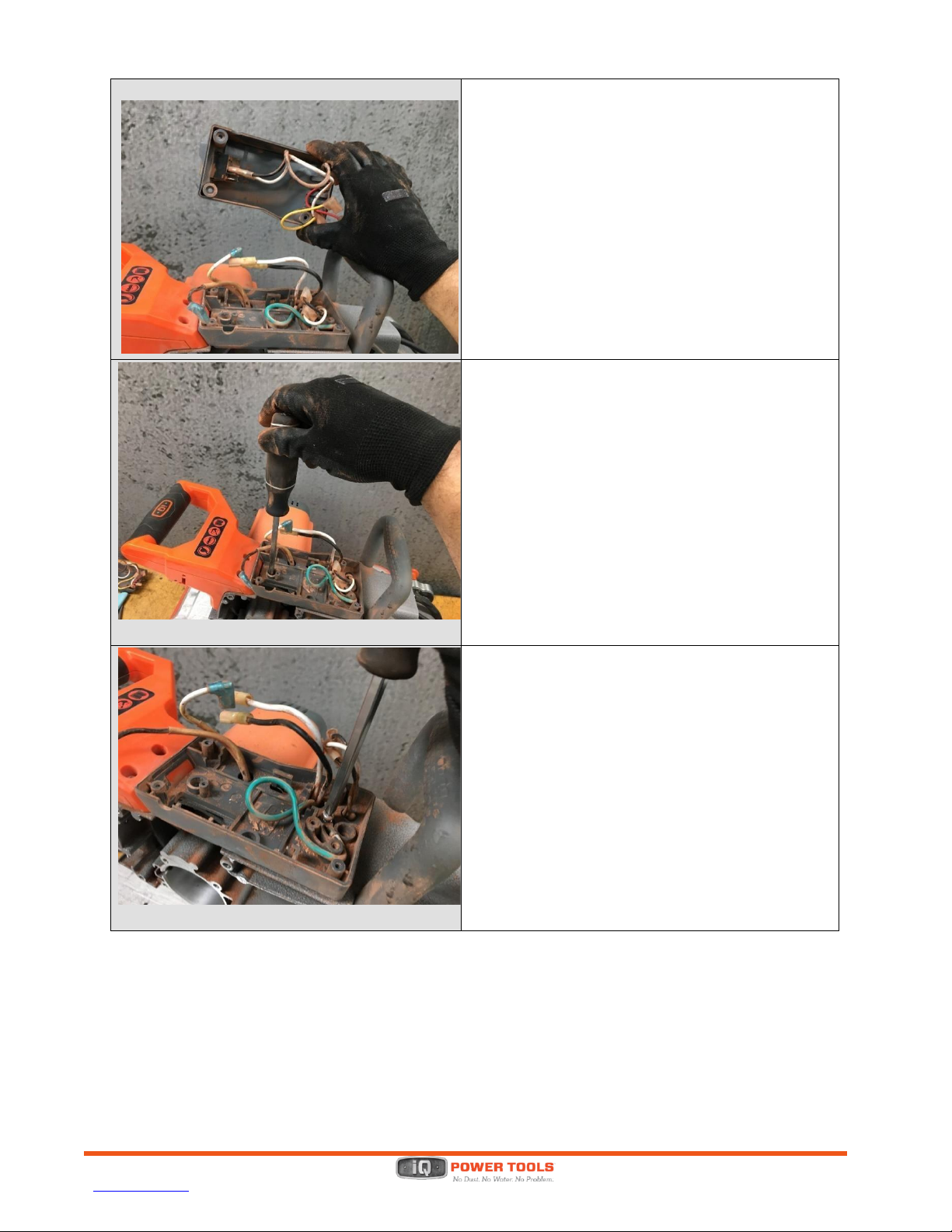

4.
Remove the circuit board retaining
screw
5.
Lift and remove the circuit board
6.
Disconnect the Main Power connection
from the On/Off switch

www.iqpowertools.com Repair Manual
13
888
-
274
-
7744
iQ360XR
7.
Separate and remove the control module
top cover
8.
Remove the control module retaining
screws
9.
Remove the Main Power Ground wire

www.iqpowertools.com Repair Manual
14
888
-
274
-
7744
iQ360XR
10. Route the saw and vacuum motor wire
conductors through the control module base
11. Route the Main Power wire conductors through
the control module base
12. Remove the control module base

www.iqpowertools.com Repair Manual
15
888
-
274
-
7744
iQ360XR
Saw Motor Removal
1. Remove the saw motor brush covers
2. Remove the saw motor brushes
3. Remove the saw motor case retaining screws
from the saw arm

www.iqpowertools.com Repair Manual
16
888
-
274
-
7744
iQ360XR
4.
Pull the saw motor cover with the
stator directly out. Beware of the
armature. The armature may remain
attached to the saw support arm

www.iqpowertools.com Repair Manual
17
888
-
274
-
7744
iQ360XR
Saw Motor Stator Disassembly
1. Remove the saw motor end cover retaining
screws
2. Remove the saw motor end cover
3. Disconnect the stator brush connectors from
the brush connectors

www.iqpowertools.com Repair Manual
18
888
-
274
-
7744
iQ360XR
4.
Route the stator conductors through
the saw motor stator case
5.
Remove the stator retaining screws
6.
Remove the stator from the saw motor
case

www.iqpowertools.com Repair Manual
19
888
-
274
-
7744
iQ360XR
7.
Check the saw motor case to ensure the
armature bearing bushing has been removed

www.iqpowertools.com Repair Manual
20
888
-
274
-
7744
iQ360XR
Saw Motor Armature Removal
1. Firmly pull the armature from the support
arm
