Ironwood P800 User manual

Ironwood P800
User Manual
general information. features.
machine controls. machine operation.
tool adjustments. troubleshooting.
electrical print. maintenance.
periodic maintenance. safety.
delivery and installation. inspection.
remove machine from pallet. level.
safety. operation and adjustments.
technical specifications. safety considerations.

2
1.0 General Information…............................................................... 3
1.1 Thank You!
1.2 Before Contacting Stiles
1.3 Features
1.4 Intended Use
1.5 Technical Specifications
1.6 Safety Considerations
2.0 Facility Preparation… ............................................................... 6
2.1 Floor
2.2 Work Space
2.3 Power
3.0 Delivery and Installation … ........................................................... 7
3.1 Receiving Your Machine
3.2 Unpack the Machine
3.3 Inspection
3.4 Move Machine to Final Position
3.5 Remove Machine from Pallet
3.6 Level
3.7 Pre-Operation Cleaning
4.0 Connect to Power…............................................................... 11
5.0 Safety.......................................................................... 12
6.0 Operation and Adjustments ......................................................... 13
6.1 Machine Controls
6.2 Machine Operation
6.3 Tool Adjustments
7.0 Maintenance… ................................................................... 19
7.1 Lubrication
7.2 Inspection
7.3 Periodic Maintenance
8.0 Troubleshooting .................................................................. 20
8.1 Electrical Print
Table of Contents
PLEASE REVIEW AND OBSERVE ALL SAFETY
INFORMATION / DIRECTIVES BEFORE INSTALLING,
OPERATING, OR PERFORMING MAINTENANCE ON
THIS MACHINERY.
Ironwood P800 | User Manual

3
1.0 General Information
1.1 Thank You!
Thank you for your purchase of the Ironwood P800 Pflaner. At Stfifles
Machinery, our goal is to ensure that you are fully satisfied with
your purchase. This manual is provided so that you may properly
assembfle, operate, and mafintafin your P800. Shoufld you need heflp,
our team of dedicated service personnel are available to answer
your questions and provide any resource recommendations you may
need.
Warranty and Support
All Ironwood machines are designed to meet the exacting standards
demanded by craftsmen like you. Ironwood machines include a
one (1) year parts warranty and two (2) years of free 24/7 technical
support beginning at date of shipment. Standard technical support
remains in effect for free for the lifetime of the machine thereafter.
Warranty service work is not covered by manufacturer’s warranty.
Stiles’ service team is available for an additional charge.
1.2 Before Contacting Stiles
Please have your machine model and serial number available when
contacting Stiles Machinery with questions. The machine’s model
and serial number are listed on the metallic plate located on the
machine’s frame.
For specific information regarding the electrical system and
pneumatic supply, please refer to the data that is stamped on the
metallic plate.

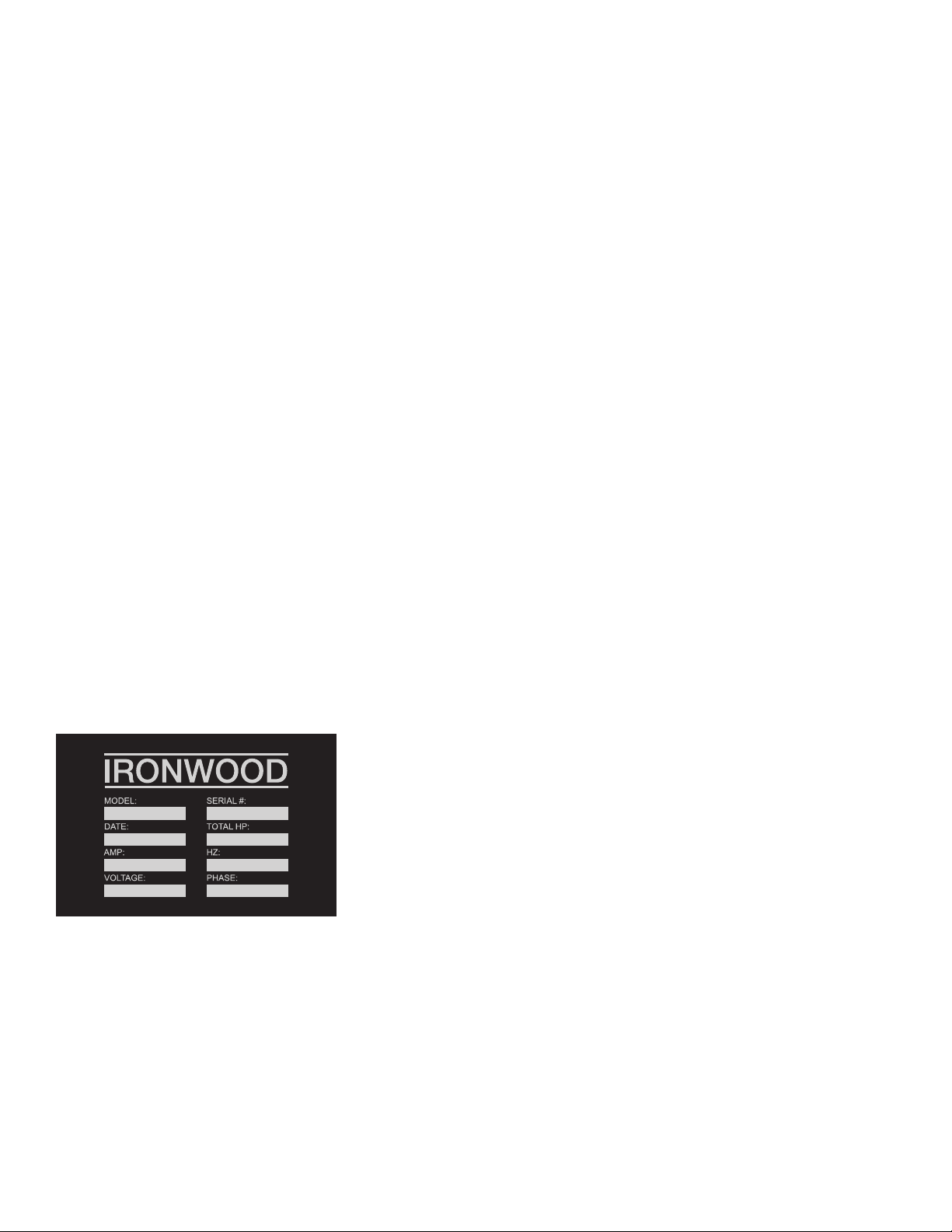

Machine information plate
Stiles Technical Support
616.698.6615
Stiles Parts
800.PARTS.80 (800.727.8780)
Website
www.stfiflesmachfinery.com/fironwood/p800
Machine Model ____________________________________________
Machine Serial Number _____________________________________
1.3 Features
• Iron machine base
• Four heavy-duty jack screws enable precise and vibration-free
performance
• Cast iron table is heat treated and precision ground for rigidity
and stability
• Digital controller has keypad entry for table positioning with
programmability to save 10 programs
• Conveniently located controls
• Segmented infeed roller and pressure shoe ensure positive
contact on workpieces of varying thickness
• Spiral cutterhead has six rows of 16 carbide inserts, providing
high chip-removal rate, superior surface finishing, and reduced
noise levels
• 1/2-hp motor raises and lowers table
• 2-hp feed motor with variable speed controls
• Variable feed speeds from 19-39 feet per minute
• Heavy-duty 15-hp cutterhead motor
• Enclosed micro-adjustment dial for accurate positioning of the
table
• Bed roller for planning of rough or finished lumber or glued
panels adjusts quickly from 0.0-0.5"
1.4 Intended Use
The Ironwood P800 fis desfigned for pflanfing raw stock to achfieve a
desired thickness and/or remove defects. Planing typically follows
jointing (flattening and straightening) in the woodworking process.
Ironwood P800 | User Manual

4

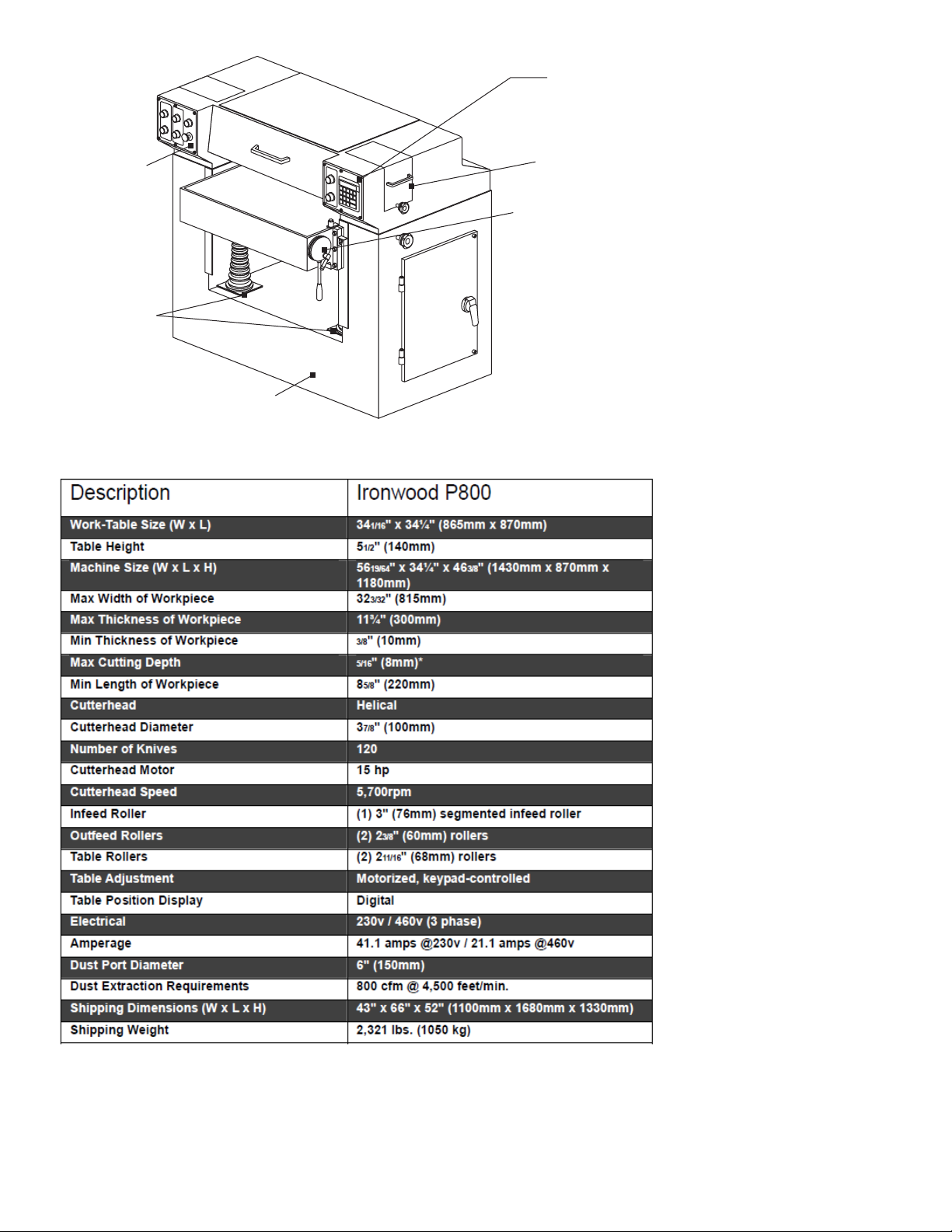

Convenient and
easy-to-use control
panel handles all
control functions
Digital controller
with keypad for
height adjustment
Bed roller
adjustment
Micro adjustment
access door
Solid
iron base
Four heavy
duty jack
screws
1.5 Technical Specifications
* Maximum cutting depth is determined by wood characteristics
Ironwood P800 | User Manual

5
1.6 Safety Considerations
For your safety, read these instructions thoroughly before you install
and operate this machine. Always have these instructions available
at the machine for reference.
Observe all codes and regulations that apply to the installation and
operation of this machine.
Keep visitors at a safe distance from the work space.
Keep children away from this and all machines. Childproof your work
area!
Familiarize yourself with the safety notices used in this manual.
CAUTION
If cautions are ignored, personal injury and/or machine damage
may result.
WARNING
Never use the P800 for purposes other than fits fintended use. Do not
modify or remove any guards or other safety features. Improper use
or modifications may affect your warranty or result in serious injury
or death.
Training
This machine is intended for use by authorized, well-trained
operators only.
Do not operate until you have a complete working knowledge of
the machine and have been properly trained for its safe operation,
correct adjustment, and use. All operators should thoroughly read
and understand this manual and the workings of this machine prior
to operation.
It is essential that all operators be aware of the following:
• The dangers associated with the operation of this machine.
• The use of personal protective equipment for ear and eye
protection.
• The proper positioning of the operator and operator’s hands
relative to the cutterhead.
• The principles of machine operation.
• The safe handling of the workpiece when planing.
• The safe stacking of the workpiece before and after planing.
Ironwood P800 | User Manual

6
2.0 Facility Preparation
Prior to uncrating your machine confirm that your location can
accommodate the Ironwood P800. Foflflow these gufideflfines:
2.1 Floor
• The floor must be flat and level.
• Although no special foundations are required, a concrete floor is
recommended.
• All floors must have a load-bearing strength suitable for the
machfine wefight of approxfimatefly 2,321 pounds (1050 kg).
• If anchoring the machine to the floor, purchase high quality
anchor bolts appropriate to the floor construction and material.
2.2 Work Space
• Provide adequate work space surrounding the machine.
• Provide proper non-glare, overhead lighting.
• Place the machine so that any potential kickback area is not in
line with aisles, doorways, or other work and traffic areas.
• Provide adequate dust extraction system.
The dust extraction system should have a flow of 4,500 feet per
minute at 800 cfm.
Standard machine clearance requirements
48"
(1170mm)
(work area)
48"
48"*
48"*
Machine clearance requirements*
*Actual clearance requirements may vary depending on length of
material to be cut.
2.3 Power
WARNING
A flficensed eflectrficfian must connect the P800 to the bufifldfing power
source.
• Do not use extension cords.
• Be sure that the electrical voltage of the power source is of the
same characteristics as the electrical system supplied with your
machine. If other machine voltage capabilities are required,
contact Stiles Machinery.
P800
Planer Motor 15 HP
Feed Motor 2 HP
Table Lift Motor 1 / 2HP
Power 230v / 460v (3 phase)
Total Required Amperage 41.1 amps / 21.1 amps
• Ensure the machine is protected with an external over-current
protective device per your local electrical codes.
• Electrical equipment operating conditions:
Air temperatures between +41ºF (+5ºC) and +113ºF (+45ºC).
Relative humidity not to exceed 50% at a maximum temperature
of +113ºF (+45ºC).
• Electrical equipment is designed and protected to withstand the
effects of transportation and storage temperatures within a range
of -13ºF (-25ºC) to +131ºF (+55ºC), and for short periods of time
not exceeding 24 hours at up to +158ºF (+70ºC).
• Ensure connection to factory ground system is wired correctly
(according to IAW local electrical codes and NEC) and not
connected to any electromagnetic interference source such as
welders.
Ironwood P800 | User Manual

7
3.0 Delivery and Installation
3.1 Receiving Your Machine
You will be contacted to arrange delivery. Your machine will be
delivered by truck to your location. If there is no loading dock,
be sure that you have informed the carrier in advance so that
they deliver using a truck with a lift gate to lower the machine to
ground level.
Before accepting the machine and signing the bill of lading from the
carrier, please inspect crating and machine condition, note potential
damage on the bill of lading, take pictures of potential damage, and
contact Stiles Machinery immediately at 616.698.7500.
The machine will arrive fully crated and secured to a pallet. Use a
hand truck or fork lift to move the machine on its pallet as close to
its final position as possible.
If you do not intend to install the machine immediately after delivery,
store it in a protected, cool, and dry location.

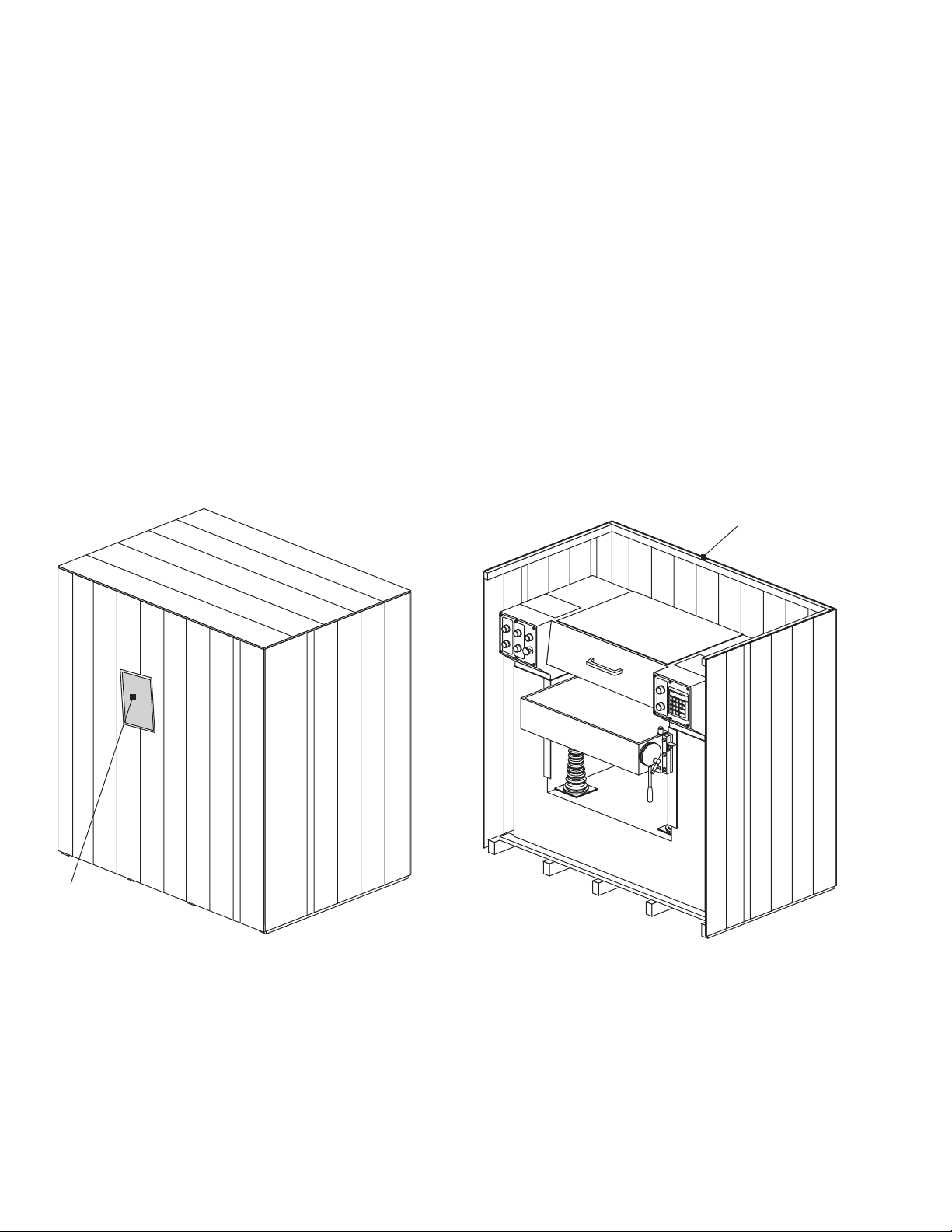

The machine
arrives fully crated.
Remove and save the
paperwork attached to
the outside.
3.2 Unpack the Machine
TOOLS REQUIRED:
• Hammer
• Crowbar
Unpack as follows:
Do not remove the machine from the pallet.
1. Remove and save all paperwork attached to the outside of
the crate.
2. Remove the crating, starting with the top, then remove the four
sides. Use caution to avoid personal injury and prevent damage
to the machine’s finish.
3. Remove the protective plastic from the machine, starting at the
bottom.
Remove the crating,
starting with the top,
then r
emove the four
sides.
4. Remove the plastic sleeve from the side access door handle.
A second access door is located on the opposite side. The
door is locked when the handle is in the vertical position. Turn
the handle to the right to unlock and open the access door.
Ironwood P800 | User Manual

8
5. Check inside the access doors for any hardware or accessories.
Remove the hardware, accessories, and a tool kit that may
be shipped inside the machine. If additional accessories are
ordered, they may be delivered separately.
Remove any parts
that may be stored
inside the machine.
6. Ensure all rotating components turn by hand.
7. Close and lock the side access door.
3.3 Inspection
Save all containers and packing materials until you are satisfied
that your machine has arrived in good condition. If you discover the
machine is damaged after you’ve signed for delivery, immediately
call Stiles Customer Service at 616.698.7500.
When you are completely satisfied with the condition of your
equipment, you should inventory its parts.
Open and check the contents of all containers to ensure all tools,
hardware, and accessories are included. The tool kit should contain
the following items:
1. 3-piece open end wrench set
2. 4mm, 5mm, 6mm and 8mm short handle Allen wrenches
3. 5mm long handle Allen wrench
4. Handle key for locking/unlocking side access doors
5. Two (2) 5mm T-handle Allen wrenches
6. Five (5) extra carbide inserts (30 x 12 x 1.5mm)
7. Five (5) extra gibs for cutterhead
8. Five (5) extra nuts for cutterhead
9. Five (5) extra set screws for cutterhead
10. Four (4) leveling pads
11. Four (4) leveling bolts with nut
12. Touch-up paint (2 color set)
13. User manual
Ironwood P800 | User Manual

9
3.4 Move Machine to Final Position
Be sure the site is properly prepared. Refer to section 2.0 for details.
Be sure the cabinet doors are closed and locked before
transporting.
TOOLS REQUIRED:
• Hand truck or fork lift
Use a hand truck or fork lift to move the machine on its pallet to its
final location. If using a fork lift, make sure fork travel is clear of any
obstacles.
Use a fork lift
or hand truck
to move the
machine
on its pallet.
3.5 Remove Machine from Pallet
CAUTION
The P800 wefighs approxfimatefly 2,321 pounds (1050kg). For thfis
procedure, we recommend using a fork lift.
TOOLS REQUIRED:
• Adjustable wrench
• Machine-door key
When the machine has been placed at its final location, carefully
remove the machine from the pallet.
The machine is
bolted to the pallet
for transport.
Ironwood P800 | User Manual

10

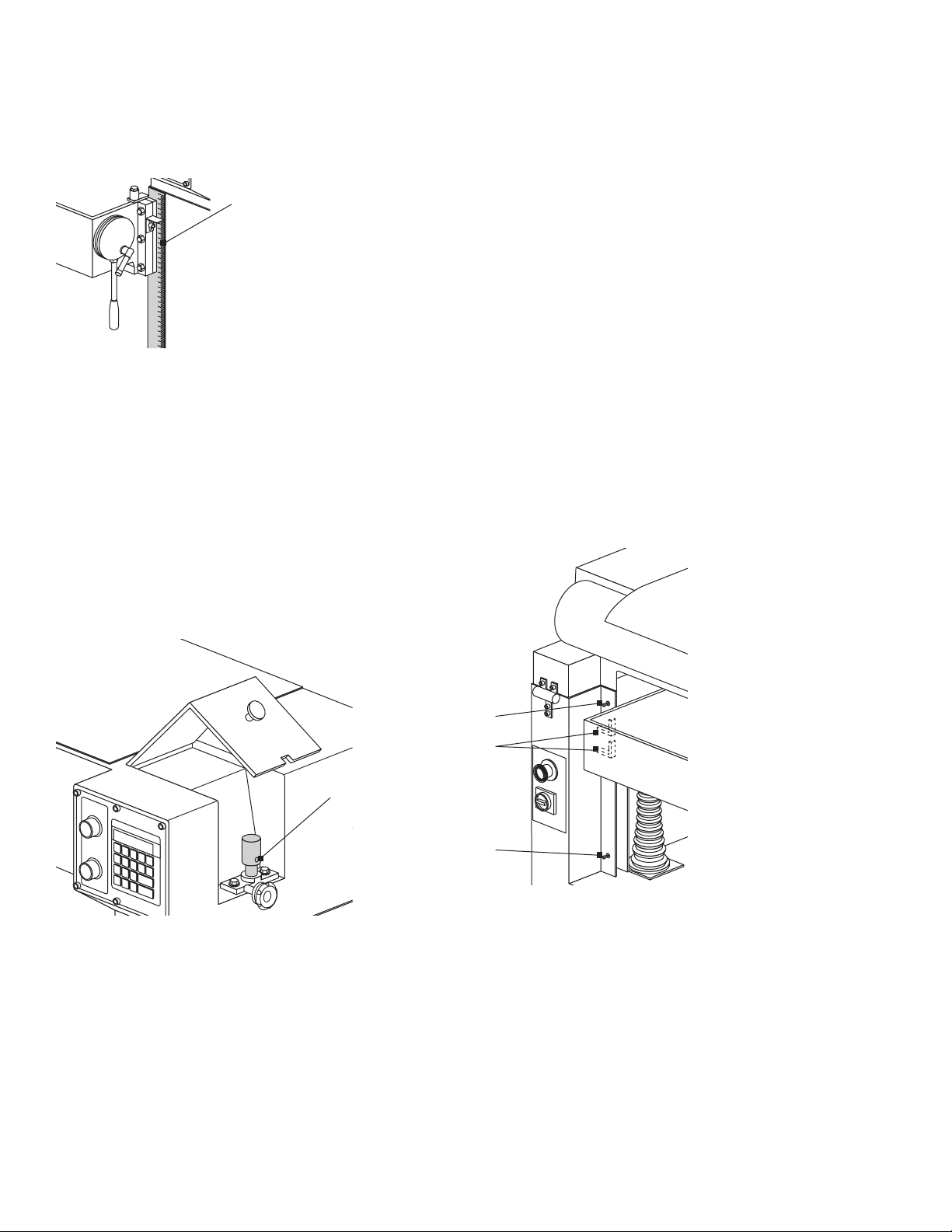

1. From inside the cabinet, remove the four bolts that secure the
machine to the pallet at the interior corners.
2. Lift the machine from the pallet by one of 2 methods:
a. Slide machine onto forks of fork lift.
b. With a fork lift or crane, use a hoist hook and lift strap
secured to the hooks on the side of the machine to move
and place the machine.
3. Carefully slide or set the machine into final position.
Straps for placing
machine is pr
oper
position
3.6 Level
TOOLS REQUIRED:
• Bubble Level
• Adjustable wrench
Use a bubble level along the length and width of the tabletop surface
to check for level. Use an adjustable wrench to adjust leveling bolts
to level the machine.
If vibration moves the machine from its position during operation,
mount the machine to the floor. Purchase high quality anchor
bolts appropriate to the floor construction, and anchor through
the mounting holes on the base. After anchoring the machine to
the floor, recheck the machine to make sure it is level and adjust
anchors and leveling bolts if necessary.
Be sure to level
the machine.
3.7 Pre-Operation Cleaning
WARNING
Use proper cleaning agents and methods described below. Do not
use gasoline or other petroleum-based solvents. There is a risk of
explosion and burning if these products are used. Serious personal
injury may occur.
Machine Tabletop Surface
Remove and discard any projective materials from the top of the
machine. Remove the rust-preventative oil that coats the machine
using a soft cloth and nonflammable degreasing agent, such as
Simple Green or other citrus-based cleaners. Do not use abrasive
pads.
Table Rollers, Feed Rollers, and Cutterhead
CAUTION
Use extreme care when cleaning or working with the cutterhead.
The knives are very sharp.
Ironwood P800 | User Manual
