Irradiant SRM-6072 User manual

SRM-6072
WELCOME TO READ
1

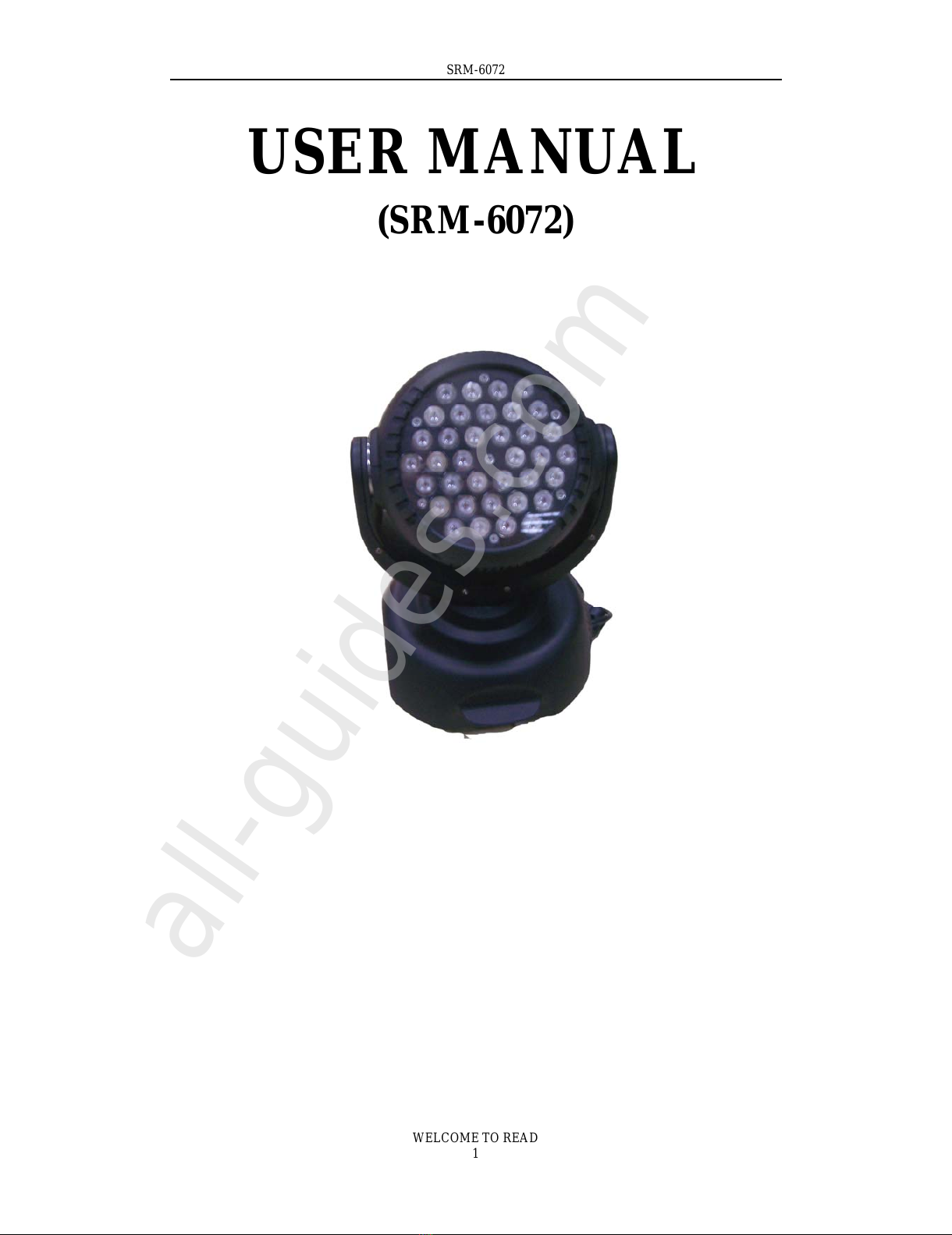

USER MANUAL
(SRM-6072)
All manuals and user guides at all-guides.com
all-guides.com

SRM-6072
WELCOME TO READ
2
TABLE OF CONTENTS
1.INTRODUCTION--------------------------------------------------------------------------------------------3
MAIN FEATURES--------------------------------------------------------------------------------------------------------------3
UNPACKING--------------------------------------------------------------------------------------------------------------------3
2.SAFTY WARNING------------------------------------------------------------------------------------------3
3. PANEL REVIEW--------------------------------------------------------------------------------------------4
4.INSTALLATION AND SETTING-------------------------------------------------------------------------4
5.OPERATION -------------------------------------------------------------------------------------------------5
6.MAINTENANCE ------------------------------------------------------------------------------------------10
TROUBLESHOOTING-------------------------------------------------------------------------------------------------------10
CLEANING-------------------------------------------------------------------------------------------------------------------11
7.TECHNICAL SPECIFICATION--------------------------------------------------------------------------11
8.APPENDIX--------------------------------------------------------------------------------------------------11
All manuals and user guides at all-guides.com

SRM-6072
WELCOME TO READ
3
INTRODUCTION
Thanks for your purchase of our product, mini led moving-head fixture. It can works under auto
mode and sound -active mode with 16 built-in programs. The product has a long lifespan and low
power consumption. It is exquisite and applicable for all kinds of entertaining occasions. Before
you begin, please read instructions carefully. If you meet with any problem, please contact with
your distributor nearby.
MAIN FEATURES
■DMX-512 control, 11 channels
■DMX, AUTO, SOUND-ACTIVE mode
■RGB control with 255 grades
■RGB total dimmer is 0~100%
■Shutter speed is 10/sec ~1/10secs
■36X1W LED
■PAN scan angle 0~5400
■Tilt scan angle 0~2300
UNPACKING
★SRM-6072 MINI LED FIXTURE
★USER MANUAL
SAFETY WARNING
For your convenient and accurate operation, please read following information carefully.
◆Suitable for indoor use only.
◆Put it in a dry, well -ventilated place in case of short cut caused by erosion of moisture and rain.
◆Do not install it nearby hot sources in case that rising temperature of lamp damages itself.
◆Do not barrier vent in order to ventilate well and dissipate in time.
◆Connect the fixture with power source, which has a ground line, and voltage of power source
should accord with rating voltage.
◆If fuse was damaged, change the same type.
◆You can only choose accessories the manufacturer provides when need repairing.
◆Ambient temperature of the lamp should not exceed 40℃
◆If any problem, contact with professional technicians working in our after-sales service
department.
All manuals and user guides at all-guides.com

SRM-6072
WELCOME TO READ
4

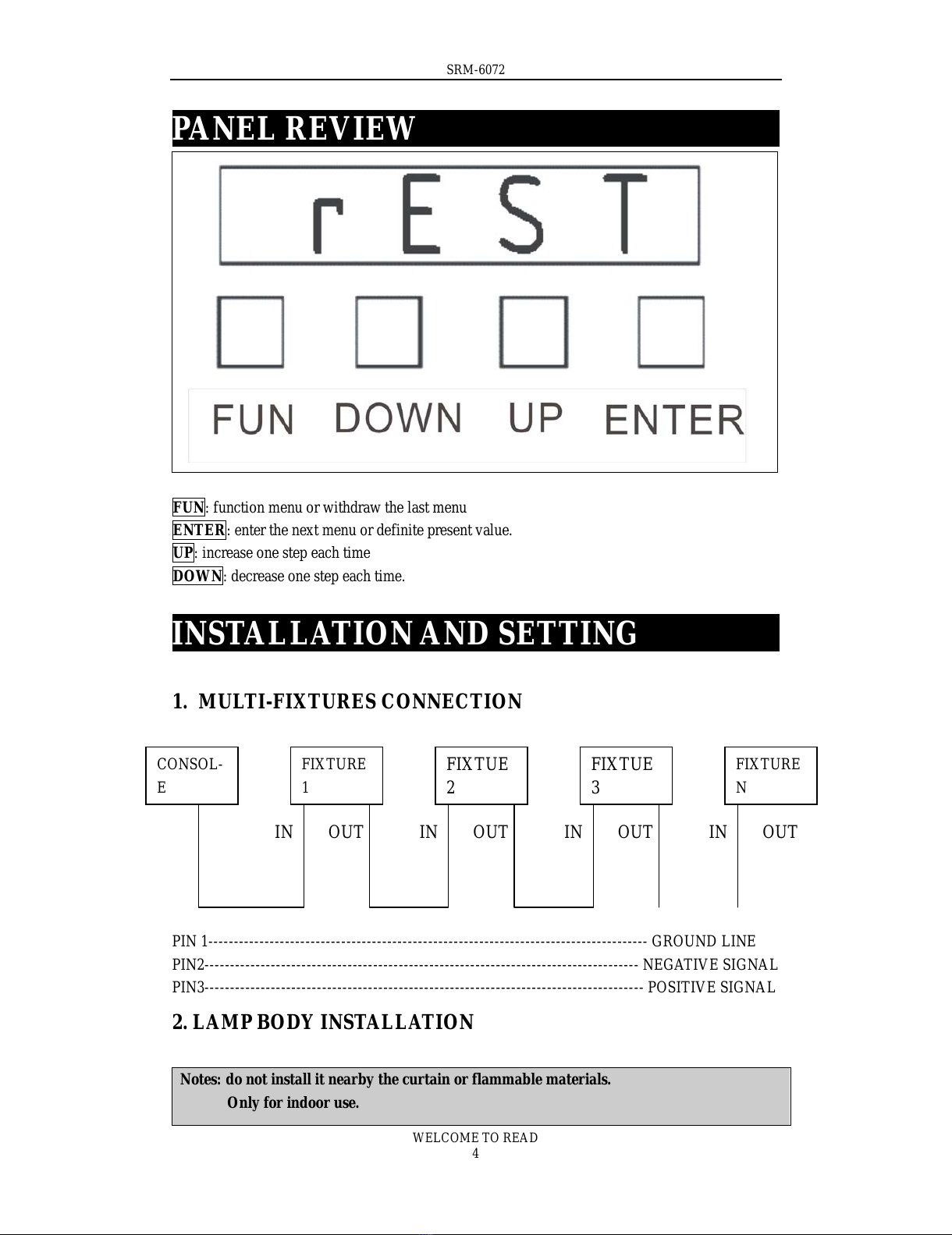

PANELREVIEW
FUN: function menu or withdraw the last menu
ENTER: enter the next menu or definite present value.
UP: increase one step each time
DOWN: decrease one step each time.
INSTALLATION AND SETTING
1. MULTI-FIXTURES CONNECTION
PIN 1-------------------------------------------------------------------------------------- GROUND LINE
PIN2------------------------------------------------------------------------------------- NEGATIVE SIGNAL
PIN3-------------------------------------------------------------------------------------- POSITIVE SIGNAL
2. LAMP BODY INSTALLATION
Notes: do not install it nearby the curtain or flammable materials.
Only for indoor use.
CONSOL-
E
FIXTURE
1 FIXTUE
2 FIXTUE 3 FIXTURE
N
IN OUT IN OUT IN OUT IN OUT
All manuals and user guides at all-guides.com

SRM-6072
WELCOME TO READ
5

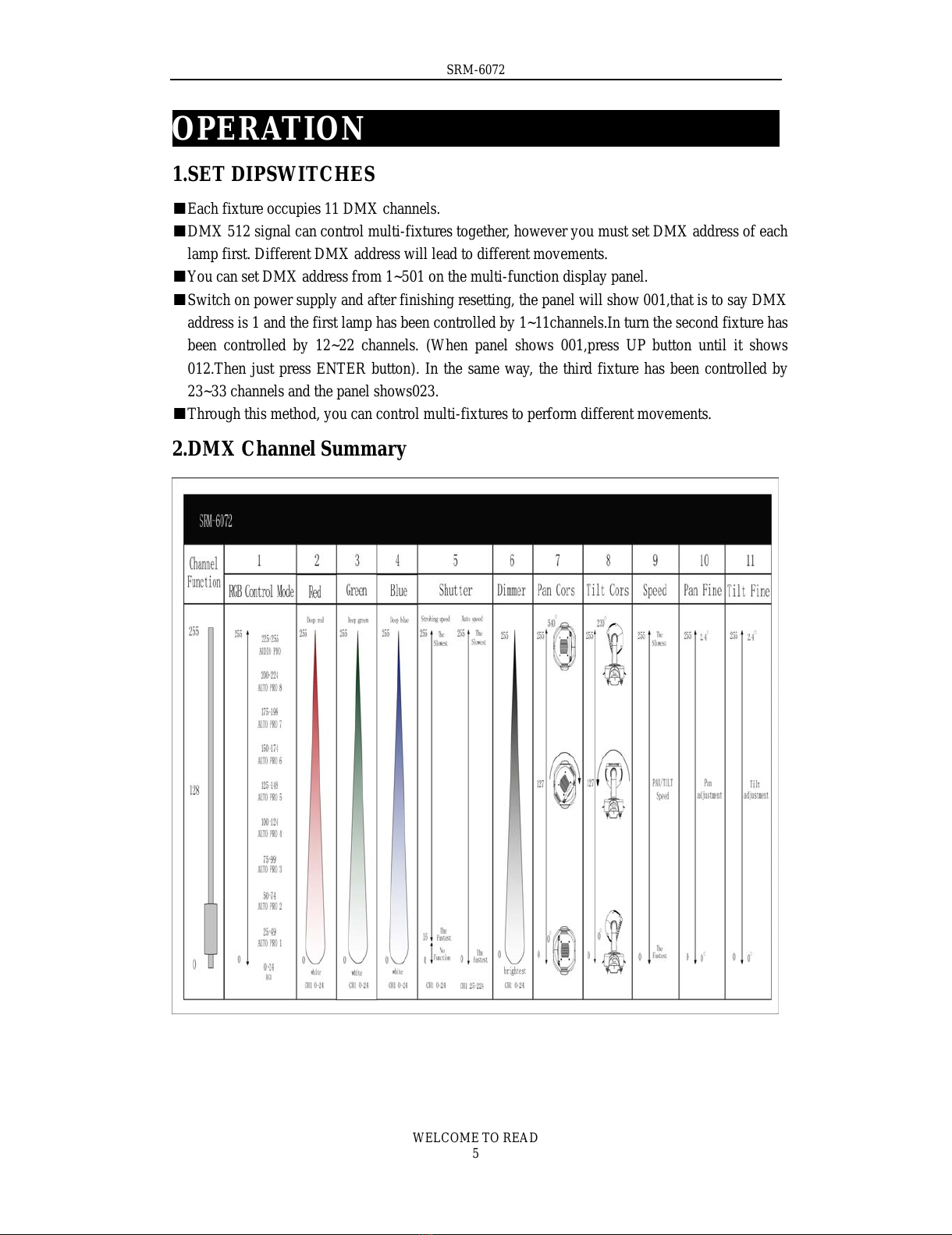

OPERATION
1.SET DIPSWITCHES
■Each fixture occupies 11 DMX channels.
■DMX 512 signal can control multi-fixtures together, however you must set DMX address of each
lamp first. Different DMX address will lead to different movements.
■You can set DMX address from 1~501 on the multi-function display panel.
■Switch on power supply and after finishing resetting, the panel will show 001,that is to say DMX
address is 1 and the first lamp has been controlled by 1~11channels.In turn the second fixture has
been controlled by 12~22 channels. (When panel shows 001,press UP button until it shows
012.Then just press ENTER button). In the same way, the third fixture has been controlled by
23~33 channels and the panel shows023.
■Through this method, you can control multi-fixtures to perform different movements.
2.DMX Channel Summary
All manuals and user guides at all-guides.com

SRM-6072
WELCOME TO READ
6
3. CHANNEL FUNTIONS
DISPLAY FUNCTION
VALUE 001-501 DMX address (16BT is on, the max value is 501.
M-DM DMX mode
M-AU AUTO mode
MODE
M-SO SOUND mode
PRCO PR1~8 8 built-in programs
Pr1-4 means skip
Pr5-8 means fade
SPCO SP01~15 Auto speed is 0.1~10 seconds each step
STND Run clockwise as DMX value increasesr PAN
REV Run anticlockwise as DMX value decreases
STND Run clockwise as DMX data increaseR TILT
REV Run anticlockwise as DMX data decreases
STND CH7: PAN, CH8: TILE, CH10: PAN FINE, CH11: TILT FINE.r-PT
REV CH7: PAN, CH8: TILT, CH10: PAN FINE, CH11: TILT FINE.
ALL Check all channels with motors
PAN Check pan channels
TITL Check tilt channels
RED Check red channels
GREEN Check green channels
TEST
BLUE Check blue channels
STND Display bites normallyDISP
REV Display bytes upside down
REST REST/ON Reset
ON PAN, TILT is 16 bit, CH10: PAN FINE, CH11: TILT FINE.
16BT OFF PAN, TILT is 8 bit. CH10, CH11 does not exist.
All manuals and user guides at all-guides.com
all-guides.com

SRM-6072
WELCOME TO READ
7
4. ABOUT EACH CHANNEL
■ Channel 1:DMX MODE
Ch DMX Function CH2 CH3 CH4 CH5 CH6
0~24 RGB Red
0~255
Green
0~255
Blue
0~255
Shutter
0~255
Dimmer
0~255
25~49 Built-in program 1
50~74 Built-in program 2
75~99 Built-in program 3
100~124 Built-in program 4
125~149 Built-in program 5
150~174 Built-in program 6
175~199 Built-in program 7
200~224 Built-in program 8
Auto
speed
CH1
225~255 Sound-active
program
No
function
No
function
No
function
No
function
No
function
■Channel 2: RED
When CH1 is 0~24
DMXvalue red
255 carmine
00
■Channel 3：GREEN
When CH1 is 0~24
DMXvalue green
255 bottlegreen
0 0
All manuals and user guides at all-guides.com

SRM-6072
WELCOME TO READ
8
■Channel 4:Blue
When CH1 is 0~24
DMXvalue blue
255 navyblue
0 0
■Channel 5：Strobe
When CH1 is 0~24
DMXvalue strobespeed
255 slowest
16 fastest
15 nostrobe
0 nostrobe
Notes: CH2~4 decides brightness. When CH2, CH3, CH4 is 0, there is no brightness.
When CH1 is 25~224:
DMX value AUTO speed
255 slowest
0 fastest
All manuals and user guides at all-guides.com

SRM-6072
WELCOME TO READ
9
■Channel 6：RGB Dimming
When CH1is 0~24:
DMX value RGB brightness
255 0
0 brightest
■Channel 7: PAN（540°）
NO. DMX value Effect
1 0 Leftmost
2 127 Medium
3 255 Rightmost
■Channel 8: TILT（230°）
NO. DMX value Effect
1 0 Bottommost
2 127 Medium
3 255 Topmost
■Channel 9：PAN or TILT SPEED
■Channel 10 : PAN FINE (2.4°)
■ Channel 11:TILT FINE (2.4°)
Notes: When 16 BT is on, CH10, CH11 exists; otherwise they do not exist.
All manuals and user guides at all-guides.com

SRM-6072
WELCOME TO READ
10

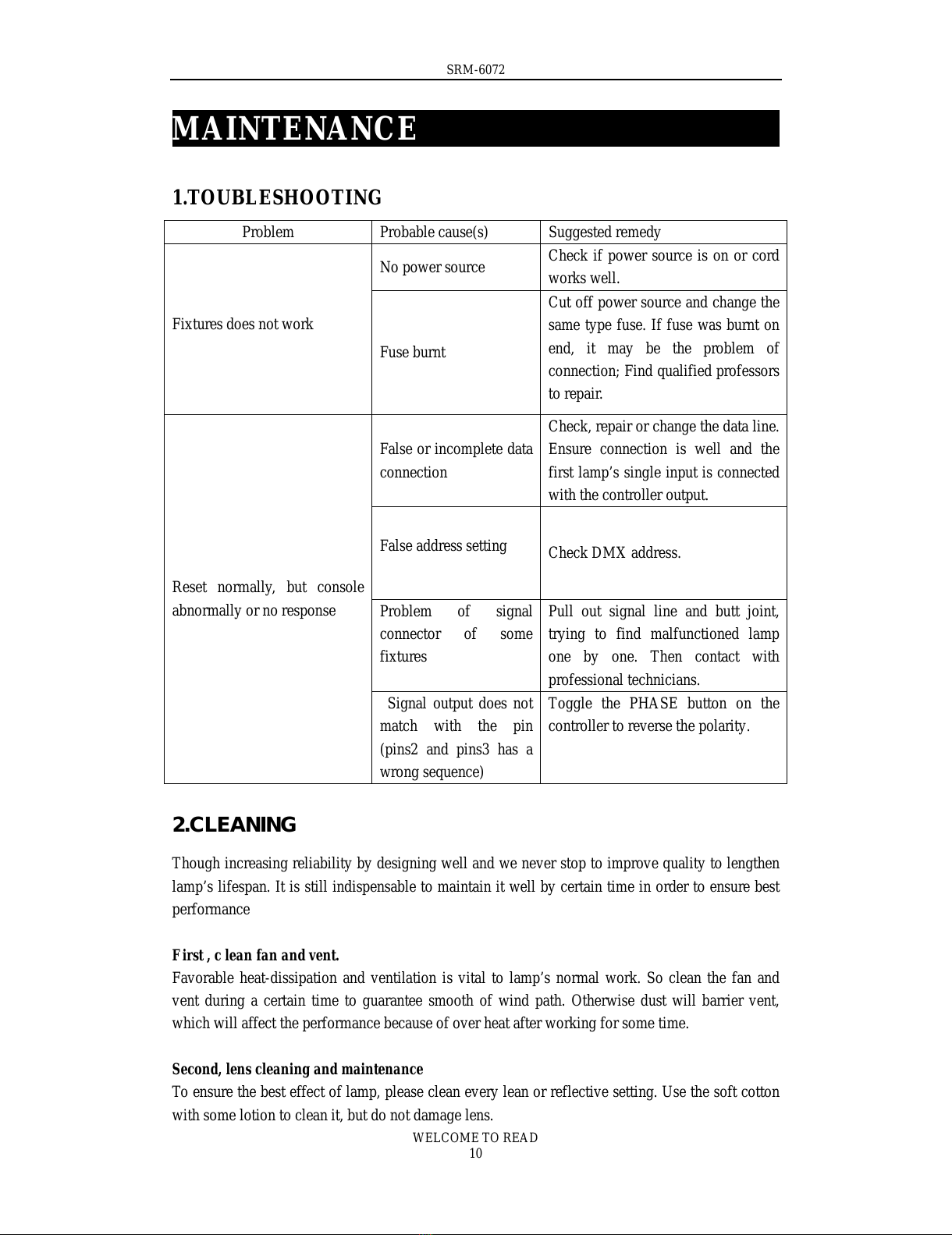

MAINTENANCE
1.TOUBLESHOOTING
Problem Probable cause(s) Suggested remedy
No power source Check if power source is on or cord
works well.
Fixtures does not work
Fuse burnt
Cut off power source and change the
same type fuse. If fuse was burnt on
end, it may be the problem of
connection; Find qualified professors
to repair.
False or incomplete data
connection
Check, repair or change the data line.
Ensure connection is well and the
first lamp’s single input is connected
with the controller output.
False address setting Check DMX address.
Problem of signal
connector of some
fixtures
Pull out signal line and butt joint,
trying to find malfunctioned lamp
one by one. Then contact with
professional technicians.
Reset normally, but console
abnormally or no response
Signal output does not
match with the pin
(pins2 and pins3 has a
wrong sequence)
Toggle the PHASE button on the
controller to reverse the polarity.
2.CLEANING
Though increasing reliability by designing well and we never stop to improve quality to lengthen
lamp’s lifespan. It is still indispensable to maintain it well by certain time in order to ensure best
performance
First , c lean fan and vent.
Favorable heat-dissipation and ventilation is vital to lamp’s normal work. So clean the fan and
vent during a certain time to guarantee smooth of wind path. Otherwise dust will barrier vent,
which will affect the performance because of over heat after working for some time.
Second, lens cleaning and maintenance
To ensure the best effect of lamp, please clean every lean or reflective setting. Use the soft cotton
with some lotion to clean it, but do not damage lens.
All manuals and user guides at all-guides.com

SRM-6072
WELCOME TO READ
11
Third, check line during a certain time.
Check connecting line, wiring and ground line to ensure safety of using lamp during a certain
time.
Forth, mechanical transmission part maintenance.
Check mechanical transmission part if it has any loose part during a certain time, such as a strap.
Abrasion of mechanical transmission part will affect stability of lamp work. If strap is loose, you
should change it if needed.
TENICALSPECIFICATION
Type--------------------------------------------------------------SRM-6072 MINI LED MOVING-HEAD
LED Number& Voltage------------------------------------------------------------------------- 36X1W LED
Power-------------------------------------------------------------------------------------------------------160W
Voltage------------------------------------------------------------------------------------------------------220V
Electrical current---------------------------------------------------------------------------------------0.7 2 6 A
Total lumens------------------------------------------------------------------------------------------528.15 1m
Max light intensity---------------------------------------------------------------------------------6645.76 c d
Lamp efficiency--------------------------------------------------------------------------------------3.83 1n/w
Beam angle-----------------------------------------------------------------------------------------------------90
Dimension---------------------------------------------------------------------------------------250X220X376
Weight------------------------------------------------------------------------------------------------------- 7KG
APPENDIX
Color Total output (Lumens) Efficiency Color index
Red 465 5 21
Green 528 4 -12
Blue 788 5 -50
