iseeBell WF100 Operating and safety instructions

SETUP &
INSTALLATION
GUIDE
VIDEO DOORBELL
Thanks for helping to make you and your family safer.
Enjoy your iseeBell Video Doorbell
2018031800002AN

Welcome!
Thanks for choosing iseeBell product.
If you need extra help, iseeBell Support Team is available 24/7.
And you can access our online resources anytime at: support.iseebell.com
Contact iseeBell Support Team directly at :
[email protected]
Back
Setup Button
Security Screw
2
1
4
3
Screw Connector
Power terminals
（AC/DC9-24V/1A)
Unlock terminals
PIR Motion
Sensor
Speaker
Microphone
Ultra wide-angle
HD Camera
Photosensor
Call Button
Front Wall Bracket
Level
Corner hole
Wiring holes
VIDEO DOORBELL
Meet the front and back of your iseeBell

Welcome!
Thanks for choosing iseeBell product.
If you need extra help, iseeBell Support Team is available 24/7.
And you can access our online resources anytime at: support.iseebell.com
Contact iseeBell Support Team directly at :
[email protected]
Back
Setup Button
Security Screw
2
1
4
3
Screw Connector
Power terminals
（AC/DC9-24V/1A)
Unlock terminals
PIR Motion
Sensor
Speaker
Microphone
Ultra wide-angle
HD Camera
Photosensor
Call Button
Front Wall Bracket
Level
Corner hole
Wiring holes
VIDEO DOORBELL
Meet the front and back of your iseeBell

VIDEO DOORBELL
What’s in the box
Quick start guide
Wall bracket
Indoor Chime
Wi-Fi Video Doorbell
AC power adapter
AC wall adapter
Wedge bracket
Tool kit
Before you start
• Set it up indoors before mounting it outside.
• If you’re installing on concrete, brick, or stucco surface,
get a power drill ready.
• Do not install iseeBell on a metal surface as it may
block and/or weaken the Wi-Fi signal.
• IseeBell works well with standard U.S. doorbell wires.
And make sure to complete the Step 6 in this manual.
•If you don’t have existing wires or you want to use
iseeBell as an indoor security cam, we’ve included an
AC power adapter (input 100-240V) in the box.
•You can still choose to run new wires, as long as the
operation output voltage to iseeBell is 9-24V AC/DC.
• IseeBell Video doorbell supports 2.4 Ghz Wi-Fi network
only. Please switch your mobile device accordingly if it
connects to a 5Ghz network.
• Move your router close to your iseeBell if your Wi-Fi
signal is week, or invest in a Wi-Fi extender.
IOS 8.0 or above Android 4.4.0 or above
iseeBell only supports 2.4Ghz Wi-Fi network.
If you are connecting to a 5Ghz network,
switch it to a 2.4Ghz instead.
Step 2 Power it up indoors first
• Connect the wires of the power adaptor to the power terminals
on the back of iseeBell Video Doorbell. It doesn’t matter which
wire connects to which screw.
• Plug the power adaptor to a wall outlet (100-240V).
• The front Call button lights up.
VIDEO DOORBELL SETUP
Step1 Download the iseeBell App
Download the iseeBell app from the App Store or Google Play .
Open the app and tap “CREATE ACCOUNT” to create an account.
CTM

VIDEO DOORBELL
What’s in the box
Quick start guide
Wall bracket
Indoor Chime
Wi-Fi Video Doorbell
AC power adapter
AC wall adapter
Wedge bracket
Tool kit
Before you start
• Set it up indoors before mounting it outside.
• If you’re installing on concrete, brick, or stucco surface,
get a power drill ready.
• Do not install iseeBell on a metal surface as it may
block and/or weaken the Wi-Fi signal.
• IseeBell works well with standard U.S. doorbell wires.
And make sure to complete the Step 6 in this manual.
•If you don’t have existing wires or you want to use
iseeBell as an indoor security cam, we’ve included an
AC power adapter (input 100-240V) in the box.
•You can still choose to run new wires, as long as the
operation output voltage to iseeBell is 9-24V AC/DC.
• IseeBell Video doorbell supports 2.4 Ghz Wi-Fi network
only. Please switch your mobile device accordingly if it
connects to a 5Ghz network.
• Move your router close to your iseeBell if your Wi-Fi
signal is week, or invest in a Wi-Fi extender.
IOS 8.0 or above Android 4.4.0 or above
iseeBell only supports 2.4Ghz Wi-Fi network.
If you are connecting to a 5Ghz network,
switch it to a 2.4Ghz instead.
Step 2 Power it up indoors first
• Connect the wires of the power adaptor to the power terminals
on the back of iseeBell Video Doorbell. It doesn’t matter which
wire connects to which screw.
• Plug the power adaptor to a wall outlet (100-240V).
• The front Call button lights up.
VIDEO DOORBELL SETUP
Step1 Download the iseeBell App
Download the iseeBell app from the App Store or Google Play .
Open the app and tap “CREATE ACCOUNT” to create an account.
CTM

VIDEO DOORBELL SETUP
Step 3 Perform the in-app setup
• Log in to the iseeBell App.
• Select the plus sign to set up a new device. You will need
your Wi-Fi network name and password.
• As much as is possible, try to perform the setup near your
router.
• It may take a little while for iseeBell to upgrade to its latest
firmware version. Power cycle the device and try again if
setup fails multiple times.
Step 4 Run a test and set up the iseeBell Indoor Chime
VIDEO DOORBELL INSTALLATION
Step 5 Remove Your Existing Doorbell
• If you’re replacing a wired doorbell, turn off the power at the breaker first.
• Remove doorbell from the wall.
• Disconnect the wires.
• Plug in the Indoor Chime.
• After setup, run a test by touching the front button on your iseeBell
doorbell indoors near your router to view video.
• Then test the doorbell outside.
• If the outside doorbell video quality is not as good as the indoors, you
may need to move your router closer to the door, or buy a Wi-Fi extender.
It is a good time to pair the Indoor Chime with your
Video Doorbell while it is still indoors (refer to the
Indoor Chime Setup Guide).
Step 6 Jumper connect your mechanical chime
• Locate your old mechanical chime inside of your house.
Normally, it’s a white box on a wall.
• Take off the cover of your mechanical chime.
• Use the Jumper Wire provided to connect to “front” and ”trans” screws.
• Put the cover back.
This step is required if you have a mechanical chime.
For more info, go to support.iseebell.com and search “jumper”.

VIDEO DOORBELL SETUP
Step 3 Perform the in-app setup
• Log in to the iseeBell App.
• Select the plus sign to set up a new device. You will need
your Wi-Fi network name and password.
• As much as is possible, try to perform the setup near your
router.
• It may take a little while for iseeBell to upgrade to its latest
firmware version. Power cycle the device and try again if
setup fails multiple times.
Step 4 Run a test and set up the iseeBell Indoor Chime
VIDEO DOORBELL INSTALLATION
Step 5 Remove Your Existing Doorbell
• If you’re replacing a wired doorbell, turn off the power at the breaker first.
• Remove doorbell from the wall.
• Disconnect the wires.
• Plug in the Indoor Chime.
• After setup, run a test by touching the front button on your iseeBell
doorbell indoors near your router to view video.
• Then test the doorbell outside.
• If the outside doorbell video quality is not as good as the indoors, you
may need to move your router closer to the door, or buy a Wi-Fi extender.
It is a good time to pair the Indoor Chime with your
Video Doorbell while it is still indoors (refer to the
Indoor Chime Setup Guide).
Step 6 Jumper connect your mechanical chime
• Locate your old mechanical chime inside of your house.
Normally, it’s a white box on a wall.
• Take off the cover of your mechanical chime.
• Use the Jumper Wire provided to connect to “front” and ”trans” screws.
• Put the cover back.
This step is required if you have a mechanical chime.
For more info, go to support.iseebell.com and search “jumper”.

VIDEO DOORBELL INSTALLATION
Step 8 Install Wedge Bracket (Optional)
In a Wedge bracket, you will find:
two short screws
two long screws
Wedge bracket
Long screw
Long screw
short screw
short screw
Step 7 Install Wall Bracket
VIDEO DOORBELL INSTALLATION
• First, pierce the rubber of the wall bracket through
wiring holes using your doorbell wires.
• Use the bracket and the small level as a template to
position.
• Mark the four corner holes.
• On stucco, brick, or concrete install the anchors using
a power drill and the drill bit provided.
• Drive the screws into the anchors, or directly into your
wall until they are flush with the Wall bracket, and
the bracket is flat against your wall.
• On wood or siding, you can screw directly into your wall.
• Use the Phillips-head end of the iseeBell screwdriver to
screw in your Wall bracket.
Step 9 Connect wires to iseeBell
• Connect wires to the power termnials on the back of iseeBell in
any order.
Your new wiring must be connected to a power supply voltage
of 9-24 V AC/DC, 1 Amp if you don’t have existing doorbell wires.

VIDEO DOORBELL INSTALLATION
Step 8 Install Wedge Bracket (Optional)
In a Wedge bracket, you will find:
two short screws
two long screws
Wedge bracket
Long screw
Long screw
short screw
short screw
Step 7 Install Wall Bracket
VIDEO DOORBELL INSTALLATION
• First, pierce the rubber of the wall bracket through
wiring holes using your doorbell wires.
• Use the bracket and the small level as a template to
position.
• Mark the four corner holes.
• On stucco, brick, or concrete install the anchors using
a power drill and the drill bit provided.
• Drive the screws into the anchors, or directly into your
wall until they are flush with the Wall bracket, and
the bracket is flat against your wall.
• On wood or siding, you can screw directly into your wall.
• Use the Phillips-head end of the iseeBell screwdriver to
screw in your Wall bracket.
Step 9 Connect wires to iseeBell
• Connect wires to the power termnials on the back of iseeBell in
any order.
Your new wiring must be connected to a power supply voltage
of 9-24 V AC/DC, 1 Amp if you don’t have existing doorbell wires.

VIDEO DOORBELL INSTALLATION
Connect wires to iseeBell (continued)
• If you cannot connect the wires to the screws directly, use
the accessories we provided.
• Connect the extra wire with the fork end to one power terminal.
• Hold the extra wire and your doorbell wire ends together, cap
them with a wire nut and twist clockwise unitl secure. Do the
same with the other power terminal.
the exposed wire
should be straight.
3/8’’
Black:
Extra Wire
(fork end)
VIDEO DOORBELL INSTALLATION
Step 10 Attach your doorbell to the bracket
• Line up the holes in your iseeBell Doorbell with the slots on
the bracket.
• Push firmly towards the wall.
Step 11 Secure Your iseeBell Doorbell
• Use the star-shaped end of your iseeBell screwdriver
to tighten the security screws on the bottom of your
iseeBell Doorbell.
• Then restore power at the breaker.
Extra Wire
Doorbell wall wires

VIDEO DOORBELL INSTALLATION
Connect wires to iseeBell (continued)
• If you cannot connect the wires to the screws directly, use
the accessories we provided.
• Connect the extra wire with the fork end to one power terminal.
• Hold the extra wire and your doorbell wire ends together, cap
them with a wire nut and twist clockwise unitl secure. Do the
same with the other power terminal.
the exposed wire
should be straight.
3/8’’
Black:
Extra Wire
(fork end)
VIDEO DOORBELL INSTALLATION
Step 10 Attach your doorbell to the bracket
• Line up the holes in your iseeBell Doorbell with the slots on
the bracket.
• Push firmly towards the wall.
Step 11 Secure Your iseeBell Doorbell
• Use the star-shaped end of your iseeBell screwdriver
to tighten the security screws on the bottom of your
iseeBell Doorbell.
• Then restore power at the breaker.
Extra Wire
Doorbell wall wires

Step 12 Connect iseeBell to your lock (optional)
VIDEO DOORBELL
If you need to connect your lock to iseeBell Doorbell, follow the
wiring diagram and connect required wires to Lock terminal screws.
or
VIDEO DOORBELL

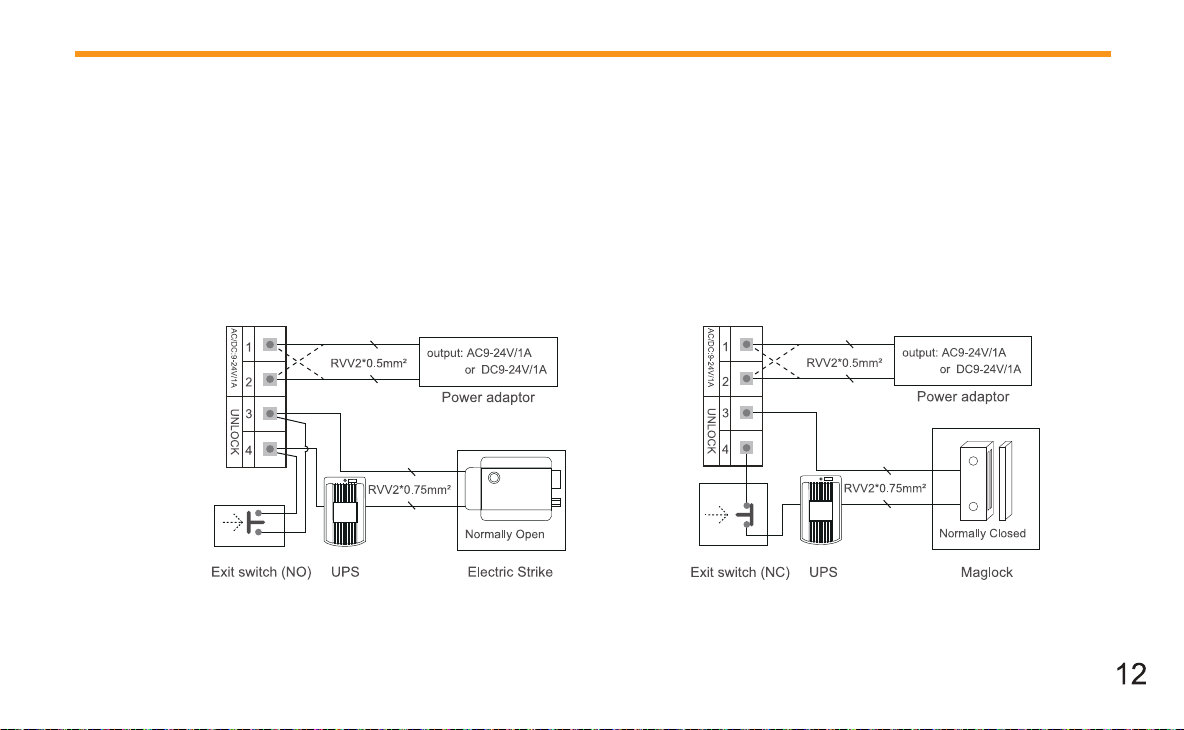

a. Normally Open (NO), e.g. Electric Strike b. Normally Closed (NC), e.g. Magnetic Lock
Access Control System Wiring Diagram

Step 12 Connect iseeBell to your lock (optional)
VIDEO DOORBELL
If you need to connect your lock to iseeBell Doorbell, follow the
wiring diagram and connect required wires to Lock terminal screws.
or
VIDEO DOORBELL
a. Normally Open (NO), e.g. Electric Strike b. Normally Closed (NC), e.g. Magnetic Lock
Access Control System Wiring Diagram

SETUP &
INSTALLATION
GUIDE
VIDEO DOORBELL
Thanks for helping to make you and your family safer.
Enjoy your iseeBell Video Doorbell
2018031800002AN
