ISIC DuraPANEL 8 User manual

User Manual
DuraPANEL 8

Disclaimer
ISIC A/S makes no representation or warranties with respect to the contents or use of this
manual, and specifically disclaims any express or implied warranties of merchantability or
fitness for any particular purpose. Further, ISIC A/S reserves the right to revise this
publication and to make changes to its content at any time, without obligation to notify any
person or entity of such revisions or changes.
Image sticking: If the monitor is operated with static images (logo’s etc) it will inevitably
lead to images sticking on the display (like on old CRT’s).
FCC Warning
Computing devices and peripherals generate and radiate radio frequency energy, and if not
installed and used in accordance with the instructions advised by ISIC A/S, it may cause
interference to radio communication.
The DuraPANEL 8 manufactured by ISIC A/S, is designed to comply with the emerging generic
EEC standards, that cover applications in maritime environment.
ISIC A/S is complying with the WEEE directive within the European Union, stating that
electronic and electric products must be collected separately.
Products are marked according to the directive.
Copyright 2018 ISIC A/S
ISIC A/S
Edwin Rahrsvej 54
DK-8220 Brabrand
Denmark
Phone: [phone]
Fax: [phone]
Web: http://www.isic-systems.com

Table of Contents
1FEATURES ............................................................................................................. 4
2GENERAL CONSIDERATIONS ON INSTALLATION AND OPERATION ....................... 5
3DURAPANEL CONNECTIONS .................................................................................. 6
4CONNECTOR PIN-OUT ........................................................................................... 6
5TECHNICAL SPECIFICATIONS DURAPANEL 8 ........................................................ 7
6MECHANICAL OUTLINE DURAPANEL 8 .................................................................. 8
7BACKLIGHT, COLOR … ETC SETTINGS ................................................................... 9
8POWER CONSUMPTION ......................................................................................... 9
9IN RUSH CURRENT ................................................................................................ 9
10 TROUBLESHOOTING.............................................................................................. 9
11 SERVICING THE UNIT ........................................................................................... 9
12 ISIC INFO / SUPPORT......................................................................................... 10
13 REVISION HISTORY ............................................................................................ 11
14 APPENDIX A: PIXEL POLICY................................................................................ 12

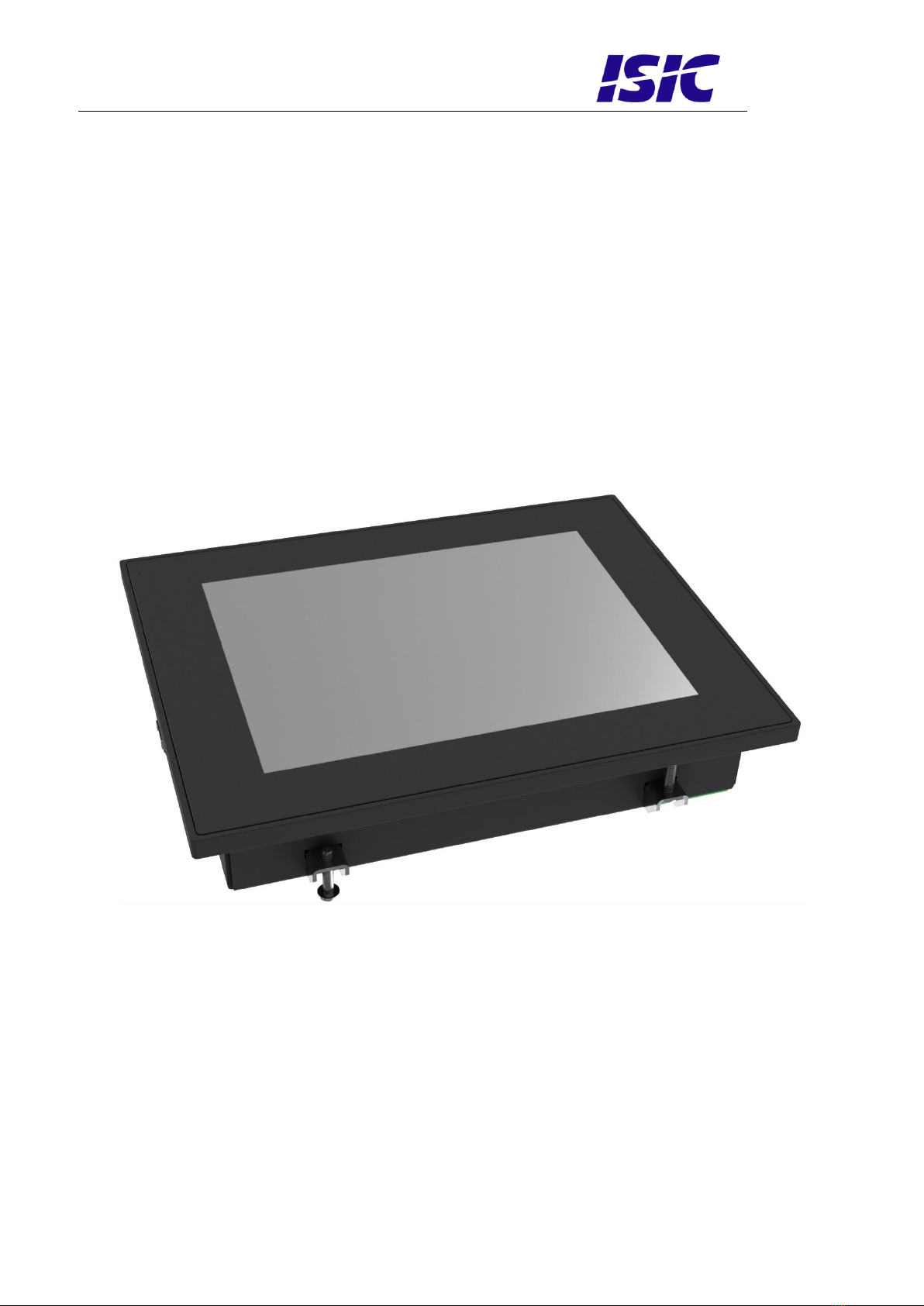

1Features
Congratulations with your purchase of a DuraPANEL 8. This short form manual is designed to
get you started working with your new DuraPANEL 8.
The DuraPANEL 8 is designed for the demanding operating conditions at sea.
The DuraPANEL 8 comes with excellent brightness and contrast levels that, ensure a good
readability thus making it very eye-friendly.

2General considerations on Installation and
Operation
The DuraPANEL 8 is designed to work at demanding conditions. However, keeping the
temperature and vibration level at a minimum will extend the life time of the product. ISIC
recommend operating this product at normal room temperature (20-25 °C), with the lowest
level of vibration and humidity.
Installation of the DuraPANEL 8
In order to obtain the best possible operating conditions, please note the following precautions.
-When installing the DuraPANEL 8 always use original or identical fittings.
-Room for cooling.
When designing the cabinet/console for the DuraPANEL 8, please ensure that air can
flow freely around the cabinet, in order to avoid any unnecessary rise in
temperature. If it is not possible to have an adequate natural airflow, use a fan to
force the airflow to be higher.
-Mounting positions
To obtain adequate cooling by convection ISIC recommends that the DuraPANEL 8 is
mounted at least 30 degrees from horizontal. If this is not possible, forced cooling
must be applied directly to the unit in order not to overheat it.
-Sunlight
Avoid direct sunlight to keep temperature low and by that improve lifetime.

Pin1

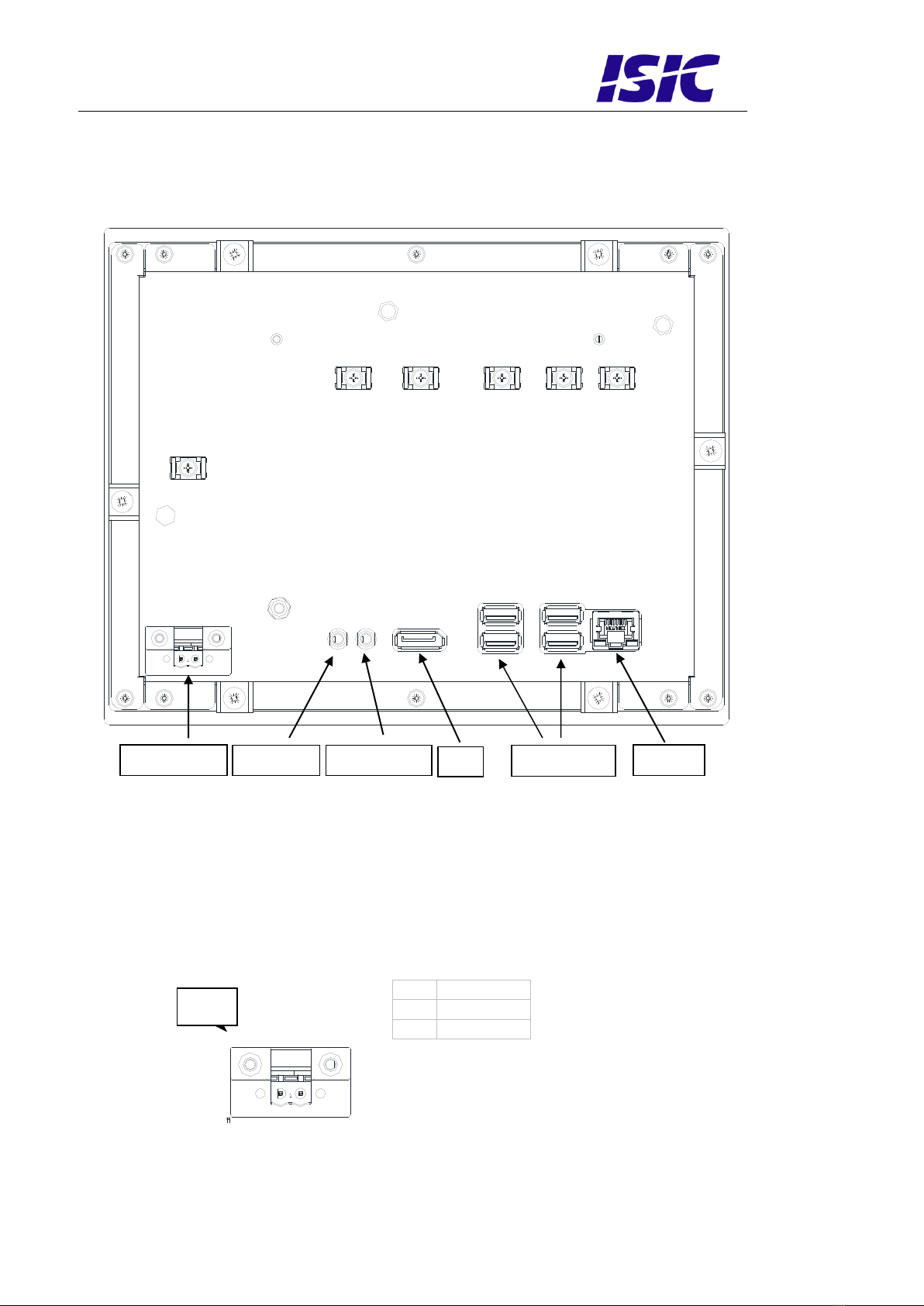

3DuraPANEL connections
Below is a view of optional connections to the monitor.
4Connector pin-out
The nominal input power voltage is 24V (18-31VDC). The input is galvanic isolated and protected against reverse
polarity.
Mating part number: Weidmüller BLZP5.08HC/02/180F
Pin
Power in
1
24VDC
2
0VDC
DP
USB 3.0 x 4
LAN1
POWER DC
Pin1
LINE IN
LINE OUT

5Technical specifications DuraPANEL 8
DuraPANEL - General
CPU:
Intel®Braswell X5-E8000 –1,04 (2,0) GHz Four cores, Four Threads
Chipset:
SOC
Memory:
4GB DDR3L 1600 MHz SODIMM
Up to 8GB DDR3L SODIMM
Hard Disk Drive:
80GB SSD SATA M.2
Video:
External Video out:
Intel® HD Graphics, Graphics controller on-CPU
DirectX 11.1 and OpenGL 4.2, OpenCL 1.2
1 x Display Port
Ethernet:
1 x 10/100/1000 Gbits/s Ethernet LAN on-board, (RJ45)
USB:
Sound
Screen Brightness
4 x USB 3.0
1 x Line-out, 1 x Line-in, 3.5mm jack
Brightness controlled by DDC
DuraPANEL - Front
Display size:
8.0 inch 4:3 LCD (TFT)
Resolution:
1024 x 768
Active area:
162 x 122 mm
View angle:
80° (T/B), 80° (L/R) (typical)
Luminance:
400 Cd/m2 (typical)
Contrast ratio:
700:1 (typical)
Front glass:
Anti-reflective Hardness 6H
Protection:
Touch:
IP20 (flush mount)
PCAP Multitouch
DuraPANEL - Power
Standard:
1 x 18-31VDC (galvanic isolated)
DuraPANEL - Environmental
Operating Temperature:
0 to 40 °C
Storage Temperature:
-20 to 60 °C
Relative Humidity:
8 to 95 %
DuraPANEL - Approvals
Approval:
EN 61000-6-4/A1, EN 61000-6-2:2005, EN 61000-6-1:2007, EN 61000-6-3:2007/A1,
EN 55032:2012/AC:2013 (EN 55032:2015), Class B, EN 55024:2010/A1:2015, EN
55035:2015
DuraPANEL - Dimensions
Size:
223 mm (W) x 177 mm (H) x 50.6 mm (D)
Weight:
App. 1.5 kg.
2 page datasheet 08369-001 rev A. 2019.12.18 Technical specifications are subject to
change without prior notice. For drawing and full technical specifications please
consult the user manual.

6Mechanical outline DuraPANEL 8
8'' 4:3
198
146
Recommended panel cut out
1:4
201
149
0
34,45
(42,95)
7,7
158
210
130
Power DC
223
177
R2
12,5 12,5
Max console thickness 16mm
Min console thickness 2mm
15,5
15,5
9
9
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Approved by
Projection method: Drawing size:
Units: mm
Designed by
General tolerances: 0,2
Hole position: 0,1
Angle, straightness and flatness: DS/ISO 2768-H
Scale: Drawing no.
Replaces:
Rev.
Subject:
ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: [phone]. Web: www.isic.dk
This docoment contains proprietary information and is not to be
used or reproduced without the written permission of ISIC A/S
Material: Surface:
Sheet: 1 of 1
ksc 09-08-2018
A3
Mechanical outline DuraPanel Glass 8'' DC
NHL 09-08-2018
1:2 08372-001 A
ECO
Audio
in/out
6x mounting clamps
Lan
4x USB
DP
M4 x 6
ground pin

7Backlight, color … etc settings
The display of DuraPANEL 8 is detected as a Display Port monitor.
DuraPANEL 8 support DDC/CI commands for display settings like brightness, contrast, color
luminance, color
temperature.
8Power Consumption
Test object / condition
Ptyp [W]
Pmax [W]
DuraPANEL 8
15W
20W
9In rush current
Test object / condition
[A] @24VDC
DuraPANEL 8
~ 100
10 Troubleshooting
Problem
Cause
Solutions
No picture on display
Backlight level set to off
Increase backlight
Panel PC turned off
Turn on the Panel PC
No power cord connected
Apply power
The unit smells burned /
smoke is coming from the unit
There might be something
burned inside
Please do not try to open the
unit. Send it to ISIC A/S for
repair.
11 Servicing the unit
In case that the unit still fails after following the troubleshooting send the unit to ISIC for
repair via our RMA service on our web.

12 ISIC info / Support
In case you have inquiries or problems with your DuraPANEL 8, you have a number of
possibilities to get support.
Company name:
ISIC A/S
Head office:
Edwin Rahrs Vej 54
DK-8220 Brabrand
Denmark
Shipping address:
Holmstrupgaardvej 5
DK-8220 Brabrand
Denmark
Telephone:
[phone]
Fax:
[phone]
Mail:
[e-mail]
www:
www.isic-systems.com
VAT number:
DK 16 70 45 39
Bank Name/Address:
Handelsbanken A/S
Havneholmen 29
DK-1561 København V
Denmark
Bank Code:
0892
SWIFT:
HANDDKKK
IBAN for DKK:
DK53 0892 0001 0159 69
IBAN for EUR:
DK48 0892 0003 0026 19
IBAN for USD:
DK26 0892 0003 0026 27
Contacts:
RFQ’s:
By fax to [phone]
By mail to [e-mail]
Orders:
By fax to [phone]
By mail to [e-mail]
Support:
Via homepage www.isic-systems.com under aftersales
By mail to [e-mail]
During office-hours (Mo-Th: CET 0800 –1600, Fr: CET 0800 –1500)
at [phone]
Service:
Before shipment for service Request Return Material Authorization
number at homepage www.isic-systems.com under AFTER SALES
TECH SUPPORT RMA
By mail to [e-mail]

13 Revision history
Rev A
August 2018
First release

14 Appendix A: Pixel policy
ISO 9241-307:2008 guidelines for LCD pixel defects
Introduction
TFT displays consist of a set number of pixels. Each pixel consists of 3 sub-pixels also called dots (one red, one blue
and one green). Every sub-pixel is addressed by its own transistor. As a result, the manufacturing of glass substrate is
very complex.
Due to the nature of this manufacturing process, occasional defects can occur. Pixel defects or failures cannot be fixed
or repaired and may occur at any stage during the service life of the TFT display.
To regulate the acceptability of defects and protect the end user, ISIC A/S complies with the ISO 9241-307:2008
standard. This standard recommends how many defects are considered acceptable in a display, before it should be
replaced within the terms of the warranty.
Monitor classification ISO 9241-307:2008
Allowed defects per type per million pixels
Defect classes
Pixel defects
Cluster defect
Type 1
Type 2
Type 3 total
(2xN3a + N3b)
Type 1
Type 2
Type 3
Class: 0
0
0
0
0
0
0
Class: I
1
1
5
0
0
0
Class: II
2
2
10
0
0
1
Class: III
5
15
100
0
0
5
ISIC TFT monitors comply with ISO 9241-307:2008 Class II.
Special agreements about other classifications can be made between ISIC A/S and the customer.
Measurement method/monitoring conditions for pixel defects
In compliance with the ISO-9241-307:2008 standard, the following conditions are observed:
Final check for pixel fault undertaken right after burn-in, i.e. with pre-heating of the display.
Surrounding temperature 25ºC ± 5ºC
Relative air humidity 40–70%
Pixel definition
Every pixel consists of three sub-pixels/dots (red, blue, green).
Every sub-pixel has its own transistor.
The three sub-pixels/dots must be considered as one unit.

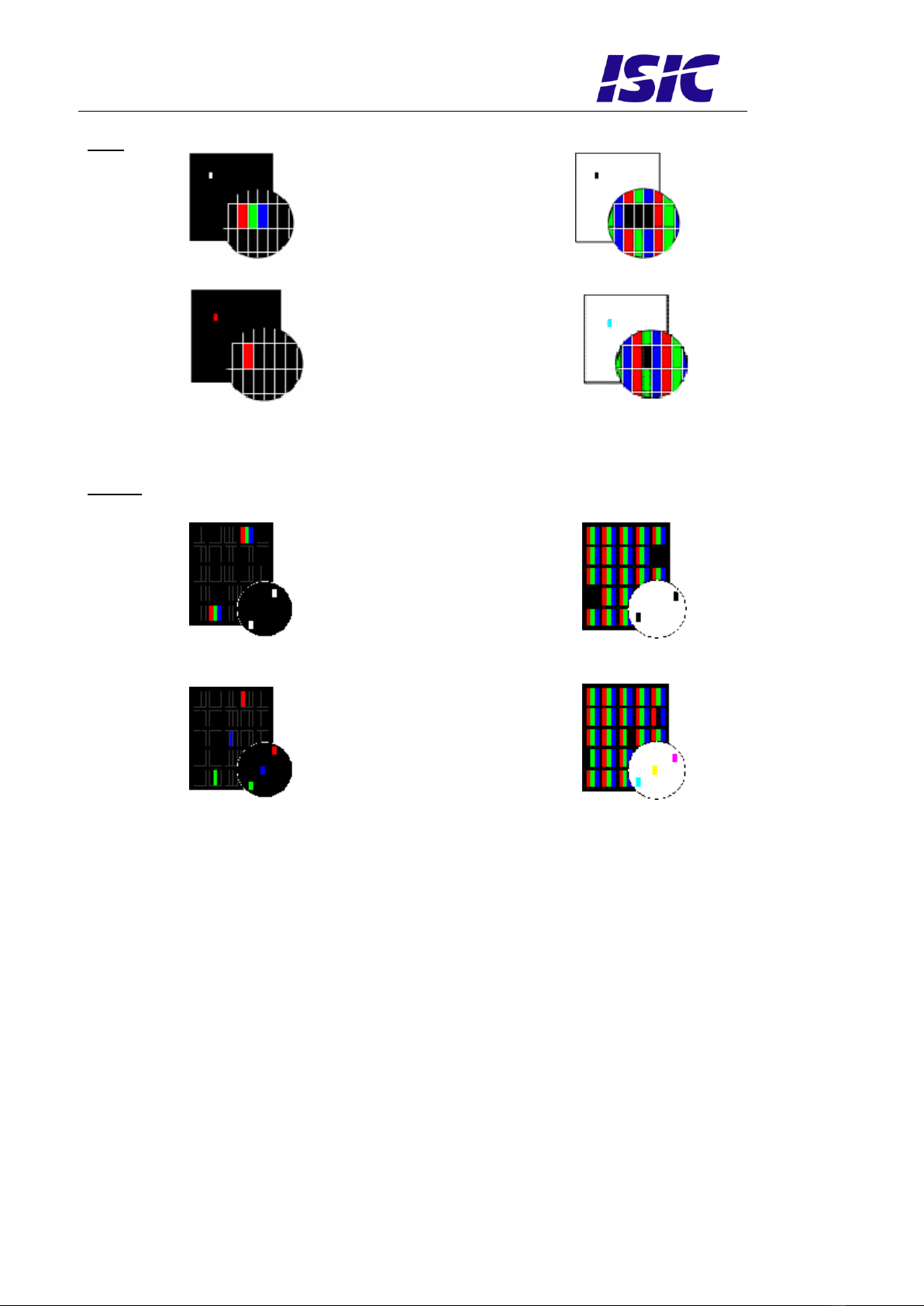

Pixel
Pixel defect type 1 Pixel constantly lit Pixel defect type 2 Pixel constantly dark
Pixel defect type 3a Pixel defect type 3b
Sub-pixel/dot (red, blue, green) constantly lit Sub-pixel/dot (red, blue, green) constantly dark
Cluster
A cluster consists of 5 x 5 pixels.
Cluster pixel defect type 1 Cluster pixel defect type 2
Pixels in a cluster area constantly lit Pixels in a cluster area constantly dark
Cluster pixel defect type 3a Cluster pixel defect type 3b
Sub-pixels/dots in a cluster area constantly lit Sub-pixels/dots in a cluster area constantly dark

Pixel faults accepted by ISIC A/S
The maximum number of pixel faults that is considered acceptable at different screen resolutions is shown in the
table below.
This is the native resolution and not the resolution as adjusted by user.
Class II
Allowable number of pixel faults in monitor applications
Screen
type
Native
resolution
Number of
pixels
Pixel defect
type 1
Pixel defect
type 2
Pixel defect
Type 3 total
(2xN3a + N3b)
Cluster
defect type
1 and 2
Cluster
defect
type 3
WVGA
800x480
384,000
0
0
3
0
0
XGA
1024x768
768,432
1
1
7
0
0
WXGA
1280x800
1,024,000
2
2
10
0
1
SXGA
1280x1024
1,310,720
2
2
13
0
1
UXGA
1600x1200
1,920,000
3
3
19
0
1
FHD
1920x1080
2,073,600
4
4
20
0
2
WUXGA
1920x1200
2,304,000
4
4
23
0
2

Edwin Rahrs Vej 54
DK-8220 Brabrand
Denmark
Web: http://www.isic-systems.com
Email: [email protected]
