iSysmart SGZ308 User manual

iSysmart
ZigBeeTM- ZigBee Wearable Presence Tag with Emergency Button
User Manual
ZigBee Wearable Presence Tag with Emergency Button
Model: SGZ308

1
Table of Contents
1. Introduction....................................................................................................................................2
2. Product Appearance .......................................................................................................................3
3. Specification ..................................................................................................................................4
4. Installation .....................................................................................................................................5
5. Setting up SGZ308.........................................................................................................................6
5-1. Turn On/ Turn Off SGZ308 .................................................................................................... 6
5-2. Join the ZigBee Network........................................................................................................ 6
5-3. Enroll in the ZigBee Security System .................................................................................... 6
5-4. Sleeping Mode........................................................................................................................ 7
5-5. Wake up SGZ308.................................................................................................................... 7
5-6. Panic Button ........................................................................................................................... 7
5-7. Presence Tag ............................................................................................................................................ 8
5-8. HeartBeat Technique .............................................................................................................. 9
5-9. Battery .................................................................................................................................... 9
5-10. Restore to Factory Setting .................................................................................................... 9
5-11. Offline activation .................................................................................................................. 9
6. Home Automation Clusters for SGZ308......................................................................................10
7. ISysmart App Control Interface ...................................................................................................12
8. Related ISysmart Devices ............................................................................................................14
9. Important Maintenance Instructions ............................................................................................14

2
1. Introduction
SGZ308, a wearable presence tag, acts as an IAS device for minor children/aged-care use. It is an
ideal product to detect one’s presence within/ out of the network coverage for safety purpose.
SGZ308 periodically sends presence/absence report to keep a close watch on those who wear it.
SGZ308 also works as an emergency button. When users ask for urgent assistance, simply push the
button, and SGZ308 will send the alarm message to the command center. The Warning Device will
send out alarm sound or lighting alert for immediate help.
What is ZigBee?
ZigBee is a short range wireless transmission technology based on IEEE802.15.4 standard and
supports multiple network topologies such as point-to-point, point-to-multipoint, and mesh networks.
It is defined for a general-purpose, cost-effective, low-power-consumption, low-data-rate, and easy-
to-install wireless solution for industrial control, embedded sensing, medical data collection, smoke
and intruder warning, building automation and home automation, etc.

3
Indicator (Red/ Green)
Panic Button
2. Product Appearance

4
3. Specification
Fully IEEE 802.15.4 compliant
Utilizes 2.4GHz ISM band; up to 16 channels
Power supply: 1 x CR2450 3.0V battery
Operating consumption: Tx ≤ 33mA; Rx ≤ 28mA
Standby consumption: ≤ 1.3uA
Wireless transmission is up to 200 meters linear distance in open field
Easy installation and configuration

5

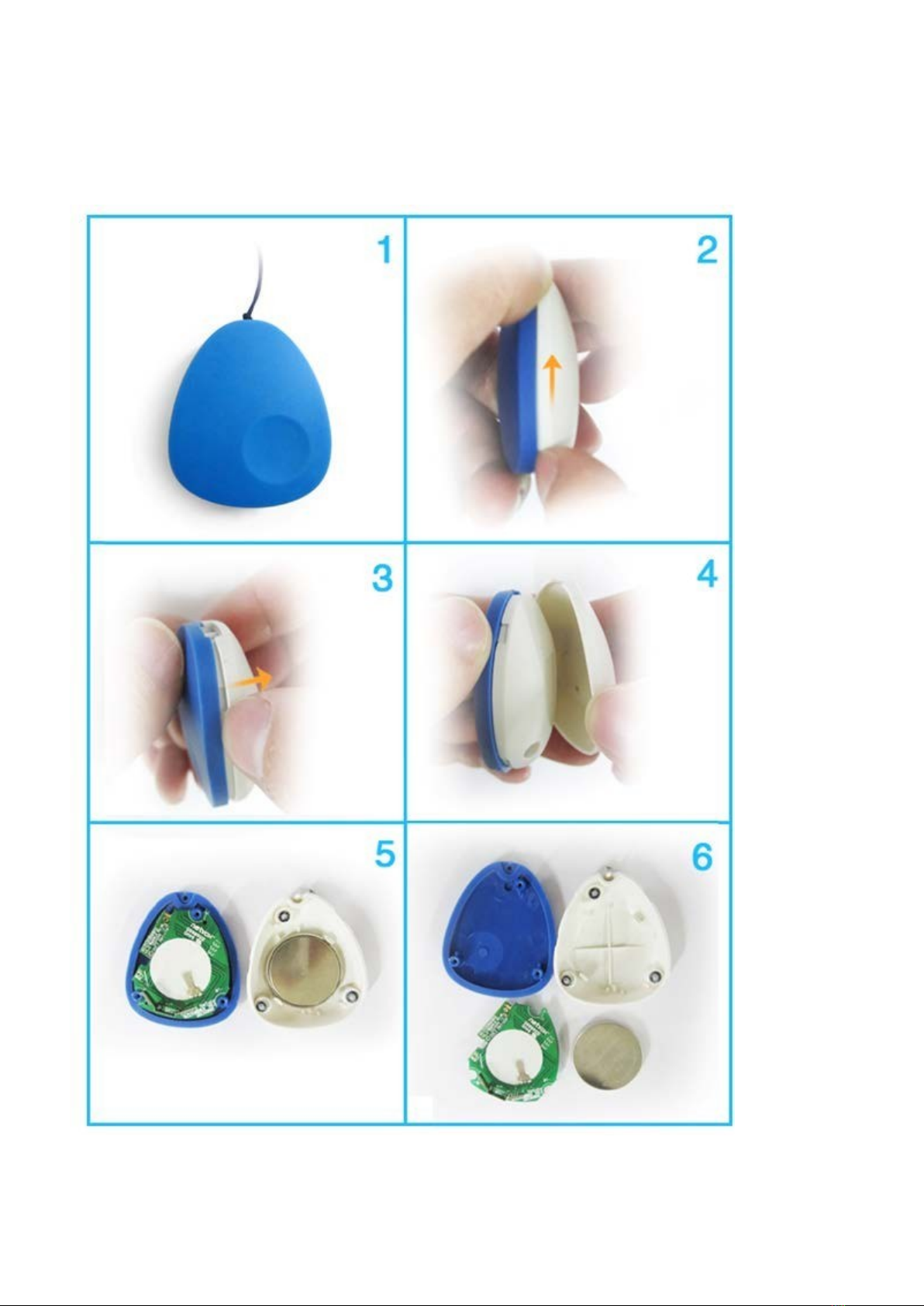

4. Installation
SGZ308 is waterproof.

6
5. Setting up SGZ308
5-1. Turn On/ Turn Off SGZ308
To manually turn on or turn off SGZ308, please use the following instructions:
A. Turn it on: Press and hold the Panic Button for 3 seconds. The indicators will flash once, and the
device is ready to be used.
When ZB02C is in a ZigBee network → the indicator will flash green 5 times.
B. Turn it off: Press and hold the Panic Button for 6 seconds. The indicator will flash red 10times
within 5 seconds. Within the 5-second period of time, press the Panic Button again to turn it off.
5-2. Join the ZigBee Network
After SGZ308 is turned on, it will search for an existing ZigBee network and send a request to join the network
automatically. While SGZ308 is under the coverage from a coordinator or a router whose permit-join feature
is enabled, SGZ308 will be permitted to join the network.
Step1. Enable the permit-join function (valid for 60 seconds) of a coordinator or a router (please refer to
the user manual of the coordinator or the router to enable the permit-join feature).
Step2. Turn on SGZ308. It will start to search and join the network.
Step3. Press and hold button for three seconds to search a network to join.
Step4. The indicator will flash green 5 times after it is joined successfully. Otherwise, the indicator will
not flash.
Step5. When SGZ308 can not join a network in 3 minutes, it will go into off mode. To ask for
joining Network again, press and hole button for 3 seconds.
After joining a network, SGZ308 would try to enroll in the ZigBee security system. Please make sure
SGZ308 and CIE (Control and Indicating Equipment) device have enough power.
5-3. Enroll in the ZigBee Security System
SGZ308 is a Zone device in the ZigBee security system. Right after SGZ308 join the ZigBee network, it will
automatically find out a CIE (Control and Indicating Equipment) device (i.e. ISysmart Z201B) and send a
registration request to the CIE device to enroll in the security system. The enrollment has these 3 situations:
A. There is no CIE device or no compatible CIE device in the network → the indicator flashes redtwice.
B. There is a compatible CIE device in the network, but it is failed to enroll → the indicator flashes red 4
times. Users can reboot SGZ308 to initiate the registration.
C. The enrollment is completed → the indicator flashes red 6 times.
NOTE: Users had better NOT enroll multiple Zone devices at the same time to prevent registration failure.

7
5-4. Sleeping Mode
SGZ308 is designed to go into sleeping mode for power-saving in some situations:
A. While the device is in the network → the sleeping period is 5 minutes; it will wake up every 5
minutes to keep online.
B. Once SGZ308 was joined to a network and by any chance the network is no longer existed or the
device is out of the network → SGZ308 will wake up every 5 minutes to find the network it joined
before.
It never keeps in sleeping mode and continues to find out a network every 5 minutes. This condition would
consume up to 30 times power spending compared to normal-operating status. To prevent this unwanted power
consumption, we recommend that users turn off the device.
5-5. Wake up SGZ308
When users would like to setup or acquire data from the device which is in sleeping mode, we have to wake
up the device as the following steps:
Step1. Press and hold the Panic Button for 3 seconds. Release the button when the indicator flashes red
once.
Step2. The indicator flashes green 5 times when SGZ308 is
online. Step3. SGZ308 will broadcast the device data to the
ZigBee network.
SGZ308 would be in active status for 2 minutes for communication.
5-6. Panic Button
SGZ308’s Zone Type: Key Fob (ID: 0x0115)
The value of Alarm2 is 1 when sending alarm message.
Under the circumstances that SGZ308 has enrolled to the security system, it will send the alarm message to
the command center (and the bound devices with ID: 0x0500) after pressing the Panic Button. The Warning
Device will send out alarm sound or lighting alert for immediate help.
Under the circumstances that SGZ308 hasn’t enrolled to the security system, it will try enroll in a security
system after pressing the Panic Button. After the enrollment, SGZ308 will send the alarm message to the
command center.
ZoneStatusChange commands: 0x00.
The command list:
Bits: 8
8
8
var
Frame
Transaction
Command
Frame payload

8
control
Sequence
number
identifier
16-Bit Enumeration
8-Bit Enumeration
0x09
0x00
ZoneStatus
ExtendedStatus
(ClusterID: 0x 0500)
Values of the ZoneStauts payload
ZoneStatus
Attribute Bit Number
Meaning
Values
0
Alarm1
1 –opened or alarmed
0 –closed or not alarmed
1
Alarm2
1 –opened or alarmed
0 –closed or not alarmed
2
Tamper
1 –Tampered
0 –Not tampered
3
Battery
1 –Low battery
0 –Battery OK
4
Supervision reports
1 –Reports
0 –Does not report
5
Restore reports
1 –Reports restore
0 –Does not report restore
6
Trouble
1 –Trouble/Failure
0 –OK
7
AC (mains)
1 –AC/Mains fault
0 –AC/Mains OK
8-15
Reserved
Values of the ExtendedStatus payload
ExtendedStatus
Attribute Bit Number
Meaning
Values
0-6
ZoneID
7
ZoneStatusChange Or Heartbeat
1 –HeartBeat
0 –ZoneStatusChange
5-7. Presence Tag
SGZ308 works as a presence tag. It is an ideal product to detect one’s presence within/ out of the network
coverage for safety purpose. SGZ308 periodically sends presence/absence report to keep a close watch on
those who wear it. The bound devices (with ID: 0xFE60) could calculate SGZ308’s location based on the
RSSI values between Router Devices and SGZ308.
The command list:
Bits:8
16
8
8
var
Frame
Manufacturer
Transaction
Command
Frame payload

9
control
code
Sequence
number
identifier
Count
NodeID
RSSI
…
NodeID
RSSI
0x05
0x109F
0x5F
Byte
2byte
Signed
(Clusterid：0x FE60)
5-8. HeartBeat Technique
In a security system, it is important that Zone devices report the conditions to the central security unit (the
CIE device). To meet this need, ISysmart came up with a technique called “HeartBeat”.
Right after SGZ308 enrolls to a security system, it sends a HeartBeat signal to the CIE device. Afterward, it
will send HeartBeat data every hour by default settings.
5-9. Battery
When the operating voltage is lower than 2.1V, the indicator will flash red once. SGZ308 will send a low-power
report to the ZigBee network.
The related data:
Power configuration cluster (ID:0x0001)
Battery voltage attribute (ID:0x0020)
5-10. Restore to Factory Setting
To restore it to factory setting, please follow the steps:
Step1. Press and hold the Panic Button or 15 seconds.
Step2. Release the button after the indicator shows fast red flashes.
Step3. After 10 red flashes, it will go into turn-off mode. The indicator will be Off.
5-11. Offline activation
If SGZ308 disconnecting from the network, it will wake up every 5 minutes to try re-joined the
network. It also can manual trigger SGZ308 to re-join the network in the following two ways.
1. Press the panic button 3 seconds and red indicator flash once than device would try re-joined network.
2. Press the panic button once to alarm and device would try re-joined network.

10
6. Home Automation Clusters for SGZ308
A cluster is a set of related attributes and commands which are grouped together to provide a specific function. A
simple example of a cluster would be the On/Off cluster which defines how an on/off switch behaves. This table
lists the clusters which are supported by SGZ308.
1.End Point(s)：0x01:
2.Device ID：IAS Zone（0x0402）
3.EndPoint Cluster ID
Cluster ID for
SGZ308
Server side
Client side
EP 0x01 (Device ID: IAS Zone(0x0402) )
Basic(0x0000)
None
Power configuration(0x0001)
Identify(0x0003)
IAS zone ( 0x0500)
Commissioning( 0x0015)
Poll Control（0x0020）
Diagnostics（0x0B05）
This lists the attributes of the basic information.
Identifier
Name
Type
Range
Access
Default
Mandatory
/ Optional
0x0000
ZCLVersion
Unsigned
8-bit integer
0x00 –
0xff
Read only
0x03
M
0x0001
ApplicationVersion
Unsigned
8-bit integer
0x00 –
0xff
Read only
0x28
O
0x0002
StackVersion
Unsigned
8-bit integer
0x00 –
0xff
Read only
0x38
O
0x0003
HWVersion
Unsigned
8-bit integer
0x00 –
0xff
Read only
0x02
O
0x0004
ManufacturerName
Character
string
0 –32
bytes
Read only
iSysmart
O
0x0005
ModelIdentifier
Character
string
0 –32
bytes
Read only
SGZ308E3
ED
O
0x0006
DateCode
Character
string
0 –16
bytes
Read only
20160113
O

11
0x0007
PowerSource
8-bit
Enumeration
0x00 –
0xff
Read only
0x03
M

12
0x0010
LocationDescription
Character
string
0 –16
bytes
Read/write
O
0x0011
PhysicalEnvironment
8-bit
Enumeration
0x00 –
0xff
Read/write
0x00
O
0x0012
DeviceEnabled
Boolean
0x00 –
0x01
Read/write
0x01
M

13
7. ISysmart App Control Interface
Add device to device list of SGZ308 in ISysmart App and the device information will show up in the
management interface as below IAS Zone device.
The added device EP01 is a “Panic Button” device type. Choose it to enter control interface as below:

14
Press the button shortly to carry out the emergency alarm. Through the following interface of APP setting, you can
set the “Alarm sound” after the emergency alarm.
Choose” about device” to check device information as below:

15
8. Related ISysmart Devices
Z201B: ZigBee HA Coordinator with CIE
9. Important Maintenance Instructions
Please keep the device in a dry place. Precipitation, humidity, and all types of liquids or moisture can contain
minerals that corrode electronic circuits. In cases of accidental liquid spills to a device, please leave the device
dry properly before storing or using.
Do not use or store the device in dusty or dirty areas.
Do not use or store the device in extremely hot temperatures. High temperatures may damage the device or
battery.
Do not use or store the device in extremely cold temperatures. When the device warms to its normal
temperature, moisture can form inside the device and damage the device or battery.
Do not drop, knock, or shake the device. Rough handling would break it.
Do not use strong chemicals or washing to clean the device.
Do not paint the device. Paint would cause improper operation.
Handle your device, battery, and accessories with care. The suggestions above help you keep your device
operational. For damaged device, please contact the authorized service center in your area.

16
FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
