ITEM 71969 User manual

Multi-Segment RGB LED Strip
User guide

2 3
Multi-Segment RGB LED Strip ― User guide Multi-Segment RGB LED Strip ― User guide
Contents
Symbols, safety .......................................................................................................................................................................................................3
General safety information ...................................................................................................................................................................................4
Correct use ...............................................................................................................................................................................................................4
Improper use.............................................................................................................................................................................................................5
Technical data .........................................................................................................................................................................................................6
Installing Multi-Segment RGB LED Strip ............................................................................................................................................................8
Commissioning using Multi-Segment RGB LED Strip Controller IO-Link 24VDC...................................................................................11
Removal ...................................................................................................................................................................................................................11
Accessories............................................................................................................................................................................................................ 12
Maintenance ......................................................................................................................................................................................................... 13
Care and cleaning................................................................................................................................................................................................. 13
Disposal ................................................................................................................................................................................................................. 13
Product development and documentation ..................................................................................................................................................... 13
Symbols, safety
Warning! Failure to observe this safety instruction is likely to result in material damage, serious injury or death
Attention! Failure to observe this safety instruction can result in material damage, serious injury or death
Caution! Failure to observe this safety instruction can result in material damage or injury
Note! Important information
CE conformity marking
Device corresponds to protection class III
(operates on protective extra low voltage)
Functional earth
Observe directions for disposal
Observe directions for disposal

4 5
Multi-Segment RGB LED Strip ― User guide Multi-Segment RGB LED Strip ― User guide
General safety information
The details and information in this user guide are provided for the purposes of describing the product and its assembly only.
This information does not discharge users from the obligation to conduct their own assessments and checks. It is also impor-
tant to bear in mind that our products are subject to a natural process of wear and ageing.
This guide contains important information that will enable you to use the product safely and appropriately. If this product is
sold, rented out or otherwise passed on to another party, the user guide must be handed over with it. You must therefore
read and follow the safety instructions set out below.
▪ All work on and with the LED Strip must be performed with “safety rst” in mind.
▪Observe the regulations pertaining to accident prevention and environmental protection that apply in the country and
workplace where the product is being used.
▪Use only item products that are in perfect working order.
▪Failure to use original spare parts will invalidate the product warranty!
▪Check the product for obvious defects.
▪Use the product only within the performance range described in the technical data.
▪Note the permissible voltage and ensure the power supply is correctly connected.
The LED Strips described here correspond to the state of the art and take into account the general principles of safety appli-
cable at the time this user guide was published. Nevertheless, failure to observe the safety instructions and warning notices
in this user guide may result in personal injury and damage to property. We will assume no liability for any resulting damage
or injury. We reserve the right to make changes that represent technical advances. Keep this guide in a place where it can be
accessed by all users at any time. The general safety information applies to the entire lifecycle of the LED Strip.
Correct use
The LED Strips must only be used in indoor areas in accordance with the technical data and safety requirements set out in this
document. Multi-Segment RGB LED Strip complies with the EMC Directive (2014/30/EU) and Directive 2011/65/EC (RoHS),
including the supplementary directive (EU 2015/863). The safety requirements of the Low Voltage Directive (2014/35/EU)
are met. The declarations can be found alongside the product in the Online Shop.
Internal company requirements and the regulations that apply in the country where the product is being used must be
observed. You must not make any design modications to the LED Strip yourself. We will assume no liability for any resulting
damage or injury. You may only install, operate and maintain the LED Strip if:
▪The LED Strip has been integrated into its surroundings in a proper and safe manner.
▪You have carefully read and understood the guide.
▪ You are appropriately qualied.
▪You are authorised to do so by your company.
▪You are using only original equipment from the manufacturer.
The LED Strip is exclusively suitable for connection to a 12VDC power supply.
The LED Strip is designed for indoor use.
The LED Strip is not suitable for use in environmental chambers. (For non-condensing use)
Improper use
Improper use is dened as any use of the product for purposes other than those authorised in the user guide and under the
denition of correct use. We will assume no liability for any resulting damage or injury.
Reasonably foreseeable types of misuse could be:
▪Use without Caps – contact between the end of the LED Strip and a metal surface can cause a short circuit.
▪Installing the LED Strip in the groove using a heavy object. Doing so will destroy the LED Strip.
▪Hard impacts, high forces and strong vibrations e.g. from fork lifts, transport vehicles, factory equipment or presses should
be avoided.
▪Excessive bending beyond the permitted extent will destroy the LED Strip.
▪ Temperatures outside those specied in the technical data will reduce the service life of the LED Strip.
▪Sharp corners and edges in the cable conduits will destroy the cable.
▪ Failure to ensure su󹟠cient strain relief
▪Separating the LED Strip outside the separation markings.
▪Exerting a load on the LED Strip. The LED Strip cannot be walked on.
▪ Use as a machine light tting for functional safety
▪Use of the product outdoors
▪Direct connection of the 24V power supply to the 12V LED Strip
▪ Operation with a long cable (more than 3metres)
▪ Wiring the NC connections with -30 ... +30VDC

6 7
Multi-Segment RGB LED Strip ― User guide Multi-Segment RGB LED Strip ― User guide
Technical data
3
2
1
3
4
5
LED RGB 12V conguration and accessories
No. Article num-
ber Product name Comments
1
0.0.719.69
0.0.720.85
0.0.720.86
0.0.720.87
Multi-Segment RGB LED Strip 1m
Multi-Segment RGB LED Strip 2m
Multi-Segment RGB LED Strip 3m
Multi-Segment RGB LED Strip 6m
Can be short-
ened
20.0.715.74
0.0.718.15
LED Casing Profile 8 14x5
LED Casing Profile 8 14x5 (cut-off) -
30.0.719.68 LED Casing Prole 8 14x5, Cap, grey similar to RAL7042
40.0.718.00 Connector M12 4P Male, A-coded, black Accessory
50.0.714.52 Sensor/Actuator Connection Cable 5m M12 4P, Female Connector,
A-coded, black Accessory
▪12V RGB LED strip
▪ Intuitive signalling in prole constructions
▪ Translucent LED Casing Prole
▪Casing protects LED Strip from dirt
▪Simple to secure in a Line 8 groove
▪ The exible LED Strip is just 3mm high and 1000mm, 2000mm, 3000mm or 6000mm long
▪ Can be shortened at 17mm intervals
▪ LED Strip satises protection category IP65
▪12-Volt technology
▪A-coded M12 connector as an accessory
IP class IP65
Voltage +9.5VDC ... +13.5VDC
LED power 7.5W/m
Connection Open cable end
Circuitry Only to be used with item LED controller
Ambient temperature -25°C ... +85°C
Width x height 10 x 3 mm
Colour RGB
Separable After every LED (16.67mm)
Number of LEDs 60 per metre
Lighting angle 180° (light intensity decreases at the edges)
LED type SMD RGB 3-in-1 LEDs
Luminous intensity Red 300mcd ... 600mcd
(median per LED) Green 1500mcd ... 2500mcd
Blue 150mcd ... 400mcd
Wavelength Red 620nm ... 625nm
Green 515nm ... 525nm
Blue 465nm ... 475nm
ATTENTION! The Casing Prole is designed exclusively for the performance range and heat generation of the item LED Strip.
If item components are combined with a higher-performance LED Strip, the customer is responsible for ensuring
safe usage. Particular attention should be paid to su󹟠cient heat dissipation in this case.
Wiring of connecting cable
3: GND
4: signal (5V)
2: signal (5V)
1: +12V
GND
BI
DI
+12V
21
43

8 9
Multi-Segment RGB LED Strip ― User guide Multi-Segment RGB LED Strip ― User guide
Installing Multi-Segment RGB LED Strip
Coordinated components can be used to create strong, highly visible signalling solutions in a very short space of time. The
controllable LED Strips can be simply and safely integrated into prole frames with a Line 8 groove.
CAUTION! Always unplug the LED Strip from the power supply before carrying out installation, cleaning or maintenance work
on it.
CAUTION! Risk associated with inadequate xing: Installation must be carried out by trained personnel. The device must be
installed only on a suitable, level surface. Check the reliability of any fastenings that have not been recommended
by the manufacturer. The LED Strip may fall from its mounting if it is not installed properly.
CAUTION! Damage caused by using incorrect voltage: The product must be connected to the power supply in accordance
with the applicable installation regulations of the country where it is being used. Before activating the device, check
whether the voltage of the system power supply corresponds with the specied rated voltage of the consumer. The
LED Strip could be damaged or destroyed if the rated voltage is incorrect.
ATTENTION! When working with long LED Strips, ensure that the surface beneath them exhibits good thermal conductivity
and thermal capacity. Ideally, an aluminium prole construction should be used.
ATTENTION! The connecting cable of the LED Strip should not be extended and must be no longer than 3metres.
All other lines can be up to 20metres in length.
NOTE! When laying live cables along aluminium proles, low-level, non-hazardous voltages can occur as a result of inductive
coupling. To avoid this, it is advisable to connect the construction to the protective earth. An ideal solution is to use
Multi-Socket Power Strip, 5 outlet, with system plug (0.0.627.44) or Distribution Strip (0.0.631.56) combined with
Connecting Cable, Socket / Earthed Plug with earthing lead (0.0.677.54).
Preparation, assuming Caps are used on both ends:
▪ Lengths of aluminium prole LP: LP = L + 60mm
▪ Length of Casing Prole LM: LM = L+10mm
▪ Length of the unshortened LED Strip L: 1000mm or 2000mm or 3000mm or 6000mm
The LED Strip can be shortened between each LED, at intervals of
17mm
10
6000
7
300
50 4.6
17
CAUTION! If the LED Strip is shortened, it loses its IP65 status. The cut end must be sealed to restore IP65 status.
5
∅7
We recommend feeding the cable through a through hole in the prole where
possible. The hole must be cleanly deburred, and there must be no sharp
edges.
Alternatively, the cable can be fed along the groove and protected with a Cover
Prole.
The Casing Prole can be shortened using Multi-Purpose Pliers.
Place the LED Strip into the Casing Prole with the covered adhesive strip fac-
ing upwards. Remove the protective lm in short sections and close the Casing
Prole around the exposed adhesive strip until the entire LED Strip is enclosed.
The white protective covering of the cut-to-size LED Strip should protrude from
both ends of the Casing Prole by approx. 5mm.
Then press and click together the two edges of the Casing Prole.
NOTE! If you remove the protective lm from the adhesive tape after inserting the LED Strip and before clipping the Casing
Prole together, this will have an additional stabilising effect on the ultimate complete unit of LED Strip and Casing
Prole. However, this does make it more di󹟠cult to dismantle.
Feed the cable through the hole in the prole.
Before pressing in the Casing Prole with the LED Strip, dampen the Line 8
groove with a little soapy water.

10 11
Multi-Segment RGB LED Strip ― User guide Multi-Segment RGB LED Strip ― User guide

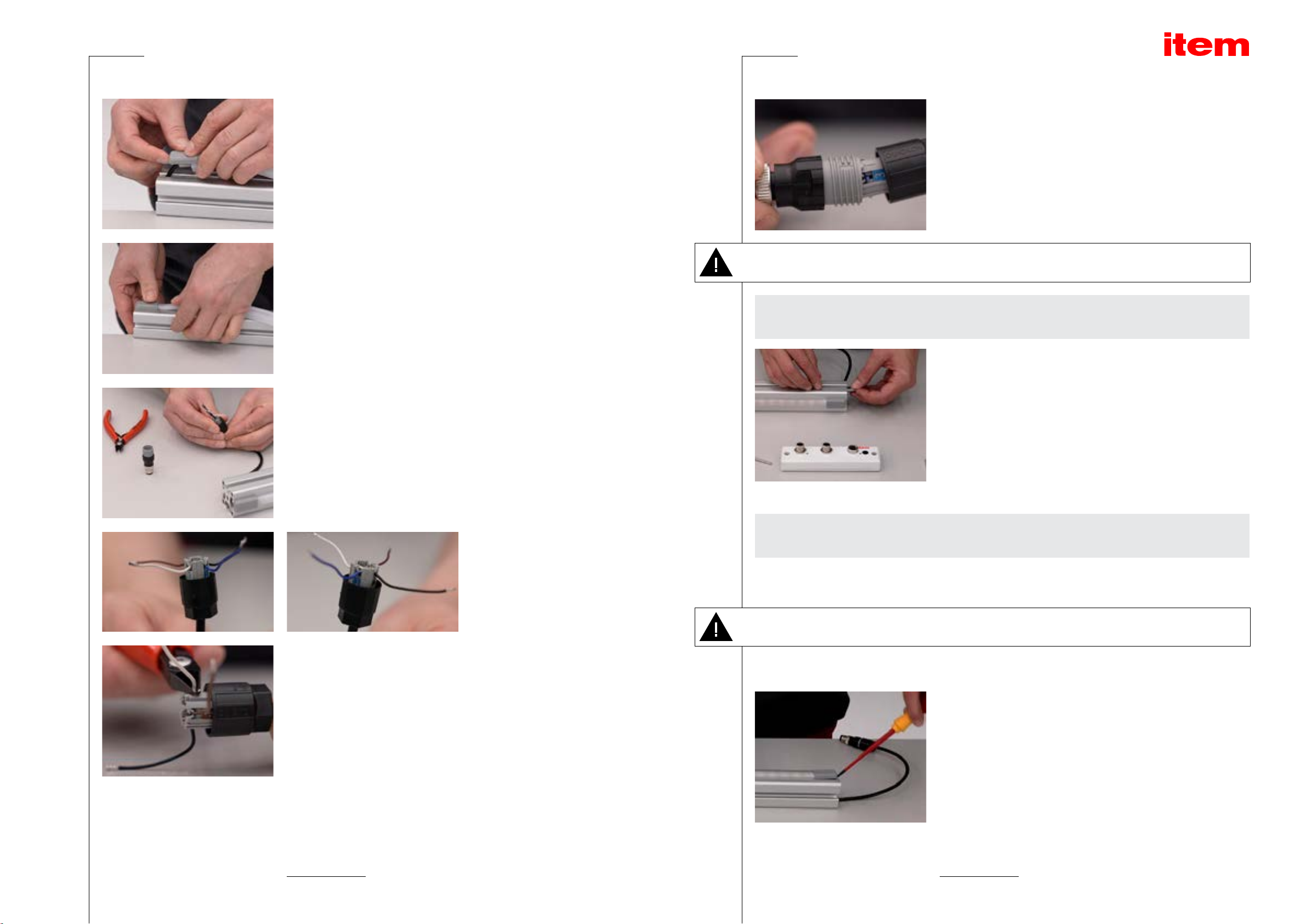

Now press the Cap into place so that its clamping tabs are over the white pro-
tective cover of the protruding cable and pushed up against the Casing Prole.
Working by hand, carefully press the Casing Prole containing the LED Strip
and the Cap into the Line 8 prole groove. In doing so, the Cap should be
aligned with the cut edge of the prole.
Be careful to ensure the LED Strip is only exposed to low forces during the
installation process, since otherwise the soldered joints could quickly break.
Feed the cable through the connector until the outer insulation disappears into
the connector and you hit a limit stop.
Now insert the strands according to their
colour into the colour-coded, numbered
clamps in the connector, press them down
and x them in place. Use a side cutter to
trim the wires directly at the outer edge.
Working by hand, screw the second part of the connector rmly onto the lower
part of the plug. To do so, align the arrows on each half of the connector.
CAUTION! The connector can only be screwed together in one alignment – when the arrows on the two halves match up.
Commissioning using Multi-Segment RGB LED Strip Controller IO-Link 24VDC
The LED Strip can be quickly commissioned and parametrised using Multi-Seg-
ment RGB LED Strip Controller IO-Link 24VDC (0.0.721.35).
Further connection options are described in the user guide for the Controller.
Removal
First disconnect the LED Strip from Multi-Segment RGB LED Strip Controller IO-Link 24VDC. Next, you can use a screwdriver
to remove Multi-Segment RGB LED Strip.
CAUTION! The LED Strip is not suitable for being installed and removed multiple times. Doing so would constitute improper
use.
However, if adjustments do need to be made, please follow the procedure below:
Use a screwdriver to lever out the cap on the cable.

12 13
Multi-Segment RGB LED Strip ― User guide Multi-Segment RGB LED Strip ― User guide
Maintenance
Only specialists with appropriate training should carry out repairs and maintenance on electrical devices
The LED Strip is a lighting element and should be installed so that it can be replaced at any time. As LEDs have a signicantly
longer service life than other types of lighting element (e.g. lament lamps), they only need to be replaced very rarely and/or
in the event of mechanical damage.
Always disconnect the LED Strip from its power source before conducting any maintenance or repair work. Use only parts that
have been approved by the manufacturer as spare parts. Inappropriate maintenance and repair work can result in injuries.
Care and cleaning
CAUTION! Risk of damage caused by incorrect cleaning:
To clean, use only a cloth and a standard domestic cleaning agent. Check that the substances you are using are suitable for
use on paints and plastics. Inappropriate cleaning can destroy the device.
Disposal
The use of appropriate materials and easy dismantling ensure the product can be recycled. Improper disposal of the LED Strip
can pollute the environment. Dispose of the LED Strip in accordance with the national regulations that apply in your country.
Environmental hazard:
Once it has reached the end of its service life, dispose of the product using the return and collection systems that are available
to you. Inappropriate disposal poses a hazard to the environment.
Transport packaging:
Dispose of the packaging using the return and collection systems that are available to you.
Product development and documentation
A process of continuous product development ensures that products from item Industrietechnik GmbH always exhibit a high
standard of innovation.
Consequently, there could be inconsistencies between this guide and the product you have acquired. item Industrietechnik
GmbH can also not exclude the possibility of errors. We therefore ask for your understanding that the information, illustrations
and descriptions provided here cannot constitute an entitlement to any claims.
You can nd the latest version of this user guide at www.item24.com.
Slide out the cap at the free end and remove it from the prole.
Release the Casing Prole from its clamp xing in the prole.
Carefully pull the Casing Prole containing the LED Strip out of the groove,
pulling towards the connecting cable.
It is now possible to reposition the Casing Prole and LED Strip or rewire the
system.
Accessories
150
40
132
3
20
8
12.5
Multi-Segment RGB LED Strip Controller IO-Link 24VDC - 0.0.721.35
Multi-Segment RGB LED Strip Controller IO-Link 24VDC is a device for controlling an item Multi-SegmentRGB LED Strip that
is to be used as an indicator light in non-safety-related applications in an industrial context (production, warehousing and
logistics). It provides numerous operating and display modes that can be parametrised via IO-Link.

0.0.723.96
item Industrietechnik GmbH Made in Germany 01/2024
item Industrietechnik GmbH
Friedenstrasse 107-109
42699 Solingen
Germany
Phone [phone]
[e-mail]
item24.com
