ITEM LED RGB 24V User manual

LED RGB 24V
User guide

2
LED RGB 24V ― User guide
Contents
Symbols, safety .......................................................................................................................................................................................................2
General safety information ...................................................................................................................................................................................3
Correct use ...............................................................................................................................................................................................................3
Improper use.............................................................................................................................................................................................................4
Technical data .........................................................................................................................................................................................................4
Installation and start-up ........................................................................................................................................................................................6
Connection to a Siemens Simatic S7-1200 SM 1223....................................................................................................................................9
Maintenance ......................................................................................................................................................................................................... 10
Care and cleaning................................................................................................................................................................................................. 10
Disposal ................................................................................................................................................................................................................. 10
Annex ...................................................................................................................................................................................................................... 10
Symbols, safety
Warning! Failure to observe this safety instruction is likely to result in material damage, serious injury or death
Caution! Failure to observe this safety instruction can result in material damage, serious injury or death
Caution! Failure to observe this safety instruction can result in material damage or injury
Important information
CE conformity marking
Device corresponds to protection class III
(operates on safety extra low voltage, SELV)
Functional earth
Observe directions for disposal
Observe directions for disposal

3
LED RGB 24V ― User guide
General safety information
The details and information in this user guide are provided for the purposes of describing the product and its assembly only.
This information does not discharge users from the obligation to conduct their own assessments and checks. It is also impor-
tant to bear in mind that our products are subject to a natural process of wear and ageing.
This guide contains important information that will enable you to use the product safely and appropriately. If this product is
sold, rented out or otherwise passed on to another party, the user guide must be handed over with it. You must therefore
read and follow the safety instructions set out below.
▪ All work on and with the LED strip must be performed with “safety rst” in mind.
▪Observe the regulations pertaining to accident prevention and environmental protection that apply in the country and
workplace where the product is being used.
▪Use only item products that are in perfect working order.
▪Failure to use original spare parts will invalidate the product warranty!
▪Check the product for obvious defects.
▪Use the product only within the performance range described in the technical data.
▪Pay attention to the permissible voltage and the correct cabling of the electrical connection.
The LED strips described here correspond to the state of the art and take into account the general principles of safety appli-
cable at the time this user guide was published. Nevertheless, failure to observe the safety instructions and warning notices
in this user guide may result in personal injury and damage to property. We will assume no liability for any resulting damage
or injury. We reserve the right to make changes that represent technical advances. Keep this guide in a place where it can be
accessed by all users at any time. The general safety information applies to the entire lifecycle of the LED strip.
Correct use
The LED strip must only be used in indoor areas in accordance with the technical data and safety requirements set out in
this document. The LED strip complies with the Low Voltage Directive and the EMC Directive; the declaration is stored in
the Online Shop entry for the product. Internal company requirements and the regulations that apply in the country where
the product is being used must be observed. You must not make any design modications to the LED strip yourself. We will
assume no liability for any resulting damage or injury. You may only install, operate and maintain the LED strip if:
▪The LED strip has been integrated into its surroundings in a proper and safe manner.
▪You have carefully read and understood the guide.
▪ You are appropriately qualied.
▪You are authorised to do so by your company.
▪You are using only original equipment from the manufacturer.
The LED strip is exclusively suitable for use with a 24V DC connection (only use a class 2 power pack).
The LED strip is designed for indoor use.
The LED strip is not suitable for use in environmental chambers. (For non-condensing use)

4
LED RGB 24V ― User guide
Improper use
Improper use is dened as any use of the product for purposes other than those authorised in the user guide and under the
denition of correct use. We will assume no liability for any resulting damage or injury.
Reasonably foreseeable types of misuse could be:
▪Use without Caps – contact between the end of the LED strip and a metal surface can cause a short circuit.
▪Installing the LED strip in the groove using a heavy object will destroy the LED strip.
▪Hard impacts, high forces and strong vibrations e.g. from fork lifts, transport vehicles, factory equipment or presses should
be avoided.
▪Excessive bending beyond the permitted extent will destroy the LED strip.
▪ Temperatures outside those specied in the technical data will reduce the service life of the LED strip.
▪Sharp corners and edges in the cable conduits will destroy the cable.
▪ Ensure there is su󹟠cient strain relief.
▪Do not separate the LED strip outside the separation markings.
▪The LED strip cannot be walked on.

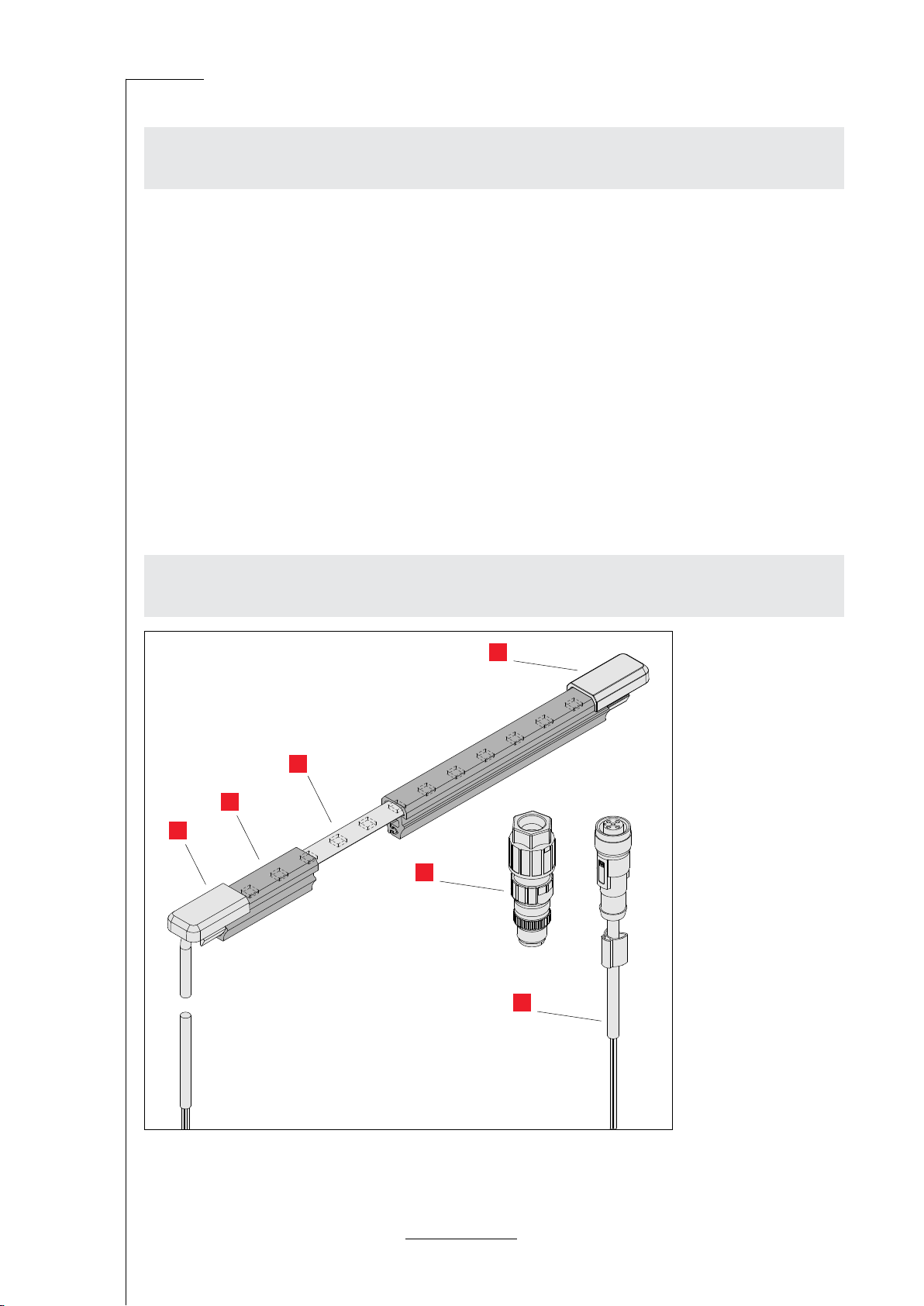

Technical data
3
2
1
3
4
5

5
LED RGB 24V ― User guide
LED RGB 24V conguration and accessories
No. Article num-
ber Product name Comments
10.0.715.45
0.0.718.16
LED Strip RGB 24V, 1m
LED Strip RGB 24V, 2m
Can be
shortened
20.0.715.74
0.0.718.15
LED Casing Profile 8 14x5
LED Casing Profile 8 14x5 (cut-off) -
30.0.719.68 LED Casing Prole 8 14x5, Cap, grey similar to RAL7042
40.0.718.00 Connector M12 4P Male, A-coded, black Accessories
50.0.714.52 Sensor/Actuator Connection Cable 5m M12 4P, Female Connector,
A-coded, black Accessories
▪LED Strip RGB 24V
▪ Intuitive signalling in prole constructions
▪The four-pole connection cable can be used to control the basic colours individually or collectively.
▪ Translucent LED casing prole
▪Casing protects the LEDs from dirt
▪Simply secure in a Line 8 groove
▪ The exible LED strip is just 3mm high and 1000mm or 2000mm long
▪ Can be shortened at 100mm intervals
▪ RGB strip satises protection category IP53.
▪24-Volt technology
▪Connector M12, A-coded as an accessory
IP class IP53
Voltage 24 VDC Common Anode (CA)
LED performance 14.4 W/m
Connection open cable end
Average service life 50,000hrs at L80/W10
Ambient temperature -10° C to +45° C
Width x height 10 x 3 mm
Min. bend radius 20 mm
Separable every 6 LEDs (10 cm)
Colour RGB
Number of LEDs 60 per metre
Lighting angle 180° (light intensity decreases at the edges)
LED type SMD RGB 3-in-1 LEDs
Luminous ux red 140 lumens perm
green 380 lumens perm
blue 90 lumens perm
R+G+B (white) 610 lumens perm
Wave length red 620nm
green 525nm
blue 470nm

6
LED RGB 24V ― User guide
CAUTION! The casing prole is designed exclusively for the performance range and heat generation of the item LED strip.
If item components are combined with a higher-performance LED strip, the customer is responsible for ensuring
safe usage. Particular attention should be paid to su󹟠cient heat dissipation in this case.
Installation and start-up
Coordinated components can be used to create strong, highly visible signalling solutions in a very short time. The controllable
LED strips can be simply and safely integrated into prole frames with a Line 8 groove.
CAUTION! Always unplug the LED strip from the power supply before carrying out installation, cleaning or maintenance work
on it.
CAUTION! Risk associated with inadequate xing: Installation must be carried out by trained personnel. The device must be
installed only on a suitable, level surface. Check the reliability of any fastenings that have not been recommended
by the manufacturer. The LED strip may fall from its mounting if it is not installed properly.
CAUTION! Damage caused by using incorrect voltage: The product must be connected to the power supply in accordance
with the applicable installation regulations of the country where it is being used. Before activating the device, check
whether the voltage of the system power supply corresponds with the specied rated voltage of the consumer. The
LED strip could be damaged or destroyed if the rated voltage is incorrect.
NOTE! When laying live cables along aluminium proles, low-level, non-hazardous voltages can occur as a result of inductive
coupling. To avoid this, it is advisable to connect the construction to the protective earth. An ideal solution is to use
Multi-Socket Power Strip, 5 outlet, with system plug (0.0.627.44) or Distribution Strip (0.0.631.56) combined with
Connecting Cable, Socket / Earthed Plug with earthing lead (0.0.677.54).
Preparation, assuming Caps are used on both ends:
▪ Lengths of aluminium prole LP: LP = L + 60mm
▪ Length of casing prole LM: LM = L+10mm
▪ Length of the unshortened LED strip L: 1000mm or 2000mm
The LED strip can be shortened at intervals of 100mm
100
16.5
CAUTION! If the LED strip is shortened, it loses its IP 53 status. The cut end must be sealed to restore the IP53 status.

7
LED RGB 24V ― User guide
5
∅7
If the LED strip is to be installed concealed in a prole, e.g. in a cross prole,
we recommend feeding the cable through a through hole in the prole. The
hole must be cleanly deburred, and there must be no sharp edges.
Alternatively, the cable can be fed along the groove and protected with a Cover
Prole.
The casing prole can be shortened using Multi-Purpose Pliers.
Place the LED strip inside the casing prole with the covered adhesive strip
facing upwards. The protective lm on the adhesive strip need not be removed.
The white protective covering of the cut-to-size LED strip should protrude from
both ends of the casing prole by approx. 5mm.
Then press and click together the two edges of the casing prole.
TIP! If you remove the protective lm from the adhesive tape after inserting the LED strip and before clipping the casing prole
together, this will have an additional stabilising effect on the ultimate complete unit of LED strip and casing prole. Howev-
er, this does make it more di󹟠cult to dismantle.
Feed the cable through the hole in the prole.

8
LED RGB 24V ― User guide

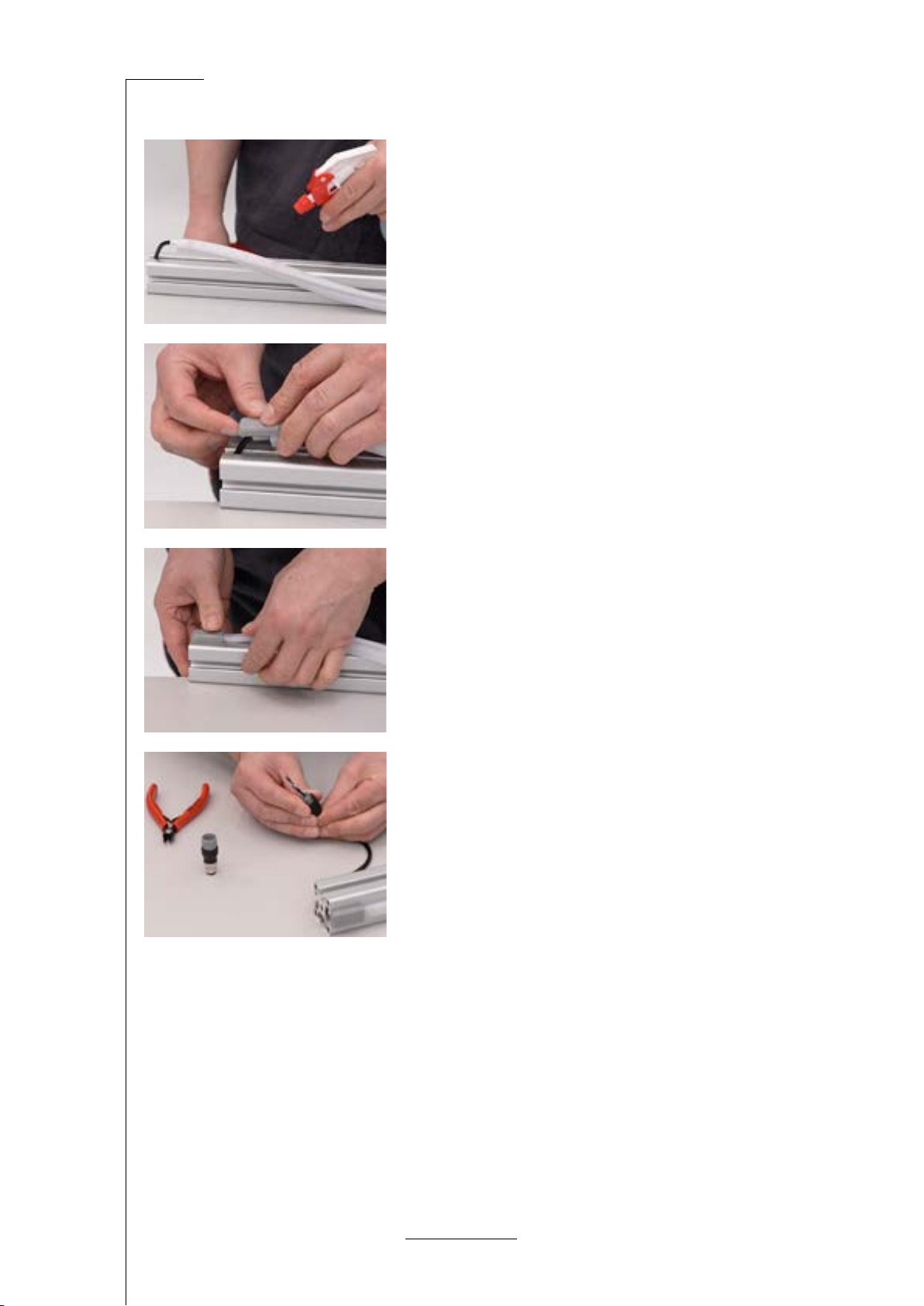

Before pressing in the casing prole with the LED strip, dampen the Line 8
groove with a little soapy water.
Now press the Cap with its clamping bars over the white protective cover of the
protruding cable and push it over the casing prole until the clamping bars rest
on the prole.
Carefully press the casing prole containing the LED strip manually into the
groove of Proles 8 along with the Cap. In doing so, the Cap should be aligned
with the cut edge of the prole.
Be careful to ensure the LED strip is only exposed to low forces during the
installation process, since otherwise the soldered joints could quickly break.
Feed the cable through the connector until the outer insulation disappears into
the connector and you hit a limit stop.

9
LED RGB 24V ― User guide
Now insert the strands according to their
colour into the colour-coded, numbered
clamps in the connector, press them down
and x them in place. Use a side cutter
to separate the wires directly at the outer
edge.
Manually screw the second part of the connector onto the lower part of the
plug, aligning the arrows on each half of the connector.
CAUTION! The connector can only be screwed together in one alignment – when the arrows on the two halves match up.
Connection to a Siemens Simatic S7-1200 SM 1223
NOTE! Further cabling is dependent on the working environment and further application, and is the responsibility of the
customer.
The colour channels are switched en masse.

10
LED RGB 24V ― User guide
Maintenance
Only specialists with appropriate training should carry out repairs and maintenance on electrical devices
Defective lighting element:
The LED strip uses a light-emitting diode (LED). LEDs have a signicantly longer service life than other types of lighting ele-
ment (e.g. lament lamps). As a result, lighting elements do not need to be replaced.
Always disconnect the LED strip from its power source before conducting any maintenance or repair work. Use only parts
that have been approved by the manufacturer as spare parts. Inappropriate maintenance and repair work can result in serious
injury.
Care and cleaning
Risk of damage caused by incorrect cleaning:
To clean, use only a cloth and a standard domestic cleaning agent. Check that the substances you are using are suitable for
use on paints and plastics. Inappropriate cleaning can destroy the device.
Disposal
The product can be recycled or re-used (after any necessary refurbishment and replacement of parts). The use of appropriate
materials and easy dismantling ensure the product can be recycled. Improper disposal of the LED strip can pollute the environ-
ment. Dispose of the LED strip in accordance with the national regulations that apply in your country.
Environmental hazard:
Once it has reached the end of its service life, dispose of the product using the return and collection systems that are available
to you. Inappropriate disposal poses a hazard to the environment.
Transport packaging:
Dispose of the packaging using the return and collection systems that are available to you.
Product development and documentation
A process of continuous product development ensures that products from item Industrietechnik GmbH always exhibit a high
standard of innovation.
Consequently, there could be inconsistencies between this guide and the product you have acquired. item Industrietechnik
GmbH can also not exclude the possibility of errors. We therefore ask for your understanding that the information, illustrations
and descriptions provided here cannot constitute an entitlement to any claims.
You can nd the latest version of this user guide at www.item24.com.

0.0.720.46
item Industrietechnik GmbH Made in Germany 04/2023
item Industrietechnik GmbH
Friedenstrasse 107-109
42699 Solingen
Germany
Phone [phone]
[e-mail]
item24.com
