ITEM LED Light Fitting E 20W User manual

LED Light Fitting E 20W
LED Light Fitting E 30W
LED Light Fitting E 40W
User guide

2
LED Light Fitting E 20W - 30W - 40W ― User guide
Contents
Symbols, safety .......................................................................................................................................................................................................2
General safety information ...................................................................................................................................................................................3
Correct use ...............................................................................................................................................................................................................3
Improper use.............................................................................................................................................................................................................4
Technical data .........................................................................................................................................................................................................4
Installation and start-up ........................................................................................................................................................................................5
LED Machine Light Fitting and LED Light Fitting accessories .....................................................................................................................6
Maintenance ............................................................................................................................................................................................................7
Care.............................................................................................................................................................................................................................7
Disposal ....................................................................................................................................................................................................................7
Annex .........................................................................................................................................................................................................................8
Symbols, safety
Important, safety information, recommendation
Important information
CE conformity marking
Device corresponds to protection class III
(operates on safety extra low voltage, SELV)
Functional earth
Observe directions for disposal
Observe directions for disposal
approval, national standards USA / Canada

3
LED Light Fitting E 20W - 30W - 40W ― User guide
General safety information
The details and information in this user guide are provided for the purposes of describing the product and its installation
only. This information does not discharge users from the obligation to conduct their own assessments and checks. It is also
important to bear in mind that our products are subject to a natural process of wear and ageing.
This guide contains important information that will enable you to use the product safely and appropriately. When sold, rented
out or otherwise passed on to another party, this product must be handed over with the user guide. You must therefore
read and follow the safety instructions set out below.
▪ All work on and with the LED Light Fittings must be performed with “safety rst” in mind.
▪Switch off the power to the LED Light Fittings before carrying out any work on them.
▪Observe the regulations pertaining to accident prevention and environmental protection that apply in the country and place
of work where the product is being used.
▪Use only item products that are in perfect working order.
▪Failure to use original spare parts will invalidate the product warranty!
▪Check the product for obvious defects.
▪Use the product only within the performance range described in the technical data.
▪Ensure all the safety equipment associated with the product is present, properly installed and in full working order.
▪Do not alter the position of safety equipment, circumvent it or render it ineffective.
The LED Light Fittings described here correspond to the state of the art and take into account the general principles of safety
applicable at the time this user guide was published. Nevertheless, failure to observe the safety instructions and warning
notices in this user guide may result in personal injury and damage to property. We will assume no liability for any damage
or injury resulting from such a scenario. We reserve the right to make changes that represent technical advances. Keep this
guide in a place where it can be easily accessed by all users. The general safety information applies to the entire lifecycle of
the LED Light Fittings.
Unsafe or inappropriate use of the LED Light Fittings runs a risk of injury through electric shock.
Correct use
The LED Light Fittings must only be used in accordance with the technical data and safety requirements set out in this
document. Internal company requirements and the regulations that apply in the country where the product is being used must
be observed. You must not make any design modications to the LED Light Fittings yourself. We will assume no liability for any
damage or injury resulting from such a scenario. You may only install, operate and maintain the LED Light Fittings if:
▪The LED Light Fittings have been integrated into their surroundings in a proper and safe manner,
▪You have carefully read and understood the user guide,
▪ You are appropriately qualied,
▪You are authorised to do so by your company,
▪You are using only original equipment from the manufacturer.
▪The LED Light Fittings are suitable for connection to a 24V DC power supply only (Use only with Class 2 Power unit)
▪They are designed for indoor use.
▪The LED Light Fittings must not be opened.

4
LED Light Fitting E 20W - 30W - 40W ― User guide
Improper use
Improper use is dened as any use of the product for purposes other than those authorised in the user guide and under the
denition of correct use. We will assume no liability for any damage or injury resulting from such a scenario.

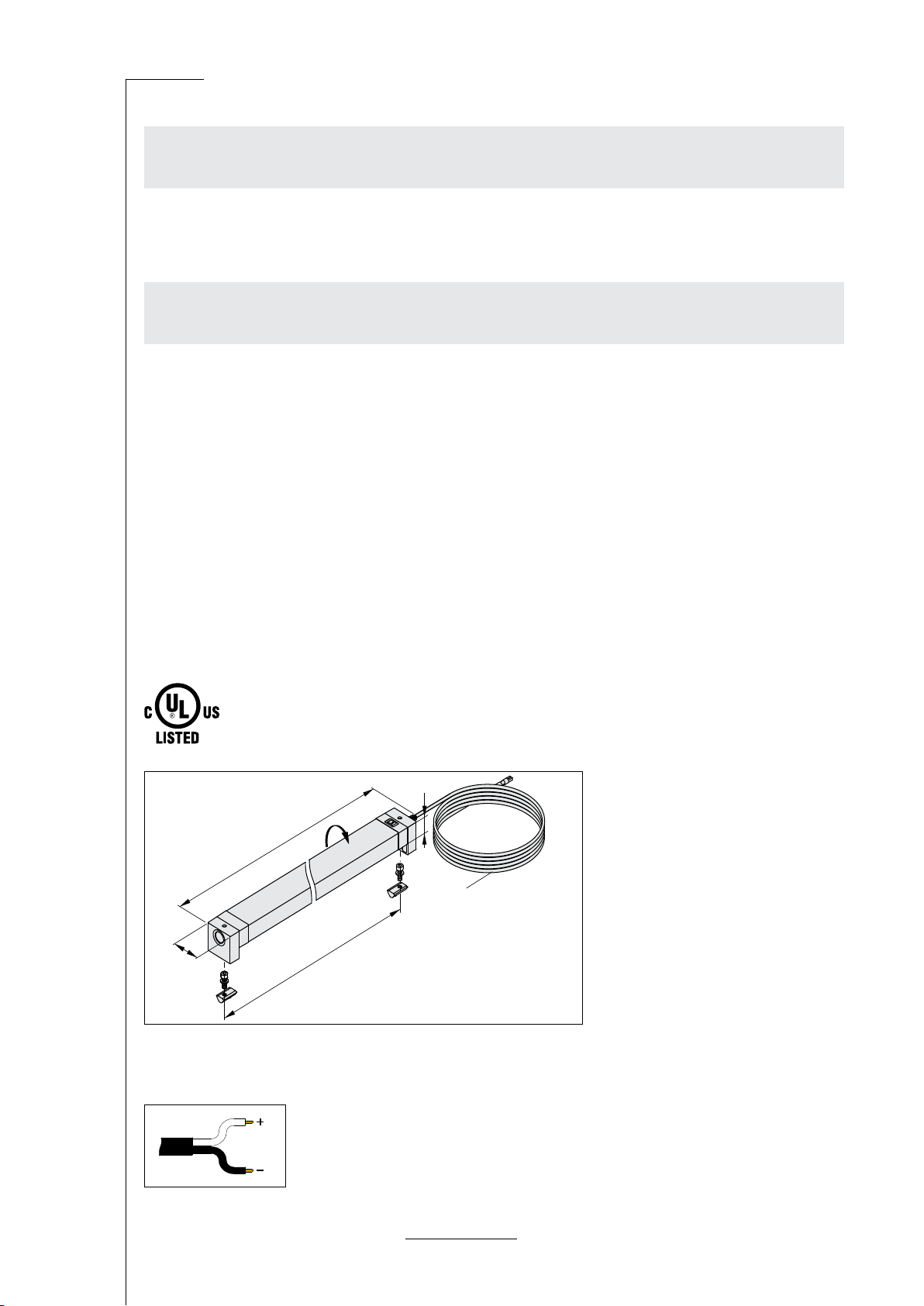

Technical data
▪Designed for indoor use
▪Power supply: 24V DC
▪Diffusor panel and microprism screen
▪Scope of supply includes fastening set for simple installation
UIN: 24 V DC (-10%/+15%)
PIN: max. 25W/max. 37W/max. 49W
Protection class: IP40
Colour temperature ~4000K
Average service life 50000hrs
Energy e󹟠ciency class A++
Suitable for use indoors: Yes
Temperature range for use: -15°C to +45°C
approval, national standards USA / Canada
25
□40
360°
3m
600/850/1100
550/800/1050
Wire assignment:
+
_

5
LED Light Fitting E 20W - 30W - 40W ― User guide
Installation and start-up
Always unplug the LED Light Fittings from the power supply before carrying out installation, cleaning or maintenance work on
them.

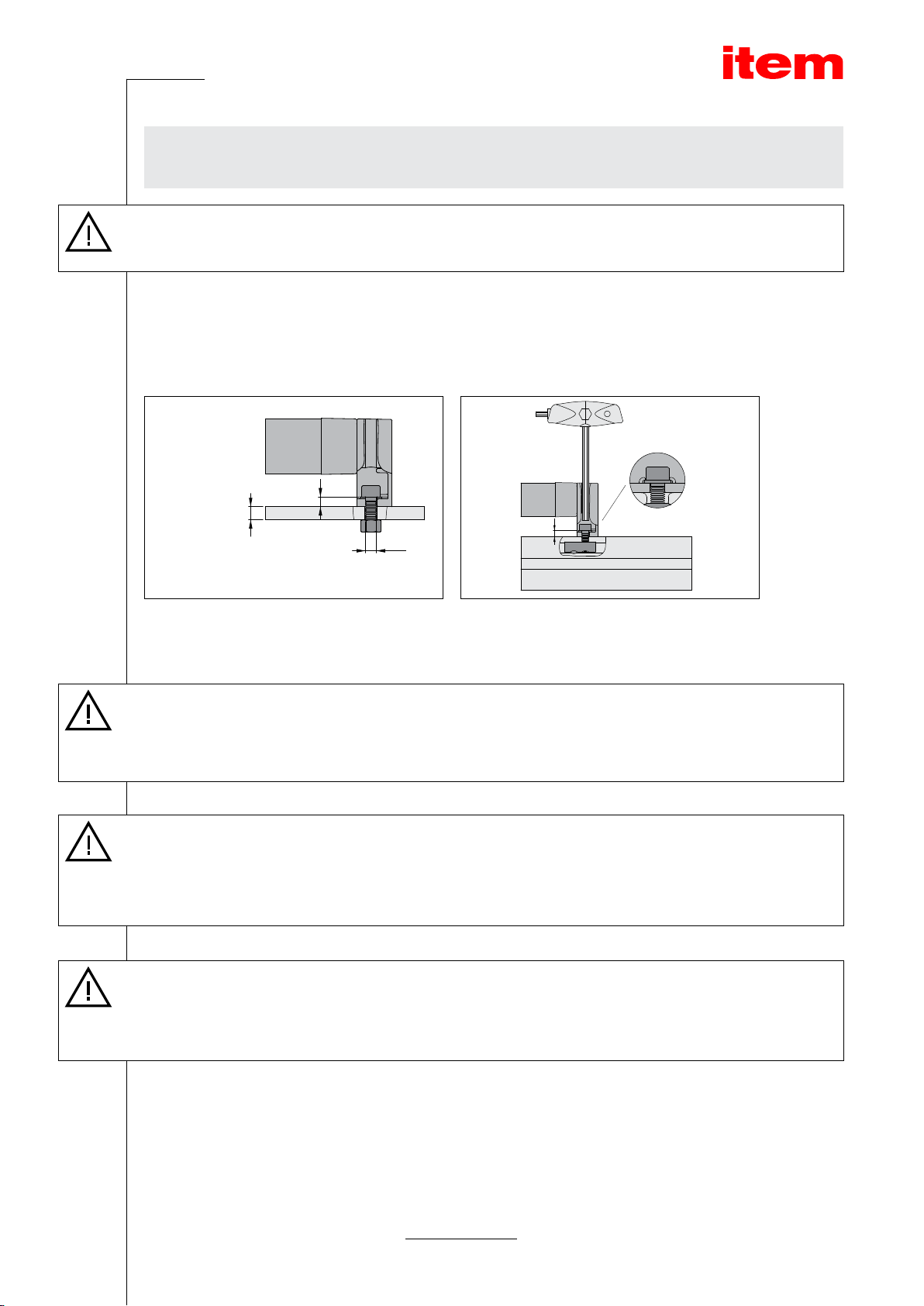

LED Light Fittings E are attached to Line 8 proles using the xings. They can also be mounted on panels. The thickness of
the panel determines how long the Hexagon Socket Head Cap Screws M5 will need to be. The Light Fittings can be rotated
through 360° and aligned to obtain the ideal position.
Fastening to a panel: Fastening to a Line 8 groove:
4.5
M 5
4.5
s
As the detailed view of the groove fastening shows, the screws and washers must be inserted into the side of the fastening
blocks on the Light Fitting. Position the washer under the plastic hooks to make installation easier and ensure the washer is
not lost when taking down the Light Fitting.
Risk associated with inadequate xing:
Installation must be carried out by trained personnel. The device must be installed only on a suitable, level surface. Check the
reliability of any fastenings that have not been recommended by the manufacturer. Use suitable screws to position the Light
Fittings securely. The Light Fittings may fall from their mounting if they are not installed properly.
Damage caused by using incorrect voltage:
The Light Fittings are to be used fully wired. The product must be connected to the power supply in accordance with the
applicable installation regulations of the country where it is being used. Before activating the device, check whether the
voltage of the system power supply corresponds with the specied rated voltage of the consumer. The Light Fitting could be
damaged or destroyed if the voltage is incorrect.
When laying live cables along aluminium proles, low-level, non-hazardous voltages can occur as a result of inductive cou-
pling. To avoid this, it is advisable to connect the construction to the protective earth. An ideal solution is to use Multi-Socket
Power Strip, 5 outlet, with system plug (0.0.627.44) or Distribution Strip (0.0.631.56) combined with Connecting Cable,
Socket / Earthed Plug with earthing lead (0.0.677.54).
Switching the Light Fitting on and off:
The Light Fitting comes with an integral switch as standard, which is used to switch the Light Fitting on and off.

6
LED Light Fitting E 20W - 30W - 40W ― User guide

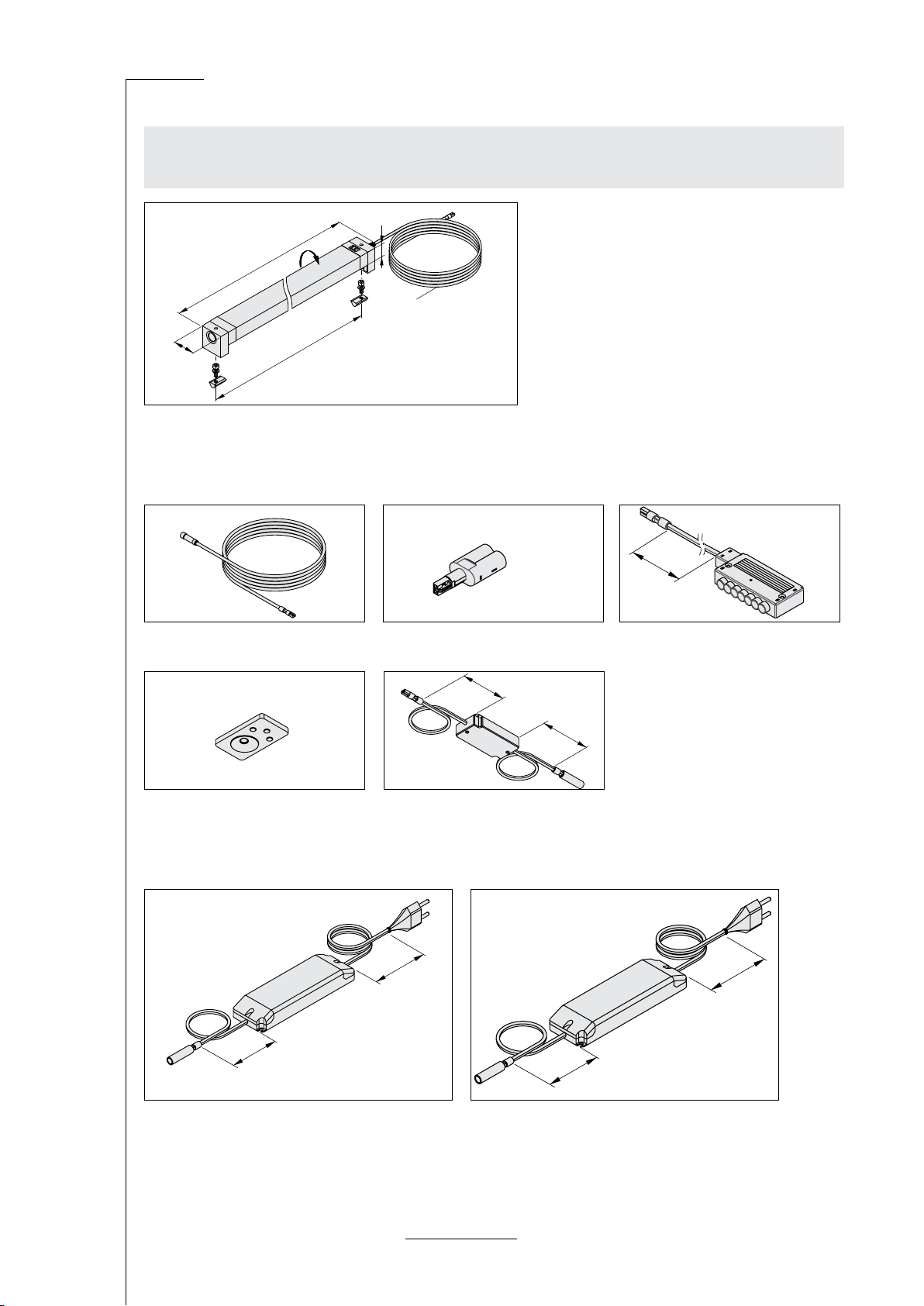

Accessories and connectors for LED Light Fittings E
25
□40
360°
3m
600/850/1100
550/800/1050
Optional accessories
Extension Cable, LED Light Fitting Two-way LED Splitter Six-way LED Splitter
0.2
m
Wireless LED Dimmer Remote Wireless LED Dimmer Receiver
0.2
m
0.2
m
Selection of Transformers
Electronic Transformer LED 30W 24V Electronic Transformer LED 75W 24V
2
m
0.2
m
2
m
0.2
m

7
LED Light Fitting E 20W - 30W - 40W ― User guide
Maintenance
Only specialists should carry out repairs and maintenance on electrical devices
Defective lighting element:
The Light Fitting uses a light-emitting diode (LED). LEDs have a signicantly longer service life than other types of lighting
element (e.g. lament lamps). As a result, lighting elements rarely need to be replaced. However, should the LED fail, the Light
Fitting must be returned to the manufacturer for inspection and, if necessary, repair. Please return the entire Light Fitting to the
manufacturer for this purpose.
Always disconnect the Light Fitting from its power source before conducting any maintenance or repair work. Maintenance
and repair work must be carried out by trained electricians only. Use only parts that have been approved by the manufacturer
as spare parts. Inappropriate maintenance and repair work can result in serious injury or death.
Care
Risk of damage caused by incorrect cleaning:
Clean the transparent panel regularly. Use only a cloth and a standard domestic cleaning agent to clean the parts of the Light
Fitting. Check that the substances you are using are suitable for use on paints and plastics. Inappropriate cleaning can destroy
the device.
Disposal
The product can be recycled or re-used (if necessary after refurbishment and the replacement of parts). The use of
appropriate materials and easy dismantling ensure the product can be recycled. Improper disposal of the LED Light Fittings
can pollute the environment. Please dispose of the LED Light Fittings in full accordance with the laws of your country.
Environmental hazard:
Once it has reached the end of its service life, dispose of the product using the return and collection systems that are available
to you. Inappropriate disposal poses a hazard to the environment.
Transport packaging:
Dispose of the packaging using the return and collection systems that are available to you.

8
LED Light Fitting E 20W - 30W - 40W ― User guide

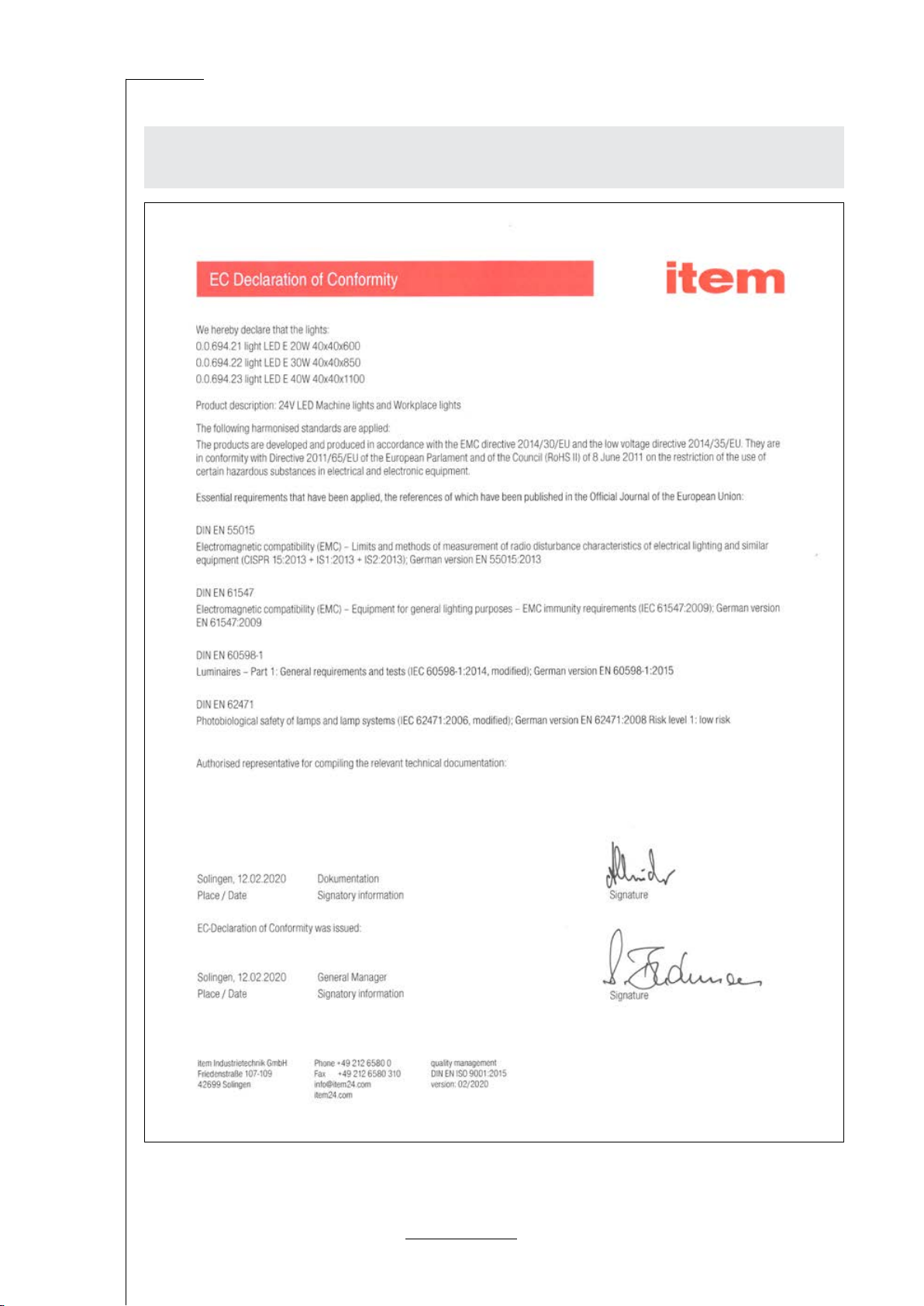

Annex

item Industrietechnik GmbH
Friedenstrasse 107-109
42699 Solingen
Germany
Phone [phone]
Fax [phone]
[e-mail]
item24.com
0.0.701.86
item Industrietechnik GmbH Made in Germany 02/2020
