ITI V5 LE User manual

POB 381, Westfield, MA 01086
33 Airport Road, Westfield, MA 01085
Tel: [phone] Fax: [phone] Email: [email protected] www.scopes.com v. 180907
INSTRUMENT
TECHNOLOGY, INC.
OPERATION MANUAL
V5 LE NON-CONDUCTIVE
VIDEOSCOPE SYSTEM

2
TABLE OF CONTENTS
Introduction………………………………………………………………………………………………..
4
1.0 Important Safeguard and Operating Recommendations……………………………………
5
2.0 Product Overview ………………………………………………………………………………….
6
3.0 System Setup ……...……………………………………………………………………………….
7
4.0 Videoscope ……...………………………………………………………………………………….
9
4.1 Focus ………………………………………………………………………………………….
9
4.2 Articulation…………………………………………………………………………………….
9
4.3 Articulation Locks ……………………………………………………………………………
9
5.0 Basic Operating Instructions ……………………………………………………………...…….
10
5.1 Turning the Power ON ……………………………………………………………………....
10
5.2 Turning the Power OFF……………………………………………………………………...
11
5.3 Capturing a Still Image………………………………………………………………………
11
5.4 Capturing a Video Clip……………………………………………………………………….
11
5.5 Displaying Captured Images and Video……………………………………………………
11
6.0 Main Control Panel ………………………………………………………………………………..
12
6.1 Main Power Switch …………………………………………………………………………..
12
6.2 White Balance Switch ……………………………………………………………………….
12
6.3 Video IN Source Switch ……………………………………………………………………..
12
6.4 Battery Voltage LCD Info Screen…………………………………………………………...
12
7.0 Touch Screen Menu Operation……………………………………………………………………
13
7.1 Menu Features………………………………………………………………………………..
13
7.1.1 Power Down……………………………………………………………………………
13
7.1.2 Photo Gallery ………………………………………………………………………….
14
7.1.2.1 Delete Files …………………………………………………………………
15
7.1.2.2 Replay Movie Clips …………………………………………………………..
15
7.1.3 Still Image Capture ……………………………………………………………………
16
7.1.4 Video Clip Capture …………………………………………………………………….
16
7.1.5 Image Setup ……………………………………………………………………………
17
7.1.6 On Screen Display (OSD) ……………………………………………………………
17
7.1.7 Back ……………………………………………………………………………………..
18
7.2 Reset Function ……………………………………………………………………………….
18

3
8.0 System Settings and Information…………………………………………………………………
19
8.1 System Settings……………………………………………………………………..............
19
8.2 System Information…………………………………………………………………………..
20
9.0 Battery and Battery Charger……………………………………………………………………..
21
9.1 Battery Pack Specifications…………………………………………………………………
22
9.2 Battery Charger Specifications……………………………………………………………...
22
10.0 Light Sources ……………………………………………………………………………………..
23
10.1 White LED Light Source……………………………………………………………………
23
10.2 Blue Light Source…………………………………………………………………………...
24
10.3 Infrared Light Source ………………………………………………………………………
25
11.0 Wireless Link (Option)........................................................................................................
25
11.1 Transmitter Video Case……………………………………………………………………
25
11.2 Receiver Pack………………………………………………………………………………
26
12.0 Head Up Display (Option)……………………………………………………………………….
27
12.1 Specifications………………………………………………………………………………..
27
12.2 HUD Setup…………………………………………………………………………………..
27
13.0 Troubleshooting Guide ………... …………………………………………………..................
28
14.0 Product Specifications…………………………………………………………………………..
29
15.0 Instrument Care and Repair Policy …………………….………….…………………………
31
15.1 Cleaning after Use………………………………………………………………………….
31
15.2 Cleaning of Optics…………………………………………………………………………..
31
15.3 Repair Policy………………………………………………………………………………...
31

4
INTRODUCTION
Thank you for selecting Instrument Technology, Inc. (ITI) to fulfill your remote viewing needs.
Since 1967, ITI has been the Leader in Remote Viewing. The only company of its type doing all its manufacturing
in the United States, ITI consistently provides cutting edge technology to customers world-wide.
ITI specializes in the design, development and manufacture of Remote Viewing Instruments (RVI) and systems
including Borescopes, Fiberscopes and Videoscopes.
ITI offers over 2,000 standard products as well as products custom designed for unique applications. No matter
which ITI product is used, our customers find they are able to observe hostile and difficult to reach environments
never dreamed possible before. Though ITI products can solve many remote viewing problems, it is always best
to select the proper instrument for any given application. Only then can success be assured.
Your satisfaction is guaranteed with all products purchased from Instrument Technology, Inc. Feel free to contact
ITI or your local ITI Representative with any questions.
WARRANTY
Instrument Technology, Inc. warrants that the equipment is fit for the purposes described herein for a period of
one year after the date of shipment when used in accordance with the directions for use, and agrees to repair or
replace any such defective component part at no cost to the customer.
There are no other express or implied warranties. ITI's sole obligation and purchaser's exclusive remedy for
breach of any warranty shall be limited to repair or replacement of the product at the option of ITI. This warranty
does not cover, and ITI will not be liable for any resulting direct, proximate, incidental or consequential damages.
This warranty does not apply if the product has been subject to misuse, negligence, accident or improper
application, nor shall ITI be responsible for work done or repairs made by others.
WARNING: Read this manual completely.
SAFETY INFORMATION DEFINITIONS
DANGER: Indicate[s] a hazardous situation which, if not avoided, will
result in death or serious injury. The signal word "DANGER" is to be
limited to the most extreme situations. DANGER [signs] should not be
used for property damage hazards unless personal injury risk appropriate
to these levels is also involved.
WARNING: Indicate[s] a hazardous situation which, if not avoided,
could result in death or serious injury. WARNING [signs] should not be
used for property damage hazards unless personal injury risk appropriate
to this level is also involved.
CAUTION: Indicate[s] a hazardous situation which, if not avoided, could
result in minor or moderate injury.
CAUTION: [Signs] without a safety alert symbol may be used to alert
against unsafe practices that can result in property damage only.
NOTICE: [this header is] preferred to address practices not related to
personal injury. The safety alert symbol shall not be used with this signal
word. As an alternative to “NOTICE” the word “CAUTION” without the
safety alert symbol may be used to indicate a message not related to
personal injury.

5
1.0 IMPORTANT SAFEGUARDS AND OPERATING RECOMMENDATIONS
DANGER: NON-IONIZING ELECTROMAGNETIC RADIATION SOURCE
This device (Only with Transmitter Configuration) radiates Microwave energy when
operating. The Microwave energy is non-ionizing. Increasing distance from the
Microwave emitting source decreases exposure. Always turn device off when
possible to avoid unnecessary exposure to Microwave energy radiation.
Always consult this manual and ITI representatives before employing this product in
high electrical powered application to prevent injury or death.
Operators must be trained to safely operate electromagnetic EM energy
emitting devices which may exceed FCC exposure and absorption limits (Only
with Transmitter Configuration). This product is not a commercial product for
general public uses.
This product operates on Li-Ion Battery pack. Li-Ion cells are very sensitive to
charging characteristics and if they are mishandled may explode.
The unit is not waterproof. To prevent a shock, hazard or fire, do not expose
the unit to water or other liquids.
NOTICE: Avoid excessive vibrations or sudden shock. This device is not fragile but contains electronic
circuit boards which may be damaged.
NOTICE: Do not immerse the video case into any liquids.
NOTICE: It is recommended to disconnect the battery from the charger shortly after fully charging (Do
not leave on the charger for an extended period of time).
CAUTION: The batteries will become warm while charging. It is recommended removing the battery
from the battery compartment while charging. Excessive heat generated will shorten the batteries life.
CAUTION: It is important the user reads this entire operation manual prior to handling, using, or
maintaining this product. Failure to do so may contribute to personal injury or property damage.
CAUTION:
WARNING:
WARNING:

6
2.0 PRODUCT OVERVIEW
ITI Non-Conductive Videoscope Kit includes:
(1) ITI Model 178708 Ø8mm Non-Conductive Videoscope
(1) ITI Model 178310 V5 LE Video Case
(2) Battery Pack P/N 122826
(1) Battery Charger P/N 122727
(1) Power Supply P/N 550-072
(1) Receiver (Optional) P/N 122721
(1) Head Up Display (Optional) P/N 122293
(1) ½” Dekoron Hose P/N 914-010
(1) Protective Carrying Case & Foam
ITI Series 178708 Videoscopes are long, small diameter, flexible tubes containing a high resolution color
camera chip with lenses at the distal tip. The chip camera carries video signals by wires that terminate in a
multi-pin connection extending from the operation handle. The flexible tube also contains:
1) 4-way articulation wires enabling distal tip movement.
2) Fiber optics for illumination.
The flexible tube is composed of an internal coil for crush resistance, braided wall reinforcement for torsional
strength, and a plastic external layer as a flexible and environmental resistance seal. Videoscope models also
employ a tungsten metal exterior braid for durability in sharp edged and abrasive environments. Other models
use only non-conductive external materials to prevent shorting of electrical equipment being viewed.
Always consult this manual and ITI representatives before employing this
product in a high electrical powered application to prevent injury or death.
Videoscopes are normally used to view or inspect into inaccessible or hazardous environments when only
limited access is available. The articulation control enables the operator to move the tip around for general
observation and/or inspection.
The Videoscope is connected to the V5 LE Videoscope System. The V5 LE Videoscope System contains the
controls to operate the Videoscope’s camera (see Figure 1).
FIG.1: V5 LE VIDEOSCOPE CONTROLS SYSTEM
DANGER:

7
3.0 SYSTEM SETUP
CAUTION: Never attach or remove the Videoscope portion of the V5 LE System from the Video
Case control portion when powered (ON) as the camera system will be damaged. The system must
always be shut off and preferably removed from Mains power connection, prior to setup or
disassembly.
NOTICE: Pressing the two latches found on the Videoscope’s switchable connector disconnects the
power to the CCU. This acts as a safety feature to protect the camera in case of accidentally
unplugging the connector from the video case while the main power is ON. If the latches are pressed
while the Videoscope is ON then no video image is displayed. If the latches are released then a
corrupt video image is displayed. Power cycle the DVR to return to normal operation.

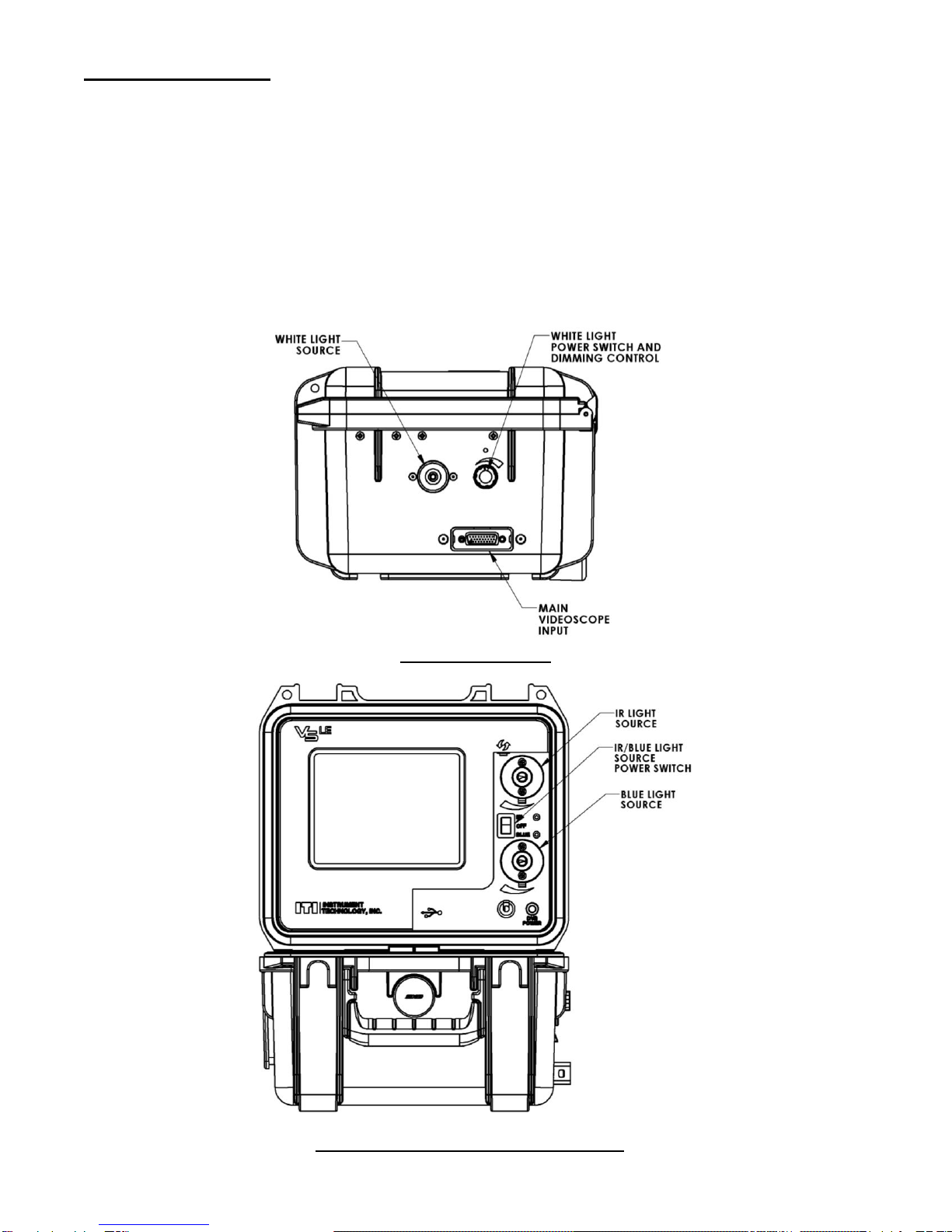

FIG.2: SIDE PANEL
FIG.3: IR/BLUE LIGHT CONTROL PANEL

8
1. Connect the Videoscope control cable video connector into the Main Videoscope Input connector
located on side of V5 LE Videoscope System shown in Fig. 2 above.
2. Connect the second connector, Videoscope control cable Light Input, into Light Source to be used.
White light source has a knob for dimming the light intensity, while each of the IR/Blue light sources has
an illumination attenuation lever to shutter down the light intensity (Fig. 2 & 3). Adjust as needed.
3. If the system will use the internal DC Battery Pack for power, the AC/DC switch on the back of the video
case shown in Fig. 4 must be set to DC position. See Basic Operations section for operation instructions.
4. If AC power is to be used, please connect the AC power supply (included in the kit) to the system’s AC
input located on the rear panel, see Fig. 4. Ensure that the AC power cord is connected firmly to the AC
inlet of the AC power supply. Next, plug the AC power cord securely into the power outlet and make
sure that the AC/DC switch is set to AC position. See Basic Operations section for operation
instructions.

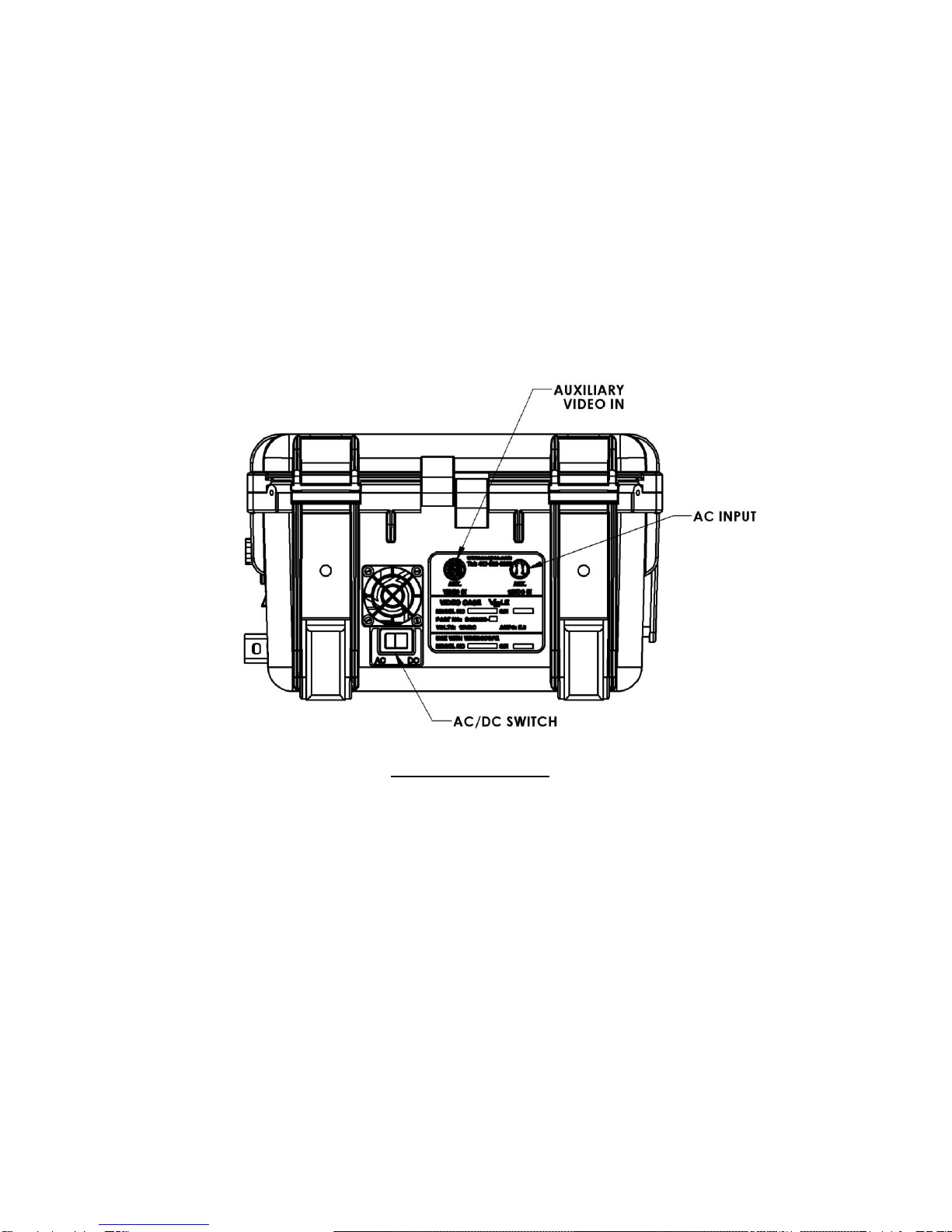

FIG.4: REAR PANEL
CAUTION: Reference the power input configuration tag located on the rear panel. Failure to use a
proper cord and voltage supply could result in property damage, personal injury or system
malfunction.
CAUTION: Inspect the power cord before use. Using a damaged power cord may result in electric
shock.
CAUTION: The power supply included in the kit is not water proof. Do not use it in wet conditions
where the risk of producing electric shocks increases.

9
4.0 VIDEOSCOPE
4.1 FOCUS
The objective lens in the Videoscope is fixed and cannot be adjusted. An object will be in focus if it is between
1.0 inch and infinity.
4.2 ARTICULATION
CAUTION: Do not attempt to articulate Videoscope in the coiled state, catastrophic failure to the
articulation system will occur from added stresses placed on the system. The working length of the
instrument should be in the elongated state at-all-times when articulating the instrument.
The Videoscope has four-way articulation (up, down, left and right). The knobs on the handpiece control the
articulation, see Fig. 5. Rotate one knob to articulate up/down, and rotate the second knob to articulate left/right.
The Videoscope articulation system is considered at its “neutral position” when the distal end is lying in line with
the working length. When neutral, the neutral dots on the Articulation Knobs should be in line with each other
and the white neutral indicator line on the rear body housing. The scope should always be returned to this
position prior to withdrawal from area being viewed.
FIG. 5: VIDEOSCOPE HANDLE FEATURES
4.3 ARTICULATION LOCKS
Once an object has been acquired in the field of view, line of sight may be maintained by using articulation
locks. Locks are oval rocking levers located to the side of knobs. Each knob has its own color-coded lock to
switch on or off.
When “ON”, the ratchet style locking system engages, while the “OFF” position allows Videoscope to articulate
freely. The ratchet system holds the line of sight. It can also be overpowered by turning the knob to the next
locking position. The operator will hear an audible click as the knob is advanced from position to position. This
is the ratchet mechanism at work.
CAUTION: Always unlock and straighten Videoscope before withdrawal. Failure to do so may result
in catastrophic failure. Scope is straight when the knobs are returned to their neutral position.

10
5.0 BASIC OPERATING INSTRUCTIONS
5.1 TURNING THE POWER ON
Two steps need to be followed in order to power ON the V5 LE Videoscope System.
1. Turn the Main Power Switch (located on the Main Control Panel) ON. This switch turns the power ON to
all internal circuits. The monitor will have the backlight only turned on.
2. Turn the monitor ON. The monitor will be switched ON when the DVR is switched ON. To switch ON the
DVR, hold down the “DVR POWER” switch for 3 seconds, until you hear a “beep”, then release. Almost
immediately the ITI splash screen will appear. This will stay on screen for about 30 seconds during the
boot sequence after which the video image will display.
ITI SPLASH SCREEN

11
5.2 TURNING THE POWER OFF
To power OFF the V5 LE Videoscope System, the same two steps need to be taken, as for powering ON, but in
reverse order.
1. Turn the monitor OFF. This is simply done by touching the POWER icon twice on the touch screen
monitor (for a complete description of the touch screen controls, see TOUCH SCREEN MENU
OPERATION section of this manual).
2. Turn the Main Power Switch OFF.
5.3 CAPTURING ASTILL IMAGE
Touching this icon once freezes the video image on screen. To save this picture press PHOTO
again to save on the USB flash drive, and return to live video. For more information see TOUCH
SCREEN MENU OPERATION section of this manual.
NOTICE: The USB flash drive needs to be inserted into the USB port, found on the monitor panel,
before the V5 LE Videoscope System is powered ON. If the USB flash drive was not plugged into the
USB port before the system was powered ON, then plug the USB flash drive and cycle the DVR power.
5.4 CAPTURING AVIDEO CLIP
Touch this icon once to activate a video clip recording. At this point just the VIDEO and BACK
icons are visible, giving the user the ability to cancel the recording session by touching the BACK
icon. The second activation of the VIDEO icon proceeds to recording. A movie record icon
starts flashing at the top right of the screen. Touch VIDEO icon again to stop the video clip
recording and return to live video. The clip is saved on the USB drive. For more information see
TOUCH SCREEN MENU OPERATION section of this manual.
NOTICE: The USB flash drive needs to be inserted into the USB port, found on the monitor panel,
before the V5 LE Videoscope System is powered ON. If the USB flash drive was not plugged into the
USB port before the system was powered ON, then plug the USB flash drive and cycle the DVR power.
5.5 DISPLAYING CAPTURED IMAGES AND VIDEO
Touch this icon to access PHOTO GALLERY and play/view the previously recorded files. Use the
navigation control to browse the recorded files. Touch OK to play/view the selected file. Touch
BACK to return to the PHOTO GALLERY and touch BACK again to return to live video. For full
description of the PHOTO GALLERY features refer to the TOUCH SCREEN MENU OPERATION
section of this manual.

12
6.0 MAIN CONTROL PANEL
The video camera controls and the main power switch are found on the MAIN CONTROL PANEL.
FIG.6: CAMERA CONTROL PANEL
6.1 MAIN POWER SWITCH
This switch turns ON and OFF both external AC and internal 12VDC circuits.
6.2 WHITE BALANCE SWITCH (Videoscope input only)
The camera is equipped with the AUTO / SET White Balance. AUTO mode detects the color-
temperature of a subject to automatically adjust White Balance. The SET mode locks the White
Balance, which is good for viewing in fixed color-temp illumination, such as the Blue and IR illumination.
The White Balance should be used in the SET mode under most conditions. Each time the V5LE is
used set up the White Balance. To set up: start in AUTO mode while viewing a well-lit white surface
illuminated with white light, then push the switch to change to SET mode.
6.3 VIDEO IN SOURCE SWITCH
To switch between video sources use the Video IN Source switch. If the Videoscope is the desired
video source then the switch should be set on VS. If an auxiliary video camera is the desired video
source then the switch should be set on AUX. The auxiliary camera needs to be plugged into the
auxiliary 10 pin connector found on the rear panel (see Fig. 4)
6.4 BATTERY VOLTAGE -LCD INFO SCREEN
The LCD will display the system voltage. If the system is running on external AC power the display will
show a constant voltage of about 12VDC. However, if the system is running on the internal battery pack
then the display will show the voltage of the battery. When the battery pack reaches the end of its
charge, the LCD will display “LOW BATTERY” and the yellow LED (next to the LCD display) will flash. At
this point the system should be turned off and the battery recharged (see Battery and Battery Charger
Description and Operation). If the system is allowed to run longer, the red LED (next to the LCD display)
will start flashing and soon after the system will not function properly as the battery voltage will be too low.

13
7.0 TOUCH SCREEN MENU OPERATION
After turning ON the MAIN POWER SWITCH and the DVR (see 5.1 Turning the Power ON), with a video camera
connected (either the Videoscope or an auxiliary camera) the only on screen display (OSD) is the Date and
Time. If there is a USB flash drive inserted then the File Count (showing the number of files on the USB flash
drive) will also appear.
If the screen is touched anywhere, then 3 control icons will appear if video camera is not connected, or 7 control
icons will appear if a video camera is connected.
VIDEO CAMERA NOT CONNECTED
VIDEO CAMERA CONNECTED
If the system was powered ON without having a video camera connected then to get a video image, connect a
video camera and touch the BACK icon. The video image will then display after a few seconds.
7.1 MENU FEATURES
7.1.1 POWER DOWN
To power down touch the POWER icon
once. All the icons will disappear, except for
the POWER icon and BACK icon. To return
to live video touch BACK. To power down
touch POWER icon again. The “System
Shut-down” message will appear at bottom
left of the screen and a series of “beeps”
will signal that the monitor and DVR will
shut down. 3 “beeps” will then indicate shut
down was successful.

14
7.1.2 PHOTO GALLERY
This icon takes you to the photo gallery screen.
Here, the thumbnail images of the stills and video
clips stored on the USB flash drive are displayed
six (6) at a time. The border surrounding the
thumbnail indicates red for JPEG and blue for
m4v files. Use the navigation control to browse
the thumbnails. Touching the down arrow moves
the gallery to the next page when on bottom line.
The left info box displays the name of the
selected thumbnail while the right info box
displays the page number the selected thumbnail
is and the total number of files stored on the USB
flash drive. The filename assigned to the still
images and video clips are comprised of 8
characters. The first 6 characters represent the
date (when the image or clip was taken) in
DD/MM/YY format while the last two characters
are a sequence of characters that will give every
saved file a unique name.
NOTICE: Video clips are saved as .m4v files. This movie file is playable on a PC by VLC Media
Player, downloadable here: http://www.videolan.org/
NOTICE: If the Photo Gallery is accessed when an USB flash drive is empty then “No Image Files” is
displayed in the bottom right side of the screen followed by 3 beeps before returning to live video.
NOTICE: If the Photo Gallery is accessed after the USB flash drive was removed and inserted again in
the USB port without cycling the DVR power, then “Card Install Failed” is displayed in the bottom right
side of the screen followed by 3 beeps before returning to live video. Cycle the DVR power with the
USB flash drive plugged and then access the Photo Gallery.
If third party software is not desirable, the .m4v video clips can be saved in .mp4 format, playable in
Windows Media Player. The following steps should be taken if .mp4 format is desired:
1. If the gallery cursor is over a .m4v file then pressing the MP4 icon will leave the BACK and MP4
icons only.
2. At this point press BACK to cancel operation or MP4 icon to start the conversion. The MP4 icon
will flash during the conversion while all the touch controls are removed.
3. When the conversion is complete, the photo gallery touch icons are turned back on. A file with
the same name is written to the USB flash drive with a .mp4 file extension. The photo gallery will
not display this file, only the .m4v file.
NOTICE: If the photo gallery cursor is over a .jpeg file, the MP4 icon is displayed but functionally
disabled.

15
7.1.2.1 DELETE FILE (WHILE IN PHOTO GALLERY)
While in Photo Gallery, touching the DELETE
icon will delete the selected file. Touch once to
invoke delete option and a second time to delete
the file from the USB flash drive. Touch BACK
icon to return to live video.
If you select a file that you do not wish to delete,
press BACK icon after the delete option was
invoked to bring you back to the Photo Gallery.
NOTICE: If files were converted to .mp4 format than deleting a .m4v file from the photo gallery will
delete the corresponding .mp4 file with the same name.
7.1.2.2 REPLAY MOVIE CLIPS (WHILE IN PHOTO GALLERY)
When a thumbnail image or video clip was
selected from the gallery, by touching OK on the
navigation control, the image will expand to full
screen and start playing if it is a movie. Any text
saved with the image will be displayed as well.
Any time you can return to the gallery by touching
the BACK icon. However, if you want to browse
the images stored on the USB flash drive, in full
size, then use the left and right arrows. Touch the
left arrow to preview the previous image or the
right arrow to view the next image. Images will
replay in the same order as displayed in the
gallery. This is a quicker method of viewing
images than browsing the thumbnail in the
gallery.
Also, on playback the PAUSE icon
appears on screen along with the BACK icon so
you can stop and start a movie clip at will. While
the movie is paused a small PAUSE icon
appears at top right of the screen to indicate the
status.
NOTICE: Touching the screen anywhere there is no icon acts as a PAUSE key, making pausing very
easy and convenient.

16
7.1.3 STILL IMAGE CAPTURE
Touch this icon to capture a still image. As
mentioned in section 5.3, touching this icon once
freezes the video image on screen leaving just
the PHOTO and BACK icons visible. Also, a
STILL message appears at the top right side of
the screen. To save this picture press PHOTO
again to save on the USB flash drive (a CAPT
message appears at the top right side of the
screen signaling that the picture is being taken),
and return to live video. If you do not wish to
capture the image press BACK icon to cancel
and return to live video.
7.1.4 VIDEO CLIP CAPTURE
By touching this icon, a two stage video record
sequence is activated. As mentioned in section
5.4, first stage gives the user the ability of
canceling the recording process by touching the
BACK icon. Touch icon the second time to
start a video clip recording. A movie record icon
starts flashing at the top right of the screen
signaling that a video clip is recording. Touch
VIDEO icon again to stop the video clip recording
and return to live video. The clip is saved on the
USB flash drive.
Once a video clip started recording, touch
PAUSE icon at any time to pause the
recording. Pressing PAUSE again resumes the
recording. The movie clip is then saved as a
single file but missing the time period between
PAUSE touches.

17
7.1.5 IMAGE SETUP
On the image setup screen the following image
controls can be found: Contrast, Brightness,
Saturation and Hue. Use the navigation controls
up and down arrows to select the parameter you
want to adjust, and then use the left and right
arrows to make the adjustments. The image will
change in real time in the background. Default
settings are at 50%. Touch BACK to return to live
video where the changes will be reflected in the
live image.
NOTICE: If the input video format is PAL
then the “Hue” control will have no effect.
7.1.6 ON SCREEN DISPLAY (OSD)
OSD generally refers to text characters overlaid on the live image and which are saved with the image. The
system displays an OSD such as the following at the top left of the screen for showing the current Date, Time and
File Count.
First line displays current Date (American format)
and Time.
Second line shows File Count on the USB flash
drive. It is the number of the next file to be saved.
The line is blank if no USB flash drive is installed
and it shows 01 if an USB flash drive is present
but empty with no files saved.
The File Count is a set of two characters that are automatically incremented through the sequence of characters
0-9. File count rage from 01 to 99. The file count characters will be automatically added as last two characters to
the filename of the still image or video clip saved on the USB flash drive. When #99 is reached, the system will
report an “SD Card Full” error message at the bottom of the display. If another video or still image is attempted to
be captured, this error message is repeated and no more files are captured. At this point the USB flash drive
needs to be emptied or replaced with an empty one.
05/20/13 10.35.40
05

18

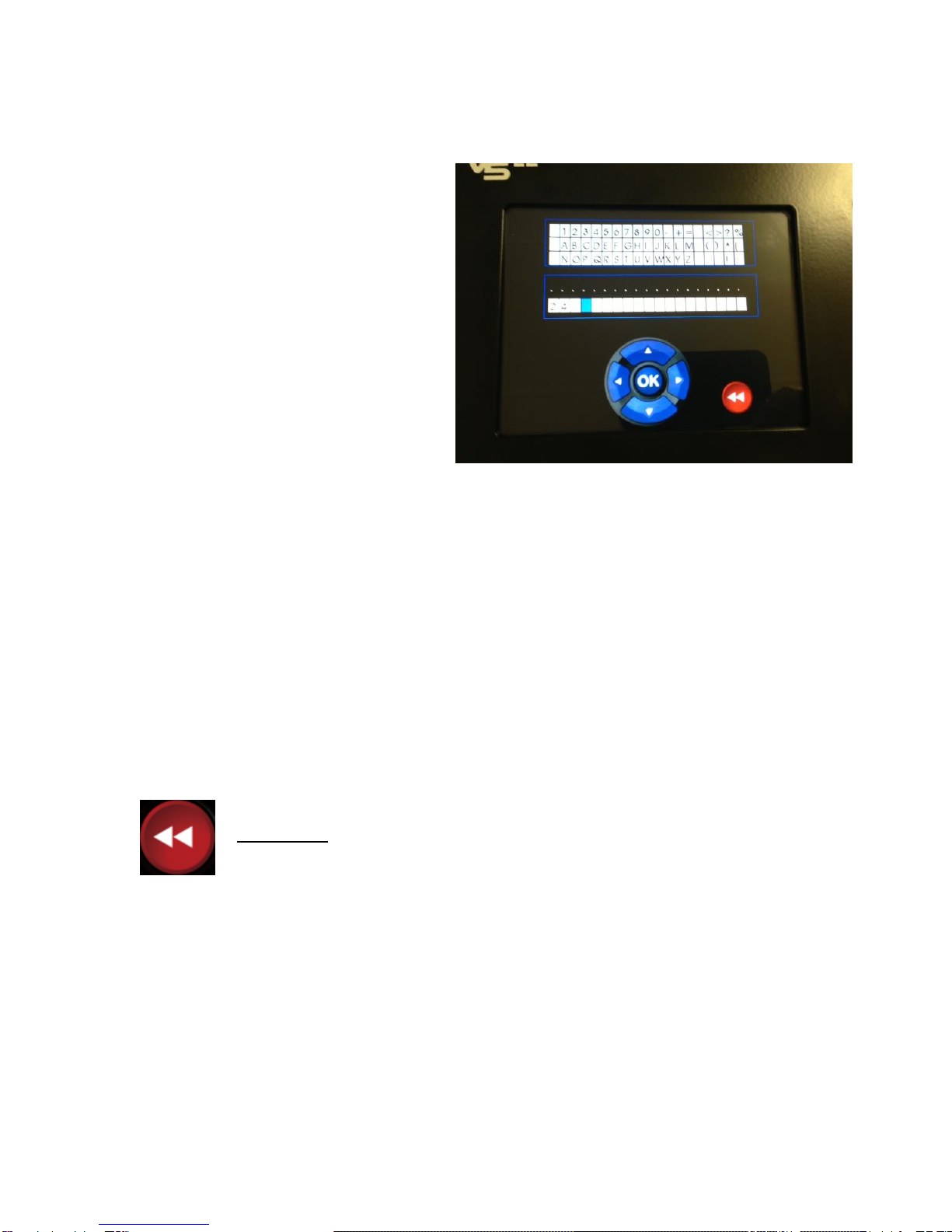

By touching the OSD icon the shown input
screen will appear.
On entry, the cursor appears at the start of
the text line. The text line is 19 characters
long. The first 3 positions are reserved for
the file count number (which cannot be
edited). Use the navigation controls to
enter a 16 character text message to
annotate an image. The cursor is
positioned along the text line using the left
and right arrows. Auto wrap is supported.
To enter the keypad area, use the up
arrow. Dual cursors are displayed, one at
the current text line position and the other
over the character to be selected. To move
around the keypad use the up, down, left,
and right arrows. Auto wrap is supported.
To select a character, in the keypad area
place the cursor over the desired character
and press OK. The selected character will
be placed in the text line bellow at the
current cursor position which is then
incremented along. In the text line,
pressing OK will overwrite the current
cursor position with a space character then
increment the cursor position.
Touch BACK to return to the live video
screen where the single line of text will
appear on the same line as the File Count.
NOTICE: Vertical movement encompasses both the keypad and text line. So, if you are on the keypad
top line then pressing the up arrow will wrap you to the text line below and only one cursor is displayed.
Similarly, if you are on the text line then pressing the down arrow will wrap you to the keypad top line
with dual cursors appearing.
NOTICE: The text string is recalled into the text line each time the OSD editor is accessed, allowing
you to edit the previously created text. This text line is volatile and will only be stored while the DVR is
powered on. Cycling the DVR power will clear the text line.
7.1.7 BACK
This is the only icon to be displayed on screen at all times. Of course, when no icons are displayed, the BACK
icon will also not be displayed. Touch this icon to go back one step. So, if you are for instance in the PHOTO
GALLERY screen touch BACK to return to the main screen. If you touch BACK in the main screen then all icons
will disappear until the screen is touched again.
7.2 RESET FUNCTION
If the DVR system does not respond to the touch commands or will not power down in the normal way it may be
necessary to carry out a hard reset to re-initialize the system. To do this, hold down the RESET button (found on
the touch screen panel –see fig. 7) for 4 seconds or until a series of “beeps” can be heard. After that the LCD
screen will flash briefly and the system will power down.

19
FIG.7: RESET BUTTON
The system can then be power ON again the normal way outlined in section 4.0. This procedure can be carried
out at any point during the use of the system.
8.0 SYSTEM SETTINGS AND INFORMATION
8.1 SYSTEM SETTINGS
The language and date/time are factory setup. If different settings are needed than the factory setup settings, the
Main Menu allows access to these settings.
The Main Menu is accessed thru a keyboard that must be connected to the USB receptacle located on the
monitor panel. First connect the keyboard while the DVR is powered down. Next power up the DVR by depressing
the DVR power switch located on the monitor panel (see section 5.1 “Turning the Power ON” for more
information)
After powering ON the system, to activate the Main Menu invoke F2.
Language, Clock Set >
On Screen Caption >
LCD Settings >
Composite Video Output
Regular Image
Zoom Image
Power Down (RH-C) >>
NOTICE: Although, seven options are displayed when accessing the Main Menu, only the Language,
Clock Set and Power Down are fully operational. We do not recommend using the other options
because they might crash the system.
The following actions can be performed using a desktop keyboard:
To navigate press the arrow keys (UP, DOWN, LEFT and RIGHT)
To Select press “Enter”
To exit Main Menu press F2

20
To set the Language or Date/Time, select Language, Clock Set option.
Language, Clock Set >
English
Selects English language
On Screen Caption >
German
Selects German language
LCD Settings >
Spanish
Selects Spanish language
Composite Video Output
Italian
Selects Italian language
Regular Image
Clock Set >
Selects Clock Set
Zoom Image
Power Down (RH-C) >>
Use UP and DOWN arrows to highlight the desired option then press ENTER to select. If no selection is required
then use the LEFT arrow to return to the MAIN MENU without making any changes.
If the Clock Set option is selected a setup screen is displayed as follows:
Set Date and Time using the LEFT and RIGHT arrows to highlight the settings (as shown in the above picture)
and then the UP and Down arrows to change them. Press ENTER to save and exit this option.
The system must be power down by selecting Power Down option and then press F10. Remove keyboard to
return to normal functioning of the DVR.
8.2 SYSTEM INFORMATION
System information shows data relating to the software revision of the DM365 application code, as well as the
revision level of the microcontroller firmware. It can be found in the same window as the Clock Setup. Please refer
to section 8.1 for instructions on how to access this option.
The top line of the System Information field shows the software revision while the second line shows the revision
level of the MSP430 microcontroller firmware.
