ITSU IS0149 User manual

IS0149 User Manual

Page 1
CONTENTS
IMPORTANT INFORMATION 02
COMPLETE EXPLOSION DRAWING 04
PARTS LIST 05
ASSEMBLY TOOLS 06
ASSEMBLY INSTRUCTIONS 07
EXERCISE COMPUTER WITH PULSE INSTRUCTION MANUAL 12
TROUBLE SHOOTING 13
PRODUCT MAINTENANCE 13
PRODUCT SPECIFICATION 14
CONTACT US 15
Thank you for purchasing the IS0149.
Before operating this unit, please read this manual carefully to
ensure optimum performance and safety.
This manual should be kept available for future reference.
REMARK:
For product improvement, the company reserves the right to change
the design and specification at any time without prior notice.
Pictures are for reference use only and may differ from the actual
product.

Page 2
IMPORTANT INFORMATION
SAFETY
1. Please keep this manual in a safe place for your reference when necessary.
2. Please do not assembly or use this equipment until you read this manual thoroughly &
carefully. The safety and efficiency only can be achieved when the equipment is
assembled, maintained and used properly. It is your responsibility to ensure that all the
users are informed of all the warnings and precautions.
3. For totally safe use, a stable, leveled surface is required. Protect your floor with a mat.
Do not use the equipment in a damp area such as swimming pool sauna, etc. For safety
space, the equipment must have at least 0.5meter of free space all around it.
4. Before starting any exercise program you must consult your doctor to determine if
you have any physical or health conditions that could create a risk to your health and
safety or prevent you from using the equipment properly. Your doctor's advice is essential
if you are taking medication that affects your heart rate, blood pressure or cholesterol
level.
5. Be aware of your body's signals. Incorrect or excessive exercise can damage your
health. Stop exercising if you experienced any of the following symptoms: pain, tightness
in your chest, irregular heartbeat, extreme shortness of breath, feeling light headaches,
dizzy or nauseous. If you do experience any of these conditions you must consult your
doctor before continuing with your exercise program.
6. Keep children and pets away from the equipment, the equipment must be assembled
and used by adults only.
7. The equipment is designed for home use only, Maximum weight of the user is :100kg.
8. The equipment is not suitable for therapeutic use.
9. Wearing proper clothing while using the equipment, avoid wearing loose clothing that
may get caught in the equipment or that may restrict or prevent movements.
10. Keep your back straight while exercising.
11. Before using the equipment, check the handle bar, seat, and the nuts & bolts are
securely tightened.
12.For adjustable parts, bear the maximum position in your mind, do not exceed the

Page 3
mark "stop", otherwise will cause risk.
13. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment ,or if you hear any unusual noises coming from
the equipment during use, stop immediately. Do not use the equipment until the problem
has been solved.
14. Care must be taken when lifting or moving the equipment so as not to injure your
back. always use proper lifting techniques and /or seek assistance if necessary.
15.All moveable accessories (e.g. pedal, handlebar, saddle...etc.) require weekly
maintenance. Check them before use every time. If anything broken or loose, please fix
them immediately. You may continue using them only after they return to good
conditions.
16. Pay attention to the absence of a free wheel system which will cause serious risk.
17. Adjusting the knob for emergency.
18. Lock the equipment when stop using.
MAINTENANCE
1. The safety level of the equipment only can be maintained if it is regularly examined for
damage and or /wear and tear.(e.g. handle bar, pedals and seat ...etc.).It is vital that any
faulty parts are replaced and the it is not used until completed repaired.
2. Regularly check that the elements fastened with nuts and bolts are correctly
tightened.
3. Remember regularly to grease moving parts.
4. Special attention to the component, most of them are susceptible to wear like brake
system, foot pad etc..
5. As sweat is very corrosive, do not allow it to come into contact with the enameled or
chromed parts of the equipment, particularly the computer. Immediately wipe the
equipment after using. The enameled parts can be cleaned using a damp sponge. All
aggressive or corrosive products must be avoided.
6. Store the equipment in a clean and dry environment away from children.

Page 4
COMPLETE EXPLOSION DRAWING

Page 5
PARTS LIST
No.
Name
QTY
No.
Name
QTY
No.
Name
QTY
1
Main frame
1
32
Seat
1
63
Convenient
cover
3
2
Support rack
1
33
Main belt wheel
1
64
Knob
1
3
Seat post
1
34
Axis of rotation
1
65
Crank cover
2
4
Handle bar
1
35
Nylon nut
1
66
Left cover
1
5
Front stabilizer
1
36
Flywheel
1
67
Right cover
1
6
PJ belt 240
1
37
Protect plug
1
68
Tools
1
7
PJ belt 230
1
38
Hex nut
2
8
Rear stabilizer
1
39
8 period adjusting
knob
1
9
Magnetic board
1
40
Nylon nut
3
10
Sensor wire
1
41
Snap spring
1
11
Console
1
42
Cap nut
4
12
Alum idle wheel
1
43
Axis with the spring
7
13
Idle bearing
1
44
Nylon nut
2
14
Bearing cover
2
45
Fixed plate
2
15
Flat washer
1
46
Bolt
2
16
Nut
2
47
Pressure spring
1
17
Pin plug
1
48
Bearing 6003
4
18
Foam
2
49
Bearing 6000
4
19
Console wire
1
50
Crank (L)
1
20
Front cover
1
51
Crank (R)
1
21
Screw
2
52
Guide pulley
1
22
Pedal L/R
1
53
Bearing seat
2
23
Screw
1
54
Axis bushing
6
24
Spring washer
2
55
Cushion
1
25
Screw
7
56
Axis with the spring
1
26
Curved washer
6
57
Tube plug for rear
stabilizer
2
27
Screw
1
58
End cap
2
28
Screw
4
59
bushing
1
29
Screw
4
60
Waved washer
2
30
Screw
4
61
Board
2
31
Washer
10
62
Front wheel cover
2

Page 6
ASSEMBLY TOOLS
Spanner Hex wrench

Page 7
ASSEMBLY INSTRUCTIONS

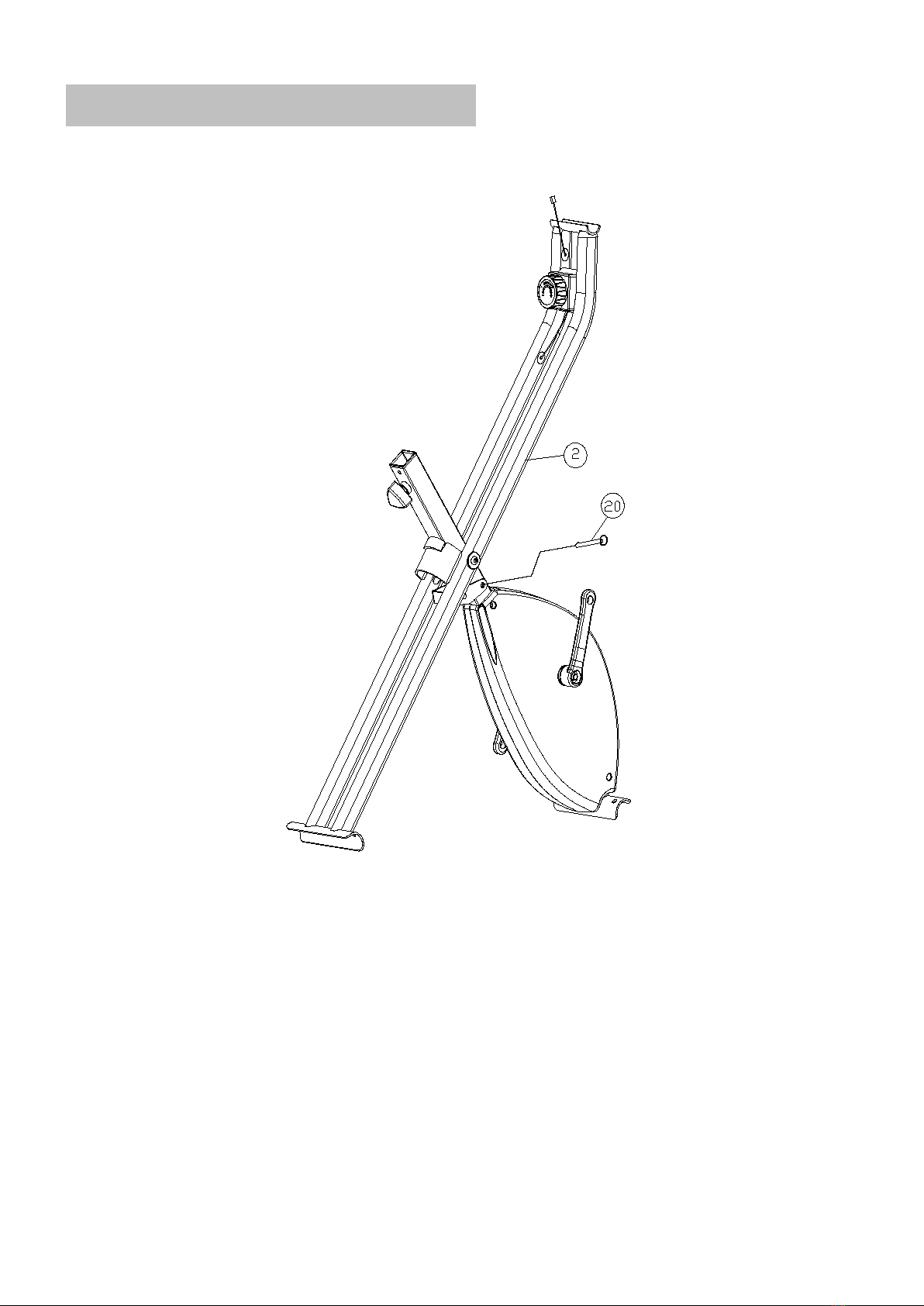

Step1: Install the lock pin
Pull out the lock pin(20) from the folding bike, extend the bike and fix the lock
pin(20)

Page 8

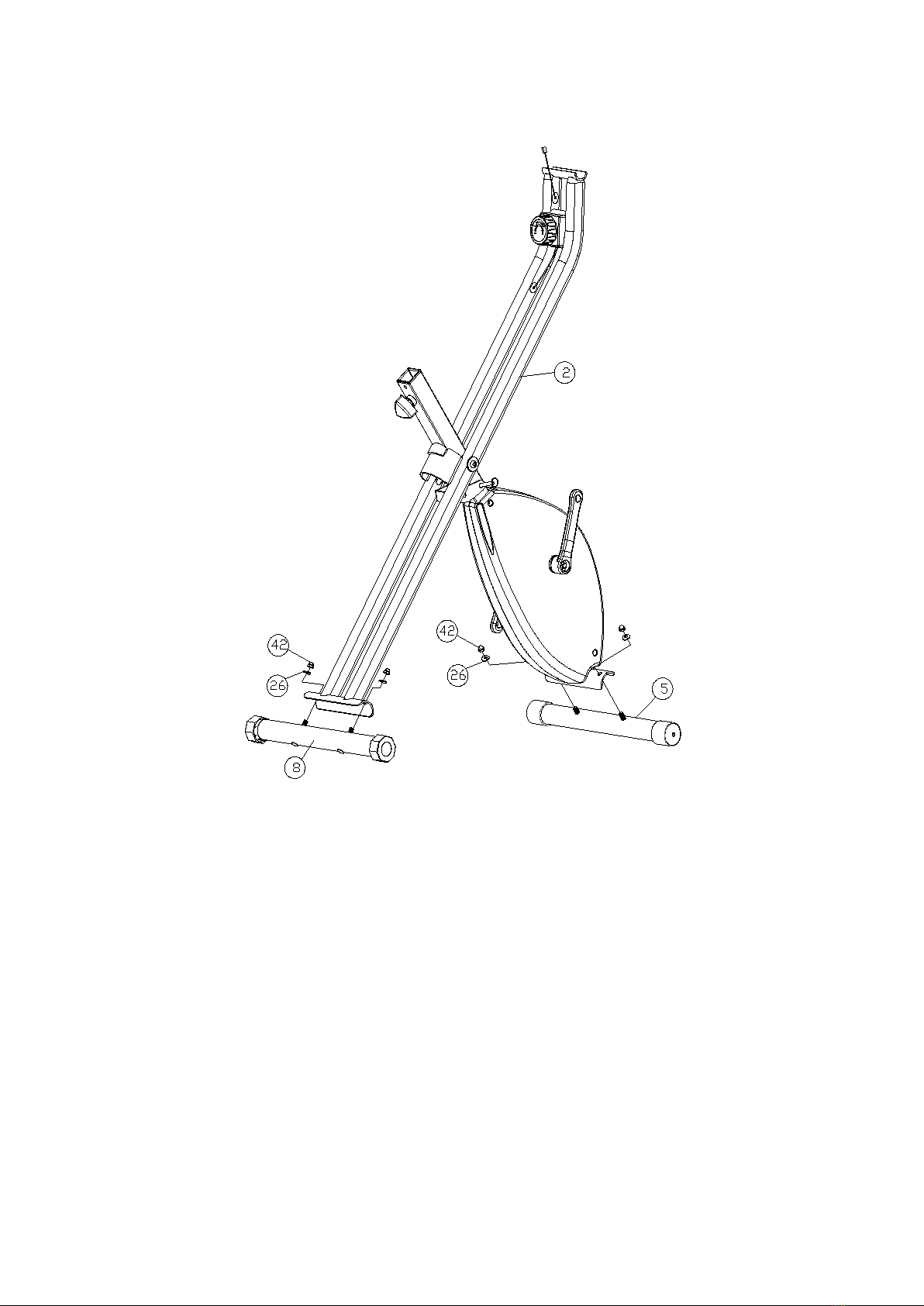

Step2: Install the front and rear stabilizer
1) Install front and rear stabilizer(5)&(8) with the curved washer(26) and cap
nut(42).
2) Tighten the nuts securely. Front stabilizer(5) has transport wheels.

Page 9
Step3: Install the handlebar and console.
1) Attach the handle bar(4) to main frame with the curved washer(26), spring
washer(24) and screw(28) and tighten.
2) Insert the console (11) onto to plate welded on the main frame and then connect
the wires correctly.

Page 10

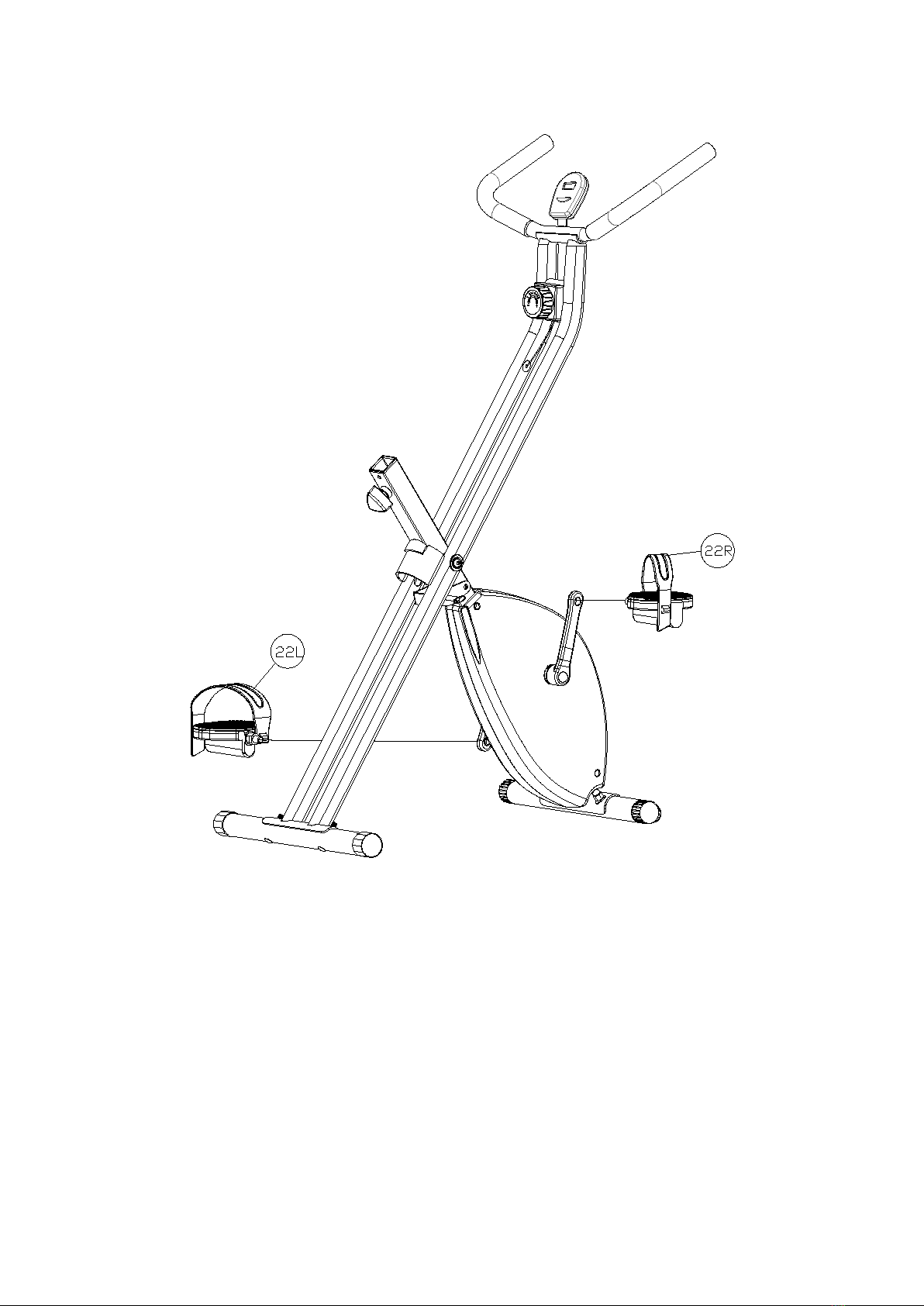

Step4: Install the pedal
1) Screw the pedal (22L) which is marked "LEFT" into the crank tightly by
anticlockwise. 2) Then screw pedal (22R) which is marked "RIGHT" into the crank
tightly by clockwise.

Page 11

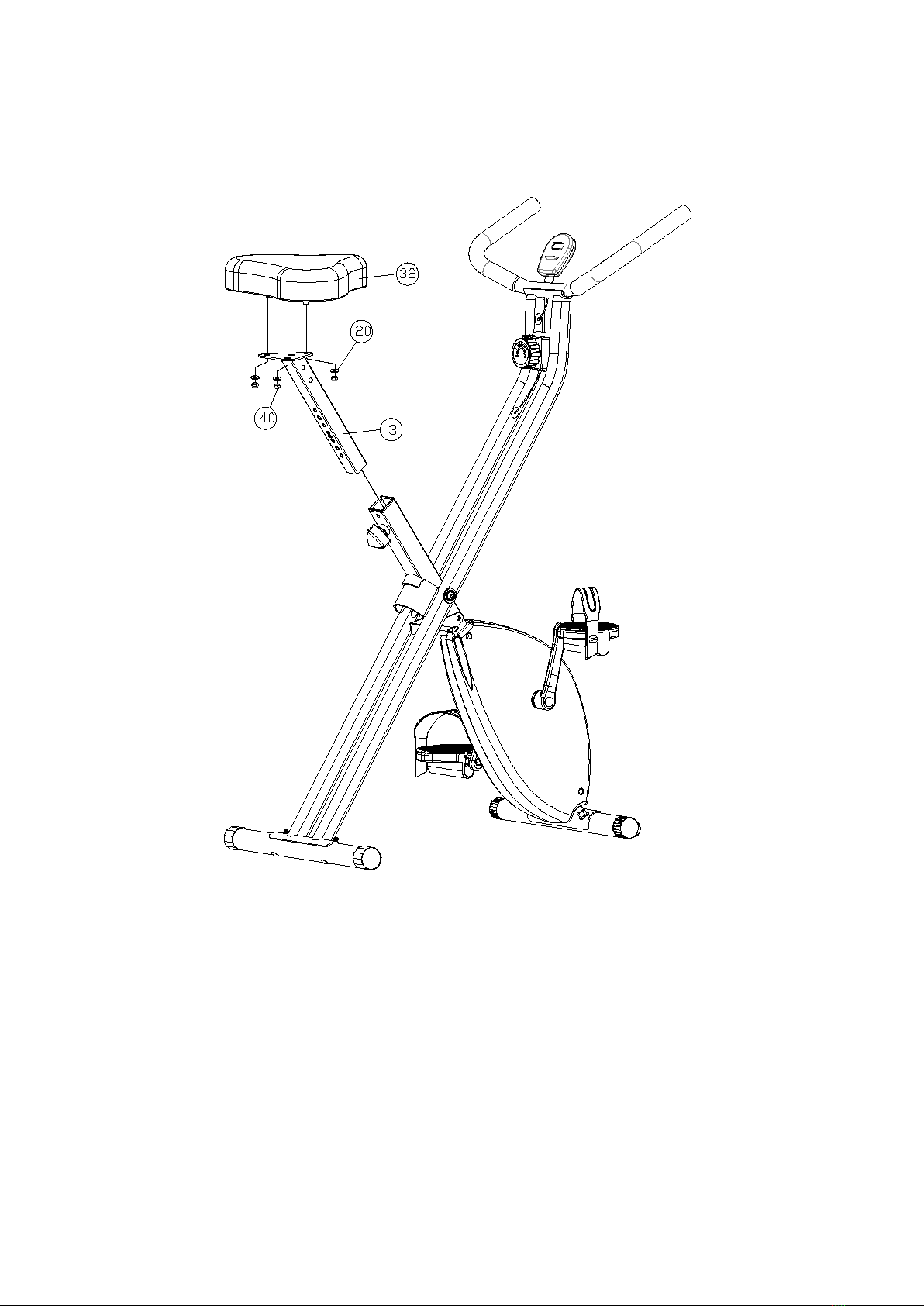

Step5: Install the seat and seat post
1) Attach the seat(32) to the seat post(3) with the flat washer(20) and nylon nut(40)
tightenly.
2) Attach the seat post(3) to the main frame, choose a suitable height, then fasten
the knob(64).

Page 12
EXERCISE COMPUTER WITH PULSE INSTRUCTION MANUAL
FUNCTIONAL BUTTONS:
MODE - Push down for selecting functions. If the long time holds down MODE button
down for resetting time、distance and calories.
RESET - Push down for resetting time、distance、calories
FUNCTION AND OPERATIONS:
1. SCAN: Press “MODE” button until “SCAN” appears, monitor will rotate through all the 4 functions
:Time、speed、distance、calorie ,Each display will be hold 6 seconds.
2. TIME: Count the total time from exercise start to end.
3. SPEED: Display current speed.
4. DIST: Count the distance from exercise start to end.
5.CAL:Count the total calories from exercise start to end.
NOTE：
1. If the display is faint or shows no figures, please replace the batteries.
2. The monitor will automatically shut off if there is no signal received after 4 minutes.
3. The monitor will be auto powered on when starting to exercise push button signal in.
4. The monitor will automatically start calculating when you start to exercise and
will stop calculating when you stop exercising for 4 seconds.
SPECIFICATIONS:
FUNCTION
AUTO SCAN
Every 4 seconds
TIME
00:00’~99:59’
SPEED
The maximum signal can be pickup is 999.9(ML)KM/H
DISTANCE
0.00~9999(ML)KM
CALORIES
0.0~9999kCAL
BATTERY TYPE
2 pcs of size - AA or UM - 3
OPERATING TEMPERATURE
0°C ~ +40°C
STORAGE TEMPERATURE
-10°C ~ +60°C

Page 13
TROUBLE SHOOTING
Trouble
Reasons
Solution
Remark
Without sensor
Sensor wire didn’t connected
well or broken
re-connected the sensor
wire or replace with new
sensor wire
Computer
without display
Computer battery runs out or
battery negative and positive
in reverse
Replace new battery or
check the battery negative
and positive side correct
or not
Noisy
Moving parts is loose or lack
of lubricating oil
Tighten the loose parts or
wipe lubricating oil
PRODUCT MAINTENANCE
1.When you don’t use the exercise bike for a long time, please take out the computer
battery to avoid running out of battery.
2.Often clean the exercise bike with clean cloth to keep the clean appearance.
3.Please pay attention to the connection parts, screws, nuts loose or not, frayed or not,
broken or not. And often wipe the oil to improve the flexibility of bike.
4.Please set up bike in a dry level place and keep it away from moisture and water. When
you finished exercise ,please don’t forget to wipe the sweat from bike to avoid the
appearance rusting.

Page 14
Product Specification
Model
IS0149
Packing dimension (cm)
116L x 38W x22H
Product dimension (cm)
100L x 48W x 113H
Net weight
15.8kg
Gross weight
18kg
Max load
100kg
Colour
Black
Material
Steel, ABS, PP

Page 15
Contact Us
ITSU WORLD SDN. BHD.
No. 13, Lorong Technology B, Nouvelle Industrial Park,
Taman Sains SG1 Kota Damansara, PJU 5,
47810 Petaling Jaya,
Malaysia
Tel: [phone]
ITSU WORLD(HK)Limited
Workshop D1,28/F, TML Tower
No.3 Hoi Shing Road, Tsuen Wan,N.T.
Tel: [phone]
PT Healthy World
Lodan Center Block O No 20
Jalan Lodan Raya No 2
Jakarta Utara 14430
Tel: [phone]

Page 16
User Manual
All information is correct at the time of print
