IVC Displays NP-9XX-MA User manual

NP-9XX-MA
12.1”, 19”, 24” Intel 4th Core i3/i5/i7 Marine PC
User Manual
Release Date Revision
Oct. 2015 V1.0

1
NP
-
9XX
-
MA
User Manual
Revision History
Reversion Date Description
1.0 2015/10/23
Official Version

2
NP
-
9XX
-
MA
User Manual
This equipment generates, uses and can radiate radio frequency energy and
if not installed and used in accordance with the instructions manual, it may cause
interference to radio communications. It has been tested and found to comply
with the limits for a Class A computing device pursuant to FCC Rules, which are
designed to provide reasonable protection against such interference when
operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference in which case the user at his own
expense will be required to take whatever measures may be required to correct
the interference.
Electric Shock Hazard – Do not operate the machine with its back cover removed.
There are dangerous high voltages inside.
Warning! __ __ _ _ ____

3
NP
-
9XX
-
MA
User Manual
Caution
Risk of explosion if the battery is replaced with an incorrect type.
Batteries should be recycled where possible. Disposal of used batteries must be in
accordance with local environmental regulations.

4
NP
-
9XX
-
MA
User Manual
□
Other. (please specify)
□
Driver & manual CD disc
□
Adaptor
Accessories (as ticked) included in this package are:
Packing List

5
NP
-
9XX
-
MA
User Manual
Safety Precautions
Follow the messages below to prevent your systems from damage:
◆
Avoid your system from static electricity on all occasions.
◆ Prevent electric shock. Don‘t touch any components of this card when
the card is power-on. Always disconnect power when the system is not
in use.
◆ Disconnect power when you change any hardware devices. For instance,
when you connect a jumper or install any cards, a surge of power may
damage the electronic components or the whole system.

6
NP
-
9XX
-
MA
User Manual
Table of Contents
Revision History .......................................................................................................... 1
Warning! ..................................................................................................................... 2
Caution ....................................................................................................................... 3
Packing List ................................................................................................................ 4
Safety Precautions ...................................................................................................... 5
Chapter 1 Getting Started
1.1 Features ..................................................................................... 8
1.2 Specifications ............................................................................ 8
1.3 Dimensions ............................................................................. 11
1.4 Brief Description of NP-9XX-MA ................................................ 14
1.5 Mounting of NP-9XX-MA ........................................................... 17
Chapter 2 Hardware
2.1 Mainboard Introduction ......................................................... 18
2.2 Specifications .......................................................................... 18
2.3 Jumpers and Connectors Location .......................................... 22
2.4 Jumpers Setting and Connectors............................................ 23
Chapter 3 BIOS Setup
3.1 Operations after POST Screen ................................................ 54
3.2 BIOS Setup Utility .................................................................... 54
3.3 Main Settings .......................................................................... 55
3.4 Advanced Settings ................................................................... 56
3.5 Chipset Settings ....................................................................... 60
3.6 Boot Settings .......................................................................... 62
3.7 Security Settings ...................................................................... 63
3.8 Save & Exit Settings ................................................................ 64
Chapter 4 Installation of Drivers
4.1 Intel (R) CORE AMT Driver ...................................................... 67
4.2 Intel (R) VGA Chipset .............................................................. 69
4.3 Intel (R) LAN Driver ................................................................. 72
4.4 Realtek ALC662 HD Audio Driver ............................................ 75

7
NP
-
9XX
-
MA
User Manual
4.5 USB 3.0 Driver ......................................................................... 77
4.6 Intel (R) MEI Driver ................................................................. 80
Chapter 5 Touch Screen Installation
5.1 Windows 7/8/8.1 Universal Driver Installation for PenMount
6000 Series .............................................................................. 83
5.2 Software Functions ................................................................. 87
Figures
Figure 1.1: Dimensions of NP-912-MA ...............................................................
11
Figure 1.2: Dimensions of NP-919-MA .................................................................
12
Figure 1.3: Dimensions of NP-924-MA .......................................................... 13

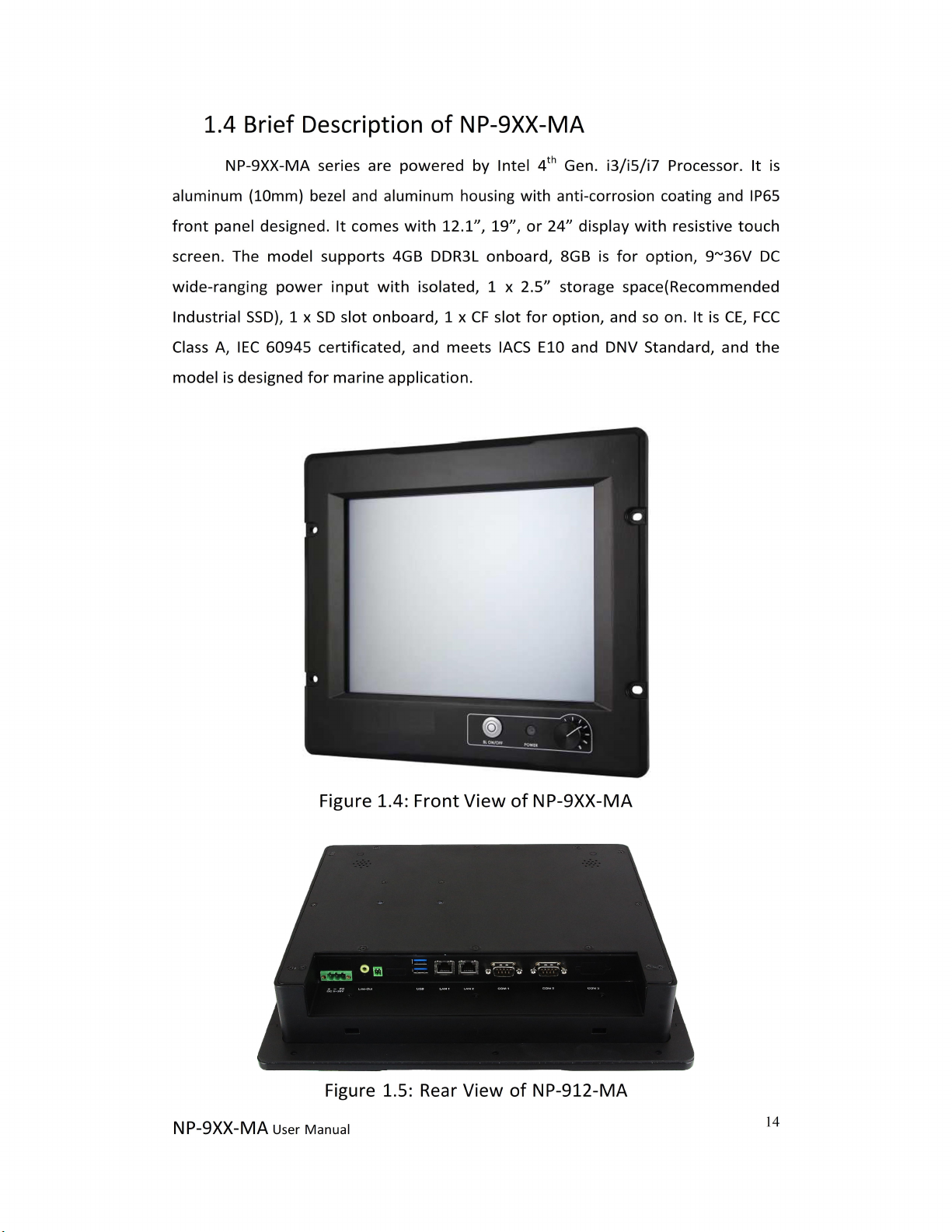

Figure 1.4: Front View of NP-912-MA ............................................................. 14
Figure 1.5: Rear View of NP-912-MA ............................................................. 14
Figure 1.6: Front View of NP-919-MA ............................................................. 15
Figure 1.7: Rear View of NP-919-MA ............................................................. 15
Figure 1.8: Front View of NP-924-MA ............................................................ 16
Figure 1.9: Rear View of NP-924-MA .............................................................. 16
Figure 1.10: Panel Mounting of NP-9XX-MA ............................................... 17
Figure 1.11: Adjustable Mounting Bracket ................................... 17
Figure 2.1: Mainboard Dimensions ............................................... 21
Figure 2.2: Jumpers and Connectors Location-Board Top ............ 22
Figure 2.3: Jumpers and Connectors Location-Board Bottom ..... 22

8
NP
-
9XX
-
MA
User Manual
Chapter 1 Getting Started
1.1
Features

12.1”/19”/24” TFT LCD

Aluminum (10mm) bezel and Aluminum housing, with Anti-Corrosion Coating)
 Intel Core 4
th
Gen i3/i5/i7 Processor

4G DDR3L onboard (8G for option)

1 x 2.5” Storage space (Recommended Industrial SSD)

1 x SD slot onboard and 1 x CF slot (option)
 9~36V DC Power Input with isolated

CE/FCC Class A/IEC 60945 Certificated

Marine application
1.2
Specifications
NP-912-MA NP-919-MA NP-924-MA
System
CPU
Intel Core i3-4010U Processor (3M Cache, 1.7 GHz) / TDP: 15W
Intel Core i5-4310U Processor (3M Cache, 2.0 GHz) / TDP: 15W
Chipset SoC
Memory
Onboard 4GB DDR3L 1333/1600 MHz, 8GB for option
IO Port
USB 2 x USB 3.0 type A
Serial/Parallel
1 x RS-232/422/485 DB-9 selectable, default RS-485, COM1
1 x RS-232 DB-9, COM2
Audio 1 x Line-out, phone jack
LAN 2 x GbE LAN RJ-45
Power
1 x 2-pin terminal block connector (for remote power switch)
1 x 3-pin terminal block connector
Other 1 x ESD Ground
Front Side IO 1 x Backlight on/off with touch on/off
1 x Power System LED
1 x VR Knob Brightness Control

9
NP
-
9XX
-
MA
User Manual
1 x Power on/off Button ( 19”/24” default, optional for 12.1”)
2 x LED light for power and HDD indication (19”/24” default, optional for 12.1”)
1 x USB Port with Waterproof Cover Design (19”/24” default, optional for 12.1”)
Option
only for 19”and 24”
TB-528C1U2
2 x USB, 1 x RS-232
Storage Space
Storage Default:
1 x 2.5” Storage Space (Recommended Industrial SSD)
1 x Internal SD slot onboard
Optional:
1 x Internal CF Slot
Expansion
Expansion Slot
1 x Mini PCIe full size slot onboard
Option wifi/BT or 3G with Antenna
1 x Mini PCIe full size slot onboard
Option isolation 2 x RS-422/485 isolation
Display
Display Type 12.1” color TFT LCD 19” color TFT LCD 24” color TFT LCD
Max. Resolution
1024 x 768 1280 x 1024 1920 x 1080
Max. Color 16.7M 16.7M 16.7M
Luminance 500 350 300
Contrast Ratio 700 : 1 1000 : 1 3000 : 1
Viewing Angle 160 (H) / 140 (V) 170 (H) / 160 (V) 178 (H) / 178 (V)
Backlight Lifetime
50,000 hrs 50,000 hrs 50,000 hrs
Touch Screen – Resistive Touch Window Type
TS Control IC
PenMount 6000 on Board
Interface USB
Light Transmission
Over 80%
Power
Power Input Default:
9~36V DC with isolated
Option:
AC Power input
Power
Consumption
MAX: 37.2W MAX: 67W MAX: 41.8W
Mechanical
Chassis Color Black / Aluminum (10mm) bezel and Aluminum housing

10
NP
-
9XX
-
MA
User Manual
Anti-Corrosion Coating
Mounting
Panel Mount and Front Access Mount
Mounting Bracket (option)
IP Rating IP65 Front Panel
Dimensions 337.2 x 293.2 x 65 mm 484 x 400 x 60 mm 647 x 414 x 65 mm
Net Weight 4.4 Kg 9.5 Kg 11.7 Kg
Operating System Support
OS Support
Windows 7 Professional for Embedded Systems,
Windows Embedded Standard 7 (WES7),
Windows 10 IoT 2016
LTSB/CBB
Environmental
Operating
temperature
0~50 ℃
Optional WT1 -20 ℃ ~60 ℃ (with industrial SSD)
Storage
temperature
-30~70 ℃
Storage humidity 10 to 90% @ 40°C, non- condensing
Certification
CE / FCC Class A/IEC 60945 Certificated
Meet IACS E10/DNV Standard

11
NP
-
9XX
-
MA
User Manual
1.3
Dimensions
Figure 1.1: Dimensions of NP-912-MA

12
NP
-
9XX
-
MA
User Manual

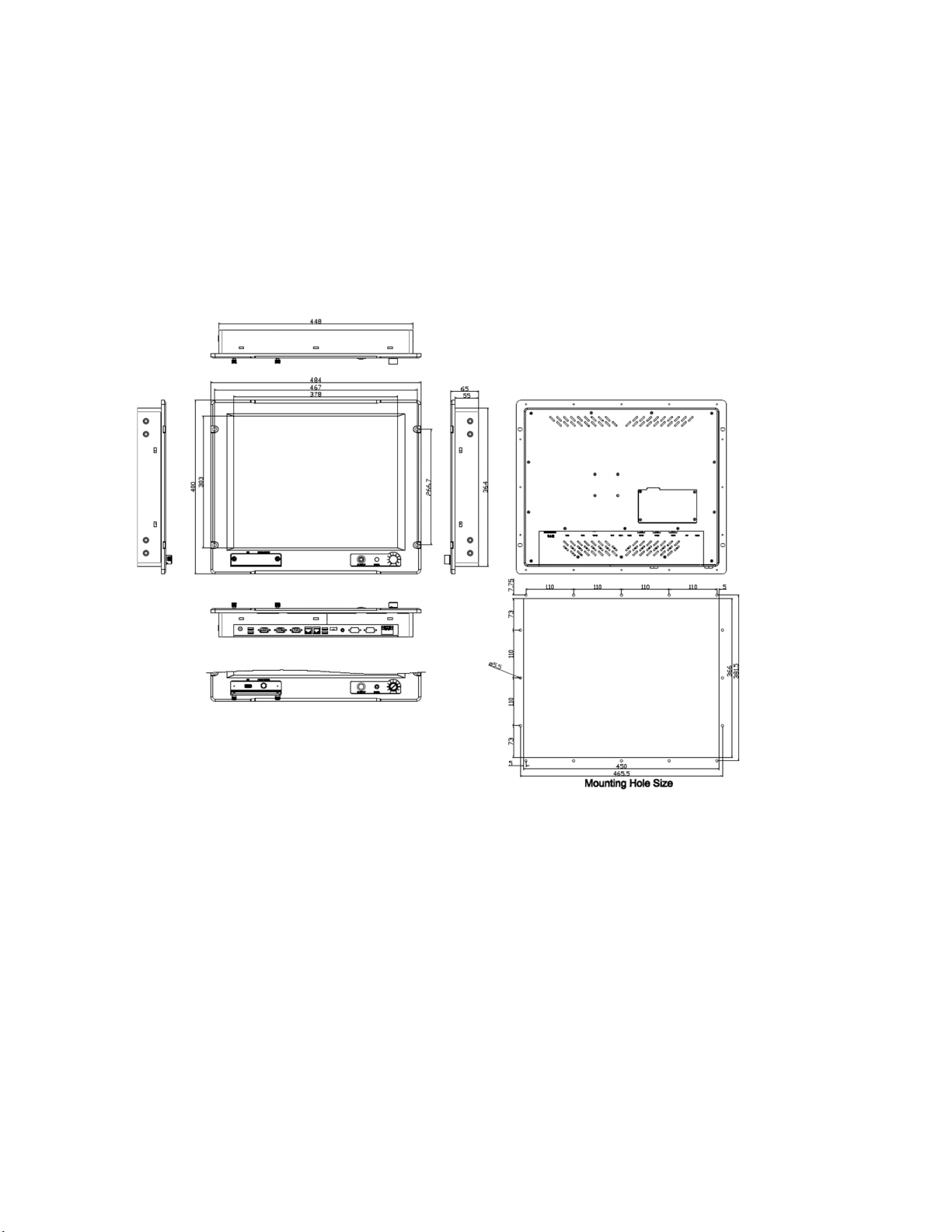

Figure 1.2: Dimensions of NP-919-MA

13
NP
-
9XX
-
MA
User Manual

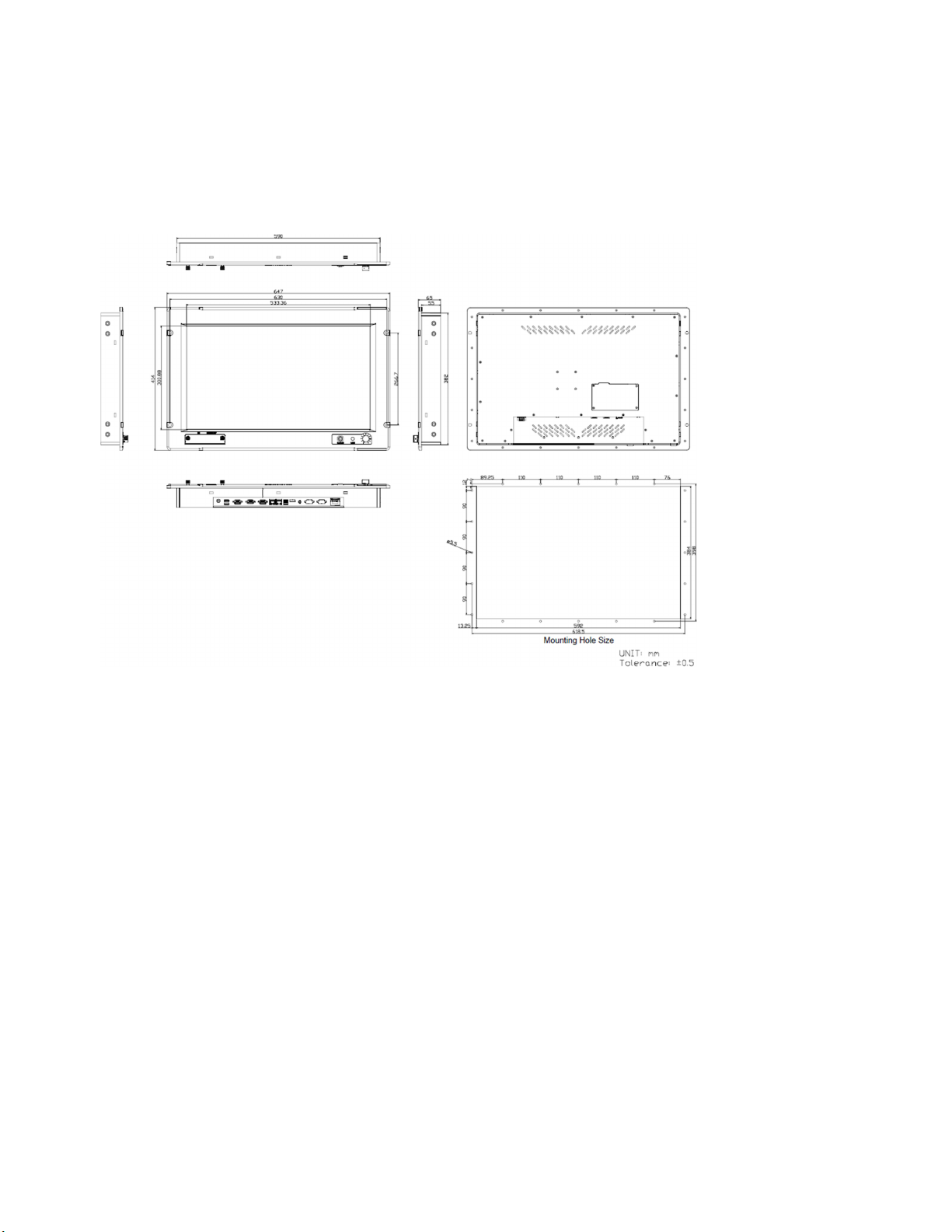

Figure 1.3: Dimensions of NP-924-MA

17
NP
-
9XX
-
MA
User Manual
1.5
Mounting of NP-9XX-MA
Figure 1.10: Panel Mounting of NP-9XX-MA
Figure 1.11: Adjustable Mounting Bracket of NP-9XX-MA

18
NP
-
9XX
-
MA
User Manual
Chapter 2 Hardware
2.1
Mainboard Introduction
SBC-7110 is a 4" industrial motherboard developed on the basis of Intel Haswell-U
Processors, which provides abundant peripheral interfaces to meet the needs of
different customers. Also, it features dual GbE ports, 5-COM ports and one Mini PCIE
configuration, one eDP port, one HDMI port, one LVDS interface. To satisfy the
special needs of high-end customers, CN1 and CN2 and CN3 richer extension
functions. The product is widely used in various sectors of industrial control.
2.2
Specifications
Specifications
Board Size
170mm x 113mm
CPU Support
Intel® Core™ i3-4010U /1.7GHz (onboard)
Intel® Core™ /i5-4310U /2.0 up to 3.00GHz (option
）
Chipset SoC
Memory Support
Onboard 4GB DDR3L SDRAM
Graphics
Intel® HD Graphics 4400
Display Mode 1 x HDMI Port
1 x LVDS (18/24-bit dual LVDS)
1 x eDP Port (EDP1, option)
Support
Resolution
Up to 1920 x 1200 for HDMI
Up to 1920 x 1200 for LVDS (PS8625)
Up to 1920 x 1200 for eDP
Dual Display HDMI + LVDS
Super I/O ITE IT8518E
Fintek F81216AD
BIOS AMI/UEFI
Storage
1 x SATAIII Connector (7P)
1 x SATAIII Connector (7P+15P)
1 x SD Slot

19
NP
-
9XX
-
MA
User Manual
Ethernet 2 x PCIe Gbe LAN by Intel 82574L
USB
2 x USB 3.0 (type A)stack ports (USB3)
(USB 3.0: USB3-1/USB3-2, USB 2.0: USB1/USB2)
2 x USB 2.0 Pin header for CN3 (USB3/USB4)
1
x USB 2.0 Pin header for CN2 (USB5)
1 x USB 2.0 Pin header for CN1 (USB7 or Touch, option)
1 x USB 2.0 for MPCIE1 (USB8)
Serial
1 x RS232/RS422/RS485 port, DB9 connector for external (COM1)
Pin 9 w/5V/12V/Ring select
1
x RS232 port, DB9 connector for external (COM2)
Pin 9 w/5V/12V/Ring select
2
x UART for CN3 (COM3,COM4)
1 x RS422/485 header for CN2 (IT8518E/COM5)
1 x RS422/485 header for CN2 (IT8518E/COM6,option)
Digital I/O
8-bit digital I/O by Pin header (CN2)
4-bit digital Input
4-bit digital Output
4-bit digital I/O by Pin header (CN3)
2-bit digital Input
2-bit digital Output
Battery
Support CR2477 Li battery by 2-pin header (BAT1/CMOS)
Smart Battery 1 x Smart battery
Support 3 Serial Li battery by 10-pin header (BAT2)
Audio
Support Audio via Realtek ALC662-VD HD audio codec
Support
Line-in, Line-out, MIC by 2x6-pin header
Keyboard /Mouse
1 x PS2 keyboard/mouse by box pin header (CN3)
Expansion Bus
1 x mini-PCI-express slot
1 x PCI-express (CN3)
Touch Ctrl
1 x Touch ctrl header for TCH1 (ITE8518E/COM6)
(JP4
setting
：
RS232 or USB 2.0)
Power
Management
Wide Range DC9V~36V input
1 x 3-pin power input connector
