Dear Customer
Optimum polymerization is an important
requirement for all light-cured materials in order to
consistently produce high-quality restorations. The
polymerization light selected also plays a decisive
role in this respect. Therefore, we would like to
thank you for having purchased Bluephase®Style.
Bluephase Style is a high-quality medical device
which has been designed according to the latest
standard of science and technology in compliance
with the relevant industry standards.
These Instructions for Use will help you safely start
up the device, make full use of its capabilities and
ensure a long service life.
Should you have any further questions, please do
not hesitate to contact us (see addresses on the
reverse page).
Your Ivoclar Vivadent Team

3
Product Overview 4
– List of parts
– Indicators on the charging base
– Indicators on the handpiece
– Operating the light
Safety 6
– Intended use
– Indication
– Sings & symbols
– Safety notes
– Contraindication
Start-Up 8
Operation 11
Maintenance and Cleaning 12
What If ... 14
Warranty /Procedure in Case of Repair 15
Product Specifications 15
Table of Contents
English

4
Product Overview
• Indicatorisblack=Batteryischarged
• Indicatorlightsupinbluewithdifferentlight
intensity=batteryisbeingcharged
Anti-glarecone
10mmshortened,parallel-
walllightprobe,black
Startbutton
Timeselectionbutton
Chargingbase
Powercord
Powerpack
Powerindicator
List of parts
Indicators on the charging base Indicators on the handpiece
30s
20s
15s
10s
Curingtime
Battery

5
Withthehandpieceswitchedon,thecurrentcharging
statusisshownonthehandpieceasfollows:
• Green:
Battery fully charged
 (curingcapacityofapprox.
20minutes)
• Orange:
Battery weak
 Timecanstillbesetanda
polymerizationtimeof
approximately3minutesis
left.Placethelightinto
thechargingbaseassoon
aspossible.
• Red:
Battery completely discharged
 Thelightcannolongerbecalledupandthecuring
timecannolongerbeset.However,thehandpiececan
beusedintheClick&Curecordedoperation.
Operating the light
Intuitive two-button operation
Startbutton
Timeselection
button
Acoustic signal –
Setting the signal volume
Withthelightswitchedoff,
pressthetimeselection
buttonfor5secondsuntila
bluelightappears.The
volumecanbeadjusted
usingthetimeselection
button.Thereisaselection
offourvolumelevels.The
volumeissavedbypressing
theStartbutton.

6
Safety
Intended use
BluephaseStyleisanLEDpolymerizationlightthat
producesenergy-richbluelight.Itisusedforthepoly-
merizationoflight-curingdentalmaterialsimmediately
atthedentalunit.Theintendedusealsoincludesthe
observationofthenotesandregulationsinthese
InstructionsforUse.
Indication
Withits“Polywave®”broadbandspectrum,Bluephase
Styleissuitableforthepolymerizationofalllight-curing
dentalmaterialscuringinthewavelengthrangeof
385–515nm.Thesematerialsincluderestoratives,
bondingagents/adhesives,bases,liners,fissuresealants,
temporaries,aswellaslutingmaterialsforbracketsand
indirectrestorations,suchasceramicinlays.
Signs and symbols
 Contraindication
Symbols on the curing light
 Doubleinsulation
(devicecomplieswithsafetyclassII)
 Protectionagainstelectricalshock
(BFtypeapparatus)
 ObserveInstructionsforUse
 ObserveInstructionsforUse
 Caution
 Thecuringlightmustnotbedisposedofin
thenormaldomesticwaste.Information
regardingdisposalofthelightcanbefound
ontherespectivenationalIvoclarVivadent
homepage.
 Recyclable

Safety notes
BluephaseStyleisanelectronicdeviceandamedical
productwhichissubjecttoIEC60601-1(EN60601-1)
andEMCdirectives,aswellasthe93/42/EECMedical
DeviceDirective.Theappliancecomplieswiththe
relevantEUregulationsandisclassifiedasanLED
Class2product.
NRTL (Nationally Recognized
Testing Laboratory)
Thecuringlighthasbeenshippedfromthemanufacturer
inasafeandtechnicallysoundcondition.Inorderto
maintainthisconditionandtoensurerisk-freeoperation,
thenotesandregulationsintheseInstructionsforUse
havetobeobserved.Topreventdamagetoequipment
andrisksforpatients,usersandthirdparties,the
followingsafetyinstructionshavetobeobserved.
Contraindications
 Materials,thepolymerizationofwhichis
activatedoutsidethewavelengthrangeof
385–515nm(nomaterialsknowntodate).
Ifyouarenotsureaboutcertainproducts,
pleaseaskthemanufacturerofthe
correspondingmaterial.
 Usewithoutlightprobe
 Donotchargeorusetheappliancenear
flammableorcombustiblesubstances.
 Portableandmobilehigh-frequencycommuni-
cationdevicesmayinterferewithmedical
equipment.Theuseofmobilephonesduring
operationisnotallowed.


7
Usage and liability
– BluephaseStylemustonlybeemployedforthe
intendeduse.Anyotherusesarecontraindicated.Do
nottouchdefective,opendevices.Liabilitycannotbe
acceptedfordamageresultingfrommisuseorfailureto
observetheOperatingInstructions.
– TheuserisresponsiblefortestingBluephaseStylefor
itsuseandsuitabilityfortheintendedpurposes.Thisis
particularlyimportantifotherequipmentisusedinthe
immediatevicinityofthecuringlightatthesametime.
– Useonlyoriginalsparepartsandaccessoriesfrom
IvoclarVivadent(seeAccessories).Themanufacturer
doesnotacceptanyliabilityfordamageresultingfrom
theuseofothersparepartsoraccessories.
– Thelightprobeisanappliedpartandmaywarmupto
amaximumof45°C(113°F)attheinterfacetothe
handpieceduringoperation.
Operating voltage
Beforeswitchingon,makesurethat
a)thevoltageindicatedontheratingplatecomplieswith
thelocalpowersupplyand
b)theunithasacquiredtheambienttemperature.
Ifthebatteryorpowerpackareusedseparately,e.g.
duringstart-uporClick&Curecordedoperation,contact
withpatientsorthirdpartiesmustbeprevented.Donot
touchtheexposedcontactsoftheconnectionplug
(powerpack).

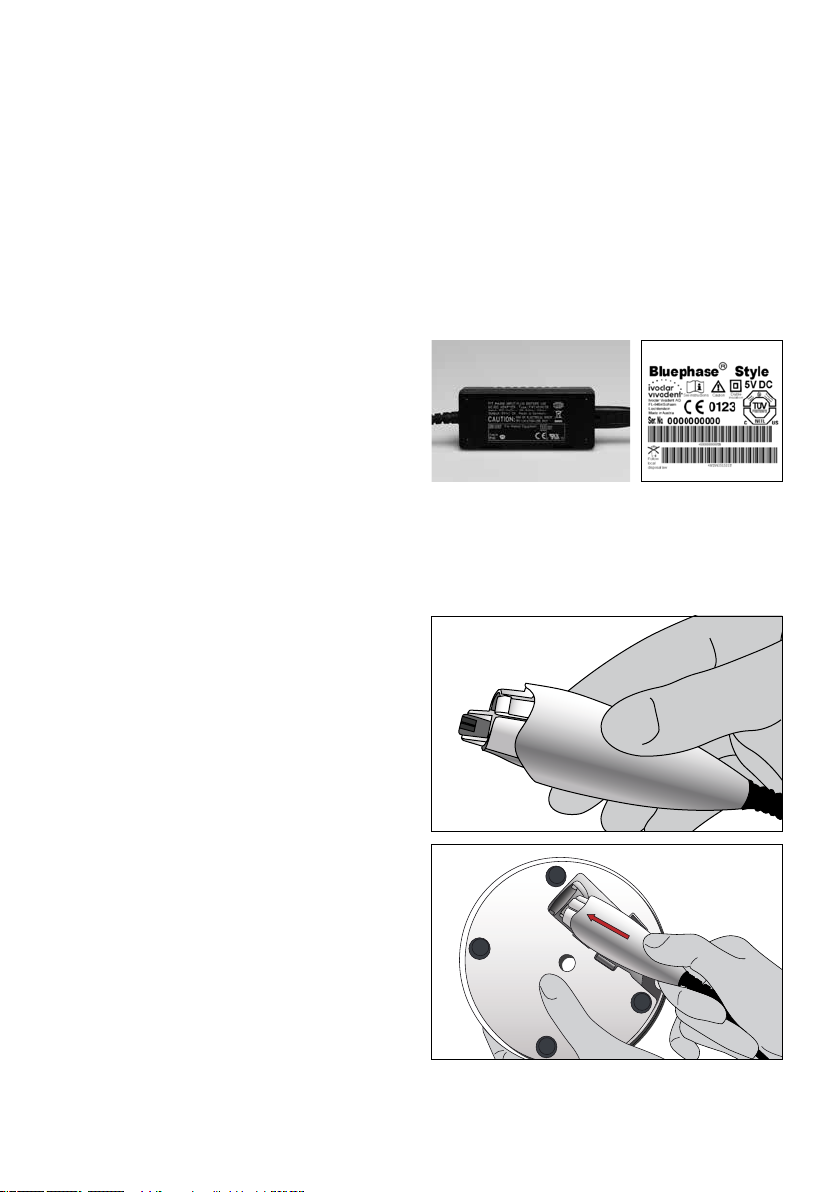

Rating plate on the charging base
Assumption of impaired safety
Ifithastobeassumedthatsafeoperationisnolonger
possible,thepowermustbedisconnectedandthe
batteryremovedtoavoidaccidentaloperation.Thismay
bethecase,forexample,ifthedeviceisvisiblydamaged
ornolongerworkscorrectly.Acompletedisconnection
fromthepowersupplyisonlyensuredwhenthepower
cordisdisconnectedfromthepowersource.
Eye protection
Directorindirectexposureoftheeyesmustbeprevented.
Prolongedexposuretothelightisunpleasanttotheeyes
andmayresultininjury.Therefore,usingthesupplied
anti-glareconesisrecommended.Individualswhoare
generallysensitivetolight,whotakephotosensitizing
drugsordrugstotreatphotosensitivity,haveundergone
eyesurgery,orpeoplewhoworkwiththeapparatusor
initsvicinityforlongperiodsoftimeshouldnotbe
exposedtothelightofthisdeviceandwearprotective
goggles(orange)thatabsorblightbelow515nm.
Battery
Caution:Useonlyoriginalspareparts,particularlyIvoclar
Vivadentbatteriesandchargingbases.Donotshort
circuitbattery.Donotstoreattemperaturesabove40°C/
104°F(or60°C/140°Fforashortperiod).Always
storebatteriescharged.Thestorageperiodmustnot
exceed6months.Mayexplodeifdisposedofinfire.
Pleasenotethatlithium-polymerbatteriesmayreactwith
explosion,fireandsmokedevelopmentifhandled
improperlyormechanicallydamaged.Damagedlithium-
polymerbatteriesmustnolongerbeused.
Theelectrolytesandelectrolytefumesreleasedduring
explosion,fireandsmokedevelopmentaretoxicand
corrosive.Incaseofaccidentalcontactwiththeeyesor
skin,immediatelywashwithcopiousamountsofwater.
Avoidinhalationoffumes.
Incaseofindisposition,seeaphysicianimmediately.

8
Start-Up
Checkthedeliveryforcompletenessandanypossible
transportationdamage(seedeliveryform).Ifpartsare
damagedormissing,contactyourIvoclarVivadent
representative.
Charging base
Beforeyouswitchonthedevice,makesurethatthe
voltagementionedontheratingplatecomplieswith
yourlocalpowersupply.

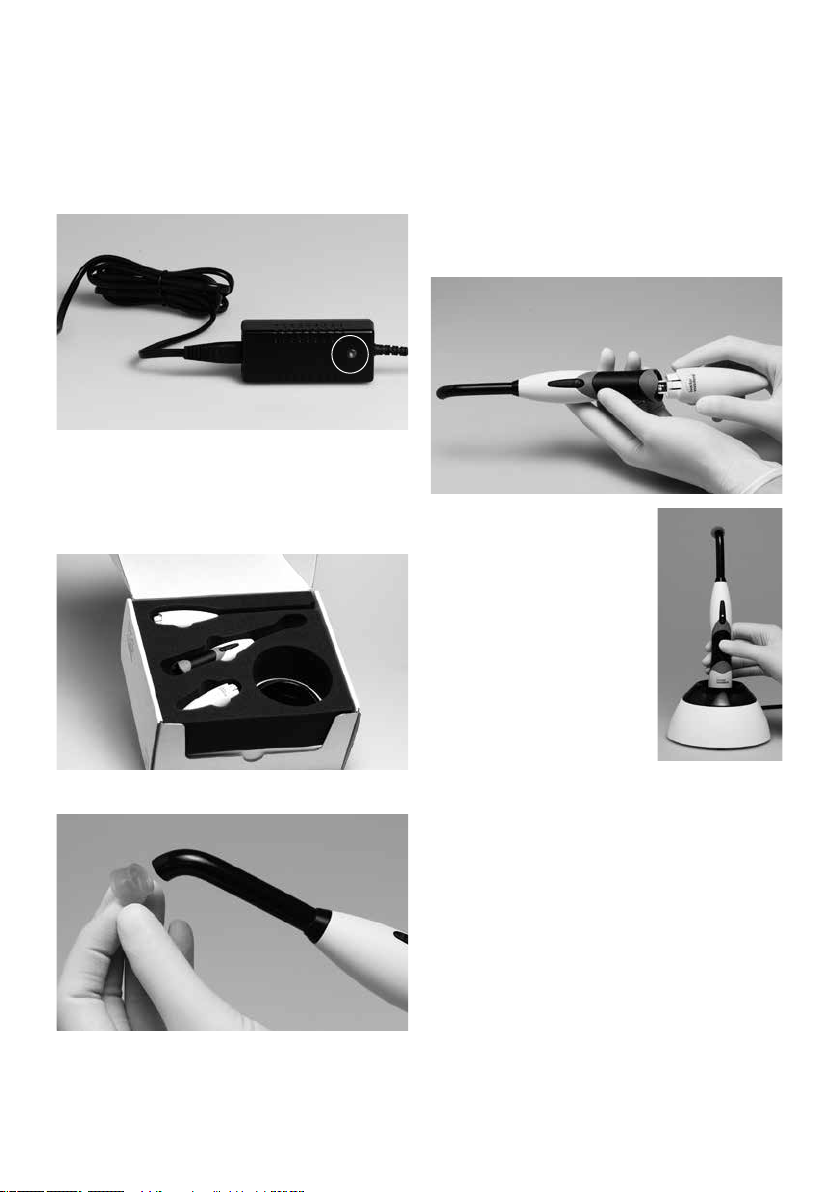

Slidetheconnectionplugofthepowerpackintothe
socketontheundersideofthechargingbase.Tiltit
slightlyandapplyslightpressureuntilyouhearandfeel
itsnapintoplace.Placethechargingbaseonasuitable,
flattabletop.
Heat development
Asitisthecasewithallhigh-performancelights,the
highlightintensityresultsinacertainheatdevelopment.
Prolongedexposureofareasnearthepulpandsofttis-
suesmayresultinirreversibledamage.Therefore,the
stipulatedpolymerizationtime,particularlyinareasnear
thepulp(adhesives:10seconds)mustbeobserved.
Uninterruptedcuringtimesofmorethan20secondson
thesametoothsurface,aswellasdirectcontactwiththe
gingiva,oralmucousmembraneorskinhavetobepre-
vented.Polymerizeindirectrestorationsatintermittent
intervalsof20secondseachoruseexternalcoolingwith
anairstream.

9
Connectthepowercordwiththepowersupplyandthe
powerpack.ThePowerOnindicatoronthepowerpack
lightsupingreenandtheilluminatedringonthe
chargingbasebrieflylightsup.
Handpiece

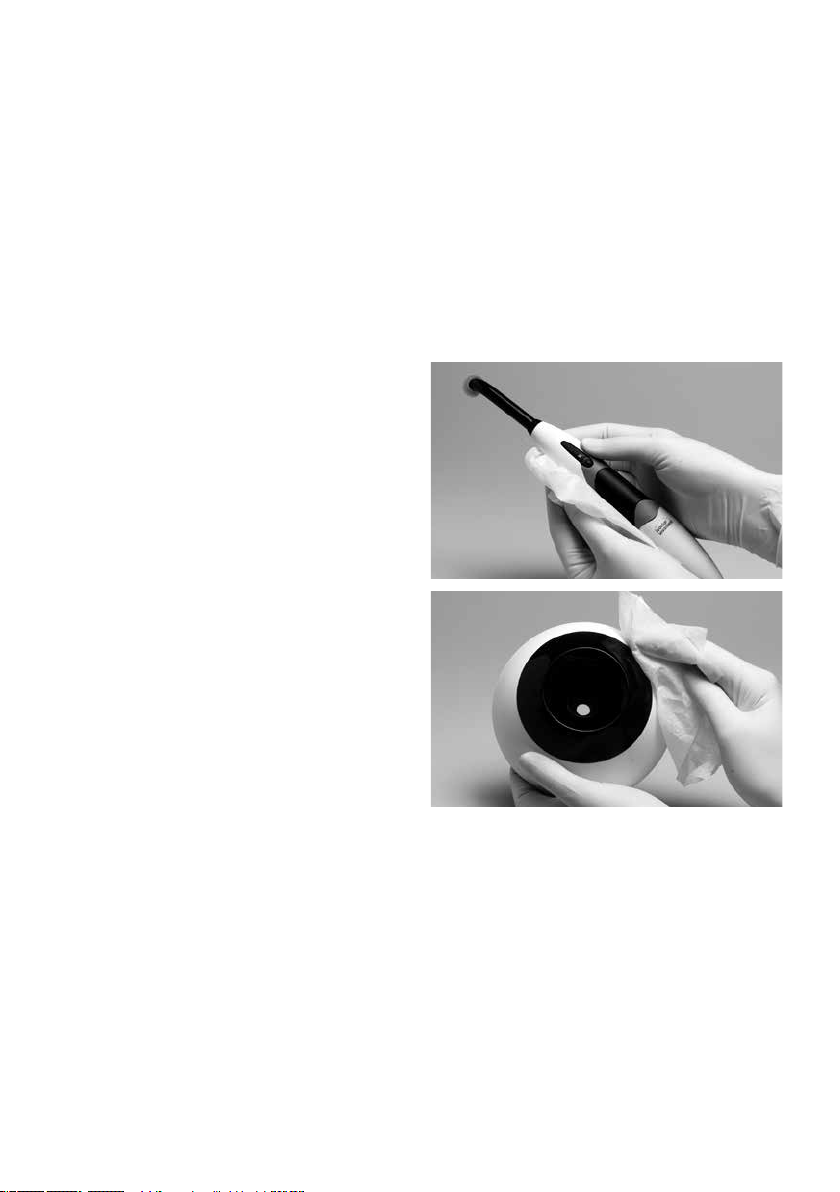

Removethehandpiecefromitspackagingandcleanthe
lightprobeandthehandpiece(seechapterMaintenance
andCleaning).Thelightprobecanberemovedand
reattachedbyslightlyrotatingit.
Afterthat,mounttheanti-glareconeonthelightprobe.
Battery
Werecommendfullychargingthebatterybeforethefirst
use.Ifthebatteryisfullycharged,itfeaturesacuring
capacityofapprox.20minutes.

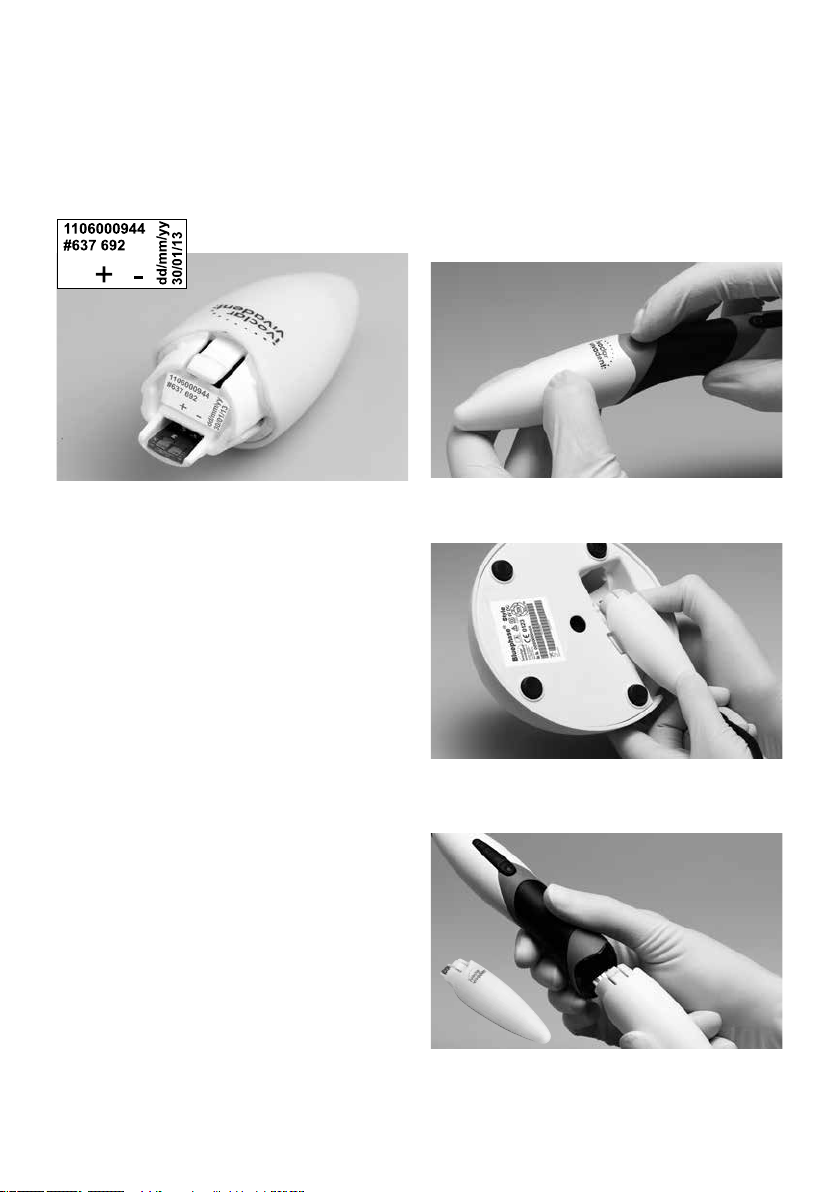

Slidethebatterystraightintothehandpieceuntilyou
hearandfeelitclickintoplace.

Gentlyplacethehandpieceinthe
correspondingrestinthecharging
basewithoutusinganyforce.Ifa
hygienesleeveisused,please
removeitbeforeyouchargethe
battery.Ifpossible,usethelight
alwayswithafullychargedbattery.
Thiswillprolongtheservicelife.It
isthereforerecommendedtoplace
thehandpieceintothecharging
baseaftereachpatient.Ifthe
batteryisfullydischarged,the
chargingtimeis2hours.

10
Click & Cure corded operation
BluephaseStylecanbeusedincordedoperationatany
time,butparticularlywhenthebatteryiscompletely
empty.
Forthispurpose,removethebatteryfromthehandpiece
bypressingthebatteryreleasebutton.
Sincethebatteryisanexpendablepart,ithastobe
replacedafteritstypicallifecyclehasexpiredafter
approximately2.5years.Seebatterylabelfortheageof
thebattery.
Battery charging status
Therespectivechargingstatusisindicatedonthe
chargingbaseasdescribedonPage5.
Thenremovethepowerpackfromtheundersideofthe
chargingbase.Donotpullonthepowercord.
Inserttheconnectionplugstraightintothehandpiece
untilyouhearandfeelitclickintoplace.
Duringcordedoperation,thechargingbasecannot
chargethebattery,sinceitisnotconnectedtoapower
source.

11
Operation
Disinfectcontaminatedsurfacesofthecuringlightas
wellaslightprobesandanti-glareconesbeforeeach
use.Furthermore,makesurethatthestipulatedlight
intensitypermitsadequatepolymerization.Forthat
purpose,checkthelightprobeforcontaminationand
damageaswellasthelightintensityatregularintervals.
Selecting the curing time
Thecuringtimecanbeindividuallysetusingthetime
selectionbutton.Usersmaychoosebetween10,15,20
and30seconds.
ObservetheInstructionsforUseofthematerialapplied
whenselectingthecuringtime.Thecuringrecommenda-
tionsforcompositematerialsapplytoallshadesand,if
notmentionedotherwiseintheInstructionsforUse,toa
maximumlayerthicknessof2mm.Generally,these
recommendationsapplytosituationswheretheemission
windowofthelightprobeisplaceddirectlyoverthe
materialtobepolymerized.Increasingthedistance
betweenthelightsourceandthematerialwillrequire
thecuringtimetobeextendedaccordingly.Forinstance,
ifthedistancetothematerialis9mm,theeffectivelight
outputisreducedbyapprox.50%.Inthiscase,the
recommendedcuringtimehastobedoubled.
Startbutton
Timeselection
button
Curing times 1.100 mW/cm2 ± 10%
Restorative materials
Composites
• 2 mm 1)
Tetric EvoCeram / Tetric EvoFlow / IPS Empress Direct /
Tetric / Tetric Basic White / Tetric N-Ceram / Tetric N-Flow
10 s
Heliomolar / Heliomolar HB / Heliomolar Flow
All conventional composites 15 s
• 4 mm 2)
Tetric EvoCeram Bulk Fill / Tetric Basic White 10 s
Compomers 3)
Compoglass F / Compoglass Flow 20 s
Indirect restorations /
cementation materials
Variolink Base 4) / Variolink Veneer /
Variolink N Base 4) / Variolink N Clear Veneer
per mm ceramic: 
10 s per surface
Variolink Ultra 5)
Dual Cement 5) / Variolink II 5)
per mm ceramic: 
10 s per surface
Adhesives Syntac / Heliobond / ExciTE F / ExciTE F DSC / AdheSE / AdheSE One F /
Tetric N-Bond / Tetric N-Bond Self-Etch 10 s
Temporary materials Systemp.inlay/onlay / Fermit / Fermit N 10 s
Telio CS Link / Systemp.link 10 s per surface
Miscellaneous
Helioseal / Helioseal F / Helioseal Clear 10 s
Monopaque
MultiCore Flow / MultiCore HB
IPS Empress Direct Opaque
IPS Empress Direct Color
20 s
Telio Add-On Flow 15 s
Telio Stains
Heliosit Orthodontic
Vivaglass Liner
10 s
1) Applies to a maximum layer thickness of 2 mm and provided that the Instructions for Use of
the respective material do not state any other recommendation (might be the case e.g. with
dentin shades)
2) Applies to a maximum layer thickness of 4 mm and provided that the Instructions for Use of
the respective material do not state any other recommendation (might be the case e.g. with
dentin shades)
3) Applies to a maximum layer thickness of 3 mm
4) Applies to light-curing (use of the base past only)
5) Applies to dual-curing

12
Maintenance and Cleaning
Cure Memory function
Thelatesttimesettingusedisautomaticallysaved.
Start
Thelightisswitchedonbymeansofthestartbutton.
Duringcuringasignalbeepsoundsevery10seconds.
Oncetheselectedcuringtimehaselapsed,thecuring
programisautomaticallyterminated.Ifdesired,thelight
canbeswitchedoffbeforethesetcuringtimehas
elapsedbypressingthestartbuttonagain.

Acoustic signals
Acousticsignalscanbeheardforthefollowingfunctions:
– Start(Stop)
– Every10seconds
– Curingtimechange
– Errormessage
Light intensity
Thelightintensityismaintainedataconsistentlevel
duringoperation.Ifthesupplied10mmlightprobeis
used,thelightintensityhasbeencalibrated
to1,100mW/cm2±10%.
Ifanotherlightprobethantheonesuppliedisused,it
directlyinfluencestheemittedlightintensity.
Inalightprobewithparallelwalls(10mm),thediameter
ofthelightentryandthelightemissionwindowisthe
same.Whenusingfocussinglightprobes(10>8mmlight
probe,Pin-Pointlightprobe6>2mm),thediameterof
thelightentryislargerthanthatofthelightemission
window.Theincidentbluelightisthusbundledtoa
smallerarea.Inthisway,theemittedlightintensityis
increased.
Pin-Pointlightprobesaresuitableforspot-onpoly-
merization,e.g.tofixveneersbeforetheremovalof
excess.Forcompletepolymerization,thelightprobe
mustbechanged.
Forreasonsofhygiene,werecommendusingadisposable
protectivesleeveforeachpatient.Makesuretofitthe
protectivesleevecloselytothelightprobe.Disinfect
contaminatedsurfacesofthedeviceandanti-glarecones
(FD366/DürrDental,IncidinLiquid/Ecolab)andsterilize
thelightprobebeforeeachuseifdisposableprotective
sleevesarenotused.Makesurethatnoliquidsorother
foreignsubstancesenterthehandpiece,chargingbase
andparticularlythepowerpackduringcleaning(riskof
electricalshock).Disconnectthechargingbasefromthe
powersourcewhencleaningit.
Housing
Wipethehandpieceandhandpieceholderwitha
customaryaldehyde-freedisinfectingsolution.Donot
cleanwithhighlyaggressivedisinfectingsolutions(e.g.
solutionsbasedonorangeoilorwithanethanolcontent
ofmorethan40%),solvents(e.g.acetone),orpointed
instruments,whichmaydamageorscratchtheplastic.
Cleandirtyplasticpartswithasoapysolution.
Light probe
Beforecleaningand/ordisinfectingthelightprobe,
pretreatit.Thisappliestobothautomatedandmanual
cleaninganddisinfection.

13
Pretreatment
– Removegrosscontaminationimmediatelyafteruseor
within2hours.Forthispurpose,thoroughlyrinsethe
lightprobeunderrunningwater(foratleast
10seconds).Alternatively,useasuitablealdehyde-free
disinfectingsolutiontopreventthefixationofblood.
–Toremovecontaminationmanually,useasoftbrushor
softcloth.Partiallypolymerizedcompositecanbe
removedwithalcoholandaplasticspatula,ifnecessary.
Donotusesharporpointedobjects,astheymay
scratchthesurface.
Cleaning and disinfection
Forcleaning,immersethelightprobeinacleaningsolu-
tionandensurethatitissufficientlycoveredwithliquid
(ultrasoundorcarefulbrushingwithasoftbrushmay
supporttheeffect).Aneutral-enzymaticcleaningagentis
recommended.Whencleaninganddisinfecting,please
makesurethattheagentsusedarefreeof:
–organic,mineralandoxidizingacids(theminimum
admissiblepHvalueis5.5)
–alkalinesolution(themaximumadmissiblepHvalue
is8.5)
–oxidizingagent(e.g.hydrogenperoxide)
Afterwards,removethelightprobefromthesolutionand
thoroughlyrinseitunderrunningwater(foratleast
10seconds).Cleaninginathermaldisinfectorisaneffec-
tivealternative.
Sterilization
Thoroughcleaninganddisinfectingisimperativeto
ensurethatthesubsequentsterilizationiseffective.Use
onlyautoclavesterilizationforthispurpose.Thesteriliza-
tiontime(exposuretimeatsterilizationtemperature)is
4minutesat134°C(273°F);pressureshouldbe2bar
(29psi).Drythesterilizedlightprobeusingeitherthe
specialdryingprogramofyoursteamautoclaveorhot
air.Thelightprobehasbeentestedforupto200sterili-
zationcycles.
Afterthat,checkthelightprobefordamage.Holdit
againstlight.Ifindividualsegmentsappearblack,glass
fibresarebroken.Ifthisisthecase,replacethelight
probewithanewone.
Battery contacts
Toensurereliableconductivityatalltimes,keepthe
batterycontactsfreefrompossiblecontamination(e.g.
compositeresidue).Forthispurpose,cleantheaffected
contactsregularlyinthecourseoftheusualwipe
disinfection(aftereachpatient).
Disposal
 Thecuringlightmustnotbedisposedofas
urbanwaste.Disposeunserviceablebatteries
andpolymerizationlightsaccordingtothe
correspondinglegalrequirementsinyour
country.Batteriesmustnotbeincinerated.


14
What If …
Indicator Causes Error rectification
All LEDs
orange Thedeviceisoverheated. Allowthedevicetocooldownandtryagainaftera
certaintime.Iftheerrorpersists,pleasecontactyour
dealeroryourlocalServiceCentre.
All LEDs
red Electroniccomponentofthehandpieceis
defective.
Removeandreinsertthebattery.Iftheerrorpersits,
pleasecontactyourdealeroryourlocalServiceCentre.
The charging
base is not
illuminated
during
charging
– Powerpacknotconnectedordefective
– Batteryfullycharged
Checkifthepowerpackiscorrectlypositionedinthe
chargingbaseorifthepowerpackisconnectedtothe
powersupplybymeansofthepowercord(LEDonthe
powerpacklightsupingreenifitworkscorrectly).
No indicator
activity of the
device with the
battery in place
Batteryempty Placethedeviceinthechargingbaseandchargefor
atleast2hours.
Batterycontactsdirty Removebatteryandcleanthebatterycontacts.

15
Warranty / Procedure in Case
of Repair Product Specifications
ThewarrantyperiodforBluephaseStyleis3yearsfrom
thedateofpurchase(battery:1year).Malfunctions
resultingfromfaultymaterialormanufacturingerrorsare
repairedfreeofchargeduringthewarrantyperiod.The
warrantydoesnotprovidetherighttorecoverany
materialornon-materialdamageotherthantheones
mentioned.Theapparatusmustonlybeusedforthe
intendedpurposes.Anyotherusesarecontraindicated.
Themanufacturerdoesnotacceptanyliabilityresulting
frommisuseandwarrantyclaimscannotbeacceptedin
suchcases.Thisisparticularlyvalidfor:
– Damageresultingfromimproperhandling,especially
incorrectlystoredbatteries(seeProductSpecifications:
Transportationandstorageconditions).
– Damagetocomponentsresultingfromwearunder
standardoperatingconditions(e.g.battery).
– Damageresultingfromexternalinfluences,e.g.blows,
droptothefloor.
– Damageresultingfromincorrectset-uporinstallation.
– Damageresultingfromconnectingtheunittoapower
supply,thevoltageandfrequencyofwhichdonot
complywiththeonesstatedontheratingplate.
– Damageresultingfromimproperrepairsormodifica-
tionsthathavenotbeencarriedoutbycertifiedService
Centres.
Incaseofaclaimunderwarranty,thecomplete
apparatus(handpiece,chargingbase,powercordand
powerpack)mustbereturned,carriagepaid,tothe
dealerordirectlytoIvoclarVivadent,togetherwiththe
purchasedocument.Usetheoriginalpackagingwiththe
correspondingcardboardinsertsfortransportation.
RepairworkmayonlybecarriedoutbyacertifiedIvoclar
VivadentServiceCentre.Incaseofadefectthatcannot
berectified,pleasecontactyourdealeroryourlocal
ServiceCentre(seeaddressesonthereverseside).A
cleardescriptionofthedefectortheconditionsunder
whichthedefectoccurredwillfacilitatelocatingthe
problem.Pleaseenclosethisdescriptionwhenreturning
theapparatus.
Lightsource IvoclarVivadentpolywave®LED
Wavelengthrange 385–515nm
Lightintensity 1,100mW/cm2±10%
Operation 3minon/7minoff(intermittent)
Lightprobe 10mm,black,disinfectableandauto-
clavable
Anti-glarecones autoclavable
Signaltransmitter acousticafter10secondsandeverytimethe
startbutton/timeselectionbuttonis
pressed
Dimensionsofthehand-
piece(withoutlight
probe)
L=180mmW=30mmH=30mm
Weightofthehandpiece 120g(includingbatteryandlightprobe)
Operatingvoltagehand-
piece
3.7VDCwithbattery
5VDCwithpowerpack
Operatingvoltage ChargingBase5VDC
Powersupply Input:100–240VAC,50–60Hz310mA
Output:5VDC/2A
ManufacturerFriwo
Type:FW7401M/05
Weightofthepower
supply
165g
Operatingconditions Temperature+10°Cto+35°C(+50°Fto
+95°F)
Relativehumidity30%to75%
Ambientpressure700hPato1060hPa
Dimensionsofthe
chargingbase
D=125mm,H=70mm
Weightofthecharging
base
195g
Chargingtime Approx.2hours(withthebatteryempty)
Powersupplyofthe
handpiece
Li-Pobattery(approx.20min.withanew,
fullychargedbattery)
Transportationand
storageconditions
Temperature-20°Cto+60°C(+4°Fto
+140°F)
Relativehumidity10%to75%
Ambientpressure500hPato1060hPa
Thecuringlighthastobestoredinclosed,
roofedroomsandmustnotbeexposedto
severejarring.
Battery:
–Donotstoreattemperaturesabove40°C/
104°F(or60°C/140°Fforashort
period).Recommendedstoragetempera-
ture15–30°C(59–86°F).
–Keepthebatterychargedandstoreno
longerthan6months.
Deliveryform 1 Chargingbase
1 Handpiecewithpowercordandpower
pack
1 Lightprobe10mm,black
3 Anti-glarecones
1 Sleeves(50pcs.)
1 InstructionsforUse

16
Liebe Kundin, lieber Kunde,
Eine optimale Aushärtung ist die Basis für eine
dauerhaft hohe Versorgungsqualität aller licht-
härtenden Materialien. Hierzu trägt auch entschei-
dend das gewählte Polymerisationsgerät bei.
Deshalb freut es uns, dass Sie sich für die
Bluephase®Style entschieden haben.
Hierbei handelt es sich um ein hochwertiges
Medizinprodukt, welches auf der Basis der gülti-
gen Normen nach dem heutigen Stand von
Wissenschaft und Technik gefertigt wird.
Die Gebrauchsinformation erklärt Ihnen, wie Sie
das Gerät sicher in Betrieb nehmen, seinen vollen
Leistungsumfang auf einfache Weise nutzen und
für eine lange Verwendung pflegen können.
Bei Fragen stehen wir Ihnen gerne zur Verfügung
(Adressen siehe hintere Umschlagseite).
Ihr Ivoclar Vivadent Team

17
Produktübersicht 18
– Teileverzeichnis
– Anzeigen auf der Ladestation
– Anzeigen des Handstückes
– Bedienung des Gerätes
Sicherheit 20
– Bestimmungsgemässer Gebrauch
– Indikation
– Zeichenerklärung
– Sicherheitshinweise
– Kontraindikationen
Inbetriebnahme 22
Bedienung 25
Wartung und Reinigung 26
Was ist, wenn … 28
Garantie/Vorgehen bei einem Reparaturfall 29
Produktspezifikationen 29
Inhaltsverzeichnis
Deutsch

18
Produktübersicht
• Anzeigeistschwarz=Akkuistgeladen
• Anzeigeleuchtetblaumitunterschiedlicher
Lichtintensität=Akkuwirdgeladen
Blendschutzkegel
10mmverkürzterparallel-
wandigerLichtleiter,schwarz
Starttaster
Zeitwahltaster
Ladestation
Netzkabel
Netzgerät
Power-Anzeige
Teileverzeichnis
Anzeigen auf der Ladestation Anzeigen des Handstücks
30Sek.
20Sek.
15Sek.
10Sek.
Belichtungszeit
Akku

19
DerjeweiligeLadezustandwirdbeimeingeschaltetem
Handstückwiefolgtangezeigt:
• Grün:
Geladener Akku
 (Belichtungskapazitätvon
ca.20Minuten)
• Orange:
Akku schwach
 DieZeitkannnochverstellt
werdenundeskannnoch
ca.3Minutenpolymerisiert
werden.DasGerätbald-
möglichstindie
Ladestationstellen!
• Rot:
Vollständig entladener Akku
 DasLichtlässtsichnichtmehrstartenund
Belichtungszeitkannnichtmehreingestelltwerden.
DasHandstückkannjedochimKabelbetrieb„Click&
Cure“betriebenwerden.
Bedienung des Gerätes
Intuitive 2-Knopfbedienung
Starttaster
Zeitwahltaster
Akustisches Signal –
Einstellung der Signallautstärke
DrückenSiebeiausgeschal-
tetemLichtdieZeitwahltaste
für5Sekundenbiseinblaues
Lichterscheint.MitderZeit-
wahltastekanndieLautstärke
verstelltwerden.DieLaut-
stärkekanndabeiin4Stufen
eingestelltwerden.Durchdas
DrückendesStarttasterswird
dieLautstärkegespeichert.

20
Sicherheit
Bestimmungsgemässer Gebrauch
BluephaseStyleisteinLED-Polymerisationsgerätzur
ErzeugungvonenergiereichemBlaulichtunddientder
PolymerisationvonlichthärtendenDentalwerkstoffen
unmittelbaranderzahnärztlichenBehandlungseinheit.
ZumbestimmungsgemässenGebrauchgehörtauchdie
BeachtungderHinweisedervorliegendenGebrauchsin-
formation.
Indikation
BluephaseStyleeignetsichdankderintegrierten
„Polywave®“mitBreitbandspektrumfürdiePolymerisa-
tionallerlichthärtendenDentalwerkstoffeimWellen-
längenbereichvon385–515nm.Hierzuzählen
Füllungsmaterialien,Bondings/Adhäsive,Unterfüllungen,
Liner,Fissurenversiegler,ProvisoriensowieBefestigungs-
materialienfürBracketsundindirekteRestaurationen
wiez.B.keramischeInlays.
Zeichenerklärung
 NichtzulässigeAnwendung
Symbole am Gerät
 Doppeltisoliert
(GerätderSchutzklasseII)
 SchutzgegenelektrischenSchlag
(GerätetypBF)
 Gebrauchsinformationbeachten
 Gebrauchsinformationbeachten
 Vorsicht
 DasGerätdarfnichtüberdennormalen
Hausmüllentsorgtwerden.Informationen
zurEntsorgungesGerätesfindenSieaufder
jeweiligennationalenIvoclarVivadent
Homepage.
 Recycelbar
Sicherheitshinweise
DieBluephaseStyleisteinelektrischesGerätundein
Medizinprodukt,welchesderIEC60601-1(EN60601-1)
undderEMVRichtlinie,sowiederMedizinproduktericht-
linie93/42/EWGunterliegt.DasGeräterfülltdiegelten-
denEU-RichtlinienundistinderLED-Klasse2
klassifiziert.
NRTL (Nationally Recognized
Testing Laboratory)
DasGeräthatdasWerkinsicheremundtechnischein-
wandfreiemZustandverlassen.UmdiesenZustandzu
erhaltenundeinensicherenBetriebzuermöglichen,sind
dieHinweisedieserBedienungsanleitungzubeachten.
ZurVermeidungvonSchädensowieGefahrenfürPatien-
ten,AnwenderundDrittegehörenhierzuinsbesondere
folgendeSicherheitshinweise:
Kontraindikationen
 BeiMaterialienderenPolymerisationausser-
halbdesWellenlängenbereichsvon
385–515nmaktiviertwird(derzeitsindhier
jedochkeineMaterialienbekannt.)Beifragli-
chenProduktenwirdempfohlen,sichdiesbe-
züglichbeimMaterialherstellerzuerkundigen.
 AnwendungohneLichtleiter
 DasGerätnichtinderNäheleichtentflamm-
bareroderleichtentzündlicherStoffeaufladen
oderverwenden.
 TragbareundmobileHochfrequenz-Kommu-
nikationseinrichtungenkönnenmedizinische
Gerätebeeinflussen.Soisteinegleichzeitige
VerwendungvonMobiltelefonenwährenddes
Betriebsnichtzulässig.

