Ivoclar Vivadent bluephase User manual

For dental use only!
Caution: U.S. Federal law restricts this device to sale by or on the order of a licensed dentist
ade in Austria
Ivoclar Vivadent AG, FL-9494 Schaan / Liechtenstein
bluephase®
Licence to cure
new
LED for every use
perating Instructions
Page 2
Bruksanvisning
Sida 16
Brugsanvisning
Side 30
Kayttöohjeet
Sivu 44
Bruksanvisning
Side 58
Bedieningshandleiding
Pagina 72
Οδηγίεσ Χρήσεωσ
σελίδα 86
Kullan›m K›la uzu
Sayfa 102
àÌÒÚÛ͈Ëfl
ëÚ. 118
Instruk ja obsługi
Strona 130
Appendix
Page 144

Dear Customer,
Optimum polymerization is an important require-
ment for all light cured materials in order to con-
sistently produce high quality restorations.
The polymerization light selected also plays a
decisive role in this respect. Therefore, we would
like to thank you for having purchased bluephase.
bluephase is a high-quality medical device which
has been designed according to the latest
standard of science and technology in compliance
with the relevant industry standards.
These Operating Instructions will help you safely
start-up the device, make full use of its capabili-
ties, and ensure a long service life.
Should you have any further questions, please do
not hesitate to contact us (see addresses on the
reverse page).
Your Ivoclar Vivadent Team

3
Product overview 4
– List of parts 4
– Indicators on the charging base 5
– Indicators on the handpiece 5
Safety 6
– Intended use 6
– Indication 6
– Signs and symbols 6
– Safety notes 6
Start-up 8
– Charging base 8
– Handpiece 8
– Battery 9
– Click & Cure corded operation 10
peration 11
– Selecting the curing program and the curing time 11
– Cure emory function 12
– Start 12
– Acoustic signals 12
– Light intensity 12
– easuring the light intensity 12
Maintenance and cleaning 13
– Housing 13
– Light probes 13
– Battery contacts 13
– Disposal 13
What if … 14
Warranty / Procedure in case of repair 15
Product specifications 15
– Delivery form 15
– Accessories 15
– Technical data 15
– Operating conditions 15
– Transportation and storage conditions 15
Table of Contents
English

4
List of parts
1 Handpiece
2 Start button
3 isplay
4 Program selection button
5 Time selection button
6 Volume button
7 Power indicator
8 Charging base
9 Power cord
10 Power pack
11 Battery
12 Light probe 10 mm
13 Anti-glare cone
10
11
311213 2
9 7 8
5 6 4

5

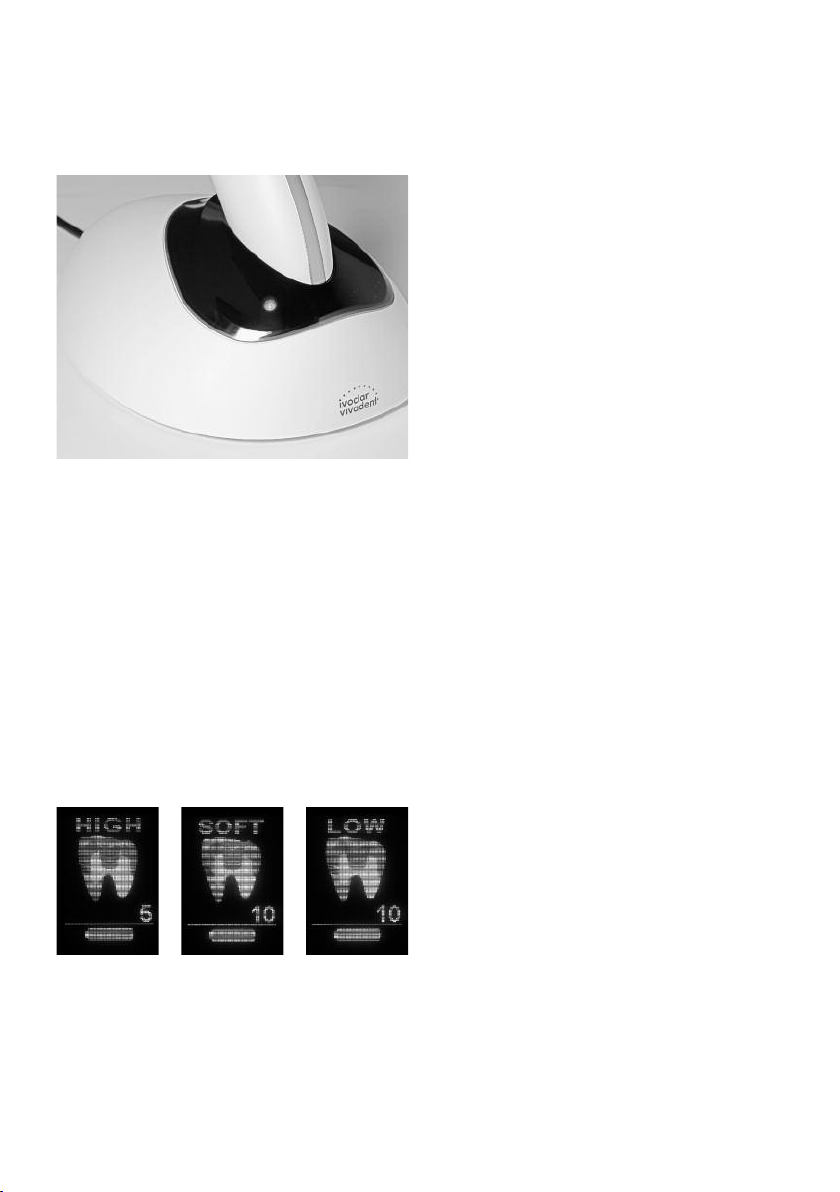

Indicators on the charging base
Indicators on the handpiece
Indicator lights up in blue - the charging base is
connected to the power supply
Curing program and operating state
Selected indications and curing time
Charging status of the battery

6
Safety
Intended use
bluephase is an LE polymerization light that produces
energy-rich blue light. It is used for the polymerization of
light-curing dental materials immediately at the dental
unit. The intended use also includes the observation of
the notes and regulations in these Operating Instructions.
Indication
With its “polywave” broadband spectrum, bluephase is
suitable for the polymerization of all light-curing dental
materials curing in the wavelength range of 385–515
nm. These materials include restoratives, bonding
agents/adhesives, bases, liners, fissure sealants, tempo-
raries, as well as luting materials for brackets and dental-
lab materials such as ceramic inlays.
Signs and symbols
Non permissible use
Symbols on the curing light
ouble insulation
(Apparatus complies with safety class II)
Protection against electrical shock
(BF type apparatus)
Observe Operating Instructions
The apparatus must not be disposed in the
normal domestic waste. Please visit your local
Ivoclar Vivadent website for detailed informa-
tion about the disposal of the unit.
Safety notes
The bluephase is a medical electronic device which is
subject to IEC 601-1 (EN 60601-1) and EMC regulations.
It complies with the relevant EU regulations.
The apparatus has been shipped from the manufacturer
in a safe and technically sound condition. In order to
maintain this condition and to ensure risk-free operation,
the notes and regulations in these Operating Instructions
have to be observed. To prevent damage to equipment
and risks for patients, users, and third parties, the follow-
ing safety instructions have to be observed.
Materials, the polymerization of which is
activated outside the wavelength range of
385–515 nm (no materials known to date.)
If you are not sure about certain products,
please ask the manufacturer of the
corresponding material.
o not charge or use the appliance near
flammable or combustible substances.
Portable and mobile high-frequency communi-
cation devices may interfere with medical
equipment. The use of mobile phones during
operation is not allowed.
NRTL (Nationally Recognized
Testing Laboratory)

7
Usage and liability
– bluephase must only be employed for the intended
use. Any other uses are contraindicated. Liability can-
not be accepted for damage resulting from misuse or
failure to observe the Operating Instructions.
– The user is responsible for testing bluephase for its use
and suitability for the intended purposes. This is partic-
ularly important if other equipment is used in the
immediate vicinity of bluephase at the same time.
– Use only original spare parts and accessories from
Ivoclar Vivadent (see Accessories). The manufacturer
does not accept any liability for damage resulting from
the use of other spare parts or accessories.
perating voltage
Before switching on, make sure that
a) the voltage indicated on the rating plate complies with
the local power supply.
b) the unit has acquired the ambient temperature.
If the battery or power pack are used separately, e.g.
during start-up or Click & Cure corded operation, contact
with patients or third parties must be prevented. o not
touch the exposed contacts of the battery or connection
plug (power pack).
Assumption of impaired safety
If it has to be assumed that safe operation is no longer
possible, the power must be disconnected and the bat-
tery removed to avoid accidental operation. This may be
the case, for example, if the apparatus is visibly damaged
or no longer works correctly. A complete disconnection
from the power supply is only ensured when the power
cord is disconnected from the power source.
Eye protection
irect or indirect exposure of the eyes must be prevent-
ed. Prolonged exposure to the light is unpleasant for the
eyes and may result in injury. Therefore, using the sup-
plied anti-glare cones is recommended. Individuals who
are generally sensitive to light, who take photosensitizing
drugs, have undergone eye surgery, or people who work
with the apparatus or in its vicinity for long periods of
time should not be exposed to the light of this device
and wear protective goggles (orange) that absorb light
below 515 nm.
Battery
Caution: Use only original spare parts, particularly Ivoclar
Vivadent batteries and charging bases.
o not short circuit battery. o not store at temperatures
above 40 °C / 104 °F (or 60 °C / 140 °F for a short
period). Always store batteries charged. The storage
period must not exceed 6 months. May explode if
disposed of in fire.
Please note that the lithium polymer battery may react
with explosion, fire, and smoke development in case of
inappropriate handling and mechanical damage.
amaged lithium polymer batteries must no longer be
used.
The electrolytes and electrolyte fumes released during
exlosion, fire, and smoke development are toxic and cor-
rosive. In case of contact with the eyes and skin, immedi-
ately rinse with copious amounts of water. Avoid the
inhalation of the fumes. See a physician immediately in
case of indisposition.
Heat development
As it is the case with all high-performance lights, the
high light intensity results in a certain heat development.
Prolonged exposure of areas near the pulp and soft
tissues may result in irreversible or reversible damage.
Therefore, the recommended curing times have to be
observed. Uninterrupted curing times of more than
20 seconds on the same tooth surface, as well as direct
contact with the gingiva, oral mucous membrane, or skin,
have to be prevented. If required, polymerize indirect
restorations at intermitting intervals of 20 seconds each
or use external cooling with an air stream.

8
Start-up
Check the delivery for completeness and any possible
transportation damage (see delivery form). If components
are missing or damaged, immediately contact your dealer
or your Service Center.
Charging base
Before you switch on the device, make sure that the volt-
age mentioned on the rating plate complies with your
local power supply. The rating plate is attached to the
underside of the charging base.
Place the charging base on a suitable, flat table top.
Remove the protective foil from the connection plug of
the power pack. Slide the connection plug of the power
pack into the socket on the underside of the charging
base. Tilt it slightly and apply slight pressure until you
hear and feel it snap into place.
Connect the power cord with the power supply and the
power pack. The Power ON indicator on the left side of
the housing lights up in blue (see Indicators on the
charging base).
Handpiece
Before you insert the light probe, remove the protective
foil on the corresponding opening of the handpiece.
Slightly turn the light probe while attaching it to the
handpiece.
After that, mount anti-glare protection on the light
probe.

9

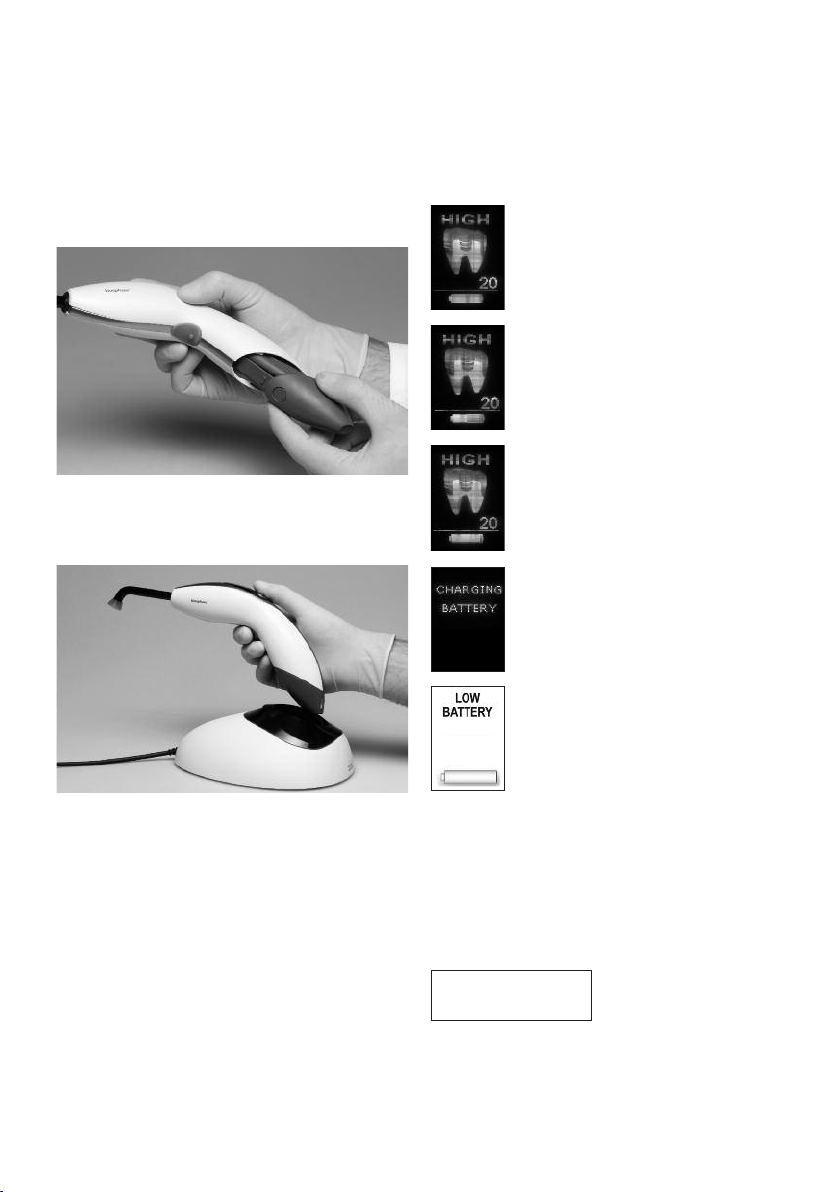

Battery
We recommend fully charging the battery before the first
use.
If the battery is fully charged, it features a curing
capacity of approximately 60 minutes.
Slide the battery straight into the handpiece until you
hear and feel it click into place.
Gently place the handpiece in the corresponding rest in
the charging base. If a sleeve is used, please remove it
before you charge the battery.
If possible, use the light always with a fully charged
battery. This will prolong the service life. It is therefore
recommended to place the handpiece into the charging
base after each patient. The charging time for empty
batteries is 2 hours.
Charging status of the battery
With the handpiece switched on, the current charging
status is shown on the display as follows:
Battery fully charged (curing capacity of
approximately 60 minutes)
Battery half full
Reserve (The last bar in the battery indica-
tor is red in the reserve mode. The battery
has to be charged as soon as possible.)
When the battery is being charged,
„Charging Battery“ briefly appears in the
display before the display returns to the
stand-by mode.
Empty battery
If the battery is completely empty, the
handpiece automatically switches to the
stand-by mode. The light can no longer be
called up and the curing program and
curing time can no longer be set. However,
the handpiece can be used in the Click &
Cure corded operation.
Since the battery is a consumable, it has to be replaced
after its typical life cycle has expired after 2½ years.
See battery label for the age of the battery.
S000001 20/11/07
dd/mm/yy

10
peration
Click & Cure corded operation
bluephase can be used in corded operation at any time,
but particularly when the battery is completely empty.
For this purpose, remove the battery from the handpiece.
Then remove the power pack from the underside of the
charging base. o not pull on the power cord.
Insert the connection plug straight into the handpiece
until you hear and feel it click into place.
uring corded operation, the charging base cannot
charge the battery.
The apparatus is only completely disconnected from the
power supply if the power cord has been pulled out of
the plug-in socket.
isinfect or autoclave contaminated surfaces of the
curing light, as well as light probes, and anti-glare cones
before each use. Furthermore, make sure that the stipu-
lated light intensity permits adequate polymerization.
For that purpose, check the light probe for contamination
and damage, as well as the light intensity at regular
intervals (e.g. with the Ivoclar Vivadent radiometer
“bluephase meter”).
Selecting the curing program and time
The curing program and the curing time can be
individually set. bluephase is equipped with the following
3 curing programs for the different indications. The
desired curing program is selected with the program
selection buttons. The display changes accordingly (see
Indicators on the handpiece).
Upon the first start-up, the following settings have been
preset:
– HIGH (High Power): 10 seconds
– LOW (Low Power): 10 seconds
– SOFT (Soft start): 15 seconds
The intended curing time is selected using the time
selection buttons. Users may choose between 5, 10, 15,
20 and 30 seconds.
Observe the Instructions for Use of the material applied
when selecting the curing time.
The curing recommendations for composite materials
apply to all shades and, if not mentioned otherwise in
the Instructions for Use of the relevant material, to a
maximum layer thickness of 2 mm. Generally, these rec-
ommendations apply to situations where the emission
window of the light probe is placed directly over the
material to be polymerized. Increasing the distance
between the light source and the material will require
the curing time to be extended accordingly. For instance,
if the distance to the material is 9 mm, the effective light
output is reduced by approx. 50%. In this case, the rec-
ommended curing time has to be doubled.

11
Curing programs
1) Applies to a maximum layer thickness of 2 mm and provided that the Instructions for Use of the respective material do not state any other recommendation (might be the case, e.g. with dentin shades)
2) Applies to a maximum layer thickness of 4 mm and provided that the Instructions for Use of the respective material do not state any other recommendation (might be the case, e.g. with dentin shades)
3) Applies to a maximum layer thickness of 3 mm 4) Applies to light-curing (use of the base past only) 5) Applies to dual-curing
HIGH P WER Program
Consistently high light intensity for
the polymerization of restorative and
cementation materials for direct and
indirect restorations.
S FT START Program
Step-by-step increase of the light
intensity with reduced shrinkage
stress and reduced heat development
for the polymerization of restorative
materials.
L W P WER Program
Reduced light intensity with reduced
heat development for the polymeriza-
tion of adhesives, liners, and restora-
tive materials in areas near the pulp
when restoring Class V cavities.
1.200 mW/cm2
t [s]
05
650 mW/cm2
t [s]
0
1.200 mW/cm2
t [s]
0
650 mW/cm2
Filling materials
Composite
• 2 mm 1)
IPS Empress Direct / IPS Empress Direct Flow /
Tetric EvoCeram / Tetric EvoFlow / Tetric /
Tetric Basic White / Tetric N-Ceram / Tetric N-Flow
Heliomolar / Heliomolar HB / Heliomolar Flow
All conventional composites
• 4 mm 2)
Tetric EvoCeram Bulk Fill / Tetric Basic White
Compomer 3)
Compoglass F / Compoglass Flow
Indirect restorations / Luting materials
Variolink II Base 4) / Variolink Veneer / Variolink N Base 4) /
Variolink N Clear Veneer / Variolink Ultra 5) /
Dual Cement 5)/ Variolink II 5)
Miscellaneous
Helioseal / Helioseal F / Helioseal Clear
onopaque
ultiCore Flow / ulticore HB
Heliosit Orthodontic
Telio Add-On Flow
Telio Stains
IPS Empress Direct Color
IPS Empress Direct Opaque
Curing time
10 s
15 s
10 s
20 s
per mm ceramic:
10 s per segment
10 s
20 s
20 s
10 s
15 s
10 s
10 s
20 s
Adhesive
AdheSE / AdheSE One F
ExciTE / ExciTE DSC
Tetric N-Bond / Tetric N-Bond Self-Etch
Heliobond (Syntac)
Temporary materials
Telio CS Inlay/Onlay
Systemp.inlay/onlay
Fermit / Fermit N
Telio CS Link / Systemp.link
Miscellaneous
Heliosit Orthodontic
Vivaglass Liner
Curing time
10 s
10 s
10 s
10 s
20 s per segment
20 s
20 s
Filling materials
Composite
• 2 mm 1)
IPS Empress Direct / IPS Empress Direct Flow /
Tetric EvoCeram / Tetric EvoFlow / Tetric /
Tetric Basic White / Tetric N-Ceram / Tetric N-Flow
Heliomolar / Heliomolar HB / Heliomolar Flow
All conventional composites
• 4 mm 2)
Tetric EvoCeram Bulk Fill / Tetric Basic White
Compomer 3)
Compoglass F / Compoglass Flow
Curing time
15 s
20 s
15 s
20 s
Light intensity
Exposure time for composites
Exposure time for Tetric EvoCeram / IPS Empress Direct
1,200 mW/cm2
15 s
10 s

12
Cure Memory function
The last settings used, together with the combination of
curing program and curing time, are automatically saved.
Start
The light is switched on by means of the start button.
Once the selected curing time has elapsed, the curing
program is automatically terminated. If desired, the light
can be switched off before the set curing time has
elapsed by pressing the start button again. The fan is
activated simultaneously to the light. Once the curing
time has elapsed, the fan continues to run for a certain
time to cool the apparatus. The battery must not be
removed as long as the fan is still running.
Acoustic signals
Acoustic signals can be heard for the following functions:
– Start (Stop)
– Every 10 seconds
– Program change
– Curing time change
– Connecting the battery to the charging base
– Inserting battery
– Error message
If desired, the volume of the acoustic signals can be
adjusted. For that purpose, press the blue volume button
while the light is off and reduce the volume or turn the
acoustic signals off with the left program selection but-
ton. If you want to turn the acoustic signals back on or
increase the volume, press the blue volume button and
then the right program selection button.
Light intensity
The light intensity is maintained at a consistent level
during operation. If the supplied 10 mm light probe is
used, the light intensity has been calibrated to
1200 mW/cm2± 10%.
The use of a light probe other than the one provided has
a direct influence on the light intensity emitted.
In parallel-walled light probes (10 mm), the diameter is
equal at both ends. In focussing light probes (10>8 mm
light probe, Pin-Point light probe 6>2 mm), the diameter
of the rear end is larger than that of the light emission
window. The incident blue light is thus bundled to a
smaller surface, which increases the light intensity emitted.
Pin-Point light probes are suitable for the polymerization
of confined areas, such as the attachment of veneers pri-
or to excess removal. For thorough curing, it is necessary
to change the light probe.
Measuring the light intensity
The light intensity of the bluephase and the enclosed 10
mm light probe can be checked by means of the blue-
phase meter.
If the measured value does not correspond with the
expected light intensity, proceed as follows:
– Check the selected curing program.
– Clean possibly dirty light sensor (radiometer).
– Remove the light probe and clean the light emission
window of the handpiece with a cotton swab dipped
in alcohol.
– Clean possibly dirty light probe
(see Maintenance and cleaning).
– Replace a damaged light probe with a new one.
If these measures do not improve the results, please
contact your dealer or your local Service Center.

13
Maintenance and cleaning
For reasons of hygiene, it is recommended to use a
disposable protective sleeve for each patient.
Contaminated surfaces of the device and anti-glare cones
must be disinfected (e.g. F 333, F 366/ ürr ental,
Incidin Liquid/Ecolab) and the light probe must be
sterilized before each use, unless disposable protective
sleeves are used. Make sure that no liquids or other
foreign substances enter the handpiece, charging base
and particularly the power pack during cleaning (risk of
electrical shock). isconnect the charging base from the
power source when cleaning it.
Housing
Wipe the handpiece and handpiece holder with a cus-
tomary aldehyde-free disinfecting solution. o not clean
with highly aggressive disinfecting solutions (e.g. solu-
tions based on orange oil or with an ethanol content of
more than 40%), solvents (e.g. acetone), or pointed
instruments, which may damage or scratch the plastic.
Clean dirty plastic parts with a soap solution.
Light probes
Clean light probe with a disinfectant and a soft cloth.
Carefully remove any possible material residue, such as
composite material, from the light probe with e.g. finger-
nail or a plastic spatula. o not use sharp or pointed
instruments, since they may scratch the surface of the
light probe and thus reduce light transmission. Light
probes and anti-glare cones may be autoclaved (e.g.
121 °C, 2 bar, 15 minutes). Check light probe for
damage. If the light probe is held against a light source
and certain segments appear black, then the glass fibres
are broken. In this case, the light probe has to be
replaced with a new one.
Battery contacts
For good conductivity at all times, keep the battery con-
tacts free from possible contamination (e.g. composite
residue). For this purpose, clean the affected contacts
regularly in the course of the usual wipe disinfection
(after each patient).
Disposal
The apparatus must not be disposed in the
normal domestic waste. Please visit your local
Ivoclar Vivadent website for detailed informa-
tion about the disposal of the unit.
ispose unserviceable batteries and polymer-
ization lights according to the corresponding
legal requirements in your country. Batteries
must not be incinerated.

14
What if....?
Symbol Causes Error Rectification
Electronic defect in the handpiece
or battery
Apparatus is overheated or
undercooled
Electronic defect in the battery
Battery empty
Charging contacts contaminated
Battery in safety mode
(integrated protective circuit)
Power pack not connected or
defective
Remove and reinsert the battery. If the error remains, replace
the battery with the power pack (Click & Cure).
If the error remains, please contact your dealer or your local
Service Center.
Allow the apparatus to cool down (or assume room tempera-
ture if it is undercooled) and try again after a certain time.
If the error remains, please contact your dealer or your local
Service Center.
Remove and reinsert the battery. If the error remains, place the
apparatus into the charging base.
If the error remains nonetheless, replace the battery with the
power pack (Click & Cure).
Please contact your dealer or your local Service Center.
Position the handpiece in the charging base. „Charging
Battery“ briefly appears in the display before the display
returns to the stand-by mode. If the battery is not charged, the
contacts have to be cleaned. If the error remains, please con-
tact your dealer or your local Service Center.
Check if the handpiece has been correctly placed into the
charging base. Clean battery contacts. Information: „Charging
Battery“ briefly appears in the display before the display
returns to the stand-by mode.
If cleaning the battery contacts does not improve the results,
remove the battery from the apparatus. Charge the battery
separately from the handpiece in the charging base for
approx. 10 minutes.
If the error remains, please contact your dealer or your local
Service Center.
Check if the power pack is correctly positioned in the charging
base (also check the charging contacts) or if the power pack is
connected to the power supply by means of the power cord
(display on the power pack lights up in green if it works cor-
rectly).
If the error remains, please contact your dealer or your local
Service Center.
o display
during
charging
LED of the
charging
base is not
illuminated

15
Warranty /
Procedure in case of repair Product specifications
The warranty period for bluephase is 3 years from the
date of purchase (battery 1 year).
Malfunctions resulting from faulty material or manufac-
turing errors are repaired free of charge during the war-
ranty period. The warranty does not provide the right to
recover any material or non-material damage other than
the ones mentioned. The apparatus must only be used for
the intended purposes. Any other uses are contraindicat-
ed. The manufacturer does not accept any liability result-
ing from misuse and warranty claims cannot be accepted
in such cases. This is particularly valid for:
– damage resulting from improper handling, especially
incorrectly stored batteries (see Technical data:
Transportation and storage conditions).
– damage to components resulting from wear under
standard operating conditions (e.g. battery).
– damage resulting from external influences, e.g. blows,
drop to the floor.
– damage resulting from incorrect set-up or installation.
– damage resulting from connecting the unit to a power
supply, the voltage and frequency of which do not
comply with the ones stated on the rating plate.
– damage resulting from improper repairs or modifica-
tions that have not been carried out by certified
Service Centers.
In case of a claim under warranty, the complete
apparatus (handpiece, charging base, power cord, and
power pack) must be returned, carriage paid, to the
dealer or directly to Ivoclar Vivadent, together with the
purchase document. Use the original packaging with the
corresponding cardboard inserts for transportation.
Repair work may only be carried out by a certified
Ivoclar Vivadent Service Center. In case of a defect that
cannot be rectified, please contact your dealer or your
local Service Center (see addresses on the reverse side).
A clear description of the defect or the conditions under
which the defect occurred will facilitate locating the
problem. Please enclose this description when returning
the apparatus.
Delivery form
1 Charging base, 1 Power cord, 1 Power pack,
1 Handpiece, 1 Battery (Li-Po), 1 10 mm light probe,
3 Anti-glare cones, Sleeves, 1 Set of Operating Instructions
Accessories
The following accessories are available for bluephase:
REF Description
608537 Light probe 10 mm, black (G2)
608538 Pin-point light probe 6>2 mm, black
551756 Anti-glare cones
592496 Anti-glare shield
608534 bluephase charging base (G2)
608535 bluephase battery (G2)
608532 bluephase handpiece (G2)
607922 bluephase meter
608554 bluephase sleeves (G2)
Technical data
Operating voltage charging base 5 V C
Operating voltage handpiece 3.7 V C with battery
5 V C with power pack
Power pack 100–240 VAC / 50-60 Hz /
max. 0.4 A
Fabricant: Friwo
Output 5 V C
TYPE 15.2630
perating conditions
Temperature +10 °C to +40 °C
(+50 to +104 °F)
Relative humidity 30% to 75%
Ambient pressure 700 hPa to 1060 hPa
imensions of the charging base L=205mm W=150mm H=85mm
Weight of the charging base 250 g
Charging time approx. 2 h (with the battery empty)
Power supply of the handpiece Li-Po battery
Max. battery time approx. 60 min.
(with a new, fully charged battery)
Light source 5W LE
Wavelength range 385 – 515 nm
Light intensity max. 1,200 mW/cm2 ± 10 %
Operating 6 min. on / 4 min. off (intermittently)
imensions of the handpiece: L=260mm W=42mm H=120 mm
Weight of the handpiece 245 g
(incl. battery)
Transportation and storage conditions:
Temperature -20 °C to +60 °C (-4 to 140 °F)
Relative humidity 10% to 75%
Ambient pressure 500 hPa to 1060 hPa
bluephase has to be stored in closed, roofed rooms.
Protect the device from severe jarring.
Battery
– o not store at temperatures above 40 °C / 104 °F
(or 60 °C / 140 °F for a short period).
Recommended storage temperature 15 – 30 °C (59 – 86 °F).
– Always store the battery charged and not for longer than 6 months.

16
Bäste kund,
Optimal l ushärdning är en viktig förutsättning för
att genomgående erhålla högkvalitativa restaura-
tioner med alla l ushärdande material.
Val av l ushärdningslampa spelar också en viktig
roll. Därför vill vi tacka dig för ditt köp av bluepha-
se. Denna l ushärdningslampa är ett högkvalitativt
medicintekniskt h älpmedel, som har utformats
efter senaste vetenskapliga och tekniska rön, till-
sammans med nu gällande industriella normer.
Denna bruksanvisning kommer att h älpa dig att
på ett säkert sätt sätta lampan i bruk och lära dig
att utnytt a dess mö ligheter till fullo under hela
lampans långa livslängd.
Om du har frågor, tveka inte att kontakta oss (se
adressen på baksidan).
Ditt Ivoclar Vivadent Team

Svenska
Innehållsförteckning
Produktöversikt 18
– Lampans delar 18
– Indikatorer på laddningsstationen 19
– Indikatorer på handstycket 19
Säkerhet 20
– Användningsområde 20
– Indikation 20
– Tecken och symboler 20
– Säkerhetsnoter 20
Första start 22
– Laddningsstation 22
– Handstycke 23
– Ladda batteriet 24
– Click & Cure kabeldrift
Arbete 25
– Val av härdningsprogram och härdningstid 25
– Härdningsminnesfunktion 26
– Start 26
– Akustiska signaler 26
– Ljusstyrka 26
– ätning av ljuskapacitet 26
Underhåll och rengöring 27
– Kåpa 27
– Ljusledare 27
– Batterikontakter 27
– Avyttring 27
Vad är fel när…? 28
Garanti / I händelse av reparation 29
Produktspecifikationer 29
– Leveransform 29
– Tillbehör 29
– Teknisk data 29
– Arbetsvillkor 29
– Transport och förvaringsvillkor 29

18
Lampans delar
1 Handstycke
2 Startknapp
3 isplay
4 Programvalsknapp
5 Tidvalsknapp
6 Volymknapp
7 Spänningsindikator
8 Laddningsstation
9 Nätkabel
10 Power pack (strömförsörjningsdel)
11 Batteri
12 Ljusledare 10 mm
13 Avbländningsskydd
10
11
311213 2
9 7 8
5 6 4

19
Indikatorer på laddningsstationen
Indikatorer på handstycket
Indikatorn lyser blå – laddningsstationen är
kopplad till nätdriften
Härdningsprogram resp. driftstatus
Valda indikationer resp. härdningstid
Batteriets laddningsstatus

20
Avsett användningssätt
bluephase är en LE ljushärdningslampa som producerar
energirikt blått ljus. en används för ljushärdning av den-
tala material i omedelbar anslutning till dentaluniten.
För att säkerställa rätt användningssätt krävs att rekom-
mendationer och regler i denna bruksanvisning följs.
Indikation
Med sitt ”polywave” bredbandsspektrum, passar bluep-
hase mycket bra till ljushärdning av alla ljushärdande
dentala material, som härdas i våglängdsområdet
385–515 nm. essa material inkluderar restaurations-
material, bondingmedel/adhesiver, basmaterial, liners,
fissurförseglingsmaterial, temporära material samt
material för fastsättning av brackets och laboratorie-
framställda restaurationer som keramiska inlägg.
Tecken och symboler
Otillåten användning
Symboler på härdlampan
ubbelisolerad (Apparaten överrensstämmer
med säkerhetsklass II)
Skydd mot elektrisk chock
(BF apparat)
Var vänlig och läs bruksanvisningen
Apparaten får ej avyttras med hushållssopor.
Information om avfallshantering av produkten
hittar du på Ivoclar Vivadents svenska hemsida.
Säkerhetsföreskrifter
bluephase är en elektrisk medicinteknisk produkt som är
prövad enligt IEC 601-1 (EN 60601-1) och EMC regler.
bluephase överensstämmer med gällande EU regler.
Apparaten har lämnat tillverkaren i ett tekniskt säkert
och felfritt skick. För att bibehålla detta skick och tillför-
säkra sig om ett riskfritt arbete, ska föreskrifter och
regler i denna bruksanvisning följas
För att undvika skada på utrustning och risker för
patienter, användare, samt tredje part, ska följande säker-
hetsinstruktioner följas.
Material vars ljushärdning ligger utanför
våglängdsområdet 385–515 nm (inga idag
kända material). Om du är osäker på vissa
produkter, var vänlig och kontakta tillverkaren
av dessa material.
u ska inte ladda eller använda lampan i
närheten av brandfarliga eller lättantändliga
ämnen.
Bärbar och mobil högfrekvens kommunika-
tionsapparatur kan störa medicinteknisk
utrustning. et är inte tillåtet att använda
mobiltelefoner under arbetet med denna
apparat.
NRTL (Nationally Recognized
Testing Laboratory)
Säkerhet
