Jøtul GZ 550 DV II Acadia User manual

1
Jøtul GZ 550 DV II
Jøtul GZ 550 DV II Acadia
Direct Vent Gas Fireplace
Installation and
Operation Instructions
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call you gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instruction.
• If you cannot reach your gas supplier, call
the fire department.
Installation and service must be
performed by a qualfied installer, service
agency or the gas supplier.
In the Commonwealth of Massachusetts, a
carbon monoxide (CO) detector shall be
installed in the same room as the
appliance.
WARNING: If the information in these
instructions is not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
• Ne pas tenter d’allumer l’appareil.
• Ne touchez à aucum interrupteur. Ne pas
vous servir des téléphones se trouvant
dans le bâtiment où vous trouvez.
• Appelez immédiatement votre
fournisseur de gaz depuis un voisin. Suivez
les instructions du fournisseur.
• Si vou ne pouvez rejoindre le fournisseur
de gaz, appelez le service des incendies.
L’installatione l’entretien doivent être
assurés par un installateur ou un service
d’entretien qualifié ou par le fournisseur
de gaz.
Ne pas entreposer ni utiliser d’essence ni
d’autres vapeurs ou liquides inflammables
dans le voisinage de cet appareil ou de tout
autre appareil.
AVERTISSEMENT: Assurez-vous de bien
suivreles instructions données dans cette
notice pour réduire auninimum le risque
d’incendie ou d’explosion ou pour éviter tout
dommage matériel,toute blessure ou la mort.
ATTENTION : CES INSTRUCTIONS DOIVENT
DEMUERER AVEC LE PROPRIÉTERE D’UNE
MAISON.
CAUTION:THESE INSTRUCTIONS ARE TO
REMAIN WITH THE HOMEOWNER.
fire-parts.com

2
Jøtul GZ 550 DV II
PLEASE READ THESE INSTRUCTIONS IN THEIR
ENTIRETY AND MAKE THEM AVAILABLE TO
ANYONE USING OR SERVICING THIS
APPLIANCE.
THIS FIREPLACE MUST BE INSTALLED AND
MAINTAINED BY A QUALIFIED SERVICE
AGENCY.
IN THE COMMENWEALTH OF
MASSACHUSETTS,THIS PRODUCT MUST BE
INSTALLED BY A LICENSED PLUMBER OR
GAS-FITTER.
DO NOT ATTEMPTTO ALTER OR MODIFY THE
CONSTRUCTION OF THIS APPLIANCE OR ITS
COMPONENTS. ANY MODIFICATION OR
ALTERATION WILL VOID THE WARRANTY,
CERTIFICATION, AND LISTING OF THIS
APPLIANCE.
fire-parts.com

3
Jøtul GZ 550 DV II
Table of Contents
Specifications ................................... 4
Installation / Service Tools ............ 5
General Information....................... 5
Safety Information.......................... 6
Installation Requirements
Framing............................................ 6
Mantel Clearances ........................ 8
Hearth Protection ......................... 8
Vent Requirements ....................... 9
Vertical Termination ................... 10
Horizontal Termination............... 11
Terminal Clearances..................... 11
Vent Restrictor .............................. 12
Fireplace Assembly
Blower Installation....................... 12
Gas Connection.............................14
Gas Pressure ..................................14
High Altitude Adjustment ......... 15
Fuel Conversion ........................... 16
Wall Thermostat .......................... 19
Remote Control ............................ 19
Antique Brick Kit..........................20
Log Set Installation ...................... 21
Surround Assembly..................... 22
Double Door Installation ........... 22
System Check ............................... 23
Operation ........................................ 25
Maintenance .................................. 26
Glass Replacement ....................... 26
Service Log ...................................... 27
Illustrated Parts Breakdown ....... 28
Replacement Parts List................. 29
Accessories...................................... 30
Lighting Instructions .... Back Cover
Unpacking the Fireplace
1. Before you remove the carton, remove the cast
iron parts that are packed around the fireplace
cabinet.
2. Lift the shipping carton off of the fireplace
cabinet.
3. Unpack the Firebox. The Logset is packaged inside
the firebox. Remove the Glass Panel Frame to
unpack the firebox:
• Locate the right and left spring latches on the
underside of the firebox floor. Release each latch
by pulling them forward to disengage the frame
body.
• Pull the Glass Frame away from the firebox and
lift to disengage it from the three steel tabs
located at the top of the firebox. Set the glass out
of the way.

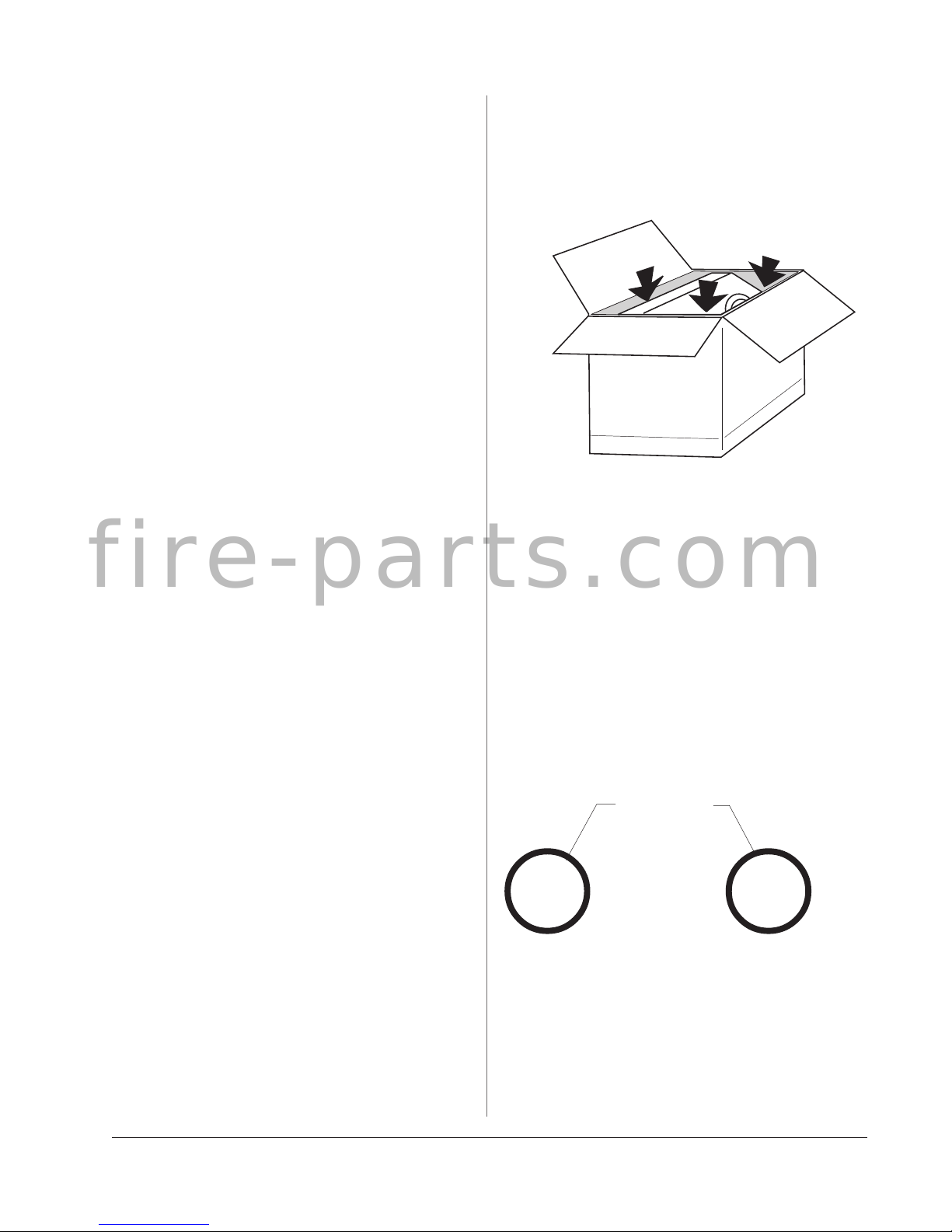

Pull each Spring Latch to disengage them from the
Glass Frame.
Spring Latches
fire-parts.com

4
Jøtul GZ 550 DV II
Specifications
Input Rates
Natural Gas
28,000 BTU/hr. maximum input
16,000 BTU/hr. minimum input
28,000 BTU/hr. maximum input
15,500 BTU/hr. minimum input
II
II
IMIN MAX
Natural Gas: 5.0 WC (1.24 kPa) 11.0 WC (2.74 kPa)
Propane: 12.0 WC (2.98 kPa) 14.9 WC (3.71 kPa)
MIN MAX
Natural Gas: 1.2 WC (.29 kPa) 3.8 WC (.94 kPa)
Propane: 2.9 WC (.72 kPa) 11.0 WC (2.74 kPa)
Jøtul GZ 550 DV II Acadia
Direct Vent Gas Fireplace
Manufactured and Distributed by:
Jøtul North America
Gorham, Maine U.S.A.
Test Standards
This appliance complies with
National Safety standards and
is tested and listed by Intertek
Testing Services of Middleton,
Wisconsin to ANSI Z21.88-2005,
ANSI Z21.88a / CSA 22.3a - 2007,
CAN/CGA 2.17-M91, and CSA P.4.-01.2.
Jøtul AS
Fredrikstad, Norway
Suggested Tools for
Installation and Service
• External regulator (for Propane only)
• Piping which complies with local code
• Manual shutoff valve - T-Handle in MA
• Sediment trap - if required by code
• 10mm open end wrench
• 1/2”, 7/16”open end wrench
• Phillips head screwdriver
• Flat head screwdriver •Tee joint
• Pipe wrench •Pipe sealant
• 1/4” nut driver •Torx T20 screwdriver
• Gloves •Safety glasses
• Leak test solution •Power Drill
• Reciprocating Saw
Accepted For Use
City of New York Dept. of Buildings
M.E.A. No. 369-00-E
Jøtul North America, Inc.
fire-parts.com

5
Jøtul GZ 550 DV II
General Information
IMPORTANT:
SAVE THESE INSTRUCTIONS.
1. The installation and repair of this appliance must
be done by a qualified service person. Failure to
properly install and maintain this heater could
result in an unsafe or hazardous installation,
which may result in a fire, explosion, property
damage, personal injury or loss of life.
2. This appliance should be inspected before use and
at least annually. More frequent cleaning may be
required due to excessive lint from carpeting,
bedding material, etc. It is imperative that control
compartments, burners and circulating air
passageways of the appliance be kept clean.
`S’assurer que le bruleur et le compartiment des
commandes sont propres. Voir les instructions
d’installation et d’utilisation qui accompagnent
l’appareil.
3. The installation must conform to local codes. Your
local Jøtul authorized dealer can assist you in
determining what is required in your area for a
safe and legal installation. Some areas require a
permit to install a gas burning appliance. Always
consult your local building inspector or authority
having jurisdiction to determine what regulations
apply in your area.
In the absence of local codes, the installation
requirements must comply with the current
National codes. In the U.S., these requirements are
established in the National Fuel Code, ANSI
Z223.1.(NFPA 54). In Canada, the codes have been
established in CAN/CGA B149 Fuel Installation
Code.
Installer l’appareil selon les codes ou reglements
locaux, ou, en l’absence de tels reglements, selon
les Codes d’installation CAN/CGA-B149.
4. DO NOT OPERATE THIS FIREPLACE IF ANY PART
HAS BEEN UNDER WATER.
Immediately call a qualified service technician to
inspect the heater and to replace any part of the
control system and any gas control which has
been under water.
Ne pas se servir de cet appareil s’il a ete’ plonge
dans l’eau, completement ou en partie. Appeler
un technicien qualifie pour inspecter l’appareil et
remplacer toute partie du syste’me de controle et
toute commande qui ont ete plonges dans l’eau.
5. Do not operate the fireplace with the glass front
removed, cracked or broken. Replacement of the
glass should be done by a licensed or qualified
service person. Only remove glass for routine
service. Always handle glass carefully.
Pour utilisation avec les portes en verre cerifiers
aved l’appareil seulemend ou. Ne pas utiliser avec
des portes on verre.
6. Notify your insurance company before proceding
with installation of this fireplace.
7. This appliance may be installed in an aftermarket
permanently located, manufactured (mobile)
home, where not prohibited by local codes. This
appliance is only for use with the type(s) of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a
certified kit is used.
Cet appareil peut être installé dans un maison
préfabriquée (mobile) déjà installée à demeure si
les règlements locaux le permettent. Cet appareil
doit être utilisé uniquement avec les types de gas
indiqués sur la plaque signalétique. Ne pas
l’utiliser avec d’autres gas sauf si un kitde conver-
sion certifié est installé.
fire-parts.com

6
Jøtul GZ 550 DV II
Installation Requirements
This appliance and its vent system must be installed
within a totally enclosed structure. The fireplace
must be connected to the specified vent and termi-
nation cap outside the building. Do not vent into
another room or inside any part of a building.
The approved vent configurations described
herein are derived from extensive testing under
controlled laboratory conditions. Gas appliance
performance can be negatively affected by variables
present in the installation environment, i.e: strong
prevailing winds, steep roofs, nearby trees, snow
accumulation, etc. These conditions should be taken
into consideration by the installer and home owner.
In such instances, system performance can often be
improved by an increase in the vent height or
installation of a high wind termination cap.
Placement and Framing

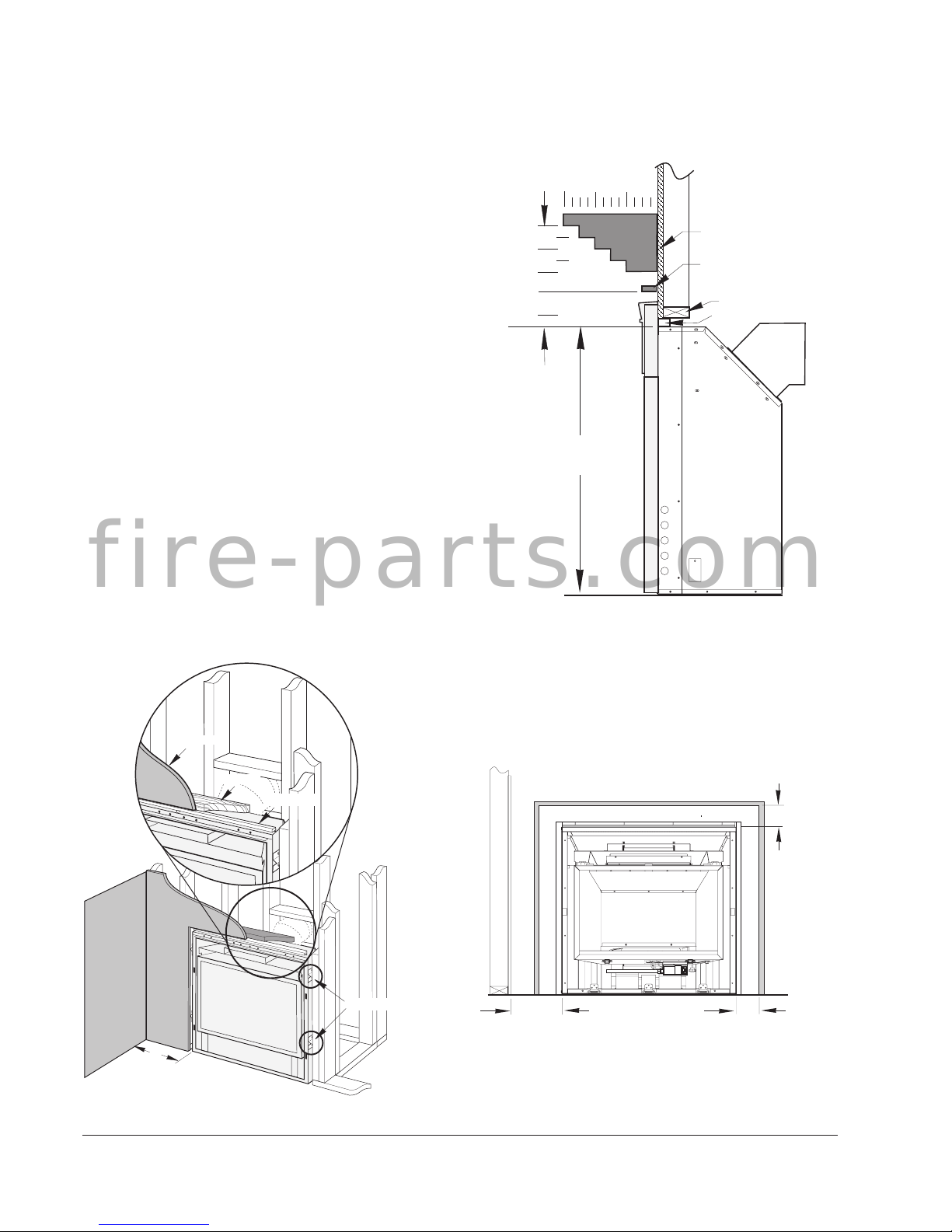

The combustible framing members of the fireplace
enclosure may be placed in direct contact with the
fireplace cabinet as specified in the illustrations on
the following pages. Use the standoffs integrated
into the sides and top of the front opening to locate
a combustible header and side framing members as
shown in the illustrations. See fig. 1.
If the optional Blower (#155630) will
be used, be sure to include provision for a properly
grounded, 120 volt house current outlet at the
fireplace structure.
Safety Information
Due to the high operating temperatures this
appliance should be located out of traffic and
away from furniture, draperies, etc. Maintain
proper clearance to combustible mantels and
fireplace trim.
Children and adults should be alerted to the
hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
Young children should be supervised while they
are in the same room as the Acadia gas fireplace.
Surveiller les enfants. Garder les vetements, les
meubles, l’essence ou autres liquides a vapeur
inflammables loin de l’appareil.
Clothing or other flammable materials should not
be placed ON or NEAR the Acadia gas fireplace.
Never allow any to use the fireplace if they are
unfamiliar with its operation.
NEVER store or use gasoline or any other flam-
mable vapors or liquids in the vicinity of the
Acadia gas fireplace.
Never burn any solid materials (wood, cardboard,
paper, coal, etc.) in this gas fireplace. Use with
natural gas or propane fuel ONLY.
Any safety screen, glass or guard removed for
servicing the appliance must be replaced prior to
operating the appliance.
Do not slam or strike the glass panel.
Wear gloves and safety glases while performing
maintenance procedures.
Electrical Hazard
Be aware of electrical wiring locations when
cutting holes in walls and ceilings for termination.
The optional Acadia Blower (155630) must be
electrically grounded in accordance with local
codes or, in the absence of local codes, with the
current ANSI/NFPA 70, National Electrical Code or
CSA C22.1-Canadian Electrical Code.
The Acadia Blower is supplied with a three-prong
(grounding) plug for protection against shock
hazard and should be plugged directly into a
properly grounded three-prong receptacle. DO
NOT CUT OR REMOVE THE GROUNDING PRONG
FROM THE PLUG.
Always disconect the power supply when per-
forming routine service on the fireplace.
Parallel Installation
Although it is possible to place combustible framing
members in direct contact with the rear surface of
the cabinet,
Consideration must also be given to
maintaining a minimum 1 inch (25 mm) clearance
between a vertical vent pipe and any combustible
materials to the rear of the unit. See Figs. 2, 3, and 4.
Corner Installation
A corner installation will require that the Vent
Adaptor be installed in a top exit position. Horizontal
terminations will then require use of a 90° elbow.
Figs. 5 and 5a show rear termination with 5/8
Simpson Dura-Vent Wall Thimble #1247.
fire-parts.com

7
Jøtul GZ 550 DV II
35 3/4
900 mm
16 1/4
410 mm
35
890 mm 35 3/4 *
910 mm
8
200 mm
4
100 mm 38
970 mm
25
635 mm
38
(970 mm)
Horizontal Vent: Minimum depth accomodates the length of
Vent Adaptor and one 6 vent section through wall construction.
Vent Adaptor: 5/8
A = 21 3 4
Vertical Vent: Minimum depth includes 1 inch clearance
between Vent Adaptor and combustible wall construction.
Vent Adaptor: 5/8 4/6
A = 21 1 2 20
A
Figure 3. Depth requirement to rear wall.
Figure 2. Minimum horizontal vent
allowance through wall.
Figure 1. Cabinet Dimensions.
Figure 5. Corner framing dimensions.
28 1/2
730 mm
16
410 mm
41
1041 mm
9
230 mm
56 1/2
1435 mm
Figure 5a.
Corner Installation - 5/8 vent, rear termination.
NONO
NONO
NOTT
TT
TE:E:
E:E:
E: DO NODO NO
DO NODO NO
DO NOT IT I
T IT I
T INSNS
NSNS
NSTT
TT
TALL CALL C
ALL CALL C
ALL CABAB
ABAB
ABII
II
INN
NN
NET ON FLET ON FL
ET ON FLET ON FL
ET ON FLOO
OO
OOR SUOR SU
OR SUOR SU
OR SURR
RR
RFF
FF
FAA
AA
ACC
CC
CEE
EE
E
LL
LL
LOO
OO
OWW
WW
WERER
ERER
ER TT
TT
THANHAN
HANHAN
HAN TT
TT
THH
HH
HE FRE FR
E FRE FR
E FRONON
ONON
ONTT
TT
TAL HAL H
AL HAL H
AL HEE
EE
EARAR
ARAR
ARTT
TT
TH SUH SU
H SUH SU
H SURR
RR
RFF
FF
FAA
AA
ACC
CC
CE.E.
E.E.
E.
Header / Wallboard
Standoff Height: 35 3/4”
Security Vent:
A = 25 1/4 (645 mm)
Security Termination has no slip adjustibility.
Sim son DuraVent and Amerivent:
A =
25 3/4 (660 mm)
5/8 Vent Ada tor
A
6 Vent
Section
43
1092 mm
48 1 2
1232 mm
WALL OPENING
5/8 VENT
10 x 11
254 mm x 280 mm
See text for
details.
49 1 4
1232 mm
Minimum
mantel
shelf
height to
cover vent
wall
thimble
CUSTOM
MANTEL
CABINET 2
50 mm
Min. Vent
Clearance
16 1/4
(413 mm)
16 1/4
(415 mm)
Rear Exit
21 1/2
(546 mm)
16 1/4
(415 mm)
Top Exit
38 3/4
(990 mm)
5/8 Vent
20
(510 mm)
4/6 Vent
32 3/4
(830 mm)
5/8 Vent
4/6 Vent
37 1/4
(946 mm)
Figure 4.
Vent Adaptor orientation.
Wall Cutout :
4/6 Pipe - 10”x10”
5/8 Pipe - 11”x11”
Observe all vent
and termination
clearance
requirements.
fire-parts.com

8
Jøtul GZ 550 DV II
Standoffs
Header
Standoff
Wallboard
Facing and Clearance Requirements
The following clearance and hearth specifications
are the minimum requirements for the GZ550 DV II
Acadia gas fireplace. Measure clearances from the
steel fireplace cabinet - not the cast iron surround
panels. See Figures 6 - 8.
A combustible surface is anything that can burn
(i.e. sheet rock, wallpaper, wood, fabrics etc.). These
surfaces are not limited to those that are visible and
also include materials that are behind non-combus-
tibles.
If you are not sure of the combustible nature of
a material, consult your local fire officials. “Fire
Resistant” materials are considered combustible -
they are difficult to ignite, but will burn.“Fire-rated”
sheet rock is also considered combustible.
Maintain the proper clearances to the appliance
to allow adequate flow of ventilation air around the
fireplace.
Figure 8. Minimum Wall and Trim Clearance.
Measured from the cabinet, not standoffs or cast iron
panels. Maximum Top & Side Trim depth: 2 1/2”(64 mm)
Figure 6. Header and Side Standoffs
10”
(250 mm)
Mantel and Trim Clearance
Figure 7. Minimum Mantel Clearances. Measure
clearances from the top of the fireplace cabinet
before installation of the cast iron surround panels.
Hearth Protection
The GZ550 DV II Acadia is approved for installation
without hearth protection. Combustible materials
may be used on the floor directly under and in front
of the fireplace.
SIDE WALL
SIDE TRIM
TOP TRIM
10
2.55 cm
4 1 2
1.2 cm
4 1 2
1.2 cm
GZ550 DV
Cabinet
CAST IRON SURROUND PANELS
HEADER
UPPER TRIM
2 1/2 M x. Depth
4 1 2
7 1 2
9
10 1 2
12
13 1 2
DRYWALL
12 4 8 
TOP OF CABINET STANDOFF
MANTEL
AREA
35
fire-parts.com

9
Jøtul GZ 550 DV II
Vent Requirements
This appliance is approved for use with direct vent
components produced by the following manufactur-
ers:
• Simpson Dura-Vent Corporation, 5/8 and 4/6 pipe
• Security Vent Ltd. International, 5/8 and 4/6 pipe
• Amerivent Corporation, 4/6 pipe
• Selkirk Metalbestos Corp. MDV Direct Vent Systems
• Metal-Fab, Inc. 5/8 and 4/6 Direct Vent
• Industrial Chimney Corp. ExcelDirect Vent
Use vent components from a single vent manufac-
turer. Do not combine parts from different manufac-
turers in a single installation.
The vent termination must fall within the shaded area
designated in the diagrams in Figures 12 - 14.
Venting Guidelines
The minimum height for a vertical termination cap
must be no less than 7'7'
7'7'
7' from the top of the unit.
The maximum height must not exceed 35'35'
35'35'
35'.
The minimum vent height above the roof or
adjacent walls is specified by major building codes.
Use the Gas Vent Rule as a general guide. See
fig.10. requirements of the approval listing and the
manufacturer’s instructions.
n
Top - 2” (51 mm) Sides/Bottom - 1” ( 25 mm))
))
)

4/6 Pipe - 10” x 10” 5/8 Pipe - 11” x 11”
Any horizontal run must rise 1/4” per foot.
Install venting in accordance with the vent manu-
facturers’ instructions. Never modify any venting
component, or use any damaged venting product.
THE GAS APPLIANCE AND VENT SYSTEM MUST BE
VENTED DIRECTLY TO THE OUTSIDE
OF THE BUILDING. DO NOT CON-
NECT VENT TO A CHIMNEY SERVING
A SOLID FUEL OR ANOTHER GAS
APPLIANCE.

Apply a 1/8” bead of high-
temperature (750°F) sealant
to the male section of the
inner vent pipe. See fig. 9.
The cement should seal
Figure 9. Seal each inner joint before joining pipe.
Figure 11. Typical minimum horizontal vent
configuration - 5/8 Simpson DuraVent. Do not use
4/6 pipe in this configuration.
45° Elbow
6”Vent Section
Wall Support
Wall Termination
Figure 10. Gas Vent Height Rule: Vertical vent
termination height above roof.
the inner pipe from the outer pipe.
Do not recess the vent terminal into a wall or siding.
Inspect the vent system annually for blockage and
deterioration
Installation of any components not manufactured
or approved by Jøtul or failure to meet all clear-
ance requirements will void all warranties and
may result in property damage, bodily injury, or
loss of life.
fire-parts.com

10
Jøtul GZ 550 DV II
Figure 12. Vent Window for vertical termination
using 5/8 or 4/6 pipe.
Figure 13. Vent Window for offset vertical
termination using 5/8 or 4/6 pipe.
Vertical Termination
The vent must terminate within the shaded area
designated on the graphs in Figs. 12 and 13.
• Maximum Elbows - Two 90° or Two 45° (Do not(Do not
(Do not(Do not
(Do not
cc
cc
counoun
ounoun
ountt
tt
tthe firstthe first
the firstthe first
the first elboelbo
elboelbo
elbow ow o
w ow o
w off
ff
fff
ff
f the vthe v
the vthe v
the venen
enen
entt
tt
tcc
cc
collarollar
ollarollar
ollar.).)
.).)
.)
• Use the restrictor settings indicated in the graph
as general guide.The specific characteristics of
your installation may require different settings.
Horizontal Termination
The vent must terminate within the shaded area
designated in Figs. 15 and 16. (Do not(Do not
(Do not(Do not
(Do not cc
cc
counoun
ounoun
ountt
tt
tthe firstthe first
the firstthe first
the first
elboelbo
elboelbo
elbow ow o
w ow o
w off
ff
fff
ff
f the vthe v
the vthe v
the venen
enen
entt
tt
tcc
cc
collarollar
ollarollar
ollar.).)
.).)
.)
• Max. Elbows - One 90° or one 45°.
••
••
•Use oUse o
Use oUse o
Use of 4f 4
f 4f 4
f 4//
//
/6 pipe r6 pipe r
6 pipe r6 pipe r
6 pipe requirequir
equirequir
equires a minimum 1 fes a minimum 1 f
es a minimum 1 fes a minimum 1 f
es a minimum 1 footoot
ootoot
oot riserise
riserise
rise..
..
.FF
FF
Figig
igig
ig..
..
.
16.16.
16.16.
16.
52
(990 mm)
Figure 14. Minimim
centerline for
horizontal
termination of 4/6
pipe
fire-parts.com

11
Jøtul GZ 550 DV II
Figure 15. Horizontal termination -5/8 pipe. Figure 16. Horizontal Termination - 4/6 Pipe.
Minimum 1 ft. rise required.
Figure 17. Vent Terminal Clearances.
Horizontal Termination Clearance
A = Clearance above grade, veranda, porch , deck, or
balcony : 12 inches (30 cm) minimum.
B = Clearance to window or door that may be opened:
**Min. 9 inches, U.S. / *12 inches (30 cm) CAN.
We recommend 12in. minimum to prevent condensa-
tion on the window.
C = Clearance to permanently closed window:
**Min. 9 inches, U.S. / *12 inches (30 cm) CAN
We recommend 12 in. minimum to prevent condensa-
tion on the window.
D= Vertical clearance to ventilated soffit located above
the terminal within a horizontal distance of 2 feet (60 cm)
from the centerline of the terminal: 18 inches
(46 cm) minimum.
E= Clearance to unventilated soffit: 12 inches (30 cm)
minimum.
F = Clearance to outside corner: **Min. 9 inches, U.S. / *12
inches (30 cm) CAN.We strongly recommend 12 inches,
particularly where windy conditions pevail.
G = Clearance to inside corner: ** Min. 6 inches, U.S. / *12
inches (30 cm) CAN. We strongly recommend 12 inches,
particularly where windy conditions pevail.
H = *Not to be installed within 15 feet (4.5 m) above a
meter/regulator assembly within 3 feet (90 cm)
horizontally from the center-line of the regulator.
I = Clearance to service regulator vent outlet:
3 feet (91 cm) minimum.
J = Clearance to nonmechanical air supply inlet to building
or the combustion air inlet to any other appliance:
12 inches (30 cm) minimum.
K= Clearance to a mechanical air supply inlet:
**Min. 3 feet (91 cm) above if within 10 feet horizontally,
U.S. / *6 feet (1.83 m) minimum / CAN
L = 1Clearance above paved sidewalk or a paved driveway
located on public property: 7 feet (2.1 m) min.
M = Clearance under veranda, porch, deck, or balcony:
12 inches (30 cm) minimum.2
* In accordance with CSA B149 Installation Codes.
** In accordance with the current ANSI Z223.1/NFFPA 54, National
Fuel Gas Code. Note: Local Codes and Regulations may require
different clearances.
1A vent shall not terminate directly above a sidewalk or driveway
which is located between two single family dwellings and serves
both dwellings.
2Only permitted if veranda, porch, deck, or balcony, is fully open
on a minimum of two sides beneath the floor.*
Figure 18.
Wall Vent Terminal /
Clearances to Overhangs
fire-parts.com

12
Jøtul GZ 550 DV II
Variable Vent Restriction
Vent restriction is accomplished by sliding a restrictor
panel over the combustion air intake ports located at
the back of the firebox. See Fig 19. The panel is set in a
fully open position at the factory. Use the Vent
Window diagrams in Figs. 12-13 as a starting point to
determine the best restriction setting. Follow these
steps to adjust the restriction as necessary:
1. Remove the Controls Panel to access the adjust-
ment lever at the rear of the valve compatment.
Simply loosen the two wingnuts that secure the
panel to the cabinet floor and pull the panel
forward. You do not need to disconnect any wires.
2. Locate the vent restriction wingnut protruding
from the firebox floor at the rear of the valve
compartment. Loosen the wingnut and push the
lever to the left to increase restriction in one inch
increments, e.g: 1 inch travel = 1/3 closed position.
The ideal restrictor setting for a particular vent
system will vary depending on the specific installa-
tion characteristics. Once the fireplace is operating,
further restrictor adjustment may be necessary to
obtain the best performance. See the Operation
chapter of this manual for more information.
Figure 19. Vent restrictor adjustment.
Fireplace Installation
Optional Blower
Install the optional Blower (155630) before installing
the gas supply line.
Power Requirement
The blower must be electrically grounded in accor-
dance with local codes or, in the absence of local
codes, with the current NFPA 70- National Electrical
Code or CSA C22.1-Canadian Code.
A three-prong (grounding) power supply plug is
included for protection against shock hazard and
should be plugged directly into a properly grounded
three-prong receptacle.
Blower Function
In the Auto mode, the blower is controlled by a heat
activated switch (snapstat) that will turn the fan on
and off as the firebox heats and cools. Use the
Manual mode to over-ride the snapstat. If the blower
is not needed, place the blower control switch in the
OFF position and the snapstat will not function.
Installation
1. Loosen the two wingnuts that secure the Control
Panel to the fireplace floor. Pull the panel forward
and swing it to the right to access the rear of the
cabinet. Do not disconnect any wires.
2. Insert a rubber grommet at each corner of the Base
Plate as shown in fig. 20.
3. Engage the Blower unit base with the four studs at
the rear of the fireplace cabinet floor. See fig. 21.
4. Insert the Snapstat into the slot in the Snapstat Bracket
and,using the M6 nuts and 10 mm socket,attach the
Control Switch / Snapstat Bracket to the two studs
protruding from the firebox floor. See fig. 22.
5. Connect the Blower Wire harness to the switch
connector at the back of the Control Panel. Connect
the two other leads to either terminal on the
snapstat. Attach the green ground wire to the left
Control Panel mounting stud. Replace the Control
Panel and tighten the wingnuts.
6. Run the power cord to the duplex receptacle in the
side of the cabinet. Gather slack cord into the side
cavity, away from the plumbing and other wiring.
fire-parts.com

13
Jøtul GZ 550 DV II
Final Cabinet Positioning
1. If appropriate, attach the 4/6 Vent Adaptor Collar:
• Remove the 5/8 Collar supplied with the unit.
• Align the 4/6 Collar as shown in fig. 23 and
secure to the unit using the original screws.
1. Remove the retainer screws. Using
vise grips or pliers, fold each standoff at the
perforations. Secure each standoff using the
screws previously removed. See fig. 24.
2. Loosen, bend, and position each
cabinet Retainer Strap for attachment to the
fireplace enclosure. See fig. 24.
3. Locate the fireplace cabinet in its final position
within the enclosure. Confirm that the first 45°
Elbow is correctly aligned for final vent assembly
and secure it to the Vent Collar using 3, #10 sheet
metal screws.
4. Confirm that the cabinet is positioned to align its
forward edge with the finished surface of the wall
facing. The stud braces allow approximately 2
inches of forward adjustment to accommodate
most any facing thickness. Secure the braces to
the enclosure frame.
5. Complete the gas line and electrical power
routing as appropriate for blower and thermostat
functions.
Figure 24. Standoff and Stud Brace orientation.
Remove, bend and
reattach each Wall
Stud Brace.
Remove, bend and
reattach each Standoff.
Standoff in shipping position.
Figure 23. 4/6 Vent Collar orientation.
For correct vent pipe
alignment, be sure the
round hole is oriented to
the 12- o’clock position
Figure 20. Blower Kit 155630 contents.
Figure 21. Blower location.
Figure 22. Install snapstat bracket and switch box.
5
3
2
1
1. #129374 Fan/Motor Unit
2. #220012 Base Plate
3. #220637 Snapstat (140°F - 120°F)
4. #220989 Snapstat Bracket
4
6
5. #220055 Grommets, 4
6. #9930 M6 Hex Nuts, 2
Ground wire to
Control Panel left
mounting post
to Rheostat plug on
Control Panel
Snapstat Bracket
Control Panel
fire-parts.com

14
Jøtul GZ 550 DV II
Connect the Gas Supply
Gas Supply Requirements
ALL INSTALLATIONS MUST COMPLY WITH LOCAL
CODE OR IN THE ABSENCE OF LOCAL CODE, MUST
COMPLY WITH THE MOST RECENT EDITION OF THE
NATIONAL FUEL GAS CODE ANSI Z223.1/NFPA 54 OR
CAN-B149.
Shutoff Valve
All codes require a gas shutoff valve (gas cock)
and union to be installed in the supply line and in
the same room as the appliance. This allows for the
disconnection of the fireplace for servicing and
maintenance. See fig. 25.
The fireplace and gas control valve must be
disconnected from the gas supply piping during any
pressure testing of the system at test pressures in
excess of 1/2 psig. For pressures lower than 1/2 psig,
isolate the gas supply by closing the manual shutoff
valve.
Control Valve Connection
The gas supply line connection is made to the
left side of the valve. The gas supply line should be a
minimum 3/8" diameter, or the appropriate size to
provide sufficient gas pressure to the valve regard-
less of the input setting.
The use of flexible gas appliance connectors is
acceptable in many areas in the U.S. In Canada,
methods vary depending on local code. If local codes
permit, use flexible gas line for ease of installation
and service. For those locales where flexible gas lines
are not permitted, use the 3/8” iron fitting to make
the connection at the left side of the Control Valve.
See Figures 25 and 26.
Secure all joints tightly using appropriate tools
and sealing compounds (for propane units, be sure to
use compounds that are propane resistant). Turn on
gas supply and test for gas leaks using a soapy water
solution. Never use an open flame to check for leaks.
Leak test:
• Mix a 50-50 solution of water and dish soap.
• Light appliance- see lighting instructions on page
23 of this manual or on the fireplace’s rating plate.
• Brush or spray all joints and connections with the
soapy water solution.
• If bubbles appear at any connection or seam or a
gas odor is detected, immediately turn gas control
knob to the OFF position.
Tighten or reconnect the leaking joint and retest
for any gas leaks.
Figure 25. Gas supply line fittings.
Gas Pressure
Proper gas pressure provides a consistent flow
of gas to the appliance and is instrumental in
checking for gas leaks. The gas control valve on the
fireplace is equipped with pressure test points for
gauge connections. The gauge connections are
located on the front of the valve under the On/Off/
Pilot knob. Gauge connections are identified by:
or supply pressure (the amount of
gas coming to the valve.)
pressure (the amount of gas
that is coming out of the valve to the burner.)
Figure 26. Pressure test point as located on the
front of the valve.
fire-parts.com

15
Jøtul GZ 550 DV II
The appliance must be isolated from the gas
supply line by closing its individual manual gas
shutoff valve (gas cock) during any pressure testing
of the gas supply piping system that is equal to or
less than pressures of 1/2 psig (3.5 kPa).
5.0 WC (1.24 kPa) 11.0 WC (2.74 kPa)
2.0 WC (2.98 kPa) 14.9 WC (3.71kPa)
1.2 WC (.29 kPa) 3.8 WC (.94 kPa)
2.9 WC (.72 kPa) 11.0 WC (2.74 kPa)
Symptoms of incorrect gas pressure
include:
• Small pilot flame which can result in insufficient
millivolts.
• Little variation in flame picture between HI and LO
settings.
• Insufficient gas to support more than one appli-
ance causing nuisance outages or gas surges.
• Permanent damage to valve causing complete
appliance shut down.
• Too large a pilot flame resulting in overheating of
the power generator and consequent shut down.
• Sooting due to impingement and/or incorrect fuel
to air mix.
High Altitude Adjustment
Installations located at altitudes from 2000 - 4500 ft.
(610 M - 1370 M), require compensation for the
thinner air (less volume of air per cubic foot). Higher
altitudes affect the atmospheric pressure and heat
value of gaseous fuels. The lower oxygen content in
the air and the lower gas viscosity require the use of
a different orifice to achieve efficient, clean combus-
tion at the burner tube.
For high altitude installations consult the local
gas distributor or the authority having jurisdiction
for proper rating methods. If the installer must
convert the unit to adjust for varying altitudes, use
Jøtul High Altitude Kit (#155610-NG / #155611-LP).
THE DERATING KIT MUST BE INSTALLED BY
AN AUTHORIZED SERVICE TECHNICIAN IN ACCOR-
DANCE WITH THE MANUFACTURER’S INSTRUCTIONS
AND ALL CODES AND REQUIREMENTS OF THE
AUTHORITY HAVING JURISDICTION. THE INFORMA-
TION STICKER MUST BE COMPLETED BY THE IN-
STALLER AND APPLIED TO THE APPLIANCE AT THE
TIME OF THE CONVERSION. THE QUALIFIED SERVICE
AGENCY PERFORMING THIS WORK ASSUMES RE-
SPONSIBILITY FOR THIS DERATING.
This unit has been tested for installation
at high altitudes in accordance with Canadian test
standard CAN/CGA-2.17. THE DERATING SHALL BE
CARRIED OUT IN ACCORDANCE WITH THE REQUIRE-
MENTS OF THE PROVINCIAL AUTHORITIES HAVING
JURISDICTION AND IN ACCORDANCE WITH THE
REQUIREMENTS OF THE CAN1-B-149.1 AND .2 INSTAL-
LATION CODE.
Derating Procedure
1. Follow Steps 1-4 of the Fuel Conversion procedure
outlined on page 14.
2. Remove the original orifice. Consult Table 1 to
determine the correct orifice size for your eleva-
tion and fuel type. Install the appropriate orifice
included in the high altitude kit.
3. Fill out the high altitude conversion label and
attach to the rating plate or fireplace cabinet floor
See Figure 27.
4. Reassemble the firebox components.
5. It may be necessary to adjust the air shutter on
the burner tube. See the AIR SHUTTER/FLAME
APPEARANCE section of this manual for more
details.
Table 1. High Altitude Orifice Chart.
Figure 27. High Altitude Conversion Label.
THIS STOVE HAS BEEN CONVERTED FOR USE AT AN
ALTITUDE OF: ________________
Orifice Size: ____________ Manifold Press. _____
Input Btu/Hr. ___________ Fuel Type __________
Date of Conversion ___________
High Altitude Orifice Chart
0 - 2000 ft. Natural Gas #38 129130
(0 - 610 m) Propane 1.55 mm 220048
2001 - 4500 ft. Natural Gas #39 129367
(611 - 1370 m) Propane 1.50 mm 129146
fire-parts.com

16
Jøtul GZ 550 DV II
Fuel Conversion Procedure
1. Remove the Glass Frame:
• Follow the removal procedure detailed on page 1.
••
••
• Lift and remove the Fettle and Logset package.
CAUTION: THE LOGS ARE FRAGILE. Handle them
with care and set aside out of the way.
• Remove the Burner Skirt. Lift and tilt it to clear
the firebox opening. See fig. 28.
• Loosen the locknut on the Air Shutter Stem,
located under the firebox floor to the right of the
Control Valve. Pull the stem forward as far as it
will go.This will allow you to disengage the
Burner Assembly. See fig. 29.
• Lift the rear of the Burner Tube and rotate
slightly forward. Slide the tube back enough to
disengage it from the Air Shutter and Burner
Orifice, then lift out. See fig. 30.
• Slide the Air Shutter back out of the way to
expose the orifice. See fig. 31. Using a ½” open
end wrench or deep well socket remove the
burner orifice and replace with the appropriate
orifice, supplied in the kit.
Fuel Conversion
This appliance is designed to for use with either
Natural gas or Propane. It is shipped from the factory
configured to use Natural gas. A conversion kit is
included for conversion to Propane use if desired.
Check the identification label on the Control Valve to
confirm that the correct fuel is used.
Cet equipement de conversion sera installe par une
agence qualifiee de service conformement aux
instructions du fabricant et toutes exigences et
codes applicables de l’autorises avoir la juridiction. Si
l’information dans cette Instruction n’est pas suivie
exactement, un fey, explosion ou production de
protoxyde de carbone peut resulter blessure
personnelle de vie. L’agence qualifiee de service est
esponsable de l’installation n’est pas propre et
complete jusqu’a l’operation de l’appareil converti est
cheque suivant les criteres etablis dans les instruc-
tions de proprietaire provisionnees avec
l’equipement.
Tools required:
1/4” Nut driver, 7/16” and 1/2” open end wrench or
deep well socket, 4 mm allen wrench,Torx t20 or
slotted screwdriver.
Conversion Kit Contents:
• 1 Regulator Tower labeled for Propane
• 3 Regulator Tower Screws
• 1 Burner Orifice (#38 NG, 1.55 mm LP)
• 1 Pilot Orifice ( #30 for LP, #51 for NG)
• Label A - to be completed and applied to the back
of the fireplace.
• Label B - apply to the fireplace Rating Plate as
designated on the plate.
::
::
: If appropriate, be sure to unplug the
blower before proceeding with this conversion.
fire-parts.com

17
Jøtul GZ 550 DV II
Figure 28. Lift the Burner Skirt up and out of the firebox.
Figure 32. Pilot Orifice replacement.
PILOT ASSEMBLY
Pilot Hood
Pilot Orifice
Retainer Clip
Figure 31. Move air shutter back to access the
burner orifice.
Burner Orifice
Figure 29. Frame latch and air shutter stem location.
Air Shutter
Wingnut
Pull Frame Spring
Latch to release.
Air
Shutter
Burner Tube
Figure 30. Move shutter forward to disengage the
burner tube assembly. .
••
••
• FROM WITHIN THE FIREBOX, disengage the
Pilot Hood by releasing the retainer clip as
shown in fig. 32. Using the 4 mm hex key
supplied, unscrew the pilot orifice (counter-
clockwise). Replace with the appropriate
orifice:
#51 for Natural gas
#30 for Propane
Tighten new orifice into the base of the pilot
assembly.
• Replace Pilot Hood by pushing it into the
base.
fire-parts.com

18
Jøtul GZ 550 DV II
Slip the end of the tube
into the Air Shutter and SLIDE TUBE FORWARD TO
COMPLETELY COVER THE BURNER ORIFICE.
See fig. 33.
• Slide the shutter BACK to open the inlet, slide
FORWARD to close.The standard settings are:
Natural gas - 1/4” open
Propane - 1/2” open
• Tighten the wing nut on the Air Shutter Stem.
• Replace the Burner Skirt.
See fig. 34.
• Using a Torx T-20 screwdriver or small flat head
screwdriver, remove the three specialty screws
from the front of the valve regulator.
• Remove the regulator tower and gasket.
• Install the new variable regulator tower with
the new rubber gasket. tighten new
regulator to valve body.
••
••
• Apply LABEL A to the cabinet floor so that it may
be seen by anyone servicing the fireplace.
• Apply LABEL B to the Rating Plate in the space
provided.
, apply gas to the system
and check for gas leaks including all gas lines
before and after the valve. NEVER USE AN OPEN
FLAME TO CHECK FOR GAS LEAKS.
IMPORTANT: Correct gas pressure is essential for
efficient and safe operation. It is important that
the correct gas pressure be established at the time
of the installation. For more details, see the Gas
Pressure section of this manual on page 12.
Use the new
rubber gasket
from the
conversion kit.
Figure 34.

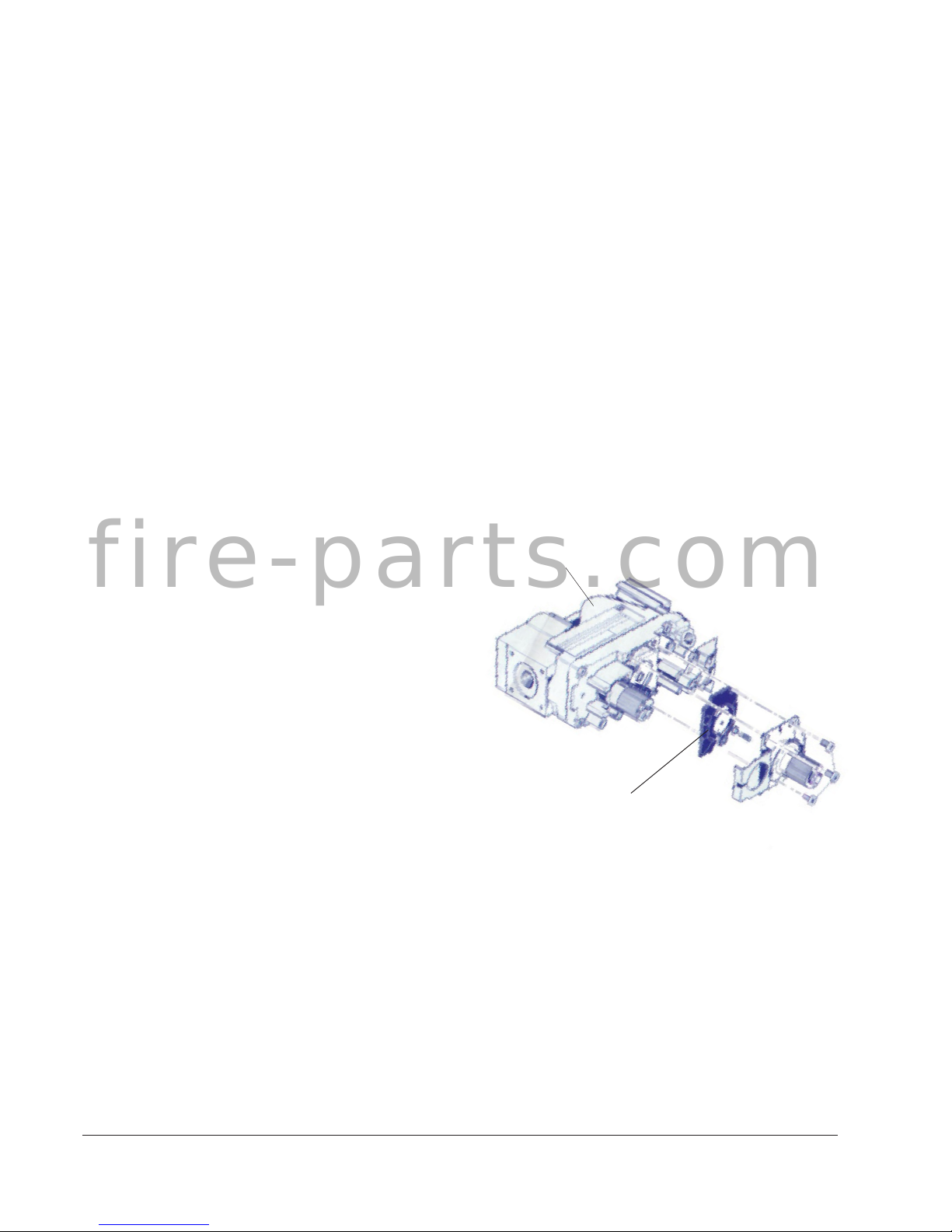

Valve Regulator replacement.
Figure 33. Adjust Air Shutter as appropriate. Fully
open position is shown here. Slide shutter forward to
close.
Apply small
conversion notice
label here.
fire-parts.com

19
Jøtul GZ 550 DV II
Wall Thermostat Installation
Use Jøtul Thermostat #129706 or a
to automatically control
your fireplace operation. The thermostat should be
placed in the same room as the heater, typically 5’
off the floor. Avoid drafty areas or any area that may
affect the accuracy of the thermostat.
The thermostat should be connected to the
Acadia using a minimum of 16 gauge wire with a
maximum length of 35 feet of wire.
Connect the two thermostat wire leads to the
two lower terminals on the terminal block located to
the right of the ON/OFF/T’STAT switch. Do not
overtighten the connections. IT IS NOT NECESSARY
TO DISCONNECT ANY OTHER WIRES. See Figure 34.
At the thermostat, the two wires should be
connected to the two connections screw on the
thermostat base plate per the manufacturer’s
instructions.
For thermostatic function, place the ON/OFF/T-
STAT switch in the T-STAT position and the pilot
flame must be lit.
Remote Control
The optional Jøtul Remote Control can be installed
on the Acadia gas fireplace. Using the wire supplied
with the remote, connect the remote directly to the
gas control valve. See fig. 36
Connect one receiver lead to the terminal
labelled TH. Connect the other receiver lead to the
terminal labeled TH/TP. DO NOT DISCONNECT ANY
OTHER WIRES FROM THE VALVE, AND DO NOT OVER
TIGHTEN THE TERMINAL SCREWS.
Place the receiver unit under the control valve
on the floor of the fireplace cabinet.
Figure 36. Sit 820 Valve Wiring Diagram.
fire-parts.com

20
Jøtul GZ 550 DV II
Brick Panel Assembly
Install the optional 155805 Brick Panels before
placing the Logset. Place the panels in position in
the order as numbered in fig. 37. No fasteners or
tools are required.
Figure 37. Panel installation order.
Open the lower control panel and locate
the two frame latches under the firebox floor. See
fig. 38. Pull the latch handle forward to disengage
it from the bottom of the glass frame. You can
then pull the frame out and up off of the three
retainer tabs at the top of the firebox opening. Set
the Glass Frame out of the way.
These parts are not
fastened. Simply lift them out of the firebox.
Set the bottom edge of
each side panel on the Burner Skirt and against
the firebox wall. Push the panel forward against
the front lip of the firebox opening. See fig. 39.
Orient the panel so
that the beveled edge is on top and the mortar
joints align with those on the side panels. Set the
bottom edge on the shelf above the restrictor
adjustment slots at the back of the firebox. The
panel should fit snugly between the two side
panels. See fig. 40.
This will also be a
snug fit. Set the panel up high and then carefully
lower it to seat its lower edge against the top of
the other rear panel. The side panels will hold it in
place.
Left Side
Panel,
220997
Right Side
Panel,
220996
Lower Rear Panel,
220030
Upper Rear Panel,
220031
4
32
1Figure 38. Glass Frame latch locations.
Pull Frame Latches to
Release Frame
Figure 40. Install Lower Rear Panel.
Bevelled Edge
Figure 39. Install the Side Panels.
Side
Panel
Burner Skirt
fire-parts.com
