Jøtul F 305 Long legs Jøtul F 305 Base

2

3
ENGLISH
Table of contents
1.0 Technical data .........................................2
2.0 Relationship to the authorities..................2
3.0 Safety.......................................................3
4.0 Installation ...............................................6
5.0 Daily Use................................................12
6.0 Maintenance...........................................13
7.0 Servicing ................................................14
8.0 Optional Extras.......................................17
9.0 Recycling................................................17
10.0 Warranty ................................................17
On all our products there is a label
indicating the serial number and
year. Write this number in the
place indicated in the installation
instructions.
Always quote this serial number
when contacting your retailer or
Jøtul.
les combustibles recommandés.
Respectez les consignes d'utilisation. Utilisez uniquement
Verwenden Sie nur empfohlenen Brennstoffen.
Montage- und Bedienungsanleitung beachten.
Follow user`s instructions. Use only recommended fuels.
standard
Certificate/
The appliance can be used in a shared flue.
Minimum distance to adjacent combustible materials:
Emission of CO in combustion products
Serial no: Y-xxxx, Year: 200x
Manufacturer:
N-1602 Fredrikstad
Norway
Jøtul AS
POB 1441
Sweden
EUR Intermittent
Nominal heat output
Norway
Country
Operational type
Fuel type
Operation range
Efficiency
Klasse II
Classification
Standard
Flue gas temperature
Room heater fired by solid fuel
Product:
Jøtul
SP Sveriges Provnings- och
221546
Forskningsinstitut AB
SP Swedish National
Testing and Research
Institute
:
Approved by
:
:
:
:
:
:
:
Minimum distance to adjacent combustible materials:
OGC SP
EN
Serial no.
1.0 Relationship to the
authorities
• Installation of a fireplace must be carried out in compliance
with national laws and regulations. All local ordinances,
including those that refer to national and European
standards, must be complied with when products are
installed.
• The installation can only be put into use after it has been
checked by a qualified inspector.
• Contact your local building authorities before installing a
new fireplace.
2.0 Technical data
Material: Cast iron
Finish: Black paint
Smoke outlet: Top, rear
Flue pipe dimension: Ø 150 mm
Outside air connection: Alu. flex - Ø 80 / Ø 100 mm
Product weight:
Burn chamber with long legs: 143 kg
Burn chamber with base: 169 kg
Soapstone top: 36 kg
Optional extras Floorplates, Ash lip, kit for
outside air connection,
protection grid for sweep
ball, short legs.

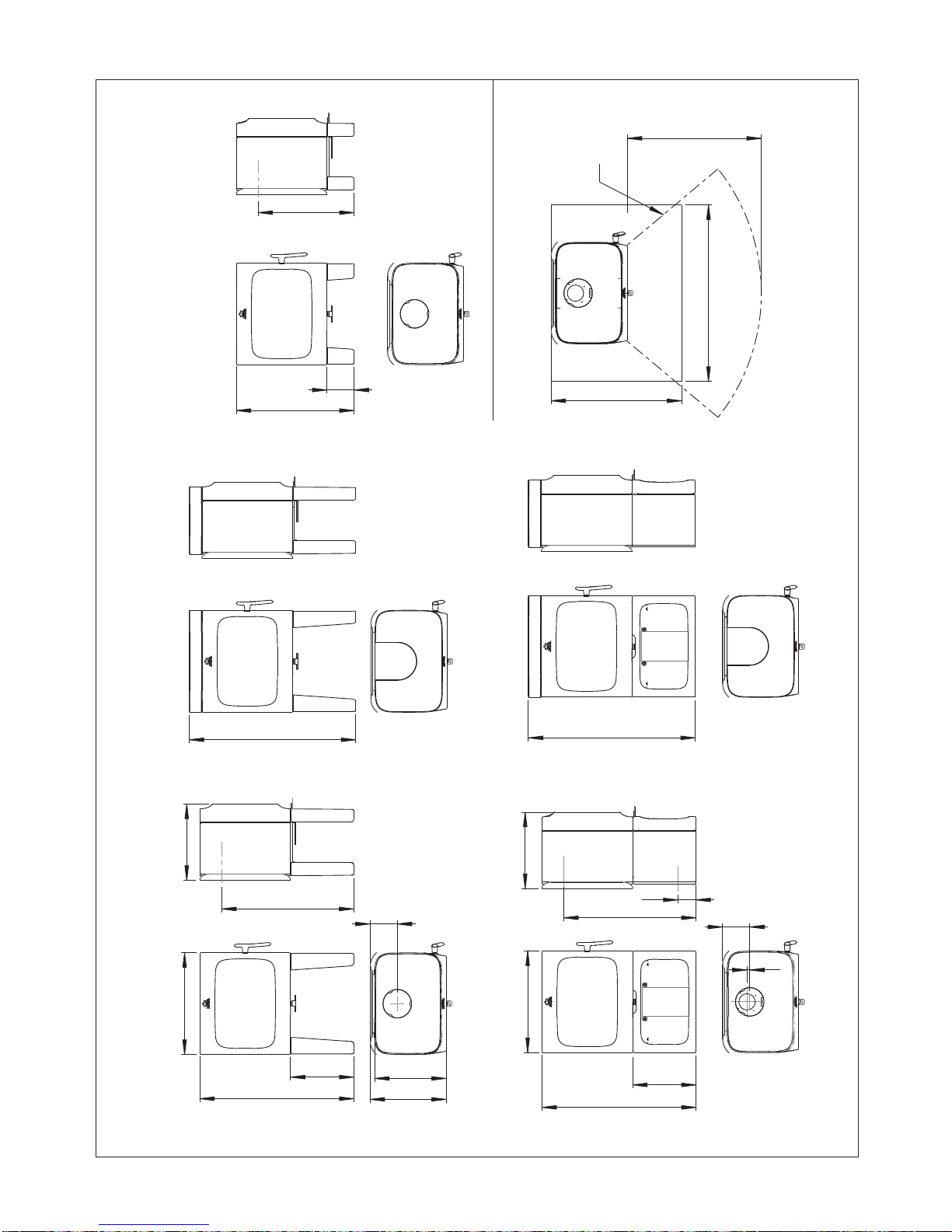

Product dimensions, distances: See Fig. 1
Technical data in acc. with EN 13240
Nominal heat output: 7 kW
Flue gas volume: 7.1 g/s
Chimney draught, EN 13240: 12 Pa
Recommended negative pressure
in smoke outlet: 14-16 Pa
Efficiency: 79%@7.5 kW
CO emissions (13% O2): 0.06%
CO emissions (13% O2): 786 mg / Nm3
NOx at 13% O2: 85 mg / Nm3
OGC @ 13 % O2: 64 mg/Nm3
Particle emission NS 3059: 1.5 g / kg
Air consumption: 6,1 litre/sec or 22 m3/h
Chimney temperature, EN 13240: 261 oC
Temperature in smoke outlet: 313 oC
Dust: <7 mg/Nm3@13%O2
Type of fuel: Wood
Max. log length: 30 cm
Fuel consumption: 2.25 kg/h
Max. kindling amount: 2.4 kg
Nominal kindling amount: 1.8 kg
Operation: Intermittent
Intermittent combustion here means normal use of a fireplace,
i.e. add more fuel as soon as the fire has burned down to
embers.

4
ENGLISH
3.0 Safety
NB! To guarantee optimal performance and safety, Jøtul
recommends that its stoves are fitted by a qualified
installer (see www.jotul.com for a complete list of dealers).
Any modifications to the product by the distributor, installer or
consumer may result in the product and safety features not
functioning as intended. The same applies to the installation of
accessories or optional extras not supplied by Jøtul. This may
alsobethecase ifparts thatareessentialtothefunctioningand
safety of the fireplace have been disassembled or removed.
In all these cases, the manufacturer is not responsible or liable
for the product and the right to make a complaint becomes null
and void.
3.1 Fire Prevention Measures
There is a certain element of danger every time you use
your fireplace. The following instructions must therefore be
followed:
• The minimum safety distances when installing and using
the fireplace are given in fig. 1.
• Ensure that furniture and other flammable materials are
not too close to the fireplace. Flammable materials should
not be placed within 1100 mm of the fireplace.
• Allow the fire to burn out. Never extinguish the flames with
water.
• The fireplace becomes hot when lit and may cause burns
if touched.
• Only remove ash when the fireplace is cold. Ash can
contain hot embers and should therefore be placed in a
non-flammable container.
• Ash should be placed outdoors or be emptied in a place
where it will not present a potential fire hazard.
In case of chimney fire:
• Close all hatches and vents.
• Keep the firebox door closed.
• Check the loft and cellar for smoke.
• Call the fire service.
• Before use after a fire an expert must check the fireplace
and the chimney in order to ensure that it is fully functional.
3.2 Floor
Foundation
You needto makesurethefoundationissuitablefor afireplace.
See “2.0 Technical Data” for specified weight.
We recommend the removal of any flooring that is not attached
to the foundation (“floating floors”) beneath the installation.
Requirements for protection of wooden
flooring beneath the fireplace
The product with base has integrated floor protection and
may therefore be placed directly on a wooden floor.
Jøtul F 305 with legs must have a floorplate below and in
front according to national laws and regulations.
Important! The space under the burnchamber of Jøtul F 305
with legs cannot be used for storage.
Any inflammable floor coverings, such as linoleum, carpets,
etc. must be removed from under the product.
Requirements for protection of
inflammable floors in front of the
fireplace
Thefront plate must comply with national laws andregulations.
Contact your local building authorities regarding restrictions
and installation requirements.
3.3 Walls

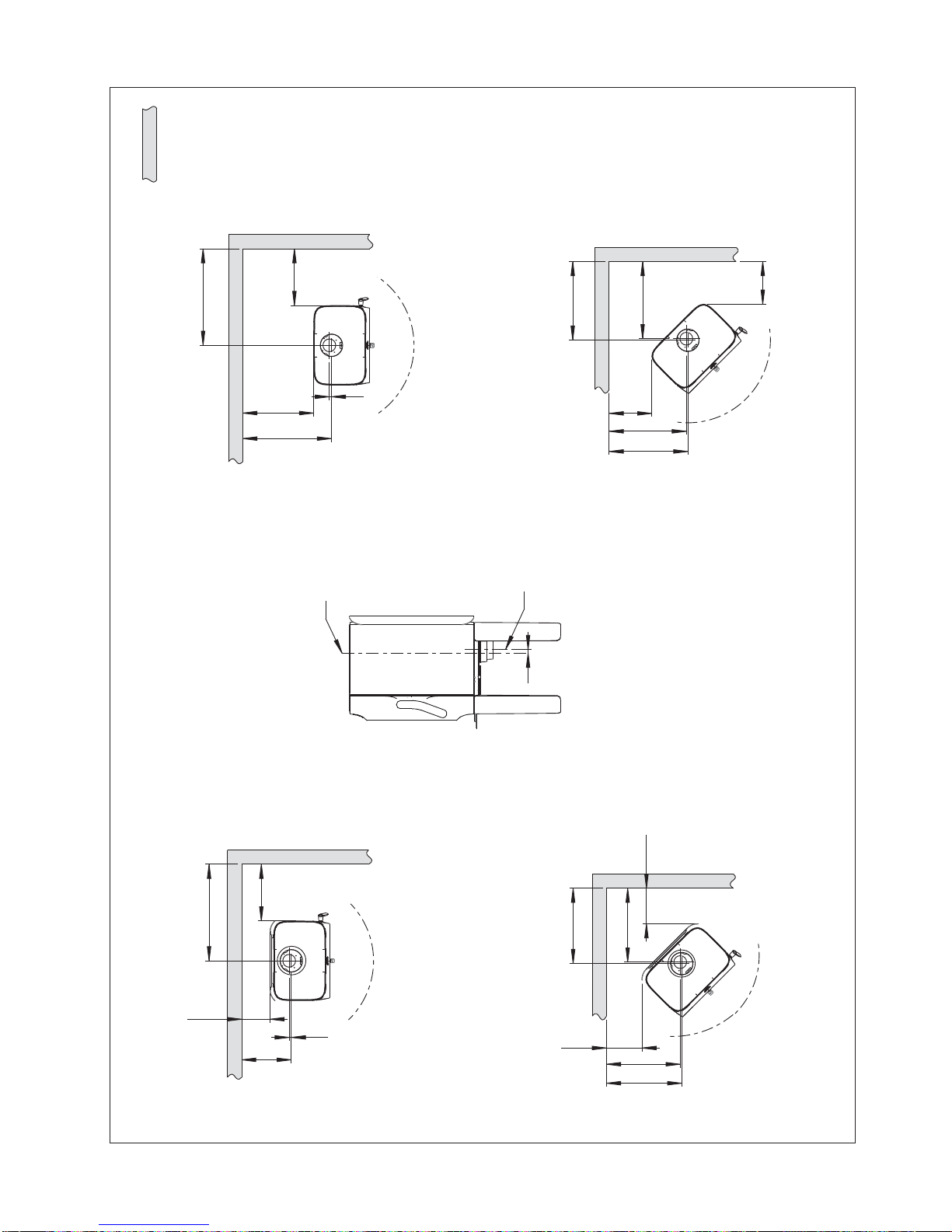

Distance to walls made of combustible material - see fig. b
Distance to combustible wall protected by firewall: See fig. 1c.
The fireplace may be used with an uninsulated flue pipe
provided the distances between the fireplace and walls made
of combustible materials are as shown in fig. 1b. Alternative
distances with shielded or insulated flue pipe are also
displayed in fig. 1b.
Note! Ensure that furniture and other flammable materials
are not too close to the fireplace. Flammable materials
should not be placed within 1100 mm of the fireplace.

5
ENGLISH
Jøtul F 305
900171-P00
Min. measurements floorplate X / Y= According to national laws and regulations ** Min. distance to furniture / combustible material
Jøtul F 305 with long legs Jøtul F 305 with long legs and soapstone top F 305 Short legs
Jøtul F 305 with base Jøtul F 305 with base and soapstone top
* Outside air connection
Radiation zone
X
Y
560 420
730
150
560 420
730
920
920
650
530
150
*100
350
850
850
350
**1100
150
*15
420
395
Floorplate

6
ENGLISH
900171-P00
Combustible wall
Outside air connection center
Flue pipe center
680
400
350
***250
250
530
200
***100
250
500
400
680
625
554
554
530
300
300
*15
*520
*520
*15
*544
*544
*15
Fig. 1b
* Outside air connection *** Distance to combustible wall with semi-insulated / shielded flue pipe.
With standard convection shield
Min. distance to combustible wall
Without standard convection shield

7
ENGLISH
Min. distance to combustible wall protected by firewall
External
Integrated
* Outside air connection
900171-P00
Combustible wall
Firewall
1033
50
200
962
962
430
150
762
150
430
200
50
200
480 996
1070
200
200
480 838
1070
50
716
50
200
*15
*420
762
*15
*15
*420
*15
600 600
Fig. 1c

8
ENGLISH

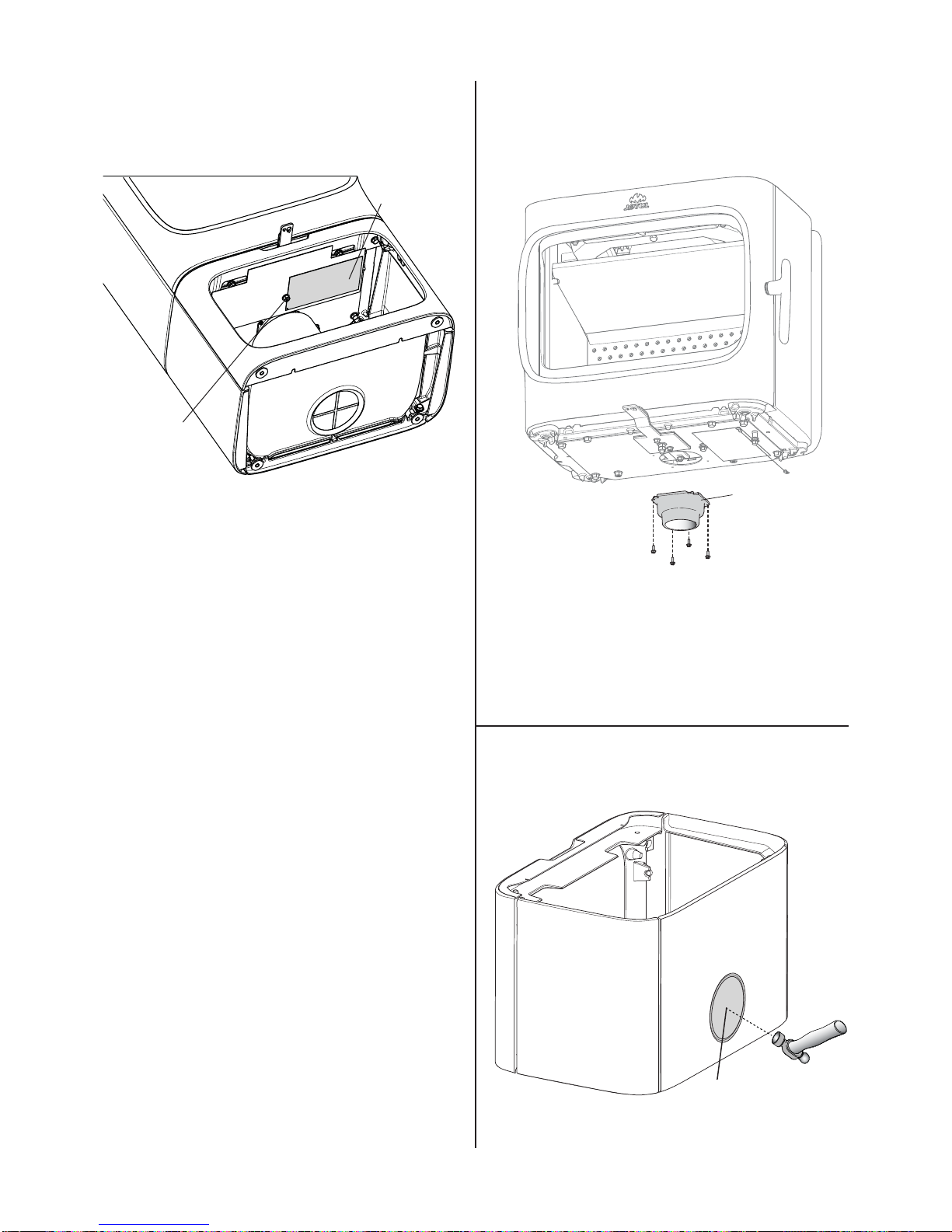

Air supply
TheamountofcombustionairforJøtul’sproductsisapproximately
20-40 m3/h. The outside air connection may be fitted directly to
the Jøtul F 305 through:
• the bottom
• through a flexible supply hose from the outside/chimney
(only if the chimney has its own duct for external air) and to
the product’s outside air connector.
Fig. 2A, through an outside wall
Fig. 2B, through the floor and ground plate
Fig. 2C, through the floor and basement
Fig. 2D, indirectly through an outside wall
4.0 Installation
NB: Check that the fireplace is undamaged before installation
begins.
NB:The product is heavy! Ensure youhave help when positioning
and installing it. Make sure the product does not topple over.
NB: Do not place anything on the top plate of the stove as this
could cause permanent damage to the paint.
NB: Read the Installation and Operating instructions carefully
before installing the fireplace!
4.1 Prior to installation - Jøtul F 305
with legs
NB: There are two different legs. See the figure (fig. 6) on
the bottom plate for correct placement.

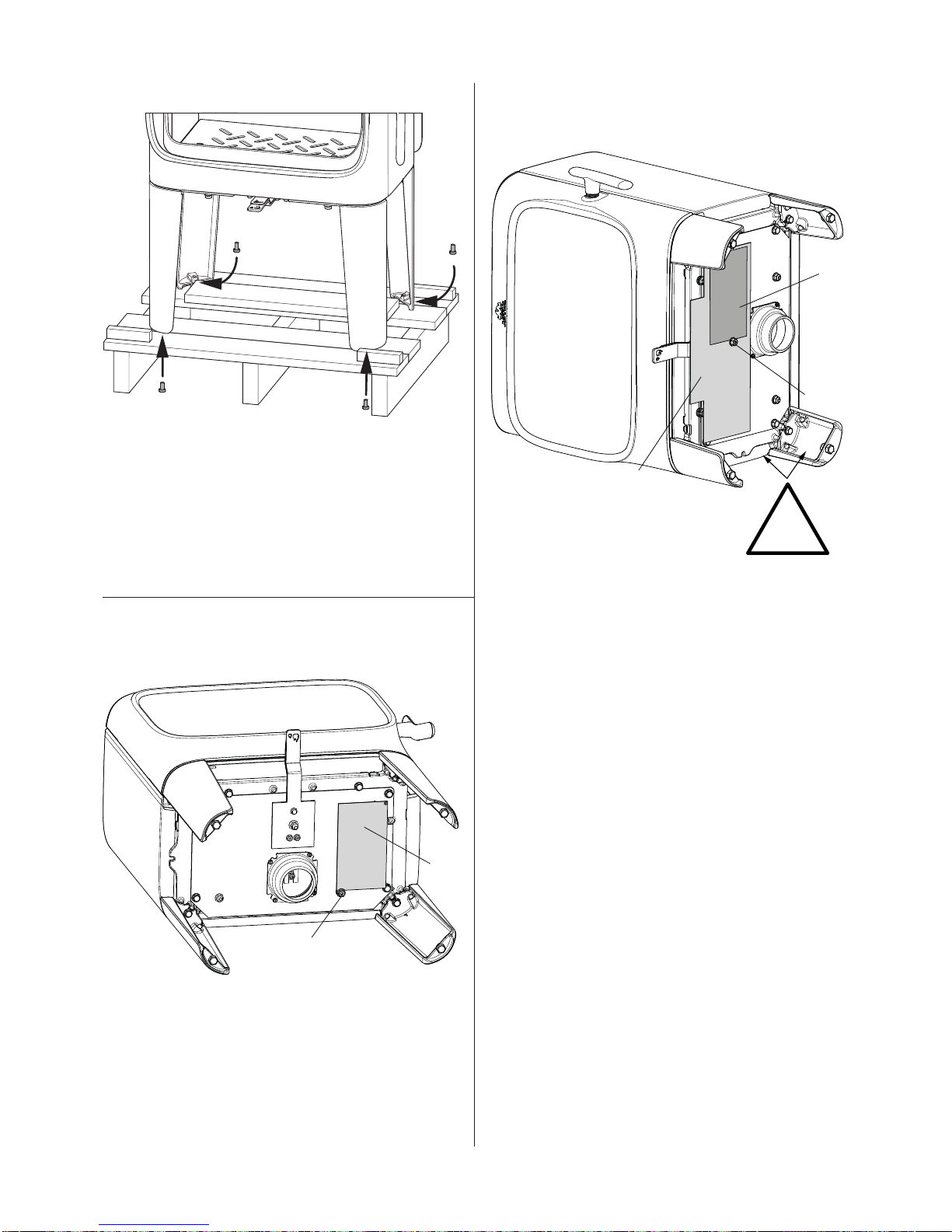

Fig. 3
ACA
1. Remove the four transport screws (A) that fasten the oven
to the wooden pallet.
2. Leave the stove standing on the transport pallet.
3. Remove the gloves from the ash pan.
4. Lift the baffle, ash retainer, and bag of screws out of the
burn chamber.
5. Check that the control handles (C) move freely.

9
ENGLISH

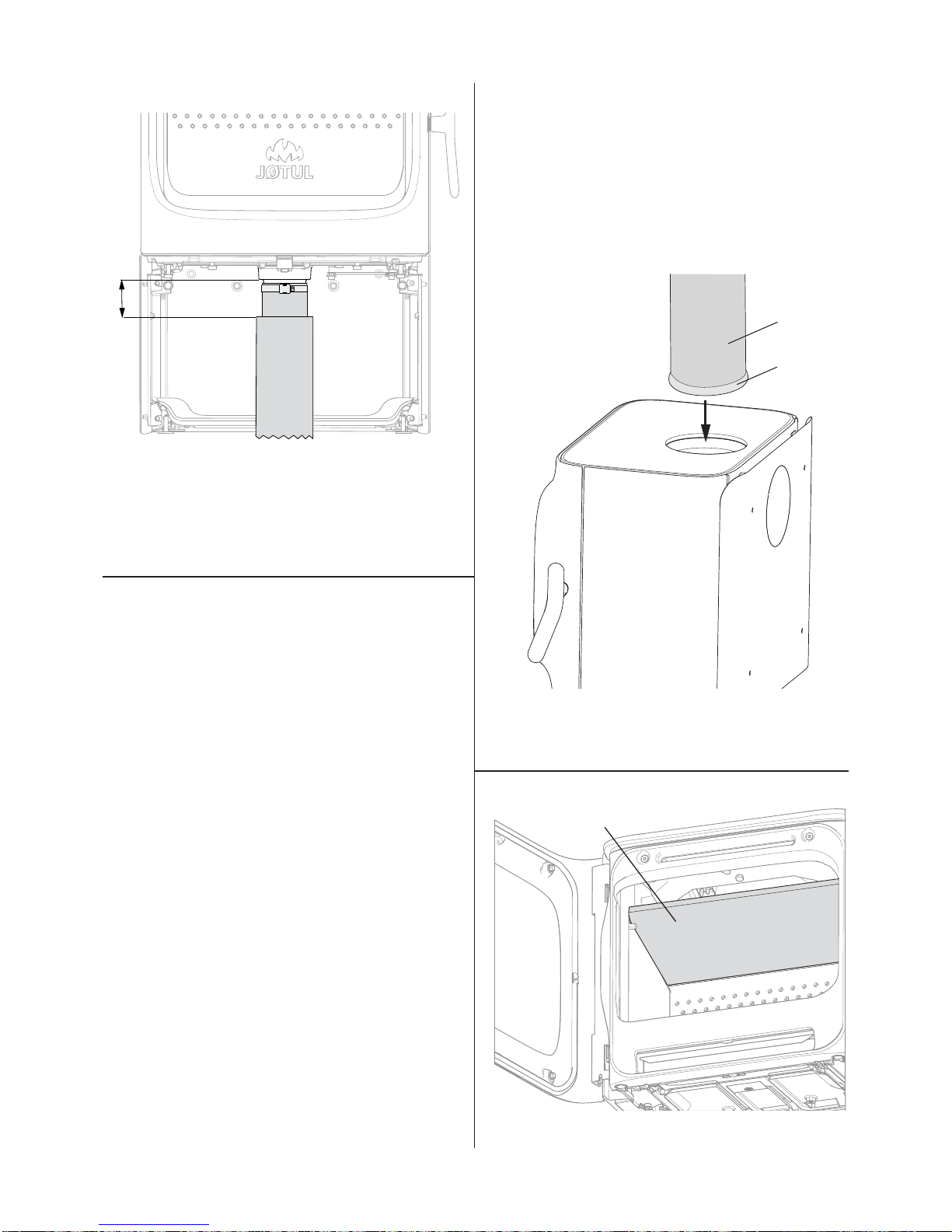

Fig. 4
AA
AA
6. Install the height adjustment screws with plastic caps (A)
placed in the bag of screws.
7. Lift the oven from the pallet.
8. Set up the oven and adjust to the right height using the
height adjustment screws. NB: Take into account the
height of the floor plate. Mark on the wall if there has to
be a rear outlet for flue pipe and external air supply.
Fig. 5
A
B
1. Take the approval label (A) out of the ash pan and fasten
it with the nut (B), as displayed. The nut needs to be
tightened only with the fingers. NB: Do not cut off the
wire used for fastening the label.
Jøtul F 305 with short legs
Fig. 6
!
2
2
1
1
2
A
B
C
1. Lay the product carefully on its left side.
2. Dismantle the long legs and install the short ones.
3. Take the approval label (A) out of the ash pan.
4. Install the heat shield (B) and approval label (A) with nut (C),
as displayed. The nut needs to be tightened only with the
fingers. NB: Do not cut off the wire used for fastening
the label.

10
ENGLISH
4.2 Prior to installation - Jøtul F 305
with base
Fig. 7
A
5. If external air supply is not used, the external air connector
(A) can be unscrewed, if desired. Remove the four screws
used for fastening the external air connector and then the
connector itself. (For products with base: If necessary, you
can unscrew the heat shield beneath the burn chamber
in order to facilitate the dismantling of the external air
connector.
6. Install the convection plate back in its place after removing
the external air connector.
Fig. 8
A
B
1. First remove the outside air cover (A) by unscrewing the
screws (B).
Fig. 9
B
A
C
2. Remove the gloves from the ash pan.
3. Lift the baffle, ash retainer, and bag of screws out of the
burn chamber.
4. Check that the control handles (C) move freely.
5. Remove the bottom plate (A) by taking hold of the front
left corner. Lift up the plate and remove it from the base
at an angle.
6. Remove the four transport screws (B) that fasten the oven
to the wooden pallet.
7. Lift the oven from the pallet and set it up (see fig. 1).
Fig. 10
8. Adjust the base with the height adjustment screws using
the hex key placed in the bag of screws. NB! Take into
account the height of the floor plate.
9. Mark on the wall if there has to be a rear outlet for flue pipe
and external air supply (see fig. 1). If there has to be a
rear outlet for flue pipe and/or external air supply, move the
oven from the wall and prepare the connections.

11
ENGLISH
Approval label
Jøtul F 305 with base
Fig. 11
A
B
1. Take the approval label (A) out of the ash pan and fasten
it with the nut (B), as displayed. The nut needs to be
tightened only with the fingers. NB: Do not cut off the
wire used for fastening the label.
4.3 Outside air connection
If external air supply is not used
Fig. 12
A
2. If external air supply is not used, the external air connector
(A) can be unscrewed, if desired. Remove the four screws
used for fastening the external air connector and then the
connector itself. (For products with base: If necessary,
youcanunscrewthe heat shield beneath the burn chamber
in order to facilitate the dismantling of the external air
connector.
3. Install the convection plate back in its place after removing
the external air connector.
Outside air connection through bottom
plate in base
Fig. 13
A
1. Place a cardboard plate on the back of the bottom plate
before knocking out the cover (A) with a hammer in order to
prevent the pieces from damaging something around them.

12
ENGLISH
Fig. 14
100
2. See the installation instructions that follow with the external
air set.
3. Attach the hose to the external air connector with a hose
clip to avoid using joints. The external air hose insulation
ends approx. 100 mm below the burn chamber.
Outside air connection through bottom
plate in base
Fig. 15 A
1. Place a cardboard plate on the back of the bottom plate
before knocking out the cover (A) with a hammer in order
to prevent the pieces from damaging something around
them.
Fig. 16
A
2. Position the bottom plate in place again.
3. Place the oven in the position where it is supposed to be.
See fig. 1 for correct placement when it comes to safety
distances.

13
ENGLISH
Fig. 17
100
4. See the installation instructions that follow with the external
air set.
5. Attach the hose to the external air connector with a hose
clip to avoid using joints. The external air hose insulation
ends approx. 100 mm below the burn chamber.
4.4 Chimney and flue pipe
• The fireplace must only be connected to a chimney and
flue pipe approved for solid fuel fireplaces with flue gas
temperatures as specified in «2.0 Technical Data».
• The cross-section of the chimney must be designed to fit
the fireplace. Use «2.0 Technical Data» to calculate the
correct chimney cross-section.
• The chimney must be connected in accordance with the
installation instructions of the chimney supplier.
• Before a hole is made in the chimney, the product should
be test-mounted in order to correctly mark the position of
the fireplace and the hole in the chimney. See fig. 1 for
minimum dimensions.
• Make sure that the flue pipe rises all the way up to the
chimney.
• With a rear outlet, use a flue pipe bend with a sweep hatch
to allow sweeping.
• Please note that it is extremely important for connections
to have a degree of flexibility. This is to prevent any
movement in the installation leading to the formation of
cracks.
• For recommended chimney draught, see «2.0 Technical
Data». For flue pipe dimension see “2.0 Technical Data”.
NB: The chimney’s diameter must be at least just as
big as the flue pipe.
NB! The minimum recommended chimney length is 3.5 m
from the flue pipe insert. If the draught is too strong, a flue
pipe damper can be installed and used to reduce the draught.
Protection grid for sweep ball
When a steel chimney is installed to the top outlet, a
protection grid for sweep ball must always be installed to
the top outlet (optional equipment).
4.5 Fitting a flue pipe with a top outlet
The product is supplied from the factory with the smoke outlet
fitted for the top outlet.
Fig. 18
A
B
1. Thread the flue pipe (A) through the top plate and place it
in the top smoke outlet.
2. Seal well with a gasket (B).
Fig. 19
A
3. Place the baffle (A) as displayed in the figure.

14
ENGLISH
Fig. 20
A
B
4. Fit the log retainer (A) on the knobs (B).
4.6 Fitting a flue pipe with a rear outlet
The product is supplied from the factory with the smoke outlet
fitted for the top outlet. If you want a rear outlet, proceed as
follows:
Fig. 21
ABB
1. Place the product in the correct position. See fig. 1.
2. Unscrew the screws (B) and remove the exhaust deflector (A).
Fig. 22
A
3. Unscrew the smoke outlet (A) from the top outlet.

15
ENGLISH
Fig. 23
A
B
4. Unscrew the screws (B) and remove the cover (A) of the
rear outlet from the inside of the burn chamber.
Fig. 24 D
C
B
A
5. Fasten the smoke outlet (A) to the rear outlet with the two
screws (C) from the inside of the burn chamber.
6. Fasten the cover (B) to the top outlet with the two screws
(D) from the inside of the burn chamber.
Fig. 25
A
A
10 mm
7. Loosen, but do not unscrew the four screws (A) completely
and lift the convection plate up approx. 10 mm.
Fig. 26
8. Unhook the convection plate.

16
ENGLISH
Fig. 27
A
AA
9. Cut the rear outlet in the points (A) in the outlet and remove
the cover.
Fig. 28
A
A
A
10.Do the same to the inside part of the convection plate.
Fig. 29
11. Hook the convection plate to the product again and secure
using the same four screws.
Fig. 30
A
B
12.Place the gasket (B) on the edge of the flue pipe (A).

17
ENGLISH
Fig. 31
13.Insert the flue pipe into the rear outlet.
NB: It is important for the joints/flue pipes to be sealed
completely. Air leaks may prevent them from operating
properly.
Product without convection plate
NB: If you will not use a convection plate, the product will have
different setup conditions (see fig. 1).
Fig. 32 A
A
1. Ifyou willnotusethe convectionplateon theburnchamber,
screw the four screws (A) back in place. Use the hex key
placed in the bag of screws.
4.7 Performance check
Always check the control handles once the product has
been assembled. These should move easily and work in a
satisfactory manner.
Fig. 33
Open
Closed
E
B
A
C
The Jøtul F 305 is equipped with the following
operating options:
Air vent (A)
Push to the left: Closed
Push to the right: Open
Ignition vent (B)
Push to the left: Closed
Push to the right: Open
Door handle (C)
Opens by pulling the handle.
Stacking height (E) for wood (the holes may not be covered).

18
ENGLISH
5.0 Daily use
Odours when using the fireplace for the
first time
When the fireplace is used for the first time, it may emit an
irritating gas which may smell slightly. This happens because
the paint dries.The gas is not toxic but the room should be
thoroughly ventilated. Let the fire burn with a high draught
until all traces of the gas have disappeared and no smoke or
odours can be detected.
Heating advice
NB: Logs that have been stored outdoors or in a cold room
should be brought indoors 24 hours before use to bring them
up to room temperature.
There are various ways of heating the stove but it is always
important to be careful about what you put in the stove. See
the section on “Wood quality”.
Important! An inadequate air supply can lead to poor
combustion, high emissions and a lower level of efficiency.
Wood quality
By quality wood we mean most well-known types of wood
such as birch, spruce and pine.
The logs should be dried so that the moisture content is
no more than 20%.
To achieve this, the logs should be cut during the late winter.
They should be split and stacked in a way that ensures good
ventilation. The wood stacks should be covered to protect the
logs from rain. The logs should be brought indoors during early
autumn and stacked/stored for use in the coming winter.
Be especially careful never to use the following materials
as fuel in your fireplace:
• Household rubbish, plastic bags, etc.
• Painted or impregnated timber (which is extremely toxic).
• Laminated wooden planks.
• Driftwood
These may harm the product and are also pollutants.
NB: Never use petrol, paraffin, methylated spirit or similar
liquids to light the fire. You may cause serious injury to
yourself and damage to the product.
Kindling (finely split wood):
Length: Max. 41 cm
Diameter: 2-5 cm
Quantity required each time: 6 - 8 pieces
Wood (split wood):
Recommended length: 30 - 40 cm
Diameter: Approx. 8 cm
Interval for adding wood: Approx. every 45 - 50 minutes
Fire size: 1,8 kg (nominal output)
Quantity required each time: 2
Max. each time: 2,4 kg
Nominal heat output is achieved when the air vent is open
approx. 50% (fig. 33 A) and the ignition vent (fig. 33 B)
closed.
Initial lighting
• Open the air vent and ignition vent by pulling the handles
(fig. 33) all the way out. (Use a glove or something similar
to protect your hand in case the handles are hot.).
Fig. 34
• Place two logs at the bottom of the burn chamber and pile
the kindling in layers.
• Finally, place a medium-sized log on the top of the pile.
• Place 2 or 3 briquettes or kindling sticks under the top layer
of kindling and light the fire. NB: The maximum height of
the pile of the wood should be just below the horizontal
holes. The holes must not be covered.
• Close the ignition vent (Fig. 33 B) when the wood has caught
fire properly and is burning well.
• You can then regulate the rate of combustion to give the
heat you want by adjusting the air vent (fig. 33 A).
• Check that the afterburning (secondary combustion) starts.
This is best indicated by yellow, flickering flames in front of
the holes under the baffle.
• If the air flow is normal you will be able to shut the door and
the fire will take care of itself.
Adding firewood
Stoke the stove frequently but only add small amounts of fuel
at a time. If the stove is filled too full, the heat created may
cause extreme stress in the chimney. Add fuel to the fire in
moderation.Avoid smouldering fires as this produces the most
pollution. The fire is best when it is burning well and the smoke
from the chimney is almost invisible.
5.1 Danger of overheating
The fireplace must never be used in a
manner that causes overheating
Overheating occurs when there is too much fuel and/or too
much air so that too much heat develops. A sure sign of
overheating is when parts of the fireplace glow red. If this
happens, reduce the air vent opening immediately.
Seek professional advice if you suspect that the chimney is
not drawing properly (too much/too little draught). For further
information, see «4.0 Installation» (Chimney and flue pipe).

19
ENGLISH
5.2 Ash removal
• The Jøtul F 480 has an ash pan that makes it easy to
remove the ash.
• Only remove ash when the fireplace is cold.
• Scrape the ash through the grate in the inner bottom and
down into the ash pan. Use a glove or something similar to
protect your hand. Take hold of the handle of the ash pan
and lift out the ash. Make sure that the ash pan never gets
so full that it prevents the ash from falling through the grate
and down into the pan.
• Make sure that the ash pan is pushed all the way in before
closing the door.
6.0 Maintenance
6.1 Cleaning the glass
The product is equipped with an air wash for the glass. Air is
sucked in through the air vent on the top of the product and
down along the inside of the glass.
However, some soot will always stick to the glass, but the
quantity will depend on the local draught conditions and
adjustment of the air vent. Most of the soot layer will normally
be burned off when the air vent is opened all the way and a fire
is burning briskly in the fireplace.
Good advice! For normal cleaning, moisten a paper towel
with warm water and add some ash from the burn chamber.
Rub it over the glass and then clean the glass with clean water.
Dry well. If it is necessary to clean the glass more thoroughly
we recommend using a glass cleaner (follow the instructions
on the bottle).
6.2 Cleaning and soot removal
Soot deposits may build up on the internal surfaces of the
fireplace during use. Soot is a good insulator and will therefore
reduce the fireplace’s heat output. If soot deposits accumulate
when using the product, they can easily be removed by using
a soot remover.
In order to prevent a water and tar layer from forming in the
fireplace, you should regularly allow the fire to burn hot in order
to remove the layer. An annual internal cleaning is necessary
to get the best heating effect from your product. It is a good
idea to do this when cleaning the chimney and flue pipes.
6.3 Sweeping flue pipes to the
chimney
Flue pipes must be swept through the flue pipe sweeping
hatch or through the door opening. The baffle and exhaust
deflector must be removed first.
6.4 Inspection of the fireplace
Jøtul recommends that you carefully inspect your fireplace
yourself after it has been swept/cleaned. Check all visible
surfaces for cracks. Also check that all joints are sealed
and that the gaskets are in the correct position. Any gaskets
showing signs of wear or deformation must be replaced.
Thoroughly clean the gasket grooves, apply ceramic glue
(available from your local Jøtul dealer) and press the gasket
well into place. The joint will dry quickly.
6.5 Exterior maintenance
Painted products may change colour after several years’
usage. The surface should be cleaned and brushed free of
any loose particles before new paint is applied.
7.0 Servicing
Warning! Any unauthorised changes to the product are
illegal! Only original spare parts may be used!
7.1 Service/replacing parts in the burn
chamber
NB: Use tools with great care! The vermiculite plates may be
damaged if treated roughly.
Fig. 35 B
A
F
FC
D
1. Baffle: Lift the rear edge of the baffle (A) forward and
down and twist it out of the burn chamber.
2. The exhaust plate (B) can be dismantled by unscrewing
the 2 screws that holds the exhaust plate in place.
3. Log retainer (C): Lift the log retainer straight up and out of
the burn chamber.
4. Ash grate (D) – First remove the log retainer (C). Pull the
ash pan out and push the ash grate (D) up from below so
that you can take hold of it from the top side and lift it out
of the burn chamber.
5. Side burn plates (F): First remove the log retainer (C) and
the ash pan. Then lift the side plates out.

20
ENGLISH
7.2 Replacing glass and gaskets in
the door
Fig. 36
A
1. Remove the gasket (A) placed on the inside of the door,
clean the gasket groove and glue on a new gasket.
Fig. 37
A
B
CD
E
F
2. Unscrew the screw (B) and loosen the handle (A).
3. Take out the spring (C) and the two washers (D).
4. Take out the door hook (E) and the washer (F).
Fig. 38
A
A
B
5. If a glass gasket or glass need replacement, first remove
the door handle (see it. 2-4).
6. Unscrew the glass holder (B) that is attached with 4 screws
(A). NB: The glass in the door is loose. Be careful not
to knock the glass when the glass holder is loosened.
Fig. 39
A
B
C
7. Remove the glass (A) carefully. Remove the gaskets (B)
and (C), and clean the gasket grooves.
8. Glue on new gaskets.
