JABSCO 31595-009 User manual

www.PumpAgents.com
— 31595-SERIES
— 31600-SERIES
— 31620-SERIES
— 31630-SERIES
WATER SYSTEM PUMPS
Models 31595, 31600, 31620, 31630-Series
PAR-MAX 2+ – 2.8 GPM (10.6 LPM)
PAR-MAX 3 – 3.5 GPM (13.2 LPM)
PAR-MAX 4 – 4.3 GPM (16.3 LPM)
FEATURES
• Self-Priming to 10 ft. (3 m)
• Runs Dry Without Damage
• Smooth Flow
• Four Piston, Diaphragm Pump
• Powerful Motor with Thermal Overload Protection
• Snap-in Ports
• Waterproof Coating (31630-Series)
• Pressure Switch with Boot
• Meets USCG Regulation 183.410 and EN ISO 8846
MARINE (Ignition Protection)
• Meets EN 50081-1 Electro-magnetic Compatibility
APPLICATIONS
The PAR-MAX Automatic Water System Pump is
designed for self-contained boats and RV’s with multiple
fixture water systems. The system operates auto-
matically. When a fixture is opened, the pump instantly
begins operation to provide a smooth constant flow from
tank to faucet. Closing the faucet automatically discon-
tinues pump operation.
The Deluxe model 31630-Series has a corrosion
resistant coated motor for extra protection in harsh
environment applications.
SPECIFICATIONS
• Pump Body – Glass Filled Polypropylene
• Pump Design – Multi-Chamber Diaphragm
• Suction Lift – Self Priming to 10 ft. (3 m)
• Ports – 1/2" (13 mm) Hose &
1/2" (13 mm) Threaded (QEST Type)
• Motor – Permanent Magnet
• Shipping Weight – 13.9 lb (1.8 kg) 31595-Series
4.5 lb (2.1 kg) 31600-Series
6.0 lb (2.8 kg) 31620-Series
6.0 lb (2.8 kg) 31630-Series
MODEL
31595-0092
31595-0094
31595-0292
31595-0294
31600-0092
31600-0094
31600-0292
31600-0294
31620-0092
31620-0094
31620-0292
31620-0294
31630-0092
GPM/LPM
2.8/10.6
2.8/10.6
2.8/10.6
2.8/10.6
3.5/13.2
3.5/13.2
3.5/13.2
3.5/13.2
4.3/16.3
4.3/16.3
4.3/16.3
4.3/16.3
4.3/16.3
VOLTS
12 Vdc
24 Vdc
12 Vdc
24 Vdc
12 Vdc
24 Vdc
12 Vdc
24 Vdc
12 Vdc
24 Vdc
12 Vdc
24 Vdc
12 Vdc
CUT-IN
20 (1.4)
20 (1.4)
10 (0.7)
10 (0.7)
20 (1.4)
20 (1.4)
10 (0.7)
10 (0.7)
20 (1.4)
20 (1.4)
10 (0.7)
10 (0.7)
20 (1.4)
CUT-OUT
40 (2.8)
40 (2.8)
25 (1.8)
25 (1.8)
40 (2.8)
40 (2.8)
25 (1.8)
25 (1.8)
40 (2.8)
40 (2.8)
25 (1.8)
25 (1.8)
40 (2.8)
NOMINAL psi (bar) AMP DRAW
@ 10 psi
4
2
4
2
5
3
5
3
6
3
6
3
6
FUSE/
BREAKER*
10
7
10
7
10
7
10
7
10
7
10
7
15

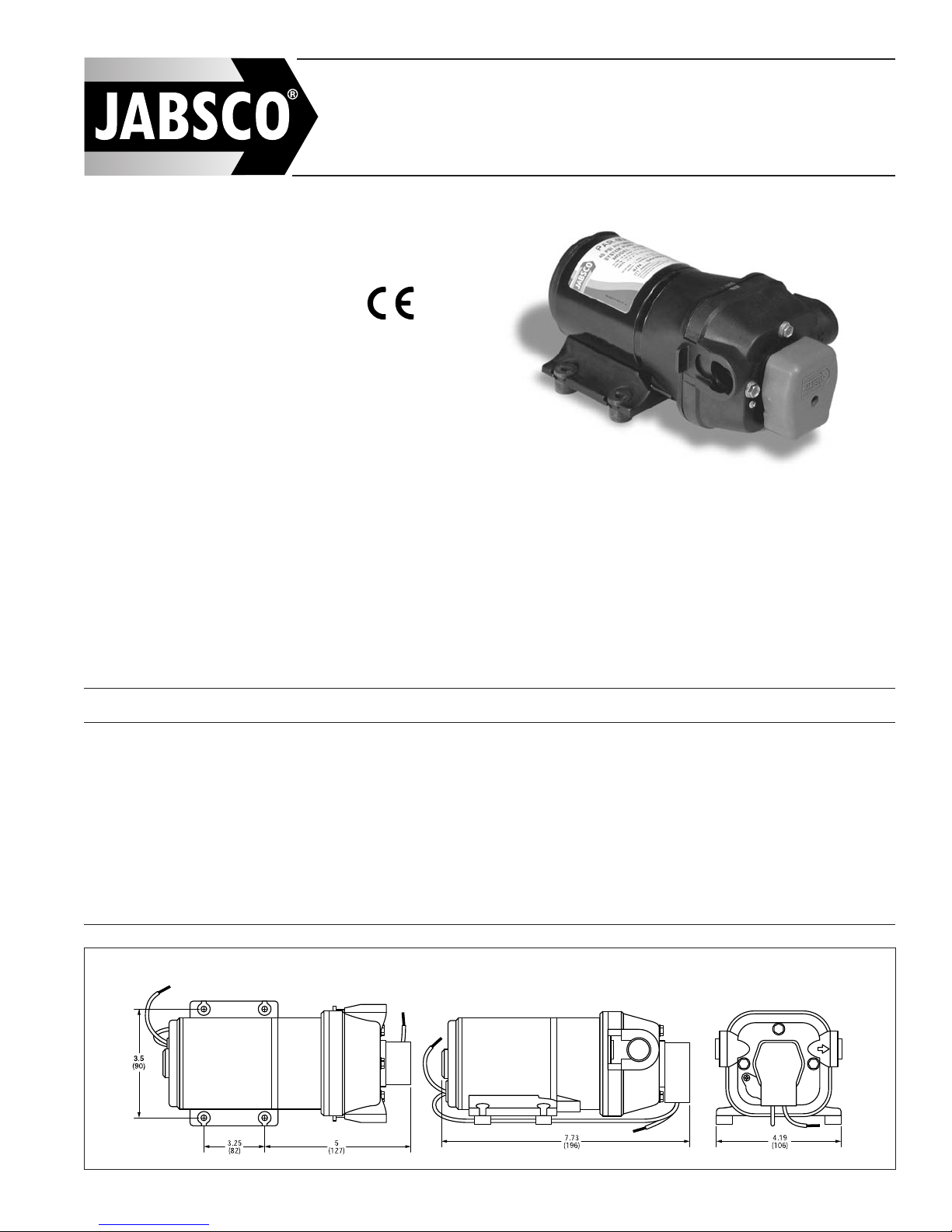

DIMENSIONAL DRAWINGS — INCHES (MILLIMETRES)
* Customer supplied, not included with pump.
PumpAgents.com - buy pumps and parts online
PumpAgents.com - Click here for Pricing/Ordering

www.PumpAgents.com
Motor case will get hot. Prolonged
contact during operation may cause a burn.

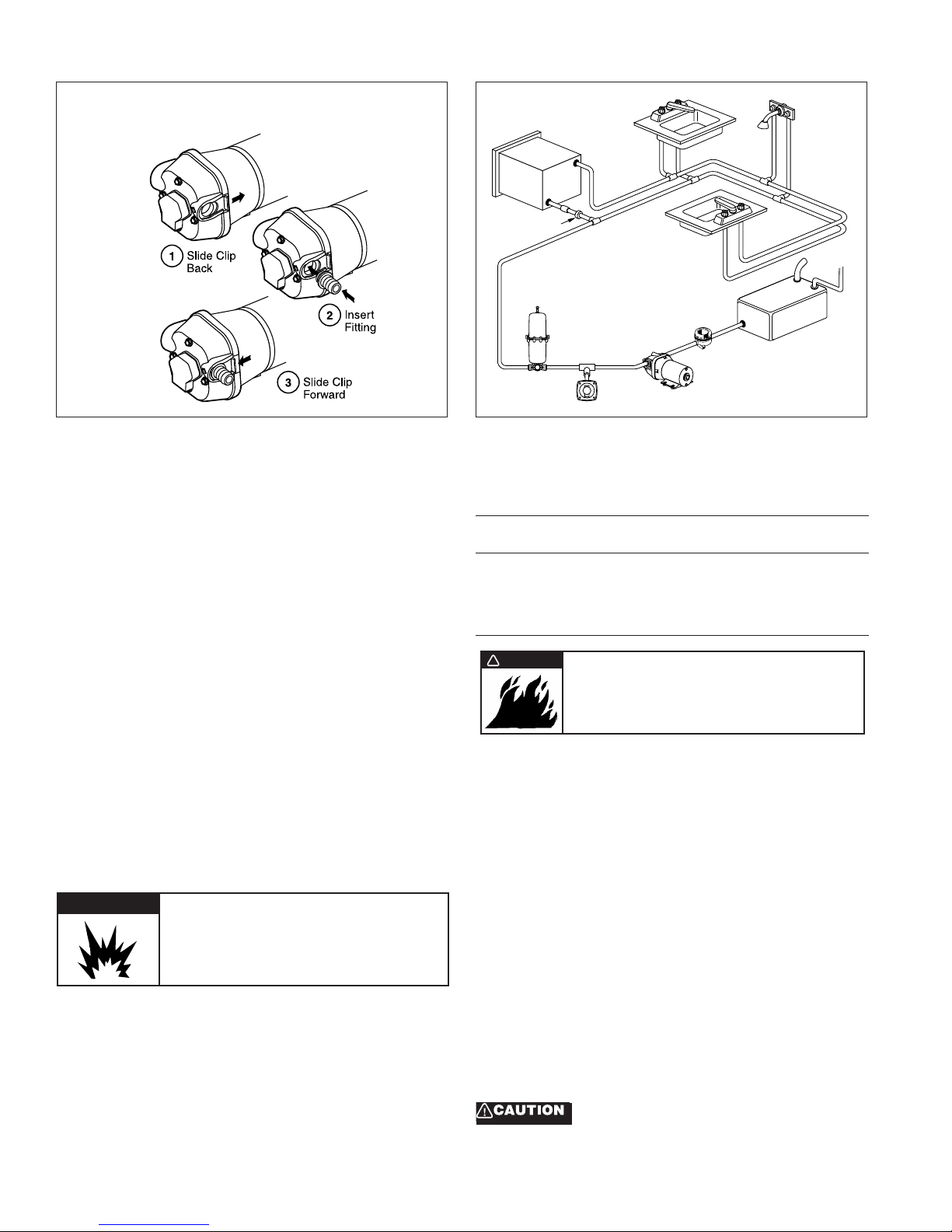

CityWater Intake
Pressure Regulator
Water Pressure
Pump
Pumpgard™
Strainer
Water
SupplyTank
Tank
FillVent
Sink
Sink
HotWater
Line
ColdWater
Line
Water
Heater
Check
Valve
Shower
Accumulator
Tank
INSTALLATION
MOUNTING
The PAR-MAX pumps are self-priming and may be locat-
ed above or below the fresh water tank in a dry location.
To vertically mount these units, it is best to do so with the
motor on top. This will prevent water dripping on motor
in the event of a leak. Place pump on a solid surface
and secure with four mounting screws (not included)
being careful not to compress the rubber grommets
which act as shock absorbers.
PLUMBING
Select two of the port adaptors supplied to match your
plumbing system. Flexible potable water hose or PEX
tubing is recommended instead of rigid piping at
pump. If you choose to use rigid piping, provide a short
length of hose between pipe and the pump to avoid
noise and vibration. Use clamps at both ends of hose to
prevent air leaks into the water line. NOTE: Intake hose
must be minimum 1/2" (13 mm) ID reinforced hose. Main
distribution line from pump outlet should also be 1/2" (13
mm) ID with branch and individual supply lines to outlets
no smaller than 3/8" (10 mm). A Jabsco “Pumpgard” in
line strainer should be installed between pump and tank
to keep debris out of pump and system. Fresh water tank
must be vented. Avoid any kinks or fittings which could
cause excessive restrictions. Remember to periodically
clean faucet and “Pumpgard” screens.
WIRING
In an easily accessible location, install a switch (Jabsco
44960-Series) to control electricity to the pump. Turn the
pump off when not used for extended periods or when
the tank is empty.
The electrical circuit should be protected with an over-
current protection device in the positive lead. See chart
for proper size. The pump circuit should not include any
other electrical loads. The free lead at the pressure
switch is positive. Black wire from the motor is negative.
Select wire size from chart below. Use total length of wire
from the battery to pump and return. Chart allows for 3%
voltage drop. If in doubt, use next larger wire size.
If you are not familiar with applicable electrical stan-
dards, have the unit installed by a qualified electrician.
After installation, check the voltage at the pump motor.
Voltage should be checked when pump is operating. Full
voltage must be available at the pump motor at all times.
OPERATION
1. Check level of water in tank.
2. Open all faucets hot and cold.
3. Switch on power to pump and wait for hot water tank
and water lines to fill.
4. Close each faucet as flow becomes steady and free of
air (close cold water faucet first). Pump should shut off
soon after closing last faucet.
5. Pump is now ready for automatic operations. It will
start when faucet is opened and stop when faucet is
closed.
6. If pump will be inoperative for a considerable length of
time, turn off circuit to pump and bleed system by
opening faucet.
QUICK EASY INSTALLATION
VERSATILE SNAP-IN PORTS
Total length
in feet
12 Volt
24 Volt
0-20
(0-6 m)
#14 AWG
(2.5 mm2)
#16 AWG
(1.5 mm2)
20-35
(6-11 m)
#12 AWG
(4 mm2)
#14 AWG
(2.5 mm2)
35-55
(11-17 m)
#10 AWG
(6 mm2)
#12 AWG
(4 mm2)
WARNING!
Explosion hazard. Do not pump
gasoline, solvents, thinners or other
flammable liquids. To do so can
cause an explosion resulting in injury
or death.
WARNING
!Fire hazard. Wiring must comply with
applicable electrical standards and
include a properly sized fuse or circuit
breaker. Improper wiring can cause a
fire resulting in injury or death.
PumpAgents.com - buy pumps and parts online

www.PumpAgents.com
Upper Housing XXXXX-0092
Upper Housing XXXXX-0094
Upper Housing XXXXX-0292
Upper Housing XXXXX-0294
Valve Kit
Diaphragm Kit
Lower Housing Kit
Pressure Switch XXXXX-0092
Pressure Switch XXXXX-0094
Pressure Switch XXXXX-0292
Pressure Switch XXXXX-0294
Service Kit
Motor Kit – 12V EMC COMP
24V EMC COMP
Slide Clips
Pumphead Assy. XXXXX-0092
Pumphead Assy. XXXXX-0094
Pumphead Assy. XXXXX-0292
Pumphead Assy. XXXXX-0294
DISASSEMBLE
Pressure Switch (5)
1. Disconnect power to pump and open a faucet or valve to relieve
system pressure.
2. Remove Rubber Boot, then remove the two visible Pressure
Switch Screws located on each side of the Pressure Switch (5).
Upper Housing (1)
3. Slide Port Clip (8) back and unplug from Tank Plumbing.
4. Loosen but DO NOT remove the four Pump Head Screws and
carefully remove Upper Housing Assembly (1).
5. Remove Check Valve (2) and inspect for debris.
Check Valve Assembly (2) Follow Steps 1, 3 & 4
6. Inspect Check Valve (2) and O-Ring
Lower Housing (4) Follow Step 1, 3 & 4
7. Remove Rubber Plugs on housing (4-A) to access Allen Screw.
8. Rotate Lower Housing (4), so access notch is aligned with Cam
Bearing Set Screw (4-C), loosen set screw with a 1/8" Allen
Wrench and slide pump head off motor shaft.
Diaphragm (3-B)
9. Loosen four cam piston screws with Phillips head screw driver
and pull apart cam (4-B) from Inner Pistons (3-A). (Both pistons
(3-A & C) should be replaced when a new Diaphragm (3-B) is
installed.)
Motor (7) Follow steps 1, 3, 4, 7, & 8
REASSEMBLE
Diaphragm (3-B)
1. Insert Outer Pistons (3-C) into Lower Housing (4-A) by bending pistons
at center fold.
2. Placing the Diaphragm (3-B) (flatter side of Diaphragm facing the
motor) on the Lower housing (4-A). Press each Inner Piston (3-A)
through the Diaphragm and Lower Housing (4A) into Outer Piston
(3-C). Hex stem of Inner Pistons (3-A) must be aligned into hex holes
in Outer Pistons (3-C). Tighten cam piston screws partially, center pis-
ton in diaphragm, and tighten screws securely (18 in. lbs. torque).
Also, the Outer Pistons (3-C) must be aligned with alignment slots on
Cam Assembly (4-B) making sure screw holes align in cam assembly,
otherwise diaphragm will leak.
Cam Bearing (4-B)
3. Place Cam Bearing (4-B) over Inner Pistons (3-C) and tighten
down with four Phillips Head Screws. (18 in. lbs. torque)
Lower Housing (4) to Motor (7)
Coat motor shaft with grease prior to installing Cam Bearing (4-B).
4. When installing the Lower Housing (4), rotate access notch to align
with Cam Bearing Set Screw (4-C).
5. Attach Cam Bearing (4-B) to motor shaft indentation with Cam Bearing
Set Screw (4-C). (35 in. lbs. torque)
6. Reinsert new Notch Plugs.
Check Valve (2)
7. Place Ferrules (Rubber Cones) in the Upper Housing (1) coned side
first.
8. Properly seat O-Ring in Check Valve (2) and insert Check Valve (2) into
the Upper Housing (1).
Upper Housing (1)
9. Place Upper Housing (1) on top of the Lower Housing (4-A) and tighten
Hex Bolts (30 in. lbs. torque) through the Upper Housing (1) to the Motor.
KEY DESCRIPTION
1
2
3
4
5
*6*
7
8
9
QTY
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
18910-4040
18910-4040
18910-4025
18910-4025
18911-7030
18912-3040
18915-9000
18916-0040
18916-0040
18916-0025
18916-0025
18920-9042
18919-0134
18919-1055
30648-1000
18914-6240
18914-6240
18914-6225
18914-6225
31595-SERIES
18910-4040
18910-4040
18910-4025
18910-4025
18911-7030
18912-3040
18915-9002
18916-0040
18916-0040
18916-0025
18916-0025
18920-9043
18919-0131
18919-1052
30648-1000
18914-6340
18914-6340
18914-6325
18914-6325
31600-SERIES
18910-4040
18910-4040
18910-4025
18910-4025
18911-7030
18912-3040
18915-9002
18916-0040
18916-0040
18916-0025
18916-0025
18920-9043
18919-0132
18919-1053
30648-1000
18914-6340
18914-6340
18914-6325
18914-6325
31620-SERIES
18910-4040
18910-4040
18910-4025
18910-4025
18911-7030
18912-3040
18915-9002
18916-0040
18916-0040
18916-0025
18916-0025
18920-9043
18919-0133
N/A
30648-1000
18914-6340
18914-6340
18914-6325
18914-6325
31630-SERIES
WARNING: DISCONNECT POWER TO PUMP AND OPEN VALVE TO
RELIEVE WATER PRESSURE PRIOR TO SERVICING PUMP

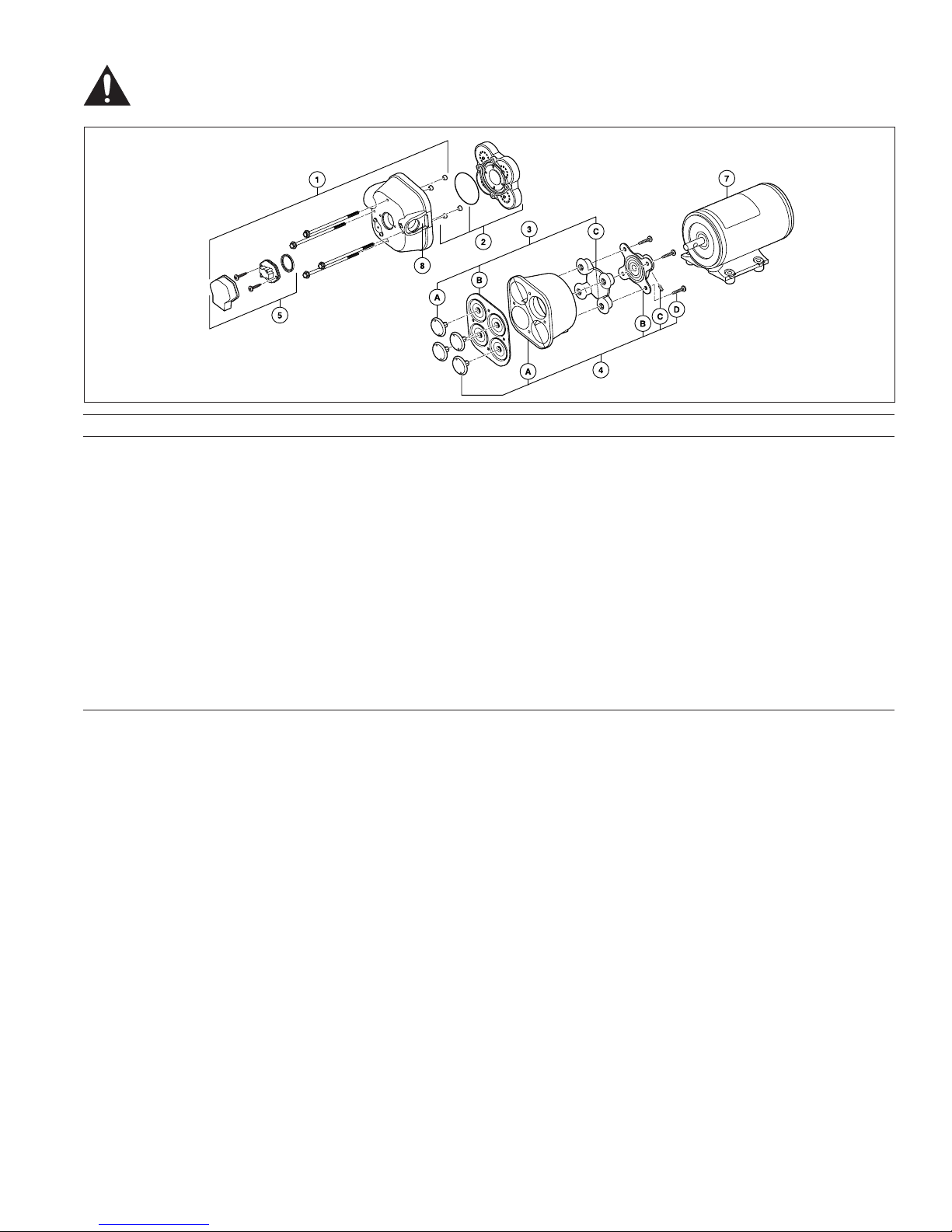

EXPLODED VIEW
* Service kit includes Keys 2, 3 and 4B, C, D and 8
PumpAgents.com - buy pumps and parts online

www.PumpAgents.com
U.S.A.
Jabsco
Cape Ann Industrial Park
Gloucester, MA 01930
Tel: [phone]
Fax: [phone]
UNITED KINGDOM
Jabsco
Bingley Road, Hoddesdon
Hertfordshire EN11 OBU
Tel: [phone]
Fax: [phone]
CANADA
Fluid Products Canada
55 Royal Road
Guelph, Ontario N1H 1T1
Tel: [phone]
Fax: [phone]
JAPAN
NHK Jabsco Company Ltd.
3-21-10, Shin-Yokohama
Kohoku-Ku, Yokohama, 222
Tel: [phone]
Fax: [phone]
GERMANY
Jabsco GmbH
Oststrasse 28
22840 Norderstedt
Tel: [phone]
Fax: [phone]
THE PRODUCTS DESCRIBED HEREIN ARE
SUBJECT TO THE JABSCO ONE YEAR LIMITED
WARRANTY, WHICH IS AVAILABLE FOR YOUR
INSPECTION UPON REQUEST.
©Copyright 2004, ITT Industries Printed in U.S.A. All Rights Reserved Form: 43000-0753 Rev. 02/2004
TROUBLESHOOTING
PULSATING FLOW – PUMP CYCLES ON AND OFF
Restricted pump delivery. Check discharge lines, fit-
tings and valves for undersizing or clogging. Clean
screens in faucets. Some filters or purifiers are highly
restrictive. Filters/purifiers with high pressure drop may
require a separate line and the installation of an accu-
mulator tank in the system.
FAILURE TO PRIME – MOTOR OPERATES, BUT NO
PUMP DISCHARGE
Restricted intake or discharge line.
Air leak in intake in line.
Punctured pump diaphragm (water leak).
Debris under flapper valves.
Crack in pump housing.
MOTOR FAILS TO TURN ON
Loose wiring connection.
Pump circuit has no power.
Blown fuse/Thermal Protector tripped (wait 30 min.).
Pressure switch failed.
Defective motor.
PUMP FAILS TO TURN OFF AFTER ALL FIXTURES
ARE CLOSED
Empty water tank.
Punctured pump diaphragm (water leak).
Discharge line leak.
Defective pressure switch.
Insufficient voltage to pump.
Debris under flapper valves.
LOW FLOW AND PRESSURE
Air leak at pump intake.
Accumulation of debris inside pump and plumbing.
Worn pump bearing (excessive noise).
Punctured pump diaphragm (water leak).
Defective motor.
ACCESSORIES
SNAP-IN PORT SYSTEM
WINTERIZING YOUR WATER SYSTEM
To winterize, it is not necessary to drain the water from
the entire water system. Blowing into the lines to remove
the water from your water system is not satisfactory due
to the check valve mechanism built into the pump.
Follow these steps to remove all water from your water
system:
1. Drain water by opening tank drain, or open a fixture to
allow pump to operate until tank is dry.
2. Open the lowest outlet in water system to drain lines.
3. To remove any remaining water (about a cup), remove
outlet hose on pump and activate pump. To blow out
lines, attach air nozzle where outlet hose was
removed. Make sure all fixtures are open before starting.
4. Your water system is now winterized. Don’t forget to
reattach the outlet hose to pump and close all fixtures.
PAR-MAX pumps have thermal overload protected motors. The motor will automatically shut off as
temperature rises due to an overload condition. If the motor shuts off in this manner, close all nozzles, faucets or
valves. After a cooling off period, the pump will automatically re-start.
DO NOT USE AUTOMOTIVE TYPE ANTI-FREEZE. IT IS POISONOUS. USE OF THIS TYPE ANTI-
FREEZE WILL CAUSE SERIOUS INTERNAL INJURY OR DEATH.
DANGER
!
PumpAgents.com - buy pumps and parts online

For technical advice or service please take your pump into your local pump service center.
To order pump or parts or for pricing please go to the following links :
Jabsco Pumps Home >>
Jabsco Pumps stock list >>
PumpAgents.com - buy pumps and parts online
