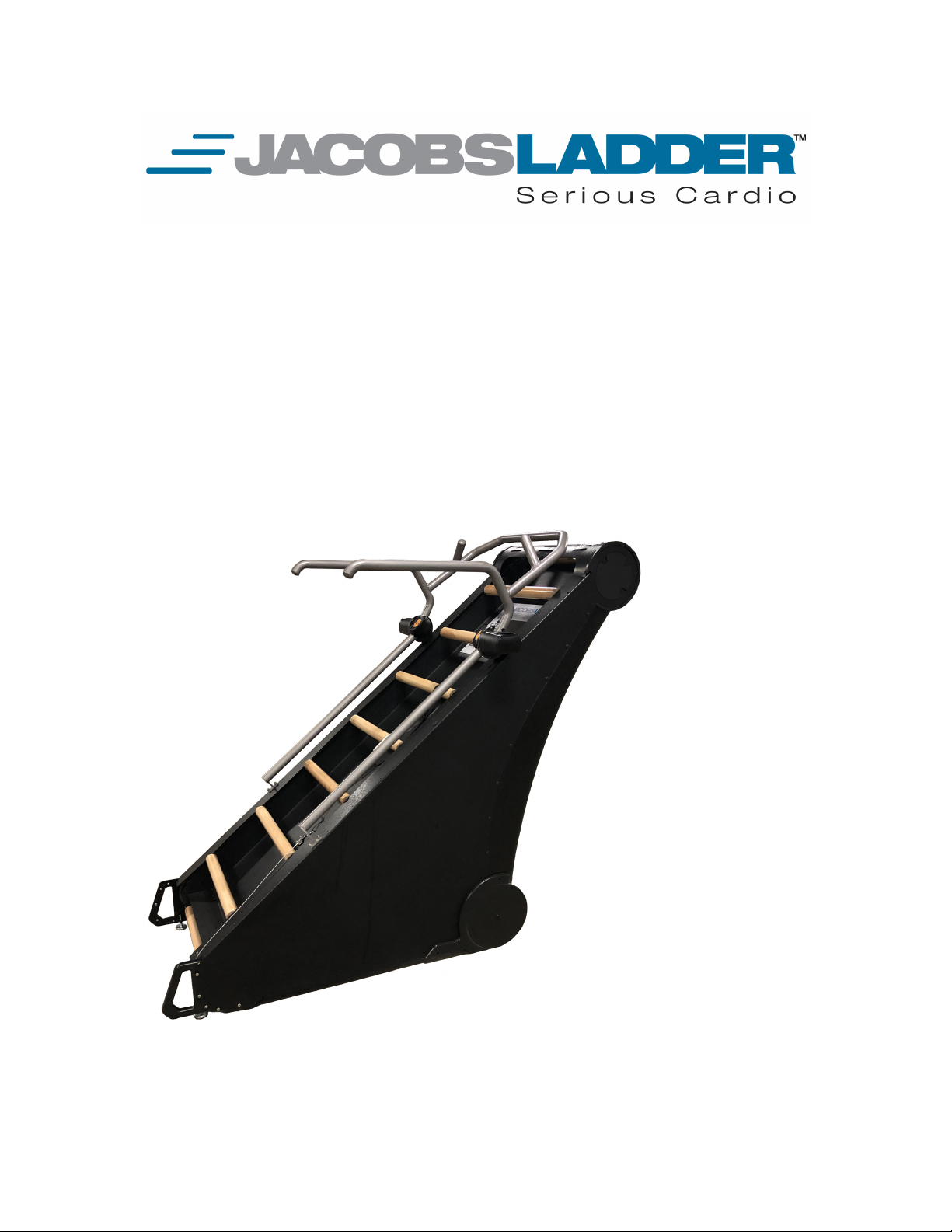

Jacobs Ladder X User manual

OWNER’S(MANUAL(

!"#$%&'!(#))*+!((,! !
-!
Contact us:
Jacobs Ladder LLC
6292 Walmore Rd
Niagara Falls, NY 14304
1.866.697.4100(toll free number)
1.716.692.1780(fax)
1.716.930.1285(service)
[email protected]
[email protected]
Welcome to the Jacobs Ladder Family. Please take a few minutes to familiarize
yourself with your new ladder by reading the information contained in the Owners
Manual. We are proud of the quality of each of our products.
Jacobs Ladder X provides the most efficient exercise for those serious about
conditioning. Unlike most cardio machines, this patented treadmill climber utilizes
low impact, high range of motion exercise to provide a superior cardio workout to
both the upper and lower body. The new Jacobs Ladder X comes with a multi-
position handle that offers the user four different climbing positions allowing the
user more control over the intensity of their climb!
Jacobs Ladder is an innovative cardio machine with ladder-type rungs on a non-
motorized continuous treadmill. It’s self-paced, so the faster you go the faster it
goes.
Included in your package:
Jacobs Ladder X
Jacobs Ladder Waist Belt (1)
AC Power Adapter (for recharging only)
Product Specifications
Frame: Welded Tubular Steel

!"#$%&'!(#))*+!((,! !
.!
Length: 84”
Width: 37”(With Cup Holders Attached)
Height: 70”
Weight: 345 lbs
Rungs: Solid Maple
Case: ABS/Polyethylene
Power: Self-Powered
Ceiling Height Requirement: 8.5 Feet
Digital Readouts: Elapsed Time, Steps Climbed, Rate (Steps/Min), Calorie Burn,
and Intensity Zone Indicator
Table of Contents
Safety………………………………………………………………………….....………4
Proper Use Instructions………………………………………………………………...4
Assembly Instructions…………………………………………………………………..5
Operation…………………………………………………………………………………7
Display………………………………….……………………………………….....7
Controls…………………………………………………………………………....8
Handle Positions……………..........……………………………………………..9
Maintenance……………………………………………………………………………10
Care and Cleaning………………………………………………………………10
Troubleshooting……………………….…………………………………………10
Preventative Maintenance…………………………………………………...…10
How to Obtain Service………………………………………………….....……11
Product Warranty and Disclaimer……………………………………………………12
Maintenance Log………………………………………………………………………14

!"#$%&'!(#))*+!((,! !
/!
Important Safety Information
Warning: Before beginning any fitness program you should have a complete
physical examination by your physician. Consult your physician for the heart rate
appropriate for your fitness condition. Exercising on Jacobs Ladder X may cause
rapid heart rate increase. If you feel faint, develop chest pain, experience severe
musculoskeletal discomfort or have difficulty breathing, terminate the exercise
session immediately and consult a physician. Failure to do so may result in serious
bodily injury or death.
In order to slow machine, slow your steps. In order to stop machine, stop your
steps and allow the machine to brake.
Do not use the machine without wearing the Waist Belt. The Waist Belt controls
the brake as well as the rung speed.
Start out slowly and increase rung speed carefully while wearing Waist Belt.
Never let anyone touch the waist belt cable while machine is being used. Tugging
the cable will cause rung speed increase.
Advanced Exercise: Always read and understand Operating Instructions before
use.
Never allow small children to operate machine. Keep small children away from
machine while in operation.
Never sprint on Jacobs Ladder X. Increase your speed at a steady pace until you
reach an appropriate speed.
Never place towels or other objects under the rungs or at the bottom of the
machine.
Proper Use Instruction
1.) Set your height on the Height adjustment section of the Waist Belt

!"#$%&'!(#))*+!((,! !
0!
2.) Attach the Waist Belt to your waist, placing the strap off the center of
your back
3.) Push START button to turn display
4.) Set your weight using the UP and DOWN buttons (located near the cup
holder on the users left side of the machine). Press ENTER when
complete
5.) Step onto the machine and begin climbing. Accelerate slowly to let the
machine adjust to your speed. You may want to start out using the side
handles until you get used to the movement.
6.) In order to stop, simply stop climbing and coast to the bottom.
Assembly Instructions
Take the following steps to assemble the Jacobs Ladder.
1. Unpack the ladder and remove the packing materials from the base and
upright/console assembly. Do not discard the Owners Packet or the Cup Holders
which should come attached to the rungs with zip ties.
2. Unbolt the ladder from the pallet, secure the stabilizer bars so they are stowed
inside the unit and roll the unit on to the floor.

!"#$%&'!(#))*+!((,! !
1!
CAUTION: To avoid injury and ensure your safety, be sure to get the
appropriate number of people to help you move the ladder to its final
location. A fully assembled Jacobs Ladder X is very heavy and you might
injure yourself if you move the ladder improperly.
If you need to move the ladder, ask for assistance. Roll the ladder on its rear
transport wheels to its new location by slowly tipping the ladder back to engage
the wheel. Be sure to have assistance as ladder is heavy. Additional help
supporting the front end of the ladder will improve the ease of movement.
Make sure that the ladder is unplugged. Do not assemble the ladder if it is plugged
into a power outlet.
3. Once you have the unit positioned where you would like it, pull the stabilizer
bars out of the unit and lock them in place in the extended position.

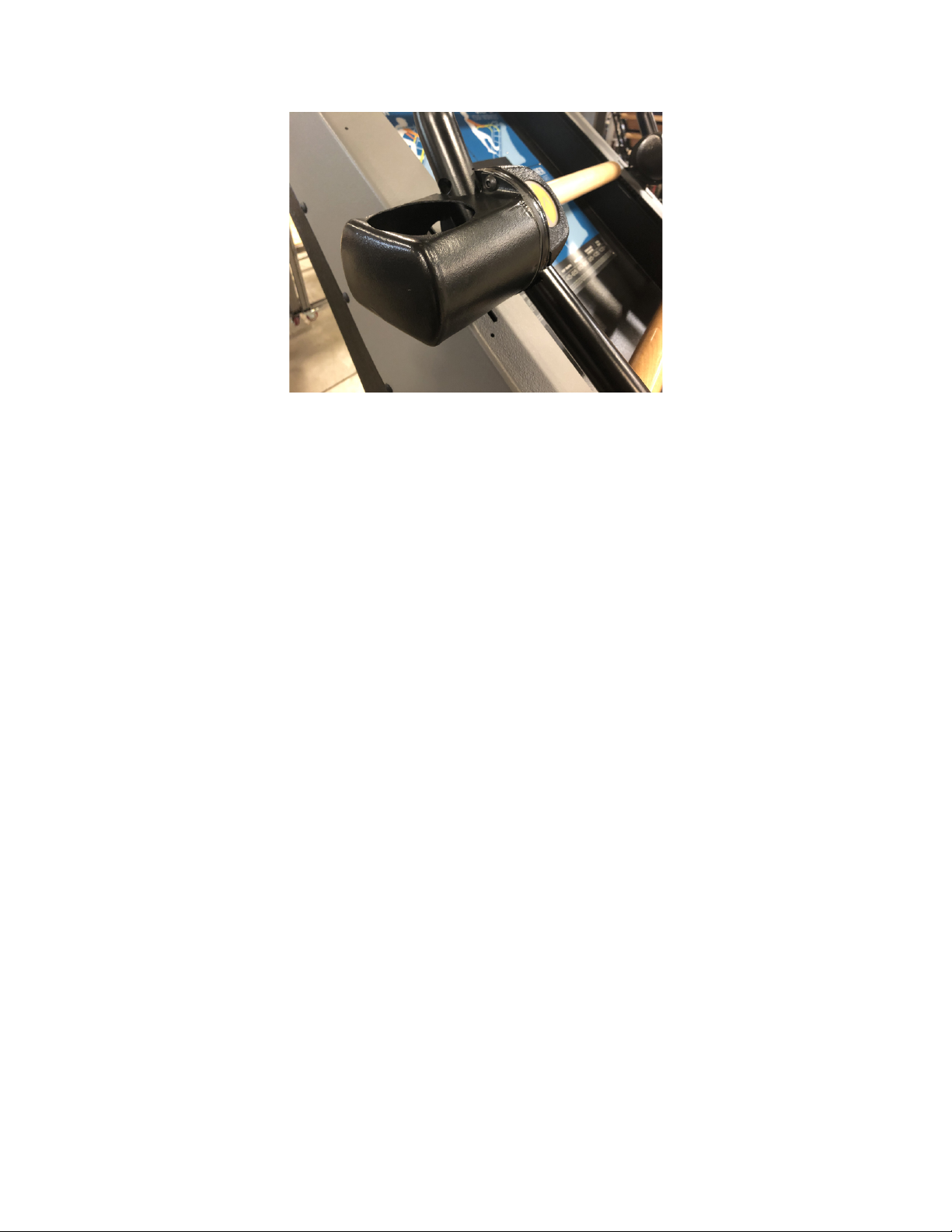

4. With the 3/16” Allen Wrench and screws provided(in the owners packet), install
the Cup Holders provided on the left and right side of the unit on the outside of the
side handles.

!"#$%&'!(#))*+!((,! !
2!
5. Adjust the two leveler feet at the base of the front of the unit from the users
perspective so that the unit sits square on the floor without rocking.
6. If you need to move the ladder, ask for assistance. Roll the ladder on its transport
wheels to its new location by lifting from the lower front of the unit. Reminder-The
ladder should never be moved with one person.
CAUTION: If you need to re-charge the battery pack, plug the AC adapter into
a proper 110V outlet and then the round connector into the plug on the users
lower left side of Jacobs Ladder X
Display

!"#$%&'!(#))*+!((,! !
3!
Calories
The cumulative calorie burn for your workout is displayed in the lower left of
the dashboard.
Steps Climbed
The cumulative number of steps climbed for your workout is displayed in
the upper left of the dashboard.
Intensity Zone
Throughout your workout, your Intensity Zone is shown in the center of the
dashboard. Your Intensity Zone will change depending on the speed at
which you are climbing.
Rate Steps/Min
Your current rate is shown in the upper right of the dashboard. Rate is
reported in Steps/Minute.
Elapsed Time
The elapsed time is in the lower right of the dashboard.

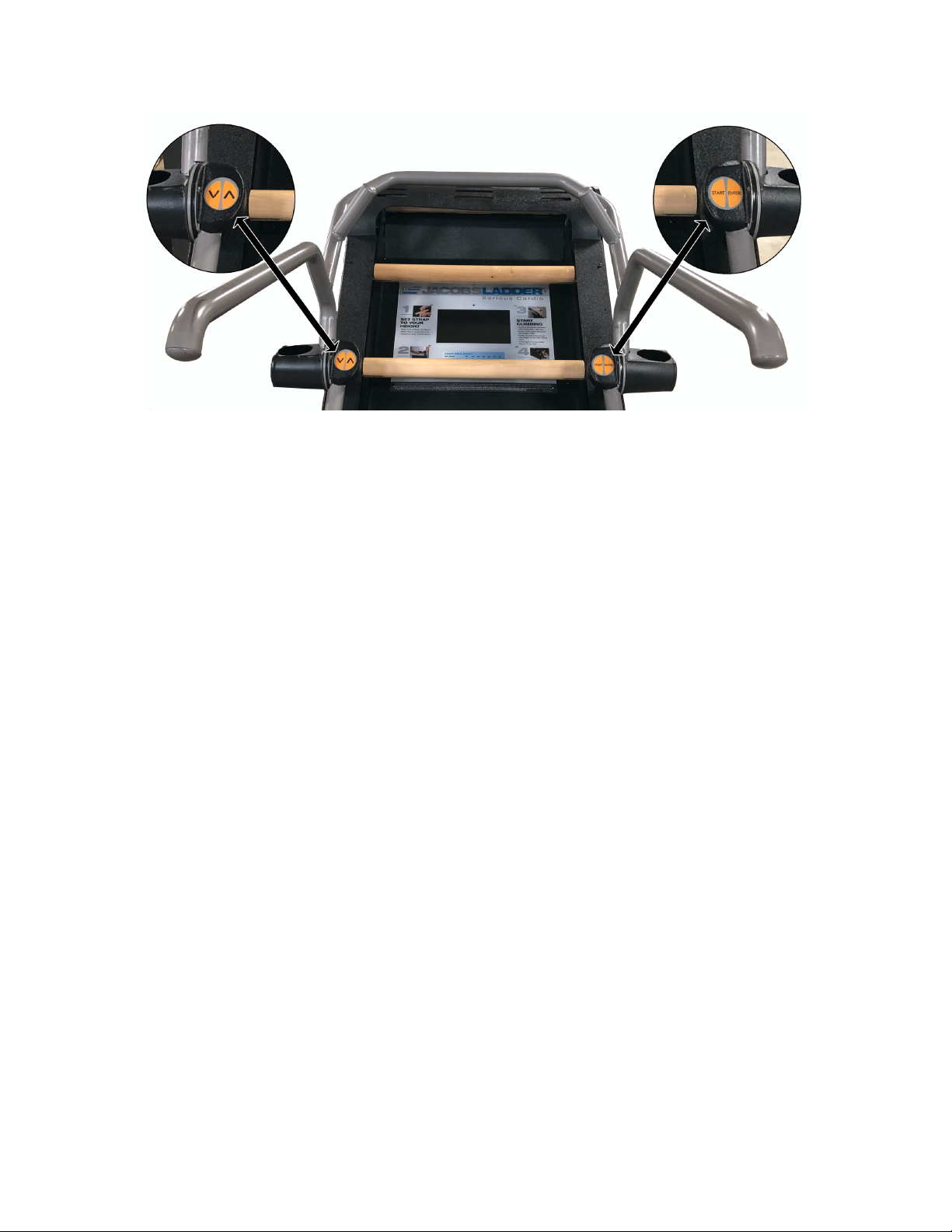

Controls

!"#$%&'!(#))*+!((,! !
4!
Start Button
Pressing the Start button will light the display for 30 seconds. This will give
the user ample time to input their weight before beginning their workout. If
you do not begin climbing within 30 seconds of pressing the button, the
display will shut off.
Up/Down
When prompted, use the Up and Down arrows on the left side of the handles
to set your weight. Setting your weight before you workout will help the
machine calculate your calorie burn more accurately. If no weight is input,
the unit will use a default weight of 150 lbs.
Enter Button
Once you have input your weight, press Enter to begin your workout.

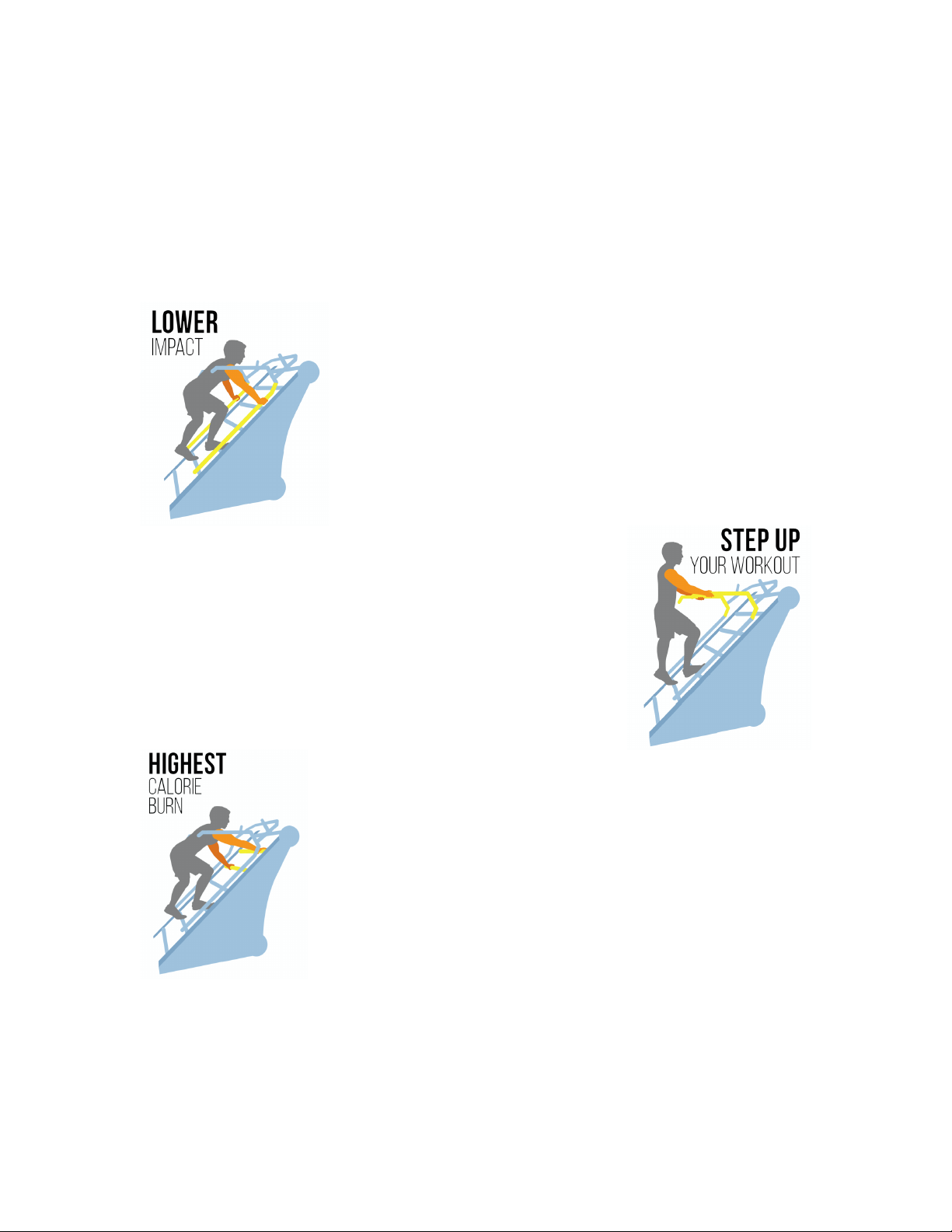

What’s up with that Handle?

!"#$%&'!(#))*+!((,! !
56!
7%8)!%9!:%!:;*!8%<*+!'=)*!;#9)8*'!<;=8*!$8=>&=9?!:%!?*:!#!
:#+?*:*)!8%<*+!&%)@!<%+A%B:C!!D;='!='!#!?+*#:!':#+:=9?!
E%'=:=%9!:%!F#>=8=#+=G*!@%B+'*8F!<=:;!"#$%&'!(#))*+!H!=F!
:;='!='!@%B+!F=+':!:=>*!$8=>&=9?C!
7%8)!%9!:%!:;*!BEE*+!'=)*!;#9)8*'!<;=8*!$8=>&=9?!:%!?*:!
8%<*+!&%)@!<%+A%B:!'=>=8#+!:%!I:#=+<#@!JD(C!!D;='!='!
#8'%!#!?+*#:!':#+:=9?!E%'=:=%9!:%!F#>=8=#+=G*!@%B+'*8F!<=:;!
"#$%&'!(#))*+!H!=F!:;='!='!@%B+!F=+':!:=>*!$8=>&=9?C!
,8=>&!;#9)K%L*+K;#9)!%9!"#$%&'!(#))*+!H!:%!?*:!#!FB88!
&%)@!<%+A%B:C!!M;%N'!?%:!:;*!:=>*!:%!<%+A!%9*!>B'$8*!
?+%BE!#:!#!:=>*!:;*'*!)#@'!#9@<#@O!

!"#$%&'!(#))*+!((,! !
55!
Maintenance
Care and Cleaning
It is recommended that you do not oil or grease the chains on Jacobs
Ladder. Greasing the chains can prevent the machine from running
smoothly.
Jacobs Ladder X, Jacobs Ladder and the Jacobs Ladder 2 machine and
rungs can be cleaned using any mild household cleaner that you use on
other cardio machines.
Never put polish or wax on the rungs. This will cause the rungs to become
slippery and unsafe.
Never put polish or wax on the black plastic runners at either end of the
rungs. This will prevent the machine from running smoothly.
IMPORTANT: The black plastic strips located underneath the plastic side
rails must be kept clean. Do not get any grease, oil, polish, etc.. on the
black plastic strips.
Wipe down the display board with a damp cloth
Do not use cleaning sprays, large amounts of soap or water, abrasive or
sharp objects on the display board.
Please refer to the Preventative Maintenance Section.
Troubleshooting
Problem
Possible Cause
What To Do
J+#&!%9!:%!:;*!'8*)!?+=E'!#:!:;*!F+%9:!%F!:;*!;#9)8*!:%!
*9?#?*!@%B+!$%+*!<;=8*!@%B!$8=>&P!

!"#$%&'!(#))*+!((,! !
5-!
Machine
seems to be
slipping
Dirty Stainless / UHMW
Strips
Clean Stainless Steel Rung Plates
and Plastic Strips
Machine
seems to be
jumping
Loose Chains
Adjust Chain Tension
Display resets
in mid-workout
Low Battery Charge
Use AC Adapter provided to plug
machine in overnight.
Preventative Maintenance
Operation
Frequency
Clean Stainless Steel Rung Plates
Annually
Tighten Chains
Check and Adjust Annually
Re-Charge Battery
As needed
How to Obtain Service
Do not attempt to service the ladder yourself except for the maintenance
and diagnostic tasks described in the PREVENTATIVE MAINTENANCE section
of this manual. The Jacobs Ladder does not contain any user-serviceable parts.
For information about the product, contact the following:
Jacobs Ladder LLC
6292 Walmore Rd
Niagara Falls, NY 14304
USA
Tel: [phone]
Fax: [phone]
Email: [email protected]
To help customer service expedite your call, have the serial number of your
unit readily available as well as Customer information and an accurate description
of the state of the unit. The serial number is located on the lower left side of the
unit near the ac adapter port.

!"#$%&'!(#))*+!((,! !
5.!
Product Warranty
4 YEARS ON ALL PARTS; 1 YEAR ON LABOR FROM THE DATE OF PURCHASER INVOICE.
JACOBS LADDER LLC EXPRESSLY WARRANTS ALL NEW PRODUCTS TO BE FREE FROM
DEFECTS IN MATERIALS AND MANUFACTURE FOR THE WARRANTY PERIODS SET FORTH
ABOVE. THE WARRANTY PERIODS COMMENCE ON THE INVOICE DATE ON THE ORIGINAL
PURCHASE. THIS WARRANTY APPLIES ONLY AGAINST DEFECTS DISCOVERED WITHIN
THE WARRANTY PERIOD AND EXTENDS ONLY TO THE ORIGINAL PURCHASER OF THE
PRODUCT. ONLY PARTS, REPAIRS, MODIFICATION AND/OR MAINTENANCE SUPPLIED BY
JACOBS LADDER LLC REPRESENTATIVE, UNDER THE TERMS OF THIS WARRANTY, WILL
BE WARRANTED FOR THE REMAINDER OF THE ORIGINAL WARRANTY PERIOD. TO
PROCESS A CLAIM UNDER THIS WARRANTY, THE PURCHASER MUST NOTIFY JACOBS
LADDER LLC IN WRITING OR BY FAX WITHIN 30 DAYS AFTER THE DISCOVERY OF THE
ALLEGED DEFECT AND MAKE THE PRODUCT AVAILABLE FOR INSPECTION BY A JACOBS
LADDER LLC REPRESENTATIVE. FAILURE TO TIMELY AND PROPERLY NOTIFY JACOBS
LADDER LLC IN WRITING OR BY FAX WILL RESULT IN NULLIFICATION OF THIS WARRANTY.
ANY PARTS, REPAIRS, MODIFICATION AND/OR MAINTENANCE SUPPLIED BY A NON-
JACOBS LADDER REPRESENTATIVE VOIDS THE ENTIRE WARRANTY FOR THIS EXERCISE
MACHINE.
NO OTHER EXPRESS WARRANTY IS GIVEN WITH THE PURCHASE ORDER AND JACOBS
LADDER LLC DISCLAIMS ANY AUTHORITY FOR ANY EMPLOYEE TO PROVIDE OR MAKE
ANY OTHER WARRANTY OF ANY KIND WHETHER IN WRITING OR ORALLY.
This warranty is valid only in accordance with the conditions set forth below:
1. The warranty applies to the Jacobs Ladder LLC product only while
a. Title and possession remain in the original purchaser and proof of purchase is demonstrated,
b. It has not been subjected to casualty, misuse, abuse, service or modification performed and not
authorized by Jacobs Ladder LLC representative,
c. Claims are made timely and properly within the warranty period by written notice or fax (30 days
notice).
2. This warranty does not cover damage or equipment failure caused by any type of electrical surge
and/or failure to adhere Jacobs Ladder LLC Operating Instructions and Care and Cleaning
Instructions.
3. Except in Canada, Jacobs Ladder LLC does not pay labor outside of the United States.
4. Warranties outside the United States and Canada may vary. Please contact your local Dealer
for details

!"#$%&'!(#))*+!((,! !
5/!
This limited warranty shall not apply to:
1. Software version upgrades
2. Cosmetic items, including, but not limited to the following: grips, seats, and labels.
3. Repairs performed on Jacobs Ladder LLC equipment missing a serial number or with a serial
tag that has been altered or defaced.
4. Service calls to correct installation of the equipment or instruct the owners on how to use the
equipment
5. Pickup, delivery, or freight charges involved with repairs
6. Any labor costs incurred beyond the applicable labor warranty period.
DISCLAIMER:
The express warranties provided herein are the exclusive warranties given by Jacobs Ladder LLC
and supersede any prior, contrary or additional representation/warranties, written or oral. ANY
IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND/OR
FITNESS FOR A PARTICULAR PURPOSE THAT APPLY TO ANY PARTS DESCRIBED ABOVE
ARE LIMITED IN DURATION TO THE PERIODS OF EXPRESS WARRANTIES GIVEN ABOVE
FOR THOSE SAME PARTS. JACOBS LADDER HEREBY DISCLAIMS AND EXCLUDES THOSE
WARRANTIES THEREAFTER. SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG
AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
JACOBS LADDER LLC ALSO HEREBY DISCLAIMS AND EXCLUDES ALL OTHER
OBLIGATIONS OR LIABILITIES, EXPRESS OR IMPLIED ARISING BY LAW OR OTHERWISE
WITH REGARD TO ANY NONCONFORMANCE OR DEFECT IN ANY PRODUCT, INCLUDING
BUT NOT LIMITED TO: (A) ANY OBLIGATION, LIABILITY, RIGHT, CLAIM, OR REMEDY IN
TORT, WHETHER OR NOT ARISING FROM THE NEGLIGENCE OF JACOBS LADDER LLC OR
ITS SUPPLIERS (WHETHER ACTIVE, PASSIVE OR IMPUTED) AND (B) ANY OBLIGATION,
LIABILITY, RIGHT, CLAIM OR REMEDY FOR LOSS OF OR DAMAGE TO ANY EQUIPMENT.
THIS DISCLAIMER AND RELEASE SHALL APPLY EVEN IF THE EXPRESS WARRANTY SET
FORTH ABOVE FAILS IN ITS ESSENTIAL PURPOSE.
JACOBS LADDER LLC DISCLAIMS AND DOES NOT PROVIDE ANY EXPRESS WARRANTIES
OR IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR WARRANTY OF FITNESS FOR
A PARTICULAR PURPOSE of the Waist Belt, the Power Supply Cord or the Polar Heart Rate
Monitor. Any warranty from Polar can be found and viewed on www.polarusa.com.
EXCLUSIVE REMEDIES:
For any product described above that fails to conform to its warranty, Jacobs Ladder LLC
Representative will exclusively provide repairs provided the equipment has not been subject to
casualty, misuse, abuse, service or modification performed and not authorized by Jacobs Ladder
LLC representative. Service must be obtained by calling Jacobs Ladder LLC at
1 [phone]. THESE SHALL BE THE SOLE AND EXCLUSIVE REMEDIES OF THE BUYER
FOR ANY BREACH OF WARRANTY.
JACOBS LADDER LLC AND/OR ITS SUPPLIERS SHALL HAVE NO OBLIGATION OR LIABILITY,
WHETHER ARISING IN CONTRACT (INCLUDING WARRANTY), TORT (INCLUDING ACTIVE,
PASSIVE, OR IMPUTED NEGLIGENCE AND STRICT LIABILITY), OR OTHERWISE, FOR
DAMAGE TO THE EQUIPMENT, PROPERTY DAMAGE, LOSS OF USE, REVENUE OR PROFIT,
COST OF CAPITAL, COST OF SUBSTITUTE EQUIPMENT, ADDITIONAL COSTS INCURRED
BY BUYER (BY WAY OF CORRECTION OR OTHERWISE) OR ANY OTHER INCIDENTAL,
SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM
NONDELIVERY OR FROM THE USE, MISUSE OR INABILITY TO USE THE PRODUCT. THIS

!"#$%&'!(#))*+!((,! !
50!
EXCLUSION APPLIES EVEN IF THE ABOVE WARRANTY FAILS OF ITS ESSENTIAL PURPOSE
AND REGARDLESS OF WHETHER SUCH DAMAGES ARE SOUGHT FOR BREACH OF
WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, OR STRICT LIABILITY IN TORT OR
UNDER ANY OTHER LEGAL THEORY.
Maintenance Log
Date
Procedure
Notes

!"#$%&'!(#))*+!((,! !
51!
