Jacto ADVANCE 3000 AM-18 User manual

Operator’s Manual
Englishversion-MI_USA-0350
EDITION - 12/2012
CODE - 907220
ADVANCE 3000AM-18
ADVANCE 3000 VORTEX
WARNING
Read Operator's Manual before setting up, operating, or maintaining
sprayer. Failure to follow safety precautions in this manual an in labels
on the product could result in serious injury or death to the operator or
bystanders.
Keep manual nearby for futher reference. If manual is demaged or
illegible, contact your Jacto dealer or Jacto at the address below for a
replacement.
JACTO INC.
19217 SW 119th Ave
Tualatin, Oregon97062
Tel.: (503) 885-8723
Fax: (800) 511-3671
Toll Free: (800) 522-8610
E-mail: [email protected]
Home page: www.jacto.com


3
Introduction
-Identicationplate ................................................................................................................................04
Safety
-Operator's and owner's responsabilities...............................................................................................05
-Cautions when operating agricultural sprayer......................................................................................06
-Cautions on the maintenance and transportation.................................................................................07
-Electricity supply cables.......................................................................................................................08
-Handling chemicals..............................................................................................................................09
-Safety decals........................................................................................................................................10
Presentation of sprayer
-Advance 3000 AM-18...........................................................................................................................13
-Advance 3000 VORTEX.......................................................................................................................14
-Avaliable versions of Advance 3000 AM-18 and Advance 3000 VORTEX ........................................15
Main components of sprayer
-Suctionlter..........................................................................................................................................16
-Spray pump..........................................................................................................................................17
-Spray control ........................................................................................................................................17
-Nozzles.................................................................................................................................................20
-Chemicals mixer...................................................................................................................................21
-Filler unit (optional)...............................................................................................................................22
-Clean water tank ..................................................................................................................................23
-By pass valve .......................................................................................................................................24
-Container rinse nozzle..........................................................................................................................25
-Foam marker (optional)........................................................................................................................27
-Auxiliary tank .......................................................................................................................................27
-In-linelter(optional)...........................................................................................................................28
-Low pressure gauge kit ( optional) .......................................................................................................28
-PTO Shaft.............................................................................................................................................29
-Cover to acces the hydraulic tank ........................................................................................................29
Operational procedures .............................................................................................................................30
-Choosing the tractor.............................................................................................................................31
-Setting up the tractor............................................................................................................................32
-Ajusting the drawbar.............................................................................................................................32
-Connecting the PTO.............................................................................................................................33
-Installing the control support ................................................................................................................34
-Assembling the booms.........................................................................................................................35
-Installing the nozzle tubes....................................................................................................................39
-Fitting the boom skids ..........................................................................................................................40
-Hydraulic circuit diagram (Advance 3000 VORTEX)............................................................................41
-Hydraulic circuit diagram (Advance AM-18) .........................................................................................42
-Hydraulic system operation .................................................................................................................43
Operation and adjustments
-Spray application technology ...............................................................................................................46
-Nozzles.................................................................................................................................................47
-Calibrating the sprayer ........................................................................................................................51
-Diluting the agrochemicals ...................................................................................................................53
-Track width ...........................................................................................................................................54
Maintenance
-Guidelines ............................................................................................................................................56
-Components.........................................................................................................................................56
-Lubrication table...................................................................................................................................59
-Components lubrication........................................................................................................................59
-Lubrication points .................................................................................................................................60
-Tank side support tube .........................................................................................................................60
-Wide-angle CV PTO Shaft (optional)....................................................................................................61
-Conventional PTO Shaft.......................................................................................................................63
-Belt / agitator .......................................................................................................................................64
-Hydraulic control...................................................................................................................................64
-Steel cable diagram..............................................................................................................................65
-Winter storage......................................................................................................................................66
-Trouble - shooting.................................................................................................................................67
General care
-Handling agricultural sprayer and chemicals .......................................................................................70
-After spraying .......................................................................................................................................70
-Maintenance of the equipment.............................................................................................................70
Statement of limited warranty ....................................................................................................................71
TABLE OF CONTENTS

4
INTRODUCTION
JACTO RESERVES THE RIGHT TO CHANGE SPECIFICATIONS AND DESIGN
WITHOUT PRIOR NOTICE.
Your sprayerhasa plateshowingthe model, serialnumber of themachine and lot(month
and year of manufacture).
ThisinformationisveryimportantsothatJactocankeeprecordsofeventualmodications
made on the material used and on its construction characteristics.
Inrequestingreplacementpartsormaintenance,alwaysspecifythemodel,serialnumber
andlotofyoursprayerforpromptandefcientservice.
IDENTIFICATION PLATE
Jacto, Advance are trademarks registered by Máquinas Agrícolas Jacto S.A.
Theagrochemicalsapplicationisnecessarytoachievehigherandeconomicalproduction.
Sinceapplyingagrochemicalscanpresentriskstohumans,theenvironmentandtocrops,
Jactowantstoensuretheoperatorusesitinaproper,efcient,andsafemanner.
Thoroughlyreadandunderstandthismanualbeforeoperatingthissprayer.Alwayskeeps
this manual on or near the sprayer at all times for quick reference for the proper operation,
maintenance and adjustments to the sprayer.
If you have any questions, contact your Jacto dealer.
This equipment was developed exclusively for chemical spray application.
The sprayer manual refers only to instructions of use and maintenance of
parts and components manufactured by Jacto.
Read it carefully and follow strictly the instructions.
If you have any questions, please contact your Jacto dealer.
MACHINE
MODEL
LOT
MACHINE NO.
WEIGHT

5
This sprayer was carefully designed and built so as
to give you the maximum production, saving, easy operation
and safety.
Therefore, you or anyone else who is going to operate,
maintain and work around this sprayer must read and
understand this manual thoroughly in order to be familiar
with all the operating and maintenance procedures and safety
information related to this sprayer. All accidents can be
prevented if all the safety instructions are correctly followed.
Moreover, always keep this manual close at hand for
quick review in case of doubt.
ATTENTION
FAILURE TO FOLLOW THE SAFETY INSTRUCTIONS
PROPERLY WILL RISK YOUR OWN LIFE AS WELL AS THE
LIFE OF PEOPLE WORKING AND LIVING AROUND YOU.
SAFETY
OPERATOR AND OWNER’S RESPONSABILITIES
According to the standard NR31 - Safety and Healthy Regulation Standard in the Agriculture
Work,itisresponsabilityoftheequipment’sownerandoperatortofollowthechemicalapplication
safety guidelines.
OPERATOR’S RESPONSABILITIES
- Always follow the safety procedures when operating the equipment.
- Always operate the equipment within the limits and restrictions indicated in this manual.
- Thoroughly read and understand this manual prior to using the equipment.
OWNER’S RESPONSABILITIES
- The equipment’s owner must keep the owner’s manual on or near the equipment at all times for the
operator’s reference.
- It’s the employer responsability to provide, properly maintain and train the operator regarding
the use and requirements for adequate IPE (Individual Protection Equipment).
- The employer must to replace or repair the equipment’s components in the event of failure to
ensure the safe operation of the sprayer.
- The employer will be responsible for the operator’s training to ensure a safe application.
ATTENTION: THIS SAFETYALERT SYMBOLIDENTIFIES IMPORTANT
SAFETY MESSAGES. WHEN YOU SEE IT, BE ALERT TO ANY
POSSIBILITY OF PERSONAL INJURY OR DEATH.

6
CAUTIONS WHEN OPERATING AGRICULTURAL SPRAYER
SAFETY
- Beforeoperatingthissprayer,readcarefullyandunderstandthoroughlythismanual.
- Onlyqualiedoperatorsthathavethoroughlyreadandunderstoodtheowner’smanual
should operate this sprayer.
- Do not ingest alcohol or drugs before or during the operation of this sprayer.
- Make sure that all the guards are in place before running the sprayer.
- Do not climb on or come down the sprayer when it is in motion.
- Turn the engine off before leaving the operator's place.
- Thissprayerwasdesignedandmanufacturedtosupportoperationsinthecropsand
onroads,tracks,trailsorpathsinsidefarmswithinthespeedlimitrecommendedby
Jacto(limitof18,64mphintheroutesinsidethefarmand7.46mphwhenspraying).The
useofthesprayerabovethelimitsmentionedisnotapprovedbyJacto.
- This sprayer must be maneuvered in safe places, away from people, animals or any other
situation that offers risks of personal injuries or material damages. Make sure there are no
people near the sprayer before starting the engine.
- Do not make maneuvers or brake abruptly.
- The transportation of people and any loads whatsoever in the sprayer is strictly prohibited in
any circunstances.
ATTENTION: DonottouchPTOshafts,belts,fansoranyothermovingpart
whilethesprayerisrunning.
Keepawayfrommovingpartsandbeverycarefulwithhands,feet,loose
clothes,longhair, etc. If you have any doubts/questions,please request
Jacto Technical Assistance.
- Keep away children, aged people and animals while operating, servicing this sprayer and
even when the sprayer is stored.
- Do not run the pump dry.
- Do not exceed 540 rpm at the PTO.
- The PTO shaft ends must be securely locked to the PTO of the tractor and to the sprayer
tongue.
- The PTO shaft guard must always remain in good repair and fastened by the safety chains.
The PTO shaft must work freely in its interior.
- Make sure the drawbar and the sprayer end are properly connected/fastened.
- Check and change the worn or broken parts.
- Onlyunhitchthesprayeronrmandlevelground.
- Remove the controls installed on the tractor before disconnecting the sprayer.
- Foldthesprayerboomsbeforeunhitchingitfromthetractor.

7
SAFETY
- Activitiesofcleaning,lubrication,repairandadjustmentshouldonlybeperformedbyqualied
andtrainedprofessionalsdulyprotectedwiththeapprovedandproperPPE(PersonalProtective
Equipment ) such as gloves, masks, goggles, safety boots, etc.
- Before performing any type of service, adjustment or maintenance in your sprayer,
alwaysdisengagethePTOshaftandturnoffthetractorengine.
- Itisprohibitedtomakecleaning,lubricationandmaintenanceserviceswiththesprayer
in operation, except if its very operation is essential to make these services. In this case,
allthespecialprotectionandsignalizationmeasuresmustbetakeninordertoprevent
accidents.
- The removable guards can only be removed for maintenance. Then, they must be
obligatorilyplacedbackintheiroriginalposition.
- Do not modify this sprayer in any way because this can impair its function and risk your
safety.
- Keep your sprayer in thorough repair.
- For your and others' safety, remove the sprayer booms before transporting the sprayer on
trailers or trucks.
- Failuretocomplywiththesewarningsmayresultinpersonalinjuriesordeath.
- Jacto neither recommends nor approves the towing or trailing of the sprayer by vehicles, except
by recommended tractors mentionedpreviouslyinthesection"Cautionswhenoperating
agricultural sprayer".
- Theemployinadverseandnotrecommendedconditionscancausedamagetothesprayer
andcomponentsandwillmakevoidthewarrantyaswellasexemptthemanufacturer
fromanyobligationtoanyaccidentorconsequences.
- Forthedisplacementandtransportofthesprayer,theuseoftrucksoratbedsare
recommendedaslongasmeasuresforitsperfectimmobilizationaretakeninorderto
avoid accidents as result of improper accommodation.
CAUTIONS IN THE MAINTENANCE AND TRANSPORTATION
- Require from the JACTO representative during the technical delivery of the sprayer that the
proper instructions on assembly, maintenance, warranty be carefully explained.

8
ELECTRICITY SUPPLY CABLES
SAFETY
- Attention when passing next or under an electricity supply cables. In case of doubt,
change the course.
- Never fold and unfold the booms close to the electricity supply cables.
- Thesprayer must betrailedby the tractorin the farmwiththe spray boomsfolded and locked.
Alwaysplacetheslidingframeatthelowestposition(restpositionofthexedframe).
- Remove the booms of the sprayer before transporting it by wagons or trucks.

9
RED
YELLOW
BLUE
GREEN
SAFETY
Chemicalproductsareclassiedinfourcategoriesoftoxicity.Accordingtotheirtoxicity
level, there is a special recommendation of appropriate protective clothing.
Asyoursafetyconcernsrst,welistbelowalltheprotectiveclothingrecommendedfor
handling chemical products of the category 1 which includes high toxicity level chemicals.
This way, all the possibilities of serious illness and death are eliminated.
HANDLING CHEMICALS
CHEMICAL PRODUCTS CLASSIFICATION
Obligatory individual protective clothing for handling and spraying chemicals:
- Long-sleeved working clothes
- Impermeable apron or coverall
- Impermeable gloves
- Impermeable wide-brimmed hat
- Boots
- Special protective masks equipped with
appropriate filters for each type of product
LABEL COLOR ON
CHEMICALS
CONTAINER
TOXICITY LEVEL
I
II
III
IV
HIGH
MODERATE
LOW
LIGHT
DIRECTIONS
- Read and follow all instructions on the chemicals manufacturer's label.
- Keep the chemical products closed and in a dry and ventilated place.
- Use the chemicals in agriculture only.
- Keep away children, untrained people and animals.
- Handle the chemicals following recommendations of a technician.
- Alwayshandlechemicalsinaventilatedplaceandequippedwithindividualprotectiveclothing.
- Use the application rate as per instructions on the labels.
- Do not make spray applications in the wind or hot weather.
- Do not drink, eat or smoke while spraying or handling chemicals.
- Keep children, untrained people and animals away from the application areas.
- Never blow through nozzles strainers, valves or pipelines by mouth.
- Do not store or transport chemicals together with food, medicines, people, animals.
- Make sure rivers, lakes, etc. will not be contaminated when washing out the sprayer.
- After spraying, take off all protective clothing and take a shower.
- In case of poisoning, go see a doctor immediately and show him the chemicals' label.
- Never medicine an unconscious person through mouth.
- Do not re-use the chemicals containers for other purposes. Consult anagronomist
onhowtodiscardemptycontainersofchemicals.

10
SAFETY INSTRUCTIONS
DECALS
Safety decals are placed on the equipment to reduce the risk of damages or accidents to
the operator or to the equipment during the use.
Before operating the equipment, identify and understand the mean of all decals, through
this page.
Keep them in good repair, clean and legible. Replade them immediately in case of damage
byorderingthemthroughthepartnumbersspeciedbelow.
P/N: 276220
ATTENTION: Read the
operator's manual of the
sprayerbeforeoperating
the steel cables.
ATTENTION:Lubrication
point
ATTENTION: Area
where the jack must
be placed to lift the
equipment.
P/N: 276238
P/N: 378976
P/N: 378984
ATTENTION: Read the
operator's manual of the
sprayerbeforeoperating
the steel cables.
P/N: 379230
ATTENTION: Read the
operator'smanualbefore
operating the sprayer.
ATTENTION: Risk of serious
injuries. Do not maneuver the
sprayer close to electricity
supply cables.
P/N: 378992
P/N: 379032
ATTENTION: Read the
operator's manual of the
sprayer before operating the
steel cables.
P/N: 379172
ATTENTION: Be careful
when opening the lid of the
main tank.
ATTENTION: Read the
operator's manual before
operating the sprayer.
P/N: 379248

11
SAFETY INSTRUCTIONS
P/N: 379024
ATTENTION: Read the
operator's manual of the
sprayer before operating the
steel cables.
P/N: 379016
ATTENTION: Flow control
directionalvalve.Itdirectsthe
owofthe200or3000-liter
tank to the chemical pump.
P/N: 379040
ATTENTION: Risk of injuries.
Keep away from the sprayer
when it is running.
P/N: 379057
ATTENTION: Risk of serious
injuries.Keepawayanddonot
makeanykindofmaintenance
while the fan is in motion and
the PTO is engaged.
P/N: 379065
ATTENTION: Risk of serious
injuries. Keep all protection
devices in its places.
P/N: 379073
ATTENTION:Cleanwatertank
to wash the hands.
P/N: 379107
ATTENTION: Hydraulic oil
level indicator.
P/N: 379115
ATTENTION: Obligatory use
of protective mask.
P/N: 379123
ATTENTION: Obligatory use
of hearing protector.
P/N: 998328
ATTENTION: Keep at a
distance, risk of collision.

12
SAFETY INSTRUCTIONS
P/N: 379131
ATTENTION: Obligatory use
of protective clothing.
P/N: 379214
ATTENTION: Maximum
speedallowedforthemachine
is 18.64 mph.
P/N: 379222
ATTENTION: This machine
is not allowed in highways.
ATTENTION: Risk of serious
injuries. Do not make any
operation on the PTO shaft
if the PTO is engaged.
P/N: 379008
P/N: 380014
ATTENTION: Do not get into
themain tank of thesprayer.
ATTENTION: Tire
pressure table.
P/N: 379149
ATTENTION: Nut
torque table.
P/N: 379164
P/N: 013169
Final test of the equipment.
P/N: 286930
Sprayer description - left and right
P/N: 293449
Designer sticker - left and right
P/N: 293456
ATTENTION: Actuation of the Vortex
system fan.
P/N: 286948
P/N: 276089
Level indicator of the main tank.
P/N: 997965

13
212.99
118.10
141.73
4,409.24
70.80 to 88.58
22.04 or 23.62
12.4 x 36
36
792.51
Polyethylene
52.83
Polyethylene
3.69
Polypropylene
59.05
1.96 to 5.08
JP-100 / JP-150
26.41 / 39.62
5.6 / 8.5
300/21
Bijet
150
60
37
37
FVS-200
24 / 40
Glycerin-lled
Mechanical
Up to 7.45 mph
2.11
970
ISO VG-68
1.16
Length (in)..............................................................................................
Width (in) ...............................................................................................
Height (in)..............................................................................................
Weight (lb) .............................................................................................
Track width (in) ......................................................................................
Adjustable ground clearance (in) ..........................................................
Tires
- Type.....................................................................................................
- Pressure (psi)......................................................................................
Spray tank
- Capacity (gallons)................................................................................
- Material................................................................................................
Auxiliary tank
- Capacity (gallons)................................................................................
- Material................................................................................................
Clean water tank for washing the hands
- Capacity (gallons)................................................................................
- Material................................................................................................
Booms
- Length (ft)............................................................................................
- Working height (ft)...............................................................................
Chemical pump
- Model...................................................................................................
- Capacity (gpm) at 540 rpm.................................................................
- Power consumption (HP) at 300 psi...................................................
- Maximum working pressure (psi - kg/cm²)........................................
Nozzles
- Double nozzle holder with nondrip valve........................................
- Recommended maximum pressure (psi)
Cone nozzles.......................................................................................
Flat fan nozzles.................................................................................
Number of nozzles (50-cm spacing)
JA-2 (cone - black)..............................................................................
ADI-110.02(atfan-yellow) ..............................................................
Filter
- Model...................................................................................................
- Mesh....................................................................................................
Pressure gauge with extended scale..................................................
Agitation.................................................................................................
Working speed (mph) ............................................................................
Hydraulic pump
- Flow rate (gpm)..................................................................................
- Rotation (rpm) .....................................................................................
- Oil type................................................................................................
- Oil quantity (gallons)...........................................................................
PRESENTATION OF SPRAYER
ADVANCE 3000
AM-18
TECHNICAL SPECIFICATIONS

14
Length (in)...........................................................................................
Width (in) ............................................................................................
Height (in)...........................................................................................
Weight (lb) ..........................................................................................
Track width (in) ..................................................................................
Adjustable ground clearance (in)......................................................
Tires
- Type..................................................................................................
- Pressure (psi)...................................................................................
Spray tank
- Capacity (gallons).............................................................................
- Material.............................................................................................
Auxiliary tank
- Capacity (gallons).............................................................................
- Material.............................................................................................
Clean water tank for washing the hands
- Capacity (gallons).............................................................................
- Material.............................................................................................
Booms
- Length (ft).........................................................................................
- Working height (ft)...........................................................................
Chemical pump
- Model................................................................................................
- Capacity (gpm) at 540 rpm.............................................................
- Power consumption (HP) at 300 psi...............................................
- Maximum working pressure (psi - kg/cm²) ....................................
Nozzles
- Double nozzle holder with nondrip valve........................................
- Recommended maximum pressure (psi)
Cone nozzle .....................................................................................
Flat fan nozzle.................................................................................
Number of nozzles ( 50-cm spacing)
JA-2 (cone - black) ...........................................................................
ADI-110.02(atfan-yellow) ...........................................................
Filter
- Model................................................................................................
- Mesh.................................................................................................
Pressure gauge ..................................................................................
Agitation..............................................................................................
Working speed (mph) ........................................................................
Fan
- Rotation (rpm) ..................................................................................
- Air volume (ft³/min)..........................................................................
- Air speed (mph)................................................................................
- Maximum power consumption (HP)...............................................
Double hydraulic pump
- Flow rate of the fan pump (gpm)....................................................
- Flow rate of the boom pump (gpm)...............................................
- Rotation (rpm) ..................................................................................
- Oil type.............................................................................................
- Oil quantity on the circuit (gallons).................................................
PRESENTATION OF SPRAYER
TECHNICAL SPECIFICATIONS
224.80
118.10
141.73
4,717.80
70.80 to 88.58
22.04 or 23.62
12.4 x 36
30
792.51
Polyethylene
52.83
Polyethylene
3.69
Polypropylene
59.05
1.96 to 5.08
JP-100 / JP-150
26.41 / 39.62
5.6 / 8.5
300/21
Bijet
150
60
37
37
FVS-200
24 / 40
Glycerin-lled
Mechanical
Up to 7.45 mph
2900 to 3000
23,554.88
62.13
25
18.49
2.11
1570
ISO VG-68
20.60
ADVANCE 3000
VORTEX

15
PRESENTATION OF SPRAYER
SPRAY CONTROL MODELS
ADVANCE 3000 AM-18 AND ADVANCE 3000 VORTEX
MANUAL
CABLE
CABLE
ELECTRIC
ELECTRIC
4-WAY MASTERFLOW
CONTROL
SPRAY
MANUAL..................................
CABLE.....................................
CABLE WITH JSC...................
ELECTRIC...............................
ELECTRO-ELECTRONIC
OPERATION
BOOMS
PRESSURE
ADJUSTMENT
MANUAL
MANUAL
ELECTRONIC
MANUAL
ELECTRONIC
LEVER
CABLE
CABLE
ELECTRIC
ELECTRIC
JEC-3300 (AM-18)
JEC-3500 (VORTEX)
JEC-3200 (AM-18)
JEC-3400 (VORTEX)
JSC-4100
JSC-5000
JSC-5000
NOZZLE-HOLDER......................................
NOZZLE SPACING .....................................
PUMP...........................................................
FILLER UNIT...............................................
PTO SHAFT
HITCH..........................................................
TIRE.............................................................
ADVANCE 3000 AM-18 AND ADVANCE 3000 VORTEX- OPTIONS
MODEL.........
NOZZLES.....
MODEL.........
MODEL.........
MODEL.........
MODEL.........
MODEL.........
QUADRIJET
TO BE DEFINED DURING
THE BUY
13.77 in
JP-150
FONTE LIMPA
(WITH QUICK FITTING)
WIDE-ANGLE C.V.
FIXED or ARTICULATED
16.9 X 30 - 24 PSI

16
21
21
MAIN COMPONENTS OF SPRAYER
SUCTION FILTER
Locatedbetweenthetankandspraypump,thesuctionlterisspecicallydesigned
to prevent dirt or impurities from reaching the pump.
Ithasaquickshut-offvalvewhichallowseasyltercleaning,lteringelements
changing and/or pump maintenance.
FVS - 200
CHEMICAL PUMP
Thechemicalpumpsusedinthe ADVANCEandADVANCEVORTEXsprayershavecapacity
ranging from 26.41 to 39.62 gallons per minute at 540 rpm at the PTO.
CHEMICAL PUMP
MODEL FLOW RATE
(gpm) MAXIMUM WORKING PRESSURE
26.41
39.62
300
300
psi kgf/cm²
Its ceramic sleeves ensure great resistance to abrasion and chemical action.
Piston cup replacement becomes easier by removing the head assembly in a quick and
simple operation, with no need to remove the pump.
JP - 100
JP - 150
JP-150
JP-100
shut-off
valve

17
MAIN COMPONENTS OF SPRAYER
ATTENTION
In order to ensure longer life of the pressure gauge, after calibrating the sprayer, turn off
the control, thus releasing the pressure, and close the pressure gauge valve.
MASTERFLOW SPRAY CONTROL
Besides providing great sensitiveness and precision in the adjustments, it has basic
functional characteristics in relation to conventional controls.
- LEVERS OPERATION
The levers can be operated through cables or electric switches.
- FLOW PROPORTIONAL TO ROUTING
Within a same working gear, even if the engine rotation is changed, the application rate
per area sprayed remains unchanged.
- KEEPS THE SAME PRESSURE ALONG THE WHOLE BOOM REGARDLESS OF NUM-
BER OF BOOM SECTIONS IN USE
It has a system that allowstocalibrate the return ofeach boomsection and keep constant
the pressure, regardless of the number of sections on or off.
DIFFERENT CONTROL OPTIONS
Your equipment can be equipped with one of the following spray controls.
- MASTERFLOW spray control with cable actuation
- MASTERFLOW spray control with cable actuation and JSC
- MASTERFLOW spray control with electric actuation
- MASTERFLOW spray control with electric actuation and JSC
The instructions for the control calibration are practically the same, except for turning on
andoffthechemicalowtothebooms,whichcanbemadethroughcableorelectricswitch.
Identify in the gures below which is the control installed in your sprayer and proceed
as described in the section MAIN COMPONENTS OF SPRAYER - CALIBRATING THE
MASTERFLOW SPRAY CONTROL.

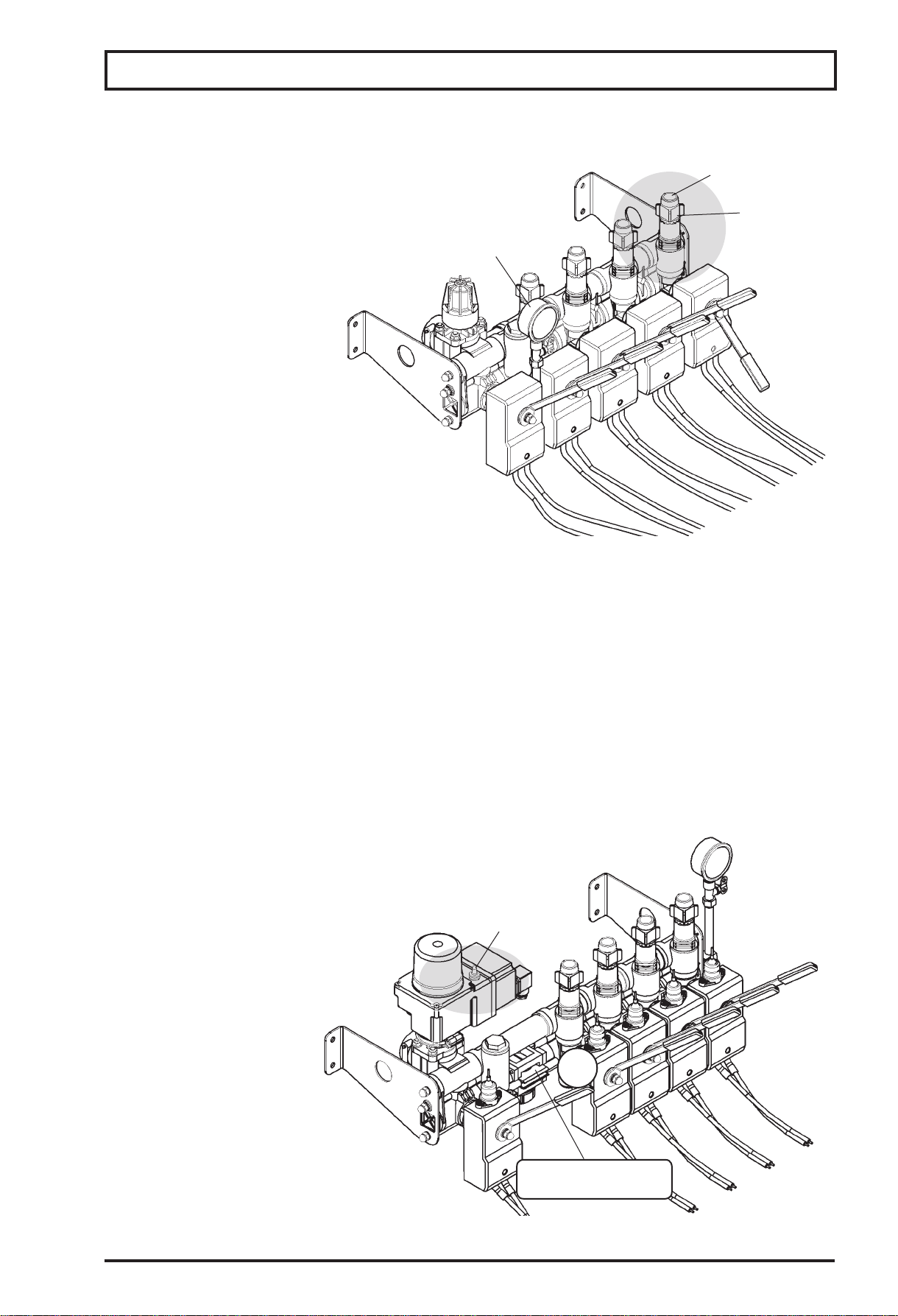

CABLE CONTROL
CABLE CONTRO WITH JSC
pressure regu-
lator
pressure
gauge boom sections
ELECTRIC CONTROL
ELECTRIC CONTROL WITH JSC
pressure regu-
lator
pressure
gauge
relief boom
section
owmeter
(forusewithJSC)
NOTE:TheJSC(JACTOSPRAYERCONTROL)isaowcontrollerthatkeepsthesprayingvo-
lume(L/ha)alwaysconstant,regardlessofspeeductuationswithorwithout
changeintheworkinggear,besidesmonitoringthesprayapplication.

18
MAIN COMPONENTS OF SPRAYER
CALIBRATING THE MASTERFLOW SPRAY CONTROL
To calibrate the working pressure, proceed as follows:
CABLE CONTROL
01 -Engage the PTO and accelerate gradually until reaching 540 rpm.
02-Setallleverstoturnonthechemicalow.(Fig.A)
03 -Turn the pressure regulator clockwise to increase the pressure in the circuit. Turn it coun-
terclockwise to decrease the pressure in the circuit.
NOTE: As a reference for the calibration, keep the pressure at 60 psi, for example.
ATTENTION:Set thepresure regulatorneedle atthe reference pressuretocalibrate theboom
sections (Ex. 60 psi).

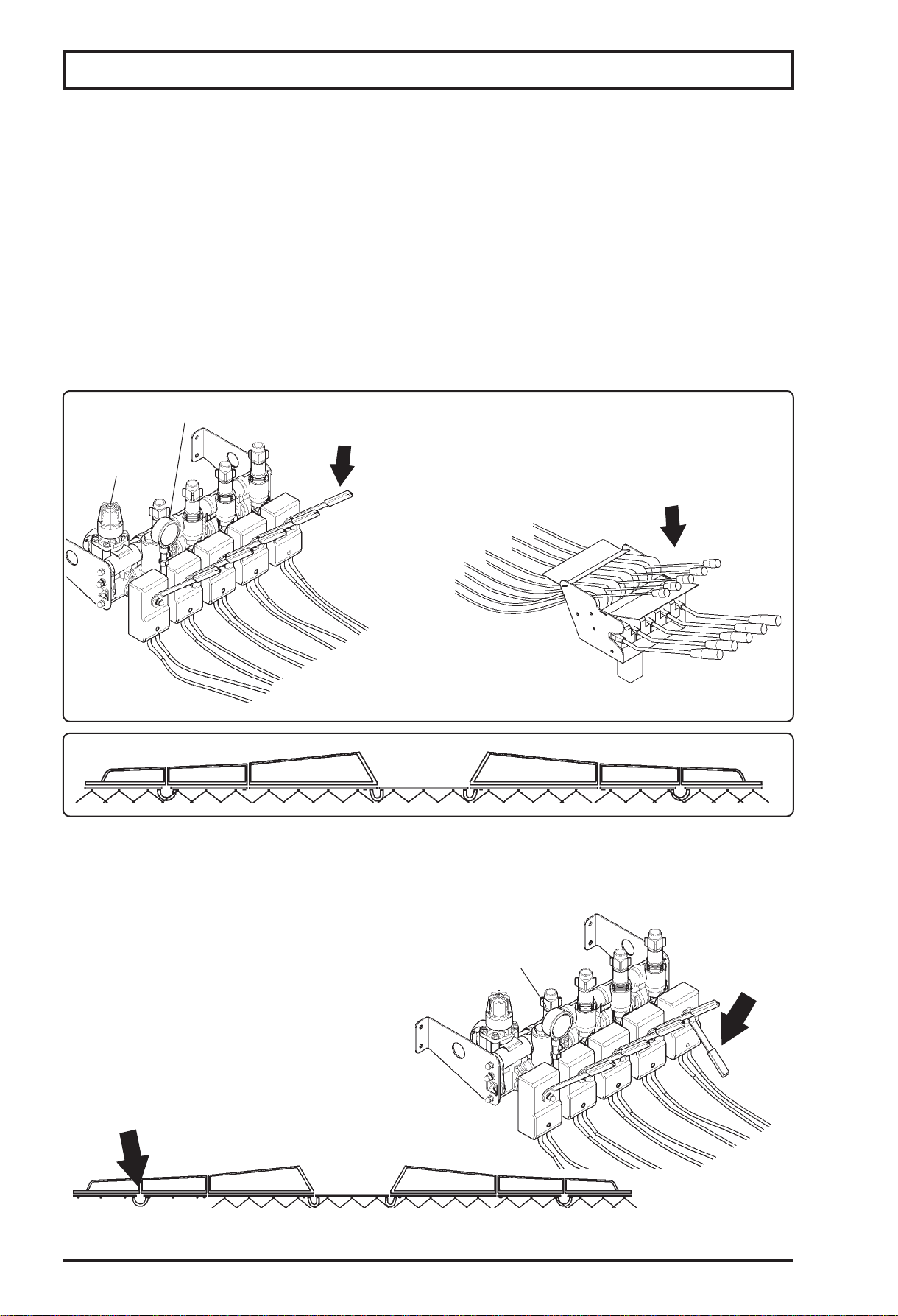

CALIBRATING THE CHEMICAL RETURN PRESSURE TO THE TANK
lever setting to turn
on the chemical
owtothebooms
Pressure gauge (Ex. 60 psi)
pressure regu-
lator
lever setting
to turn on the
chemicalowtothe
booms
A
EDCB
ABDE
C
01 -Choose one of the boom sections and set the
correspondinglevertoturnoffthechemicalow.
NOTE: Other levers must remain set to continue to spray.
setting to turn
offtheow
to the boom
section
boom section off
60 psi
g.B
g.A

19
02-Checkiftherewasuctuationinthepressureregisteredonthepressuregauge(60psi).
If so, prodeed as follows:
-Loosenthexingscrew.
-Turn the grip clockwise all the
way and then counterclockwise
to set the pessure gauge needle
at 60 psi.
-Tightenthexingscrew.
Take care not to change the
grip position.
pressure
gauge
(60 psi)
xingscrew
grip
MAIN COMPONENTS OF SPRAYER
NOTE: Once the boom section is calibrated, set the lever back.The pressure must be the
sameas indicatedpreviously on thepressure gauge(60psi), when this sectionnozzles are on.
-Repeat the same operation on the other boom sections in order to keep constant pressure
along the entire boom.
ATTENTION:Do notchange the engine rotation during the calibration.Achange in therotation
willchangethepressureonthenozzlesandthereforetheirowrate.
CABLE CONTROL AND JSC
To calibrate the pressure on the control with the JSC, the procedures are the same, except
for pressure adjustment, which in this control is not manual but made through an electric
system.
PRESSURE ADJUSTMENT:
- With the pump running at 540 rpm
and the system energized, press the
electric switch until obtaining the
working pressure desired.
For this operation, the
"Automatic/Manual" switch
of the JSC-5000 must be
on the "Manual" position.
-To calibrate the boom sections, proceed as described above.
pressure
adjustment
switch
owmeter
P

20

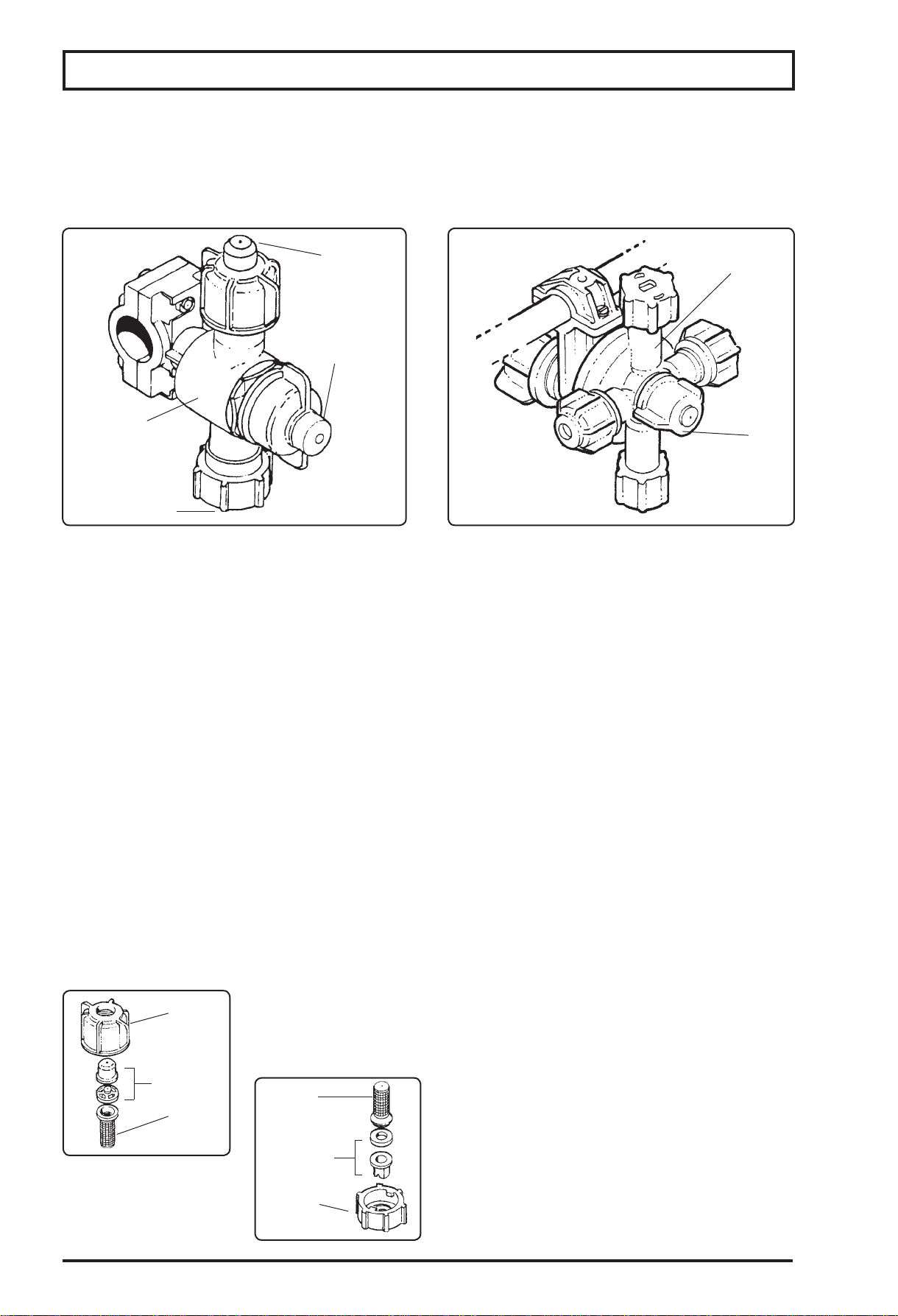

NOZZLEHOLDERS(MODELS:BIJET&QUADRIJET)
TheBIJETdoublenozzleholderismountedwithaconeandaatfannozzlemadeofceramic.
TheQUADRIJETquadruplenozzleholderismountedwithtwoconeandtwoatfannozzlesmade
of ceramic.
Bothnozzleholdershaveanondripvalvewhichcutstheliquidowoncethepressuredrops
to
10 psi, thus preventing them from leaking.
MAIN COMPONENTS OF SPRAYER
nozzle holder
(1)
atfannozzle
nondrip
valve
cone no-
zzle
Positioning a nozzle:
- The proper position of the nozzle is at 90º
(vertical) in relation to the boom. To use the
othernozzle,justturnthenozzleholder (1)180º.
Shutting a nozzle:
- Just turnthenozzleholdertoset bothnozzles
parallel to the boom (in the horizontal), 90° of
a turn.
1
nozzle holder
Positioning a nozzle:
- Loosenthenut(1)with two turns.Position
the chosen nozzle and retighten the nut.
Shutting a nozzle:
- Loosen the nut (1) with two turns and
turn the nozzle holder to 45º. Retighten the
nut.
NOZZLES
The nozzles have the function to generate droplets and distribute them uniformly over
the area being sprayed.
Operating with pressure over that recommended by the manufacturer will decrease
the nozzle's life, besides increasing drift , environmental contamination and and changes
regardingtheowrate,angleanddropletsize.
The nozzles used in this sprayer are made of ceramic, a material very resistant to wear
and chemical action.
Thenozzlesaremountedasshownintheguresbelow.
nozzle
cap
lter
nozzle
cap
lter
cone
nozzle
atfan
nozzle
CONE NOZZLE:Thisnozzleisttedintothenozzleholderthrougha
screw cap, which fact allows to use it at high pressures.
FLAT FAN NOZZLE:Thisnozzleisttedinto
thenozzleholderthroughaquickttingcapfor
more practicability in eventual maintenance,
which fact allows to use it at pressure of up
to 7 kgf/pol² (100 psi).
This manual suits for next models
1
Table of contents
Other Jacto Farm Equipment manuals
