Jacuzzi K272000AF User manual

BUILDER/COMFORT BATH SERIES
ELECTRONIC & MANUAL CONTROLS
INSTALLATION AND OPERATING INSTRUCTIONS
Installer: Leave this manual for homeowner.
Homeowner: Read this manual and keep for future reference.
©2005 Jacuzzi Whirlpool Bath K272000AF 7/06
Owner's Record
Save These Instructions for Future Use.
Date Purchased ____________________________________________________________
Purchased From ____________________________________________________________
Installed By ________________________________________________________________
Serial Number _____________________________________________________________
Model_____________________________________________________________________

ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS
WARNING — WHEN USING THIS UNIT, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED,
INCLUDING THE FOLLOWING:
DANGER — TO REDUCE THE RISK OF INJURY, DO NOT PERMIT CHILDREN TO USE THIS UNIT
UNLESS THEY ARE CLOSELY SUPERVISED AT ALL TIMES.
WARNING — USE THIS UNIT ONLY FOR ITS INTENDED USE AS DESCRIBED IN THIS MANUAL. DO
NOT USE ATTACHMENTS NOT RECOMMENDED BY THE MANUFACTURER.
WARNING — NEVER DROP OR INSERT ANY OBJECT INTO ANY OPENING.
WARNING — DO NOT OPERATE THIS UNIT WITHOUT THE GUARD OVER THE SUCTION FITTING.
WARNING — THIS UNIT MUST BE CONNECTED ONLY TO A SUPPLY CIRCUIT THAT IS PROTECTED
BY A GROUND FAULT CIRCUIT INTERRUPTER (GFCI). SUCH A GFCI SHOULD BE PROVIDED BY
THE INSTALLER AND SHOULD BE TESTED ON A ROUTINE BASIS. TO TEST THE GFCI, PUSH THE
TEST BUTTON. THE GFCI SHOULD INTERRUPT POWER. PUSH THE RESET BUTTON. POWER
SHOULD BE RESTORED. IF THE GFCI FAILS TO OPERATE IN THIS MANNER, THE GFCI IS
DEFECTIVE. IF THE GFCI INTERRUPTS POWER TO THE BATHTUB WITHOUT THE TEST BUTTON
BEING PUSHED, A GROUND CURRENT FLOWING, INDICATING A POSSIBILITY OF AN ELECTRIC
SHOCK. DO NOT USE THIS HYDROMASSAGE BATHTUB. DISCONNECT THE HYDROMASSAGE
BATHTUB AND HAVE THE PROBLEM CORRECTED BY A QUALIFIED SERVICE REPRESENTATIVE
BEFORE USING.
WARNING — (FOR PERMANENTLY CONNECTED UNITS) A GREEN COLORED TERMINAL (OR A WIRE
CONNECTOR MARKED “G”, “GR”, “GROUND”, OR “GROUNDING”) IS PROVIDED WITHIN THE TERMINAL
COMPARTMENT. TO REDUCE THE RISK OF ELECTRIC SHOCK, CONNECT THE TERMINAL OR
CONNECTOR TO THE GROUNDING TERMINALOFYOURELECTRICSERVICEORSUPPLYPANEL WITH
A CONDUCTOR EQUIVALENT IN SIZE TO THE CIRCUIT CONDUCTORS SUPPLYING THIS EQUIPMENT.
OPERATING INSTRUCTIONS
WARNING — PROLONGED IMMERSION IN HOT WATER MAY INDUCE HYPERTHERMIA. HYPER-
THERMIA OCCURS WHEN THE INTERNAL TEMPERATURE OF THE BODY REACHES A LEVEL SEV-
ERAL DEGREES ABOVE THE NORMAL BODY TEMPERATURE OF 98.6°F. THE SYMPTOMS OF
HYPERTHERMIA INCLUDE AN INCREASE IN THE INTERNAL TEMPERATURE OF THE BODY, DIZZI-
NESS, LETHARGY, DROWSINESS AND FAINTING. THE EFFECTS OF HYPERTHERMIA INCLUDE:
A) FAILURE TO PERCEIVE HEAT
B) FAILURE TO RECOGNIZE THE NEED TO EXIT THE SPA OR HOT TUB,
C) UNAWARENESS OF IMPENDING HAZARD,
D) FETAL DAMAGE IN PREGNANT WOMEN,
E) PHYSICAL INABILITY TO EXIT THE SPA OR HOT TUB, AND
F) UNCONSCIOUSNESS RESULTING IN DANGER OF DROWNING.
WARNING — THE USE OF ALCOHOL, DRUGS OR MEDICATION CAN GREATLY INCREASE THE
RISK OF FATAL HYPERTHERMIA.
WARNING — DO NOT TAMPER WITH USER-OPERATED CONTROLS OR SUCH DEVICES.
2
Jacuzzi Whirlpool Bath K272000AF 7/06

ENGLISH
NOTE: This is a professional grade product. A knowledge of construction techniques, plumbing and electri-
cal installation according to codes are required for proper installation and user satisfaction. We recommend
that a licensed contractor perform the installation of all Jacuzzi Whirlpool Bath products. Our warranty does
not cover improper installation related problems.
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
USE INSTALLATION INSTRUCTIONS SUPPLIED WITH PRODUCT.
The Company has obtained applicable code (standards) listings generally available on a national basis for products of this type.
It is the responsibility of the installer/owner to determine specific local code compliance prior to installation of the product. The
Company makes no representation or warranty regarding, and will not be responsible for any code compliance.
PRECAUTIONS
••
••
•Do not operate the hydromassage system unless the bath is filled with water to at least 1" to 2" (2,5 - 5,08 cm) above the
highest jet.
••
••
•Do not immerse the control panel by overfilling the bath.
••
••
•Do not use oil-based bath additives in your hydromassage bath.
••
••
•When cleaning your bath, do not use abrasive substances which will damage the bath's surface.
••
••
•To prevent discoloration of the acrylic finish, do not fill the bath with water in excess of 140°F (60°C).
WARNING — WHEN USING THIS UNIT, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED,
INCLUDING THE FOLLOWING:
DANGER — RISK OF ELECTRIC SHOCK. CONNECT ONLY TO A CIRCUIT PROTECTED BY A GROUND
FAULT CIRCUIT INTERRUPTER (GFCI).
CAUTION — TEST THE GROUND FAULT CIRCUIT INTERRUPTER PROTECTING THIS APPLIANCE
PERIODICALLY IN ACCORDANCE WITH MANUFACTURER’S INSTRUCTIONS.
WARNING — USE THIS UNIT ONLY FOR ITS INTENDED USE AS DESCRIBED IN THIS MANUAL. DO NOT
USE ATTACHMENTS NOT RECOMMENDED BY THE MANUFACTURERS.
WARNING—TOAVOIDINJURY,EXERCISECAUTIONWHENENTERINGOREXITINGTHEHYDROMASSAGEBATHTUB.
WARNING — KEEP BODY AND HAIR A MINIMUM OF 6" AWAY FROM SUCTION FITTING AT ALL TIMES
WHEN THE HYDROMASSAGE SYSTEM IS OPERATING. HAIR LONGER THAN SHOULDER LENGTH
SHOULD BE SECURED CLOSE TO THE HEAD.
WARNING—RISKOFELECTRICALSHOCK;DONOTPERMITELECTRICALAPPLIANCES(SUCHASHAIRDRYER,
LAMP, TELEPHONE, RADIO OR TELEVISION) WITHIN 60" (1.5 M) OF THIS HYDROMASSAGE BATHTUB.
WARNING — RISK OF ACCIDENTAL INJURY OR DROWNING; DO NOT USE DRUGS OR ALCOHOL
BEFORE OR DURING THE USE OF HYDROMASSAGE BATHTUB EQUIPPED WITH A HEATER TO AVOID
UNCONSCIOUSNESS AND POSSIBLE DROWNING.
WARNING — RISK OF FETAL INJURY; PREGNANT OR POSSIBLY PREGNANT WOMEN SHOULD
CONSULT A PHYSICIAN BEFORE USING A HYDROMASSAGE BATHTUB EQUIPPED WITH A HEATER.
WARNING — RISK OF HYPERTHERMIA AND POSSIBLE DROWNING; DO NOT USE A HYDROMASSAGE
BATHTUB EQUIPPED WITH A HEATER IMMEDIATELY FOLLOWING STRENUOUS EXERCISE.
WARNING—RISKOFHYPERTHERMIAANDPOSSIBLEDROWNING;WATERTEMPERATUREIN EXCESS
OF 104°F (40°C) MAY BE INJURIOUS TO YOUR HEALTH. CHECK AND ADJUST WATER TEMPERATURE
BEFORE USE.
WARNING — RISK OF HYPERTHERMIA; PEOPLE USING MEDICATIONS AND/OR HAVING AN ADVERSE
MEDICAL HISTORY SHOULD CONSULT A PHYSICIAN BEFORE USING A HYDROMASSAGE BATHTUB
EQUIPPED WITH A HEATER.
FOR BUILT-IN AND DROP-IN UNITS, INSTALL TO PERMIT ACCESS FOR SERVICING.
THIS UNIT SHOULD BE ELECTRICALLY GROUNDEDAND INSTALLED BYALICENSED CONTRACTOR,
ELECTRICIAN, AND PLUMBER.
BUILDING MATERIALS AND WIRING SHOULD BE ROUTED AWAY FROM THE MOTOR/PUMP OR
BLOWER OR OTHER HEAT PRODUCING COMPONENTS OF THIS UNIT.
A PRESSURE WIRE CONNECTOR IS PROVIDED ON THE EXTERIOR OF THE MOTOR/PUMP AND
HEATER TO PERMIT CONNECTION OF AN NO. 8 AWG (8.4 MM) SOLID COPPER BONDING CONDUCTOR
BETWEEN THIS UNIT AND ALL OTHER ELECTRIC EQUIPMENT AND EXPOSED METAL IN THE VICINITY,
AS NEEDED TO COMPLY WITH LOCAL REQUIREMENTS.
INSTALLATION INSTRUCTIONS
3
Jacuzzi Whirlpool Bath K272000AF 7/06

ENGLISH
CONTENTS
Safety Instructions _____________________________________________________________________ 2-3
Contents _____________________________________________________________________________ 4
Specifications _________________________________________________________________________ 5-9
Roughing-in __________________________________________________________________________ 10-17
Cutout ______________________________________________________________________________ 17
Installation Instructions __________________________________________________________________ 18-24
Framing and Support _________________________________________________________________ 18
Skirts ______________________________________________________________________________ 19
Service Access _____________________________________________________________________ 20
Electrical Connections ________________________________________________________________ 21
Plumbing and Water Supply ___________________________________________________________ 22
Undermount Installation Instructions _____________________________________________________ 23-24
Operation ____________________________________________________________________________ 25-26
Maintenance __________________________________________________________________________ 27
General Troubleshooting Guide ___________________________________________________________ 28
Authorized Service _____________________________________________________________________ 30
Warranty _____________________________________________________________________________ 31-32
NOTE: If you need a referral for a service company near you, or need assistance with operation or maintenance
related questions, please call our USA Service Support Department at 1-800-288-4002. Visit our web site at http:/
/www.jacuzzi.com/ for products and services.
To find service agent listings for:
Electrical or Mechanical Repairs visit http://jacuzzi.com/pdf/ASA.PDF
Finish, Surface, or Shell-Related Repairs visit http://jacuzzi.com/pdf/AFC.PDF
Repair Parts or Accessories visit http://jacuzzi.com/pdf/MPD.PDF
4
Jacuzzi Whirlpool Bath K272000AF 7/06

ENGLISH
Important: Read complete instructions before beginning installation.
Each whirlpool bath arrives ready for installation, completely equipped with motor/pump assembly and plumbing and fittings
necessary for whirlpool operation. An optional drain/overflow kit is available for installation on the bath.
Remove the bath from the carton. Retain the shipping carton until satisfactory inspection of the product has been made. Do
not lift the bath by the plumbing at any time; handle by the shell only.
Immediately upon receipt, inspect the shell before installing. Should inspection reveal any damage or defect in the finish, do
not install the bath. Damage or defect to the finish claimed after the bath is installed is excluded from the warranty. Jacuzzi
Whirlpool Bath responsibility for shipping damage ceases upon delivery of the products in good order to the carrier. Refer any
claims for damage to the carrier. For definitions of warranty coverage and limitations, refer to the published warranty informa-
tion packed with the product.
All bath units are factory tested for proper operation and watertight connections prior to shipping. NOTE: Prior to installa-
tion, the bath must be filled with water and operated to check for leaks that may have resulted from shipping damage
or mishandling. Jacuzzi Whirlpool Bath is not responsible for any defect that could have been discovered, repaired, or
avoided by following this inspection and testing procedure.
Not all tubs shown may be available as export units. Export tubs come with MANUAL controls and may come:
• with Pump/motor packaged separately,
• with Pump/motor installed,
• with NO overflow cutout.
Because of the variety of export tub types some instructions may not apply to your unit. Disregard instructions that do not
apply to your specific tub.
BATHS WITHOUT INTEGRAL SKIRT
END VIEW
H
W
SIDE VIEW
L
2"
(51 mm)
BATHS WITH 3-SIDED TILE FLANGE
L
1"
(25 mm)
H
W
SIDE VIEW END VIEW
L
1"
(25 mm)
H
W
SIDE VIEW
BATHS WITH INTEGRAL SKIRT
END VIEW
SPECIFICATIONS (Rectangular) LH = Left Hand, RH = Right Hand
MODEL
PRODUCT
WEIGHT
OPERATING
GALLONAGE
TOTAL WEIGHT/
FLOOR LOADING
DIMENSIONS
DRAIN/OVERFLOW
DIMENSIONS SKIRT &
MOUNTING
CUTOUT
HEATER READY
FOR FIELD
INSTALLATION
AMIGA™
LH & RH
72" (1829 mm) L*
36" ( 914 mm) W
20-3/4" ( 533 mm) H
772 lb
(351 kg)/
43 lb/ft2
(210 kg/m2)
50 U.S. gal
(186 liters)
105 lb
(48 kg)
16-7/8" (429 mm) A
14" (356 mm) B
Optional,
U-Frame
70" x 34"
(1778 mm x
864 mm)
NOTE: The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
FOR ALL UNITS: Electrical Service Requirements: All require a dedicated GFCI protected separate circuit.
(Optional) RapidHeatTM: 115 VAC, 15 AMP, 60 Hz. dedicated GFCI protected separate circuit.
Motor/Pump: 115 VAC, 15 Amp, 60 Hz. dedicated GFCI protected separate circuit.
*Add 1/4" (6,4 mm) to this dimension when roughing-in for 3-wall niche.
BIANCA©
LH
72" (1829 mm) L*
48" (1219 mm) W
20-1/2" ( 521 mm) H
993 lb
(451 kg)/
41 lb/ft2
(200 kg/m2)
73 U.S. gal
(276 liters) 135 lb
(61 kg)
16" (406 mm) A
8-1/2" (216 mm) B Optional,
U-Frame
70" x 46"
(1778 mm x
1168 mm)
AMIGA™
WITH INTEGRAL
SKIRT
LH & RH
72" (1829 mm) L*
36" ( 914 mm) W
20-3/4" ( 533 mm) H
796 lb
(362 kg)/
44 lb/ft2
(214 kg/m2)
50 U.S. gal
(186 liters)
129 lb
(59 kg)
16-7/8" (429 mm) A
14" (356 mm) B
Integral
NA
CETRA©
WITH INTEGRAL
SKIRT
LH & RH
60" (1524 mm) L*
32" ( 813 mm) W
20-1/2" ( 521 mm) H
727 lb
(330 kg)/
55 lb/ft2
(268 kg/m2)
46 U.S. gal
(174 liters)
94 lb
(43 kg)
17-7/8" (454 mm) A
9-3/8" (238 mm) B
Integral
NA
CETRA©536
LH & RH
60" (1524 mm) L*
36" ( 914 mm) W
21-1/4" ( 553 mm) H
742 lb
(337 kg)/
50 lb/ft2
(244 kg/m2)
48 U.S. gal
(181 liters)
92 lb
(42 kg)
Optional
U-Frame
58" x 34-1/4"
(1473 mm x
870 mm)
18-1/2" ( 470 mm) A
9" ( 229 mm) B
CETRA© 532
LH & RH
60" (1524 mm) L*
31-7/8" ( 791 mm) W
21-1/4" ( 553 mm) H
697 lb
(317 kg)/
53 lb/ft2
(259 kg/m2)
43 U.S. gal
(163 liters)
89 lb
(41 kg)
Optional
U-Frame
58" x 30-1/4"
(1473 mm x
768 mm)
18-1/2" ( 470 mm) A
9" ( 229 mm) B
RECTANGULAR BATHS
SPECIFICATIONS
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
5
Jacuzzi Whirlpool Bath K272000AF 7/06
DRAIN/OVERFLOW
A
B

ENGLISH
6
Jacuzzi Whirlpool Bath K272000AF 7/06
SPECIFICATIONS (Rectangular) LH = Left Hand, RH = Right Hand
MODEL PRODUCT
WEIGHT
OPERATING
GALLONAGE
TOTAL WEIGHT/
FLOOR LOADING
DIMENSIONS DRAIN/OVERFLOW
DIMENSIONS
SKIRT &
MOUNTING
CUTOUT
HEATER READY
FOR FIELD
INSTALLATION
*Add 1/4" (6,4 mm) to this dimension when roughing-in for 3-wall niche.
60" (1524 mm) L*
30" ( 762 mm) W
20-1/4" ( 483 mm) H
662 lb
(301 kg)/
53 lb/ft2
(259 kg/m2)
38 U.S. gal
(144 liters)
95 lb
(43 kg)
16-3/4" (425 mm) A
9-1/4" (235 mm) B
Integral
NALUXURA™ 530
WITH INTEGRAL
SKIRT
LH & RH
LUXURA™ 5
WITH INTEGRAL
3-SIDED TILE
FLANGE
LH & RH
60" (1524 mm) L*
32" ( 813 mm) W
20-1/4" ( 514 mm) H
697 lb
(264 kg)/
52 lb/ft2
(254 kg/m2)
44 U.S. gal
(167 liters)
80 lb
(36 kg)
15-1/4" (387 mm) A
8-1/4" (210 mm) B
Optional,
U-Frame
NA
Molded-in
Tile Flange
LUXURA™5
WITH INTEGRAL
SKIRT
LH & RH
60" (1524 mm) L
32" ( 813 mm) W
20-1/4" ( 514 mm) H
700 lb
(318 kg)/
53 lb/ft2
(259 kg/m2)
42 U.S. gal
(159 liters)
100 lb
(45 kg)
15-1/4" (387 mm) A
8-1/4" (210 mm) B
Integral
LUXURA™ 5.5
LH & RH
66" (1676 mm) L*
34" ( 864 mm) W
20" ( 508 mm) H
823 lb
(374 kg)/
53 lb/ft2
(259 kg/m2)
58 U.S. gal
(220 liters)
90 lb
(41 kg)
15-1/4" (387 mm) A
8-3/8" (213 mm) B
Optional,
U-Frame
64" x 32"
(1626 mm x
813 mm)
CETRA©536
WITH INTEGRAL
SKIRT
LH & RH
60" (1524 mm) L*
36" ( 914 mm) W
21-1/4" ( 553 mm) H
742 lb
(337 kg)/
50 lb/ft2
(244 kg/m2)
48 U.S. gal
(181 liters)
92 lb
(42 kg)
IntegralNA
18-1/2" ( 470 mm) A
9" ( 229 mm) B
MAJORA©5
LH & RH
60" (1524 mm) L*
42" (1067 mm) W
19-1/2" ( 495 mm) H
728 lb
(331 kg)/
42 lb/ft2
(205 kg/m2)
46 U.S. gal
(172 liters)
95 lb
(43 kg)
15" (381 mm) A
8-3/4" (222 mm) B
Not
Available
58" x 40"
(1473 mm x
1016 mm)
MAJORA©6
LH & RH
72" (1829 mm) L*
42" (1067 mm) W
19-3/4" ( 502 mm) H
937 lb
(423 kg)/
44 lb/ft2
(215 kg/m2)
70 U.S. gal
(265 liters)
104 lb
(47 kg)
15-5/8" (397 mm) A
10-1/2" (267 mm) B
Not
Available
70" x 40"
(1778 mm x
1016 mm)
MAJORA©6
WITH INTEGRAL
SKIRT
LH & RH
72" (1829 mm) L*
42" (1067 mm) W
19-3/4" ( 502 mm) H
947 lb
(430 kg)/
45 lb/ft2
(220 kg/m2)
70 U.S. gal
(265 liters)
114 lb
(52 kg)
15-5/8" (397 mm) A
10-1/2" (267 mm) B
Integral
NA
MITO©5
LH & RH
60" (1524 mm) L*
42" (1067 mm) W
21" ( 533 mm) H
866 lb
(394 kg)/
50 lb/ft2
(244 kg/m2)
62 U.S. gal
(235 liters)
100 lb
(45 kg)
17-1/2" (445 mm) A
11-7/8" (302 mm) B
Optional,
U-Frame
58" x 40"
(1473 mm x
1016 mm)
72" (1829 mm) L*
42" (1067 mm) W
21-1/2" ( 546 mm) H
993 lb
(451 kg)/
47 lb/ft2
(229 kg/m2)
76 U.S. gal
(288 liters)
110 lb
(50 kg)
MITO©6
LH & RH
17-1/2" (445 mm) A
11-7/8" (302 mm) B 70" x 40"
(1778 mm x
1016 mm)
60" (1524 mm) L*
42" (1067 mm) W
18-1/2" ( 470 mm) H
722 lb
(328 kg)/
41 lb/ft2
(200 kg/m2)
46 U.S. gal
(170 liters)
97 lb
(44 kg)
NOVA©5
LH & RH
14-3/4" (375 mm) A
8-1/2" (216 mm) B
Optional,
U-Frame
58" x 40"
(1473 mm x
1016 mm)
Not
Available
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(U395000 HEATER KIT)
NA
NOTE: The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
FOR ALL UNITS: Electrical Service Requirements: All require a dedicated GFCI protected separate circuit.
(Optional) RapidHeatTM: 115 VAC, 15 AMP, 60 Hz. dedicated GFCI protected separate circuit.
Motor/Pump: 115 VAC, 15 Amp, 60 Hz. dedicated GFCI protected separate circuit.
SPECIFICATIONS

ENGLISH
SPECIFICATIONS (Rectangular) LH = Left Hand, RH = Right Hand
MODEL
PRODUCT
WEIGHT
OPERATING
GALLONAGE
TOTAL WEIGHT/
FLOOR LOADING
DIMENSIONS
DRAIN/OVERFLOW
DIMENSIONS
SKIRT &
MOUNTING
CUTOUT
HEATER READY
FOR FIELD
INSTALLATION
*Add 1/4" (6,4 mm) to this dimension when roughing-in for 3-wall niche.
15-7/8" (403 mm) A
9-1/4" (235 mm) B
NOVA©5
WITH INTEGRAL
SKIRT
LH & RH
60" (1524 mm) L*
42" (1067 mm) W
18-1/2" ( 470 mm) H
737 lb
(335 kg)/
42 lb/ft2
(205 kg/m2)
45 U.S. gal
(174 liters)
112 lb
(51 kg) Integral
NA
NOVA© 6
LH & RH
72" (1829 mm) L*
42" (1067 mm) W
20-1/2" ( 521 mm) H
876 lb
(398 kg)/
42 lb/ft2
(205 kg/m2)
62 U.S. gal
(235 liters)
110 lb
(50 kg)
14-3/4" (375 mm) A
8-1/2" (216 mm) B Optional,
U-Frame
70" x 40"
(1778 mm x
1016 mm)
NOVA©536
WITH INTEGRAL
SKIRT
LH & RH
60" (1524 mm) L*
36" ( 914 mm) W
19-1/4" ( 489 mm) H
698 lb
(317 kg)/
47 lb/ft2
(229 kg/m2)
42 U.S. gal
(159 liters) 98 lb
(45 kg)
15-1/8" (384 mm) A
9" (229 mm) B
14-5/8" (372 mm) A
9" (229 mm) B
Not
Available
Integral
683 lb
(310 kg)/
46 lb/ft2
(224 kg/m2)
58" x 34"
(1473 mm x
863 mm)
NA
NOVA©536
LH & RH
60" (1524 mm) L*
36" ( 914 mm) W
19-1/4" ( 489 mm) H
42 U.S. gal
(159 liters)
83 lb
(38 kg)
60" (1524 mm) L*
42" (1067 mm) W
18-1/2" ( 470 mm) H
722 lb
(328 kg)/
41 lb/ft2
(200 kg/m2)
46 U.S. gal
(174 liters)
97 lb
(44 kg)
NOVA© 5
WITH INTEGRAL
3-SIDED TILE
FLANGE
LH & RH
14-3/4" (375 mm) A
8-1/2" (216 mm) B
Not
Available
SIGNA©5
LH & RH
60" (1524 mm) L*
42" (1067 mm) W
22" ( 559 mm) H
708 lb
(321 kg)/
40 lb/ft2
(195 kg/m2)
42 U.S. gal
(159 liters)
108 lb
(49 kg)
17-1/2" (445 mm) A
12-1/2" (318 mm) B
Optional,
U-Frame
58" x 40"
(1473 mm x
1016 mm)
NOVA©636
WITH INTEGRAL
SKIRT
LH & RH
72" (1829 mm) L*
36" ( 914 mm) W
19" ( 483 mm) H
824 lb
(375 kg)/
45.8 lb/ft2
(223 kg/m2)
56 U.S. gal
(223 liters)
108 lb
(49 kg)
14-5/8" (372 mm) A
9-3/8" (238 mm) B Integral
NA
SIGNA©5
WITH INTEGRAL
3-SIDED TILE
FLANGE
RH
60" (1524 mm) L*
42" (1067 mm) W
22" ( 559 mm) H
708 lb
(321 kg)/
40 lb/ft2
(195 kg/m2)
42 U.S. gal
(159 liters)
108 lb
(49 kg)
17-1/2" (445 mm) A
12-1/2" (318 mm) B
Optional,
U-Frame
NA
SIGNA©6
LH & RH
72" (1829 mm) L*
42" (1067 mm) W
22" ( 559 mm) H
826 lb
(375 kg)/
39 lb/ft2
(190 kg/m2)
55 U.S. gal
(208 liters)
118 lb
(54 kg)
16-7/8" (429 mm) A
14" (356 mm) B Not
Available
70" x 40"
(1778 mm x
1016 mm)
No
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
SIGNA©5 WITH
INTEGRAL SKIRT,
FRONT RIGHT
MOTOR/PUMP
LH & RH
60" (1524 mm) L*
42" (1067 mm) W
22" ( 559 mm) H
723 lb
(329 kg)/
41 lb/ft2
(200 kg/m2)
42 U.S. gal
(159 liters)
123 lb
(56 kg)
17-7/8" (451 mm) A
12-3/4" (330 mm) B
Integral
NA Yes
(U395000 HEATER KIT)
NOTE: The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
FOR ALL UNITS: Electrical Service Requirements: All require a dedicated GFCI protected separate circuit.
(Optional) RapidHeatTM: 115 VAC, 15 AMP, 60 Hz. dedicated GFCI protected separate circuit.
Motor/Pump: 115 VAC, 15 Amp, 60 Hz. dedicated GFCI protected separate circuit.
7
Jacuzzi Whirlpool Bath K272000AF 7/06
NA
Molded-in
Tile Flange
SPECIFICATIONS
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)

ENGLISH
RIMLESS OVAL BATHS
SIDE VIEW END VIEW
L
H
7-1/2"
(191 mm)
W
2"
(51 mm)
FRESCO
3-1/2"
(89 mm) 8"
(203 mm)
L
W
H
2'' (51 mm)
MILANO
SIDE VIEW END VIEW
RIVA 5 & RIVA 6
GALLERY 5 OVAL & GALLERY 6 OVAL
SIDE VIEW
W
H2''
(51 mm)
L
END VIEW
DRAIN/OVERFLOW
A
B
FRESCO©
LH & RH
71-1/2" (1816 mm) L
42" (1067 mm) W
27-1/4" ( 692 mm) H*
921 lb
(419 kg)/
44 lb/ft2
(220 kg/m2)
63 U.S. gal
(239 liters)
146 lb
(66 kg)
72" (1829 mm) L
42" (1067 mm) W
20-1/2" ( 521 mm) H
871 lb
(396 kg)/
42 lb/ft2
(205 kg/m2)
62 U.S. gal
(235 liters)
105 lb
(48 kg)
20-1/8" (511 mm) A
11-3/4" (299 mm) B
16" (406 mm) A
11-1/2" (292 mm) B
RIVA©6
LH & RH
Not
Available
Not
Available
Template
Provided
P/N
P188000
Template
Provided
P/N
P186000
MODEL
PRODUCT
WEIGHT
OPERATING
GALLONAGE
TOTAL WEIGHT/
FLOOR LOADING
SPECIFICATIONS (Oval) LH = Left Hand, RH = Right Hand
DIMENSIONS
DRAIN/OVERFLOW
DIMENSIONS
SKIRT &
MOUNTING
CUTOUT
HEATER READY
FOR FIELD
INSTALLATION
GALLERY™ 5
OVAL
LH & RH
62" (1575 mm) L
43" (1092 mm) W
19" ( 483 mm) H
746 lb
(339 kg)/
40 lb/ft2
(195 kg/m2)
48 U.S. gal
(182 liters)
96 lb
(44 kg)
14-3/4" (375 mm) A
9-1/2" (241 mm) B
Not
Available
Template
Provided
P/N
P186000
871 lb
(395 kg)/
42 lb/ft2
(205 kg/m2)
62 U.S. gal
(235 liters)
105 lb
(48 kg)
16" (406 mm) A
11-1/2" (292 mm) B
GALLERY™ 6
OVAL
LH & RH
Not
Available
Template
Provided
P/N
P186000
72" (1829 mm) L
42" (1067 mm) W
20-1/2" ( 521 mm) H
Template
Provided
P/N
P188000
MILANO™
LH & RH
72" (1829 mm) L
40" (1016 mm) W
20-3/4" ( 527 mm) H
893 lb
(406 kg)/
45 lb/ft2
(220 kg/m2)
60 U.S. gal
(227 liters)
143 lb
(65 kg)
18-1/2" (470 mm) A
11" (279 mm) B
Not
Available
RIVA©5
LH & RH
62" (1575 mm) L
43" (1092 mm) W
19" ( 483 mm) H
746 lb
(339 kg)/
40 lb/ft2
(195 kg/m2)
48 U.S. gal
(182 liters)
96 lb
(44 kg)
14-3/4" (375 mm) A
9-1/2" (241 mm) B
Not
Available
Template
Provided
P/N
P186000
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Not
Available
Yes
(S750000 HEATER KIT)
72" (1829 mm) L
42" (1067 mm) W
23" ( 584 mm) H
1221 lb
(555 kg)/
58 lb/ft2
(283 kg/m2)
96 U.S. gal
(364 liters)
121 lb
(55 kg)
19-1/8" (486 mm) A
11" (279 mm) B
Template
Provided
P/N
P819000
LUNA™
RH
END VIEW
H
W
SIDE VIEW
L
2"
(51 mm)
LUNA
OPALIA™
LH & RH
72" (1829 mm) L
44" (1118 mm) W
22-1/4" ( 565 mm) H
978 lb
(445 kg)/
45 lb/ft2
(220 kg/m2)
70 U.S. gal
(265 liters)
145 lb
(66 kg)
18-3/4" (476 mm) A
12" (305 mm) B
Template
Provided
P/N
P186000
Not
Available
Yes
(S750000 HEATER KIT)
871 lb
(395 kg)/
42 lb/ft2
(205 kg/m2)
62 U.S. gal
(235 liters)
105 lb
(48 kg)
16" (406 mm) A
11-1/2" (292 mm) B
GALLERY™ 6
OVAL
UNDERMOUNT
LH & RH
Not
Available
Template
Provided
P/N
X302000
72" (1829 mm) L
42" (1067 mm) W
20-1/2" ( 521 mm) H
Yes
(S750000 HEATER KIT)
NOTE: The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
FOR ALL UNITS: Electrical Service Requirements: All require a dedicated GFCI protected separate circuit.
(Optional) RapidHeatTM: 115 VAC, 15 AMP, 60 Hz. dedicated GFCI protected separate circuit.
Motor/Pump: 115 VAC, 15 Amp, 60 Hz. dedicated GFCI protected separate circuit.
8
Jacuzzi Whirlpool Bath K272000AF 7/06
*For Fresco™ models H551, H549, and H550 this height is 23-3/4"
SPECIFICATIONS

ENGLISH
MODEL
PRODUCT
WEIGHT
OPERATING
GALLONAGE
TOTAL WEIGHT/
FLOOR LOADING
SPECIFICATIONS (Corner) LH = Left Hand, RH = Right Hand
DIMENSIONS
DRAIN/OVERFLOW
DIMENSIONS
SKIRT &
MOUNTING
CUTOUT
HEATER READY
FOR FIELD
INSTALLATION
60" (1524 mm) L
60" (1524 mm) L
20-3/4" ( 527 mm) H
984 lb
(447 kg)/
39 lb/ft2
(190 kg/m2)
74 U.S. gal
(280 liters)
118 lb
(54 kg)
TARA™
LH & RH
16" (406 mm) A
12-3/8" (314 mm) B
Optional
See
Page 17
60" (1524 mm) L
60" (1524 mm) L
20-3/4" ( 527 mm) H
999 lb
(454 kg)/
40 lb/ft2
(195 kg/m2)
74 U.S. gal
(280 liters)
133 lb
(61 kg)
TARA™
WITH INTEGRAL
SKIRT RH
16" (406 mm) A
12-3/8" (314 mm) B
Integral
NA No
CAPELLA© 60
WITH INTEGRAL
SKIRT RH
60" (1524 mm) L
60" (1524 mm) L
20-1/2" ( 521 mm) H
880 lb
(400 kg)/
35 lb/ft2
(171 kg/m2)
60 U.S. gal
(227 liters)
130 lb
(59 kg)
18" (457 mm) A
12-1/8" (308 mm) B Integral
NA No
CAPELLA©60
LH & RH
60" (1524 mm) L
60" (1524 mm) L
20-1/2" ( 521 mm) H
870 lb
(395 kg)/
35 lb/ft2
(171 kg/m2)
60 U.S. gal
(227 liters)
120 lb
(54 kg)
18" (457 mm) A
12-1/8" (308 mm) B Not
Available
See
Page 17 No
CAPELLA©55
WITH INTEGRAL
SKIRT RH
55" (1397 mm) L
55" (1397 mm) L
20-1/2" ( 521 mm) H
1025 lb
(466 kg)/
48.8 lb/ft2
(238 kg/m2)
54 U.S. gal
(204 liters)
125 lb
(57 kg)
18" (457 mm) A
12-1/8" (308 mm) B Integral
NA No
60" (1524 mm) L
60" (1524 mm) L
22-1/2" ( 572 mm) H
984 lb
(447 kg)/
39 lb/ft2
(244 kg/m2)
74 U.S. gal
(280 liters)
118 lb
(54 kg)
GALLERY™
CORNER
LH & RH
18-1/8" (451 mm) A
12" (305 mm) B
See
Page 17
Not
Available
CAPELLA©55
RH
55" (1397 mm) L
55" (1397 mm) L
20-1/4" ( 514 mm) H
791 lb
(360 kg)/
38 lb/ft2
(185 kg/m2)
51 U.S. gal
(193 liters)
116 lb
(53 kg)
17-1/2" (445 mm) A
9-5/8" (245 mm) B
Optional
Template
Provided
P/N
DA24000
CAPELLA©
SPACESAVER
WITH INTEGRAL
SKIRT RH
60" (1524 mm) L
60" (1524 mm) L
20-1/2" ( 521 mm) H
880 lb
(400 kg)/
35 lb/ft2
(171 kg/m2)
60 U.S. gal
(227 liters)
130 lb
(59 kg)
18" (457 mm) A
12-3/8" (308 mm) B Integral No
CAPELLA 55, CAPELLA 60, & TARA WITH INTEGRAL SKIRT
1"
(25 mm) H
FRONT VIEW SIDE VIEW
CAPELLA SPACESAVER WITH INTEGRAL SKIRT
1"
(25 mm)
H
FRONT VIEW SIDE VIEW
NA
DRAIN/OVERFLOW
A
B
H
2"
(51 mm)
SIDE VIEW END VIEW
CORNER BATH
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
Yes
(S750000 HEATER KIT)
CORNER BATHS
60" (1524 mm) L
60" (1524 mm) L
20-1/2" ( 521 mm) H
870 lb
(395 kg)/
35 lb/ft2
(171 kg/m2)
60 U.S. gal
(227 liters)
120 lb
(54 kg)
18" (457 mm) A
12-1/8" (308 mm) B Not
Available
See
Page 17 No
CAPELLA© 60
FRONT LEFT
MOTOR/PUMP
LH
NOTE: The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
FOR ALL UNITS: Electrical Service Requirements: All require a dedicated GFCI protected separate circuit.
(Optional) RapidHeatTM: 115 VAC, 15 AMP, 60 Hz. dedicated GFCI protected separate circuit.
Motor/Pump: 115 VAC, 15 Amp, 60 Hz. dedicated GFCI protected separate circuit.
9
Jacuzzi Whirlpool Bath K272000AF 7/06
SPECIFICATIONS

ENGLISH

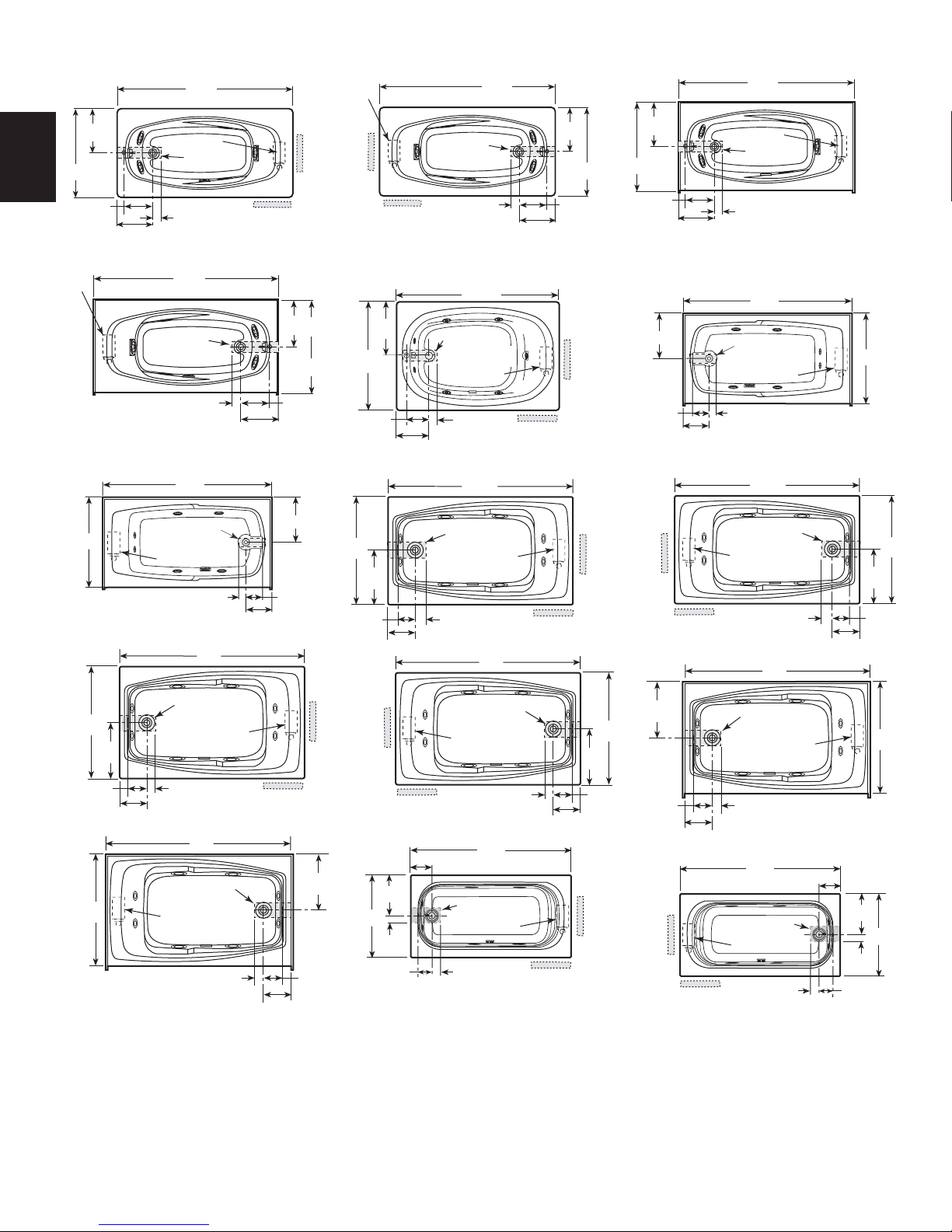

ROUGHING-IN REFERENCE (RECTANGULAR)
AMIGA™, Left Hand
*72''
18''
36''
2''
16'' x 4''
14''
12" H x 18" L Service Access
11-1/8''
Motor
Opt. Service Access
10
Jacuzzi Whirlpool Bath K272000AF 7/06
*72''
18''
36''
2''
16'' x 4''
14''
Motor
12" H x 18" L Service Access
Opt. Service Access
11-1/8''
AMIGA™, Right Hand
14-1/2"
AMIGA™WITH INTEGRAL SKIRT,
Left Hand
*72''
36''
2''
16'' x 4''
11-1/8''
Motor
17-3/8"
*72''
36''
2''
16'' x 4''
14-1/2''
Motor
11-1/8''
AMIGA™WITH INTEGRAL SKIRT,
Right Hand
17-3/8''
BIANCA™
*72"
24"
48"
8-1/2"
13-3/4"
13-1/2" x 4"
(Left-hand only as shown)
2"
Motor
12" H x 18" L Service Access
Opt. Service Access
*60"
32"
CETRA™ W/INTEGRAL SKIRT, Left Hand
15-5/8"
2"
10" x 4"
9-3/8"
5-11/16"
Motor
CETRA™ W/INTEGRAL SKIRT, Right Hand
*60"
32"
15-5/8"
2"
10" x 4"
9-3/8" 5-11/16"
Motor
9" CETRA™ 532, Left Hand
*60"
32"
16"
12" x 4"
Motor
2"
5-3/4"
12" H x 18" L Service Access
Opt. Service Access
9"
CETRA™ 532, Right Hand
12" x 4"
Motor
2" 5-3/4"
12" H x 18" L Service Access
Opt. Service Access
*60"
32"
16"
9"
CETRA™ 536, Left Hand
*60"
36"
18"
12" x 4"
Motor
12" H x 18" L Service Access
Opt. Service Access
2"
5-3/4"
9"
CETRA™ 536, Right Hand
12" x 4"
Motor
12" H x 18" L Service Access
Opt. Service Access
2" 5-3/4"
*60"
36"
18"
9"
CETRA™ 536 WITH INTEGRAL SKIRT, Left Hand
*60"
36"
17-3/8" 12" x 4"
2"5-3/4"
Motor
9"
CETRA™ 536 WITH INTEGRAL SKIRT, Right Hand
12" x 4"
2" 5-3/4"
Motor
*60"
36"
17-3/8"
2-1/2"
*60"
16"
32"
12" x 5"
8-1/4"
LUXURA™ 5, Left Hand
Motor
12" H x 18" L Service Access
Opt. Service Access
2-1/2"
5-1/4"
LUXURA™ 5, Right Hand
2-1/2"
15" x 5"
8-1/4"
Motor
12" H x 18" L Service Access
Opt. Service Access
2-1/2" 5-1/4"
*60"
16"
32
"
ROUGHING-IN
*Add 1/4" (6,4 mm) to this dimension when roughing-in for 3-wall niche.
NOTE: 1. The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
2. Service Access dimensions given are minimum. Service access is still required for units that do not have pre-installed Pump/Motor.
3. Measurements inside each unit represent cutout in floor to allow for drain/overflow.
4. All measurements are in inches. To convert to millimeters, multiply inches by 25.4.
5. Not all export units come with pre-installed Pump/Motor.

ENGLISH
MITO™ 5, Left Hand
30"
42"
*60"
10" x 4"
2"
11-7/8
"
Motor
12" H x 18" L
Service Access
Opt. Service
Access
5-3/8"
MITO™ 5, Right Hand
30"
42"
*60"
10" x 4"
2"
11-7/8"
Motor
12" H x 18" L
Service Acces
s
O
pt.
S
ervice
Access
5-3/8"
ROUGHING-IN REFERENCE (RECTANGULAR)
11
Jacuzzi Whirlpool Bath K272000AF 7/06
LUXURA™ 5 WITH INTEGRAL SKIRT, Left Hand
2-1/2"
12" x 5"
8-1/4"
Motor
2-1/2"
5-1/4"
*60"
15-3/8"
32"
LUXURA™ 5 WITH INTEGRAL SKIRT, Right Hand
2-1/2"
12" x 5"
8-1/4"
Motor
2-1/2" 5-1/4"
*60"
15-3/8"
32"
12" x 5"
2-1/2"
*66"
17"
34"
8-3/8"
LUXURA™ 5.5, Left Hand
Motor
12" H x 18" L Service Access
Opt. Service Access
2-1/2"
5-3/8"
LUXURA™ 5.5, Right Hand
12" x 5"
2-1/2"
*66"
17"
34"
8-3/8"
Motor
12" H x 18" L Service Access
Opt. Service Access
2-1/2" 5-3/8"
2-1/2"
*60"
14-3/8"
30"
12" x 5"
9-1/4"
LUXURA™ 530 WITH INTEGRAL SKIRT, Left Hand
Motor
2-1/2"
5-7/8"
LUXURA™ 530 WITH INTEGRAL SKIRT, Right Hand
2-1/2"
*60"
14-3/8"
30"
12" x 5"
9-1/4"
Motor
2-1/2" 5-7/8"
MAJORA™ 5, Left Hand
42"
*60"
21"
8-3/4"
10" x 4"
2"
Motor
12" H x 18" L Service Access
Opt. Service Access
4-3/8"
MAJORA™ 5, Right Hand
42"
*60"
21"
8-3/4"
10" x 4"
2"
Motor
12" H x 18" L Service Access
Opt. Service Access 4-3/8"
MAJORA™ 6, Left Hand
42"
*72"
12" x 4"
21"
2"
10-1/2"
Motor
12" H x 18" L Service Access
Opt. Service Access
4-3/8"
MAJORA™ 6, Right Hand
42"
*72"
12" x 4" 21"
2" 10-1/2"
Motor
12" H x 18" L Service Access
Opt. Service Access
4-3/8"
MAJORA™ 6 W/INTEGRAL SKIRT, Left Hand
42"
*72"
12" x 4"
20-1/2"
2"
8-1/2"
Motor
4-3/8"
MAJORA™ 6 W/INTEGRAL SKIRT, Right Hand
42"
*72"
12" x 4" 20-1/2"
2"
8-1/2"
Motor
4-3/8"
MITO™ 6, Left Hand
36"
42"
*72"
11-7/8"
10" x 4"
2"
Motor
12" H x 18" L
Service Access
Opt. Service
Access
5-3/8"
ROUGHING-IN
*Add 1/4" (6,4 mm) to this dimension when roughing-in for 3-wall niche.
NOTE: 1. The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
2. Service Access dimensions given are minimum. Service access is still required for units that do not have pre-installed Pump/Motor.
3. Measurements inside each unit represent cutout in floor to allow for drain/overflow.
4. All measurements are in inches. To convert to millimeters, multiply inches by 25.4.
5. Not all export units come with pre-installed Pump/Motor.

ENGLISH
ROUGHING-IN REFERENCE (RECTANGULAR)
12
Jacuzzi Whirlpool Bath K272000AF 7/06
36"
42"
*72"
11-7/8"
MITO™ 6, Right Hand
10" x 4"
2"
Motor
12" H x 18" L
Service Access
Opt. Service
Access
5-3/8"
NOVA™ 5, Left Hand
*60"
21"
42"
11" x 4"
Motor
12
"
H x 18
"
L
Service Acces
s
Opt. Service Access
2''
8-1/2''
5-3/8''
NOVA™ 5, Right Hand
*60"
21"
42"
11" x 4"
Motor
12" H x 18" L
Service Access
Opt. Service Access 2'' 8-1/2''
5-3/8''
NOVA™ 5 W/3-SIDED TILE FLANGE, Left Hand
*60"
21"
42"
11" x 4"
Motor
2''
8-1/2''
7''
12" H x 18" L
Service Access
Opt. Service Access
NOVA™ 5 W/3-SIDED TILE FLANGE, Right Hand
*60"
21"
42"
11" x 4"
Motor
2'' 8-1/2''
7''
12
"
H x 18
"
L
Service Access
Opt. Service Access
NOVA™ 5 WITH INTEGRAL SKIRT, Left Hand
*60"
21"
42"
11" x 4"
9-1/4" 2''
5-1/4''
Motor
NOVA™ 5 WITH INTEGRAL SKIRT, Right Hand
*60"
21"
42"
11" x 4"
9-1/4"
2'' 5-1/4''
Motor
NOVA™ 536, Left Hand
10" x 4"
Motor
12" H x 18" L Service Access
Opt. Service Access
36"
*60"
18"
2"
9"
4-5/8"
NOVA™ 536, Right Hand
36"
*60"
2"
10" x 4"
9"
4-5/8"
Motor
12" H x 18" L Service Access
Opt. Service Access
18"
NOVA™ 536 W/INTEGRAL SKIRT, Left Hand
36"
*60"
18"
10" x 4"
2"
9"
Motor
4-5/8"
NOVA™ 536 W/INTEGRAL SKIRT, Right Hand
36"
*60"
18"
10" x 4"
2" 9"
4-5/8"
Motor
NOVA™ 6, Left Hand
*72"
21"
2"
42"
14" x 4"
8-1/2"
Motor
12" H x 18" L Service Access
Opt. Service Access
6-7/8"
NOVA™ 6, Right Hand
*72"
21"
2"
42"
14" x 4"
8-1/2"
6-7/8"
Motor
12" H x 18" L Service Access
Opt. Service Access
NOVA™ 636 W/INTEGRAL SKIRT, Left Hand
*72"
36"
17-7/8"
2"
10" x 4"
9-3/8"
Motor
6-7/8"
NOVA™ 636 W/INTEGRAL SKIRT, Right Hand
*72"
36"
17-7/8"
2"
10" x 4"
9-3/8"
Motor
6-7/8"
ROUGHING-IN
*Add 1/4" (6,4 mm) to this dimension when roughing-in for 3-wall niche.
NOTE: 1. The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
2. Service Access dimensions given are minimum. Service access is still required for units that do not have pre-installed Pump/Motor.
3. Measurements inside each unit represent cutout in floor to allow for drain/overflow.
4. All measurements are in inches. To convert to millimeters, multiply inches by 25.4.
5. Not all export units come with pre-installed Pump/Motor.

ENGLISH
ROUGHING-IN REFERENCE (RECTANGULAR)
13
Jacuzzi Whirlpool Bath K272000AF 7/06
SIGNA™ 5, Left Hand
*60"
12"
42"
5"
4-1/4"
13" x 5"
30"
Motor
12" H x 18" L Service Access
Opt.
Service
Access
SIGNA™ 5, Right Hand
*60"
42"
5" 4-1/4"
13" x 5"
30"
Motor
12" H x 18" L Service Access
Opt.
Service
Access
12"
SIGNA™ 5 W/3-SIDED TILE FLANGE, Left Hand
12"
30" 5"
42"
*60"
13" x 5"
Motor
12" H x 18" L Service Access
Opt.
Service
Access
4-1/4"
12"
30"
5"
42"
*60"
13" x 5"
SIGNA™ 5 W/3-SIDED TILE FLANGE, Right Hand
4-1/4"
Motor
12" H x 18" L Service Access
Opt.
Service
Access
*60"
42"
6-3/4" 4-1/4"
16" x 5"
30"
(Right hand only as shown)
12-3/4"
SIGNA™ 5 W/INTEGRAL SKIRT
Motor
SIGNA™ 6, Left Hand
12-1/2"
36"
11-
1/4"
5"
42"
*72"
18-1/2" x 5"
Motor
12" H x 18" L Service Access
Opt.
Service
Access
SIGNA™ 6, Right Hand
12-1/2"
36"
11-
1/4"
5"
42"
*72"
18-1/2" x 5"
Motor
12" H x 18" L Service Access
Opt.
Service
Access
ROUGHING-IN
*Add 1/4" (6,4 mm) to this dimension when roughing-in for 3-wall niche.
NOTE: 1. The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
2. Service Access dimensions given are minimum. Service access is still required for units that do not have pre-installed Pump/Motor.
3. Measurements inside each unit represent cutout in floor to allow for drain/overflow.
4. All measurements are in inches. To convert to millimeters, multiply inches by 25.4.
5. Not all export units come with pre-installed Pump/Motor.

ENGLISH
ROUGHING-IN REFERENCE (OVAL)
NOTE: These units have been provided with cutout templates included in shipping carton.
See CUTOUT information for each model on page 8.
FRESCO™, Left Hand
71-1/2"
42"
35-3/4"
11-3/4"
2"
12" x 4"
Motor
12" H x 18" L
Service Access
4-1/2"
FRESCO™, Right Hand
71-1/2"
42"
11-3/4"
2" 12" x 4"
Motor
12" H x 18" L
Service Access
4-1/2"
35-3/4"
62"
21-1/2"
2"
43"
12" x 4"
9-1/2"
GALLERY™ 5 OVAL, Left Hand
5"
Motor
12" H x 18" L
Service Access
GALLERY™ 5 OVAL, Right Hand
62"
21-1/2"
2"
43" 12" x 4"
9-1/2"
5"
Motor
12" H x 18" L
Service Access
72"
21"
42"
2"
14" x 4"
11-1/2"
GALLERY™ 6, Left Hand
Motor
12" H x 18" L
Service Access
6-7/8"
GALLERY™ 6, Right Hand
72"
21"
42"
2"
14" x 4"
11-1/2"
Motor
12" H x 18" L
Service Access
6-7/8"
21"
12-1/2"
2"
14" x 4"
72"
42"
GALLERY 6 UNDERMOUNT, Left Hand
Motor
12" H x 18" L Service Acces
s
GALLERY 6 UNDERMOUNT, Right Hand
21"
12-1/2"
2"
14" x 4"
72"
42" Motor
12" H x 18" L Service Acces
s
42
"
72"
13" X 6"
3"
36"
11"
(Right-hand only)
LUNA™
Motor
12" H x 18" L
Service Acces
s
MILANO™, Left Hand
20"
2"
11" 71-1/2"
40"
12" x 4"
5"
Motor
12" H x 18" L Service Access
MILANO™, Right Hand
20"
2" 11"
71-1/2"
40"
12" x 4"
5"
Motor
12" H x 18" L Service Access
14
Jacuzzi Whirlpool Bath K272000AF 7/06
ROUGHING-IN
NOTE: 1. The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
2. Service Access dimensions given are minimum. Service access is still required for units that do not have pre-installed Pump/Motor.
3. Measurements inside each unit represent cutout in floor to allow for drain/overflow.
4. All measurements are in inches. To convert to millimeters, multiply inches by 25.4.
5. Not all export units come with pre-installed Pump/Motor.

ENGLISH
ROUGHING-IN REFERENCE (OVAL)
NOTE: These units have been provided with cutout templates included in shipping carton.
See CUTOUT information for each model on page 8.
15
Jacuzzi Whirlpool Bath K272000AF 7/06
OPALIA™, Left Hand
4" 36"
44"
32"
12"
3"
72"
13" X 4"
Motor
12" H x 18" L
Service Access
4-11/16"
OPALIA™, Right Hand
4"
36"
44"
32"
12"
3"
72"
13" X 4"
4-11/16"
Motor
12" H x 18" L
Service Access
62"
21-1/2"
2"
43"
12" x 4"
9-1/2"
RIVA™ 5, Left Hand
5"
Motor
12" H x 18" L
Service Access
72"
21"
42"
2"
14" x 4"
11-1/2"
RIVA™ 6, Left Hand
Motor
12" H x 18" L
Service Access
6-7/8"
RIVA™ 6, Right Hand
72"
21"
42"
2"
14" x 4"
11-1/2"
6-7/8"
Motor
12" H x 18" L
Service Access
ROUGHING-IN
62"
21-1/2"
2"
43" 12" x 4"
9-1/2"
RIVA™ 5, Right Hand
5"
Motor
12" H x 18" L
Service Access
NOTE: 1. The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
2. Service Access dimensions given are minimum. Service access is still required for units that do not have pre-installed Pump/Motor.
3. Measurements inside each unit represent cutout in floor to allow for drain/overflow.
4. All measurements are in inches. To convert to millimeters, multiply inches by 25.4.
5. Not all export units come with pre-installed Pump/Motor.

ENGLISH
ROUGHING-IN REFERENCE (CORNER)
16
Jacuzzi Whirlpool Bath K272000AF 7/06
27" 27"
60"
43-1/8" 6"
60"
34-15/16"
14" X 4"
33-1/2"
46-5/8"
CAPELLA 60 w/FRONT LEFT MOTOR/PUMP,
Left Hand
Ref.
61-1/2
"
12" H x 18" L
Service Access
CAPELLA™ 55
55"
55"
27"
27"
39 1/2"
36 1/2"
44 1/2"
36 1/2"
12" x 4"
- 2" x 4" Stud
Motor
12" H x 18" L
Service Access
Opt.
Service
Access
(Right-hand only as shown)
CAPELLA™ 55 WITH INTEGRAL SKIRT
26"
40-7/16"
26"
55"
43-7/8"
9-7/8"
55"
32-1/2"
16" X 4"
32-1/4"
29-3/8"
- Junction Box
Motor
(Right-hand only as shown)
CAPELLA™ SPACESAVER
25-1/4"
49"
25-1/4"
60"
41-9/16"
6"
60"
33-13/16"
14" X 4"
33-13/16"
- Junction Box
Motor
Service
Access
Opt.
Service
Access
(Right-hand only as shown)
CAPELLA™ 60, Left Hand
27"
46-5/8"
27"
60"
43-1/8"
6"
60"
34-15/16"
14" X 4"
33-1/2"
Motor
12" H x 18" L
Service
Access
Opt.
Service
Access
CAPELLA™ 60, Right Hand
27"
46-5/8"
27"
60"
43-1/8"
6"
60"
34-15/16"
14" X 4"
33-1/2"
Motor
Service
Access
Opt.
Service
Access
CAPELLA™ 60 WITH INTEGRAL SKIRT
27"
46-5/8"
27"
60"
43-1/8"
6"
60"
34-15/16"
14" X 4"
33-1/2"
- Junction Box
Motor
(Right-hand only as shown)
60"
24" 24"
34"
47-3/4"
19" X 4"
7-1/2"
13"
34"
60"
GALLERY™ CORNER, Left Hand
50-1/4"
Motor
Service
Access
Opt.
Service
Access
GALLERY™ CORNER, Right Hand
60"
24"
24"
34"
47-3/4"
19" X 4"
7-1/2"
13"
34"
60"
50-1/4"
Motor Service
Access
Opt.
Service
Access
ROUGHING-IN
NOTE: 1. The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
2. Service Access dimensions given are minimum. Service access is still required for units that do not have pre-installed Pump/Motor.
3. Measurements inside each unit represent cutout in floor to allow for drain/overflow.
4. All measurements are in inches. To convert to millimeters, multiply inches by 25.4.
5. Not all export units come with pre-installed Pump/Motor.

ENGLISH
Motor
Overflow
25-1/2"
(648 mm)
58"
(1473 mm)
45-9/16"
(1157 mm)
58"
(1473 mm)
25-1/2"
(648 mm)
TARA CORNER CUTOUT
Right Hand
Drain
59"
Ref.
90˚ 90˚
GALLERY CORNER,
Left Hand
22-5/8"
(575 mm)
90˚ 90˚
3" RADIUS
CORNERS
(5 PLACES)
22-5/8"
(575 mm)
58"
(1473 mm)
58"
(1473 mm)
50"
(1270 mm)
Ref.
57"
Drain
Overflow
Motor
CAPELLA 60 &
25-1/2"
(648 mm)
58"
(1473 mm)
58"
(1473 mm)
25-1/2"
(648 mm)
45-9/16"
(1157 mm)
CAPELLA 60 W/ FRONT LEFT MOTOR/PUMP
(Motor/Pump position not shown.)
Ref.
59"
Drain
Overflow
90˚ 90˚
CUTOUT- CORNER BATHS
17
Jacuzzi Whirlpool Bath K272000AF 7/06
25-1/2"
(648 mm)
58"
(1473 mm)
45-9/16"
(1157 mm)
58"
(1473 mm)
25-1/2"
(648 mm)
TARA CORNER CUTOUT
Left Hand
Drain
59"
Ref.
Motor
Overflow
90˚ 90˚
ROUGHING-IN REFERENCE (CORNER)
TARA™, Left Hand
- 2" x 4" Stud
27-1/4"
35"
44"
60"
60"
46"
27-1/4"
35"
14" x 4"
Motor
Service
Access
Opt.
Service
Access
- 2" x 4" Stud
TARA™, Right Hand
27-1/4"
35"
44"
60"
60"
46"
27-1/4"
35"
14" x 4"
Motor
Service
Access
Opt.
Service
Access
- 2" x 4" Stud
TARA™ WITH INTEGRAL SKIRT
- Junction Box
27-1/4"
35"
44"
60"
60"
46"
27-1/4"
35"
14" x 4"
Motor
(Right-hand only as shown)
ROUGHING-IN
CUTOUT
GALLERY CORNER,
Right Hand
22-5/8"
(575 mm)
90˚
90˚
3" RADIUS
CORNERS
(5 PLACES)
22-5/8"
(575 mm)
58"
(1473 mm) 58"
(1473 mm)
50"
(1270 mm)
Ref.
57"
Drain
Overflow
Motor
NOTE: 1. The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
2. Service Access dimensions given are minimum. Service access is still required for units that do not have pre-installed Pump/Motor.
3. Measurements inside each unit represent cutout in floor to allow for drain/overflow.
4. All measurements are in inches. To convert to millimeters, multiply inches by 25.4.
5. Not all export units come with pre-installed Pump/Motor.

ENGLISH
Framing and Support
The drain/overflow of the bath extends below the bottom of the bath. Note that this requires a cutout in the floor.
The floor structure beneath the bath must be able to support a total weight of bath, water, and bather. Refer to the table under total
weight for your model. The unit must be supported from the bottom of the bath and not from the bath rim or tile flange. If the subfloor is level
and a continuous surface, no other preparation is necessary. You can proceed to install the bath. If the subfloor is not level, you MUST level the
entire surface prior to installing the bath. The use of materials that provide a level installation are allowed provided the method used will insure
a level bath that is supported from the bottom. Materials that may be used are a floor leveling compound, mortar, plaster or minimal expansion
structural foam having a density of a minimum of 5 lbs./cubic ft.; however the bath must remain level in order for it to drain properly and all foam
feet must make full contact with the leveling material. Both sides of a joint or splice of subfloor should be level to each other. When attaching
baths with flanges to stud wall, use shims to fill any gaps between the bath flange and studs.
The rim of the bath is not designed to support weight. If finish material is to overlap or contact the bath, the added weight must be fully self-
supporting.
The protective film liner inside the bath is used to prevent damage to the finish during installation. Before installation, remove
liner to inspect for any defects, reapply and do not remove until final cleanup.
Important: If a skirt is to be used, it must be installed at the time of unit installation – refer to skirt installation instructions. Install
optional trim parts when all installation has been completed.
FLUSH TO WALL SEMI-SUNKEN OPTIONAL TILE FLANGE KIT
TILE
1" X 4" (NOT FOR SUPPORT)
MORTAR OR ADHESIVE
FLASHING
SEALANT
SUB-FLOOR
FINISHING
MATERIAL
BATH RIM
NAIL
OR
SCREW
CEMENT
BOARD
STUD
WALL
SILICONE
SEALANT
PLASTER
FILLER
FLANGE
FLASHING
SEALANT
MORTAR OR ADHESIVE TILE
MORTAR
TYPICAL INSTALLATIONS
1" X 4" (NOT FOR SUPPORT) 1" X 4" (NOT FOR
SUPPORT)
TYPICAL FLANGE MOUNTING DETAIL
1"X 4"
(NOT FOR
SUPPORT)
STUD
TILE
ADHESIVE
ATTACH WITH
SCREWS
PROVIDED
TILE
CEMENT
BOARD
FLANGE
1/8" GAP
CAULKING
TILE
CEMENT
BOARD
TILE
ADHESIVE
STUD
FLANGE
1/8" GAP
STUD STUD
FLANGE
FLANGE
SHIM IF
NECESSARY
TO FILL GAPS
BETWEEN
STUD
AND FLANGE
SHIM IF
NECESSARY
TO FILL GAPS
BETWEEN
STUD
AND FLANGE
CAULKING
ATTACH WITH
SCREWS
PROVIDED
NOTE: ON the Riva 5 and Riva 6, the discharge plumbing extends slightly beyond the bath rim. When installing either bath as semi-
sunken, lower the pump/motor side in first into the cutout.
UNDERMOUNT INSTALLATION OPTIONS
The undermount gives the opportunity to be flexible in the design and location of the bath. Examples are shown for possible
installations. Refer to pages 23-24 for undermount installation instructions.
FREE STANDINGCORNER NICHE
18
Jacuzzi Whirlpool Bath K272000AF 7/06
INSTALLATION INSTRUCTIONS

ENGLISH
INTEGRAL SKIRT MOUNTING DETAIL
FINISHING
MATERIALS
SKIRT
PANEL
CAULKING BEAD
U FRAME SKIRT MOUNTING DETAIL
SECURE BOTTOM OF FRAME TO FLOOR
FINISHING MATERIALS
FILLER (Optional)
CAULKING
BEAD
SKIRT
FRAME
SECURE SHELL CLIP
UNDER CENTER
BATH RIM
SKIRT
PANEL
SUPPORT FOR CORNER BATHS
H
2" x 4" STUD
APPLY
ADHESIVE
(50,8 mm x 101,6 mm)
Corner Baths with Skirt
If an optional skirt is used on a corner bath, additional support is
necessary in the front of the unit. Measure the height from the floor
to the underside of the bath rim. Cut two 2" x 4" studs, apply adhe-
sive to both ends and install (See specifications in ROUGHING-IN
REFERENCE (CORNER)).
Skirts
19
Jacuzzi Whirlpool Bath K272000AF 7/06
Removable Skirt Panel
Removal and Installation
To remove panel, grab a top corner of access panel and pull outward
to release the first Dual Lock fastener. Then work around the
perimeter pulling access panel outward to release the remaining
dual Lock fasteners.
To reinstall, align access panel such that the Dual Lock fasteners
on the access panel match to the Dual Lock fasteners on the tub
skirt. Engage each Dual Lock pair until all are snapped into place.
PEEL BACK CORNER
T
O BEGIN DISCONNECTING
DUAL LOCK™ FASTENER
INSTALLATION INSTRUCTIONS

ENGLISH
MOTOR
SERVICE ACCESS (WITH INTEGRAL SKIRT)
REMOVABLE SKIRT
ACCESS PANELS ACCESS AREA
20"
36"
24"
18" B
A
C
SERVICE ACCESS (CORNER BATHS)
A - Preferred access
B - Acceptable alternative if access Ais not possible
C - Additional access for equipment (Optional)
RIGHT HAND UNIT SHOWN
NOTE: Left hand unit access is on the opposite
side (mirror Image).
(45,7 cm)
(50,8 cm)
(60 cm)
(91,4 cm)
MOTOR
AREA
A
AREA
B
FRONT
In some cases, access may not have been provided because of
the design of the bath environment and having full understanding
that in this case, it may be necessary to remove the unit for service.
If this is the case, diagnosing a problem may not be possible
without complete access to the plumbing system. This would ne-
cessitate the removal of the unit. Although this practice is not com-
monly implemented, it is an acceptable method.
In some cases access may have been provided in Area A but
service is required in Area B which requires the unit to be pulled for
service and reinstalled.
If service access has not been provided, it is the homeowner's
responsibility to remove the bath and provide the required
access, should a repair become necessary.
Service Access
For partially or fully sunken installations, allow for access to ser-
vice connections. It is the installer's responsibility to provide suffi-
cient service access. The recommended minimum dimensions al-
lowable for service to the bath are shown in the "Service Access"
illustration and on the ROUGH-IN drawing for that tub.
Provide adequate area around unit for air circulation for cooling
the motor and to supply sufficient air to the jets. Do not insulate this
area or around motor.
Optional RapidHeatTM Service Access
Where tubs have been ordered with the optional RapidHeatTM
heater consider an additional service access.
If service access has not been provided, it is the home owners
responsibility to remove the bath and provide the required
access, should a repair become necessary.
Service Access with Skirt
An optional skirt fits along the side of the bath for above-floor
installations and is also an access panel for servicing. Allow a space
of at least 8 inches away from the bath for skirt removal.
The skirt is designed to accommodate the added height of the
tile, linoleum, or other floor coverings up to 1-1/4" (31,75 mm) above
the floor, and will be flush with the floor when installed.
More detailed instructions on skirt installation are provided with
the optional skirt assembly.
Service Access with Integral Skirt
Service access is through the removable skirt panels.
MOTOR
18"
18"
12"
ALTERNATE
ACCESS PREFERRED
ACCESS
SERVICE ACCESS (WITHOUT SKIRT)
FRONT
(30,5 cm)
12"
(30,5 cm)
(45,7 cm)
(45,7 cm)
18"
12"
SERVICE ACCESS
(BG55, CAPELLA 60 FRONT LEFT MOTOR CORNER BATH ONLY)
Preferred access area
(30,5 cm)
(45,7 cm)
20
Jacuzzi Whirlpool Bath K272000AF 7/06
INSTALLATION INSTRUCTIONS
