JADEMAR LIGHTING BLD-GM-30H Series User manual

FEATURES
ŸUL924 listed for factory and field installaon
ŸEasy wiring: directly connect to AC INPUT OF LED luminaires
ŸBuilt-in Lithium baery, constant power output: 30W
ŸHigh Voltage Input : 277-480V AC
ŸSelf tesng monthly/yearly
ŸUL Listed / RoHS Compliant / IP65 Waterproof
ŸSuitable for use in dry, damp and wet locaons
ŸMeets or exceeds all NEC, IBC, and Life Safety Code Emergency
Lighng Requirements
SPECIFICATIONS
Universal Input Voltage
277-480Vac, 50/60Hz
AC Input Current
100mA max.
AC Input Power Rating
20W max.
Output Voltage
400VDC
Output Power
30W
Illumination Time
≥90 Minutes
Test Switch/Charging Indicator Light
Low Voltage, Illuminated Test Switch
Battery
Li-Ion battery, 5 Years Life Expectancy
Battery Charging Current
≤300mA
Recharge Time
≥24Hours
Temperature Rating (Ambient)
+32°F to +122°F (0°C to +50°C)
Dimensions
12.60''x3.03''x1.84’' (319mmx77mmx46.8mm);
6.30'' (160mm), ⌀0.78'' (20mm) Flexible Conduit
Full Warranty
5 Years
BLD-GM-30H SERIES
EM BATTERY PACK
Page 1 of 3
Informaon contained herein is subject to change without noce.
Values are nominal.
Revised 05/2023
WWW.JADEMAR.COM
Miami, FL USA - [e-mail]
T: 305.640.0465 - F: 305.640.0468
APPLICATIONS
Round High Bays and Linear High Bays:
•≤300W (0-10V Dimmable Fixtures)
•≤30W LED Lamps without dimming function
E530386
ORDERING
Product Series Description
BLD-GM30H
30W Emergency Backup Battery Driver 277-480VAC,
Output 400VDC
DIMENSIONS
Case: 12.60"x3.03"x1.84" (mounting center - 11.85’')

WIRING DIAGRAM
Page 2 of 3
Informaon contained herein is subject to change without noce.
Values are nominal.
Revised 05/2023
WWW.JADEMAR.COM
Miami, FL USA - [e-mail]
T: 305.640.0465 - F: 305.640.0468
BLD-GM-30H SERIES
EM BATTERY PACK

OPERATION
Page 3 of 3
Informaon contained herein is subject to change without noce.
Values are nominal.
Revised 05/2023
WWW.JADEMAR.COM
Miami, FL USA - [e-mail]
T: 305.640.0465 - F: 305.640.0468
BLD-GM-30H SERIES
EM BATTERY PACK
CAUTION: RISK OF FIRE OR ELECTRIC SHOCK - This emergency battery pack installation requires knowledge of luminaire and electrical systems.
CAUTION: RISK OF SHOCK - disconnect emergency and normal input power sources before servicing any equipment connected to this unit.
WARNING: Before installing, make sure the AC Power to the fixture is Off to avoid electric shock.
IMPORTANT: An unswitched AC power source is required (277-480 VAC, 50/60 Hz). This device is designed for fixtures listed for dry and damp locations.
IMPORTANT: Customers are advised to charge emergency LED driver 24 hours every 6 months during storage to prevent over discharge.
CAUTION: Make sure all electrical connections conform to the National Electrical Code and all applicable local regulations.
CAUTION: This is a sealed unit. Components are not replaceable. Replace the entire LED Emergency Backup unit when necessary.
CAUTION: Servicing of this equipment should be performed by qualified personnel only.
CAUTION: The use of accessory equipment is not recommended by the manufacturer and may cause an unsafe condition.
CAUTION: Use with grounded, UL Listed, dry or damp location rated fixtures. Case should also be grounded.
CAUTION: Battery is rechargeable Li-ion type and must be recycled or disposed of properly.
CAUTION: Suitable for use in +32°F to +122°F (0°C to +50°C) ambient temperatures.
CAUTION: This product is for use in indoor fixtures only. Do NOT use near heated air handling outlets or hazardous locations.
Do not let power supply cords touch hot surfaces. Do not mount near gas or electric heaters. Do not use this equipment for
other than its intended use. Failure to follow this may cause an unsafe condition and will void warranty. Servicing of this equipment
should be performed by qualified personnel only.
IMPORTANT SAFEGUARDS
PLEASE READ AND FOLLOW ALL SAFETY INSTRUCTIONS

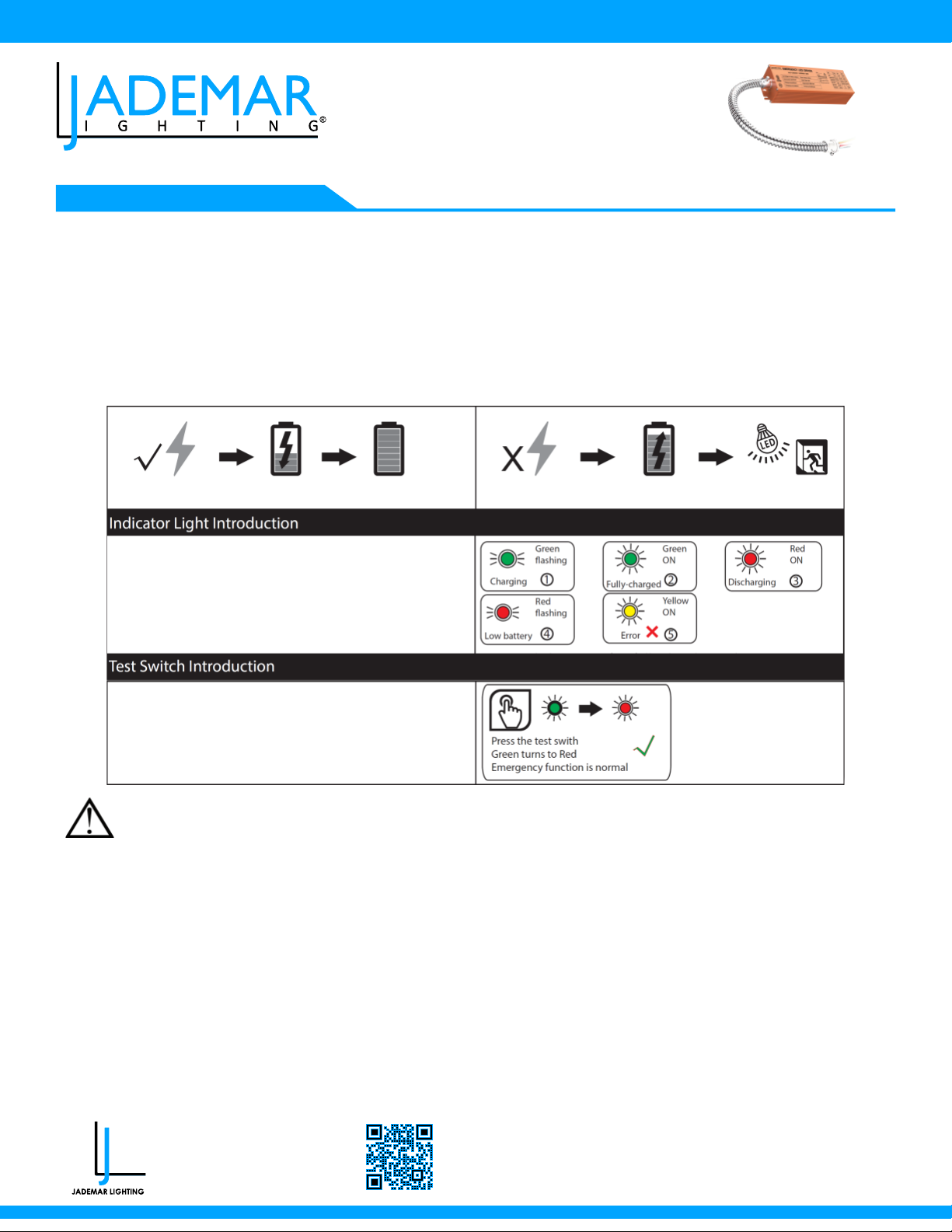

AC Operation: AC power is present. The AC driver operates the LED load as designed. The emergency driver is charging in a standby mode.
The green indicator light ashes shows that the battery is charging. The green indicator light becomes stable shows that the battery is fully
charged.
Emergency Operation: When the AC power goes out, the emergency driver detects the AC power outage and automatically switch to the
working emergency mode. The red indicator light on indicates that it is discharging, the red indicator light ashes to indicate low battery
power. The red indicator light o indicates that the discharge is complete. When the AC power is restored, The emergency driver backs to AC
power working and starts recharging.
Malfunction Operation: When the emergency LED driver fault, the yellow indicator light on
1. Green/Flashing: Charging
2. Green/ON: Fully-charged
3. Red/ON: Discharging (emergency mode)
4. Red/Flashing: Low battery
5. Yellow: Error
1. Press the test switch to confirm whether emergency
function is normal
2. During Emergency Mode, Press test switch twice to
cut off the emergency output and enter Shipping
Mode
AC Power On Charging Fully Charged AC Power Off Disharging Emergency Mode
