JAI EL-2800M-USB User manual

1052E-1403
Elite Series
EL-2800M-USB
EL-2800C-USB
2.8M Digital Progressive Scan
Monochrome and Color Camera
Document Version: Ver.1.0
EL-2800-USB_Ver.1.0_July2014
User Manual

EL-2800M-USB / EL-2800C-USB
- 2 -
Notice
The material contained in this manual consists of information that is proprietary to JAI Ltd., Japan
and may only be used by the purchasers of the product. JAI Ltd., Japan makes no warranty for the
use of its product and assumes no responsibility for any errors which may appear or for damages
resulting from the use of the information contained herein. JAI Ltd., Japan reserves the right to
make changes without notice.
Company and product names mentioned in this manual are trademarks or registered trademarks of
their respective owners.
Warranty
For information about the warranty, please contact your factory representative.
Certifications
CE compliance
As defined by the Directive 2004/108/EC of the European Parliament and of the Council, EMC
(Electromagnetic compatibility), JAI Ltd., Japan declares that EL-2800M-USB and EL-2800C-USB
comply with the following provisions applying to its standards.
EN 61000-6-3 (Generic emission standard part 1)
EN 61000-6-2 (Generic immunity standard part 1)
FCC
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Warning
Changes or modifications to this unit not expressly approved by the party
responsible for FCC compliance could void the user’s authority to operate the
equipment.

EL-2800M-USB
Supplement
The following statement is related to the regulation on “ Measures for the Administration
of the control of Pollution by Electronic Information Products “ , known as “ China RoHS “.
The table shows contained Hazardous Substances in this camera.
mark shows that the environment-friendly use period of contained Hazardous
Substances is 15 years.
嶷勣廣吭並㍻
嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕
功象嶄鯖繁酎慌才忽佚連恢匍何〆窮徨佚連恢瞳麟半陣崙砿尖一隈〇  云恢瞳ゞ 嗤蕎  嗤
墾麗嵎賜圷殆兆各式根楚燕 〃泌和

桟隠聞喘豚㍉
窮徨佚連恢瞳嶄根嗤議嗤蕎嗤墾麗嵎賜圷殆壓屎械聞喘議訳周和音氏窟伏翌
亶賜融延、窮徨佚連恢瞳喘薩聞喘乎窮徨佚連恢瞳音氏斤桟廠夛撹冢嶷麟半
賜斤児繁附、夏恢夛撹冢嶷鱒墾議豚㍉。
方忖仝15々葎豚㍉15定。

EL-2800C-USB
Supplement
The following statement is related to the regulation on “ Measures for the Administration
of the control of Pollution by Electronic Information Products “ , known as “ China RoHS “.
The table shows contained Hazardous Substances in this camera.
mark shows that the environment-friendly use period of contained Hazardous
Substances is 15 years.
嶷勣廣吭並㍻
嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕
功象嶄鯖繁酎慌才忽佚連恢匍何〆窮徨佚連恢瞳麟半陣崙砿尖一隈〇  云恢瞳ゞ 嗤蕎  嗤
墾麗嵎賜圷殆兆各式根楚燕 〃泌和

桟隠聞喘豚㍉
窮徨佚連恢瞳嶄根嗤議嗤蕎嗤墾麗嵎賜圷殆壓屎械聞喘議訳周和音氏窟伏翌
亶賜融延、窮徨佚連恢瞳喘薩聞喘乎窮徨佚連恢瞳音氏斤桟廠夛撹冢嶷麟半
賜斤児繁附、夏恢夛撹冢嶷鱒墾議豚㍉。
方忖仝15々葎豚㍉15定。

EL-2800M-USB / EL-2800C-USB
- 3 -
- Contents -
Before using USB 3.0 camera................................................................- 6 -
1. General .....................................................................................- 7 -
2. Camera composition....................................................................- 7 -
3. Main features ............................................................................- 8 -
4. Locations and functions ...............................................................- 9 -
4.1 Locations and functions............................................................................. - 9 -
4.2 Rear panel............................................................................................- 10 -
5. Input and output.......................................................................... - 11 -
5.1 USB 3.0 Interface Specifications .................................................................- 11 -
5.2 Connectors and pin assignment...................................................................- 11 -
5.2.1 Output connector for Digital Video Output (USB 3.0 Micro B connector) ............- 11 -
5.2.2 12-Pin connector ...............................................................................- 11 -
5.2.2.1 Pin assignment ............................................................................- 12 -
5.2.3 AUX Standard Hirose 10-Pin connector for Lens ..........................................- 12 -
5.2.4 AUX Type 2 HIROSE 10-Pin connector (Factory option)...............................- 13 -
5.2.5 AUX Type 3 HIROSE 10-Pin connector (Factory option)...............................- 13 -
5.3 Output ................................................................................................- 13 -
5.3.1 Digital output...................................................................................- 13 -
5.3.1.1 Output level ...............................................................................- 13 -
5.4 Digital IN/OUT interface...........................................................................- 14 -
5.4.1 Line Selector....................................................................................- 14 -
5.4.2 Line source......................................................................................- 14 -
5.4.3 Line Mode .......................................................................................- 15 -
5.4.4 Line Inverter ....................................................................................- 15 -
5.4.5 Line Status ......................................................................................- 15 -
5.4.6 Line Format .....................................................................................- 15 -
5.4.7 GPIO..............................................................................................- 15 -
5.4.7.1 GPIO block diagram ......................................................................- 16 -
5.4.7.2 IN and OUT matrix table ...............................................................- 17 -
5.6 Pulse Generator .....................................................................................- 18 -
5.6.1 Clock Pre-scaler ................................................................................- 18 -
5.6.2 Pulse Generator Selector .....................................................................- 18 -
5.6.3 Pulse Generator Length.......................................................................- 19 -
5.6.4 Pulse Generator Start Point ..................................................................- 19 -
5.6.5 Pulse Generator End Point ...................................................................- 19 -
5.6.6 Pulse Generator Repeat Count ..............................................................- 19 -
5.6.7 Pulse Generator Clear Activation ...........................................................- 19 -
5.6.8 Pulse Generator Clear Sync Mode ...........................................................- 19 -
5.6.9 Pulse Generator Clear Source................................................................- 20 -
5.6.10 Pulse Generator Inverter....................................................................- 21 -
5.6.11 Pulse Generator Setting table..............................................................- 21 -
6. Sensor layout, output format and timing ........................................ - 22 -
6.1 Sensor layout ........................................................................................- 22 -
6.1.1 Monochrome sensor............................................................................- 22 -
6.1.2 Bayer color sensor............................................................................- 22 -
6.2. Sensor readout (Sensor Tap Geometry).........................................................- 23 -
6.2.1 4 taps readout (1X2–2YE) .....................................................................- 23 -
6.2.2 1 Tap readout (1X–1Y) .........................................................................- 23 -
6.3. Camera output format and sensor readout system...........................................- 23 -
6.3.1 1X–1Y.............................................................................................- 24 -

EL-2800M-USB / EL-2800C-USB
- 4 -
6.4 Sensor Output timing...............................................................................- 24 -
6.4.1 Horizontal timing ..............................................................................- 24 -
6.4.1.1 Output format 1X2–2YE (Vertical binning OFF)...................................- 24 -
6.4.1.2 Output format 1X2–2YE (Vertical binning ON)....................................- 25 -
6.4.1.3 Output format 1X –1Y (Vertical Binning OFF)....................................- 25 -
6.4.1.4 Output format 1X –1Y (Vertical binning Binning ON) ...........................- 25 -
6.4.2 Sensor Vertical timing ........................................................................- 26 -
6.4.2.1 Output format 1X2–2YE (Vertical binning OFF)...................................- 26 -
6.4.2.2 Output format 1X2–2YE (Vertical binning ON)..................................- 26 -
7. Operating modes ......................................................................- 27 -
7.1. Acquisition control ................................................................................- 27 -
7.1.1 Acqusition mode ...............................................................................- 27 -
7.1.1.1 Single Frame ..............................................................................- 27 -
7.1.1.2 MultiFrame ................................................................................- 31 -
7.1.1.3 Continuous mode .........................................................................- 35 -
7.1.2 AcquisitionFrameCount .......................................................................- 38 -
7.1.3 Acquisition frame rate........................................................................- 39 -
7.1.3 Frame rate calculation formula .............................................................- 39 -
7.2. Exposure settings ..................................................................................- 40 -
7.2.1 Exposure Mode .................................................................................- 40 -
7.2.2 Exposure Time..................................................................................- 40 -
7.2.3 Exposure Auto ..................................................................................- 41 -
7.3. Trigger Mode ........................................................................................- 41 -
7.3.1 Trigger Source ..................................................................................- 41 -
7.3.2 Trigger activation..............................................................................- 41 -
7.3.3 Trigger Overlap.................................................................................- 42 -
7.4. Normal continuous operation (Timed Exposure Mode/Trigger Mode OFF) ...............- 42 -
7.5. Timed mode (EPS) .................................................................................- 42 -
7.5.1 If the overlap setting is “OFF” ..............................................................- 43 -
7.5.2 If the overlap setting is “Readout” .........................................................- 43 -
7.6. Trigger width mode................................................................................- 44 -
7.6.1 If the overlap setting is “OFF” ..............................................................- 44 -
7.6.2 If the overlap setting is “Readout” .........................................................- 45 -
7.7. RCT mode ...........................................................................................- 46 -
7.8. PIV (Particle Image Velocimetry)................................................................- 47 -
7.9. Sequential Timed Exposure Mode ...............................................................- 48 -
7.9.1 Video send mode...............................................................................- 48 -
7.9.2 Sequence ROI setting parameters ..........................................................- 49 -
7.10. Operation and function matrix.................................................................- 51 -
8. Other functions ........................................................................- 52 -
8.1 Black level control..................................................................................- 52 -
8.1.1 Black Level Selector...........................................................................- 52 -
8.1.2 Black Level......................................................................................- 52 -
8.1.3 Black Level Auto ...............................................................................- 52 -
8.2 Gain control..........................................................................................- 52 -
8.2.1 Gain Selector ...................................................................................- 53 -
8.2.2 Gain ..............................................................................................- 53 -
8.2.3 Gain Raw ........................................................................................- 54 -
8.2.4 Gain Auto........................................................................................- 54 -
8.2.5 Balance White Auto ...........................................................................- 55 -
8.3. LUT ...................................................................................................- 55 -
8.3.1 LUT Mode........................................................................................- 55 -
8.3.2 LUT Index .......................................................................................- 55 -

EL-2800M-USB / EL-2800C-USB
- 5 -
8.3.3 LUT value........................................................................................- 55 -
8.4. Gamma...............................................................................................- 56 -
8.5. Shading Correction.................................................................................- 56 -
8.6. Blemish compensation ............................................................................- 57 -
8.7 Lens....................................................................................................- 58 -
8.7.1 About P-Iris .....................................................................................- 58 -
8.7.2 Setting for P-iris lens being used............................................................- 59 -
8.7.2.1 P-Iris lens select ..........................................................................- 59 -
8.7.2.2 Step max. ..................................................................................- 59 -
8.7.2.3 Position .....................................................................................- 59 -
8.7.2.4 Current F value ...........................................................................- 59 -
8.7.2.5 P-Iris Auto min. / P-Iris Auto max......................................................- 59 -
8.7.2.6 Auto Iris Lens Control Signal Output ..................................................- 59 -
8.7.3 Motorized lenses..............................................................................- 59 -
8.7.3.1 Iris...........................................................................................- 59 -
8.7.3.2 Zoom........................................................................................- 60 -
8.7.3.3 Focus+ ......................................................................................- 60 -
8.7.4 Exclusive video output signal for iris control...............................................- 60 -
8.8 ALC ....................................................................................................- 61 -
9. Camera Settings......................................................................... - 62 -
9.1 Camera control Tool ................................................................................- 62 -
9.2 Camera Default Setting ............................................................................- 62 -
10. External appearance and dimensions .......................................... - 63 -
11. Specifications ........................................................................ - 64 -
11.1 Spectral response..................................................................................- 64 -
11.2 Specifications table ...............................................................................- 65 -
Appendix ...................................................................................... - 68 -
1. Precautions..............................................................................................- 68 -
2. Typical Sensor Characteristics .......................................................................- 68 -
3. Caution when mounting a lens on the camera....................................................- 68 -
4. Caution when mounting the camera................................................................- 68 -
5. Exportation .............................................................................................- 69 -
6. References ..............................................................................................- 69 -
Manual change history ...................................................................... - 70 -
User's Record ................................................................................. - 71 -

EL-2800M-USB / EL-2800C-USB
- 6 -
Before using USB 3.0 camera
EMVA 1288
With regard to signal to noise ratio in this manual, specifications measured by EMVA 1288 are used
together with specifications by a traditional measurement method.
EMVA 1288 is a more complete measurement that considers multiple noise sources, including
random noise, pattern noise, and shading. Additionally, EMVA 1288 incorporates temporal variances
in pixel output by capturing 100 frames of data and computing the RMS variations over the captured
frames. Because of the comprehensive nature of the noise analysis and the additional consideration
for RMS variances over time, EMVA 1288 SNR measurements are inherently lower than the traditional
SNR measurements given by manufacturers. However, the comprehensive nature combined with
rigid test parameters, means that all manufacturers are measuring their products equally and EMVA
1288 tested parameters can be compared among different manufacturers’ products.
In order to learn more about EMVA 1288, please visit http://www.emva.org
Interface
The EL-2800-USB employs a USB 3.0 interface and is in the process of being certified for compliance
with the USB3 Vision standard. USB3 Vision is a new standard interface for machine vision
applications being developed and managed by the AIA (Automated Imaging Association). USB3 Vision
uses USB 3.0 ports that will soon be standard on most PCs (with Windows 7 service pack and Windows
8 native support expected soon). Components from different manufacturers will easily communicate
with each other.
USB3 Vision also supports the GenICamTM standard which is managed by the EMVA (European Machine
Vision Association). The purpose of the GenICam standard is to provide a common program interface
for various machine vision cameras. By using GenICam, cameras from different manufacturers can
seamlessly connect in one platform.
The maximum transfer speed of USB 3.0 is specified at 5.0 Gbps, however effective bandwidth is
reduced by a number of factors including pixel format conversions and the physical interface
components used. The USB3 Vision standard specifies a bandwidth of 2.8 Gbps or greater. Maximum
cable length for passive cables is five meters, but this can be made longer using active cables.
As for the USB connector, EL-2800-USB uses a Micro B connector which complies with USB 3.0. This
connector has an additional 5-pin plug “stacked” on the side of a standard USB 2.0 Micro B
connector. However, USB 2.0 cannot be used with the EL-2800-USB.
Power supply
Although the USB 3.0 interface is capable of supporting both data and power, EL-2800-USB requires
both +5V and +12V. A separate power supply unit must be connected to the 12-pin connector for
providing +12V.
Computer used for EL-2800-USB series
It is necessary to use a PC equipped with a USB 3.0 interface. It is also recommended to use a PC
equipped with slots of better than PC Express 2.0 x 8. Please note that the EL-2800-USB may not
work properly depending on the chipset used in the PC.

EL-2800M-USB / EL-2800C-USB
- 7 -
1. General
The EL-2800M-USB and EL-2800C-USB are new cameras in JAI’s Elite Series. They provide high
picture quality, such as high sensitivity and low noise, suitable for machine vision applications. The
EL-2800M-USB is a monochrome progressive scan CCD camera and the EL-2800C-USB is the
equivalent Bayer mosaic progressive scan CCD camera. Both are equipped with a 2/3 inch CCD
sensor offering 2.83 million pixels resolution and a 4:3 aspect ratio. They provide 54.6 frames per
second for continuous scanning with 1920 x 1440 full pixel resolution for both monochrome and raw
Bayer output. 8-bit, 10-bit, or 12-bit output can be selected for both monochrome and Bayer
outputs.
The new cameras feature a USB 3.0 interface. A full pixel readout, partial scan readout, or binning
mode (monochrome only) can be selected depending on the application.
EL-2800M-USB and EL-2800C-USB have various comprehensive functions needed for automated
optical inspection applications, such as solid state device inspection or material surface inspection.
They incorporate video processing functions such as a look-up table, shading compensation, and
blemish compensation in addition to fundamental functions such as trigger, exposure setting and
video level control.
As a common Elite Series feature, a new connector for lens control is employed. EL-2800M-USB and
EL-2800C-USB support P-iris and motor-driven lenses as standard lens control capabilities. Factory
options are available to configure this connector to support DC iris systems as well as provide a
video iris output signal, or to provide additional TTL IN and OUT lines.
The latest version of this manual can be downloaded from: www.jai.com
The latest version of the Camera Control Tool for the EL-2800M-USB and EL-2800C-USB can be
downloaded from: www.jai.com
For camera revision history, please contact your local JAI distributor.
2. Camera composition
The standard camera composition is as follows.
Camera body 1
Sensor protection cap 1
Dear Customer (sheet) 1
The following optional accessories are available.
Tripod base
MP-42
Power supply unit
PD-12 series

EL-2800M-USB / EL-2800C-USB
- 8 -
3. Main features
New Elite Series, 2/3 ” progressive scan camera
Intelligent body design for easy and flexible installation
Utilizes USB 3.0 interface
Aspect ratio 4:3, 1920(H) x 1440(V), 2.8 million effective pixels
4.54 μm square pixels
S/N 61dB for monochrome and 58.5dB for color
8-bit, 10-bit, or 12-bit output for monochrome and Bayer
54.6 frames/second with full resolution in continuous operation (monochrome or Bayer)
Various readout modes, including horizontal and vertical binning (EL-2800M-USB only) and
ROI (Region Of Interest) for faster frame rates
0dB to +30dB gain control for EL-2800M-USB and 0dB to +27dB for EL-2800C-USB
10 μs (1/100,000) to 8 seconds exposure control in 1 μs step
Auto exposure control
Timed and trigger width exposure control,
RCT, PIV and sequential trigger modes for specific applications
ALC control with combined function of AGC, auto exposure, and auto iris
Various pre-processing circuits are provided
Programmable LUT
Gamma correction from 0.45 to 1.0
Shading compensation
Bayer white balance with manual or one-push auto (EL-2800C-USB only)
Blemish compensation
Test pattern signal generator is built in
Auto iris lens video output with H-sync if AUX Type 2 is configured
New Hirose 10P connector for lens interface including P-Iris lens control
C-mount for lens mount

EL-2800M-USB / EL-2800C-USB
- 9 -
4. Locations and functions
4.1 Locations and functions
Lens mount C-mount (Note *1)
AUX 10-pin connector AUX Connector for lens control
LED Indicator for power and trigger input
12-pin connector DC and trigger input
USB 3.0 connector Connector for interfacing via USB 3.0
Mounting holes Holes for mounting tripod base or direct installation.
Depth 5 mm (Note*2)
Note1: Rear protrusion on C-mount lens must be less than 10.0 mm.
Note2: The part number for the tripod adapter plate (with 1/4"-20 thread) is MP-42 (option).
When the camera is mounted directly using mounting holes, the length of screws must be
less than 5mm. If they are longer than 5mm, they may not fasten securely due to the 5mm
hole depth.
Fig. 1 Locations

EL-2800M-USB / EL-2800C-USB
- 10 -
4.2Rear panel
The rear panel mounted LED provides the following information:
Amber: Power connected –initiating
This light goes OFF after initiating.
Steady green: Camera is operating in Continuous mode
Flashing green: The camera is receiving external triggering
Note: The interval of flashing does not correspond with external
trigger duration.
Fig. 2 Rear panel

EL-2800M-USB / EL-2800C-USB
- 11 -
5. Input and output
5.1 USB 3.0 Interface Specifications
The EL-2800-USB employs a USB 3.0 interface for video and data transfer. USB 3.0 is an upgraded
version of USB 2.0 widely used in the industry. Its transfer rate is 5 Gbps, which is 10 times faster
than the 480 Mbps rate of USB 2.0. USB 3.0 employs a full-duplex system which executes both
transmitting and receiving at the same time. USB 3.0 has downward compatibility to USB 2.0 but in
the EL-2800-USB, USB 2.0 cannot be used because the performance is not guaranteed.
The connector used for USB 3.0 in the EL-2800-USB is a Micro B Type connector with a USB 3.0 form
factor.
5.2 Connectors and pin assignment

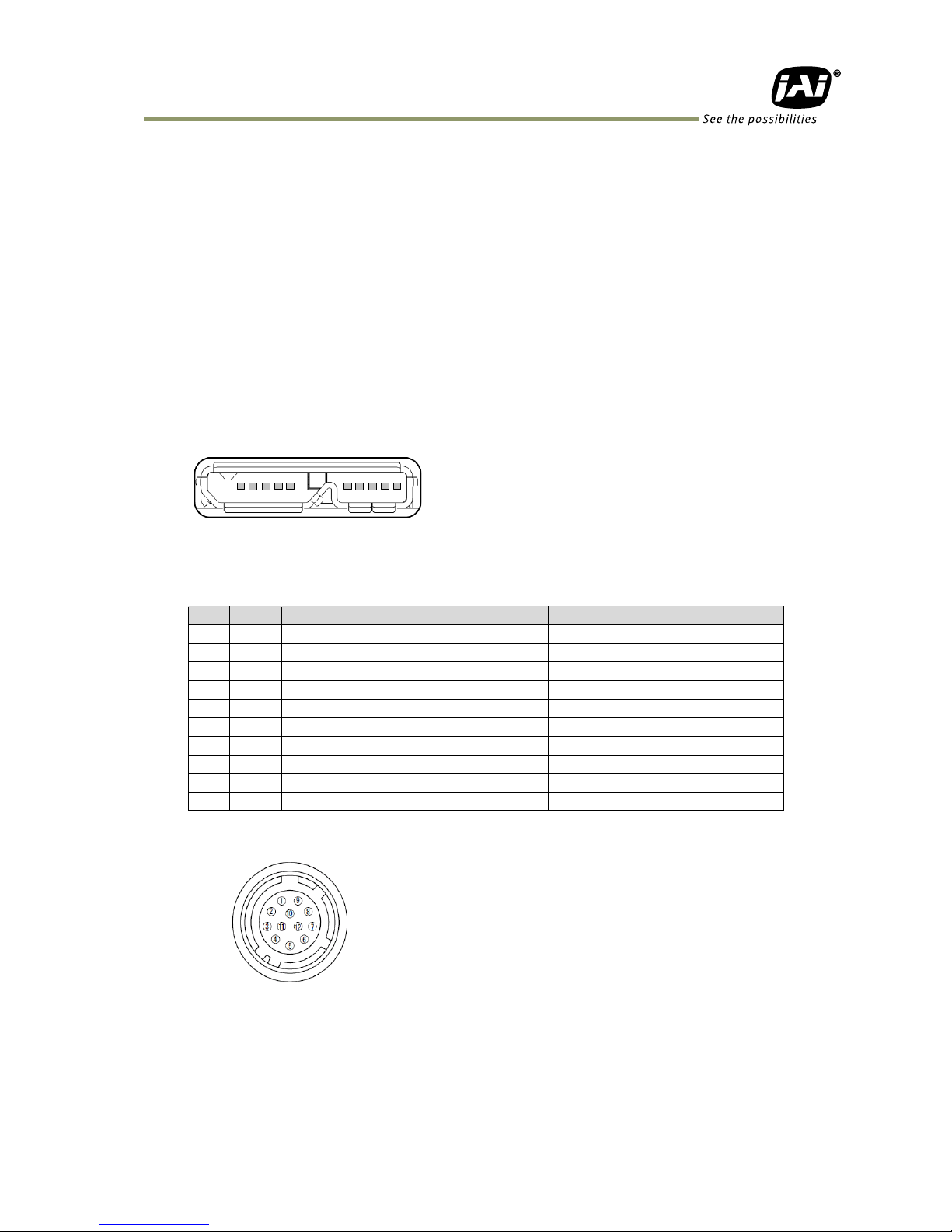

5.2.1 Output connector for Digital Video Output (USB 3.0 Micro B connector)
Type：ZX3600-B-10p or equivalent
Fig.3 USB 3.0 Micro B Connector
Table1 USB 3.0 Micro B connector pin configuration
No
I/O
Name
Note
1
I
Power(VBUS)
+5V
2
I/O
USB2.0 Differential pair(D-)
Differential pair
3
I/O
USB2.0 Differential pair(D+)
4
I
USB OTG ID for identifying lines
Line identification ID
5
GND
6
O
USB 3.0 Signal Transmission line (-)
Signal transmission line
7
O
USB 3.0 Signal Transmission line (+)
8
GND
9
I
USB 3.0 Signal Receiving line (-)
Signal Receiving line
10
I
USB 3.0 Signal Receiving line (+)
5.2.2 12-Pin connector
Type: HR10A-10R-12PB-01 male or equivalent
Use the part number HR10A-10P-12S for the cable side
Fig.4 12-pin connector
1 2 3 4 5 678910

EL-2800M-USB / EL-2800C-USB
- 12 -
5.2.2.1 Pin assignment
Table –2 12P Pin assignment
Note1: The factory default is Negative, Exposure Active signal.
Note2: The factory default is Trigger input signal.
5.2.3 AUX Standard Hirose 10-Pin connector for Lens
Type : HIROSE 10-Pin Connector 3260-10S3(55)
Fig.5 Hirose 10-pin connector
Table –3 Hirose 10P Pin Assignment
No
I/O
Name
Note
1
O
DRIVE IRIS+
Motorized Lens
2
O
DRIVE FOCUS+
Motorized Lens
3
O
DRIVE ZOOM+
Motorized Lens
4
O
COMMON
Motorized Lens
5
GND
6
O
P-IRIS OUT A+
P-Iris Lens
7
O
P-IRIS OUT A-
P-Iris Lens
8
O
P-IRIS OUT B+
P-Iris Lens
9
O
P-IRIS OUT B-
P-Iris Lens
10
O
GND
Pin no.
Signal
Remarks
1
GND
2
DC In
+12V ～+24V
3
GND
4
NC
5
Opt In1(-)
Line5
6
Opt In1(+)
7
Opt Out1(-)
Line2
8
Opt Out1(+)
9
TTL Out1
Line1（Note1）
10
TTL In1
Line4（Note2）
11
DC In
+12V ～+24V
12
GND
1
8

EL-2800M-USB / EL-2800C-USB
- 13 -

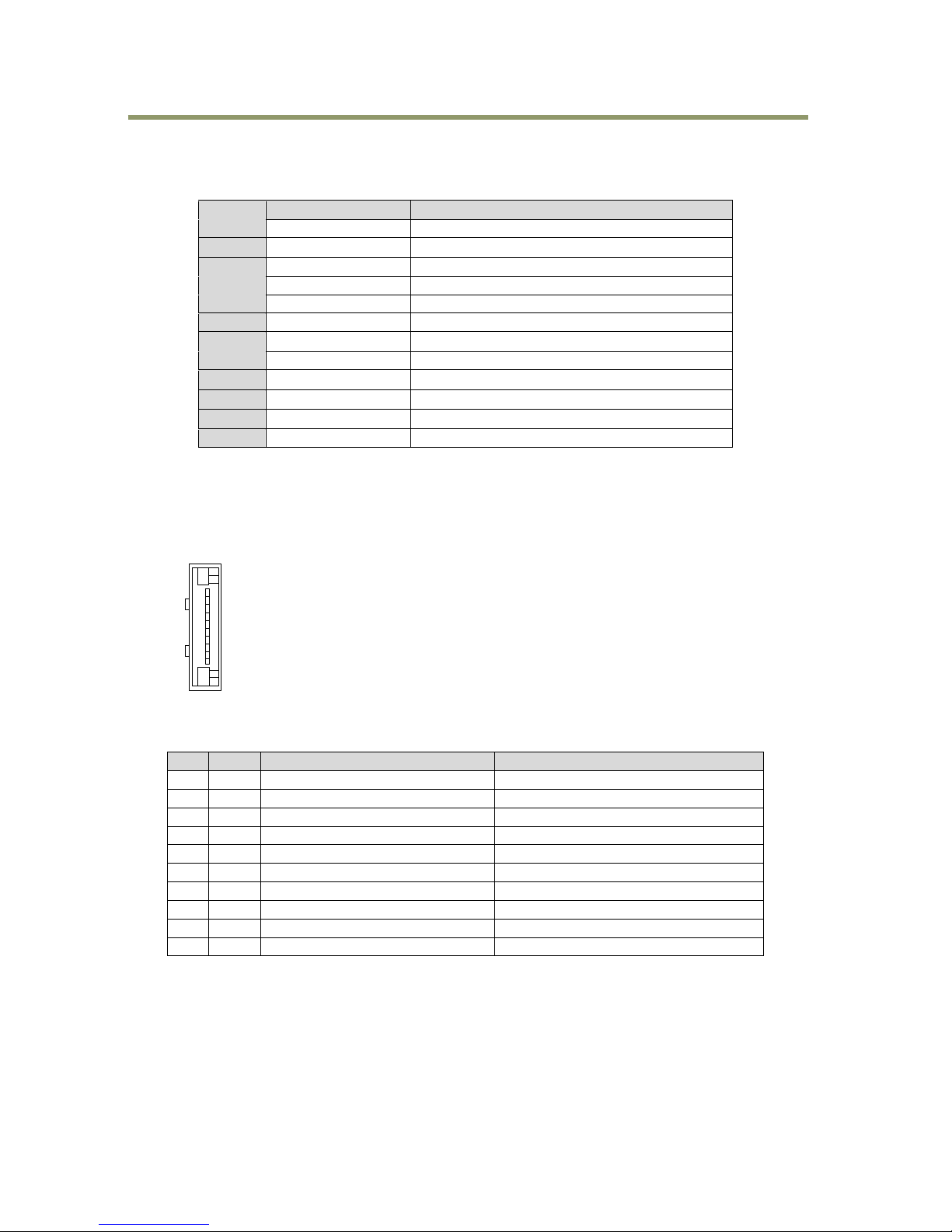

5.2.4 AUX Type 2 HIROSE 10-Pin connector (Factory option)
HIROSE 10-Pin Connector 3260-10S3(55)
Note: This is a factory option.
Table –4 Hirose 10P Pin assignment (Option)
No
I/O
Name
Note
1
O
Video Signal
Video Iris Lens
2
O
Power DC+12V
Video Iris Lens
3
NC
4
NC
5
GND
6
O
DC IRIS DAMP A+
DC Iris
7
O
DC IRIS DAMP A-
DC Iris
8
O
DC IRIS DRIVE B+
DC Iris
9
O
DC IRIS DRIVE B-
DC Iris
10
GND
5.2.5 AUX Type 3 HIROSE 10-Pin connector (Factory option)
HIROSE 10-Pin Connector 3260-10S3(55)
Note: This is a factory option.
Table –5 Hirose 10P Pin Assignment (Option)
No
I/O
Name
Note
1
O
TTL Out2
Line8
2
O
TTL Out3
Line9
3
I
TTL_In2
Line10
4
NC
5
GND
6
I
LVDS_In(+)
Line11
7
I
LVDS_In(-)
8
NC
9
GND
10
GND
5.3Output
5.3.1 Digital output
5.3.1.1 Output level
Table –6 Output level
CCD out
Analog Out
(Equivalent)
Digital Out
8-bit
10-bit
12-bit
Black
0%
Setup 3.6%,
25mV
8LSB
32LSB
128LSB
Monochrome
574mV
100%
700mV
222LSB
890LSB
3560LSB
Color
386mV
Monochrome
662mV
115%
808mV
255LSB
1023LSB
4095LSB
Color
445mV

EL-2800M-USB / EL-2800C-USB
- 14 -
DigitalOut[LSB]
32
70025
Analog Out[mV]
890
1023
BlackLevel
0
White ClipLevel
800
100%Level
Fig.6 Bit allocation(10-bit)
5.4 Digital IN/OUT interface
In the EL-2800-USB, the software control tool can assign the necessary signals to the digital I/O
ports.
5.4.1 Line Selector
In the Line Selector, the following input and output signals can be assigned.
Table –7 Line selector
Note: Lines 8 and 9 are available if AUX Type 3 is used for AUX connector.
5.4.2 Line source
Line source signal is selected against the dedicated line selected in the line selector.
Line Selector item
Description
Line 1TTL1 Out
TTL 1 output from 12P connector #9 pin located on the rear panel
Line 2 OPT Out
OPT output from 12P connector #7/#8 pins located on the rear panel
Line 8 TTL 2 Out
TTL 2 output from “AUX” HIROSE 10-Pin connector #1 pin
Line 9 TTL 3 Out
TTL 3 output from “AUX” HIROSE 10-Pin connector #2 pin
NAND 0 In 1
First input at first NAND gate in GPIO
NAND 0 In 2
Second input at first NAND gate in GPIO
NAND 1 In 1
First input at second NAND gate in GPIO
NAND 1 in 2
Second input at second NAND gate in GPIO

EL-2800M-USB / EL-2800C-USB
- 15 -
Table –8 Line source
5.4.3 Line Mode
Indicates the status of the interface, input or output.
5.4.4 Line Inverter
Sets the polarity of the selected input or output.
5.4.5 Line Status
Indicates the status of the selected signal, input or output (True=High or False=Low)
5.4.6 Line Format
Display the input or output interface format of the line item selected in Line Selector.
Interface format: No Connect, TTL, LVDS, Opto Coupled
5.4.7 GPIO
This is a general interface for input and output and controls input and output for trigger signals or
valid signals and pulse generators. By using this interface, you can control an external light source,
make a delayed function to input a trigger signal or make a precise exposure control with PWC
trigger.
Line Source item
Description
Low
Connect Low Level signal to line item selected in Line Selector, Default setting
High
Connect High Level signal to line item selected in Line Selector
Frame Trigger Wait
Connect Frame Trigger Wait signal to line item selected in Line Selector
Frame Active
Connect Frame Active signal to line item selected in Line Selector
Acquisition Trigger Wait
Connect Acquisition Trigger Wait signal to line item selected in Line Selector
Acquisition Active
Connect Acquisition Active signal to line item selected in Line Selector
Exposure Active
Connect Exposure Active signal to line item selected in Line Selector
FVAL
Connect FVAL signal to line item selected in Line Selector
PulseGenerator0 Out
Connect Pulse Generator 0 signal to line item selected in Line Selector
PulseGenerator1 Out
Connect Pulse Generator 1 signal to line item selected in Line Selector
Line 4 TTL 1 In
Connect TTL 1 In signal to line item selected in Line Selector
Line 5 OPT In
Connect OPT In signal to line item selected in Line Selector
NAND 0 Out
Connect NAND 0 signal to line item selected in Line Selector
NAND 1 Out
Connect NAND 1 signal to line item selected in Line Selector
Line 10 TTL 2 In
Connect TTL 2 In signal to Line 10
Line 11 LVDS 1 In
Connect LVDS 1 In signal to Line 11
Note] As for LVAL, some line items cannot be connected. Refer to “5.4.7.2 GPIO matrix table”

EL-2800M-USB / EL-2800C-USB
- 16 -
5.4.7.1 GPIO block diagram
Basic block diagram is as follows.
Note 1: For EL-2800-USB, Camera Output Pixel Clock is 54 MHz.
Note 2: Signals indicated in blue letters are available if the factory option AUX Type 3 is
configured as AUX interface.
Fig. 7 GPIO diagram
Soft Trigger
LVAL IN
FVAL IN
Exposure Active
Frame Trigger Wait
Frame Active
GPIO 11 (LVDS IN)
Pixel Clock
Cross Point
Switch
12 bit Counter
INV
INV
INV N
NAND
INV
Non INV
Pulse Generator
20 bit counter x 2
CLR
Sel Bit (5,0) Sel Bit (7)
Sel Bit (7)
Pulse Generator 0
Pulse Generator 1
GPIO 1 (TTL OUT 1)
GPIO 8 (TTL OUT 2)
GPIO 9 (TTL OUT 3)
Sel Bit (7)
Gate 1
Gate 2
GPIO 10 (TTL IN2)
GPIO 4 (TTL IN 1)
Acquisition Trigger Wait
Acquisition Active
Trigger 1 (AcquisitionStop)
Trigger 0 (AcquisitionStart)
Trigger 2 (FrameStart)
GPIO 5 (OPT IN )
GPIO 1 (OPT OUT )

EL-2800M-USB / EL-2800C-USB
- 17 -
5.4.7.2 IN and OUT matrix table
The following table shows the input and output matrix.
Table - 9 GPIO IN and OUT matrix
Selector (Cross
point switch output)
Source signal
(Cross point switch input)
LOW             
HIGH             
Line 4 - 12P TTL IN 1             
Line 5 - 12P Opt IN             
NAND 1 Out 1             
NAND 2 Out 1             
Pulse Generator 0             
Pulse Generator 1             
Software Trigger             
FVAL             
LVAL             
Exposure Active             
Acquisition Trigger Wait             
Acquisition Active             
Frame Trigger Wait             
Frame Active             
Line 10 - TTL 2 In             
Line 11 - LVDS 1 In             
Trigger
Selector
Trigger
Source
Line Selector
Pulse
Generator
Clear Source
Line Source
Line 9 - TTL 3 Out
NAND 1 In 1
NAND 1 In 2
NAND 2 In 1
Pulse
Generator
Selector
Acquisition Start
Acquisition Stop
Frame Start
Line 1 - 12P TTL Out 1
Line 8 - TTL 2 Out
Extension GPIO
Connection
NAND 2 In 2
Pulse Generator 0
Pulse Generator 1
Line 2 - 12P OPT Out

EL-2800M-USB / EL-2800C-USB
- 18 -
5.6Pulse Generator
The EL-2800-USB has a frequency divider using the internal pixel clock as the basic clock and two
pulse generators. In each Pulse Generator, various Clear settings are connected to GPIO. The
following shows Pulse Generator default settings.
Table - 10 Pulse Generator default settings
5.6.1 Clock Pre-scaler
Clock pre-scaler (Divide Value) can set the dividing value of the frequency divider (12-bit
length) and the pixel clock is used for this. Two built-in pulse generators work by the same
clock. In the EL-2800-USB, the internal pixel clock is 54 MHz.
5.6.2 Pulse Generator Selector
This is where you select one of the 2pulse generators in order to set or modify its parameters.
Table - 11 Pulse Generator setting
Fig.8 Pulse Generator Pulse construction
Pulse generator
length
Pulse generator Start point
Pulse generator End point
Pulse generator repeat count = N
(Pulse generator length x N)
Pulse generator
Clear source IN
(Clear activation
= Rising edge
Clear SYNC mode
= Async)
Pulse generator
Output
Pulse generator
length
Pulse generator
length
000
Display Name
Value
Clock Pre-scaler
1
Pulse Generator
Selector
Pulse Generator
Length
Start
Point
End
Point
Repeat
Count
Clear
Source
Clear
Inverter
Clear
Activation
Clear
Sync
Mode
-
Pulse Generator 0
1
0
1
0
Off
True
Off
Async Mode
-
Pulse Generator 1
1
0
1
0
Off
True
Off
Async Mode
Note:When Pulse Generator Repeat Count is set to “0”, the camera is operating in Free Running mode.
However, based on the above default settings (Length=1, Start Point=0 and End Point=1), Pulse Generator stops at
High output. Therefore, if Start Point=0 and End Point=1 are configured, Length should be “2”as the minimum active
width.
Trigger Selector
item
Description
Pulse Generator 0
If Pulse Generator 0 is selected, Length, Start Point, End Point, Repeat Count, Clear Source、Clear
Inverter, Clear Activation and Clear Sync Mode of pulse generator 0 are displayed under the
selector.
Pulse Generator 1
If Pulse Generator 1 is selected, Length, Start Point, End Point, Repeat Count, Clear Source、Clear
Inverter, Clear Activation and Clear Sync Mode of pulse generator 1 are displayed under the
selector.
