JAUDT DS 6108 Quick guide

Translation of the original operating instructions
JAUDT – Tight slide gate
DS 6108
© DS_EN_Rev03-2010.doc
Contents
1 DESCRIPTION ...........................................................................................................2
1.1 Validity of these operating instructions........................................................... 3
1.2 Labelling plate ................................................................................................ 3
1.3 Other applicable documentation..................................................................... 3
1.4 Technical preconditions for the operation of power-driven slide gates .......... 3
2 SAFETY ADVICE .......................................................................................................4
2.1 Scope of deployment...................................................................................... 4
2.2 Noise emissions ............................................................................................. 4
3 TRANSPORT AND STORAGE ..................................................................................5
4 INSTALLATION, START-UP, OPERATION ..............................................................5
4.1 Installation ...................................................................................................... 5
4.2 Start-up........................................................................................................... 6
4.3 Operation........................................................................................................ 6
5 MAINTENANCE .........................................................................................................6
5.1 Inspection and servicing of pneumatically-operated
JAUDT tight slide gates.................................................................................. 7
5.2 Arrangement of the Airmatik seal................................................................... 8
5.3 Replacing the Airmatik seal............................................................................ 9
6 ACCESSORIES..........................................................................................................9
7 SPARE PARTS ..........................................................................................................10
8 ORDERING SPARE PARTS ......................................................................................11
9 CLEANING.................................................................................................................11
10 DISPOSAL .................................................................................................................11
10 DECLARATION OF INCORPORATION ....................................................................12
11 APPENDIX .................................................................................................................13
JAUDT
Dosiertechnik
Maschinenfabrik
GmbH
Metering, feeding,
removal, shutting off,
regulating and controlling
Raiffeisenstraße 3-5
D-86167 Augsburg
Tel. [phone]
Fax [phone]
[phone]
[e-mail]
www.jaudt.de

Operating instructions DS 6108
© DS_EN_Rev03-2010.doc Page 2 of 13
1 Description
JAUDT tight slide gates serve to block the flow of liquids and of bulk materials ranging from free-flowing
powders to fine particles. JAUDT tight slide gates are robust, form a tight seal, and require minimal
maintenance.

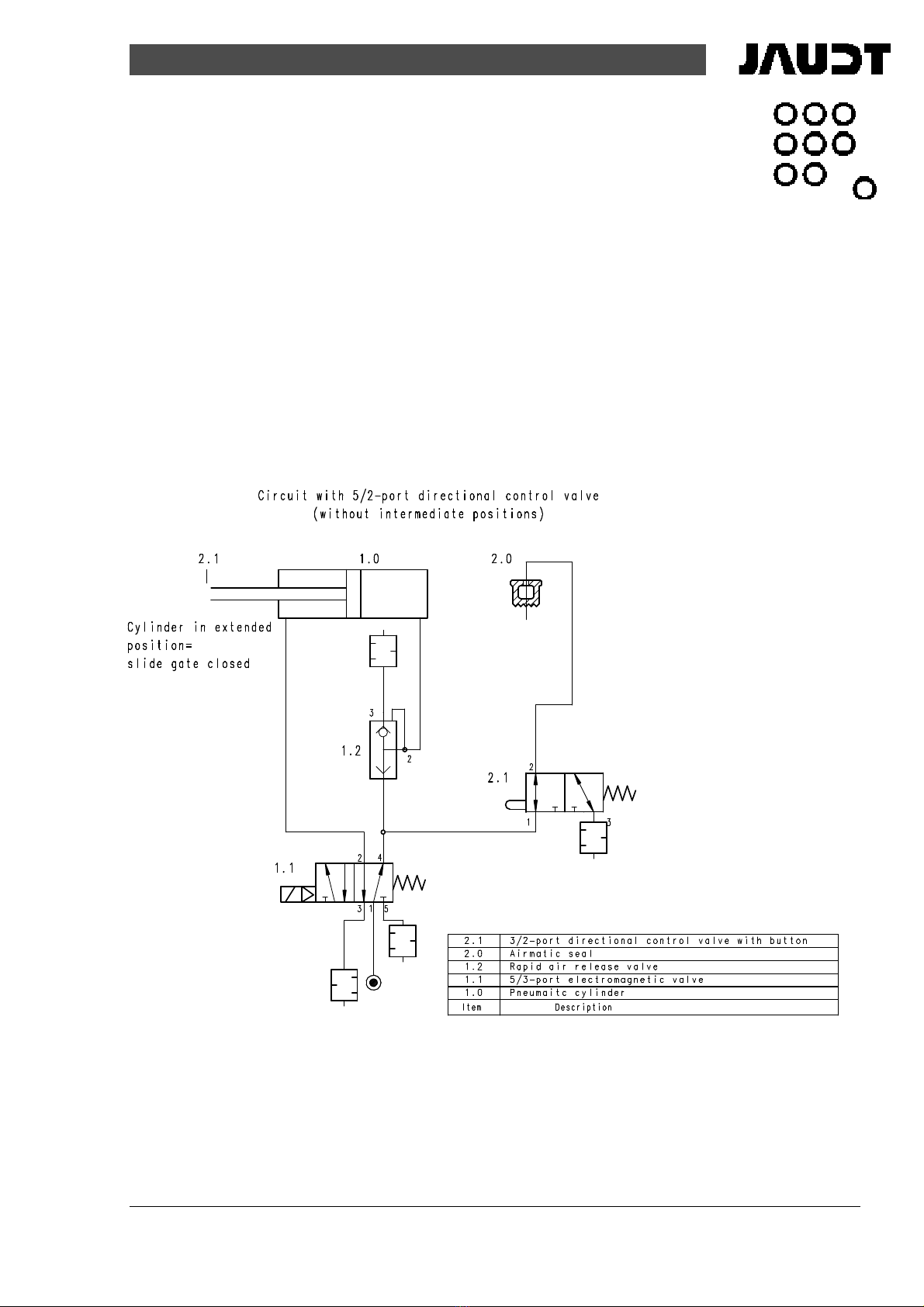

The sliding metal plate closes the inlet cross-section. At the limit of travel, a pressure screw on the shift
linkage activates the 3/2-port directional control valve. The Airmatik seal is charged with air and pressed onto
the sliding plate. This provides a sound seal to the valve opening.
When opening, the cylinder is switched using the 5/2-port directional control valve and the Airmatik seal is
emptied of air.

Operating instructions DS 6108
© DS_EN_Rev03-2010.doc Page 3 of 13
1.1 Validity of these operating instructions
These operating instructions are applicable to JAUDT tight slide gates with nominal widths of 150, 200, 250,
300, 350 und 400 mm diameter with the following operating equipment:
−Electropneumatic drive
1.2 Labelling plate
A plate is mounted on every JAUDT tight slide gate, identifying the gate type.
The type number does not specify the paint finish and accessories.
If you have queries or for ordering spare parts, please always quote the order number and model number.
1.3 Other applicable documentation
Every JAUDT tight slide plate is accompanied by a sheet detailing installation measurements.
JAUDT tight slide plates with inductive limit switches are supplied with the manufacturer’s installation sheet.
JAUDT tight slide plates with an electopneumatic drive are supplied with the installation sheet for the 5/2-port
directional control valve.
These accompanying documents form part of these operating instructions.
1.4 Technical preconditions for the operation of power-driven slide gates
Equip the drive for power-driven JAUDT tight slide gates with suitable safety protection, to avoid injuries.
Provision of distribution voltages:
Please take the voltage details from the other applicable documents (Section 1.3).
Provision of compressed air:
Electropneumatic drive: 0.7...1.1 Mpa (7...11 bar absolute), filtered, free from water and oiled.

Operating instructions DS 6108
© DS_EN_Rev03-2010.doc Page 4 of 13
2 Safety advice
Take particular care to ensure that local accident prevention regulations are observed.
Before starting to do any work on the JAUDT tight slide gate, take the necessary steps to make sure that the
drive unit is switched off/disconnected and that the appropriate control staff have been informed. If aggressive
or hot substances are being stopped by the JAUDT tight slide gate, suitable safety precautions must be
made before work on the slide gate begins. They include protective clothing, breathing apparatus, positioning
of collection containers.
If there is a safety officer and/or an environmental protection officer, he/she/they must be informed before
work begins.
JAUDT tight slide gates are based on a state-of-the-art design. Nevertheless, personal injury and damage to
property can occur due to carelessness. We provide appropriate warnings in the form of corresponding in-
formation. This information is emphasised by special symbols.
Be careful! Danger of death!
This sign draws your attention to a danger to people because of electrical connections.
Be careful! Danger of injury!
This sign draws your attention to a danger that represents a threat to people.
Be careful! Damage to material!
This sign draws attention to an act that might cause damage to the JAUDT slide valve.
·
This dot prompts you to take action. Extreme care must be taken to carry out the
necessary steps in the right order.
2.1 Scope of deployment
JAUDT tight slide gates with an O-ring seal are suitable for free-flowing materials with a particle size smaller
than 0.05 mm and for non-aggressive liquids (i.e. not acids, lyes);
e.g. filter dust, flue ashes, slurry, water.
JAUDT tight slide gates with Airmatik seal are also pressure-sealed in the valve opening up to 6 bar.
The housing is resistant to impact pressure of up to 10 bar in both finishes.
If you wish to use the product in a situation with parameters outside those stated, you must contact JAUDT
GmbH. We will be able to give you expert advice.
2.1.1 Inappropriate use
When using JAUDT tight slide gates, no aggressive liquids (acids, lyes) and liquid foodstuffs must be dosed
or sealed off.
2.2 Noise emissions
The noise emission figure is 70 dB (A).

Operating instructions DS 6108
© DS_EN_Rev03-2010.doc Page 5 of 13
3 Transport and storage
In order that the seal is not damaged, JAUDT tight slide gates must only be transported and stored in the
“Gate OPEN” (“Schieber AUF“) positiion – with the seal not under pressure.
To protect the tight slide gate and seals, the following storage conditions must be observed:
−Storage temperature +12 °C to +20 °C
−Relative air humidity approximately 65 %
−Items must not be stored in an aggressive atmosphere, or one which contains oil;
no storage in vehicle garages, chemistry rooms, etc.
−Seals are to be protected from exposure to sunlight.
−Replacement seals must always be stored flat and in their original packaging.
4 Installation, start-up, operation
4.1 Installation
This work should only be carried out by trained fitters.
Electrical works must be carried out by a trained electrician.
JAUDT tight slide gates are supplied assembled and in an operation-ready state.
4.1.1 Locate installation position
Horizontal installation position.
Do not install upside down; for installation position, see cover sheet.
4.1.2 Permitted trailer loads:
NW [mm] 150 200 250 300 350 400
Load [kg] 300 400 500 740 870 990
4.1.3 Notes on installation
•Clean flange facings.
•Align the JAUDT tight slide gates such that the opening forms a funnel for the flowing bulk material.
•Equip the pipe flanges with a seal (this is not supplied by JAUDT).
Warning – damage to materials!
Install the JAUDT tight slide gate with the voltage switched off – the equipment may be
damaged otherwise.
The installation instructions below are to be followed without fail.
•Align the JAUDT tight slide gate with the pipes.
•Align the companion flanges plane-parallel.
•Tighten the connecting elements crosswise (do not exceed max. torque of 70 Nm!).

Operating instructions DS 6108
© DS_EN_Rev03-2010.doc Page 6 of 13
4.2 Start-up
This work should only be carried out by trained specialist staff.
Electrical works must be carried out by a trained electrician.
Danger – risk of injury!
Ensure that the unit is switched off and is protected
against accidental start-up.
Notify the control room.
Test the JAUDT tight slide gate once installed:
•for easy movement of the gate with low noise
•for tightness of seal
•to see that fastening elements are firmly tightened in place
•to carry out a check of the electropneumatics for function and tightness of seal.
•Inductive limit stop: Check the switch settings “Gate OPEN” (“Schieber AUF”) and “Gate CLOSED”
“Schieber ZU”
4.3 Operation
Follow the safety instructions.
The JAUDT tight slide gate is easy to operate.
Danger – risk of injury! – With manually operated tight slide gates.
Use protective gloves if dosing with hot materials
– risk of burning.
The electopneumatically operated Jaudt tight slide gate has an emergency hand-operation facility to cater for
sudden loss of power supply. This is located on the 5/2-port electomagnetic valve (for a description of how
this operates, see the valve installation sheet).
5 Maintenance
Maintenance comprises servicing, inspection and repair.
Repairs may only be carried out by JAUDT GmbH.
Servicing and inspection may only be carried out by trained specialists.
Electrical works must be carried out by trained electricians.
Inspection every 3 months
Service every 3 months if used in constant operation or for critical situations
every 6 months for other uses
Please also respect the inspection and servicing schedules for supplied parts – see “Other
applicable documents”(Section 1.3).

Operating instructions DS 6108
© DS_EN_Rev03-2010.doc Page 7 of 13
5.1 Inspection and servicing of pneumatically-operated JAUDT tight
slide gates
When carrying out servicing work, the inspection work must also be carried out.
•denotes inspection work
∗denotes servicing work
Be careful! Danger of injury!
Make sure that the equipment has been switched off before work starts and that
precautions have been taken so that it cannot start up again unintentionally. Inform
the appropriate control staff.
Be careful! Danger of injury! – When substances that are hot or irritate the skin are
being metered.
Protect yourself by wearing protective clothing, safety goggles, breathing apparatus.
Inform the safety and environmental protection officer(s).
Keep a suitable collection container close at hand.
•Check the screws and the fastening elements to see that they sit firmly. Remove dirt and rust.
•Carry out a visual check. If applicable, replace damaged components.
•Check whether the tight slide gate forms a tight seal.
If necessary, replace the seals and adjust the eccentric screws.
∗Take apart and clean the tight slide gate. Always replace the self-locking screws.
∗Replace the seals and adjust the eccentric screws so that the gate panel has a 0.5 mm gap to the collar
of the housing.
Danger – risk to life!
Ensure that the drive is switched off ordisconnected from the current.
Ensure that the unit is switched off and is protected against accidental start-up.
Notify the control room.
Electrical works must be carried out by trained electricians.
•Check the pneumatic feed and drain the water from this if necessary.
•Ensure that the electrovalves are working properly.
•Check the pneumatics system for leaks.
•Check the limit switch (optional) for function and technical condition.
•Ensure that the electrical connection is not oxidised, damaged or exposed.
•Ensure that the safety guard is firmly attached.

Operating instructions DS 6108
© DS_EN_Rev03-2010.doc Page 8 of 13
5.2 Arrangement of the Airmatik seal
General:

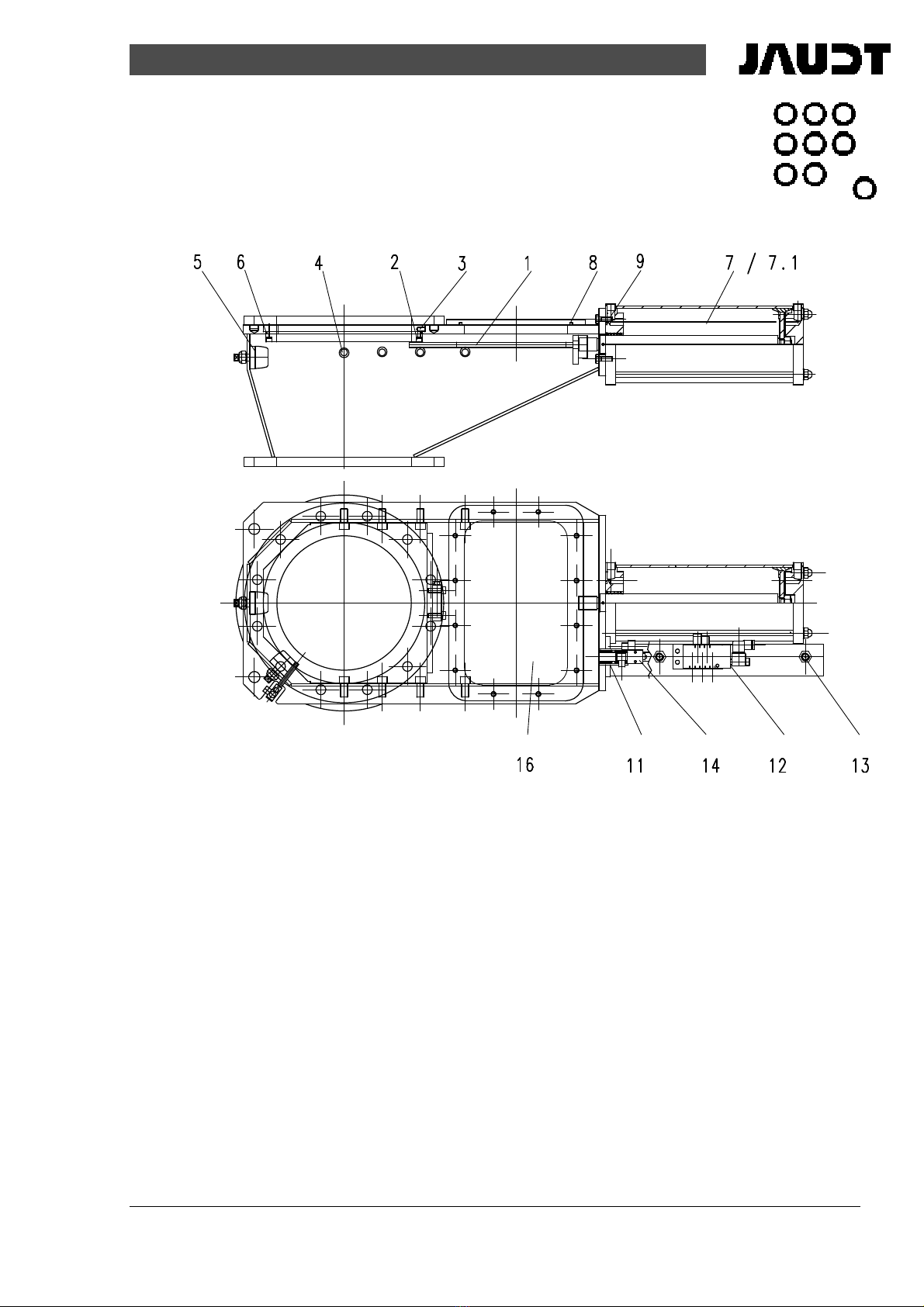

A positive fit is maintained on the Airmatik seal (2) using a profiled groove in the adaptor ring (6) of the
housing. Pressurisation is effected via the pneumatic connection on the housing and can only occur once the
sliding plate (1) is fully closed. This is achieved by setting the mechanical valve to the( “Closed”) position.

Operating instructions DS 6108
© DS_EN_Rev03-2010.doc Page 9 of 13
5.3 Replacing the Airmatik seal
Changing the seal:
Screw the seal connector (3) out of the adaptor ring.
Remove the adaptor ring from the housing, taking care not to damage the profiled groove.
Lift the Airmatik seal (20) in one place using a screwdriver, and then remove from the profiled groove together
with the valve connector (21). Check the profiled groove and if necessary remove any dirt and marks present.
Lightly lubricate the O-ring on the valve connector for the new seal and first carefully insert the new Airmatik
seal completely at the valve connector location. Starting from the valve connector, evenly introduce the
Airmatik seal in both directions into the groove.
Attention: Damage to materials!
Do not use any tools with sharp edges, e.g. small screwdrivers, when installing the new Airmatik
seal!
Make sure the slide gate connection is properly located!
Check that the Airmatik seal is optimally seated in the profiled groove – the Airmatik seal must disappear
completely into the profiled groove while no pressure is being applied
Replace the adaptor ring into the housing, replacing the O-ring if necessary.
Screw the seal connector with the sealing tape back into the adaptor ring.
6 Accessories
•Limit switch inductive
JAUDT flange valves can be fitted with limit switches to report “OPEN – CLOSED” positions.
The limit switches are preset at the factory. Their setting must be checked during the commissioning
process and adjusted if necessary.
•Solenoid Valve 5/2 way (with pneumatically unit)
230 V AC or 24 V DC/48 V AC
The technical datasheets of the accessories are supplied of this operating manual !

Operating instructions DS 6108
© DS_EN_Rev03-2010.doc Page 10 of 13
7 Spare parts
Drawings not to scale
1 Slide plate 11 Stripper guide
2 Seal 12 Electrovalve
3 Seal connector 13 Limit switch
4 Eccentric 14 3/2-path directional control valve
5 Eccentric rest
6 O-ring 16 Service cover
7 Pneumatic cylinder
7.1 Repair set for cylinder
8 O-ring
9 O-ring

Operating instructions DS 6108
© DS_EN_Rev03-2010.doc Page 11 of 13
8 Ordering spare parts
Send your spare parts order by mail to [e-mail] or by fax to ++ 49 (0)821 7960567.
If you have a JAUDT customer number you can also order spare parts at www.jaudt.de.
Please give us the following information when ordering spare parts:
−Name and item from the spare parts list (appendix)
−Order no. and type of the JAUDT tight slide gate according to the type plate
Example:
Suppose you require a new slide plate. We need the following details:
−Slide plate, item 1, No. 120610.0107
−Order no. according to type plate, e.g. AB03-0211
Type according to type plate, e.g. AB03-0211.10 or 600808.4002
9 Cleaning
Do not use cleaning materials containing acids or lyes.
Foodstuffs:
If foodstuffs are being dosed, clean the JAUDT tight slide plate with running drinking water and a soft brush.
For more serious stains, use standard commercial cleaning materials. Make sure that these are not
poisonous and do not form poisonous compounds. Further ensure that these do not contain any acids or
lyes. Rinse with plenty of drinking water.
10 Disposal
Used oil and lubricants are classed as special waste. Please dispose of these in a manner which respects the
environment.

Operating instructions DS 6108
© DS_EN_Rev03-2010.doc Page 12 of 13
10 DECLARATION OF INCORPORATION
within the meaning of EU Directive 2006/42/EC, Annex II Part 1.B
Manufacturer, address JAUDT Dosiertechnik
Maschinenfabrik GmbH
Raiffeisenstr. 3 - 5
86167 Augsburg
Tel. ++49 (0)821 79605-0
Documentation officer Wolfgang Morell, JAUDT Dosiertechnik GmbH
Product denomination / Device Type Tight slide gate / 6108…
The above partly completed machinery is governed by the requirements of Directive 2006/42/EC
Annex I, its general principles and its Part 1 and where appropriate Point 2.1. If used in areas at
risk of explosion Directive 94/9/EC (ATEX) also applies.
The fundamental requirements 1.3.3 and 1.3.4 can be ensured. The above requirements can only
be ensured through proper installation.
In addition, the above product conforms in the supplied version to the provisions of Directive
2006/95/EC “Low Voltage Directive” and 2004/108/EC “Electromagnetic Compatibility”.
For the purposes of assessment of conformity the manufacturer produced the special technical
documentation pursuant to Directive 2006/42/EC Annex VII Part B. This documentation will be
sent to the authorities of the individual member states in file form on justified request.
The above partly completed machinery is intended solely for incorporation in another machine.
Commissioning is prohibited until it has been ascertained that the machine / system into which the
partly completed machinery is to be incorporated meets the requirements of all the above direc-
tives.
JAUDT Dosiertechnik GmbH
Raiffeisenstraße 3-5 Robert Roßkopf
D-86167 Augsburg Managing Director
Augsburg, 14.07.2010

Operating instructions DS 6108
© DS_EN_Rev03-2010.doc Page 13 of 13
11 Appendix
On the following pages the technical data sheets or the documentation of the
accessories are specified.
