Product Overview
The L75ms supports a variety of sources from wireless streaming via Bluetooth and Wi-Fi to hard wired sources
such as a phono turntable or TV. While some connections are specic, others can be any device that matches
that match the connections type.

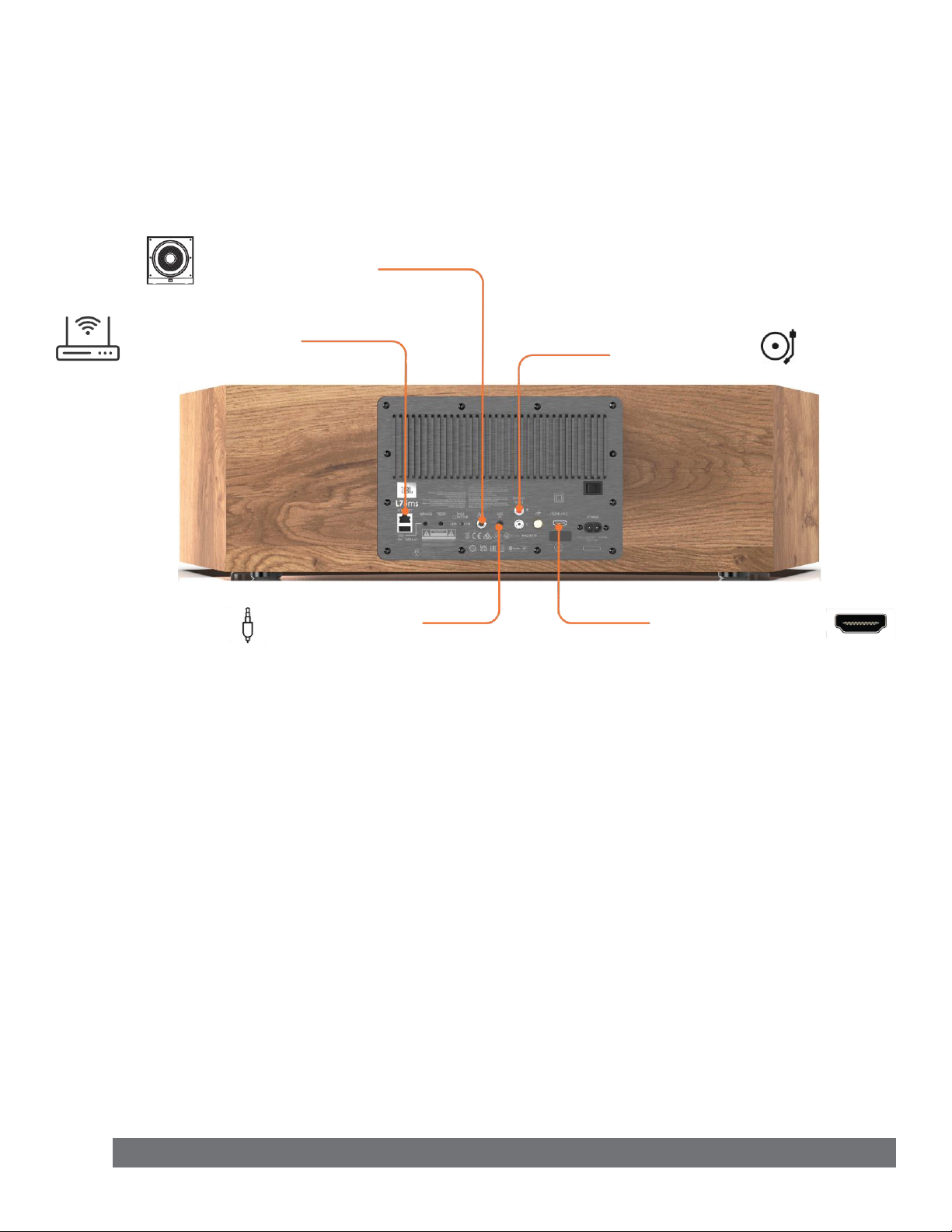

Basic Wiring Diagram
Sub Out: Single RCA to
Powered Sub (Optional)
Phono: Stereo RCA
plus Ground
Ethernet: Connect to port
on wireless router for
streaming
HDMI ARC: ARC from TV
Aux In: 3.5mm (1/8in)
Stereo
What’s in the Box
1x L75ms Integrated Music System
1x Speaker Grille
1x RF Remote
1x Region Specic Power Cord

L75ms Owners Manual | Rev1.0 20220201 | Part No. 620-0595-001 | JBL.com/Specialty-Audio/ Pg 5
Rear Panel Connections
NOTE: Connections not noted here are for service use only and have no operation for regular use.
AEthernet RJ-45 10/100bit
BReset Resets L75ms to Factory Defaults. Refer to Restoring Factory Defaults for details.
CBass Contour Use to adjust for bas compensation based on nearness to boundaries.
Refer to Speaker Placement for details.
DSub Out Single RCA - Connect to Powered Sub with LFE input
EAux In 3.5mm (1/8") TRS Stereo Analog
FPhono In (MM)
RCA Stereo for Moving Magnet (MM) Phono Cartridge with Ground connection.
Note: This input is congured for the gain required for a turntable and is not
intended for analog line level outputs.
GHDMI ARC Standard HDMI with ARC for use TV ARC Input. Only accepts 2ch PCM signals
HAC Power Connect with supplied power cord.
IMain Power Switch Ensure switch is on O󰀨 position while connecting or disconnecting sources.

L75ms Owners Manual | Rev1.0 20220201 | Part No. 620-0595-001 | JBL.com/Specialty-Audio/
Pg 6
Top Panel Controls
ASource Indicators
Indicates connection status.
NET – White=Connected | Blinking=Searching | Red=Network Disabled
Sources – White=Active | O󰀨=Not Active
BVolume Controls Controls output volume of speaker
CSource Selection Press to move to the next source.
DVolume Indicator Dots illuminate from left to right as volume increases.
Remote Control Buttons
APower Toggles L75ms ON or OFF
BVolume Controls Volume Up / Down and Mute
CPlayback Controls Previous / Next and Play / Pause
DDirect Source Selection Network Streaming / HDMI-ARC / Phono /
Bluetooth / 3.5mm TRS Stereo Analog
ESFX (Sound Field
Enhancement)
Press to expand output to a more spacious
sound eld.
Refer to Sound Field Enhancement (SFX)
for more details.
Note: Pressing any button on the remote will wake the L75ms from Standby.

L75ms Owners Manual | Rev1.0 20220201 | Part No. 620-0595-001 | JBL.com/Specialty-Audio/ Pg 7
Initial Setup
Speaker Placement
Setting Boundary Compensation
The L75ms was designed to be placed on top of a cabinet or table in a open area away from boundaries
such as walls or cabinet surfaces. The bass contour switch is used to compensate for placing the speaker
on cabinet shelf where side and top areas are close to the speaker.
Set the Bass Contour switch located on the rear panel based on the speakers proximity to side boundaries
such as walls or the inside of a bookcase or cabinet. When close to a boundary the switch should be in the
-3dB position in order to maintain level bass response.
Speaker on top of cabinet and away from walls. Set Bass Contour to 0dB
BASS
CONTOUR
0dB
-3dB
Speaker on cabinet shelve or close to walls. Set bass contour to -3dB
BASS
CONTOUR
0dB
-3dB
Pairing the Remote
Before the L75ms can be controlled via the included remote, the included remote must be paired to the L75ms.
1. Press & Hold the volume minus and source selection buttons on the top panel simultaneously for 2secs
to initiate pairing mode.
2. Press & Hold the Network Stream and Play/Pause buttons on the remote simultaneously for 3secs.
-
1 2
Press & Hold >2 sec Press & Hold >3 sec

L75ms Owners Manual | Rev1.0 20220201 | Part No. 620-0595-001 | JBL.com/Specialty-Audio/
Pg 8
Connecting Sources
AUX – Connect using a 3.5mm (1/8”) TRS Stereo female for analog 2ch. Pinout follow standard
conguration. Refer to Rear Panel Connections item E.
PHONO – Connect the stereo analog output of a turntable and the GND from the turntable to the GND on
the L75ms. Note that this input is phono level can is not intended for analog line level outputs.
Refer to Rear Panel Connections item F.
HDMI-ARC – Connect to the ARC input of a TV. Select the ARC input on the TV after making this
connection and powering On the L75ms. Refer to Rear Panel Connections item G.
Note: The HDMI-ARC input on the L75ms does not decode multichannel or Dolby 2ch audio formats. In order
for the L75ms to play content delivered to the HDMI/ARC the source device output must be set to 2ch
PCM. Refer to the owners manual for your source device on details on how to select 2ch PCM output.
Connecting to Network
Wired Network Connection
Connect the Ethernet port on the rear to the port on a
wireless router using a CAT-5e or higher cable. NET on the
top panel will illuminate white once a network connection
has been established. The L75ms is now available on the
network for casting from media players such as Spotify or
iTunes.
Note: If the NET icon is RED then network is disabled and must
be enabled in order to connect. Refer to Enabling and
Disabling Network and Bluetooth and Bluetooth for details.
Wi-Fi Direct Connection
The Google home app is used to connect the L75ms to a Network for Android and Apple iOS devices. If you
choose to not use Google Home and connect an Apple iOS device with Airplay, refer to Wi-Fi Connection
with Airplay.
Wi-Fi Connection with Google Home
1. On your mobile device, download and open the Google Home App.
2. Follow Google Home instructions to add devices.
3. Follow the prompts for adding devices. Note: We recommend giving the speaker a common name so
that it can be easily found for streaming later.
NOTE: We recommend giving the L75ms a user-friendly name such as Living Room Speaker, if you choose
to do so write it down as it will be what is used to connect to the unit for Wi-Fi or Bluetooth streaming.
'ŽŽŐůĞ,ŽŵĞ
Google Home
White=Connected | Blinking=Searching |
Red=Network Disabled

L75ms Owners Manual | Rev1.0 20220201 | Part No. 620-0595-001 | JBL.com/Specialty-Audio/ Pg 9
Wi-Fi Connection with Airplay
1. Navigate to the network settings for your iOS device.
2. Select Wi-Fi and navigate to Setup New Airplay Speaker.
3. Select the device named L75MS-XXXXX. The XXXXXX is the corresponding MAC address.
4. Select the network for the L75ms to use and select Next.
5. Follow the on-screen instructions to complete the setup of the L75ms as an Airplay speaker.
Enabling and Disabling Network and Bluetooth
Network and Bluetooth functionality may be turned O󰀨 should it be desired to do so. The same button operation
can be used to turn Network and Bluetooth back On.
Press Source Selection & Volume + on the top panel simultaneously for >3 seconds.
Press Simultaneously
+
Press Simultaneously
Note: When the Network and Bluetooth is O󰀨 the following conditions exist.
• Speaker cannot be used for Network or Bluetooth streaming.
• Handheld remote is in-operable and the unit can only be used via the top panel buttons.
• Network icon on top panel with show Red indicating that Network has been turned o󰀨.
Connecting a Bluetooth Device
Connection via Bluetooth is the same as other Bluetooth devices and varies from mobile device to mobile
device. Refer to the owner’s manual for the device being connected prior to performing the following steps.

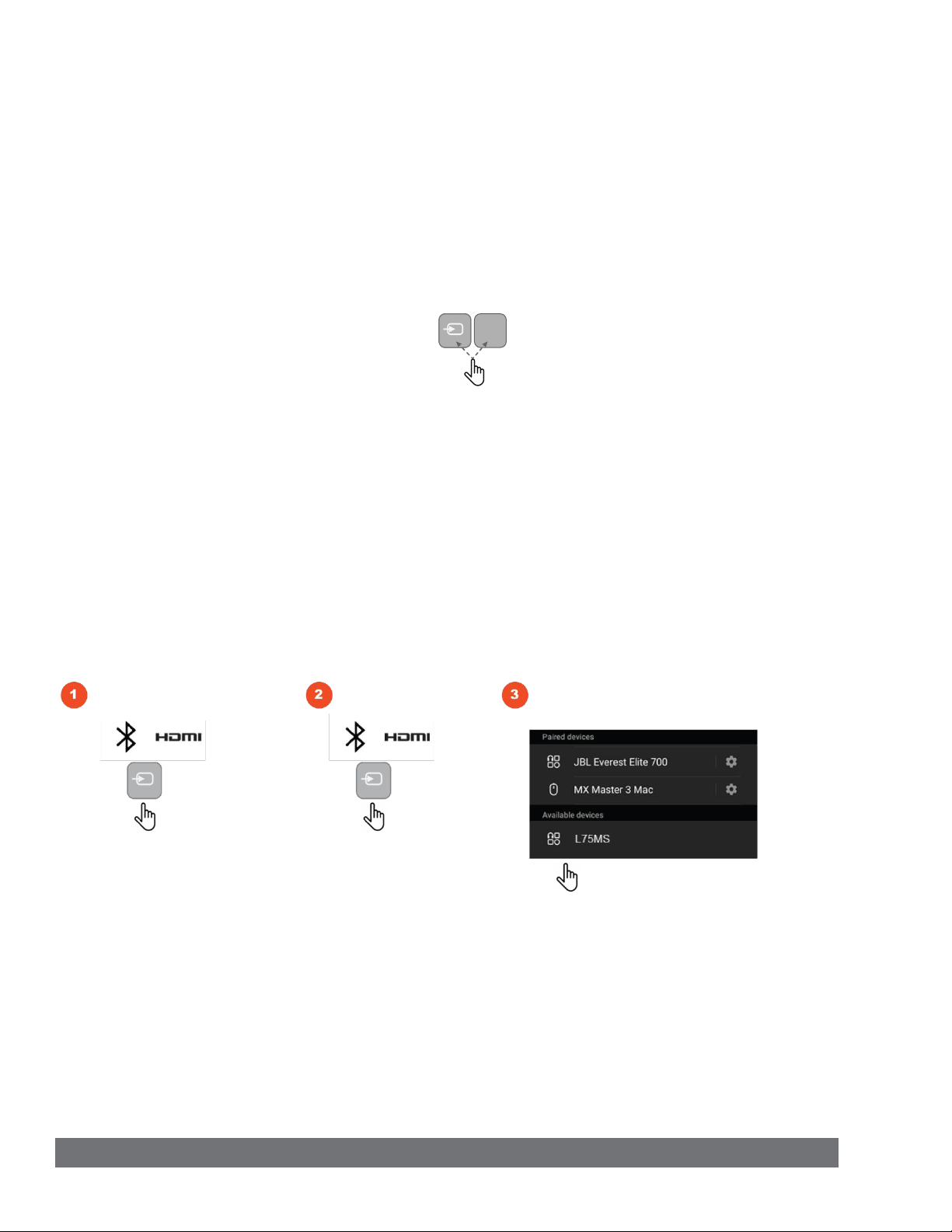

1. Select the Bluetooth source via the button on the remote or via the top panel source selection.
2. Press & Hold the Bluetooth source or the source selection button for >3 seconds.
3. Navigate to your devices Bluetooth menu and select JBLL75MS from the list. Note if the name was
changed during Google Home setup, that name will be listed.
Select the Bluetooth Source Select L75ms in your devices Bluetooth menuPress & Hold >3 sec

L75ms Owners Manual | Rev1.0 20220201 | Part No. 620-0595-001 | JBL.com/Specialty-Audio/
Pg 10
Using the L75ms
Wake from Standby
The L75ms enters standby mode when the power button is pressed or after 10mins of no signal on a
selected source. To wake the L75ms from standby perform one of the following operations.
• Press any button on the remote or top panel.
• Connect to the L75ms via a Bluetooth or Wi-Fi Streaming Source.
• Power On device connected to L75ms via HDMI ARC
Selecting and Playing Sources
Sources may be selected directly by pressing the desired source button on the remote, using the source
selection button on the top panel, or automatically for Network or Bluetooth streaming and HDMI ARC.
Sources that can be automatically played will also wake the L75ms from Standby.
Using the Top Panel
Sources may be selected using the Source selection button located in the center of the top panel controls.
Pressing it advance to the next source to the right. The source will illuminate White when it is active.
Sources can also be selected directly using the buttons on the included RF remote.
Refer to Remote Control under Product Overview for details.
Press to
Advance to
Next Source
AStreaming Sources Auto Switch - Selected when a device initiates a stream.
BBluetooth Auto Switch - Selected when a device connects via Bluetooth.
Refer to Connecting a Bluetooth Device on details to connect a device.
CHDMI-ARC Auto Switch - Selected when a device connected to the HDMI input is powered
on.
DPhono Analog stereo from turntable.
EAUX Analog stereo via 3.5mm (1/8") TRS Stereo Analog.

L75ms Owners Manual | Rev1.0 20220201 | Part No. 620-0595-001 | JBL.com/Specialty-Audio/ Pg 11
Automatically Selected Sources
Streaming sources and the HDMI-ARC input will automatically be selected when a source is chosen that is
connected to the L75ms via cable in the case of HDMI-ARC or Wi-Fi and Bluetooth.
Network Streaming
The L75ms supports Google Chrome cast which allows the speaker to receive content through a network
connection. Casting is done by selecting the cast symbol within the app being used or the connect function
of the app. Refer to the apps usage information for details on using a specic apps functionality.
1. Open a source such as Spotify on a mobile device.
2. Select the desired content.
3. Press the Cast icon in the app and select the L75ms.
Note:
Your phone or tablet may be used as a remote control. Visit spotify.com/connect to for details.
Apple Airplay
To listen to audio via AirPlay on the speaker, ensure your Apple device is connected to the same network as
the Receiver and simply slect the Speaker as the AirPlay audio playback device.
Bluetooth
1. Open the Bluetooth menu on your mobile device.
2. Select the L75ms from the list.
3. Open an app such as Spotify.
4. Select content and press play.
HDMI-ARC
The HDMI-ARC input will be automatically selected when the connected device is powered On regardless
of standby state of the L75ms. It can also be selected by using the source select button on the top panel of
the HDMI button on the remote.
1. Power On device connected to HDMI-ARC
2. L75ms will automatically select the HDMI-ARC input.
Controlling L75ms Volume
Volume for the L75ms can be controlled via the volume buttons on the top panel, the included remote, TV
connected via HDMI ARC, and the volume buttons on device streaming via network or Bluetooth. Note that
streaming device volume control depends on device and application being used.
Sound Field Enhancement (SFX)
The L75ms includes a Sound Field Enhancement mode accessible via the remote. This mode enhances the
ambient sound of playing content for a more spacious e󰀨ect that lls the room more than standard stereo.
The di󰀨erence between standard and enhanced sound varies based on several factors.
• Proximity to walls, oors, and ceilings. The closer the boundaries the more reection there is.
• Ambience in the playing content. The more spacious and open the content the more obvious the e󰀨ect
will be.
Press the SFX button on the remote to activate Sound Field Enhancement.

L75ms Owners Manual | Rev1.0 20220201 | Part No. 620-0595-001 | JBL.com/Specialty-Audio/
Pg 12
Specications
Wireless Specication
Bluetooth
• Remote Control Type: BTLE [email protected]
• Bluetooth operation in 2400MHz to 2483.5MHz with max power 7.67dBm e.i.r.p
• Bluetooth LE operation in 2400MHz to 2483.5MHz with max power 9.59dBm e.i.r.p
Wi-Fi
• 802.11b/g/n operation in 2412MHz to 2472MHz with max power16.96dBm e.i.r.p
• 5GHz RLAN 802.11a/n/ac: Operation in 5180MHz - 5240MHz; 5260MHz~5320MHz; 5500MHz -
5700MHz, with max power: 21.24dBm e.i.r.p
• 5.8G SRD operation in 5745MHz to 5825MHz with max power 12.94dBm e.i.r.p
Note: The device is restricted to indoor use when operated in the 5150-5350Mhz frequency range.
Product Specications
Low Frequency Dual 5.25" (133mm) Pure Pulp cone woofers
High Frequency Dual 1" (25mm) Aluminum dome tweeters with waveguides
Mid Frequency 4" (100mm) Pure pulp cone midrange
Amplier Power 125W RMS per woofer25W RMS per tweeter50W RMS for center (350W RMS
total)
Frequency Response 45Hz-25kHz (-6dB)
Maximum SPL 106dB @ 1m
Sound Controls Speaker placement boundary compensation | Selectable Sound Field
Expander (SFX)
Enclosure Front-ported tabletop in satin walnut furniture-grade wood veneer
Grille Black foam Quadrex grille
Wireless Inputs WiFi streaming | Bluetooth 4.2
Wired Inputs HDMI ARC | RJ-45 Ethernet | Phono (MM) | AUX: 3.5mm (1/8”) TRS Stereo
Analog
Resolution Up to 32-bit, 192kHz
Subwoofer Output 2V RMS with auto-sense/engage HPF
Remote Control Type BTLE
Dimensions with grille 8.5" H x 31.1" W x 11.3" D (216mm x 790mm x 287mm)
Product Weight (Each) 35 lbs. (15.9kg)

L75ms Owners Manual | Rev1.0 20220201 | Part No. 620-0595-001 | JBL.com/Specialty-Audio/ Pg 13
Troubleshooting
HDMI-ARC has No output.
• Ensure that the connected source is set to 2ch
PCM
• Select the ARC input on the TV to re-establish
ARC connection.
• Select another source on the TV or L75ms and
then switch back to HDMI.
Restoring Factory Defaults
The L75ms can be reset to factory defaults should the need to arise. This will erase all settings for Network
and Bluetooth requiring that all connections be recongured.
SERVICE BASS
CONTOUR
Press & Hold >3 sec until selection
indicators on top panel ash. -3dB
RESET
Updating Firmware
Software updates for the L75ms are via OTA (Over the Air) updates through Google Home. This occurs
when you rst connect to the L75ms or when it is connected to for wireless streaming. Contact customer
support for updates on devices that have Wi-Fi or Bluetooth disabled.

L75ms Owners Manual | Rev1.0 20220201 | Part No. 620-0595-001 | JBL.com/Specialty-Audio/
Pg 14
Trademarks and Licenses
Apple®, AirPlay® and the AirPlay Logo™, iPod®, iPhone®and iPad® are trademarks of Apple
Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
AirPlay 2 works with iPhone®, iPad®, and iPod touch® with iOS 11.4 or later, Mac with OS X®
Mountain Lion or later, and PC with iTunes® 10.2.2 or later.
The Spotify software is subject to third party licenses that can be found here:
https://developer.spotify.com/legal/third-party-licenses/
The Wi-Fi CERTIFIED™ logo is a registered trademark of Wi-Fi Alliance®.
Google, Google Play, Chromecast, and other related marks are trademarks of Google LLC.
The Google Assistant requires an internet connection and is not available in certain countries
and languages. Availability and react of certain features and services are device, service,
and network-dependent and may not be available in all areas. Controlling certain devices in
your home requires compatible smart devices. Subscriptions for services and applications
may be required and additional terms, conditions and/or charges may apply.
HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
MP3 MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson
multimedia.
Flac
FLAC Decoder Copyright © 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008 Josh
Coalson
• Redistribution and use in source and binary forms, with or without modication, are
permitted provided that the following conditions are met:
• Redistribution of source code must retain the above copyright notice, this list of
conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials
provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be
used to endorse or promote products derived from this software without specic prior
written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
‘AS IS’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION
OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY
OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Harman International Industries, Incorporated.
8500 Balboa Blvd, Northridge CA 91329 United States.
European Representative: Harman International Industries, Incorporated.
EMEA Liaison O󰀩ce, Danzigerkade 16G, 1013 AP Amsterdam, The Netherlands.
UK Business Address: Ground Floor, Westside 2, London Road, Apsley, Hemel Hempstead, Hertfordshire,
HP3 9TD, United Kingdom.
© 2022 Harman International Industries, Incorporated. All Rights Reserved.
JBL is a trademark of Harman International Industries, Incorporated registered in the United States and other
countries.
Features, Specications, and Appearance subject to change without notice.
