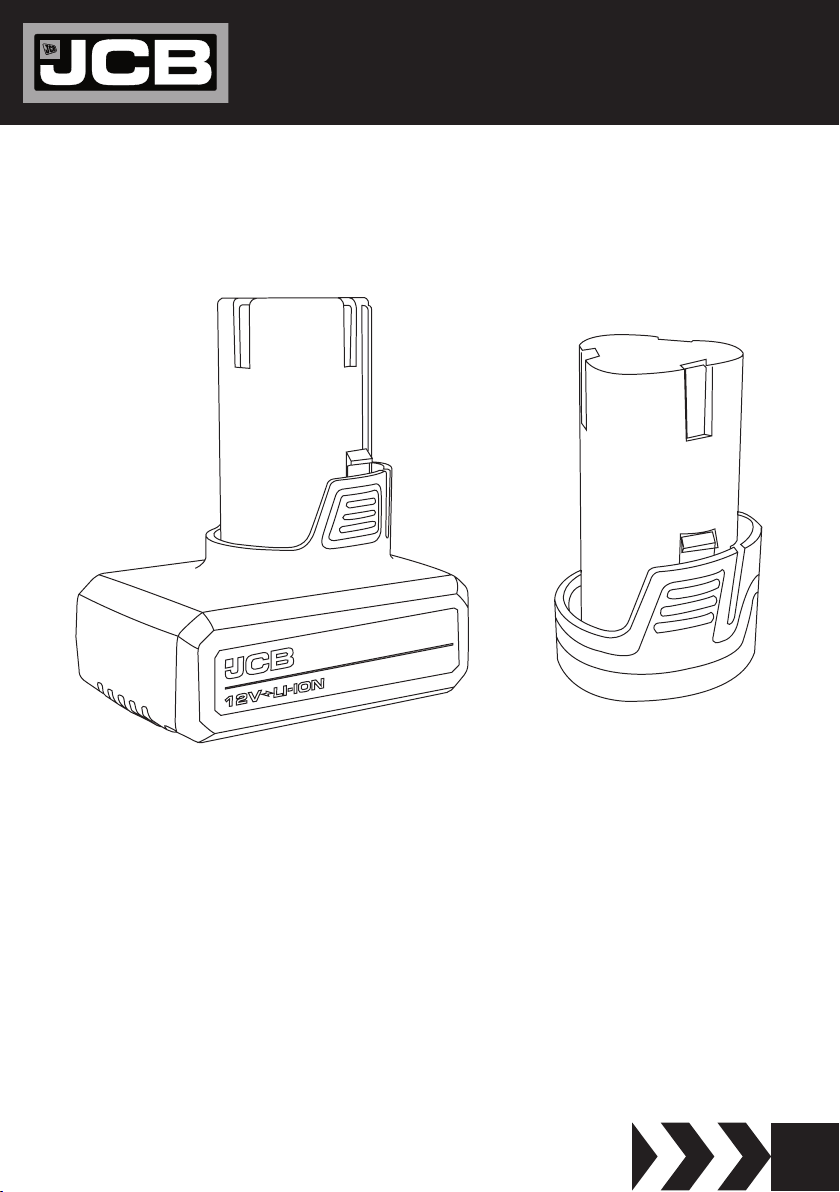

jcb JCB-12-15LI Planning guide

POWER TOOL
INSTRUCTION & USER MANUAL
EN
JCB-12-15LI
JCB-12-20LI
JCB-12-30LI
JCB-12-40LI
IM-12BTLI-EN
Original Instructions
Iss: 06/2020

2JCB 12V BATTERY PACK
Instruction & User Manual
GENERAL WARNINGS & DISPOSAL
To reduce the risk of injury, the user must read the instruction manual.
The device must not be exposed to rain or immersed in water.
Do not allow any part of the device to come into contact with flames, or to
catch fire.
Do not dispose of batteries in household waste. Return exhausted batteries
to a local collection or recycling point.
This product has been marked with a symbol relating to removing electric and
electronic waste. The product should not be discarded with household waste
but must be returned to a collection system which conforms to the European
Directive 2012/19/EU. It will then be recycled or dismantled in order to
reduce the impact on the environment. Electric and electronic equipment can
be hazardous for the environment and for human health since they contain
hazardous substances.
This symbol is used throughout this manual to warn the user about potential
risks. Please read & understand these sections before using the device.
Do not expose battery pack or tool to fire or excessive temperatures
WARNING: Lithium-ion batteries and products that contain lithium-ion batteries can expose you
to chemicals including cobalt lithium nickel oxide, and nickel, which are known to the State of
California to cause cancer and birth defects or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
The month and year of manufacture can be found within the product serial number e.g.
MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included.

3
JCB 12V BATTERY PACK
Instruction & User Manual
Contents
BATTERY SAFETY 4
COMPONENT LIST 5
LITHIUM ION BATTERY TECHNICAL DATA 5
CHARGER TECHNICAL DATA 5
OPERATING INSTRUCTIONS 6
Intended Use 6
Battery 6
Maintenance 7
Transport and Storage 7
GENERAL CERTIFICATE OF CONFORMITY 8

4JCB 12V BATTERY PACK
Instruction & User Manual
m Recharge only with the charger
specified by the manufacturer. A
charger that is suitable for one type of
battery pack may create a risk of fire when
used with another battery pack.
m Use power tools only with specifically
designated battery packs. Use of any
other battery packs may create a risk of
injury and fire.
m When battery pack is not in use, keep
it away from other metal objects, like
paper clips, coins, keys, nails, screws
or other small metal objects, that can
make a connection from one terminal
to another. Shorting the battery terminals
together may cause burns or a fire.
m Under abusive conditions, liquid
may be ejected from the battery;
avoid contact. If contact accidentally
occurs, flush with water. If liquid
contacts eyes, additionally seek
medical help. Liquid ejected from the
battery may cause irritation or burns.
m Do not use a battery pack or tool
that is damaged or modified.
Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire,
explosion or risk of injury.
m Do not expose battery pack or tool
to fire or excessive temperature.
Exposure to fire or temperatures above
130°C may cause explosion.
m Follow all charging instructions and
do not charge the battery pack or
tool outside the temperature range
specified in the instructions. Charging
improperly or at temperatures outside the
specified range may damage the battery and
increase the risk of fire.
m Have your power tool serviced by
a qualified repair person using only
identical replacement parts. This
will ensure the safety of the power tool is
maintained.
m Never service damaged battery
packs. Service of battery packs should
only be performed by the manufacturer or
authorised service providers.
BATTERY SAFETY
Read all safety warnings, instructions
and specifications provided with this
battery. Failure to follow all instructions
listed below may result in electric shock, fire
and/or serious injury. Save all warnings
and instructions for future reference.
WARNING!

5
JCB 12V BATTERY PACK
Instruction & User Manual
COMPONENT LIST
1. BATTERY PACK - PLEASE REFER TO TABLE BELOW FOR BATTERY INFORMATION
2. BATTERY RELEASE BUTTONS
Battery size shown for illustrative purposes only
LITHIUM ION BATTERY TECHNICAL DATA
Battery
Code
Battery
Size Voltage Battery Capacity
Charge Time
(Fast Charger:
JCB-12VFC)
Watt-hour
rating
JCB-12-15LI Small 12V 1.5Ah 30 mins 18Wh
JCB-12-20LI Small 12V 2.0Ah 45 mins 24Wh
JCB-12-30LI Large 12V 3.0Ah 65 mins 36Wh
JCB-12-40LI Large 12V 4.0Ah 90 mins 48Wh
Times given as a guide only. Battery charge and discharge times dependant on age, usage and
condition.
Charger Code Input Data Output Data
JCB-12VFC AC 120 V, 50/60Hz, 45W 12.6V d.c. 2.4A
CHARGER TECHNICAL DATA
2
1

6JCB 12V BATTERY PACK
Instruction & User Manual
OPERATING INSTRUCTIONS
Intended Use
This lithium-ion battery pack is indended for
use only with a compatible JCB 12V power
tool & charger. JCB Battery Packs must not be
modified or used for any other purposes than
the ones described in these instructions.
Battery
Make sure the power tool ON/OFF Trigger
is not operated when inserting or removing
the battery.
NOTE
m Do not use excessive force when
inserting or removing the battery
pack from the charger or power
tool. An incorrectly connected battery can
damage the battery terminals or the battery
socket on the power tool or charger.
Charging the Battery
After charging for the first time, ensure the
battery is completely discharged before
placing on charge again. Repeat this charging
and discharging cycle 4 to 5 times to ensure
battery is correctly conditioned.
WARNING!
m Place the battery charger on a level and
stable surface. Connect the battery pack to
the charger so that it clicks in to place.
m Plug the charger into a suitable power
supply. Note: ensure the voltage on the
charger rating label matches the power
supply voltage.
m Refer to the Battery Charge Level table
below for battery charger status as indicated
by LED lights.
m When the battery pack is fully charged,
unplug the battery charger from the power
supply and remove the battery pack from
the charger.
Battery Charge Level
Red
LED
Green
LED Battery Charge Status
Charger is connected to
mains power
Connected battery is
charging
Connected battery is fully
charged
Connected battery has a
charging faul
Charger is outside correct
operating temperature
range (<0˚C / >40˚C
If the LEDs on the charger do not come on
when charging:
m Check that mains plug is properly connected
to the power supply and the supply is
switched on.
m Check that the battery is correctly inserted
in the charger.
Connecting the Battery to the
power tool
m Connect the battery to the battery socket
on the power tool so that is clicks into place.
Removing the Battery from the
power tool
m Press the battery release button (2) and
remove the battery from the power tool.

7
JCB 12V BATTERY PACK
Instruction & User Manual
Maintenance
Remove the battery pack from the power
tool or charger before cleaning and mainte-
nance. This helps to avoid the risk of electric
shocks and accidental injury.
WARNING!
m Wipe the battery back with a dry or damp
cloth. Do not use a wet cloth. Do not
use detergent that contains solvent
or corrosive, abrasive additives. This
risks damaging the surfaces of the battery
pack.
m Clean the battery connection terminals and
the release button of dust and dirt after
each use. Do not clean terminals by
inserting sharp objects in them, such
as screwdrivers and other similiar
objects.
m Stubborn contamination in areas hard to
access can be removed with compressed air
(max 3 bar).
m Regularly check all fasteneers, screws and
both to make sure that they are tight.
Tighten any loose screws immediately or
serious injury could occur.
Never open the battery pack. The battery
pack has no internal parts that the user can
service or repair. Never try to repair the
battery pack yourself. Take to an authorised
service centre.
WARNING!
Transport and Storage
m If the battery pack will remain unused for
any length of time, it should be stored in the
original packaging, or in a compatible JCB
power tool storage insert.
m Store the battery pack in a dry, frost-free,
well ventilated place with a temperature of
no more than 40°C.
m Keep all battery packs out of the reach of
children.
m Always remove the battery from power
tools before transport.
m Ensure that the battery pack is not at risk of
being exposed to excessive vibration and
shocks during transport, especially if the
battery pack will be transported by car or
other vehicle.

8JCB 12V BATTERY PACK
Instruction & User Manual
PRODUCT(S) COVERED BY THIS CERTIFICATE:
USA/CA No. JCB-12-15LI, JCB-12-20LI, JCB-12-30LI, JCB-12-40LI
UK/EU No. JCB-12-15LI, JCB-12-20LI, JCB-12-30LI, JCB-12-40LI
Manufacturer No. PLBP-052A
Amazon ASIN No. B07WRMFC9N
CITATION TO EACH CONSUMER PRODUCT SAFETY REGULATION TO WHICH THIS
PRODUCT IS BEING CERTIFIED:
IEC 62133-2:2017
IEC 62841-1:2015
IEC 55014-1:2006+A1+A2
IEC 55014-2:2015
IEC 61000-3-2:2014
IEC 61000-3-3:2013
UN Manual of Tests and Criteria 7th Edition, Section 38.3
IDENTIFICATION DETAILS OF IMPORTER/US DOMESTIC MANUFACTURER
CERTIFYING PRODUCT COMPLIANCE:
Name: JCB Tools (Yellow and Black Tools Limited)
Address: 55 Romsey Industrial Estate
Romsey, SO51 0HR
UK
Tel no: [phone]
CONTACT INFORMATION OF INDIVIDUAL MAINTAINING RECORDS OF TEST
RESULTS:
Name: Tim Burgoyne, QA Technical Manager & Compliance Officer
Address: 55 Romsey Industrial Estate, Romsey, SO51 0HR, UK
Email: [e-mail]
Tel no: [phone]
DATE AND PLACE WHERE THIS PRODUCT WAS MANUFACTURED:
Date: 06/2020
Address: Ningbo Hanpu Tools Co. Ltd. Hengxi Industrial Area,
Yinzhou, Ningbo, P. R. China
DATE AND PLACE WHERE THIS PRODUCT WAS TESTED FOR COMPLIANCE:
Date: 01/2019
Name: TÜV Rheinland (Shanghai) Co., Ltd.
Address: Shanghai, 200072, P. R. China
Tel no: [phone]
IDENTIFICATION OF THIRD-PARTY LABORATORY ON WHOSE TESTING THE
CERTIFICATE DEPENDS:
Name: TÜV Rheinland
Address: Am Grauen Stein
51105 Köln, Germany
Tel no: [phone]
GENERAL CERTIFICATE OF CONFORMITY
