Jebao MDP Series User manual

Smart DC Pump
USER MANUAL
MDP Series
MDP-2500、MDP-3500、MDP-5000、
MDP-6000、MDP-8000、MDP-10000、
MDP-13000、MDP-15000、MDP-20000

Smart DC Pump
MDP Series
1
WARNING
：
●Please use the matched adapter and related accessories.
●Do not put the pump in the flammable, explosive and
corrosive liquid.
●Do not use the pump in the water temperature above 35℃.
●Maximum water depth 1.5M.
●Do not immerse the plug into water or other liquid.
●Do not allow children or the inexperienced to operate and
play the product alone without safety guarantee.
●Please refer to actual products and APP.

Smart DC Pump
MDP Series
2
I. Introduction
JEBAO DC pump is a inspected and tested to ensure the
safety and operating performance product. Please read this
manual carefully, before operating correctly. In case of the
improper usage, or maintenance to cause the pump damage.
Pump Features
：
●Wi-Fi+Manual dual function controller, Smart life
●No electronic device inside of the pump, longer life
●Sine Wave Technology, ultra quiet operation
●Power display and flow control
●Automatic power-off protection upon no water
●Suitable for both marine and fresh water, Rust free
II. Products use
① Used as submersible pump: the water level should
exceed the inlet of the pump to avoid pumping the air. It’s ok
to add the filter sponge in the mesh/front cover to avoid the

Smart DC Pump
MDP Series
3
suction of sundries and affect the pump performance. The
pump conjunction connector is designed with standard size
thread, which can be connected to the common fountain
heads and water pipes.
②
Used as dry-use pump: the pump should be placed
lower than the horizontal level to ensure water flowing into
the water pump. Meanwhile, remove the front filter cover to
connect the water pipe in inlet and outlet to ensure water in
the pump and pipe before plug on.
OPERATING INSTRUCTION:
When use the pump, please pay attention to the position of
the pump. Please connect the pump supply after finishing the
installation. If the pump can’t pump the water out for the first
time which may be caused by the air in the pump body.
Please try to plug off and re-plug on to vent the air. To
ensure safety, please install a leakage switch with leakage
current less than 30mA when using outdoor (the leakage
switch shall be installed by the user self).

Smart DC Pump
MDP Series
4
CAUTION:
●Always disconnect the pump from the power supply before
cleaning, maintenance and handling.
●Try to avoid the pump dry working.
●Do not lift the pump by holding the power cord only. In case
of the cable connection off inside of the pump
●Do not use the pump in the heating liquid.
●The pump fits for both fresh water and marine water.
●The pump can be used as submersible pump and
non-submersible, as long as ensure the pump filled with
water.
●The pump can’t be used in the swimming pool.
●This product has multiple protection function. When it enters
the protection state, please plug off and plug on to recover
the pump normal work.
III. Controller Features
● Adjustable the flow rate and head max.
●“Feed” model, Pause, Timing, delay, Wi-Fi, Restart function.
●Memory function, ensure that the pump rework upon

Smart DC Pump
MDP Series
5
keeping the same parameter.
Operation Function:
Controller Panel
1.Operation Function Description
After power on the pump, the display screen will come the
WIFI icon, operating power and working step. The operating
power shows” P***W”. The flow rate shows 71 steps
(F30-100). Push the “▲/▼” button to adjust the flow rate,
Wi-Fi button
Display Screen
Flow turn down
Feed/Pause
Flow turn up
ON/OFF

Smart DC Pump
MDP Series
6
The Display Screen will shows the instant working condition,
you can set different power per your need.
When the user presses the " "button, "FEED 10 min" is
displayed on the screen, the feeding mode is started. Press
“ " butto again to stop feeding immediately. The feeding
time can be set in the APP. Press " "button to shut down,
the pump stops working, then press " "button again, the
pump starts to work.
Remarks: When the pump enters to the timer mode in APP,
if keep pressing "▲ ▼" button for seconds to exit the timer
mode.
2, The Button Lock Function
Under the pump power on, long press the " "button for 3
seconds, the lock icon willshow on the display, and all the
button will be locked. Long press the " "button again for 3
seconds, and the lock icon in the display will disappear then
all the button unlocked.
3.The Display Screen protection mode
When the controller power on, if no touch of the screen

Smart DC Pump
MDP Series
7
more than 17 seconds, the display screen become in a
slightly brightness, enters the screen protected mode. When
any key is pressed, the display screen returns back to normal
brightness. Meanwhile, long press the "▲ ▼" button to enter
the screen brightness modulation mode, the "▼" to adjust the
normal brightness;the "▲" button to adjust the screen saver
brightness.
4. Data memory function
When power off the controller, the controller keeping the
same default parameter in memory after reworking.
5. Wi-Fi icon description and usage
A.Wi-Fi icon flashes while the Pump is on smart configuration
mode.
B.Wi-Fi icon and AP icon flashing synchronous, when the
Pump is on AP configuration mode.
C.Wi-Fi icon is keeping displayed when the Pump is
connected to the cloud server.
D.Wi-Fi icon disappears when the Pump is disconnected to

Smart DC Pump
MDP Series
8
the cloud server.
Wi-Fi Button Instruction
A, The the device power on, the Wi-Fi icon at the upper left of
the controller screen flashing. The pump is on smart
configuration mode.
B, Long press the Wi-Fi button for 5 seconds, the smart
configuration mode switch to AP configuration mode, Wi-Fi
with AP icon flashes in the upper left of the screen.
C, Then long press the Wi-Fi button for 5 seconds again, the
Wi-Fi switches to the smart configuration mode.
D, The WIFI icon shows on the upper left always when
connect the WIFI successfully.
IV. APP Download and Instruction
1. Download
The APP name “Jebao Aqua”, is available to download in
App Store for Apple users, or Google Play for Android system
users. The User can search “Jebao Aqua” in either App Store
or Google Play to download the application. Alternative, the

Smart DC Pump
MDP Series
9
user may scan the barcode on the package or user manual to
download the application. (Note: Scan function in certain
countries or areas may be unavailable to read the barcode
properly.)
2. User registration, login and password
reset
2.1. Account registration

Smart DC Pump
MDP Series
10
A. Open the Jebao Aqua App and tap Create new account.
B. Choose email way to register, fill the information as
required and tap Create account；
C. After registration, return back to the login page. enter the
account and password to log in.
Note: Phone number registration is valid for mainland China
only.
2.2. Reset Password
Tap Forget Password on the log-in page. Enter your email
address and tap Send link. Check your email and follow the
instructions to reset your password. Then back to the log in
page to input your account and new password to log in.

Smart DC Pump
MDP Series
11
V. App Application
1. Main page
Go to My Group
Go to Setting
Add new devices
Add new devices

Smart DC Pump
MDP Series
12
2. Add new pump
Tap “Add Now “ or tap the top right “ +” icon to add your
device, tap the “Aqua Pump” Icon.
Tap My Devices.

Smart DC Pump
MDP Series
13
Configuration mode:
Make sure your phone is connected to 2.4G band Wi-Fi
before configuration. There are two configuration modes,
Smart configuration and AP configuration modes. Choose
one mode to link your device.
①
Smart Configuration mode
：
After the device power on, the Wi-Fi icon on the upper left
flashing, the device enters the smart configuration mode.

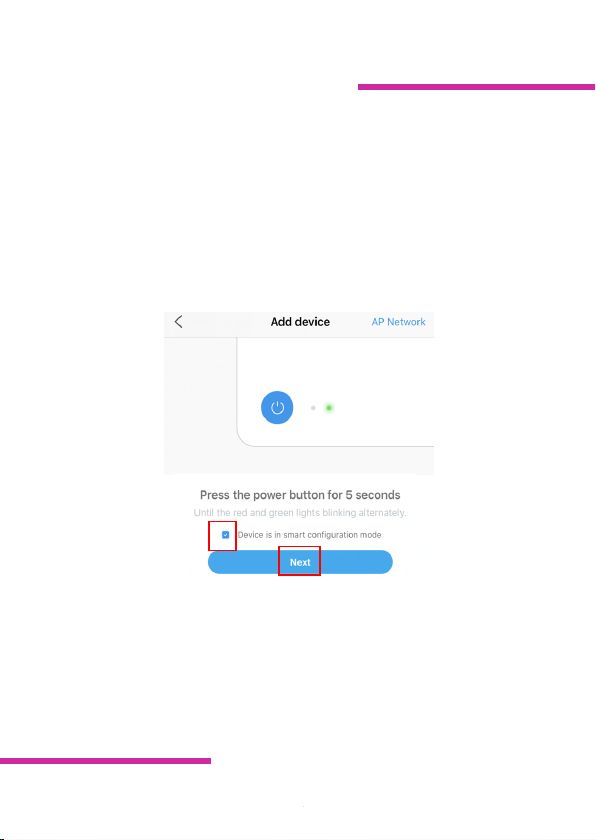

When see the screen upper left side WIFI icon flashing,
Choose the confirmation” Device is in smart configuration
mode” then tap “Next”, start to smart configuration.

Smart DC Pump
MDP Series
14
Follow the instructions. Enter Wi-Fi password and tap Next.
Make sure your device, phone, and the router are as close as
possible during the configuration process. The page will
display all the devices. Choose the request add device, tap
the device name, then tap ‘Confirm to add”

Smart DC Pump
MDP Series
15

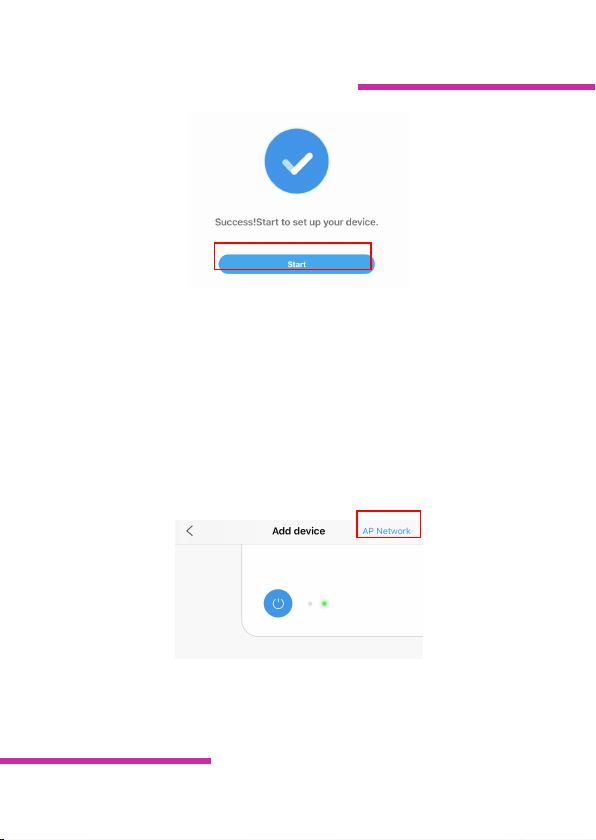

Tap “Start” to start using your device.
②
AP Configuration mode
：
Long press the Wi-Fi button for 5 seconds before distributing
network, see the Wi-Fi with AP icon flashes on the upper left
of the screen, then the device enters the AP network
distribution mode.
Tap “AP Network “ in the upper right corner on APP adding
device page as above to enter into AP configuration.

Smart DC Pump
MDP Series
16
Choos the confirmation “ Device is in AP configuration mode”
and tap “Next”
Enter the correct Wi-Fi password and tap “Next”

Smart DC Pump
MDP Series
17
PS: Due to the different operating system, IOS and Android
will operate differently in the following details.
A. IOS System：
After entering the Wi-Fi password, you need to switch
manually the phone Wi-Fi to "Jebao_WiFi-xxxx", the specific
operation as below:

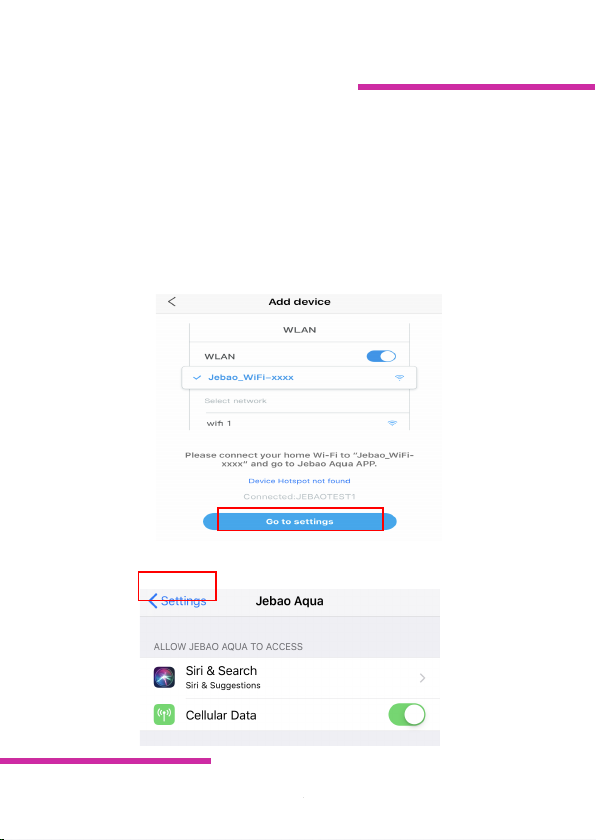

Tap Go to settings.

Smart DC Pump
MDP Series
18
Tap “Settings ” i n t he u p p e r l e f t c o r ner to enter the mo bi le
phone settings page, then enter the WIFI setting page as
below.

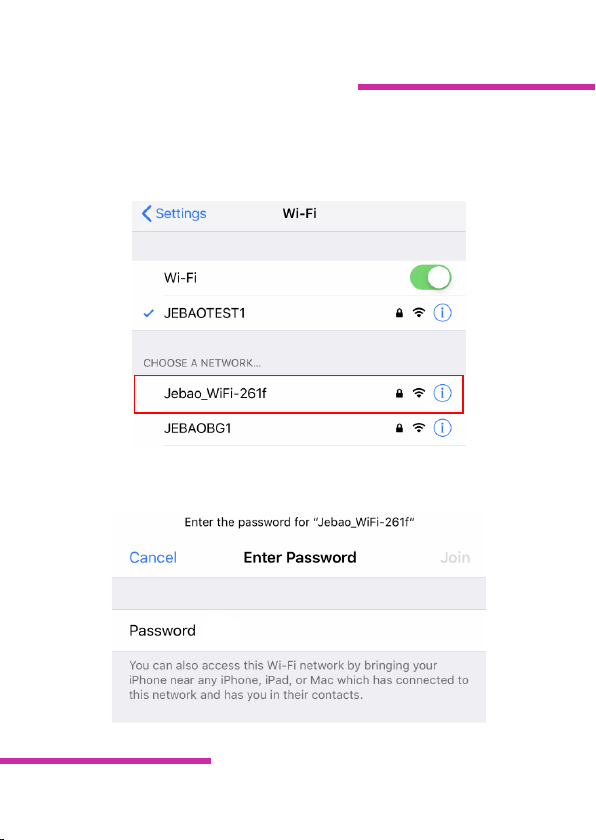

Go to WIFI Settings page > choose the “Jebao_WiFi-xxxx”
with password 123456789. Connecting the Jebao -WiFi.
123456789

Smart DC Pump
MDP Series
19
After connection successfully, return back to the APP.
Enter into the APP, The configuration starts automatically.
Tap “ Start” to control the device after the device has been
added successfully.
