Jenn-Air JGC7530B SERIES User manual

LP GAS AND HIGH ALTITUDE CONVERSION
INSTRUCTIONS
FOR JGC7530B, JGC7636B, JGC1530B, AND JGC1536B MODEL SERIES
INSTRUCTIONS DE CONVERSION - GAZ PROPANE
ET ALTITUDE ÉLEVÉE
POUR SÉRIES DE MODÈLES JGC7530B, JGC7636B, JGC1530B, ET JGC1536B
COOKTOP SAFETY
Table of Contents/Table des matières
COOKTOP SAFETY.....................................................................................1
Tools and Parts......................................................................................... 3
Convert from Natural Gas to LP Gas ....................................................... 3
Convert from LP Gas to Natural Gas ....................................................... 6
Lighting the Electronic Igniters ................................................................. 8
Flame Height Adjustment ......................................................................... 8
SÉCURITÉ DE LA TABLE DE CUISSON ................................................... 9
Outillage et pièces .................................................................................. 10
Conversion du gaz naturel au propane.................................................. 10
Conversion pour l’alimentation du propane au gaz naturel................... 13
Allumeurs électroniques - allumage....................................................... 15
Réglage de la taille des flammes............................................................ 16
W10588276A
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
IMPORTANT:
Installer: Leave installation instructions with the homeowner.
Homeowner: Keep installation instructions for future reference.
IMPORTANT :
Installateur : Remettre les instructions d'installation au propriétaire.
Propriétaire : Conserver les instructions d'installation pour référence ultérieure.

2
WARNING: If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
–Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
–WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your building.
•Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
•If you cannot reach your gas supplier, call the fire department.
–Installation and service must be performed by a qualified installer, service agency or
the gas supplier.
WARNING: Gas leaks cannot always be detected by smell.
Gas suppliers recommend that you use a gas detector approved by UL or CSA.
For more information, contact your gas supplier.
If a gas leak is detected, follow the “What to do if you smell gas” instructions.
In the State of Massachusetts, the following installation instructions apply:
■ Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by
the State of Massachusetts.
■ If using a ball valve, it shall be a T-handle type.
■ A flexible gas connector, when used, must not exceed 3 feet.

3
Tools and Parts
Gather the required tools and parts necessary for correct LP gas
conversion.
Tools needed
■Flat-blade screwdriver
■³⁄₃₂" (#0 [2.0 mm]) flat-blade screwdriver (screwdriver shaft
must be a minimum of 2½" [6.4 cm] long)
■Adjustable wrench
■7.0 mm nut driver
■7.0 mm wrench
Parts supplied
■LP orifice package (W105990568)
■Conversion label (W10590570)
High Altitude Conversion
To convert the cooktop for elevations above 6,560 ft (1999.5 m),
order a High Altitude Conversion Kit.
■Part Number W10593220 - LP high altitude
■Part Number W10593221 - Natural gas high altitude
To order, see the “Assistance or Service” section of the Use and
Care Guide.
IMPORTANT: Gas conversions from Natural gas to LP gas must
be done by a qualified installer. Before proceeding with
conversion, shut off the gas supply to the cooktop prior to
disconnecting the electrical power.
Convert from Natural Gas to LP
Gas
1. Turn manual shutoff valve to the closed position.
2. Unplug cooktop or disconnect power.
To Convert Gas Pressure Regulator
WARNING
This conversion kit shall be installed by a
qualified service agency in accordance
with the manufacturer's instructions and
all applicable codes and requirements of
the authority having jurisdiction. If the
information in these instructions is not
followed exactly, a fire, explosion or
production of carbon monoxide may
result causing property damage, personal
injury or loss of life. The qualified service
agency is responsible for the proper
installation of this kit. The installation is
not proper and complete until the
operation of the converted appliance is
checked as specified in the
manufacturer's instructions supplied with
this kit.
A. To cooktop
B. Shutoff valve (closed position)
C. Gas supply line
A. Access cap
B. Rear of cooktop
C. Gas pressure regulator
D. Gas flow
WARNING
Explosion Hazard
Use a new CSA International approved gas supply line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualified person make sure
gas pressure does not exceed 14" (36 cm) water
column.
Examples of a qualified person include:
licensed heating personnel,
authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death, explosion, or fire.
A
B
C
A
B
C
D

4

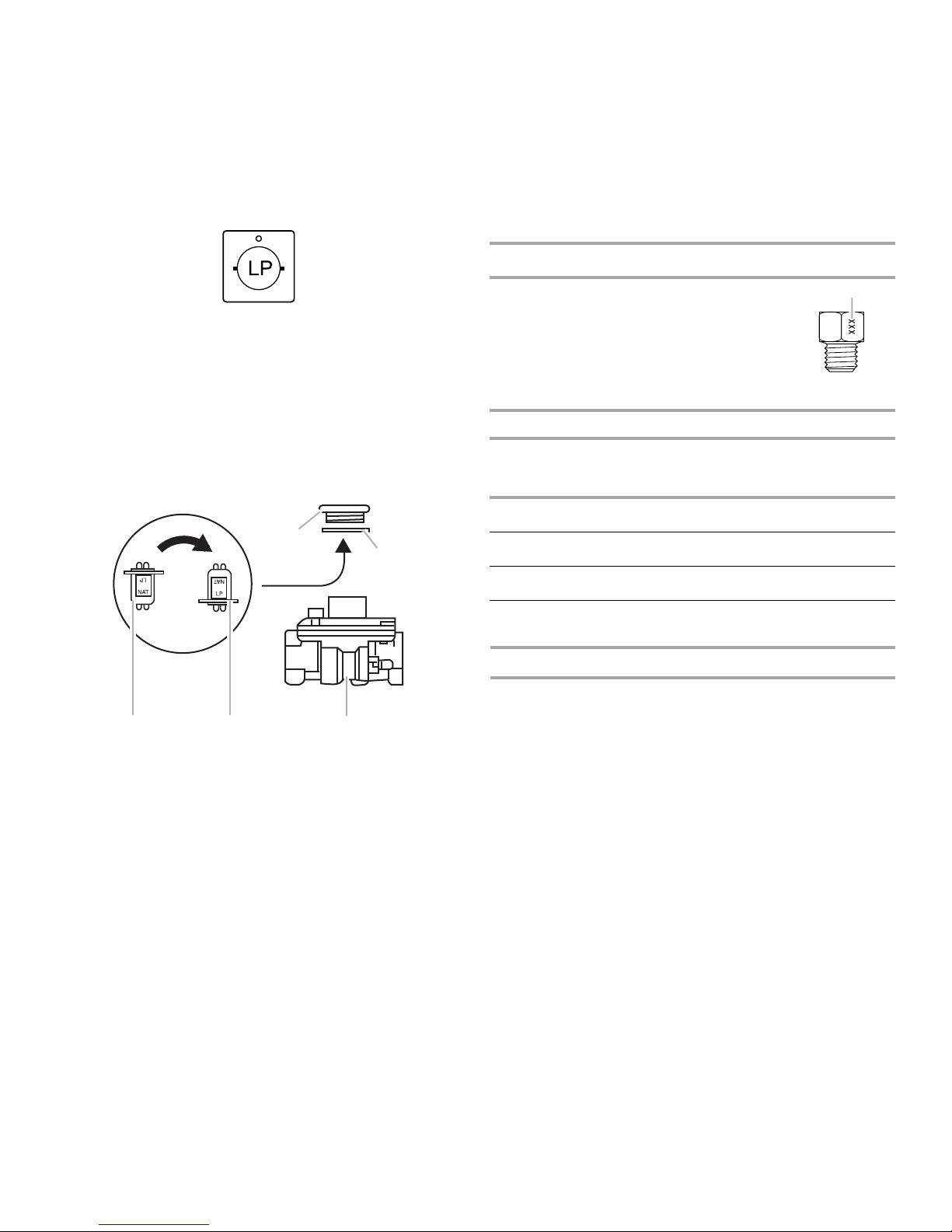

3. Determine the type of regulator you have:
Style 1: The cap has a slot and “NAT” printed on it.
Remove access cap by using a flat-blade screwdriver or coin,
turning the access cap counterclockwise.
The gas pressure regulator has 2 settings that are stamped
on either side of the cap. Turn the cap and reinstall into
regulator with the stamp “LP” visible from the outside of the
regulator.
Style 2: The cap does not have a slot and requires a wrench
to be removed.
Remove the access cap by using a wrench, turning the
access cap counterclockwise.
Remove spring retainer from the cap by pushing against the
flat side of the spring retainer. Look at the spring retainer to
locate the “NAT” or “LP” position. Turn over the spring
retainer so the “LP” is showing on the bottom. Snap the
spring retainer back into the cap. Reinstall the cap onto the
regulator.
4. Test the gas pressure regulator and gas supply line.
The regulator must be checked at a minimum 1" (2.5 cm)
water column above the set pressure. The inlet pressure to
the regulator should be as follows for operation and checking
the regulator setting:
LP Gas:
Minimum pressure 10" (25.4 cm) W.C.P.
Supply pressure 14" (35.5 cm) W.C.P.
Gas Supply Pressure Testing
Line pressure testing above ½ psi gauge (14" WCP)
The cooktop and its individual shutoff valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of
½ psi (3.5 kPa).
Line pressure testing at ½ psi gauge (14" WCP) or lower
The cooktop must be isolated from the gas supply piping
system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than ½ psi (3.5 kPa).
5. If they are installed, remove the burner grates.
Use the following chart to match the correct gas orifice spud with
the burner location and model being converted.
LP Gas Orifice Spud Chart
Burner Models
High Altitude Conversions
IMPORTANT: You must convert LP gas with LP gas High Altitude
Kit Part Number W10593220 or Natural gas with Natural gas High
Altitude Kit Part Number W10593221. If you need to convert LP
gas to Natural gas high altitude or Natural gas to LP gas high
altitude, you must convert the pressure regulator. For this, follow
steps 1-3 of the necessary conversion.
LP Gas Orifice Spud Chart for High Altitude Conversion
See chart in the “LP Gas High Altitude Conversion Kit.”
Burner locations
30" (76.2 cm) Models
A. Access cap
B. Gasket
C. Gas pressure regulator
D. LP position
E. NAT position
A
B
CDE
Burner Rating Stamp (A) Size
5,000 BTU 66 0.66 mm
A. Size stamp
9,000 BTU 88 0.88 mm
12,000 BTU 102 1.02 mm
10,000 BTU 93 0.93 mm
Model No. Right
front Right rear
Center/
center
front Center rear Left front Left rear
JGC7530BP 9,000
BTU 5,000 BTU 12,000 BTU N/A 12,000 BTU 12,000 BTU
JGC7636BP 9,000
BTU 5,000 BTU 12,000 BTU 12,000 BTU 12,000 BTU 12,000 BTU
JGC7530BS 9,000
BTU 5,000 BTU 10,000 BTU N/A 12,000 BTU 10,000 BTU
JGC7636BS 9,000
BTU 5,000 BTU 10,000 BTU 10,000 BTU 12,000 BTU 10,000 BTU
A. Left rear burner
B. Center burner
C. Right rear burner
D. Right front burner
E. Left front burner
A
A
A
BC
DE

5
36" (91.4 cm) Models
6. Remove all burner caps and burner bases.
7. To Conve rt Bu rners:
■ Insert 7 .0 mm nut driver down onto the gas orifice spud (C)
and remove by turning it counterclockwise and lifting out.
■Set gas orifice spud aside.
■Replace with correct LP gas orifice spud. See the LP Gas
Orifice Spud Chart.
8. Place Natural gas orifice spuds in plastic parts bag for future
use and keep with package containing literature.
9. Replace burner bases and burner caps.
IMPORTANT: Be sure that the electrode aligns with the notch
in the burner base. The igniter electrode is ceramic and could
break during installation of the burner base.
10. Open shutoff valve in the gas supply line. The valve is open
when the handle is parallel to the gas pipe.
11. Once you have completed converting all of the cooktop
burners, test the cooktop for leaks by brushing on an
approved noncorrosive leak-detection solution. If bubbles
appear, a leak is indicated. Correct any leaks found.
12. Plug in cooktop or reconnect power.
13. Adjust valve according to “Flame Height Adjustment” section.
A. Left rear burner
B. Center rear burner
C. Right rear burner
D. Right front burner
E. Center front burner
F. L e f t f r on t b u r ne r
A. Gas tube opening
B. Burner cap slot (4)
C. Burner cap
D. Burner base
E. Burner base tab (4)
F. Bu r ner base n o t c h
G. Orifice holder
H. Igniter electrode
A. Igniter electrode
B. Orifice holder
C. Orifice spud
ABC
D
E
F
A
B
C
D
E
H
F
G
AB
C
A. Burner cap
B. Electrode
C. Burner base
B
C
A
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING

6
Convert from LP Gas to Natural Gas
1. Turn manual shutoff valve to the closed position.
2. Unplug cooktop or disconnect power.
To Convert Gas Pressure Regulator
3. Determine the type of regulator you have:
Style 1: The cap has a slot and “LP” printed on it.
Remove access cap by using a flat-blade screwdriver or coin,
turning the access cap counterclockwise.
The gas pressure regulator has 2 settings which are stamped
on either side of the cap. Turn the cap and reinstall into
regulator with the stamp “NAT” visible from the outside of the
regulator.
Style 2: The cap does not have a slot and requires a wrench
to be removed.
Remove the access cap by using a wrench, turning the
access cap counterclockwise.
Remove spring retainer from the cap by pushing against the
flat side of the spring retainer. Look at the spring retainer to
locate the “LP” or “NAT” position. Turn over the spring
retainer so the “NAT” is showing on the bottom. Snap the
spring retainer back into the cap. Reinstall the cap onto the
regulator.
4. If they are installed, remove the burner grates.
Use the following chart to match the correct gas orifice spud with
the burner location and model being converted.
Natural Gas Orifice Spud Chart
Burner Models
A. To cooktop
B. Shutoff valve (closed position)
C. Gas supply line
A. Access cap
B. Rear of cooktop
C. Gas pressure regulator
D. Gas flow
A
B
C
A
B
C
D
NAT
A. Access cap
B. Gasket
C. Gas pressure regulator
D. NAT position
E. LP position
Burner Rating Stamp (A) Size
6,000 BTU 110 1.10 mm
A. Size stamp
9,000 BTU 132 1.32 mm
12,000 BTU 155 1.55 mm
15,000 BTU 170 1.70 mm
18,000 BTU 193 1.93 mm
Model No. Right
front Right rear
Center/
center
front Center rear Left front Left rear
JGC7530BP 9,000
BTU 6,000 BTU 18,000 BTU N/A 15,000 BTU 12,000 BTU
JGC7636BP 9,000
BTU 6,000 BTU 15,000 BTU 15,000 BTU 18,000 BTU 15,000 BTU
JGC7530BS 9,000
BTU 6,000 BTU 18,000 BTU N/A 15,000 BTU 12,000 BTU
JGC7636BS 9,000
BTU 6,000 BTU 15,000 BTU 15,000 BTU 18,000 BTU 15,000 BTU
A
B
CDE
A

7
High Altitude Conversions
IMPORTANT: You must convert LP gas with LP gas high altitude
kit Part Number W10593220 or Natural gas with Natural gas high
altitude kit Part Number W10593221. If you need to convert LP
gas to Natural gas high altitude or Natural gas to LP gas high
altitude, you must convert the pressure regulator. For this, follow
steps 1-3 of the necessary conversion.
Natural Gas Orifice Spud Chart for High Altitude Conversion
See chart in the “Natural Gas High Altitude Conversion Kit.”
Burner locations
30" (76.2 cm) Models
36" (91.4 cm) Models
5. Remove all burner caps and burner bases. If necessary,
remove the burner ring.
6. To Convert Burners:
■Insert 7.0 mm nut driver down onto the gas orifice spud
and remove by turning it counterclockwise and lifting out.
■Set gas orifice spud aside.
■Replace with correct Natural gas orifice spud. See the
Natural Gas Orifice Spud Chart.
7. Place LP gas orifice spuds in plastic parts bag for future use
and keep with package containing literature.
8. Replace burner bases and burner caps.
IMPORTANT: Be sure that the electrode aligns with the notch
in the burner base. The igniter electrode is ceramic and could
break during installation of the burner base.
9. Open shutoff valve in the gas supply line. The valve is open
when the handle is parallel to the gas pipe.
A. Left rear burner
B. Center burner
C. Right rear burner
D. Right front burner
E. Left front burner
A. Left rear burner
B. Center rear burner
C. Right rear burner
D. Right front burner
E. Center front burner
F. L e f t f r on t b u r ne r
A
A
BC
DE
ABC
D
E
F
A. Gas tube opening
B. Burner cap slot (4)
C. Burner cap
D. Burner base
E. Burner base tab (4)
F. B u r n e r b a s e n ot c h
G. Orifice holder
H. Igniter electrode
A. Igniter electrode
B. Orifice holder
C. Orifice spud
A. Burner cap
B. Electrode
C. Burner base
A
B
C
D
E
H
F
G
AB
C
B
C
A

8
10. Once you have completed converting all of the cooktop
burners, test the cooktop for leaks by brushing on an
approved noncorrosive leak-detection solution. If bubbles
appear, a leak is indicated. Correct any leaks found.
11. Plug in cooktop or reconnect power.
12. Adjust valve according to “Flame Height Adjustment” section.
Lighting the Electronic Igniters
The cooktop burners use electronic igniters in place of standing
pilots. When the cooktop control knob is pushed in and turned to
the HI position, the system creates a spark to light the burner.
This sparking continues until a flame is present.
To Check Operation of the Cooktop Burners:
1. Push in and turn knobs to the HI position. The cooktop
burner flame should light within 4 seconds.
2. If burners do not light properly, turn the control knob to the
Off position. Make sure the burner cap is in the proper
position.
3. Check that the power supply cord is plugged in and circuit
breaker has been tripped or household fuse has not blown.
4. Check that the shutoff valve is in the ON position.
5. Check burner operation again.
If one or all of the burners do not light at this point, see
“Assistance or Service” section in the Use and Care Guide.
Low Flame Height Adjustment
Each burner flame has been factory set to the lowest position
available to provide reliable and constant reignition of the burner;
however, each burner can be adjusted.
To Adjust:
The flame can be adjusted using the adjustment screws
underneath the control knob.
1. Set the burner flame to LO.
2. Remove the control knob.
3. Hold knob stem with a pair of pliers. Use a ³⁄₃₂" (#0 [2.0 mm])
flat-blade screwdriver to turn the screw located within the
shaft of the control knob stem until the flame is the proper
size.
For LP gas conversion:
Completely tighten (clockwise) screw “C” to set the minimum
flame height.
For Natural gas conversion:
Tighten (clockwise) screw “C” to reduce flame height. Loosen
(counterclockwise) screw to increase flame height.
4. Replace the control knob.
5. Repeat steps 1-5 for each burner.
6. Check burner flame(s) for proper size and shape. The
cooktop “low” burner flame should be a steady blue flame
approximately ¹⁄₄" (0.64 cm) high.
7. Completely fill out the conversion label and attach label to
bottom of the cooktop next to the rating tag. Do not cover the
rating tag with the conversion label.
8. Save the orifices removed from the cooktop along with these
instructions for future reference.
Read “Sealed Surface Burners” section in the Use and Care
Guide supplied with your cooktop.
A. Incorrect
B. Correct
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
A
B
A. ³⁄₃₂ " (2.0 mm) - #0 flat-blade screwdriver (shaft
must be a minimum of 2½" [6.4 cm] long)
B. Control knob stem opening
C. Adjustment screw location
A. Low flame
B. High flame
B
C
A
A
B

9
SÉCURITÉ DE LA TABLE DE CUISSON
Risque possible de décès ou de blessure grave si vous ne
suivez pas immédiatement les instructions.
Risque possible de décès ou de blessure grave si vous
ne suivez pas les instructions.
Tous les messages de sécurité vous diront quel est le danger potentiel et vous disent comment réduire le risque de blessure et
ce qui peut se produire en cas de non-respect des instructions.
Votre sécurité et celle des autres est très importante.
Nous donnons de nombreux messages de sécurité importants dans ce manuel et sur votre appareil ménager. Assurez-vous de
toujours lire tous les messages de sécurité et de vous y conformer.
AVERTISSEMENT
DANGER
Voici le symbole d’alerte de sécurité.
Ce symbole d’alerte de sécurité vous signale les dangers potentiels de décès et de blessures graves à vous
et à d’autres.
Tous les messages de sécurité suivront le symbole d’alerte de sécurité et le mot “DANGER” ou
“AVERTISSEMENT”. Ces mots signifient :
AVERTISSEMENT : Si les renseignements dans ce manuel ne sont pas exactement
observés, un incendie ou une explosion peut survenir, causant des dommages au
produit, des blessures ou un décès.
–Ne pas entreposer ni utiliser de l’essence ou d’autres vapeurs ou liquides inflammables
à proximité de cet appareil ou de tout autre appareil électroménager.
–QUE FAIRE DANS LE CAS D’UNE ODEUR DE GAZ :
•Ne pas tenter d’allumer un appareil.
•Ne pas toucher à un commutateur électrique.
•Ne pas utiliser le téléphone se trouvant sur les lieux.
•Appeler immédiatement le fournisseur de gaz à partir du téléphone d'un voisin. Suivre
ses instructions.
•À défaut de joindre votre fournisseur de gaz, appeler les pompiers.
–L’installation et l’entretien doivent être effectués par un installateur qualifié, une agence
de service ou le fournisseur de gaz.
AVERTISSEMENT : L’odorat ne permet pas toujours la détection d’une fuite de gaz.
Les distributeurs de gaz recommandent l’emploi d’un détecteur de gaz (homologation UL ou CSA).
Pour d’autre information, contacter le fournisseur de gaz local.
En cas de détection d’une fuite de gaz, exécuter les instructions “Que faire dans le cas d’une odeur de gaz”.
Dans l’État du Massachusetts, les instructions d’installation suivantes sont applicables :
■ Les travaux d’installation et réparation doivent être exécutés par un plombier ou tuyauteur qualifié ou licencié, ou par le
personnel qualifié d’une entreprise licenciée par l’État du Massachusetts.
■ Si une vanne à boisseau sphérique est utilisée, elle doit comporter une manette “T”.
■ Si un conduit de raccordement flexible est utilisé, sa longueur ne doit pas dépasser 3 pi.

10
Outillage et pièces
Rassembler les outils et pièces nécessaires pour l’exécution
correcte de la conversion pour l’alimentation au gaz propane.
Outils nécessaires
■Tournevis à lame plate
■Tournevis à lame plate de ³⁄₃₂" (n°0 [2,0 mm]) (la tige doit
mesurer au moins 2½" [6,4 cm] de long)
■Clé à molette
■Tourne-écrou de 7,0 mm
■Clé de 7,0 mm
Pièces fournies
■Sachet de gicleurs pour propane (W105990568)
■Étiquette de conversion (W10590570)
Conversion pour utilisation en haute altitude
Pour convertir la table de cuisson pour des altitudes supérieures
à 6 560 pi (1999,5 m), commander un ensemble pour conversion
en haute altitude.
■Pièce numéro W10593220 - gaz propane pour haute altitude
■Pièce numéro W10593221 - gaz naturel pour haute altitude
Pour commander, voir la section “Assistance ou service” du
Guide d’utilisation et d’entretien.
IMPORTANT : L’opération de conversion de l’appareil (pour
l’alimentation au gaz propane au lieu du gaz naturel) doit être
exécutée par un installateur qualifié. Avant d’entreprendre la
conversion, fermer l’arrivée de gaz à la table de cuisson avant
d’interrompre l’alimentation électrique de la table de cuisson.
Conversion du gaz naturel au
propane
1. Fermer le robinet d’arrêt manuel.
2. Débrancher la table de cuisson ou déconnecter la source de
courant électrique.
Conversion du détendeur
AVERTISSEMENT
Cet ensemble de conversion doit être
installé par le personnel qualifié d'une
agence de service en conformité avec les
instructions du fabricant et les
prescriptions de tous les codes en vigueur
et des autorités juridictionnelles. Si les
présentes instructions ne sont pas
rigoureusement respectées, ceci peut
provoquer un incendie, une explosion ou
la génération de monoxyde de carbone
provoquant des dommages corporels ou
matériels, ou même la mort. La
responsabilité de l'installation correcte de
cet ensemble de conversion incombe au
personnel qualifié d'une agence de
service. L'installation n'est pas correcte et
complète avant que le bon fonctionnement
de l'appareil converti ait été vérifié sur la
base des spécifications présentées dans
les instructions du fabricant fournies avec
cet ensemble de pièces.
A. Vers la table de cuisson
B. Robinet d’arrêt (position de fermeture)
C. Canalisation d’alimentation en gaz
A. Chapeau de
l’ouverture d’accès
B. Arrière de la table de
cuisson
C. Détendeur
D. Sens de
circulation du gaz
AVERTISSEMENT
Risque d'explosion
Utiliser une canalisation neuve d'arrivée de gaz
approuvée par la CSA International.
Installer un robinet d'arrêt.
Bien serrer chaque organe de connexion de la
canalisation de gaz.
En cas de connexion au gaz propane, demander à une
personne qualifiée de s'assurer que la pression de gaz
ne dépasse pas 36 cm (14 po) de la colonne d'eau.
Par personne qualifiée, on comprend :
le personnel autorisé de chauffage,
le personnel autorisé d'une compagnie de gaz, et
le personnel d'entretien autorisé.
Le non-respect de ces instructions peut causer
un décès, une explosion ou un incendie.
A
B
C
A
B
C
D
