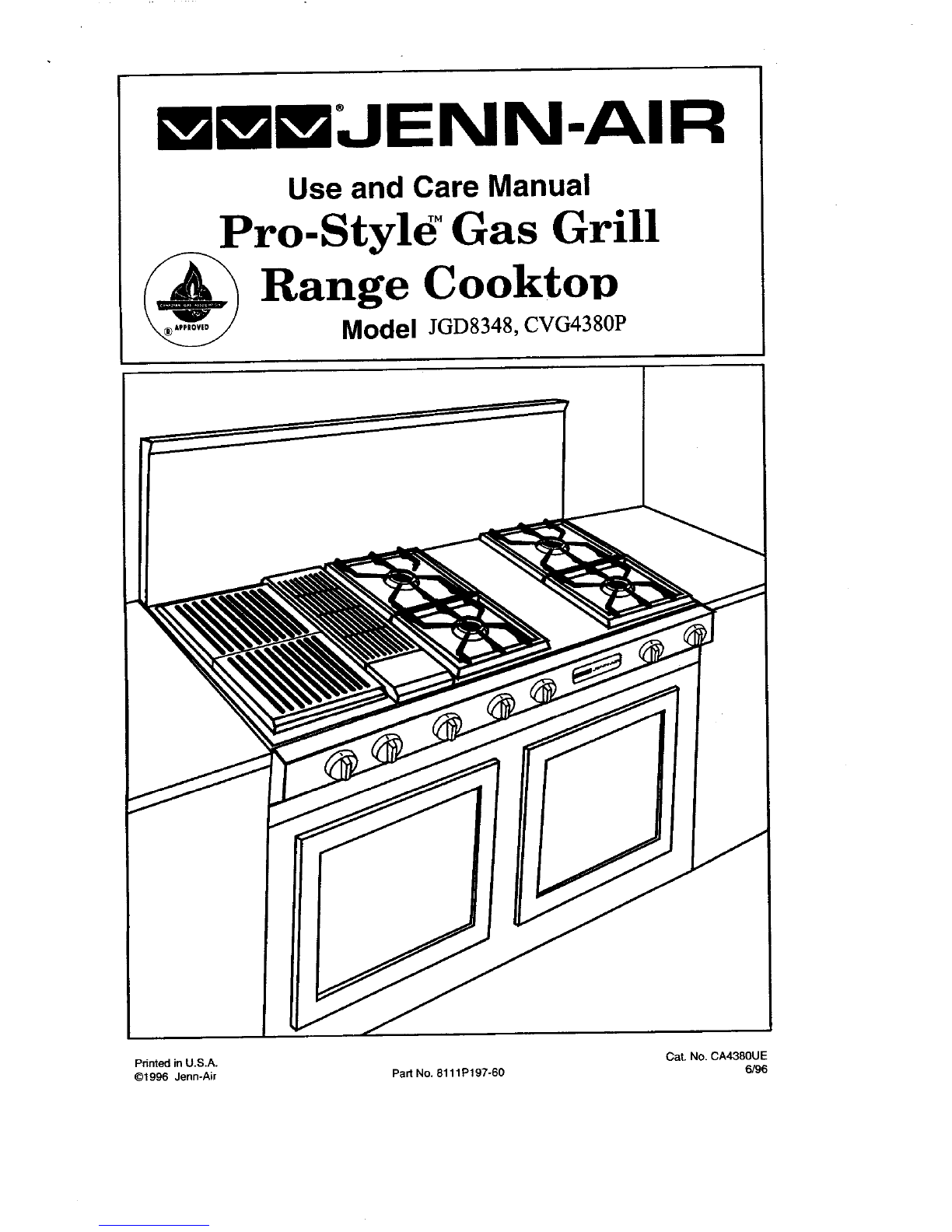

Jenn-Air PRO-STYLE CVG4380P User manual

JENN-AIR
Use and Care Manual
Pro-Style °Gas Grill
_Range Cookto_
Model JGD8348, CVG4380P
l
Printedin U.S.A. Cat.No.CA4380UE
©1996 Jenn-Air PartNo.8111P197-60 6/96

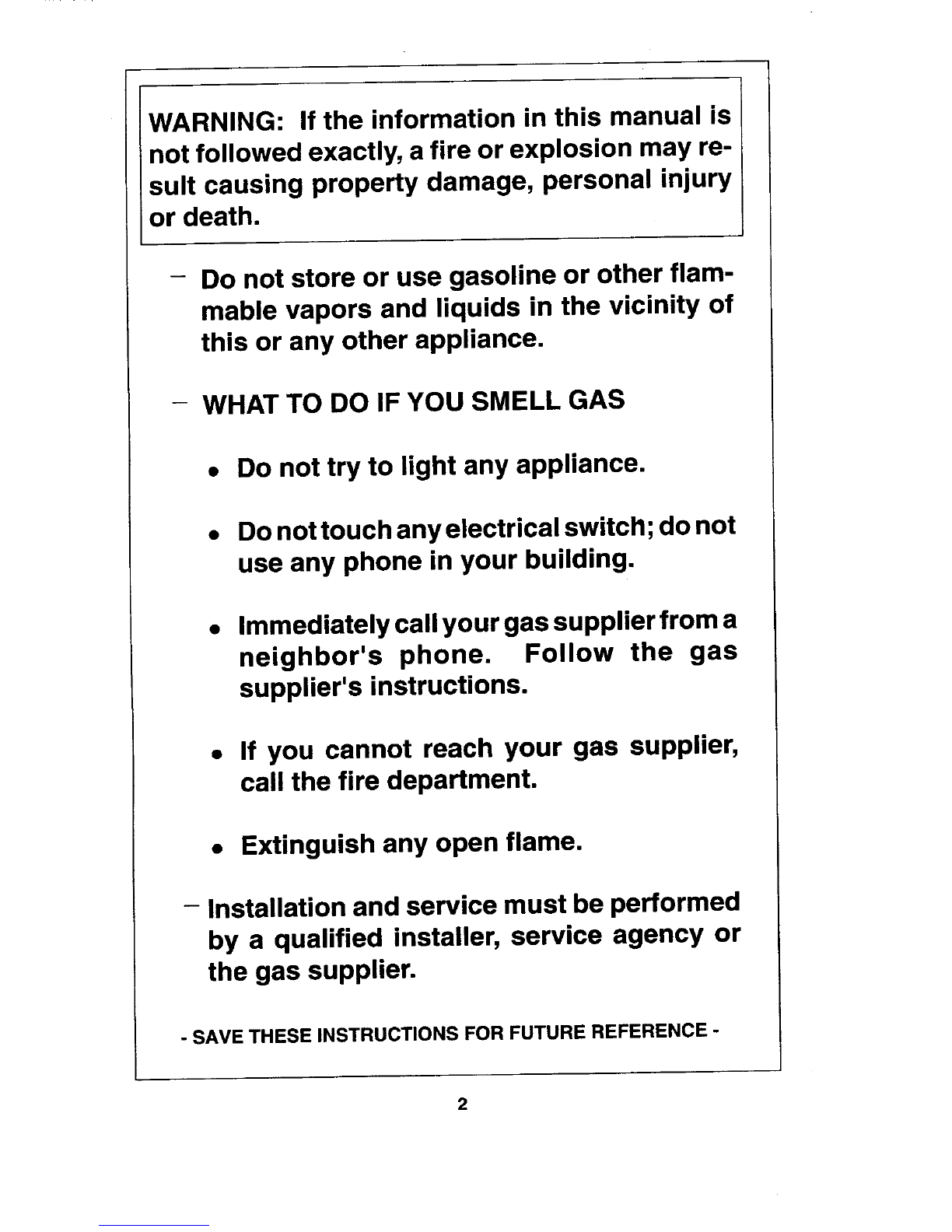

WARNING: If the information in this manual is
not followed exactly, a fire or explosion may re-
sult causing property damage,personal injury
or death.
- Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Donottouch any electrical switch; do not
use any phonein your building.
•Immediately callyour gas supplierfrom a
neighbor's phone. Follow the gas
supplier's instructions.
•If you cannot reach your gas supplier,
call the fire department.
•Extinguish any open flame.
- Installation and service must be performed
by a qualified installer,service agency or
the gas supplier.
-SAVETHESE INSTRUCTIONSFORFUTUREREFERENCE-

Read before operating your cooktop
All appliances-regardless of themanufacturer-havethepotential
throughimproperorcareless useto create safety problems. Therefore
thefollowingsafety precautionsshould beobserved:
1. Besureyourapplianceisproperlyinstalledandgroundedbya qualified
technician.
2. Neveruseyourapplianceforwarmingorheatingtheroom,Thiswarning
isbasedonsafetyconsiderations.
3. Childrenshouldnotbe leftaloneor unattendedin areawhereapplianceis
in use. They should never be allowedto sit or stand on any part of the
appliance.
4. Wearproperapparel. Loose-fitting or hanging garmentsshould never
be wornwhile usingtheappliance.
5. Do not repair or replace any partof the appliance unless specifically
recommendedinthis manual. All otherservicingshouldbe referredto an
authorizedJenn-AirServiceContractor.
6. Do notstore combustiblematerials,gasoline or other flammable vapors
and liquidnearcooktop.
7. Donotusewaterongreasefires. Smotherfireorflameorusedrychemical
orfoam-typeextinguisher.
8. Useonly dry potholders. Moistor damppotholderson hot surfacesmay
result in burnsfromsteam. Do notuse a towel or other bulkycloth.
9. Selectcookwarelargeenoughtoproperlycontainfoodandavoidboilovers
orspillovers. This willsave on cleaningand preventhazardousaccumu-
lationsoffood,sinceheavysplatteringorspilloverslefton acooktopcan
ignite. Pansize is especiallyimportantin deepfat frying.
10. Never leave cooktop unattended at Hi heat settings. Boilover causes
smokingand greasyspilloversthat mayignite.
11. TYPEOF COOKWARE- Avoid pansthat are unstableandeasilytipped.
Inchoosingpans,lookforeasily-graspedhandlesthatwillstaycool.Pans
thataretooheavywhenfilledwithfoodcanalsobeahazard.Ifpanhandles
twistand cannotbe tightened,discardthe pan.
12.HANDLES- Alwaysturn pan handlesto the sideor backof thecooktop-
notout into theroomwherethey are easilyhit. COOKWARE HANDLES
SHOULDBETURNEDINWARDAND NOT EXTENDOVERADJACENT
SURFACEBURNERSto minimizebums,ignitionofflammablematerials,
andspillagedue to unintentionalcontactwith the cookware.

13. CAUTION- Do notstore items of interest to children in cabinetsabove
cooktop-childrenclimbingonthecooktoptoreachitemscouldbeseriously
injured.
14. Donottouchgrilland surfaceburnerareas, areasnearburners,or metal
landingspace. Duringand after use,these areas maybe hotenoughto
causeburns.Avoidcontactwiththeseareasbyclothingorotherflammable
materialsuntilthey havehad sufficienttimeto cool.
15. Do not heat unopenedfood containers. Buildupof pressure maycause
containerto burst andresult in injury.
16. Keepall controls"OFF" whenunit is notin use.
17. Keepventductsunobstructed.

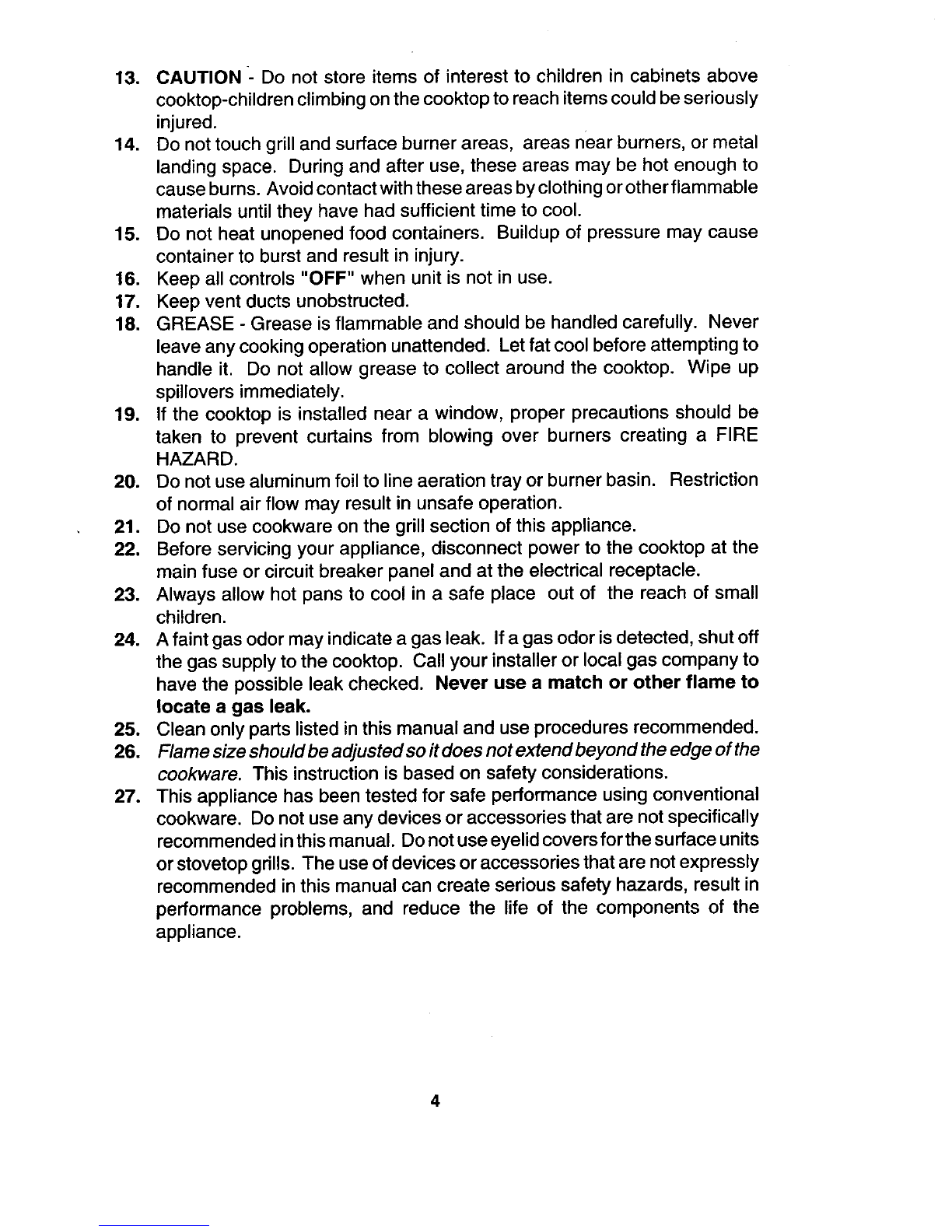

18. GREASE- Greaseis flammableand should be handledcarefully. Never
leaveanycookingoperationunattended. Letfat coolbeforeattemptingto
handle it. Do notallow greaseto collect around the cooktop. Wipe up
spilloversimmediately.
19. Ifthe cooktop is installed near a window, proper precautionsshould be
taken to prevent curtains from blowing over burners creating a FIRE
HAZARD.
20. Donotusealuminumfoil to lineaerationtrayor burnerbasin. Restriction
of normalair flow may resultin unsafeoperation.
21. Do notuse cookwareon the grill section ofthis appliance.
22. Beforeservicing your appliance,disconnect power to the cooktop at the
mainfuseor circuitbreakerpanel and atthe electrical receptacle.
23. Always allow hot pans to cool in a safe place out of the reach of small
children.
24. Afaintgasodormayindicatea gas leak. Ifa gas odorisdetected,shut off
thegas supplyto the cooktop. Callyour installeror local gascompanyto
havethe possibleleakchecked. Never use amatch or other flameto
locatea gas leak.
25. Cleanonlypartslistedinthismanualanduseproceduresrecommended.
26. Flamesizeshouldbeadjustedsoitdoesnotextendbeyondtheedgeofthe
cookware. Thisinstructionisbasedon safetyconsiderations.
27. Thisappliancehasbeentestedforsafe performanceusingconventional
cookware.Donotuseanydevicesoraccessoriesthatarenotspecifically
recommendedinthismanual.Donotuseeyelidcoversforthesurfaceunits
orstovetopgrills.Theuseofdevicesoraccessoriesthatarenotexpressly
recommendedinthismanualcancreateserioussafetyhazards,resultin
performanceproblems,and reducethe life ofthe componentsofthe
appliance.

Important Safety Notice and Warning
TheCaliforniaSafeDrinkingWater andToxicEnforcementAct of 1986 (Propo-
sition65) requires the Governor of California to publisha listof substances
knownto theState of California to cause cancer or reproductiveharm, and
requiresbusinesses to warn customers of potential exposuresto such sub-
stances.
Users ofthis appliance are hereby warned that burning of gas can result in low-
level exposure to some of the listed substances, including benzene, formalde-
hyde and soot, due primarily to the incomplete combustion of natural gas or
liquid petroleum (LP) fuels. Properly adjusted burners will minimize incomplete
combustion. Exposure to these substances can be minimized by properly vent-
ing the burners to the outdoors.
WARNING
ElectricalGroundingInstructions
The appliance is equipped with a three-prong grounding plug for your protec-
tion against shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the grounding prong
from this plug.
Congratulations on your choice of a Jenn-Air gascooktop. The indoor grilling of
meats, fish or fowl is an attractive and healthy way to prepare these foods.
Before you begin cooking with your new cooktop, please take a few minutes to
read and become familiar with the instructions in this book. Should you have
any questions about using your Jenn-Air gas cooktop, write to us.Be sure to
provide the model number.
Jenn-Air Customer Assistance
c/o Maytag Customer Service
P.O. Box 2370
Cleveland, TN 37320-2370
5

The built-in ventilation system removes cooking vapors, odors and smoke from foods
prepared on the cooktop, grill and grill accessories.
Regular use of this system will insure a more comfortable and less humid kitchen which
isfree of heavy cooking odors and fumes that normally create a frequent need for clean-
ing and redecorating.
• To operate the ventilation system manually,turn
fan knob clockwise to ON position, ummuuli ......... _
• The ventilation system willoperate automatically _ _---._/_
when the grill burner is in use. g
• The ventilation system can be used to remove
strong odors from the kitchen as when chopping
onions near the air grille.
Air Grille
Theair grillelifts off easily. Wipecleanor wash in
sink with mild household detergents. It may be
cleaned in the dishwasher.
Filter
Turn oft ventilation system before removing. The
filter is a permanent type and should be cleaned
when soiled: Clean in sink with warm water and
liquid dishwashing detergent or in the dishwasher.
Important: DO NOT OPERATE SYSTEM WITH-
OUT FILTER. FILTER should always be placed at
an angle. As you facethefront of the cooktop, the
top of the filter should rest against the left side of the vent opening and the bottom of the
filter should rest against the right side of the ventilation chamber at the bottom. If filter
is flat against the fan wall, ventilation effectiveness is reduced.
VentilationChamber
This area, which housesthe filter,shouldbe cleaned in the event of spillsor whenever
itbecomes coated with afilm ofgrease. The ventilationchamber may be cleaned with
papertowel,damp cloth, or spongeand mild householddetergentor cleanser.
6

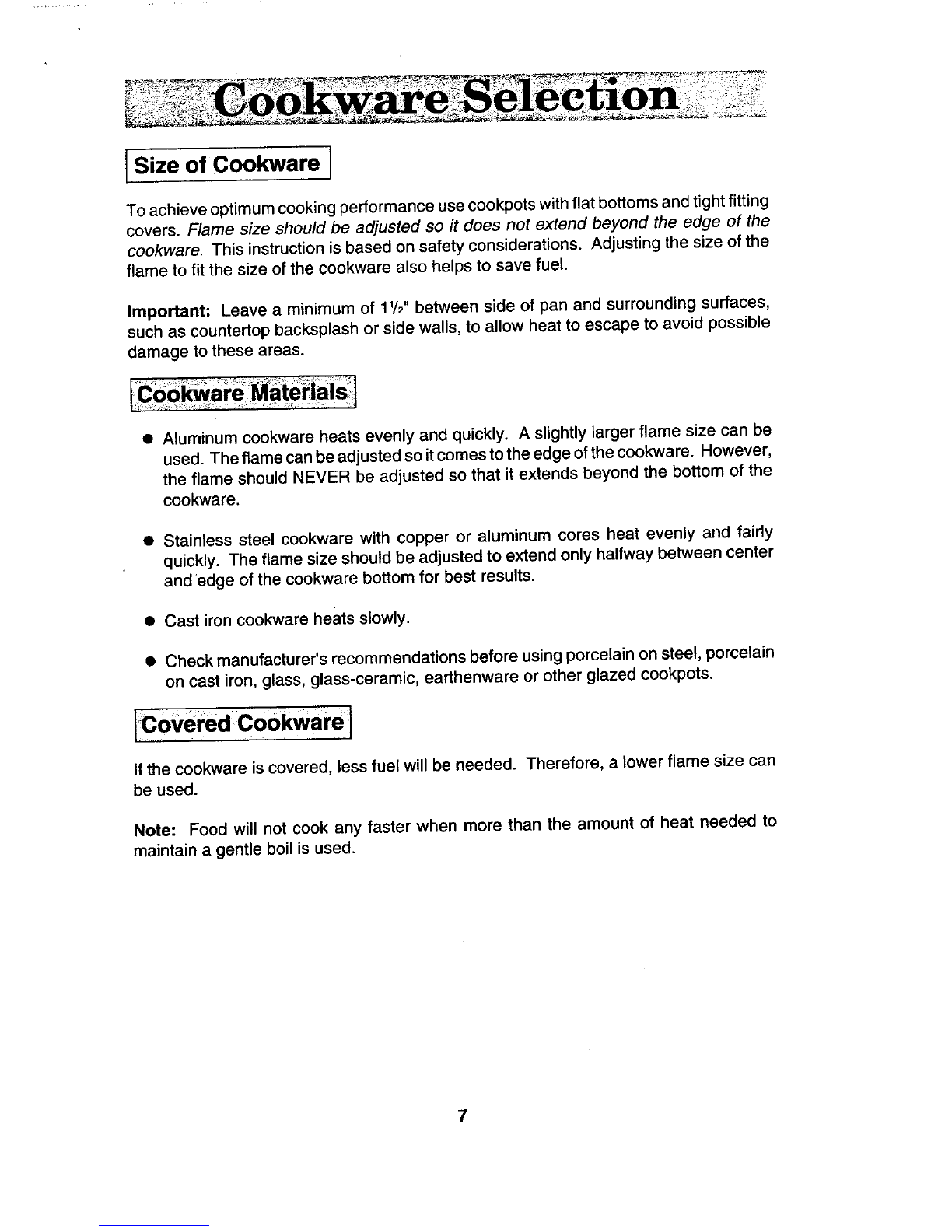

lSize of Cookware 1
To achieveoptimumcockingperformance usecookpotswithflatbottomsand tightfitting
covers. Flame size should be adjusted soit does not extend beyond the edge of the
cookware. This instructionis basedon safetyconsiderations. Adjustingthe size ofthe
flameto fitthe size of the ccokwarealso helpsto save fuel.
Important: Leave a minimumof 11/2"between side of pan and surroundingsurfaces,
such ascountertop backsplashor sidewalls,to allow heat to escapeto avoidpossible
damageto theseareas.
• Aluminum cookware heats evenly and quickly. A slightly larger flame size can be
used. The flame canbeadjusted soit comes tothe edge ofthe cookware. However,
the flame should NEVER be adjusted so that it extends beyond the bottom of the
cookware.
• Stainless steel cookware with copper or aluminum cores heat evenly and fairly
quickly.Theflamesize should beadjusted to extend only halfway between center
and edge of the cookware bottom for best results.
• Cast iron cookware heats slowly.
• Check manufacturer's recommendations beforeusing porcelain on steel, porcelain
on cast iron, glass, glass-ceramic, earthenware or other glazed cookpots.
l!C°vered c°° are I
Ifthe cookware is covered, less fuel will be needed. Therefore, a lower flame size can
be used.
Note: Food will not cook any faster when more than the amount of heat needed to
maintain a gentle boil is used.

Yournewcooktopburnershavebeenpresetforan"average"setofconditions.Regional
variancesin gaspressureand atmosphericconditionssuch as heightabovesea level
mayaffectyourinitialflameperformance.
Whenthecontrolknob isturnedON,gasentersthe mixertubeandmixeswithair. This
airandgasmixtureflowstotheburnerheadandislightedbyasparkfromthesolidstate
igniter.
A properlyadjustedburnerwith clean portswill lightwithina few seconds. The cone-
shapedflamewillbeclearblueincolorwith aclearlydefinedinnercone.Thereshould
benotraceofyellowintheflame. Ayellowflameindicatesanimpropermixtureofairand
gas.Ifyourflamedoesnotresemblethe"correct"flameas describedabove,followthe
air shutteradjustmentinstructionsbelow.
Thevariablesurfacecontrolsforthe surfaceburnersandgrillburnerprovideflexibilityin
settingselection.
Note:Thegrillcan bereplacedwith anoptionalsurfaceburnermodule,ModelAG202.
Surface Burners
Incaseofprolongedpowerfailure,youcanmanuallylightthesurfaceburnerbyholding
alightedmatchneartheburnerportsandslowlyturningthecontrolknobcounterclockwise
(afterdepressing)untilthegasignites. Thereisnofansosmokeandcondensationcan
gather.
Grill
INCASEOFPOWERFAILUREOR IFTHE DOWNDRAFTFANISINOPERABLE,DO
NOTUSEGRILL. VENTILATIONSYSTEMWILLNOTOPERATE.
Air ShutterAdjustment
To Adjust Surface Burner Air Shutter (Some models):
Loosenfasteningscrewwithaphillipsscrew-_SURFACEBURNERROTATEAIR
AIR SHLWIER SHU'I I _RON
driverandrotateairshuttertoincreaseorde-_"_MIXERHEAOTO
creasethesizeoftheairopening.Astheshut- -_ _ SCREWMAKEAIR
__ ADJUSTMENT
ter isturnedobservechangeinflameappear-_:-_(/ -._- AA,_SHU,,_
ance.Adjustmentissatisfactorywhenaclearly G_.
AIR OPENING "_'%'_/TO _JJ TO
defined,evenblueflameresultsattheHiflame A,ROPENINCLOSE
setting. Afteradjustment,tightenscrew. OPEN_"

To adjust grill burner air shuttersand surfaceburner air shutters (Some
models):
Theleft hand air shutter controls the rear half of the grillburner or the rear surface
burner.The right hand shuttercontrols the front half of the grill burner or the front sur-
face burner.
Slide air shutter backward or forward to in-
crease or decrease the sizeof the air open- AIRSHU'CIER
Air shutters fit snugly on the burner, so a x.__;_
ing.
screwdriver blade may be required to make
this adjustment. Observe change inflame ap-A_RO_NG3;;_."_
pearance as the air shutter is moved. Adjust- AIRSHUttERi /__,_,-_==
INSERT SCREWDRIVER BLADE
ment is satisfactorywhen a clearlydefined,_SLOTANDTWISTWITH
SLIGHT PRESSURE TO ALLOW
even blue flame results at the Hi flame set- AIRSHUTrERTOSLIDEEASILY.
ting. The snug fit of the air shutter assures it
willremain positionedcorrectly.
On any burner,closing the air shutter too far willcause the flame to becomesoftand
yellowtipped. Opening theair shuttertoo wide willcause the flameto blowaway from
the burner ports.Proper adjustmentwillproducea sharp, clearly defined even, blue
flame.
Lo FlameAdjustment
This appliance has beenshipped from the factory with Lo and Med flamesettings
adjustedfor usewith naturalgas and average installations.There is a wide variety of
conditionscaused byaltitudeand gasmixturescontrolledbyutilitycompanieswhichwill
vary and affect the gas flame andperformance. Adjustments should bemadeat time of
installation.If conditions change, follow the procedures outlined below to adjust the Lo
setting.
1. Light burner and set control knob for low flame.
2. Remove controlknob from valve stem.
CAUTION: Never use a metal blade topry
knob off. -- _CLOC_S_
3. Inserta slender,thin-blade screwdriver into TOREDUOE
jL _MESlZ_
the recess atcenter of valve stem and en-
gage blade with slot in adjusting screw.
4. Turn center stem adjusting screw slightly
to setflamesize.Note: Turn clockwise to cou,_Lcc_s_
TO INCREASE FLAME
reduce or counterclockwise toincrease S=E
flame size.
5. Replacecontrolknob when adjustment is
completed.
Properadjustmentwill producea stable,steady blueflame of minimumsize.The final
adjustmentshouldbecheckedby turning knob from Hi to Lo several times without
extinguishingtheflame. This adjustment,at theLo setting,willautomaticallyprovide
the properflamesize at Med setting.
9

To Set Controls I
•Since thecontrols area push-turn type, theymustbepushed in before turning.To
set (from the OFF position), push in on control knob and immediately turn counter-
clockwise to theMTE position until burner ignites.After ignition, turn knob clockwise
to desiredsetting.
• Igniterwillcontinuetospark until knob isturnedclockwise back toorpast Hi position
on knob.
1. 2. FAN 3. 4. 5.6.
1. Left rearsurface burner or grill.Note: When using an AG202 surface
2. Left front surface burner or grill, burnerassembly with control locations
3. Center rear surface burner. #1 and #2, the control knob may be
4. Center front surface burner, turned to a position lower than the Lo
5. Right rear surface burner, setting. (TheLo setting is set for the
6.Right front surface burner, grill burner.)
The size and type of cookware and the amount and typeof food being cooked will
influence the setting needed for best results.The setting indicated should serve as a
guide while you become familiar with your cooktop.
Use the Hi flame setting to quickly bring foods to a boil or "_
to begina cooking operation.Then reduce to a lower _(_) ._._./_'_
setting to continue cooking. Never leave food unattended __
over a Hi flame setting.
Mealsetting isusedto continue a cooking operation.Food "_
will not' cook any faster when a higher flame setting is
used than that needed to maintain a gentle boil. Re-
member, water boils at the same temperature whether
boiling gently or vigorously.-,
Use Lo setting to keep food at serving temperatures with- __ _f(_
out further cooking. You mayfind that some cooking may
take place if the cookware is covered.
10

1.Be surecontrol knobs areturned OFF.
2. If the grill burner and grill grates are in place, remove before installing a surface
burner module. Clean burner basin of any grease accumulation.(See page 18for
cleaning recommendations.)
3,. Position the burner assembly with the mixer tube openings toward the orifices.
Slide the burnerassembly toward theorifices untilopening for igniter is over the
igniter. Lower intoplace until side openings are resting on the burner supports and
igniter is centered between the two flash tubes.
4. Installthe aeration tray by inserting theprongat the end of thepanintotheopening
in the end of the burner basin. Lower the opposite end into the cooktop.
Note" Before first use, read the Surface Burner Grates Care instructions found
on page17.
Remove BurderModble 1
1. Control knobs should be in the OFF position and the cooktop should be cool.
2. Remove the aeration tray by lifting up the front end on the right side (back end on
the left side) until the top clears the opening of the cooktop by about 5 inches.
3. Hold aeration tray by the sides and slide away to remove the prong from the
opening and clear the surface burners.
4. Lift up on the sides of the surface burner assembly bracket about 2 inches. Slide
away from the orifices.
5. A storage tray, Model AG350, is available and can be used for storing a surface
burner module.
INOTE- Optional surface burner assembly, Model AG202, can replace the grill burner
assembly.Model AG202air shutters have been adjusted for compatibility on
the left side.
INOTE" Do not disassemble the surface burner assembly.
11

Thegrill consistsof twoblackgrillgratesand a grillburner.Only installthe grillon
the leftsideofyourcooktop.
1, Before installinggrill components,becertaincontrolknobs are in theOFF
position.
2. Positionthegrillburnerwithmixertubeopeningstowardtheorifices.Slidethe
burner towardsthe orificesuntilthe igniteris in betweenfrontand rear grill
sections.Lowerintoplaceuntilsideopeningsarerestingontheburnersupport
pins.
3. Placethegrillgratesonthetopofthecooktop.
NOTE: Beforeusingthe grillforthe firsttime,heattheE-venHeatTMgrillburnerto
removetheprotectiveshippingcoating.HeatthegrillonHifor10minutesand
use the vent systemto remove any additionalsmoke duringcooling.
Remov?Gdl! Modq i l
1. Removegrillcomponentsoncetheyarecool.BesurecontrolknobsareintheOFF
position.
2.Removegrillgrates.
3. Removegrillburner.
12

IUsing the Grill J
• Beforethefirst use,washyour newgrillgratesin hotsoapywater,rinseand dry.
Then "season"the surface by wiping on a thin coating of cookingoil. Remove
excessoil by wiping again with another papertowel. This procedureshould be
repeatedwhen: a) cleaningin the dishwashersincethe detergentmay remove
seasoning,or b)anytimeasugar-basedmarinade(forexample,barbecuesauce)is
goingto beused.
•Use nonmetallicspatulasor utensilstoprevent damagingtheExcalibur®nonstick
grillgratefinish.
• PreheatthegrillonHifor5 minutes.Preheatingimprovestheflavorandappearance
of meatsand quicklysearsthe meatto helpretainthejuices.
•Excessiveamountsoffatshouldbe trimmedfrommeats. Only anormalamountis
necessarytoproducethesmokeneededforthatsmoked,"outdoor"flavor.Excessive
fat cancreatecleaningandflare-upproblems.
• Allowingexcessiveamountsof greaseor drippingsto constantlyflamevoids the
warrantyon thegrillgrates.Excessiveflare-upsindicatethateitherthe grillinterior
needstobecleanedorthatexcessiveamountsoffatareinthemeatorthemeatwas
notproperlytrimmed.
• Greasedrippingswill occasionallyigniteto produceharmlesspuffsof flame fora
secondortwo.Thisisa normalpartofthecookingprocess.
•NEVERLEAVEGRILLUNATTENDEDDURINGGRILL OPERATION.
Should excess grease cause sustained flare-up
1. Turn on FANmanually.
2. ImmediatelyturngrillcontrolknobstoOFFposition.
3. Removemeatfromgrill.
IMPORTANT
• Donotusealuminumfoilinsidethegrillarea.
•Donotusecharcoalorwoodchipsinthegrillarea.
•Donotallowburnerbasintobecomeoverloadedwithgrease.Cleanaftereachuse.
•Donotcovergratescompletelywithmeat.Leaveairspacebetweeneachsteak,etc.
toallowproperventilationaswellaspreventflare-ups.
13

r

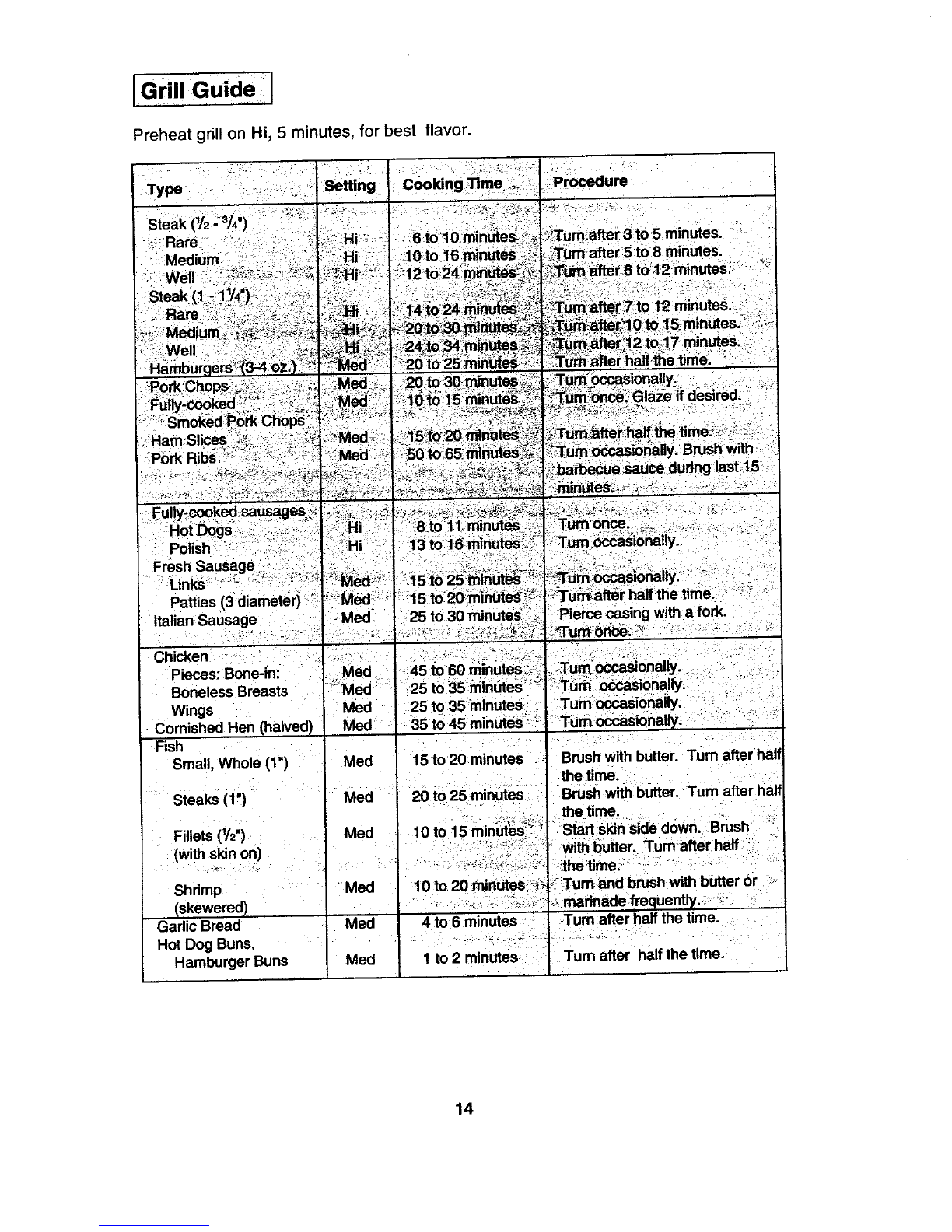

IGrill Guide
Preheat grillon Hi, 5 minutes,for best flavor
Type . . ; _;r"--:__ :eSetting CookingTime..:'_-_Procedure..
Steak(1/2:_/4") °= _" = _ •
_:!Rare • ;_ i:_;;:Hi_"t6to't0 min_e_
•:. Well _-:,--_-..-_--_---_,,,-,._:Bl:.....
_"_.we,-'___:'_-_;::/i_:_!__'__%___'_;i.:'_"i;_i_i
Hamburgers_;_3-4Oz.}-_;'-_T!TAed_20°t625mi_"
Fish ": ::'
Small,Whole(1")! Med 15to20 minutes Brushwithbutter.Turnafterhalf
Shrimp •Med 10to20minUteS_::_Tumandbrushwithbutteror::
(skewered) ",•.__-_:::_._-,--_-_marinade_equently..-_-,-;-:,
GarlicBread Med 4 to6minutes' -Turnafterhalfthetime. .,
HotDogBuns,
HamburgerBunsMed 1to2minutes Turnafter halfthetime.
14

IGri!ling TiPsl
With your Jenn-Air, grill literally any food you've considered "at its best"when prepared
outdoors can now be prepared indoors with less fuss and great flavor.
The following suggestions are good rules to follow and will increase your enjoyment of
the equipment.
•Be sure to followdirections on page 13for using the grill.
• Suggested cooking times and control settings are approximate due to variations
in meats.Experience will quickly indicate cooking times as well as which settings
work best.
• For best results, buy top grademeat. Meat that is at least 3/4inch will grill better
than thinner cuts.
• Score fat on edges of steak, but do not cut into meat, to prevent curling while
cooking.
• Forthe attractive"branded"look onsteaks, besure grill ispreheated. Allow one
side of meatto cook todesired doneness, oruntiljuices appear onthe topsurface,
before turning. Turn steaks and hamburgers just once. Manipulating food causes
loss ofjuices.
• When basting meats or applying sauces to foods, remember that excessive
amounts wind upinside your grill and donot improve the food flavor. Apply sauces
duringthe last 15to 20 minutesof cooking time unless recipespecifies otherwise.
Plus, any time a sugar-based marinade,(for example, barbecue sauce) is going
to be used, the grates should be "seasoned" prior to preheating.(See p. 13.)
•There are many meat marinades which willhelp tenderize less expensive cuts of
meat for cooking on the grill.
• Certain foods, such as poultry and non-oilyfish, may needsome extra fat. Brush
with oil or melted butter occasionally while grilling.
• Use tongs with long handles or spatulas for turning meats. Do not use forks as
these pierce the meat, allowing juices to be lost.
• To help retain meat juices, salt after turning meat or after cooking is completed.
15

Theknobson thecontrolpanel canbe removedwiththe contro]sintheOFF position. Pull
each knobstraightfrom the shaft.Wash knobs in warm soapy water or dishwasher; do
not useabrasive cJeansersor materials. Toreplaceeach knob, match flat part of knob
opening with the flat of the shaft, returning in OFF position.
Important: Never use a metal blade to pry knob off.
Be surethe grill is cooland controls are OFF.These are madefrom castaluminum and
are coated with the Excalibur_ nonstick finish.
•After the grill grates have cooled, wipe off grates with a paper towel. Wash cool
grates (DO NOT IMMERSEHOT GRILL GRATES IN WATER) with soapor deter-
gent in hotwater in the sink or wash them in the dishwasher. Be sureto remove all
food residue beforecooking on the grill grates again.
• Removestubborn spots with a plastic mesh puff or pad. For best results, useonly
thosecleaning productswhich state theyarerecommendedfor usewhencleaning
noflstick surfaces.
•If gratesarewashedinthedishwasher,seasonwithoilpriortogrilling,
•DonotusemetalbrushesorabrasJvescouringpadsorotherscrubbersJntendedto
clean outdoor charcoal grills. Thesewillremove the finish as well as scratch the
grates. Do not clean in the self.cleaning oven or use ovencleaners on the grates.
ThegrJlfburnershouldbe cleaned after each use. Itcanbe c}eenedwith asoapy S.O.S.
pad or in the dishwasher. Rinse and dry thoroughly before using again. For heavy soil,
burner shouldbe cleanedfirst with a soapy S.O.S. pad,rinsed and dried.Then it can be
cleaned in a self-clean oven for 2 hours.
NOTE: Check to besurealJburner ports are open. To open c_oggedports, insert a)
toothpick directly into each port. J
16

[Surface Burner Assembly]
To clean thesurface burnerassembly(surface burnergrates,aerationtray, and surface
burners).
• Lightsoil -wash in hotsoapy water, rinse and dry.
•Moderatesoil-use Comet, BonAmi, a softscrubcleanser or plasticpuff.
•Heavy soil -for occasional use only, use oven cleanerfollowingmanufacturer's
directions.
NOTE:
• The porcelain enamel used on your cooktop is acid resistant, notacid proof.
Therefore, acid foods (such as vinegar, tomato, milk, etc.) spilled on the cooktop
should be wiped up immediately with a dry cloth.
• Do NOT use abrasive cleaners, S.O.S. or Brillo pads.
• Remove sugar spills immediately.
• Do NOT clean in a self-clean oven.
• Check to be sure all burner ports are open.To open clogged ports, insert a
toothpick directly into each port.
Although the burner grate is durable, it will gradually lose its shine and/or discolor,
regardless of the care you take of it. This isdue to its exposure to the high temperature
of the gas flame.
To preserve the porcelain enamel finish as long as possible, have a pan on the grate
before you turnon theburner and lower the flame when food reaches the desired cooking
temperature.
• To clean lightsoil, wipe with soapy cloth or nonabrasive cleanser, such asSoft Scrub.
Rinse, buff with soft cloth; polish with glass cleaner ifnecessary.
• To clean moderate soil or discoloration of the surface (excessive heatwill cause a
golden discoloration), clean with Zud, Bar Keepers Friend, or Luneta (Jenn-Air
Model A912, Part No. 712191). With a sponge or cloth, rub cleanser with the grain
to avoid streaking the surface. Rinse well, buff dry; polish with a glass cleaner if
necessary to remove cleanser residue and smudge marks.
• Heavy soil, such as burned on food soil, can be removed by first cleaning as per the
instructions for moderate soil.Stubborn stains can beremoved with a damp Scotch-
Brite scour-pad; rubevenly with the grain to avoid streaking the surface. Rinsewell,
buff with drycloth; polish with glass cleaner ifnecessary to remove cleanser residue
and smudge marks.Scotch-Brite is also useful in buffing and removing minor
scratches.
Note on the control panel:
• Do NOT useabrasivecleaners.
• Do NOT use Scotch Britepads.
•Clean with soapy clothor Luneta.
17

JIgnitersI
• Itisimportanttokeepigniterportopeningsonburnersclearandfreeofobstructions
to avoidignitionfailureand possiblegasbuildup.If the portopeningsareblocked,
usea toothpickto removefood particles.
•The igniter cap and stem can be cleaned with warm soapy water and a plastic
scrubber.Thewire electrode insidethe capcan becleaned with a small brush.Rinse
and dry.
Thisarea is located under the grilland surface burners and should be cleanedafter each
use of the grill.
•To remove light soil, clean with soapy water or with cleaners such as Fantastic or409.
For easier cleanup, a) spray with household cleaner; b) cover with paper towels; c)
add small amount of water to keep the paper towel moist; d) cover and wait 15
minutes; e)wipe clean.
•To remove moderate soil, scrub with Comet, BonAmi, a soft scrub cleanser or plastic
scrubber.
•To remove stubborn soil, spray with an oven cleaner; let soak overnight; wipeclean;
rinse and dry.
Drain Jar
Adrainjar islocatedbelowthe grillbasin pan
underthe countertop. Check periodically to
prevent spillovers. Unscrew and remove.If
jar isbroken,replace with any heat tempered
jar, suchas a canning jar, which has a stan-
dard screw neck.
Serial Plate
DO NOT CLEAN.
18

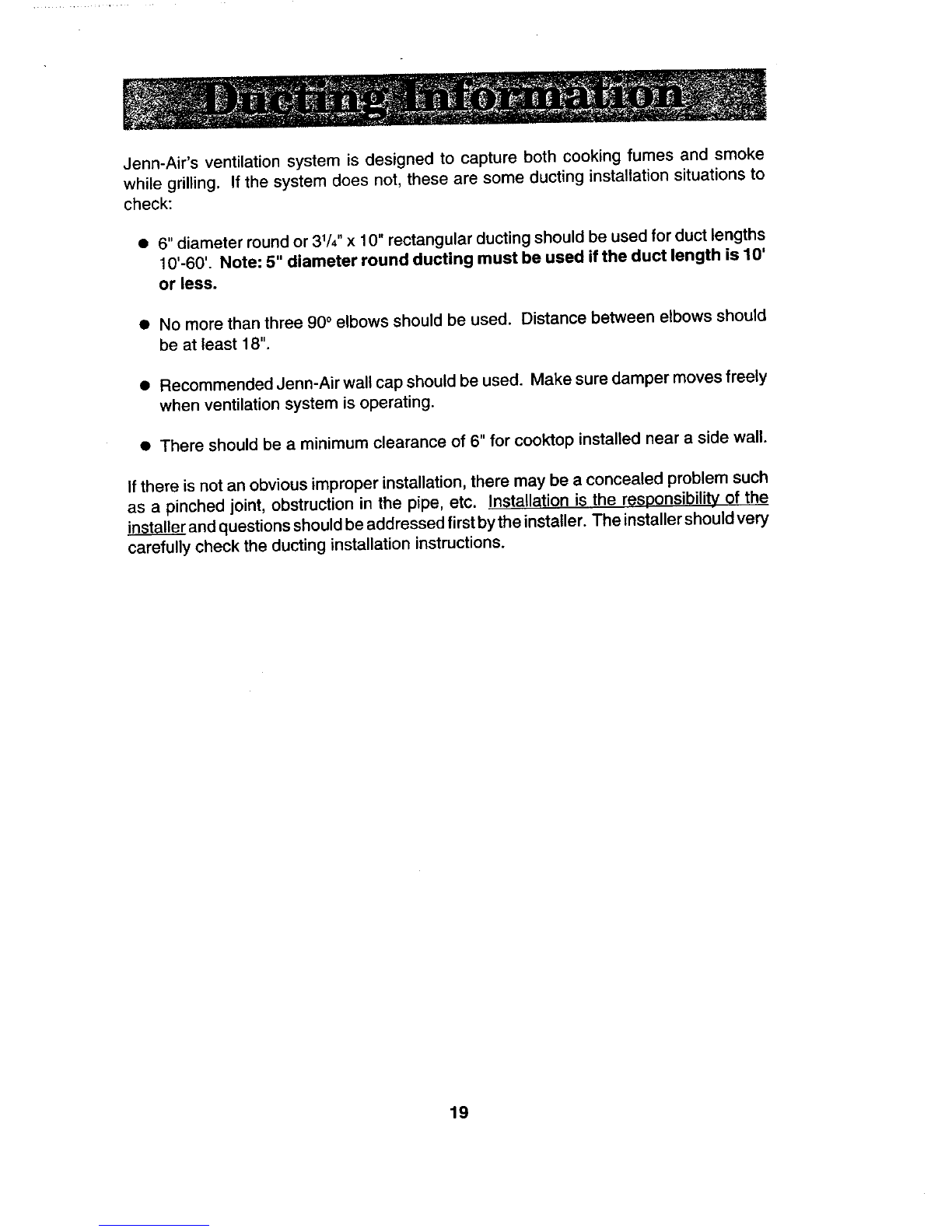

Jenn-Air's ventilation system is designed to capture both cooking fumes and smoke
while grilling.If the system does not, these are some ducting installation situations to
check:
• 6" diameter round or 31/4' x 10" rectangular ducting should be used for duct lengths
10'-60'. Note: 5"diameter round ducUng must be used ifthe duct length is 10'
or less.
•No morethan three900elbowsshouldbe used.Distancebetween elbowsshould
beat least 18".
• RecommendedJenn-Airwallcap shouldbe used. Make suredampermovesfreely
whenventilationsystemisoperating.
•There shouldbe a minimumclearance of 6"forcooktopinstalled near a side wall.
Ifthere is not an obviousimproperinstallation,there may be a concealed problemsuch
asapinchedjoint, obstructionin the pipe, etc. Installationis the responsibili_ of the
installerandquestionsshouldbeaddressedfirstbythe installer.The installershouldvery
carefullycheck theducting installationinstructions.
19

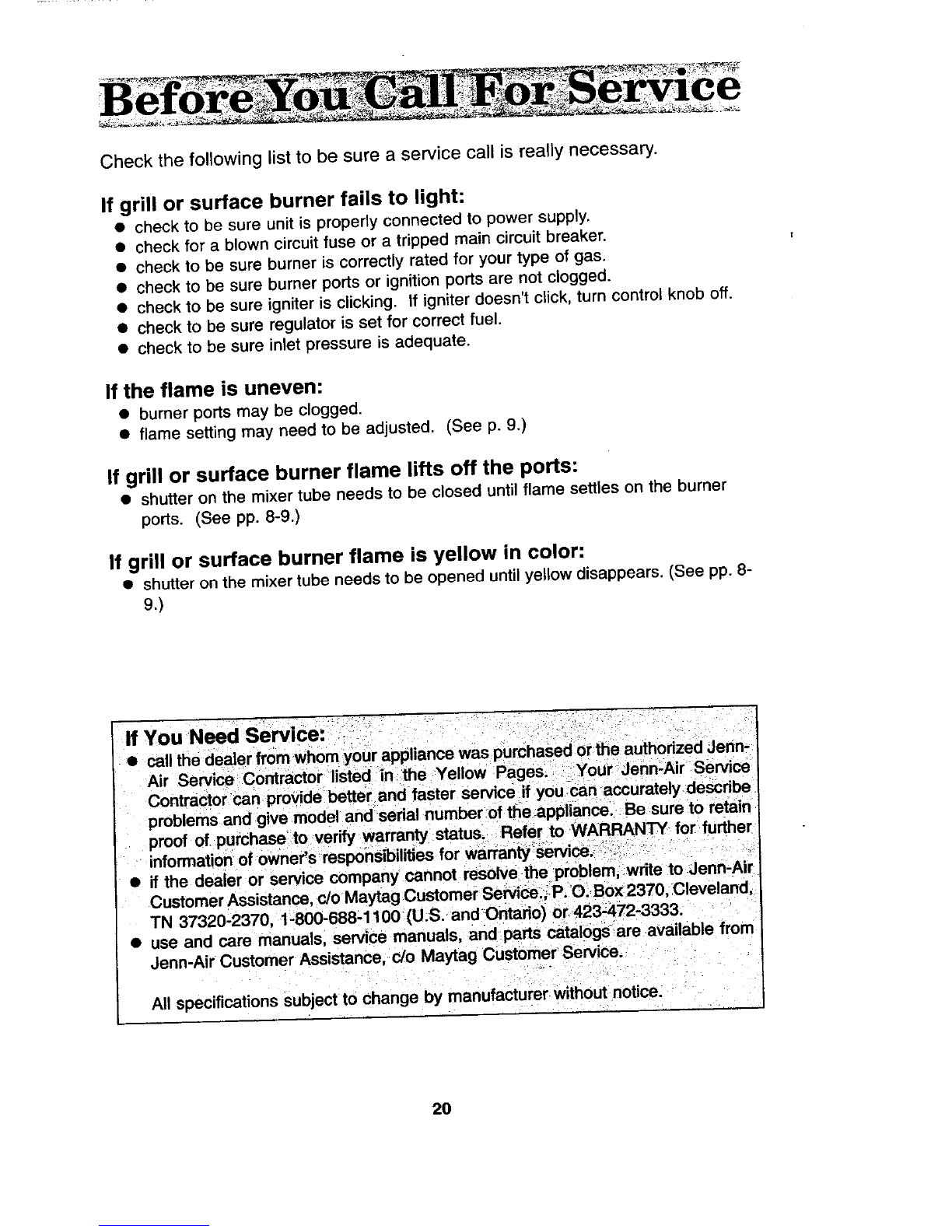

Check the following list to be sure a service call is really necessary.
If grill or surface burner failsto light:
• checktobesure unit is properlyconnectedto powersupply,
• check fora blowncircuit fuseor atripped maincircuit breaker.
• checkto be sure burneris correctly ratedfor yourtype of gas.
• checkto be sure burnerports or ignition portsare not clogged.
• checkto be sure igniteris clicking. If igniterdoesn'tclick,turn controlknoboff.
• checkto be sure regulatorissetfor correctfuel.
• checkto be sure inletpressureis adequate.
If the flame is uneven:
• burner ports maybe clogged.
• flamesettingmay needto be adjusted.(Seep.9.)
If grill or surfaceburner flamelifts off the ports:
•shutteronthemixertubeneedsto becloseduntilflamesettlesontheburner
ports.(See pp.8-9.)
If grill or surface burner flame is yellow in color:
• shutteronthemixertubeneedsto beopeneduntilyellowdisappears.(Seepp.8-
9.)
ff YOU Need Service:_i._;i - . : -,":_ i'.___::
•callthedealerfromwhomyourappliancewaspurchasedottheauthorizedJenn-
Air Service Contractorlistedin the_YellowPages_Yout:Jehn_Air Service
Contractorcan providebetter,andfasterserviceif you:canaccuratelydescribe
problemsandgivemodelandsedalnumberofthe.appliance,Be suretoretain
proofof purchase_toverify warr...a_.ty:status, Referto WARRANTY forfurther
informationofowner'srespohs_ilitiesforwarranty_:service.!_::_-_i'i. ._ " ,- ' ..
•if the dealeror servicecompanycannotresolve,theptoblern,wdtetoJenn-Air
.CustomerAssistance,c/oMaytagCustomerService._P,OiBox2370,,Cleveland,
TN 37320-2370,1-800-688-1100(U.S.-andontado) or.-423_47.2-3333.
•useand caremanuals,servicemanuals,and partscatalogsareavailablefrom
Jenn-AirCustomerAssistance,c/o MaytagCustomerService,
Allspecificationssubjecttochangeby manufacturerwithoutnotice.
r , i,Bqi
2O
