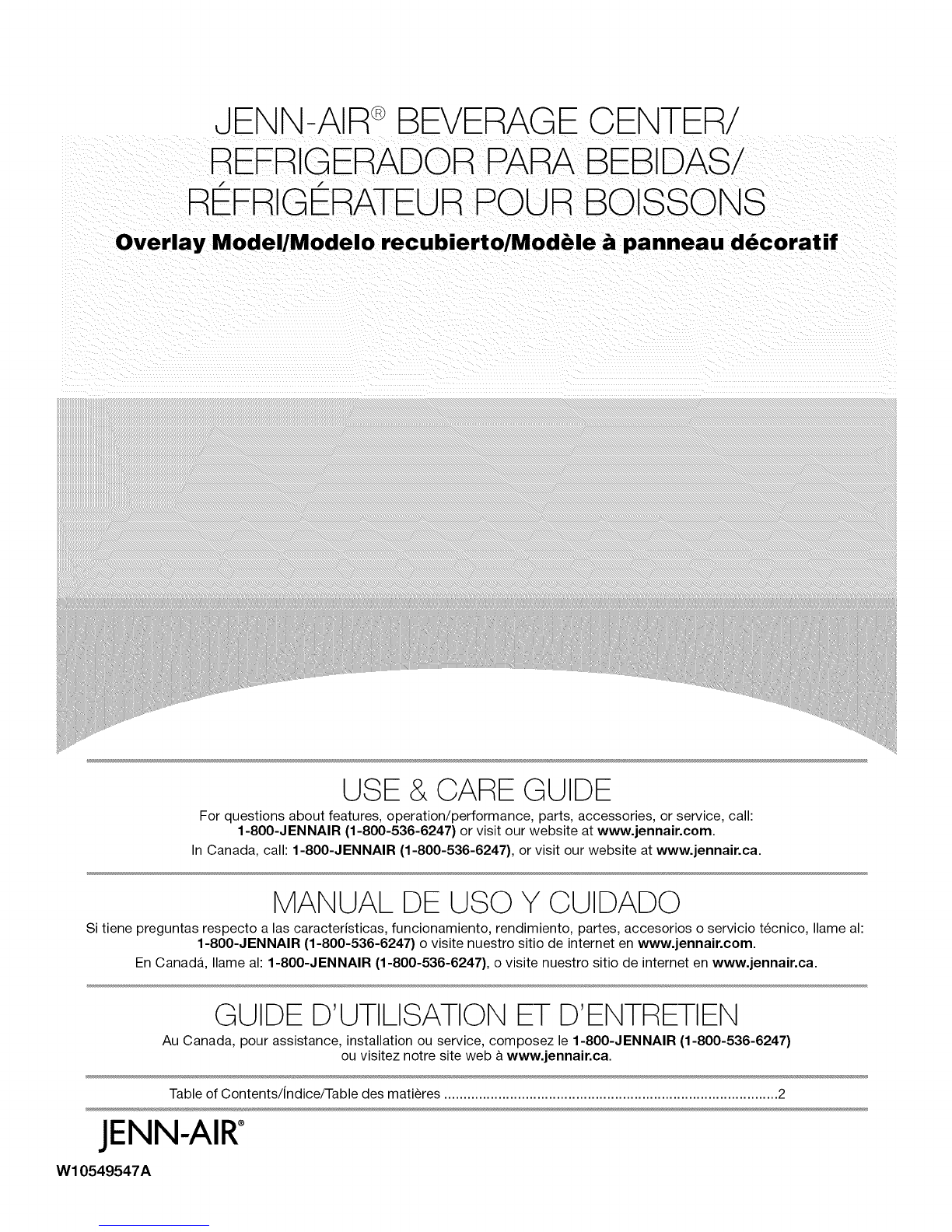

JENN AIR®BEVERAGE CENTER/
REFRIGERADOR PARA BEBIDAS/
REFRIGERATEUR POUR BOISSONS
Overlay Model/Modelo recubierto/Mod_le _panneau d_coratif
USE & CARE GUIDE
For questions about features, operation/performance, parts, accessories, or service, call:
1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.
In Canada, call: 1-800-JENNAIR (1-800-536-6247), or visit our website at www.jennair.ca.
MANUAL DE USO Y CUIDADO
Si tiene preguntas respecto a las caracteristicas, funcionamiento, rendimiento, partes, accesorios o servicio tecnico, Ilame al:
1-800-JENNAIR (1-800-536-6247} o visite nuestro sitio de internet en www.jennair.com.
En Canada, Ilame al: 1-800-JENNAIR (1-800-536-6247), o visite nuestro sitio de internet en www.jennair.ca.
GUIDE D'UTILISATION ET D'ENTRETIEN
Au Canada, pour assistance, installation ou service, composez le 1-800-JENNAIR (1-800-536-6247}
ou visitez notre site web &www.jennair.ea.
Table of Contents/[ndice/Table des matieres ...................................................................................... 2
JENN-AIR°
W10549547A

TABLE OF
BEVERAGE CENTER SAFETY ................................................................... 3
Proper Disposal of Your Old Refrigerated Appliance .............................. 3
INSTALLATION REQUIREMENTS ............................................................. 4
Tools and Parts ......................................................................................... 4
Location Requirements ............................................................................. 4
Electrical Requirements ............................................................................ 5
Product Dimensions ................................................................................. 5
Custom Overlay Frame ............................................................................. 5
INSTALLATION INSTRUCTIONS ............................................................... 6
Unpack the Beverage Center ................................................................... 6
Reverse Door Swing (optional) ................................................................. 7
Install Custom Overlay Frame .................................................................. 8
Door Closing ............................................................................................. 9
CONTENTS
BEVERAGE CENTER USE .......................................................................... 9
Normal Sounds ......................................................................................... 9
Using the Control ...................................................................................... 9

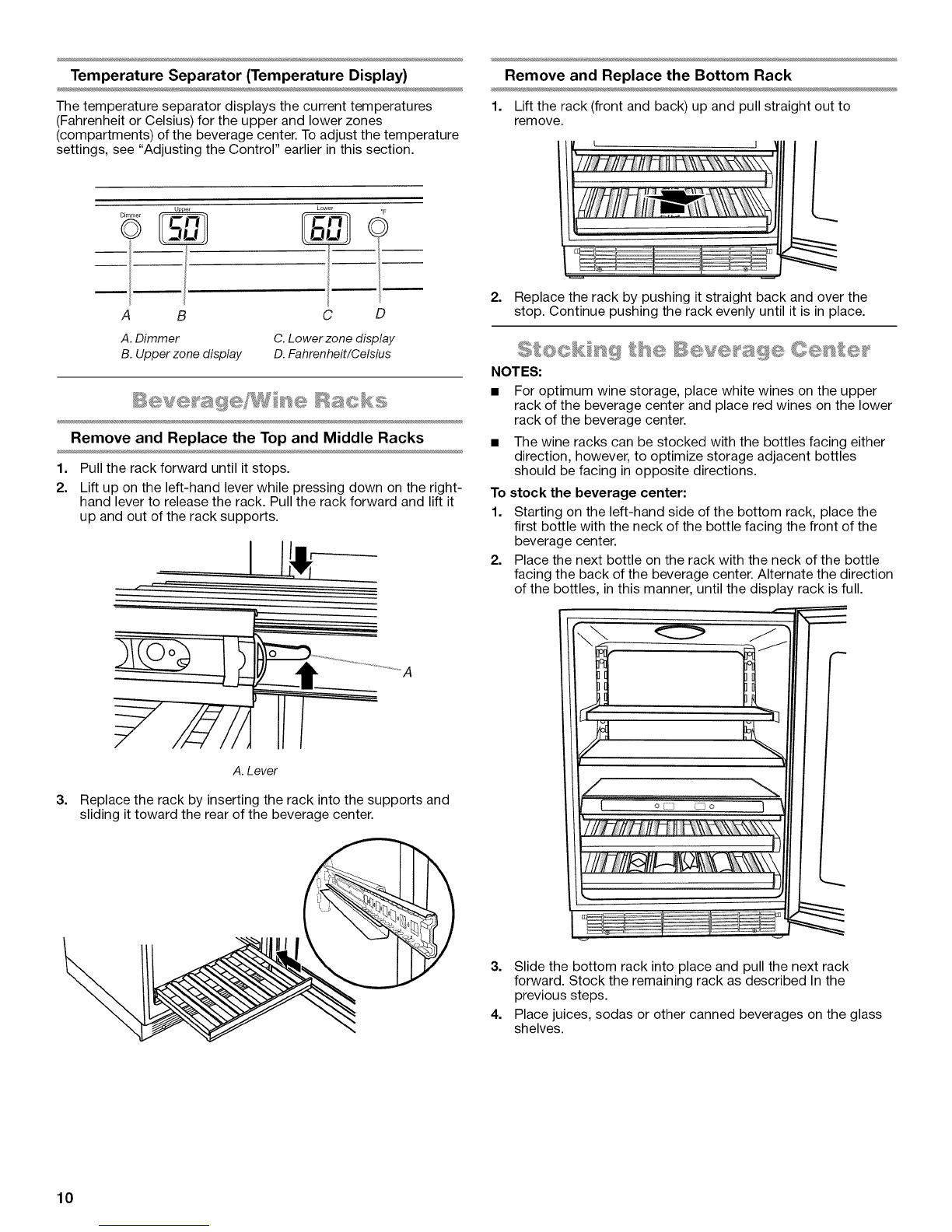

Beverage/Wine Racks ............................................................................ 10
Stocking the Beverage Center ............................................................... 10
Lighting the Beverage Center ................................................................. 11
BEVERAGE CENTER CARE ..................................................................... 11
Base Grille ............................................................................................... 11
Cleaning .................................................................................................. 11
Vacation and Moving Care ..................................................................... 12
TROUBLESHOOTING ............................................................................... 12

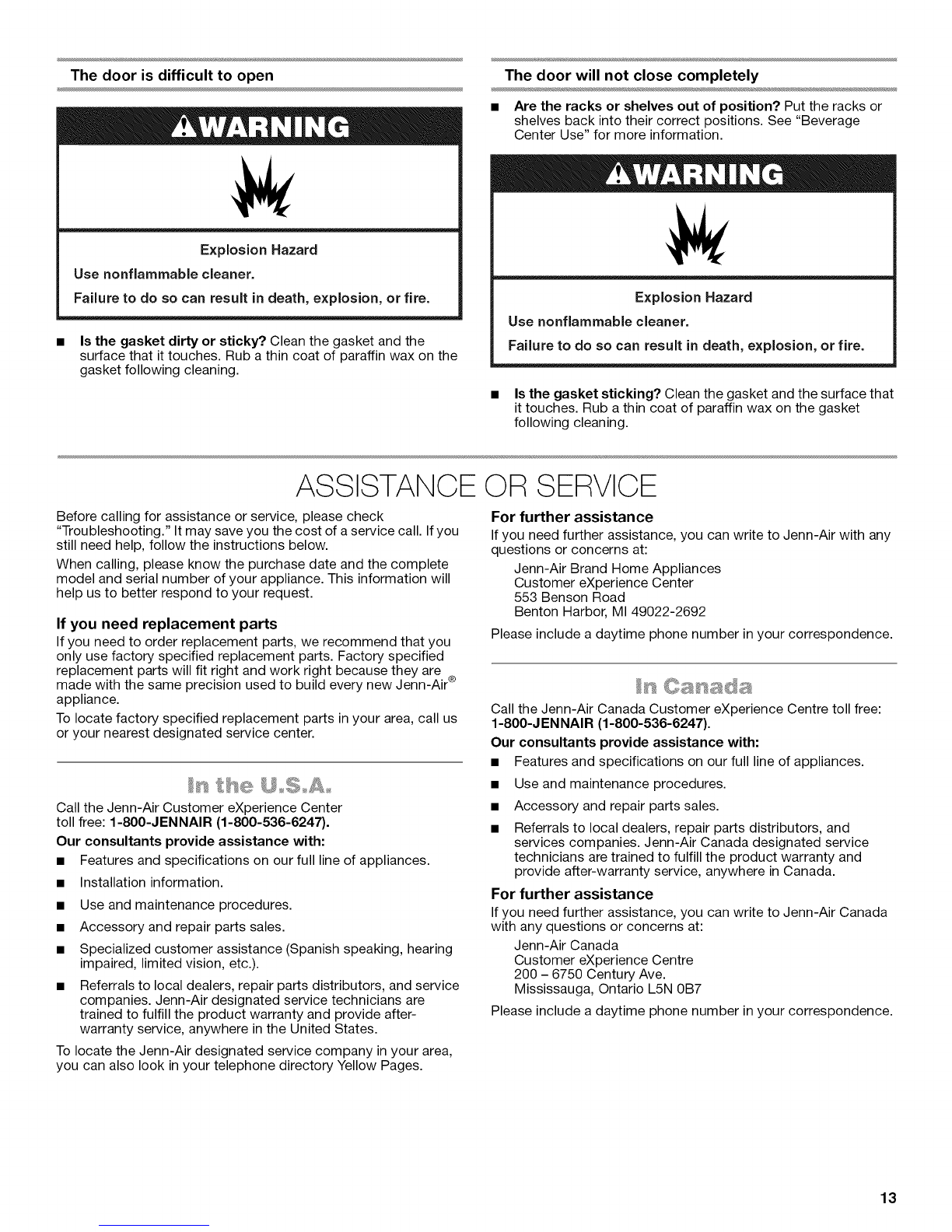

ASSISTANCE OR SERVICE ...................................................................... 13
In the U.S.A ............................................................................................. 13
In Canada ................................................................................................ 13
WARRANTY ............................................................................................... 14
[NDICE

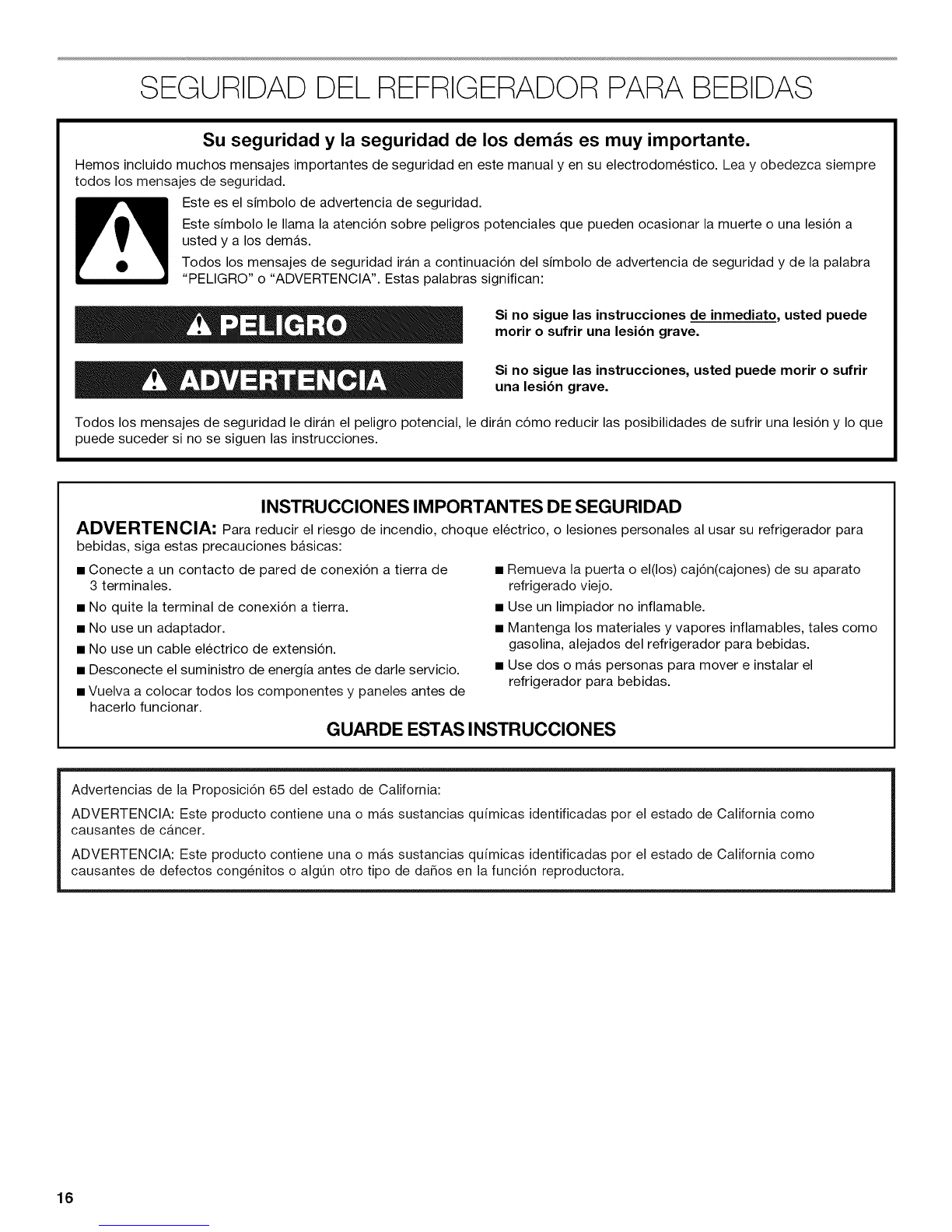

SEGURIDAD DEL REFRIGERADOR PAPA BEBIDAS ............................ 16
C6mo deshacerse adecuadamente de su aparato refrigerado viejo ....17
REQUISITOS DE INSTALACION .............................................................. 17
Piezas y herramientas ............................................................................. 17
Requisitos de ubicaci6n ......................................................................... 17
Requisitos electricos ............................................................................... 18
Medidas del producto ............................................................................. 18
Marco recubierto a la medida ................................................................. 19

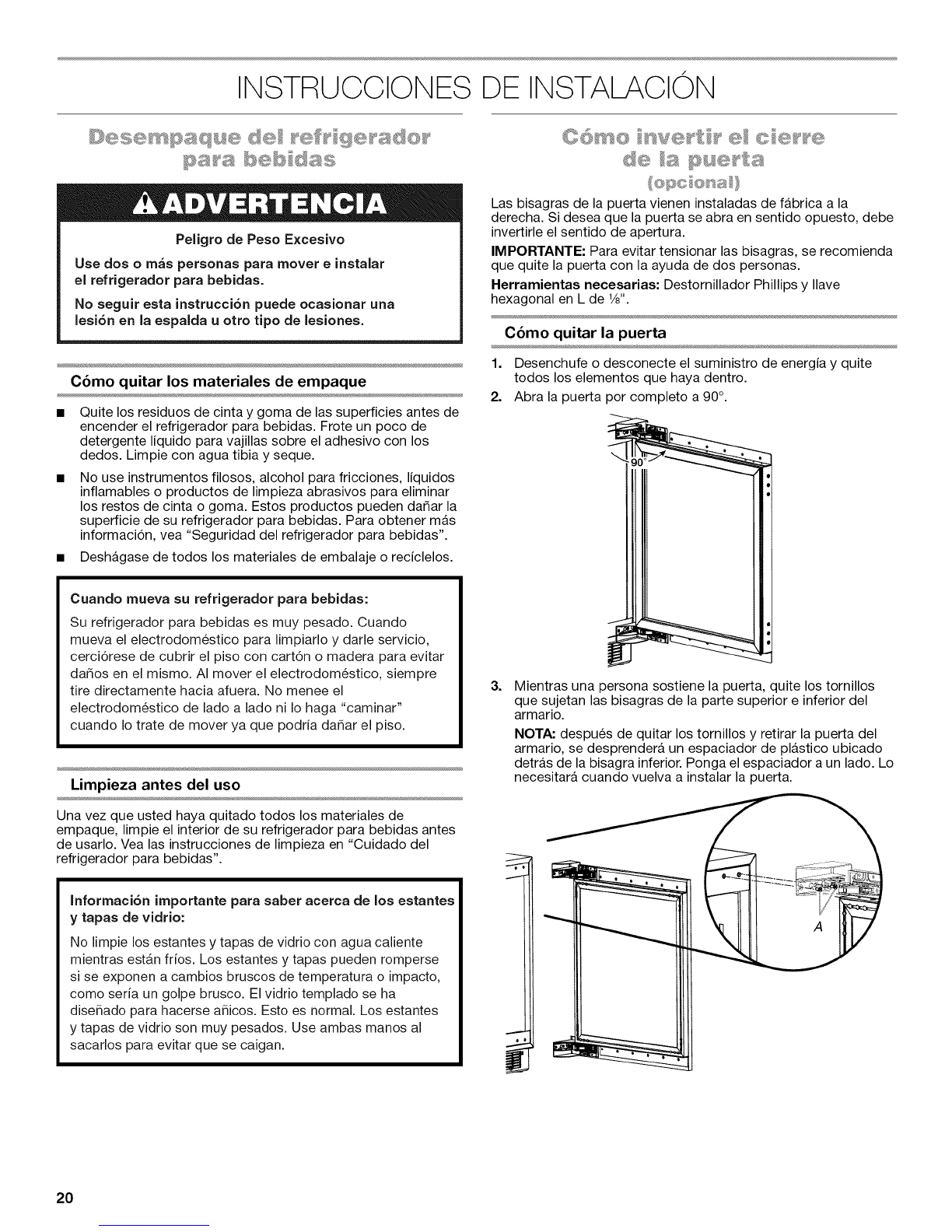

INSTRUCCIONES DE INSTALACION ...................................................... 20
Desempaque del refrigerador para bebidas .......................................... 20
C6mo invertir el cierre de la puerta ........................................................ 20
C6mo instalar el marco recubierto a la medida ..................................... 22
Cierre de la puerta .................................................................................. 22
USO DEL REFRIGERADOR PARA BEBIDAS ......................................... 23
Sonidos normales ................................................................................... 23
Uso del control ....................................................................................... 23
Portabebidas/portabotellas .................................................................... 23
C6mo almacenar en el refrigerador para bebidas ................................. 24
C6mo iluminar el refrigerador para bebidas .......................................... 24
CUIDADO DEL REFRIGERADOR PARA BEBIDAS ................................ 25
Rejilla de la base ..................................................................................... 25
Limpieza .................................................................................................. 25
Cuidado durante las vacaciones y mudanzas ....................................... 25
SOLUCION DE PROBLEMAS ................................................................... 26
AYUDA O SERVICIO TI_CNICO ................................................................ 27
En los EE.UU ........................................................................................... 27
En Canad_ .............................................................................................. 27
GARANTIA ................................................................................................. 28
TABLE DES
SECURITE DU REFRIGERATEUR POUR BOISSONS ........................... 30
Mise au rebut de votre vieil appareil refrigere ........................................ 31
EXIGENCES D'INSTALLATION ................................................................ 31
Outillage et pieces .................................................................................. 31
Exigences d'emplacement ..................................................................... 31
Specifications electriques ....................................................................... 32
Dimensions du produit ............................................................................ 32
Cadre decoratif personnalise ................................................................. 33
INSTRUCTIONS D'INSTALLATION ......................................................... 34
Deballage du refrigerateur pour boissons .............................................. 34
Inversion du sens d'ouverture de la porte .............................................. 34
Installation du cadre decoratif personnalise .......................................... 36
Fermeture de la porte ............................................................................. 36
MATII2RES
UTIMSATION DU RC:FRIGC:RATEUR POUR BOISSONS ....................... 37
Sons normaux ......................................................................................... 37
Utilisation de la commande .................................................................... 37
Grilles pour le remisage des boissons et du vin .................................... 38
Stockage dans le refrigerateur pour boissons ....................................... 38
€:clairage du refrig6rateur pour boissons ............................................... 39
ENTRETIEN DU REFRIGERATEUR POUR BOISSONS ......................... 39
Grille de la base ...................................................................................... 39
Nettoyage ............................................................................................... 39
Precautions a prendre pour les vacances
et avant un dem6nagement .................................................................... 40
DEPANNAGE ............................................................................................. 40
ASSISTANCE OU SERVICE ...................................................................... 42
Aux €:tats-Unis ........................................................................................ 42
Au Canada .............................................................................................. 42
GARANTIE .................................................................................................. 43
2

BEVERAGE CENTER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury when using your beverage center, follow these basic
precautions:
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Disconnect power before servicing.
• Replace all parts and panels before operating.
• Remove door or drawer(s) from your old refrigerated
appliance.
• Use nonflammable cleaner.
• Keep flammable materials and vapors, such as gasoline,
away from beverage center.
• Use two or more people to move and install beverage
center.
SAVE THESE INSTRUCTIONS
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other
reproductive harm.
Proper Disposal of Your Old
Refrigerated Appliance
Suffocation Hazard
Remove door or drawer(s) from your old refrigerated
appliance.
Failure to do so can result in death or brain damage.
Before You Throw Away Your Old Refrigerated Appliance:
• Take off the door.
• Leave the racks and shelves in place so that children may not
easily climb inside.
IMPORTANT: Child entrapment and suffocation are not problems
of the past. Junked or abandoned beverage centers are still
dangerous - even if they will sit for "just a few days." If you are
getting rid of your old beverage center, please follow these
instructions to help prevent accidents.
important information to know about disposal of
refrigerants:
Dispose of refrigerator in accordance with Federal and Local
regulations. Refrigerants must be evacuated by a licensed,
EPA certified refrigerant technician in accordance with
established procedures.

INSTALLATION REQUIREMENTS
Gather the required tools and parts before starting installation.
TOOLS NEEDED:
• Phillips screwdriver
PARTS NEEDED:

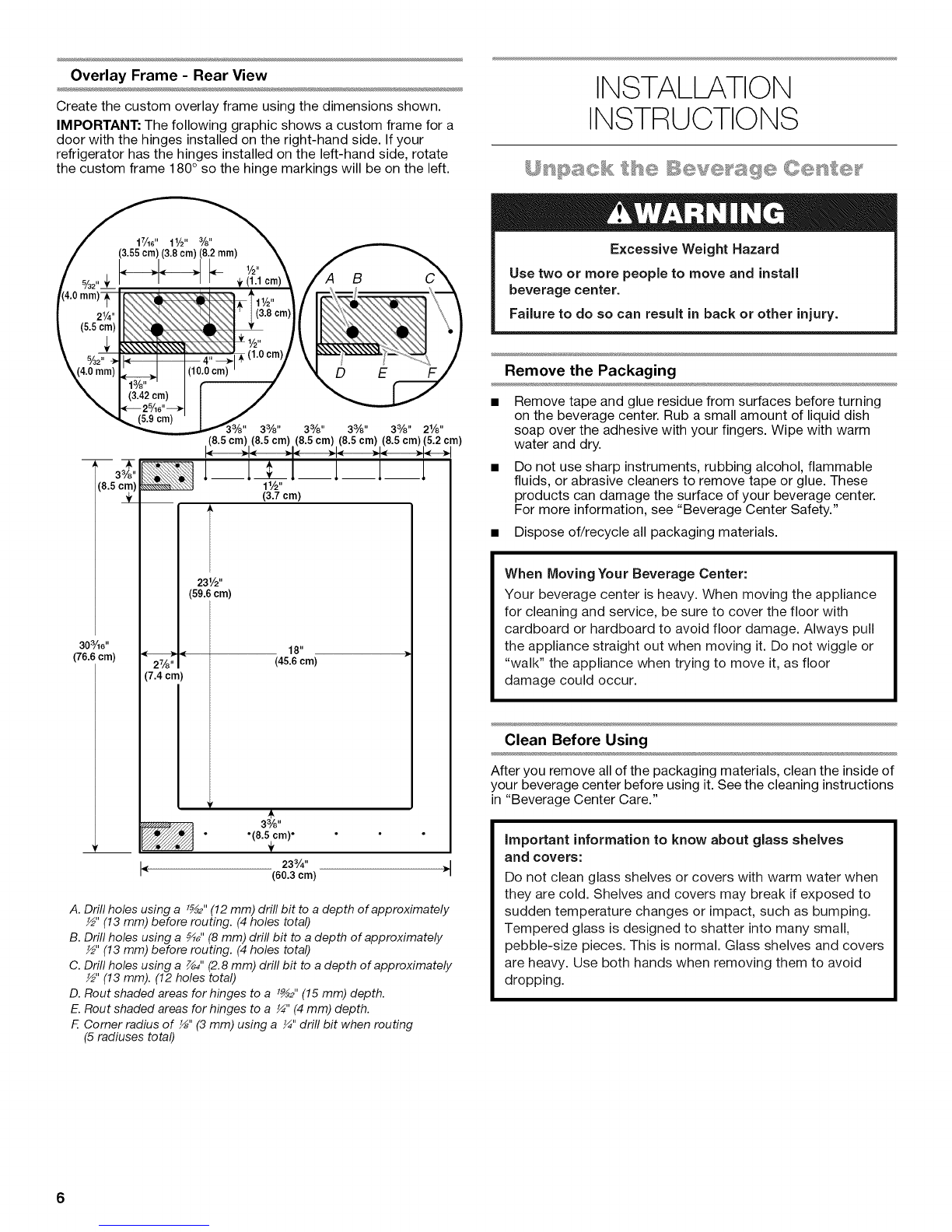

Custom Overlay Frame--See "Overlay Frame--Rear View."
Hardware (Optional)
PARTS SUPPLIED:
• M4 x 14 wood screws (12)
E×plosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from beverage center.
Failure to do so can result in death, explosion, or fire.
NOTES:
• For the beverage center to be flush with the front of the base
cabinets remove any baseboards or moldings from the rear of
the opening. See "Product Dimensions" and later in this
section "Opening Dimensions."
• It is recommended that you do not install the beverage center
near an oven, radiator, or other heat source.
• Do not install in a location where the temperature will fall
below 55°F (13°C). For best performance, do not install the
beverage center behind a cabinet door or block the base
grille.
-- II -- I c_.......
II
Opening Dimensions
• Height dimensions are shown with the leveling legs extended
to the minimum height.
NOTE: When leveling legs are fully extended, add %"
(15.9 mm) to the height dimensions. See "Product
Dimensions."
• If the floor of the opening is not level with the kitchen floor,
shim the opening to make it level with the kitchen floor.
I .........................A
610'n96 ¢m)
24" (60.96 crn) min.
343/8" (87.3 cm) min.
35" (88.9 cm) max.
Critical Dimensions:
A. 14_" (37.5 cm) utility opening
B. 24" (60.96 cm) minimum opening width

_}@_ec_/©@_ _J£@_s_s _@_@ _'t_as;; Side View (door open 90 °)

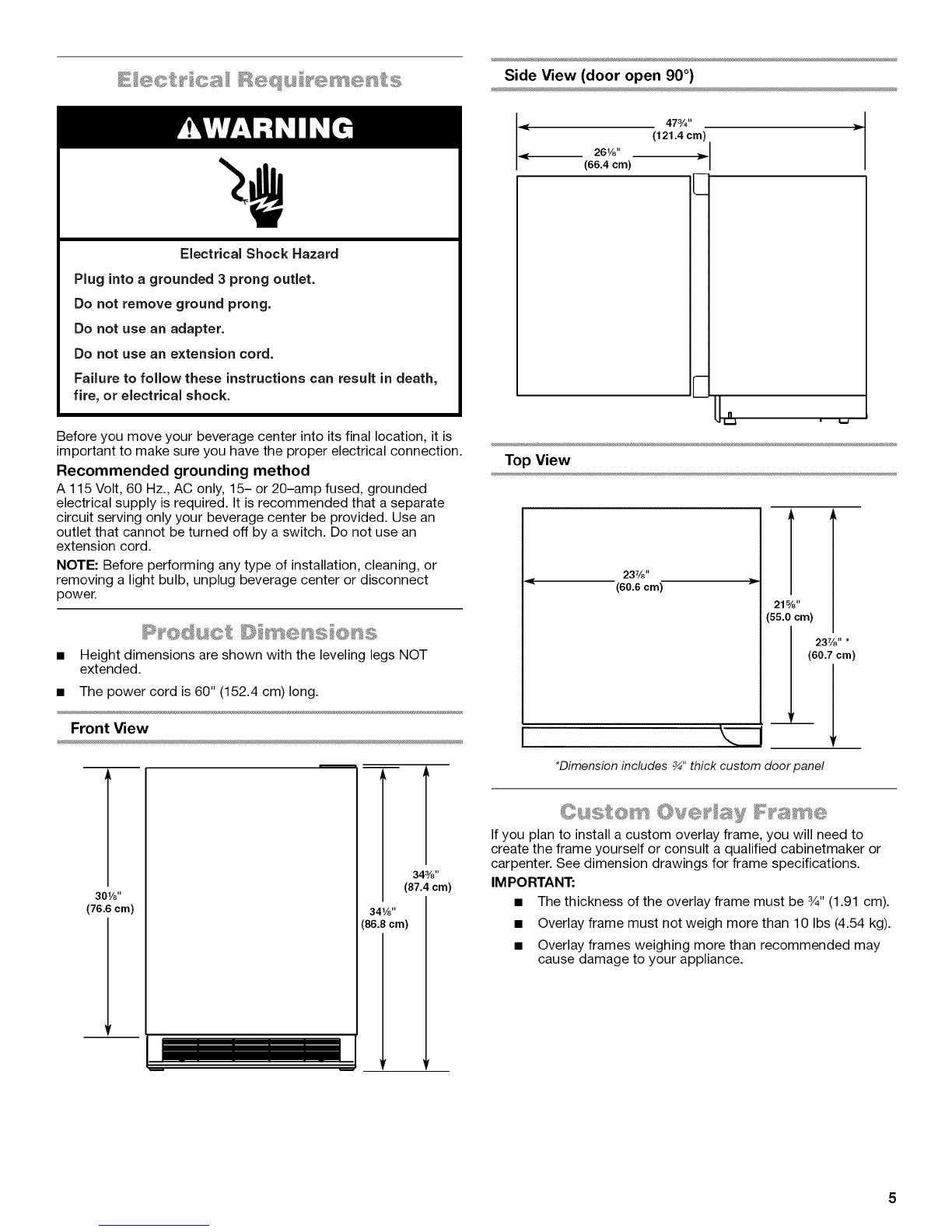

Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Before you move your beverage center into its final location, it is
important to make sure you have the proper electrical connection.
Recommended grounding method
A 115 Volt, 60 Hz., AC only, 15- or 20-amp fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your beverage center be provided. Use an
outlet that cannot be turned off by a switch. Do not use an
extension cord.
NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, unplug beverage center or disconnect
power.
• Height dimensions are shown with the leveling legs NOT
extended.
• The power cord is 60" (152.4 cm) long.
Front View
30V8"
(78.6 cm)
m m
34%"
(87.4 cm)
34V8"
(86.8 cm)
47%" _,
(121.4 cm)
26V8"
(68.4 cm)
Top View
237/8''
(60.6 cm)
21%"
(55.0 cm)
237/8,, *
. [(60.7 cm)
*Dimension includes _" thick custom door panel
If you plan to install a custom overlay frame, you will need to
create the frame yourself or consult a qualified cabinetmaker or
carpenter. See dimension drawings for frame specifications.
IMPORTANT:
• The thickness of the overlay frame must be 3/4"(1.91 cm).
• Overlay frame must not weigh more than 10 Ibs (4.54 kg).
• Overlay frames weighing more than recommended may
cause damage to your appliance.

Overlay Frame - Rear View
Create the custom overlay frame using the dimensions shown.
IMPORTANT: The following graphic shows a custom frame for a
door with the hinges installed on the right-hand side. If your
refrigerator has the hinges installed on the left-hand side, rotate
the custom frame 180 ° so the hinge markings will be on the left.
303/16"
(76.6 crn)
231/2"
(59.6 cm)
2%"
(7.4 crn)
18"
(45.6 cm)
3%"
"(8.5 cm)"
233/4''
(60.3 crn)
A. Drill holes using a '_2" (12 mm) drill bit to a depth of approximately
½" (13 mm) before routing. (4 holes total)
B. Drill holes using a _" (8 mm) drill bit to a depth of approximately
½" (13 mm) before routing. (4 holes total)
C. Drill holes using a Y_" (2.8 mm) drill bit to a depth of approximately
½" (13 mm). (12 holes total)
D. Rout shaded areas for hinges to a '_2" (15 mm) depth.
E. Rout shaded areas for hinges to a ¼" (4 mm) depth.
F. Corner radius of _" (3 mm) using a ¼" drill bit when routing
(5 radiuses total)
INSTALLATION
INSTRUCTIONS
c °
Excessive Weight Hazard
Use two or more people to move and install
beverage center.
Failure to do so can result in back or other injury.
Remove the Packaging
Remove tape and glue residue from surfaces before turning
on the beverage center. Rub a small amount of liquid dish
soap over the adhesive with your fingers. Wipe with warm
water and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your beverage center.
For more information, see "Beverage Center Safety."
• Dispose of/recycle all packaging materials.
When Moving Your Beverage Center:
Your beverage center isheavy. When moving the appliance
for cleaning and service, be sure to cover the floor with
cardboard or hardboard to avoid floor damage. Always pull
the appliance straight out when moving it. Do not wiggle or
"walk" the appliance when trying to move it, as floor
damage could occur.
Clean Before Using
After you remove all of the packaging materials, clean the inside of
your beverage center before using it. See the cleaning instructions
in "Beverage Center Care."
Important information to know about glass shelves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
Tempered glass is designed to shatter into many small,
pebble-size pieces. This is normal. Glass shelves and covers
are heavy. Use both hands when removing them to avoid
dropping.
6

The door hinges are factory installed on the right-hand side. If you
want the door to open from the opposite direction, you must
reverse the door.
IMPORTANT: To avoid strain on the hinges, it is recommended
that you use two people to remove the door.
Tools Needed: Phillips screwdriver and a 1/8"hex key wrench.
4. Remove the door from the cabinet and gently lay it on a flat
surface to avoid damaging the covers attached to the top and
bottom hinges.
Remove the Door
1.
2.
Unplug or disconnect power and remove any items that might
be stored inside.
Open the door completely to 90 °.
3. While one person supports the door, remove the screws
attaching both the top and bottom hinges to the cabinet.
NOTE: After the screws are removed and the door is pulled
away from the cabinet, a plastic spacer, located behind the
bottom hinge, will become free. Set the spacer aside. You will
need this spacer when you reinstall the door.
5.
6.
1.
2.
B
A. Hinge cover
B. Custom overlay door frame
Reinstall the screws into the holes remaining after the hinges
are removed from the cabinet.
If a wooden overlay panel has been previously installed,
remove the panel. See "Install Custom Overlay Frame."
Reverse the Door
Remove the screws attaching the black, metal L-beams to the
top and bottom of the door.
Remove the screw attaching the metal light switch plate to the
center of the bottom L-beam. Remove the light switch plate.
NOTE: The light switch plate is attached with both a screw
and adhesive tape. It may require some force to remove it
from the L-beam.
A
B
A. Light switch plate
B. Bottom L-beam
C. Top L-beam
3. Remove the two metal, L-beams from the door noting which
L-beam was on the top and which was on the bottom.
4. Move the L-beams to the opposite ends of the door with the
hinges now on the left-hand side (as you are facing the front of
the door).
A. Bottom L-beam
B. Top L-beam

5=
6.
Using the screws removed in Step 1, reinstall the L-beams, to
their new location on the door.
Using the screw removed in Step 2 and the adhesive tape
included in the door installation kit, reinstall the light switch
plate onto the bottom of the door.
7. Reinstall the overlay panel, if removed earlier. See "Install
Custom Overlay Frame."
Replace the Door
1. Make sure the hinge covers are still attached to the L-beams.
2. Remove the screws from the both the top and bottom of the
opposite side of the cabinet.
3. Align the holes in the hinges with the holes in the cabinet.
4=
5.
A. Hinge screws removed in Step 2
B. Holes in cabinet
Using the screws removed in Step 2, loosely fasten the door
to the left-hand side of the cabinet.
For the bottom hinge only, slide the plastic spacer, with the
slots facing downward, between the bottom hinge and the
cabinet.
NOTE: The slots inthe spacer go around the screws.
A
IM PORTANT:
• Create custom overlay frame according to the specifications
in the "Custom Overlay Frame" section.
• Jenn-Air is not responsible for the removal or addition of
molding or decorative panels that would not allow access to
the appliance for service.
Install Custom Frame
1= Open the door completely to 90°.
2= Using two people, hold the wooden frame so that the holes in
the frame align with the holes at the top and bottom of the
door. Then, fasten the custom frame to the door using six
wood screws at the top and six wood screws at the bottom.
3=
A
A.M4 x 14wood screws
Check that the custom frame is aligned with the door and
completely tighten the 12 screws.
A.Bottom hinge spacer
6. Fully tighten the screws.
8

Door Closing
Your beverage center has four leveling legs. If your beverage
center seems unsteady or you want the door to close more easily,
adjust the beverage center's tilt using the instructions below.
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Plug into a grounded 3 prong outlet.
Excessive Weight Hazard
Use two or more people to move and install
beverage center.
Failure to do so can result in back or other injury.
2.
3. Move the beverage center into its final location.
Turn the leveling legs to the right to lower the beverage center
or turn the leveling legs to the left to raise it. It may take
several turns of the leveling legs to adjust the tilt of the
beverage center.
NOTE: Having someone push against the top of the beverage
center takes some weight off the leveling legs. This makes it
easier to adjust the leveling legs.
4. Make sure that the door closes as easily as you like. If not, tilt
the beverage center slightly more to the rear by turning both
front leveling screws to the left. It may take several more turns,
and you should turn both leveling legs the same amount.
BEVERAGE CENTER USE
_ , • _® B_ @
Your new beverage center may make sounds that your old one
didn't make. Because the sounds are new to you, you might be
concerned about them. Most of the new sounds are normal. Hard
surfaces, such as the flooring and surrounding structures, can
make the sounds seem louder. The following describes the kinds
of sounds and what may be making them.
• Your beverage center is designed to run more efficiently to
keep your food items at the desired temperatures and to
minimize energy usage. The high efficiency compressor and
fans may cause your beverage center to run longer than your
old one. You may also hear a pulsating or high-pitched sound
from the compressor or fans adjusting to optimize
performance.
• Rattling noises may come from the flow of refrigerant or items
stored inside the beverage center.
• As each cycle ends, you may hear a gurgling sound due to the
refrigerant flowing in your beverage center.
• You may hear water running into the drain pan when the
beverage center is defrosting.
• You may hear clicking sounds when the beverage center
starts or stops running.
The control is located behind the base grille. Lift up on the door in
the center of the grille to access the control.
For your convenience, your beverage center temperature control
is preset at the factory. When you first install your beverage center,
make sure that the control is still preset to the mid-setting as
shown.
Adjusting the Control
The mid-setting should be correct for normal usage. The control is
set correctly when beverages are as cold as you like.
If you need to adjust the temperature, wait at least 24 hours
between adjustments and then recheck the temperature.
To make the beverage center colder, adjust the control to the next
higher setting. To make the beverage center less cold, adjust the
control to the next lower setting.
NOTE: Adjusting the temperature control raises or lowers the
temperature in both the upper and lower zones (compartments).

Temperature Separator (Temperature Display)
The temperature separator displays the current temperatures
(Fahrenheit or Celsius) for the upper and lower zones
(compartments) of the beverage center. To adjust the temperature
settings, see "Adjusting the Control" earlier in this section.
Lower "F
Remove and Replace the Bottom Rack
1. Lift the rack (front and back) up and pull straight out to
remove.
1,
2.
3,
A B C D
A. Dimmer C. Lower zone display
B. Upper zone display D. Fahrenheit/Celsius
Remove and Replace the Top and Middle Racks
Pull the rack forward until it stops.
Lift up on the left-hand lever while pressing down on the right-
hand lever to release the rack. Pull the rack forward and lift it
up and out of the rack supports.
A.Lever
Replace the rack by inserting the rack into the supports and
sliding it toward the rear of the beverage center.
2. Replace the rack by pushing it straight back and over the
stop. Continue pushing the rack evenly until it is in place.
Stee$ ; the
NOTES:
• For optimum wine storage, place white wines on the upper
rack of the beverage center and place red wines on the lower
rack of the beverage center.
• The wine racks can be stocked with the bottles facing either
direction, however, to optimize storage adjacent bottles
should be facing in opposite directions.
To stock the beverage center:
1. Starting on the left-hand side of the bottom rack, place the
first bottle with the neck of the bottle facing the front of the
beverage center.
2. Place the next bottle on the rack with the neck of the bottle
facing the back of the beverage center. Alternate the direction
of the bottles, inthis manner, until the display rack is full.
3. Slide the bottom rack into place and pull the next rack
forward. Stock the remaining rack as described In the
previous steps.
4. Place juices, sodas or other canned beverages on the glass
shelves.
10
