Jet JTS-315LA User manual

JTS-315LA
Table Saw
Original:
GB
Operating Instructions
TOOL FRANCE SARL
9 Rue des Pyrénées, 91090 LISSES, France
www.jettools.com
M-10001910AM 2019-03

CE-Conformity Declaration
CE-Konformitätserklärung
Déclaration de Conformité CE
Product / Produkt / Produit:
Table saw / Tischkreissäge / la scie circulaire
JTS-315LA
10001910AM
Brand / Marke / Marque:
JET
Manufacturer / Hersteller / Fabricant:
TOOL FRANCE SARL
9 Rue des Pyrénées，91090 LISSES, France
We hereby declare that this product complies with the regulations
Wir erklären hiermit, dass dieses Produkt der folgenden Richtlinie entspricht
Par la présente, nous déclarons que ce produit correspond aux directives suivantes
2006/42/EC
Machinery Directive / Maschinenrichtlinie / Directive Machines
2014/30/EU
Electromagnetic Compatibility / Elektromagnetische Verträglichkeit / compatibilité électromagnétique
2011/65/EU
RoHS directive / RoHS-Richtlinie / Directive RoHS
designed in consideration of the standards
und entspechend folgender zusätzlicher Normen entwickelt wurde
et été développé dans le respect des normes complémentaires suivantes
EN ISO 12100:2010
EN 61029-1:2009+A11 : 2010 / EN 61029-2-1:2012
EN 55014-1:2006+A1+A2 / EN 55014-2: 1997+A1+A2
EN 61000-3-2 :2014 / EN 61000-3-3 : 2013
Responsible for the Documentation / Dokumentations-Verantwortung / Résponsabilité de Documentation:
Head Product-Mgmt. / Leiter Produkt-Mgmt. / Resp. Gestion des Produits
TOOL FRANCE SARL
2019-02-26 Christophe SAINT SULPICE, General Manager
TOOL FRANCE SARL
9 Rue des Pyrénées，91090 LISSES, France
2

GB - ENGLISH
Operating Instructions
Dear Customer,
Many thanks for the confidence you have shown in us with the purchase of your new JET-machine. This manual has been
prepared for the owner and operators of a JET JTS-315LA table saw to promote safety during installation, operation and
maintenance procedures. Please read and understand the information contained in these operating instructions and the
accompanying documents. To obtain maximum life and efficiency from your machine, and to use the machine safely, read this
manual thoroughly and follow instructions carefully.
…Table of Contents
1. Declaration of conformity
2. Warranty
3. Safety
Authorized use
General safety notes
Remaining hazards
4. Machine specifications
Technical data
Noise emission
Contents of delivery
Description of machine
5. Transport and start up
Transport and installation

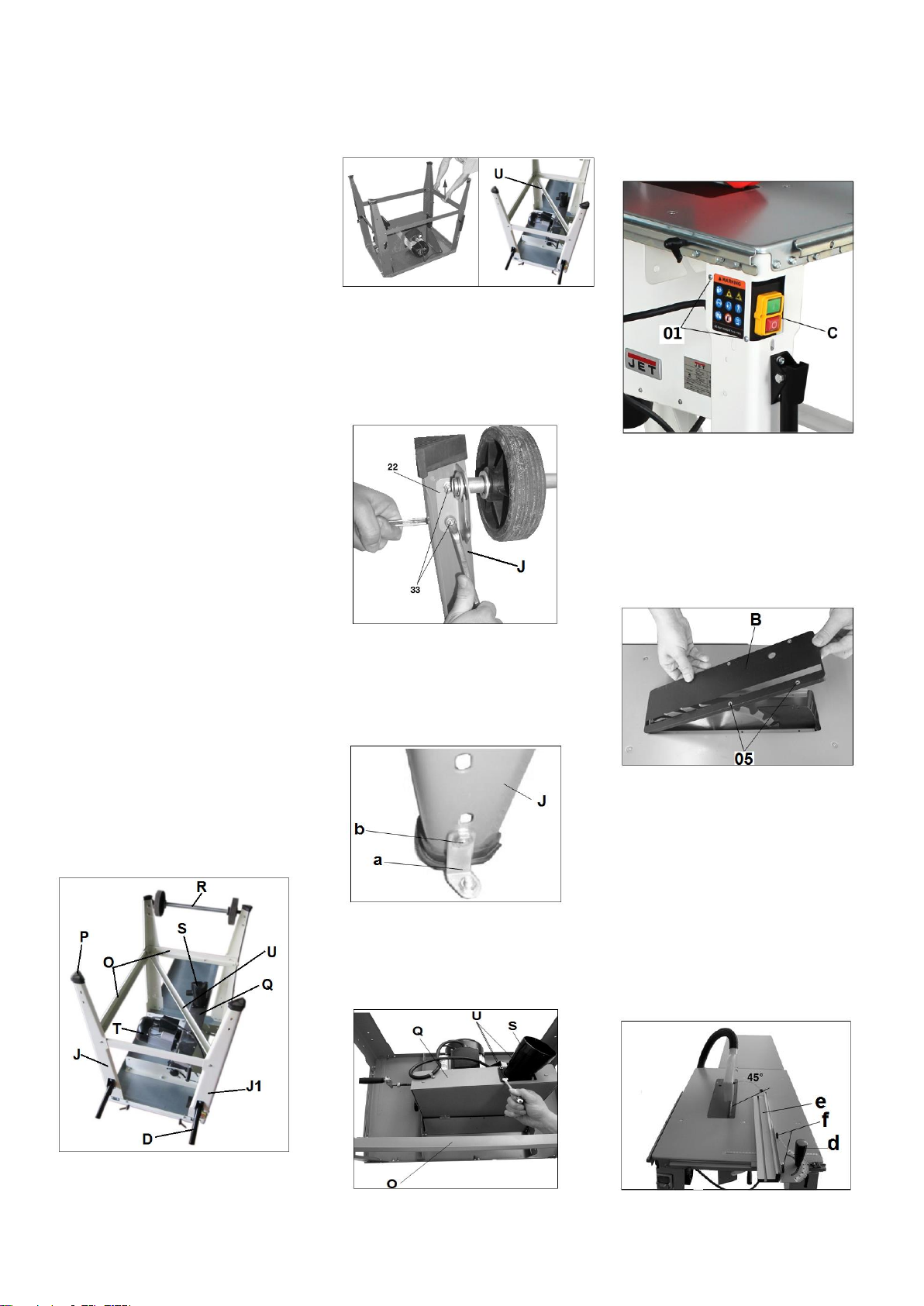

Assembly
Dust connection
Mains connection
Starting operation
6. Machine operation
7. Setup and adjustments
Changing saw blade
Mounting the raving knife
Mounting the saw guard
Rising and tilting sawblade
Rip fence setup
Adjusting 90°stop
Adjusting sawblade parallel
8. Maintenance and inspection
9. Troubleshooting
10. Environmental protection
11. “Safe operation”.........appendix A
1. Declaration of conformity
On our own responsibility we hereby
declare that this product complies with
the regulations listed on page 2.
2. Warranty
TOOL FRANCE SARL guarantees
that the supplied product(s) is/are free
from material defects and
manufacturing faults.
This warranty does not cover any
defects which are caused, either
directly or indirectly, by incorrect use,
carelessness, damage due to
accidents, repairs or inadequate
maintenance or cleaning as well as
normal wear and tear.
Further details on warranty (e.g.
warranty period) can be found in the
General Terms and Conditions (GTC)
that are an integral part of the
contract.
These GTC may be viewed on the
website of your dealer or sent to you
upon request.
TOOL FRANCE SARL reserves the
right to make changes to the product
and accessories at any time.
3. Safety
3.1 Authorized use
This machine is designed for sawing
wood, wood derived materials as well
as similar to be machined hard
plastics only.
Machining of other materials is not
permitted and may be carried out in
specific cases only after consulting
with the manufacturer.
No metal workpieces may be
machined.
The workpiece must allow to safely be
loaded, supported and guided.
Do not cut round stock without
suitable jigs or fixtures. The rotating
saw blade could turn the work-piece.
The proper use also includes
compliance with the operating and
maintenance instructions given in this
manual.
The machine must be operated only
by persons familiar with its operation,
maintenance and repair and who are
familiar with its hazards.
The required minimum age must be
observed
The machine must only be used in a
technically perfect condition
When working on the machine, all
safety mechanisms and covers must
be mounted.
In addition to the safety requirements
contained in this operating instructions
and your country’s applicable
regulations, you should observe the
generally recognized technical rules
concerning the operation of
woodworking machines.
Any other use exceeds authorization.
In the event of unauthorized use of the
machine, the manufacturer renounces
all liability and the responsibility is
transferred exclusively to the operator.
3.2 General safety notes
Woodworking machines can be
dangerous if not used properly.
Therefore the appropriate general
technical rules as well as the following
notes must be observed.
Read and understand the entire
instruction manual before attempting
assembly or operation.
Keep this operating instruction close
by the machine, protected from dirt
and humidity, and pass it over to the
new owner if you part with the tool.
No changes to the machine may be
made.
Daily inspect the function and
existence of the safety appliances
before you start the machine.
Do not attempt operation in this case,
protect the machine by unplugging the
mains cord.
Remove all loose clothing and confine
long hair.
Before operating the machine, remove
tie, rings, watches, other jewellery,
and roll up sleeves above the elbows.
Wear safety shoes; never wear leisure
shoes or sandals.
Always wear the approved working
outfit

Always wear ear protection when
operating a table saw.
- safety goggles
- ear protection
- dust protection
Do not wear gloves while operating
this machine.
For the safe handling of sawblades
wear work gloves.
Observe the chapter “save operation”
in this manual.
Check the correct rotation of the
sawblade before operating the
machine.
Do not start cutting operation until
sawblade is at full speed.
Control the stopping time of the
machine, it may not be longer than 10
seconds.
Do not use side pressure to stop
rotating blade.
Insure that the work piece does not
roll when cutting round pieces.
Use suitable table extensions and
supporting aids for difficult to handle
workpieces.
Always hold and guide the workpieces
safely during machining.
Pay particular attention to instructions
on reducing the risk of kickback.
The supplied raving knife must always
be used. Adjust the space to the
sawblade to be max 5mm.
Do not perform any operation for
which the tool has not been designed
for, e.g. do not use this table saw to
cut logs or firewood.
Do not perform any operation
freehand.
Never reach around or over the saw
blade.
When ripping narrow workpieces
(smaller than 120mm) use as push-
stick or push-wood.
Push stick or push wood must stay
with the machine when tool is stored
and not in use.
Always use the mitre gauge for cutting
off.
The use of dado-blades and groove
cutters is not permissible.
Make sure that small cut off
workpieces will not be caught and
thrown away by the rising saw blade
teeth.
Remove cut and jammed workpieces
only when motor is turned off and the
machine is at a complete standstill.
Install the machine so that there is
sufficient space for safe operation and
work piece handling.
Keep the inside of the cabinet clear of
sawdust and wood chips. Make sure
the motor fan and fan cover are kept
clear of sawdust.
Keep work area well lighted.
The machine is designed to operate in
closed rooms and must be placed
stable on firm and levelled ground.
Make sure that the power cord does
not impede work and cause people to
trip.
Never use the power cord to carry the
tool.
Do not expose the power cord to heat,
oil or any sharp corners.
Do not pull the cord to unplug.
Keep the floor around the machine
clean and free of scrap material, oil
and grease.
Stay alert!
Give your work undivided attention.
Use common sense.
Keep an ergonomic body position.
Maintain a balanced stance at all
times.
Pull the mains plug if the tool is not in
use.
Pull the mains plug prior to any
maintenance or change of accessory
(e.g. sawblade).
Before starting the machine make
sure that operating and measuring
tools are removed from the machine.
Do not operate the machine when you
are tired.
Do not operate the machine under the
influence of drugs, alcohol or any
medication. Be aware that medication
can change your behaviour.
Keep children and visitors a safe
distance from the work area.
Never reach into the machine while it
is operating or running down.
Never leave a running machine
unattended. Before you leave the
workplace switch off the machine.
Do not operate the electric tool near
inflammable liquids or gases.
Observe the fire fighting and fire alert
options, for example the fire
extinguisher operation and place.
Do not use the machine in a dump
environment and do not expose it to
rain.
Wood dust is explosive and can also
represent a risk to health.
Dust form some tropical woods in
particular, and from hardwoods like
beach and oak, is classified as a
carcinogenic substance.
Always use a suitable dust extraction
device
Before machining, remove any nails
and other foreign bodies from the
work piece.
Specifications regarding the maximum
or minimum size of the work piece
must be observed.
Cut thin or thin-walled work-piece only
with fine-toothed saw blades.
Never cut several work-pieces at the
same time –and also no bundles
containing several individual pieces.
Risk of personal injury if individual
pieces are caught by the saw blade
uncontrolled.
When cutting round stock, use a
suitable jig to prevent the work-piece
from turning.
Never cut work-pieces containing the
following materials:
-Ropes, strings, cords, cables and
wires.
Do not force the power tool. It will do a
better and safer job and give you
much better service if it is used at the
rate for which it was designed.
Do not remove chips and work piece
parts until the machine is at a
complete standstill.

Never operate with the guards not in
place –serious risk of injury!
Do not stand on the machine.
Connection and repair work on the
electrical installation may be carried
out by a qualified electrician only.
Always unwind any extension cords
fully.
Have a damaged or worn cord
replaced immediately.
Do not use the machine when the ON-
OFF switch does not operate
correctly.
The use of accessories other than
those recommended in this manual
can create a safety hazard.
Make all machine adjustments or
maintenance with the machine
unplugged from the power source.
When installing a new sawblade make
sure that it matches the raving knife.
The raving knife thickness must be in
between sawblade body thickness and
width of cut.
Make sure that the sawblade is
suitable for the work piece material to
be cut.
Use only sawblades according to
EN 847-1
Never use sawblades made from High
Speed Steel (HSS).
Remove defective sawblades
immediately.
A worn table insert must be replaced.
3.3 Remaining hazards
When using the machine according to
regulations some remaining hazards
may still exist
The moving sawblade in the work
area can cause injury.
Broken saw blades can cause injuries.
Thrown workpieces can lead to injury
Wood chips and sawdust can be
health hazards. Be sure to wear
personal protection gear such as
safety goggles ear- and dust
protection.
Use a suitable dust exhaust system.
The use of incorrect mains supply or a
damaged power cord can lead to
injuries caused by electricity.
4. Machine specifications
4.1 Technical data
Machine Table 550x800 mm
Rear table extensions 400x800 mm
Sawblade diameter 315 mm
Blade bore diameter 30 mm
Blade body thickness 1,8-2,2 mm
Raving knife thickness 2,3 mm
Blade speed 50Hz 2800rpm
Cutting height & 90°/45° max83/60mm
Tilting range of blade 90°- 45°
Dust port diameter 100 mm
Working height 850 mm
Weight 46 kg
Mains 230V~ L/N/PE 50Hz
Motor input power 2000W S6-40%
Reference current 8 .88A S6-40%
Extension cord (H07RN-F) 4G1,5mm²
Installation fuse protection 16A
Protection class F
4.2 Noise emission
Determined according to
EN ISO 3744
(Inspection tolerance 4 dB)
Work piece plywood 16mm:
Acoustic power level
(according to EN ISO 3746):
Idling LwA 93,67 dB(A)
Operating LwA 103,53 dB(A)
Acoustic pressure level
(according to EN ISO 11202):
Idling LpA 82,9 dB(A)
Operating LpA 92,9 dB(A)
The specified values are emission
levels and are not necessarily to be
seen as safe operating levels
This information is intended to allow
the user to make a better estimation
of the hazards and risks involved.
4.3 Content of delivery
Machine stand
Rear table extension
Rip fence
Sawblade dia 315mm
Raving knife
Saw guard
Dust connection hose and Y-adapter
2 Wheels
2 Carry handles
Push stick
Operating tools
Operating manual
Spare parts list
4.4 Description of machine
Fig 1
A…………Saw guard
B………..Table insert
C………..On/Off switch
D………..Carry handle
E……….. Dust connection hose
F……….... Raving knife
G……..….. Rip fence
H……….... Tilting handle
I…………... Blade rising handle
J(J1)……....Leg stand
K……………Blade
L………..… Rear table
M………..… Machine Table
N………..… Worktable support rod
O……………Strut
P………….…Rubber feet
R…………….Chassis
S…………….Extractor connection
T…………….Motor Assembly
U…………… Support Bracket
5. Transport and start up
5.1 Transport and installation
Never lift the tool on it’s guards.
The sawblade must be covered by the
saw guard during transport.
The machine is designed to operate in
dry rooms and must be placed stable
on firm and levelled ground.
For packing reasons the machine is
not completely assembled.

WARNING:
To avoid injury, if any parts are
missing, do not attempt to assemble
the machine, do not plug in the power
cord, do not turn the switch on until
the missing parts are obtained and
installed correctly.
5.2 Assembly
Assemble tool in strict accordance
with these instructions. Only if you
follow the instructions exactly does the
machine conform to the safety
regulations and can be safely
operated.
If you notice any transport damage
while unpacking, notify your supplier
immediately. Do not operate the
machine!
Dispose of the packing in an
environmentally friendly manner.
Clean all rust protected surfaces with
a mild solvent.
Requirements for machine
assembly:
-Philips screwdriver
-22mm wrench
-16mm wrench
-10mm wrench
-8mm wrench
-6mm Internal Hex. Wrench
-pair of work gloves
Stand assembly:
To assemble the stand:
It is imperative that the foot with the
opening (J1) for the switch/plug block
is mounted correctly on the left front
side (see Fig.1& Fig.2).
Screw the side struts (O) and legs
(J,J1) loosely together. Then mount
the Support Bracket (U).
Mount the four rubber feet (P) on the
legs.
Fig 2
Insert the short crossbeams (Fig 3)
and tighten the nuts.
Attention:
The Support Bracket (U) install as
Fig.3
Fig 3
Working from the inside, fit the
mounting for the chassis (22) to the
rear legs (J) with 4 screws (33). Fig.4
Turn the saw upside down and place it
on the legs.
Fig.4
Before use, the saw must be screwed
securely to the metal angle bracket
supplied. The metal bracket (a) must
be secured to the feet (J) with the
screw (b),as shown in Fig.5
Fig.5
Install dust port:
Fasten the extractor connection to the
bottom of the chip box (Q) with 4
screw (U). Fig 6.
Fig 6
Install switch:
Insert the switch/plug block (C) into
the opening in the leg and secure
tightly from the side with 2 screw (01).
Fig. 7.
Fig 7
Install saw blade:
See chapter 7.1
Install raving knife:
See chapter 7.2
Install table insert:
Position the table insert into the Table
top, and lock with 4 screws(05) Fig. 8
Fig 8
Install blade guard:
See chapter 7.3
Install rip fence carrier:
Attach the rip fence carrier to the
machine table front with
- 2 Carriage bolts M6X20
- 2 Nuts M6 -
2 Washers 6
Install rip fence:
Use 2 bots/2 washers and wing nuts
(f, Fig 9) to attach the aluminium
profile(e) to the rip fence body
Fig 9

Install rear extension table:Fit the
rear table extension (X, Fig 10).
Fig 10
Attach two support arms (Y, Fig 11).
Adjust the table to be level and tighten
the nuts.
Fig 11
5.3 Dust connection
Before initial operation, the machine
must be connected to a dust extractor.
The suction should switch on
automatically when the saw is
switched on.
Attach the connecting hose to the saw
guard and the Y-piece
A 100mm dust collection hose can be
connected.
5.4 Mains connection
Mains connection and any extension
cords used must comply with
applicable regulations.
The mains voltage must comply with
the information on the machine
licence plate.
The mains connection must have a
16A surge-proof fuse.
Only use connection cables marked
H07RN-F
Connections and repairs to the
electrical equipment may only be
carried out by qualified electricians.
5.5 Starting operation
You can start the machine with the
green ON button. The red OFF-button
on the main switch (C, Fig 1) stops the
machine.
6. Machine operation
Correct working position:
In front of the machine standing out of
the line of cutting (danger zone).
Work piece handling:
Hands placed flat on the work piece
outside the cutting area.
Feed the work piece towards the saw
blade in the direction of the saw line.
Push the work piece steadily forward;
complete the cut as a single
movement.
Support long and wide workpieces
with helping roller stands.
Operating hints:
Always observe the safety
instructions and adhere to the
current regulations.
Ensure that the saw blade protective
cover is in the correct position before
you start sawing.
The cutting blade must first reach the
maximum rpm before cutting may
begin.
Attention:
The condition of the blade should be
checked before each machining
process.
Work only with a sharp and flawless
sawblade.
Never use a sawblade rated with a
blade speed lower than the machine.
Use a suitable wedge to prevent
round timber from turning under the
pressure of the cut
Use suitable table extensions and
supporting aids for difficult to handle
workpieces.
Always hold and guide the workpieces
safely during machining.
Do not perform any operation
freehand.
Do not perform any grooving, tenoning
or splitting operations on this machine.
When ripping narrow workpieces
(width less than 120mm) use a push-
stick (Fig 12) or push-wood.
Fig 12
Make sure that small cut off
workpieces will not be caught and
thrown away by the rising saw blade
teeth.
Remove cut and jammed workpieces
only when motor is turned off and the
machine is at a complete standstill.
Pay particular attention on reducing
the risk of kickback.
The supplied raving knife must always
be used.
Inspect for correct adjustments.
For the authorized use of the
machine observe the appendix A
“safe operation“
(on the last pages of this operating
manual)
(on the last pages of this operating
manual)

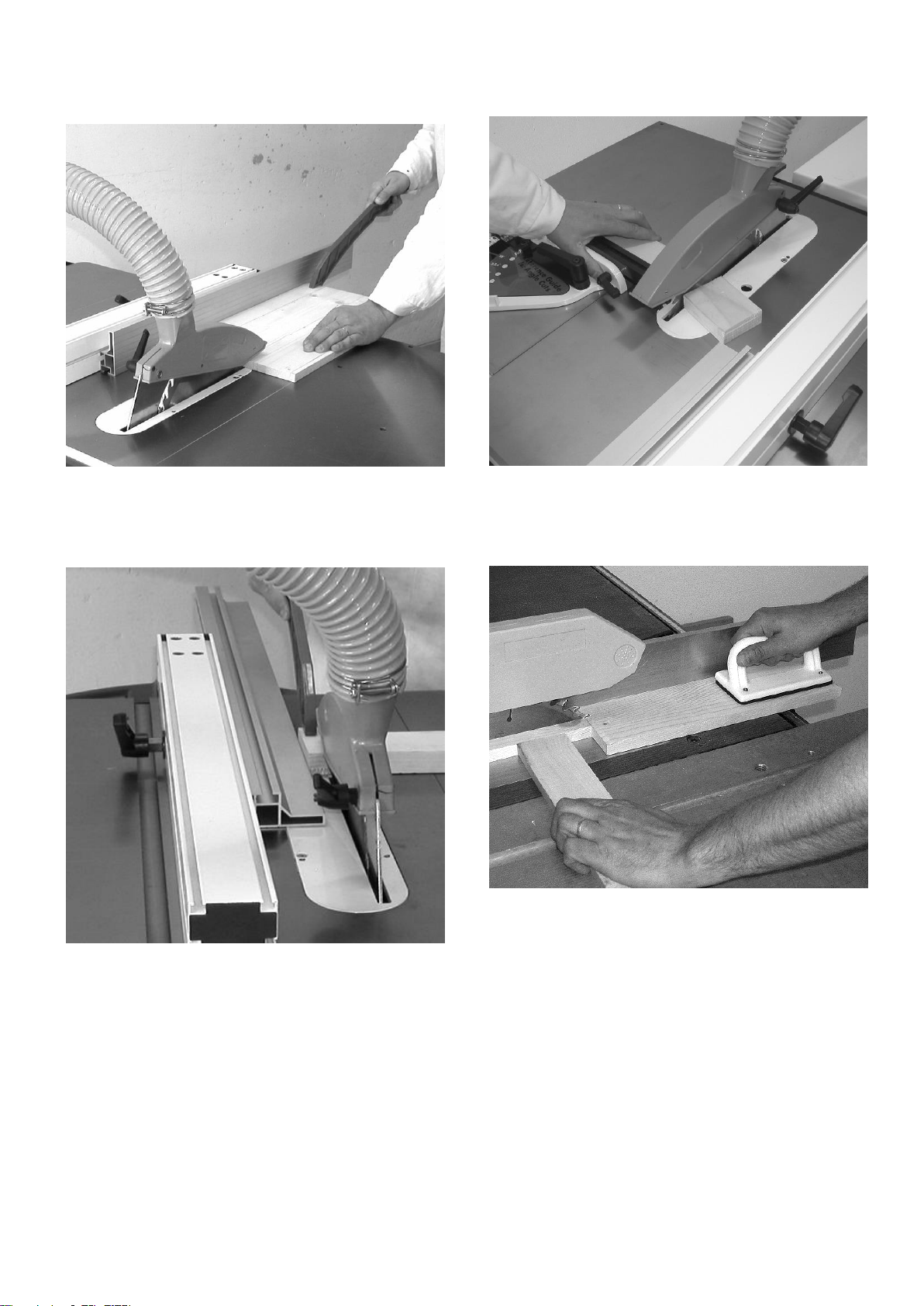

A.1.: Ripping
A.2.: Ripping of narrow stock
A.3.: Crosscutting on rip fence
A.4.: Use of push wood handle
7. Setup and adjustments
General note:
Setup and adjustment work may
only be carried out after the
machine is protected against
accidental starting by pulling the
mains plug.
7.1 Changing sawblade
The sawblade has to meet the
technical specification.
Use only sawblades according to
EN 847-1
Check sawblade for flaws (cracks,
broken teeth, bending) before
installation. Do not use faulty
sawblades.
The sawblade teeth must point in
cutting direction (down)
Always wear suitable gloves when

handling sawblades.
WARNING:
When installing or changing saw
blade, always disconnect saw from
power source, unplug!
Remove the saw guard (A, Fig 1) and
table insert (B).
Raise sawblade fully.
Place the counter holder (a) on the
saw blade flange Fig.13
Using the wrench (c), turn out the
screw (b) in the running direction of
the saw blade. Fig.13
Fig.13
Remove the saw blade (K) from the
inner flange and pull out in an
upwards direction.
Clean the blade flange thoroughly
before fitting the new blade.
Mount and fasten the new saw blade
in reverse order.
Fig 14
Order for installation: Fig. 14
-Blade set screw (02)
-Centring flange (04)
-Saw blade (K)
-Tightening flange (03)
Refit and set the splitter (F) and the
saw blade guard(A). Fig.1
Check to make sure that all safety
devices are properly mounted and in
good working condition before you
begin working with the saw again.
7.2 Mounting the raving knife
The supplied raving knife must always
be used.
Disconnect saw from power source,
unplug!
The raving knife (F, Fig 15) is
clamped with 1 nut (U).
Fig 15
Adjust the space between sawblade
teeth and raving knife to be 2 to 5mm.
Well tighten the locking nut (U).
7.3 Mounting the saw guard
The saw guard must always be used.
Attach the saw guard (A, Fig 16) to
the raving knife (F) with 1 carriage
bolt, washer and wing nut
Fig 16
The saw guard must be lowered to the
work piece to minimise the amount of
exposed teeth.
7.4 Rising and tilting of sawblade
Setup adjustments of the sawblade
shall never be performed when the
machine is running.
Use the front handle (I, Fig 1)to raise
the sawblade.
Use the tilting handle (H, Fig 1) to tilt
the sawblade. Tighten knob to lock in
place.
Start the machine with care.
7.5 Rip fence setup
Rip fence setup shall never be
performed when the machine is
running.
Use 2 bots and wing nuts (f, Fig 17,
Fig. 18) to attach the aluminium profile
(e) to the rip fence body
Fig
17
Note:
The rip fence profile can be placed flat
and adjusted in length.
-Use in upright position (Fig 17) for
cutting wide stock:
-The cutting of small workpieces
(width less than 120mm) and tilted
cuts shall only be performed with the
rip fence profile placed flat (Fig 18).
Fig 18
Start the machine with care.
7.6 Adjusting 90°stop
The positive stop is adjusted at the
factory.
If out of alignment:
Disconnect saw from the power
source, unplug.
Readjust the positive 90° stop.
7.7 Adjusting sawblade parallel
The sawblade is adjusted parallel to
the machine table at the factory.
If out of alignment:
Disconnect saw from the power
source, unplug.
Loosen the screws on the tabletop (V,
Fig 19) and readjust saw unit.

Fig
19
8. Maintenance and inspection
General notes:
Maintenance, cleaning and repair
work may only be carried out after
the machine is protected against
accidental starting by pulling the
mains plug.
Repair and maintenance work on the
electrical system may only be carried
out by a qualified electrician.
Consult a qualified repair shop if a
malfunction or damage occurs to this
tool, including sawblades and guards.
Cleaning:
Clean the machine regularly.
Inspect the proper function of the dust
extraction daily.
Keep the inside of the cabinet clear of
sawdust and wood chips.
All protective and safety devices must
be re-attached immediately after
completed cleaning, repair and
maintenance work.
Defective safety devices must be
replaced immediately.
Saw blades:
The servicing of saw blades should
only be performed by a trained
person.
Defective safety devices must be
replaced immediately.
Check saw blades regularly for faults.
Replace a defective sawblades
immediately.
Motor Break:
The motor break works electro-
mechanically (break motor).
If breaking time should exceed 10
seconds, the motor break assembly
needs to be replaced. Contact your
Jet service station immediately.
9. Trouble shooting
Motor doesn’t start
*No electricity-
check mains and fuse.
*Defective switch, motor or cord-
consult an electrician.
Machine vibrates excessively
*Stand on uneven floor-
adjust stand for even support.
*dust on saw flanges-
clean saw arbor and flanges.
*defective sawblade -
replace sawblade immediately
Cut is not accurately square
*90° stop not adjusted correctly-
check with square and adjust stop.
Material binds blade when ripping
*Rip fence not parallel to sawblade-
check and adjust rip fence.
*Wrapped wood-
select another piece of wood.
*Excessive feedrate-
reduce feedrate.
Material kicked back from blade
*Fence not aligned with sawblade-
check and adjust rip fence.
*Raving knife not in place-
high danger, mount immediately with
guard.
Cutting surfaces is bad
*Wrong sawblade used
*Blade mounted backwards
*resin collection on sawblade
*sawblade is dull
*work piece inhomogeneous
*Feed pressure too high-
Do not force the work piece.
10. Environmental protection
Protect the environment.
Your appliance contains valuable
materials which can be recovered or
recycled. Please leave it at a
specialized institution.
This symbol indicates separate
collection for electrical and electronic
equipment required under the WEEE
Directive (Directive 2012/19/EC) and
is effective only within the European
Union.
11. Safe operation
See appendix A (on the last pages of
this operating manual)
A.1.: Ripping
A.2.: Ripping of narrow stock
A.3.: Crosscutting on rip fence
A.4.: Use of push wood handle
Appendix A

A1
A2
A3
A4
