Jet JWBS-9X User manual

1
JWBS-9X
WOOD BAND SAW
Original:
GB
Operating Instructions
Translations:
D
Gebrauchsanleitung
F
Mode d´emploi
JPW (Tool) AG
Tämplerlistrasse 5
CH-8117 Fällanden
Switzerland
Phone [phone]
Fax [phone]
www.jettools.com
M-10000860M 2017-04

2
CE-Conformity Declaration
CE-Konformitätserklärung
Déclaration de Conformité CE
Product / Produkt / Produit:
Band saw
Bandsäge
Scie à ruban
JWBS-9X
Brand / Marke / Marque:
JET
Manufacturer / Hersteller / Fabricant:
JPW (Tool) AG, Tämperlistrasse 5, CH-8117 Fällanden
Schweiz / Suisse / Switzerland
We hereby declare that this product complies with the regulations
Wir erklären hiermit, dass dieses Produkt der folgenden Richtlinie entspricht
Par la présente, nous déclarons que ce produit correspond aux directives suivantes
2006/42/EC
Machinery Directive
Maschinenrichtlinie
Directive Machines
2014/30/EU
electromagnetic compatibility
elektromagnetische Verträglichkeit
compatibilité électromagnétique
designed in consideration of the standards
und entspechend folgender zusätzlicher Normen entwickelt wurde
et été développé dans le respect des normes complémentaires suivantes
EN ISO 12100:2010
EN 61029-1:2009+A11:2010
EN 61029-2-5:2011
EN 61000-3-2:2006+A1:2009+ A2:2009
EN 61000-3-3:2013
Responsible for the Documentation / Dokumentations-Verantwortung / Résponsabilité de Documentation:
Hansjörg Meier
Head Product-Mgmt. / Leiter Produkt-Mgmt. / Resp. Gestion des Produits
JPW (Tool) AG
2017-03-18 Alain Schmid, General Manager
JPW (Tool) AG, Tämperlistrasse 5, CH-8117 Fällanden
Schweiz / Suisse / Switzerland

3
GB - ENGLISH
Operating Instructions
Dear Customer,
Many thanks for the confidence you have shown in us with the purchase of your new JET-machine. This manual has been prepared for
the owner and operators of a JET JWBS-9X band saw to promote safety during installation, operation and maintenance procedures.
Please read and understand the information contained in these operating instructions and the accompanying documents. To obtain
maximum life and efficiency from your machine, and to use the machine safely, read this manual thoroughly and follow instructions
carefully.
…Table of Contents
1. Declaration of conformity
2. Warranty
3. Safety
Authorized use
General safety notes
Remaining hazards
4. Machine specifications
Technical data
Noise emission
Contents of delivery Machine
description
5. Transport and start up
Transport and installation
Assembly
Mains connection
Dust connection
Starting operation
6. Machine operation
7. Setup and adjustments
Changing the saw blade
Blade tracking adjustment
Blade guide adjustment
Folding the bandsaw blade
Mitre gauge setup Tilting of
machine table
8. Maintenance and inspection
9. Troubleshooting
10. Environmental protection
11. Available accessories
12. „safe operation”.................appendix A
1. Declaration of conformity
On our own responsibility we hereby
declare that this product complies with
the regulations* listed on page 2.
Designed in consideration with the
standards**. CE type examination***
performed by****.
2. Warranty
JPW (Tool) AG guarantees that the
supplied product(s) is/are free from
material defects and manufacturing faults.
This warranty does not cover any defects
which are caused, either directly or
indirectly, by incorrect use, carelessness,
damage due to accidents, repairs or
inadequate maintenance or cleaning as
well as normal wear and tear.
Further details on warranty (e.g. warranty
period) can be found in the General Terms
and Conditions (GTC) that are an
integral part of the contract.
These GTC may be viewed on the website
of your dealer or sent to you upon
request.
JPW (Tool) AG reserves the right to make
changes to the product and accessories at
any time.
3. Safety
3.1 Authorized use
This machine is designed for sawing wood,
wood derived materials as well as similar
to be machined hard plastics only.
Machining of other materials is not
permitted and may be carried out in
specific cases only after consulting with
the manufacturer.
No metal workpieces may be machined.
The workpiece must allow to safely be
loaded, supported and guided.
The proper use also includes compliance
with the operating and maintenance
instructions given in this manual.
The machine must be operated only by
persons familiar with its operation and
maintenance and who are familiar with its
hazards.
The required minimum age must be
observed
The machine must only be used in a
technically perfect condition
When working on the machine, all safety
mechanisms and covers must be
mounted.
In addition to the safety requirements
contained in these operating instructions
and your country’s applicable regulations,
you should observe the generally
recognized technical rules concerning the
operation of woodworking machines.
Any other use exceeds authorization.
In the event of unauthorized use of the
machine, the manufacturer renounces all
liability and the responsibility is
transferred exclusively to the operator.
3.2 General safety notes
Woodworking machines can be dangerous
if not used properly. Therefore the
appropriate general technical rules as well
as the following notes must be observed.
Read and understand the entire
instruction manual before attempting
assembly or operation.
Keep this operating instruction close by
the machine, protected from dirt and
humidity, and pass it over to the new
owner if you part with the tool.
No changes to the machine may be made.
Daily inspect the function and existence of
the safety appliances before you start the
machine.
Do not attempt operation in this case,
protect the machine by unplugging the
mains cord.
Remove all loose clothing and confine
long hair.
Before operating the machine, remove tie,
rings, watches, other jewellery, and roll up
sleeves above the elbows.
Wear safety shoes; never wear leisure
shoes or sandals.

4
Always wear the approved working outfit
- safety goggles
- ear protection
- dust protection
Do not wear gloves while operating this
machine.
For the safe handling of saw blades wear
work gloves.
Observe the chapter “save operation” in
this manual.
Control the stopping time of the machine,
it may not be longer than 10 seconds.
Insure that the workpiece does not roll
when cutting round pieces.
Use suitable table extensions and
supporting aids for difficult to handle
workpieces.
Always lower the blade guide close to the
workpiece.
With the machine table is inclined use the
fence and position it on the bottom side
only.
Always hold and guide the workpieces
safely during machining.
Remove cut and jammed workpieces only
when motor is turned off and the machine
is at a complete standstill.
Install the machine so that there is
sufficient space for safe operation and
workpiece handling.
Keep work area well lighted.
The machine is designed to operate in
closed rooms and must be placed stable
on firm and levelled ground.
Make sure that the power cord does not
impede work and cause people to trip.
Keep the floor around the machine clean
and free of scrap material, oil and grease.
Stay alert!
Give your work undivided attention. Use
common sense.
Keep an ergonomic body position.
Maintain a balanced stance at all times.
Do not operate the machine
when you are tired.
Do not operate the machine under the
influence of drugs, alcohol or any
medication. Be aware that medication can
change your behaviour.
Keep children and visitors a safe distance
from the work area.
Never reach into the machine while it is
operating or running down.
Never leave a running machine
unattended. Before you leave the
workplace switch off the machine.
Do not operate the electric tool near
inflammable liquids or gases.
Observe the fire fighting and fire alert
options, for example the fire extinguisher
operation and place.
Do not use the machine in a dump
environment and do not expose it to rain.
Wood dust is explosive and can also
represent a risk to health.
Dust form some tropical woods in
particular, and from hardwoods like beach
and oak, is classified as a carcinogenic
substance.
Always use a suitable dust extraction
device
Before machining, remove any nails and
other foreign bodies from the workpiece.
Use a push block when working the ends
of narrow stock.
Always store the push stick or the push
wood handle with the machine, also when
not in use.
Specifications regarding the maximum or
minimum size of the workpiece must be
observed.
Do not remove chips and workpiece parts
until the machine is at a complete
standstill.
Never operate with the guards not in
place –serious risk of injury!
Do not stand on the machine.
Connection and repair work on the
electrical installation may be carried out
by a qualified electrician only.
Have a damaged or worn cord replaced
immediately.
Make all machine adjustments
or maintenance with the machine
unplugged from the power source.
Remove defective saw blades
immediately.
3.3 Remaining hazards
When using the machine according to
regulations some remaining hazards may
still exist
The moving saw blade in the work area
can cause injury.
Broken saw blades can cause injuries.
Thrown workpieces can lead to injury
Wood chips and sawdust can be health
hazards. Be sure to wear personal
protection gear such as safety goggles ear-
and dust protection.
Use a suitable dust exhaust system.
The use of incorrect mains supply or a
damaged power cord can lead to injuries
caused by electricity.
4. Machine specifications
4.1 Technical data
Wheel diameter Ø 240 mm
Cutting width max 230 mm
Cutting height max 80 mm
Sawblade length 1575 mm
Blade width 3 - 10 mm
Blade thickness 0,3 –0,4 mm
Cutting speed 660 m/min
Machine Table(Lx W) 300x300 mm
Table tilting range 0°to 45°
Table above floor 330mm
Dust port Ø 53mm
Overall Lx Bx H 395x 520x 754mm
Weight 20 kg
Mains 230V ~1/N/PE 50Hz
Output power 350W, S1
Reference current 1.6 A
Extension cord (H07RN-F): 3x1.5mm²
Installation fuse protection10 AMachine
lamp halogen 12V 21W
4.2 Noise emission
(Inspection tolerance 4 dB)
Workpiece beech:20mm
Acoustic power level
(according to EN ISO 3746):
Idling LwA 80 dB(A)
Operating LwA 93,6 dB(A)
Acoustic pressure level
(EN ISO 11202):
Idling LpA 74,7 dB(A)
Operating LpA 87,2 dB(A)
The specified values are emission levels
and are not necessarily to be seen as safe
operating levels. This information is
intended to allow the user to make a
better estimation of the hazards and risks
involved.
4.3 Content of delivery
machine table
Fence
Mitre gauge
Machine lamp
Dust port adapter Ø 57mm
Assembly bag Saw
blade Additional support
Operating manual
Spare parts list

5
4.4 Machine description
Fig 1
A…………….Sawblade tension knob
B……………..Upper viewing window
C….Control wheel Upper blade guide
D……………..Machine lamp
E……………..Upper blade guard
F…………….. Rip fence
G……………..sawblade
H……………...Mitre gauge
I………………Blade tension lever
J………………Saw table
K………………Tracking knob L…………Wheel
locking blade guide M……………….…Switch
N……………..Motor assembly
O……………..Additional support
P……………..Dust extraction nozzle
Q…………….Knob for adjusting the
inclination of the table
Fig 2
5. Transport and start up
5.1 Transport and installation
For transport use a forklift or hand trolley.
Make sure the machine does not tip or fall
off during transport.
The machine is designed to operate in
closed rooms and must be placed stable
on firm and levelled ground.
The machine can be bolted down if
required.
For packing reasons the machine is not
completely assembled.
5.2 Assembly
If you notice any transport damage while
unpacking, notify your supplier
immediately. Do not operate the
machine!
Dispose of the packing in an
environmentally friendly manner.
Clean all rust protected surfaces with a
mild solvent.
Rubber feet mounting
Before cutting, assemble the four rubber
feet to holes in the four corner of base
with bolts (M6x30), big flat washers 6, and
nuts (M6) as show in picture(Fig 3).
Fig 3
Mounting the additional support
- Insert the additional support into the
corresponding two holes in the side of
base.
- Align the holes in the supporting and the
surface of base.
- Secure the supporting with two bolts and
nuts. (Fig 4)
Fig 4
Mounting the working table:
- Remove the bolt and wing nut from the
hole located in the front edge of table.
(Fig 5)
Fig 5
- Carefully slide the table over the blade,
through the slot in the table. (Fig 6)
Fig 6
- Remove knob assembly from saw frame.
- Position table assembly on saw frame.
Re-install knob assembly.
- Secure table in position with table tilt
locking knob assembly.
- Using a combination square, set table
perpendicular to blade. Adjust table stop
if necessary.
- Set pointer at 0°.
- Insert and tighten the bolt and wing nut
into the hole located in the front edge of
the table. (Fig 7).
Fig 7
Install the fence:
- Raise the clamp on the fence assembly
to the up position.
- Place the fence on the table so that the
clamp is at the front of the table.
- Lower the fence clamp in order to lock
the fence in position on the table.

6
To move the fence, raise the clamp and
slide the fence to the desired location.
Lower the clamp in order to lock the fence
in position. ( Fig. 8).
Fig 8
WARNIGN: Never use miter gauge
and rip fence at the same time. The blade
might bind in the workpiece. Operator
could be injured and/or workpiece could
be damaged.
5.3 Mains connection
Mains connection and any extension cords
used must comply with applicable
regulations.
The mains voltage must comply with the
information on the machine licence plate.
The mains connection must have a 10 A
surge-proof fuse.
Only use power cords marked H07RN-F
Connections and repairs to the electrical
equipment may only be carried out by
qualified electricians.
5.4 Dust connection
Before initial operation, the machine must
be connected to a dust extractor. The
suction should switch on automatically
when the bandsaw is switched on. ( Fig 9)
Fig 9
5.5 Starting operation
You can start the machine with the green
on button.
The machine lamp starts automatically
when the motor is turned on.
The red button on the main switch stops
the machine.
6. Machine operation
Correct working position:
In front of the machine standing in the
direction of cutting.
Workpiece handling:
Hands placed flat on the workpiece
outside the cutting area.
Feed the workpiece towards the saw
blade in the direction of the saw line, and
cut as required by turning to follow the
line drawn.
Push the workpiece steadily forward;
complete the cut as a single movement.
Do not draw the workpiece back, as this
could cause the sawblade to run off its
wheels.
Support long and wide workpieces with
helping roller stands.
Operating hints:
Work only with a sharp and flawless
sawblade.
Near the cutting area use a push stick to
feed.
Use a feeding template to safely guide
small and narrow workpieces.
Use a suitable wedge to prevent round
timber from turning under the pressure of
the cut
For the authorized use of the machine
observe the appendix A
“safe operation“
(on the last pages of this operating
manual)

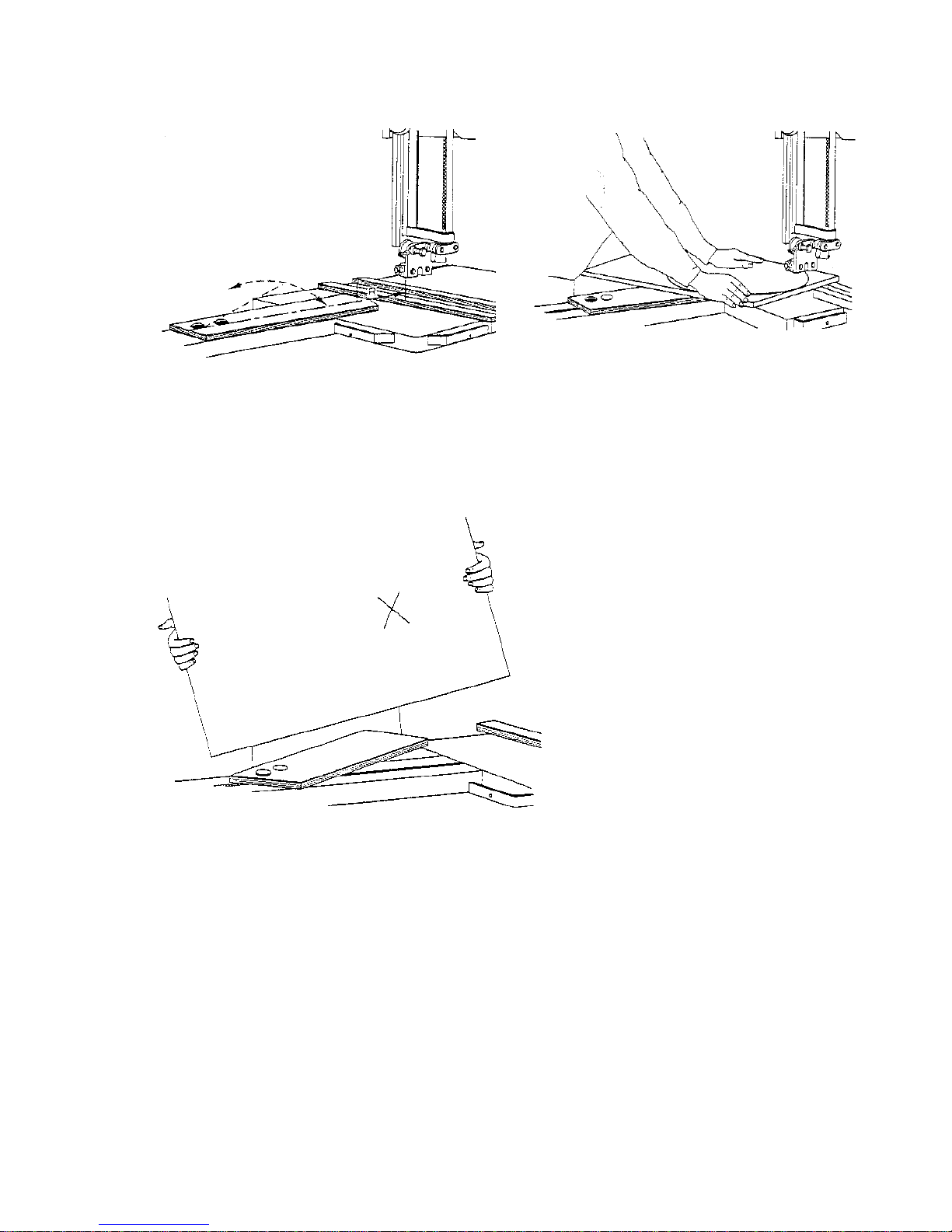

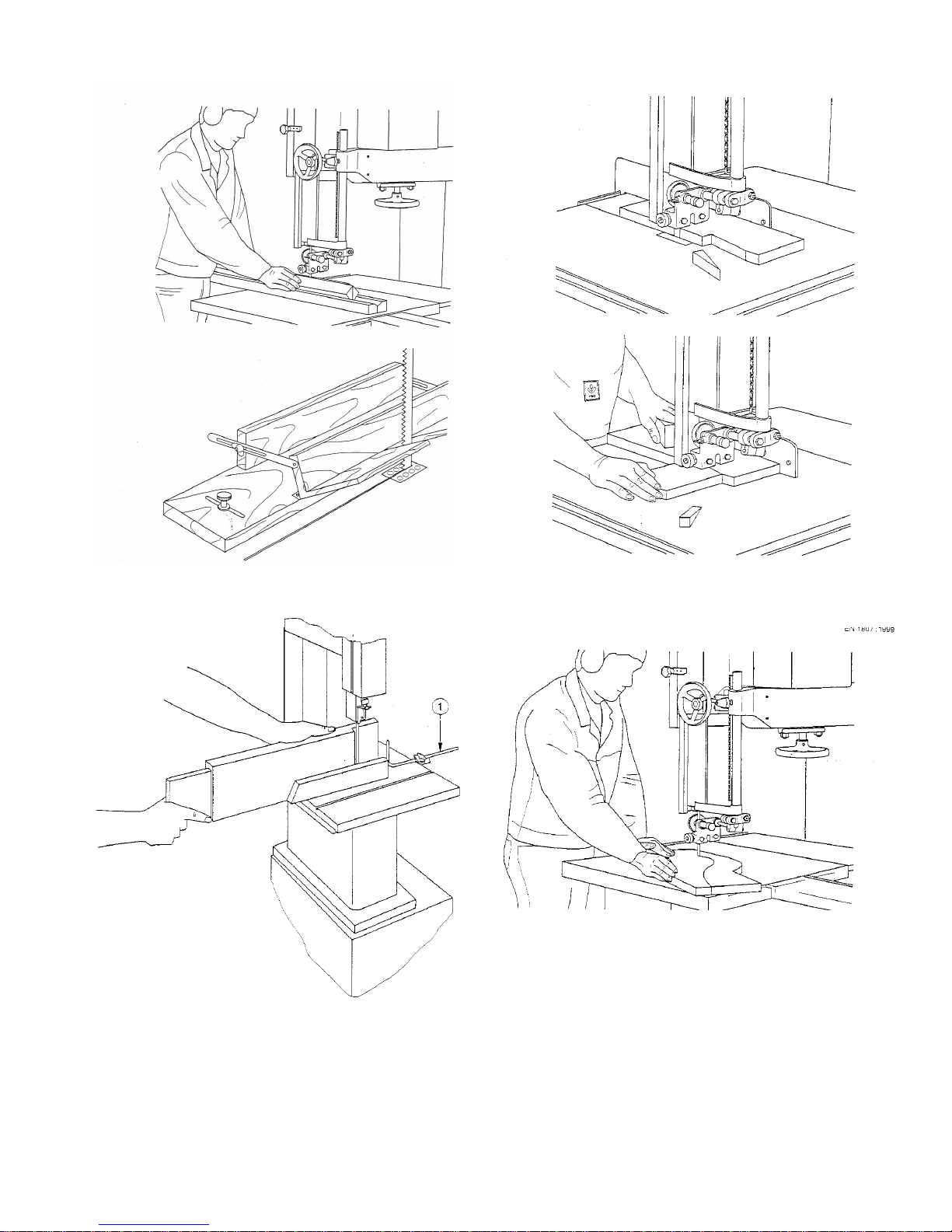

A.1: Performing high cuts
A.2.: Performing diagonal cuts
A.3.: Tenon cutting
A.4.: Cutting of wedges
A.5.: Curved cuts
A.6.: Arc cuts
A.7.: Cutting with template
A.8.: Circular cutting
A8.1 Set up without workpiece
A8.2 Placing the workpiece
A8.3 Machining
7. Setup and adjustments
General note:
Setup and adjustment work may only be
carried out after the machine is
protected against accidental starting by
pulling the mains plug.
7.1 Changing the sawblade
The sawblade has to meet the technical
specification.
Choose a suitable sawblade, according to
the cutting operation and according to the
material to be cut.
For high rip cuts:
- use a wide sawblade (e.g. 10mm), coarse
teethed.
For narrow curved cuts:
- use a narrow sawblade (e.g. 3mm).
Check sawblade for flaws (cracks, broken
teeth, bending) before installation. Do not
use faulty sawblades.
The sawblade teeth must point in cutting
direction (down)
Always wear suitable gloves when
handling sawblades.
The sawblades may only be changed when
the mains plug is pulled!
7.2 Folding the saw blade
Hold the bandsaw blade in one hand. Let
it hang down vertically and hold it to the
floor with a foot. Turn your hand through
360°(a complete circle), as you move it
down towards the floor.
7.3 Blade tracking adjustment
Blade tracking shall never be performed
when the machine is running.
- Disconnect band saw from power
source.
- To check the blade tracking, rotate drive
wheel by hand in clockwise direction.
View blade through tracking window.
- Proper tracking is achieved when driver
and idler wheels are aligned. Tracking
knob on the back of the tool frame is used
to tilt upper wheel and align blade wheels.
- If blade rides away from cabinet, turn
knob clockwise. If blade rides toward
cabinet, turn knob counterclockwise.
- When blade is tracking properly, secure
position by tightening nut.
Refer to Fig10 and Fig 13.
7.4 Blade guide adjustment
Blade guide adjustment shall never be
performed when the machine is running.
Open the wheel cover.
Remove the sawblade cover from the
upper blade guide.

7

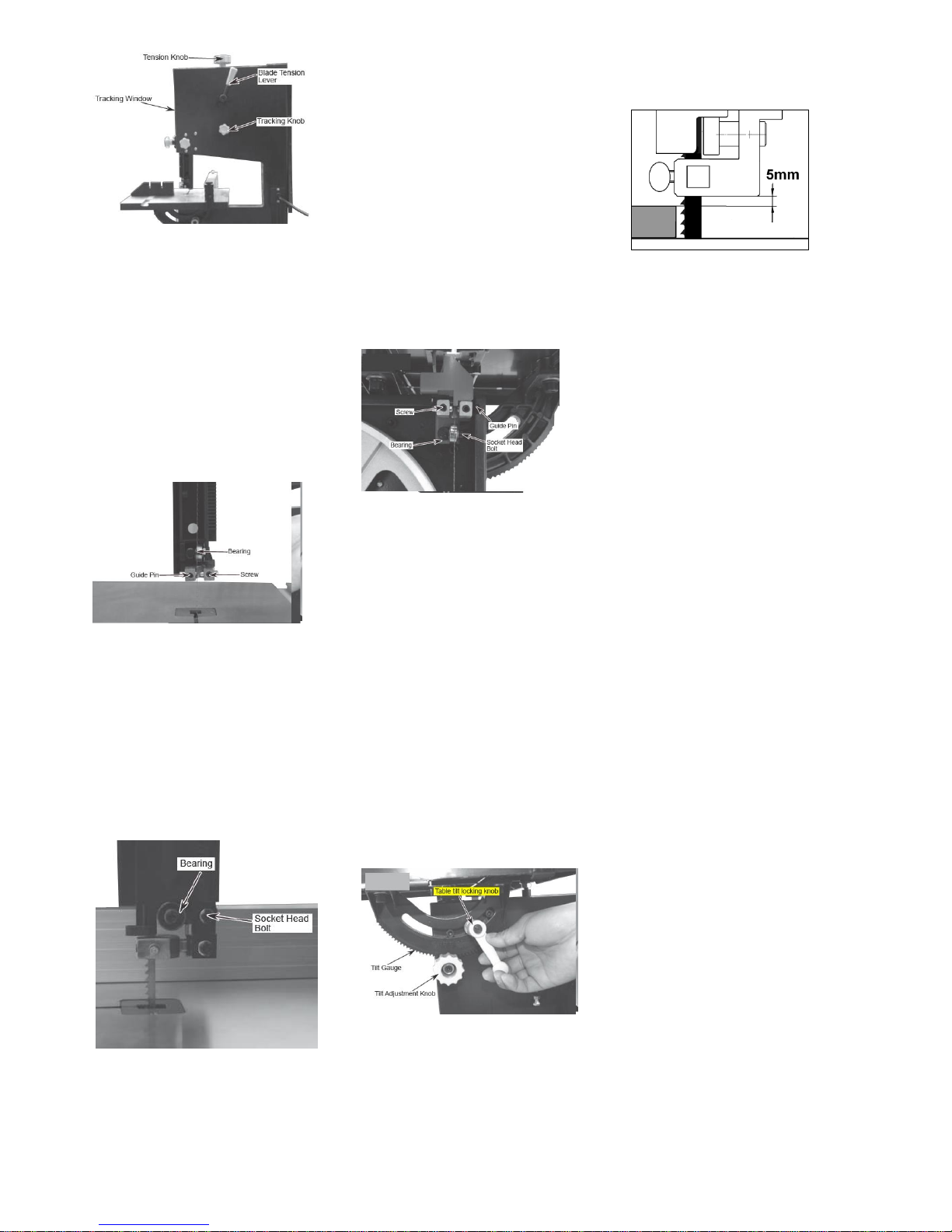

Fig 10
Upper blade guide :
- Upper blade guides employ guide pins
for side support and a ball bearing for rear
support.
- Loosen screws and adjust guide pins to
sides of the blade (see Fig 10 & 11). Use a
feeler gauge to check that guide pins are
0.05mm away from blade.
- Lock adjustment by tightening screw.
- Adjust ball bearing at rear of blade by
loosening socket head bolt and
repositioning shaft (see Fig 12).
Fig 11
- Position ball bearing 0.05mm away from
back of blade.
- Secure position of bearing by tightening
socket head bolt.
- Adjust the height of upper guide to clear
the workpiece by 6mm. Loosen upper
guide knob and adjust height of upper
guide until it clears workpiece by 6mm.
Tighten upper guide knob.
Fig 12
Lower blade guide :
- Lower blade guides employ guide pins
for side support and bearing for rear
support.
- Loosen screws (see Fig 13) and move
guide pins away from blade sides.
- Loosen socket head bolts and adjust
lower guide bracket position so that rear
of blade is positioned 0.05mm away from
bearing.
- Tighten socket head bolts.
- Adjust guide pins to sides of the blade.
Use a feeler gauge to check that guide
pins are 0.05mm away from blade.
- Lock adjustment by tightening screws.
Fig 13
7.5 Mitre gauge setup
Setup adjustments shall never be
performed when the machine is running.
Use a gauge to exactly set up for 90°
Adjust the mitre gauge profile to be close
to the sawblade.
Start the machine with care.
7.6 Tilting of machine table
The table tilts from 0°to 45°to the right.
- Turn the table tilt lock lever
counterclockwise.
- Turn the table tilt adjustment knob until
the pointer is at the desired angle on the
table tilt gauge.
- Tighten the table tilt locking knob in
order to secure the table. ( Fig 14).
Fig 14
Test run:
Turn the wheels by hand and inspect the
adjustments made.
Start the machine with care.
Workpiece setup:
Bring the upper blade guide to a distance
of approx 0,5cm to the workpiece (Fig 15).
Fig 15
For your own safety, always set the saw
guide as close to the workpiece as
possible.
8. Maintenance and inspection
General notes:
Maintenance, cleaning and repair work
may only be carried out after the
machine is protected against accidental
starting by pulling the mains plug.
Repair and maintenance work on the
electrical system may only be carried out
by a qualified electrician.
Clean the machine regularly.
Inspect the proper function of the dust
extraction daily.
All protective and safety devices must be
re-attached immediately after completed
cleaning, repair and maintenance work.
Defective safety devices must be replaced
immediately.
Inspect the correct blade tension
regularly. Take away the blade tension if
the machine is not in use for a longer time
period.
Inspect the blade guide adjustment
regularly.
Check bandsaw blades regularly for faults.
Replace a defective sawblade
immediately.
To clean the Wheels:
The rubber tyre of the wheels must be
cleaned regularly.
To tighten the belt
Unplug the machine from power source.
Table insert:
Replace a worn table insert.
The table insert may not project above
table surface.
The table insert must be made out of
cutable material (e.g. wood, plastic,
aluminium)
The table insert may not project above
table surface.

8
Saw blades:
The servicing of saw blades should only be
performed by a trained person.
Only use sharp and properly set saw
blades.
9. Trouble shooting
Motor doesn’t start
*No electricity-
check mains and fuse.
*Defective switch, motor or cord-
consult an electrician.
Machine vibrates excessively
*Stand on uneven floor-
adjust stand for even support.
*dust on wheel-
clean tires.
*sawblade has cracks-
replace sawblade immediately
Cut is not square
*Table stop setting wrong.
*Blade guide setting is bad
Cutting surfaces is bad
*Wrong sawblade used
*resin collection on sawblade
*sawblade is dull
*Blade guide setting is bad
*Blade tension too low
*workpiece inhomogeneous
*Feed pressure too high-
Do not force the workpiece.
Lamp do not work
* Lamp defect-
Replace the lamp bulb.
10. Environmental protection
Protect the environment.
Your appliance contains valuable
materials which can be recovered or
recycled. Please leave it at a specialized
institution.
11. Available accessories
Refer to the JET-Pricelist
for various saw blades.
12. Safe operation
See appendix A (on the last pages of this
operating manual)
A.1: Performing high cuts
A.2.: Performing diagonal cuts
A.3.: Tenon cutting
A.4.: Cutting of wedges
A.5.: Curved cuts
A.6.: Arc cuts
A.7.: Cutting with template
A.8.: Circular cutting
A8.1 Set up without workpiece
A8.2 Placing the workpiece
A8.3 Machining
A1

9
A2
A3
A4
A5

10
A6
A7

11
A8.1
A8.2
A8.3
